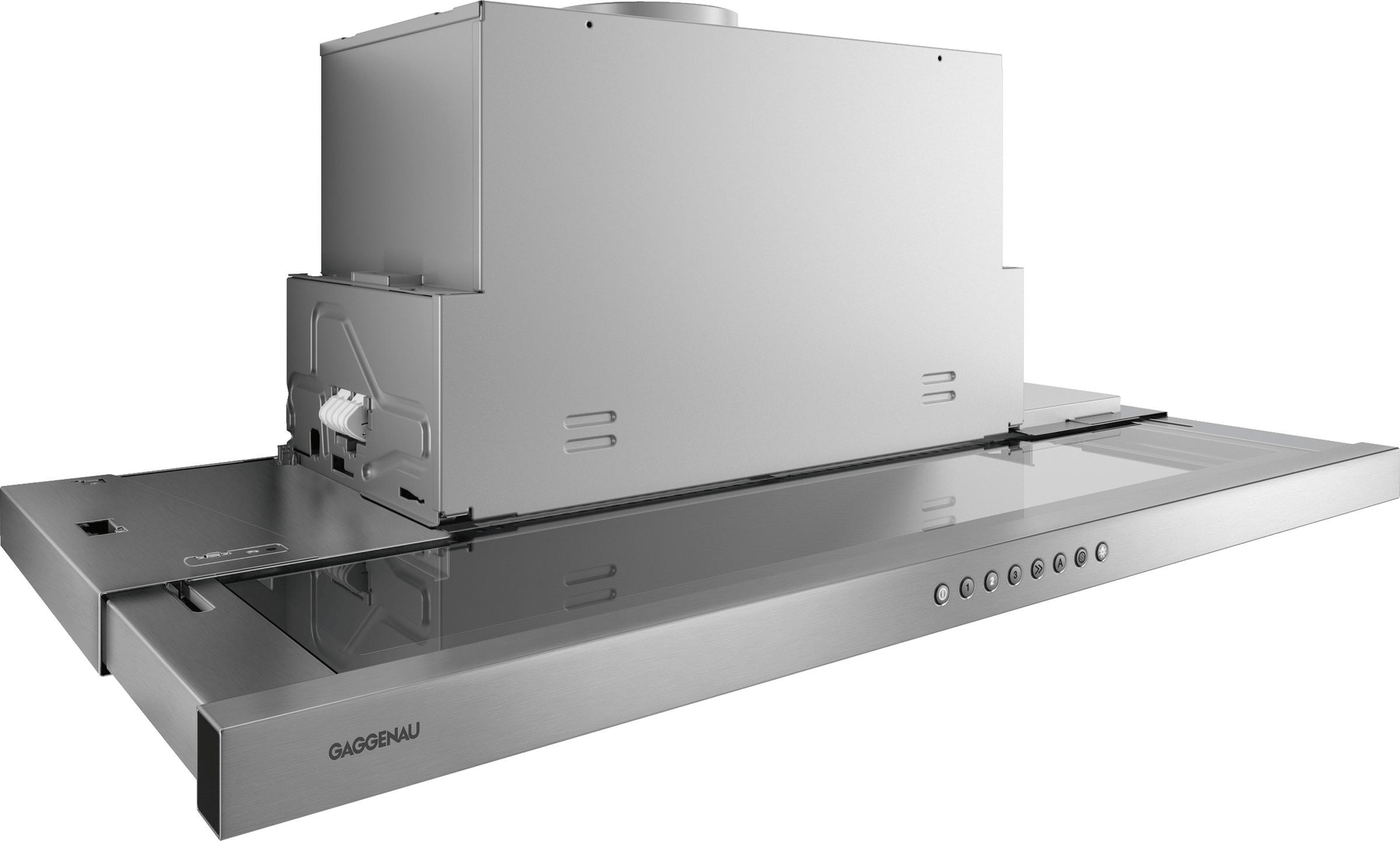

Gaggenau AF210791 200 Series Visor Hood 36'' Stainless Steel
Request a Consultation or Quote
Reach out for a personalized quote or consultation. Our team will get back to you quickly with tailored advice and pricing.
Call us to learn about discounts on display models and Grade A open boxes!
Why Isn't Pricing Shown?
Pricing for these premium products isn't displayed online due to industry policies that require a personalized approach. To ensure you receive the most accurate information and best service, we offer customized quotes and consultations.
For detailed pricing and advice, please contact us directly or visit our showroom. We're here to assist you in making the best choice for your home.
Gaggenau AF210791
Overview & Specifications
Overview & Specifications
Output
Air extraction:
622 / 875m /h.
64 / 71dB (A) re 1 pW.
51 / 58 dB (A) re 20 Pa.
Odour reduction air recirculation 94 %.
Features
Controls at front.
3 electronically controlled power levels and 1 intensive mode.
Grease filter saturation indicator.
Stainless steel grease filter, dishwasher-safe.
Neutral white LED light (3600 K), continuously dimmable.
Illuminance 441 lx.
Light can be switched on separately.
Integrated sound insulation for quiet operation.
The fan is activated when the steam screen is extended.
Patented technology for extension of the steam screen.
Extendable steam screen up to 7 13/16.
Airflow-optimised interior for efficient air circulation and ease of cleaning.
Patented easy mounting system for simple installation.
The package includes an one-way flap.
Planning notes
Patented air recirculation module with activated charcoal filter can be installed in the upper cabinet. The activated carbon filter can be changed from the front by simply pulling out the activated charcoal filter.
The door of the upper cabinet must be fully open in order to change the activated charcoal filter.
To be installed in an upper cabinet without base.
The required cavity depth of the upper cabinet together with the lowering frame measures 13 3/16" (335mm).
The required cavity height of the upper cabinet together with the lowering frame measures 23 5/8.
Clearance above gas appliances min. 65 cm(more than total load gas 12 kW min. 70 cm).
Clearance above electric appliances min. 28".
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
Rating
Total rating: 430 W.
Total amps: 10 A.
120 V / 60 Hz.
Connecting cable 35.4" with plug.
