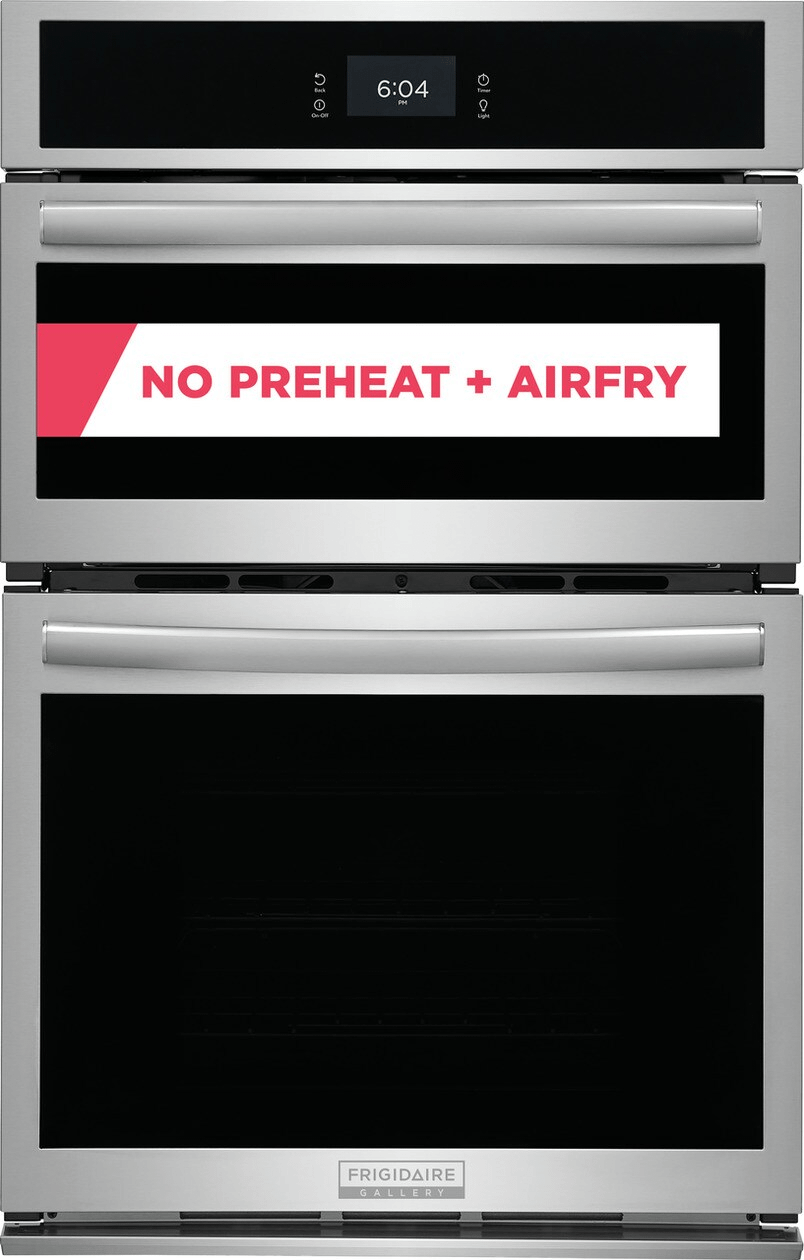

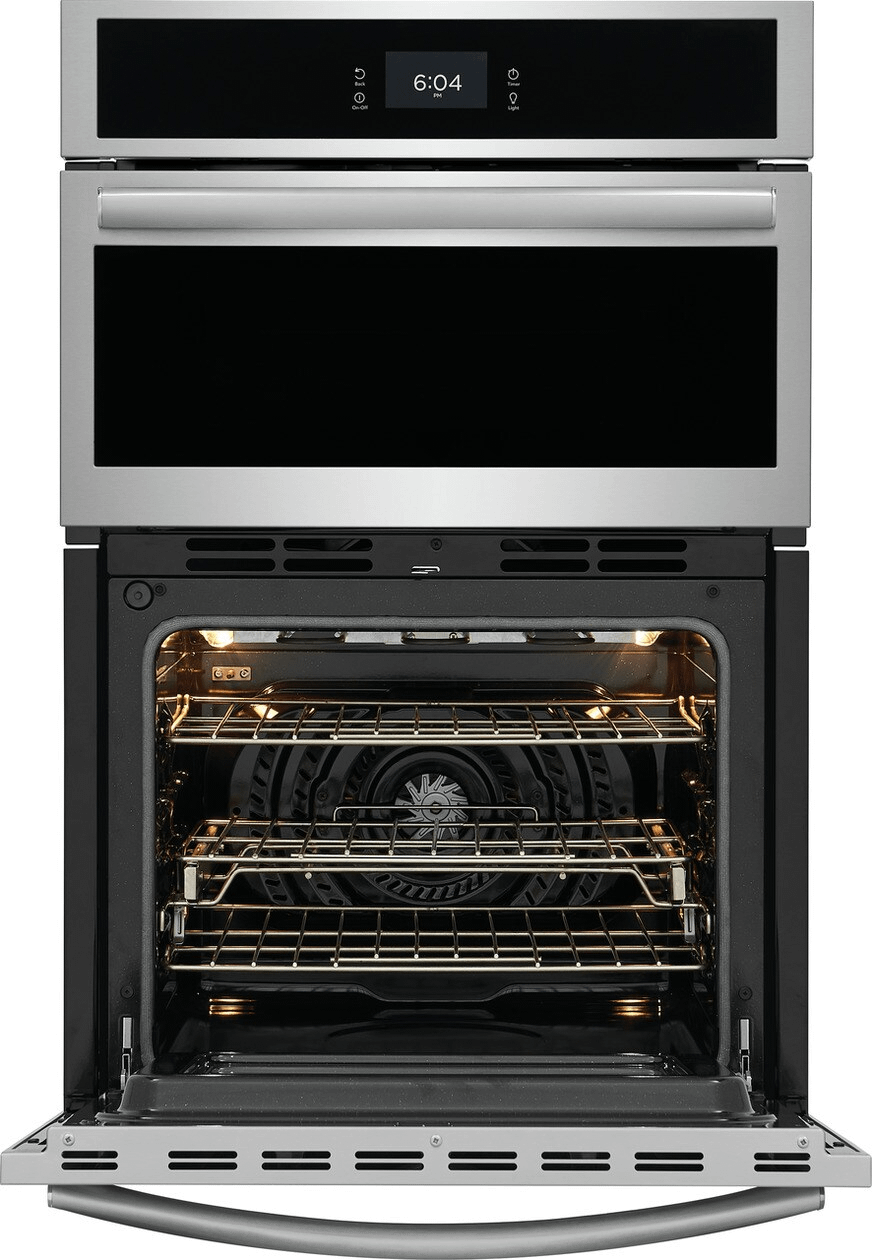

The Frigidaire Gallery 27" Microwave Combination Oven with Total Convection, features our most powerful and advanced convection system that enables cooking modes like No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Air Sous Vide, Convection Roast, Convection Bake, Bread Proof and more! Plus enjoy the convenience of convection cooking right in your microwave.
- Total Convection System
- Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide, Bread Proof, Dehydrate and more!
- No Preheat
- Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time. * No Preheat is best used for single-rack baking of frozen or pre-made items and food that needs to cook for longer than 10 minutes.
- Air Fry
- Make healthier and delicious meals for your entire family - right in your oven.
- Slow Cook
- Your food cooks slowly and at a lower temperature (as low as 100(degree) F), allowing you to lock in moisture and flavor without over or undercooking your food.
- Steam Bake
- With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
- Temperature Probe
- Monitors and alerts when the desired finished cooking temperature has been reached.
- Frigidaire(R) Fit Promise
- We promise that your new 27" Frigidaire(R) Gallery Microwave Combination Oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. * Up to three hundred dollars via mail-in rebate. See https://www.frigidairefitpromise.com for additional information.
- Convection Cooking
- Get the great tasting results of the conventional convection oven, combined with the speed of microwave technology with our convection bake.
- Self and Steam Clean Cycles
- Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
- Steam Roast
- Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.

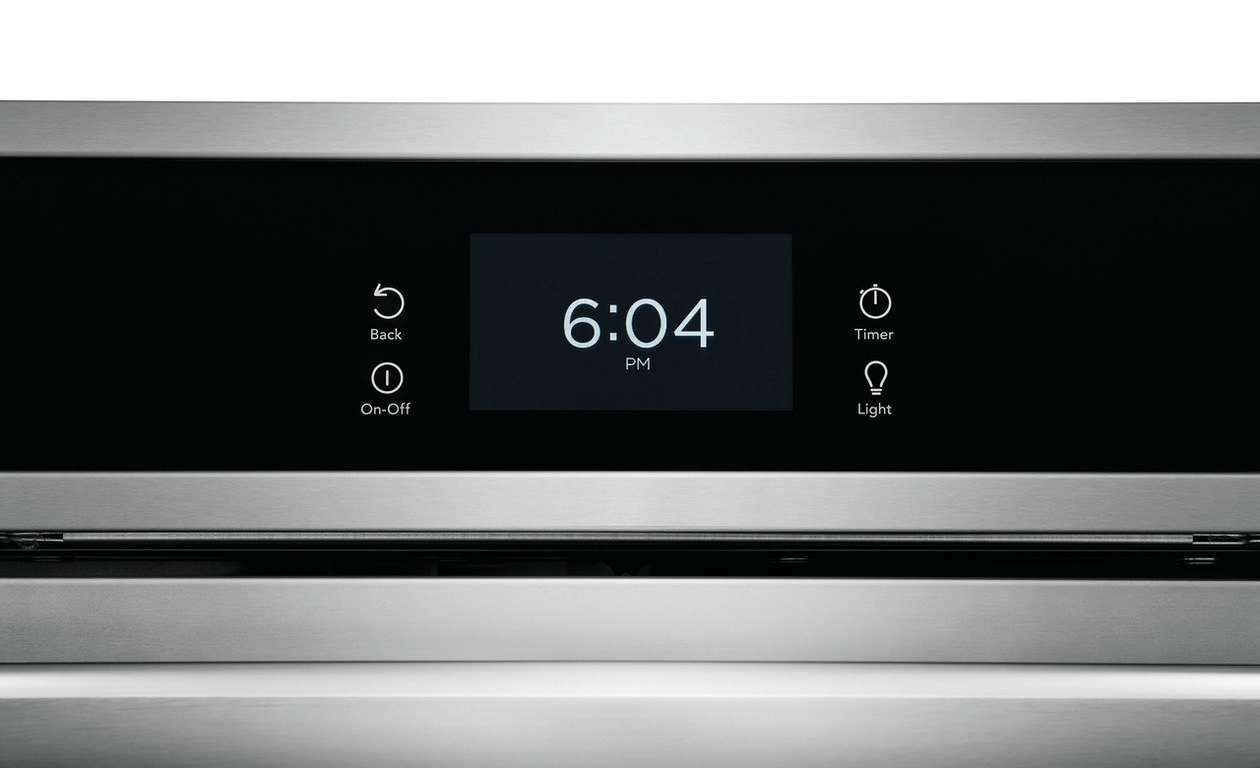

- Premium Touch Screen Control Panel
- Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
- Smudge-Proof(R) Stainless Steel
- Resists fingerprints and cleans easily.
Product Line | Microwave Combination Wall Oven |
Power Type | Electric 240v |
Size | 27" |
Installation Type | Built-In |
Factory | Springfield |
Color | Stainless Steel |
Cooking Controls | |
Air Fry | Yes |
Air Sous Vide | Yes |
Bake | Yes |
Bake Time | Yes |
Bread Proof | Yes |
Broil | Yes |
Cancel | Yes |
Clear Off | Yes |
Clock | Yes |
Convection Bake | Yes |
Convection Roast | Yes |
Cook Time | Yes |
Defrost | Yes |
Dehydrate | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Door Lock | Yes |
Fast Preheat | No |
Keep Warm | Yes |
Kitchen Timer | Yes |
Light | Yes |
My Favorite | Yes |
No Preheat | Yes |
Off | Yes |
Oven Light | Yes |
Perfect Turkey | Yes |
Preheat | Yes |
Probe | Yes |
Self Clean | Yes |
Set Clock | Yes |
Slow Cook | Yes |
Start | Yes |
Start Time | Yes |
Steam Bake | Yes |
Steam Clean | Yes |
Steam Roast | Yes |
Stop | Yes |
Temperature Display | Yes |
Timed Bake | Yes |
Timer On / Off | Yes |
User Preferences | Yes |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Oven | |
Bake Element | 2500 Watts |
Bake Element Pass | 8 |
Bake Element Type | Hidden |
Broil Element | 4000 Watts |
Broil Element Pass | 6 |
Cleaning System | Yes |
Convection | Yes |
Convection Element | 2500 Watts |
Convection Type | Total |
Number of Convection Fans | 1 |
Number of Rack Positions | 5 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 2 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Handle |
Rack Type 1 Quantity | 2 |

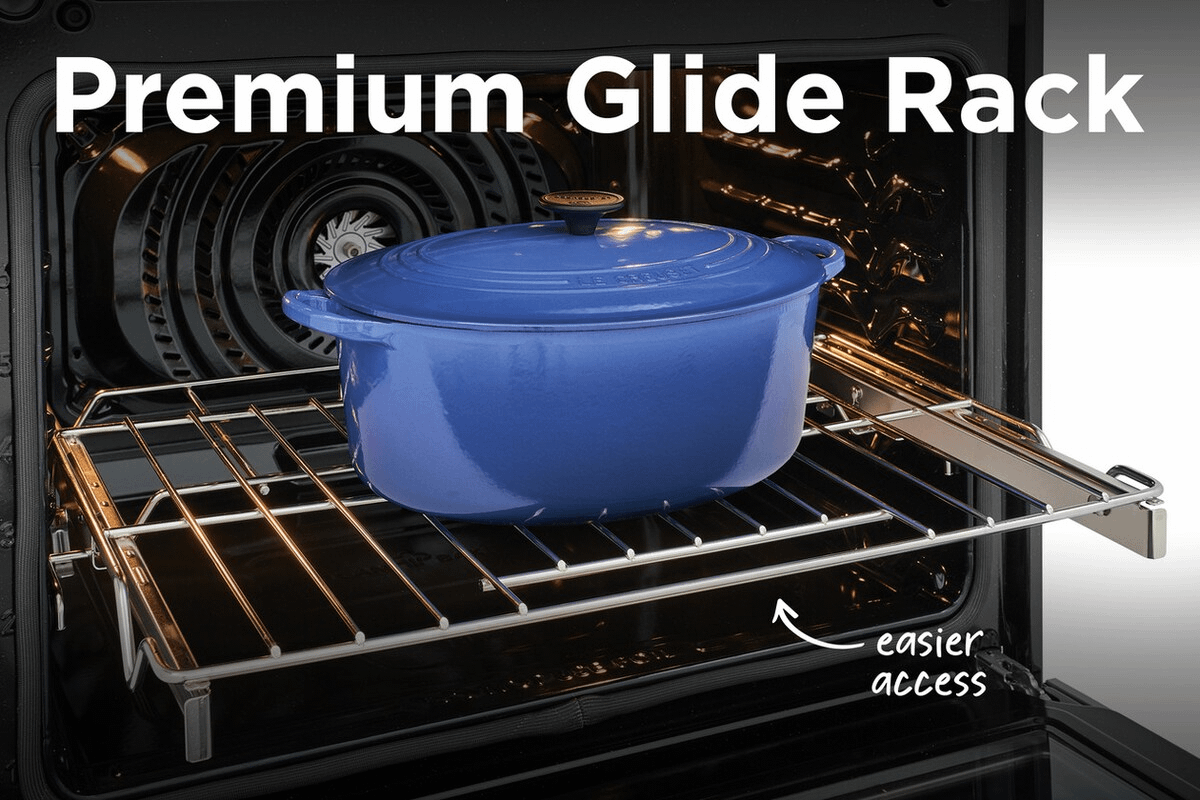

Rack Type 2 | Glide |
Rack Type 2 Quantity | 1 |
Microwave Cooking | |
Microwave Cooking Power | 1000 Watts |
Bacon | Yes |
Beverage | Yes |
Defrost | Yes |
Melt / Soften | Yes |
Popcorn | Yes |
Potato | Yes |
Reheat | Yes |
Rice | Yes |
Top Grill Mode | Yes |
Veggies | Yes |
Convection Cooking | |
Convection Cooking - Bake | Yes |
Convection Element | 1650 Watts |
Controls | |
Control Lock | Yes |
Sabbath Mode | Yes |
Microwave Control Features | |
+ 30 Seconds | Yes - One Touch |
Display | |
Display Interface Color | White |
Display Light Color | White |
Display Type | Capacitive Touch |
Exterior | |
Door Swing | Drop-Down Door |
Exterior Finish | Smudge-Proof® Stainless Steel |
Internal Specifications | |
Interior Color | Midnight Black |
Interior Light Quantity | 1 |
Interior Light Type | Halogen |
Interior Light Wattage | 40 Watts |
Rack | Yes |
Ramp Up Lighting | No |
Turntable Diameter | 14" |
Turntable Material | Glass |
Dimensions and Volume | |

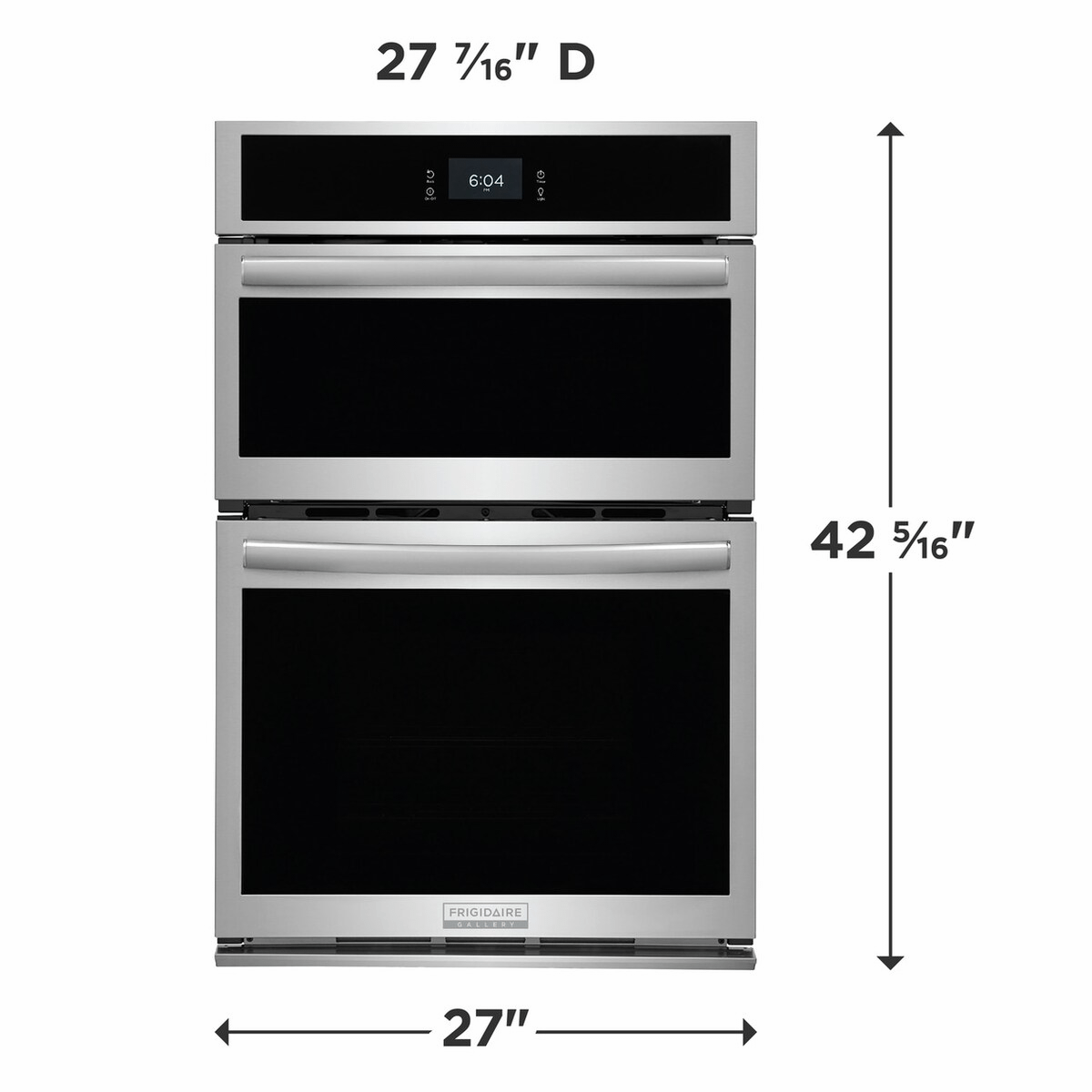

Height | 42 5/16" |
Width | 27" |
Depth | 24 5/8" |
Depth With Door 90° Open | 45 3/4" |
Depth With Handle | 27 7/16" |
Cutout Depth | 24" |
Oven Interior Height | 17" |
Oven Interior Width | 20 1/2" |
Oven Interior Depth | 18 3/4" |
Microwave Interior Height | 17" |
Microwave Interior Width | 20 1/2" |
Microwave Interior Depth | 18 3/4" |
Minimum Cutout Height | 39 7/8" |
Minimum Cutout Width | 24 7/8" |
Maximum Cutout Height | 41 1/2" |
Maximum Cutout Width | 25 1/2" |
Microwave Capacity | 1.7 Cu. Ft. |
Oven Capacity | 3.8 Cu. Ft. |
Electrical Specifications | |
Amps @ 240 Volts | 40 Amps |
Connected Load @ 240V | 7.4 kW |
Minimum Circuit Required | 40 Amps |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 220 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Installation | |

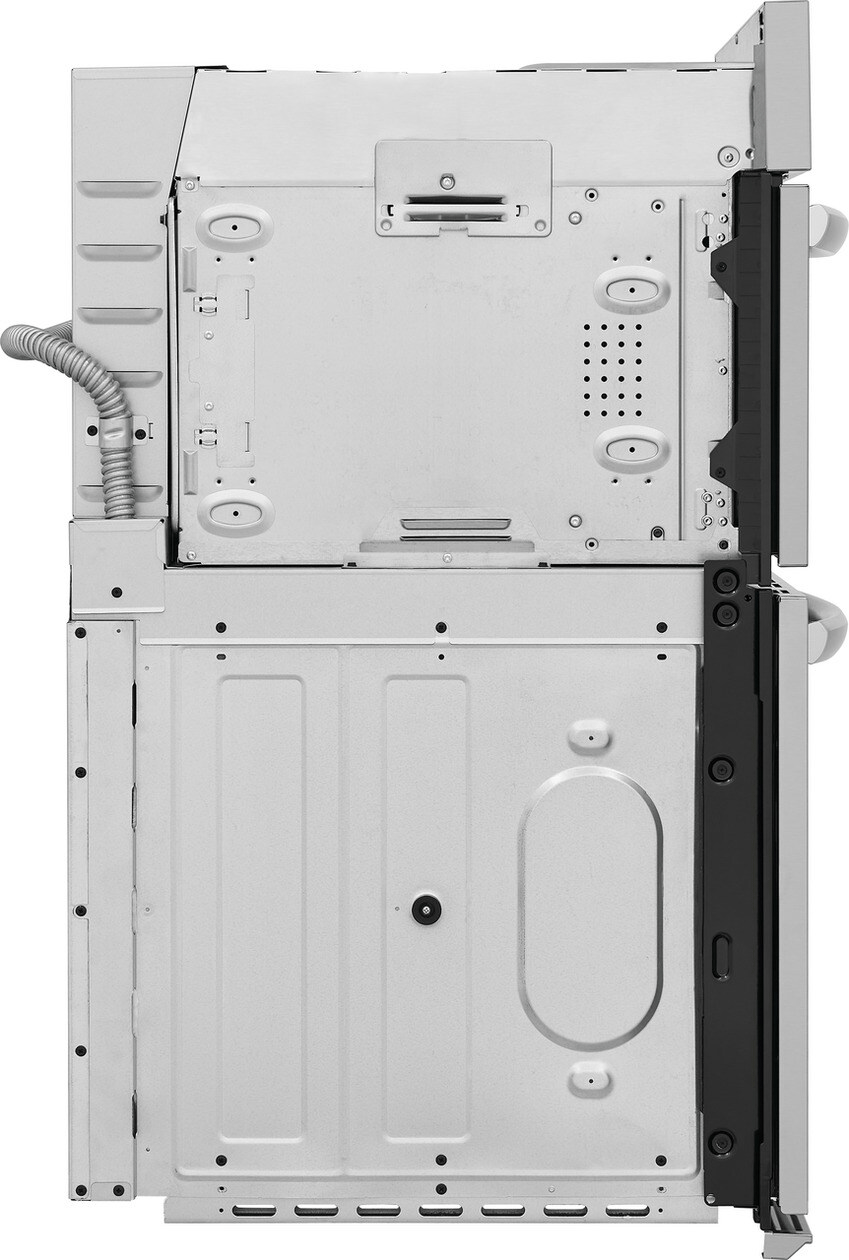

Power Supply Connection Location | Top Left |
Safety Certifications and Approvals | |
CSA Listed | Yes |
Star-K Certification | Yes |
UL Listed | Yes |
Accessories | |
Included Steam Tray | Yes |
Optional Air Fry Tray Part Number | AFT27FRIG |
Optional Trim Kit Part Number | WO27TRM3SS (Stainless) , WO27TRM3DS (Black Stainless) |
