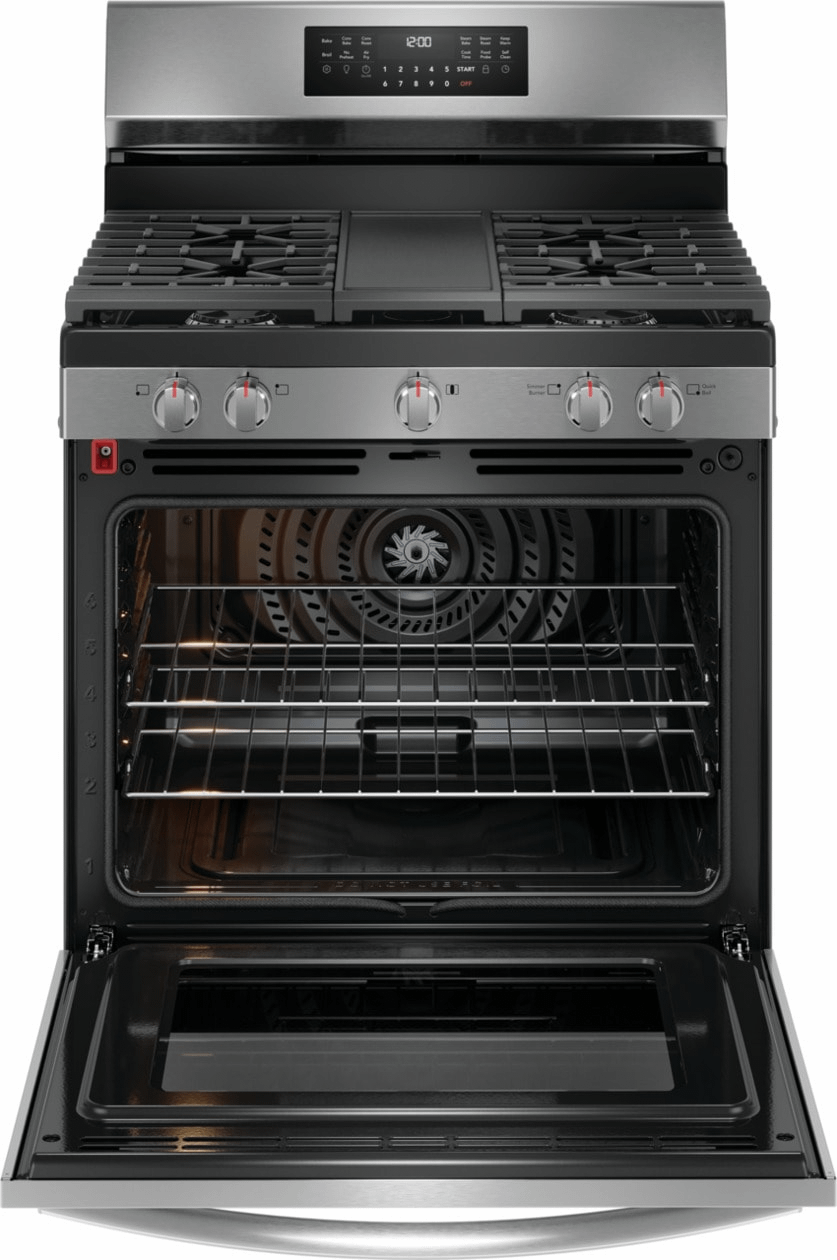

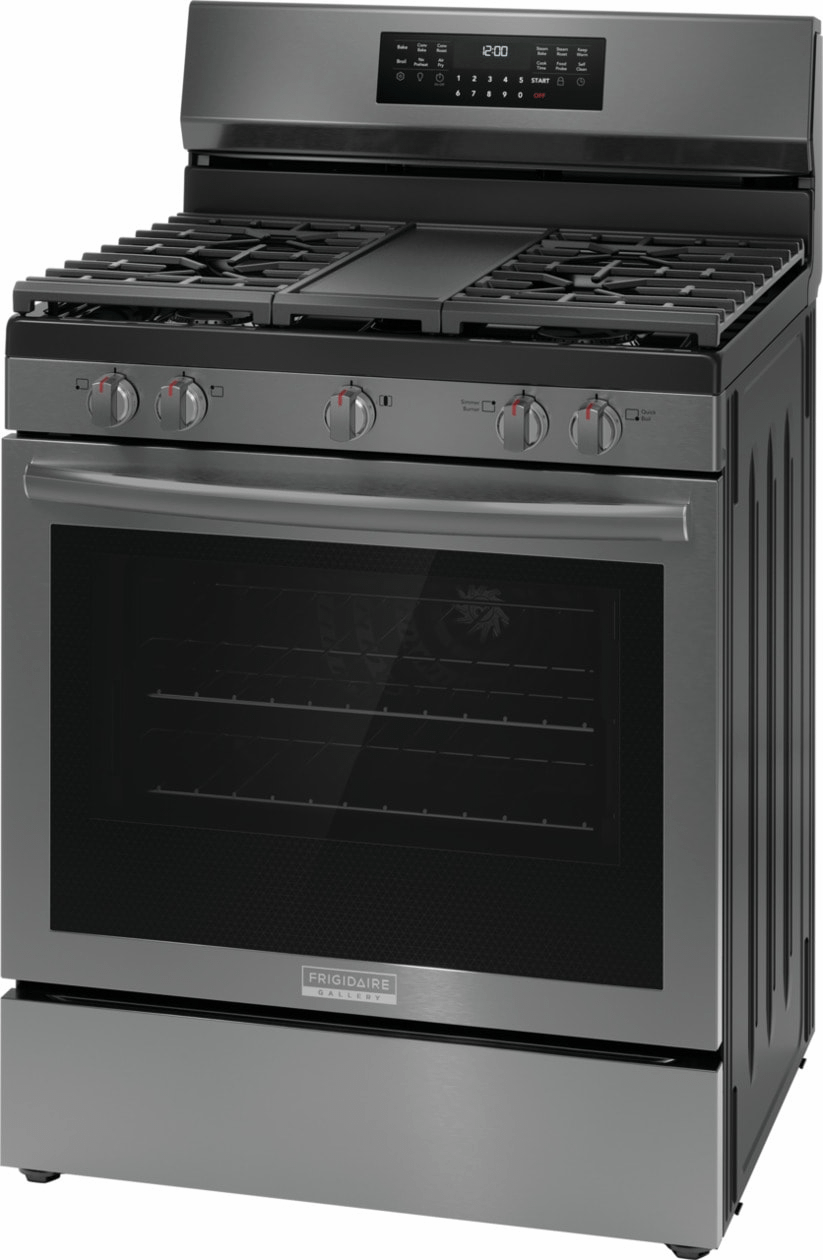

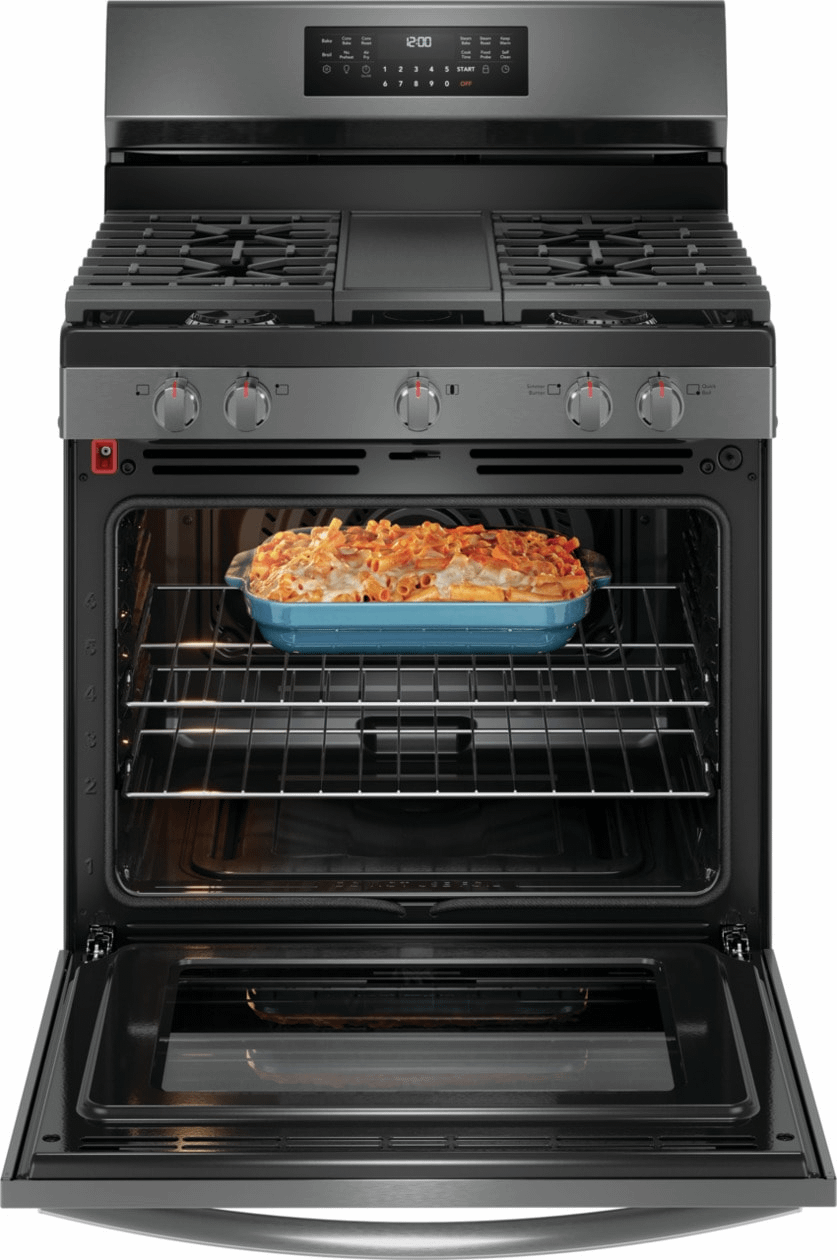

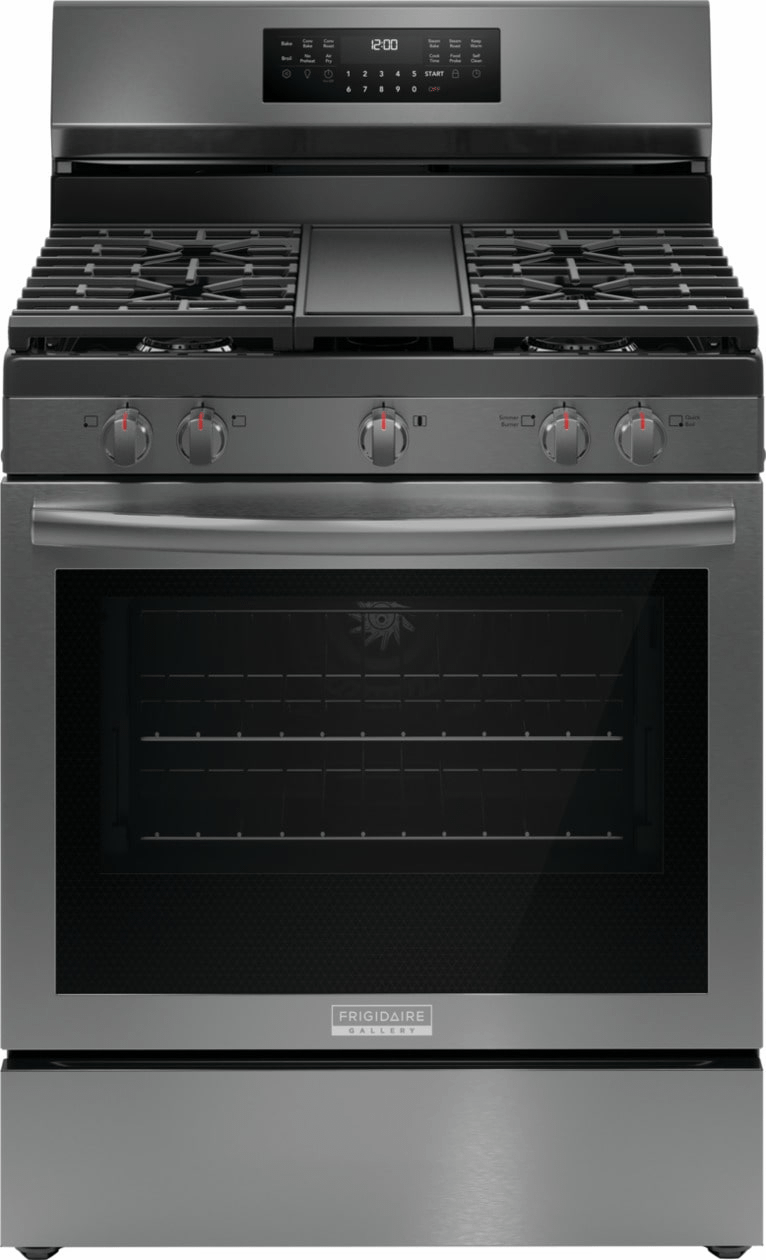

The Frigidaire Gallery 30" Rear Control Gas Range features our most powerful and advanced convection system, Total Convection, enabling so many cooking modes like No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Air Sous Vide, Convection Roast, Convection Bake and more! The flexible five burner cooktop includes a powerful 18,000 BTU Quick Boil Burner and a center oval burner with an integrated cast iron griddle. Also includes our fingerprint resistant, Smudge-Proof® Stainless Steel finish.
- Total Convection System
- Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide and more!

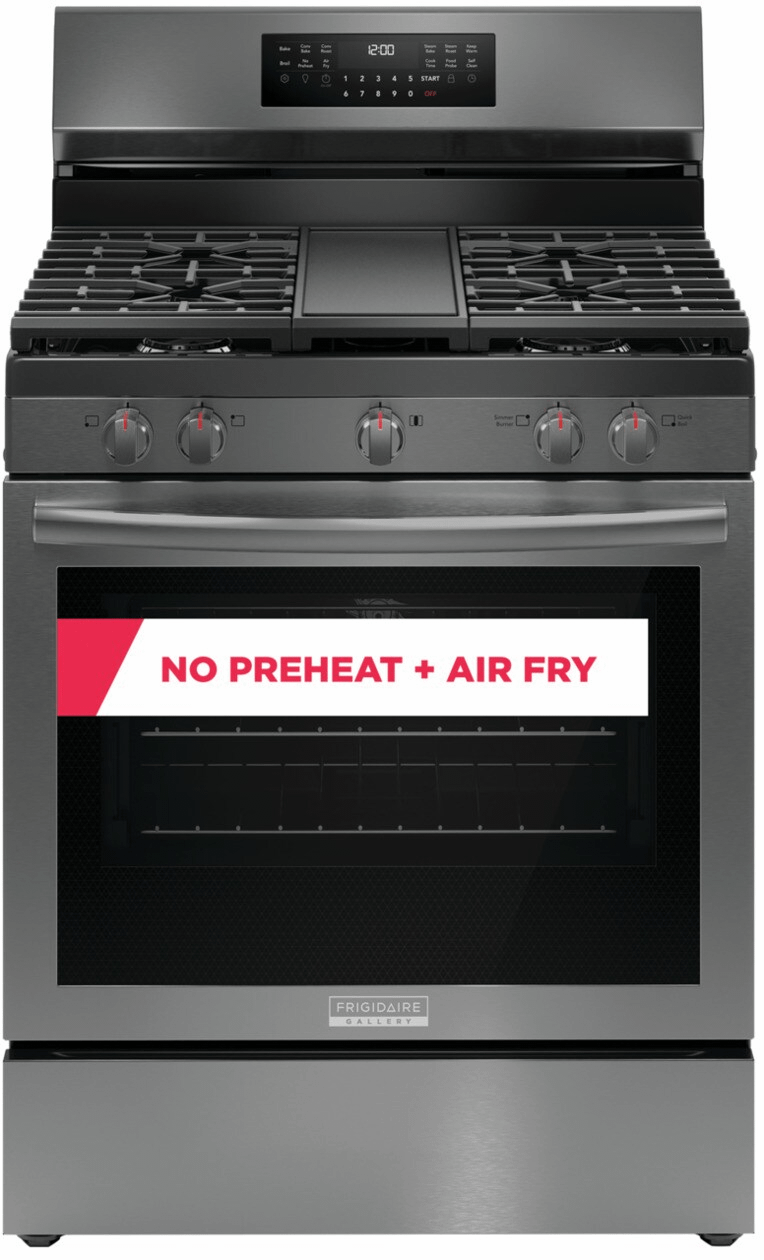

- No Preheat
- Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time. * No Preheat is best used for single-rack baking of frozen or pre-made items and food that needs to cook for longer than 10 minutes.
- Air Fry
- Make healthier and delicious meals for your entire family - right in your oven.

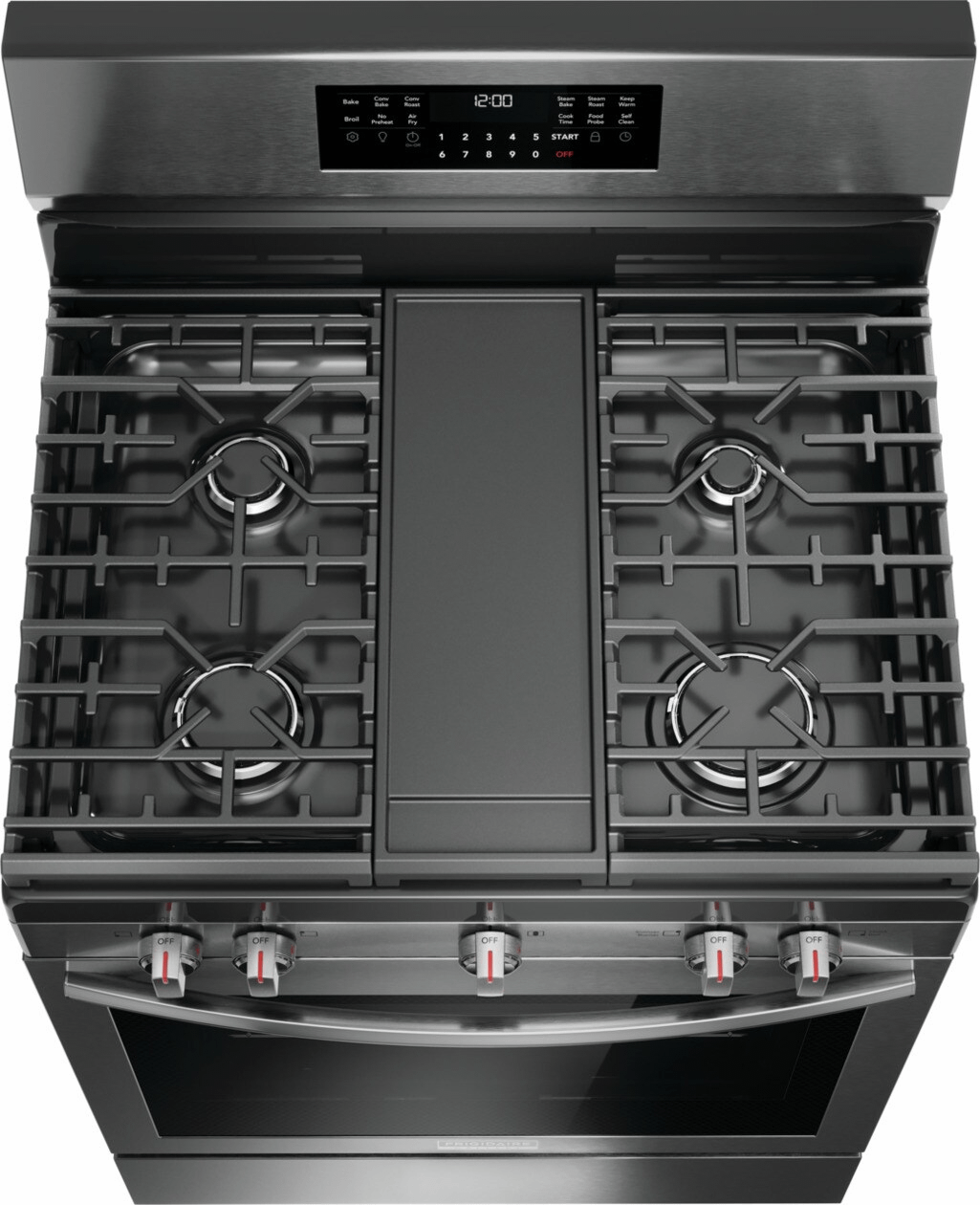

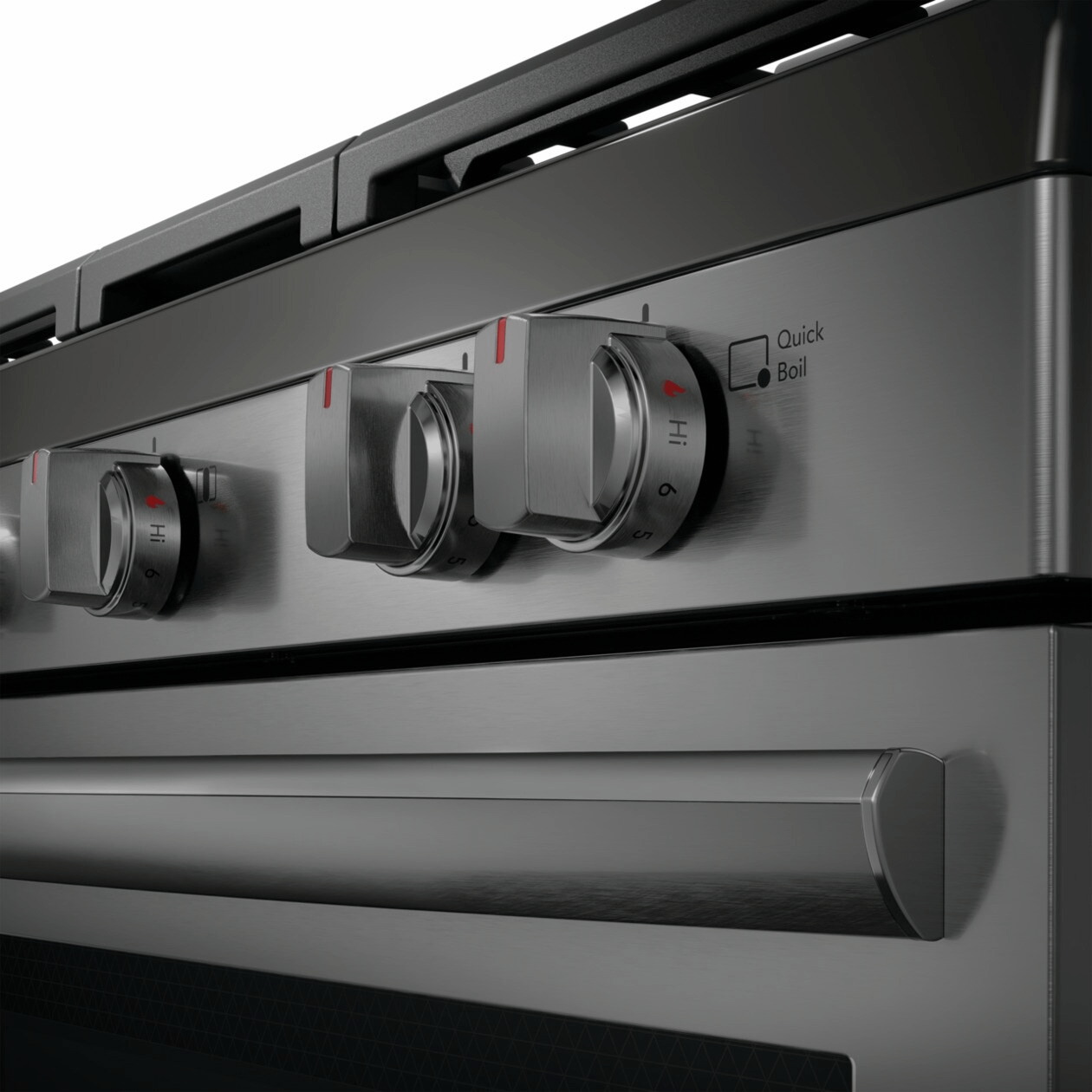

- Five Burner Cooktop + Integrated Griddle
- Designed to meet all of your cooking needs with a powerful 18,000 BTU Quick Boil Burner and a center oval burner with an integrated cast iron griddle.
- Slow Cook
- With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100(degree) F), allowing you to lock in moisture and flavor without over or undercooking your food.
- Temperature Probe
- Monitors and alerts when the desired finished cooking temperature has been reached.
- Steam Bake
- With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
- Self and Steam Clean Cycles
- Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
- Steam Roast
- Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.
- Extra Wide Store-More(TM) Storage Drawer
- Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
- Air Sous Vide
- Uses precisely-controlled temperature and airflow to lock in flavor and moisture to cook foods to the finish temperature you want.
- Smudge-Proof(R) Black Stainless Steel
- Resists fingerprints and cleans easily.
- Proudly Assembled in the USA
Product Line | Gas Range |
Power Type | NG |
Size | 30" |
Installation Type | Free-Standing |
Factory | Springfield |
Color | Black Stainless Steel |
Cooktop | |
Cooking Surface Type | Gas |
Grate Material | Cast Iron |
Grate Quantity | 2 |
Grate Style | Individual |
Integrated Griddle Included | Yes |
Optional Center Grate | 5304535284 |
Sealed Burners | Yes |
Cooktop Performance | |
Right Front Element Burner | 18000 BTU |
Right Rear Element Burner | 5000 BTU |
Left Front Element Burner | 14000 BTU |
Left Rear Element Burner | 10000 BTU |
Center Rear Element Burner | 10000 BTU |

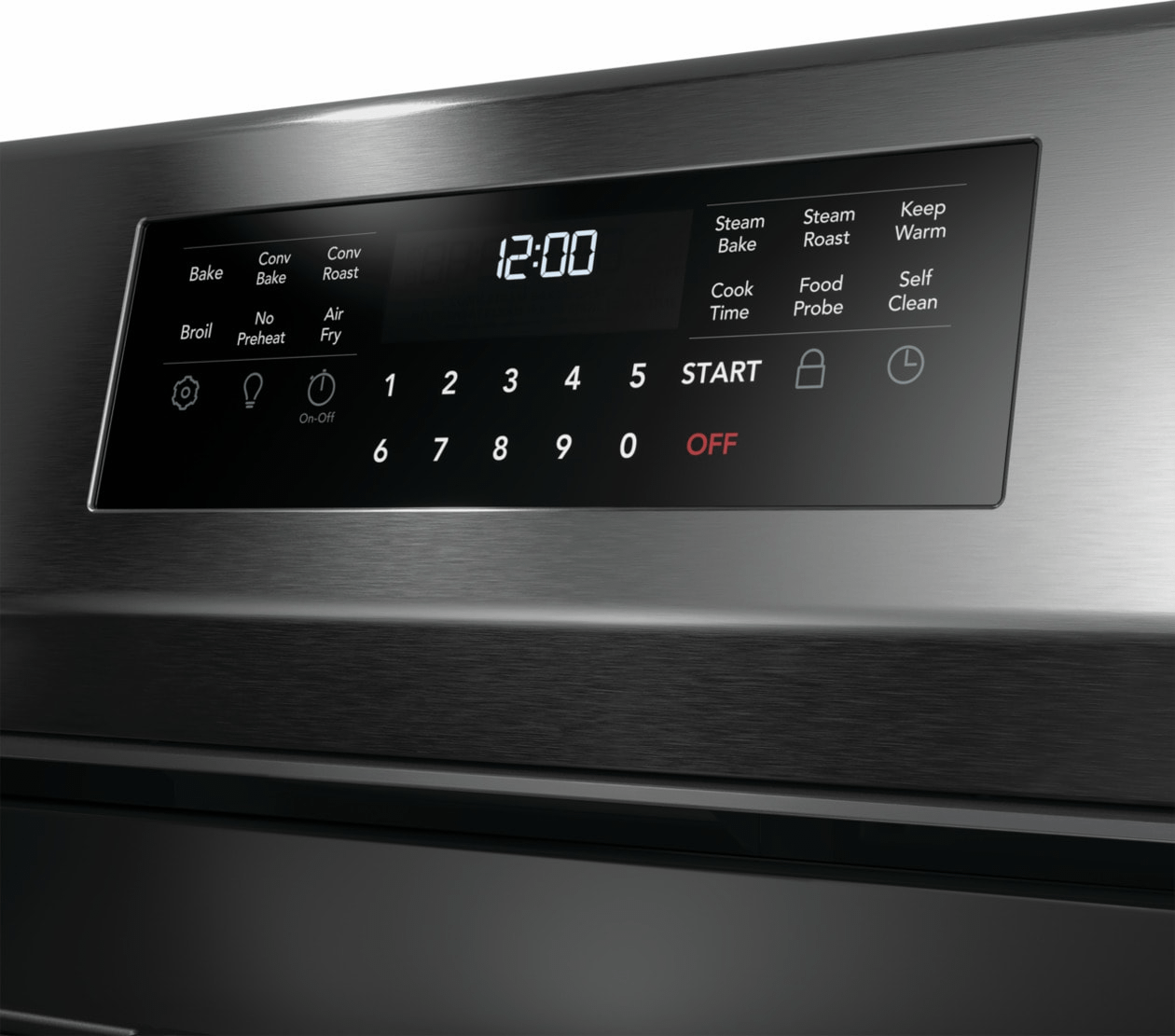

Cooking Controls | |
Air Fry | Yes |
Air Sous Vide | Yes |
Bake | Yes |
Bake Time | Yes |
Broil | Yes |
Clock | Yes |
Convection Bake | Yes |
Convection Roast | Yes |
Cook Time | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Door Lock | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Light | Yes |
Lockout | Yes |
No Preheat | Yes |
Numerical Keypad | Yes |
Off | Yes |
Oven Light | Yes |
Probe | Yes |
Self Clean | Yes |
Set Clock | Yes |
Slow Cook | Yes |
Start | Yes |
Steam Bake | Yes |
Steam Clean | Yes |
Steam Roast | Yes |
Temperature Display | Yes |
Timer On / Off | Yes |
User Preferences | Yes |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Oven | |
Bake Element | 18000 BTU |
Broil Element | 1400 Watts |
Broil Element Pass | 6 |
Broil System | Yes |
Cleaning System | Yes |
Convection | Yes |
Convection Element | 1000 Watts |
Convection Type | Total |
Number of Convection Fans | 1 |
Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Drawer | |
Drawer Handle Style | Integrated |
Drawer Type | Storage |
Controls | |
Control Lock | Yes |
Sabbath Mode | Yes |
Display | |
Control Location | Rear |
Display Interface Color | White |
Exterior | |
Exterior Finish | Smudge-Proof® Black Stainless Steel |
Dimensions and Volume | |

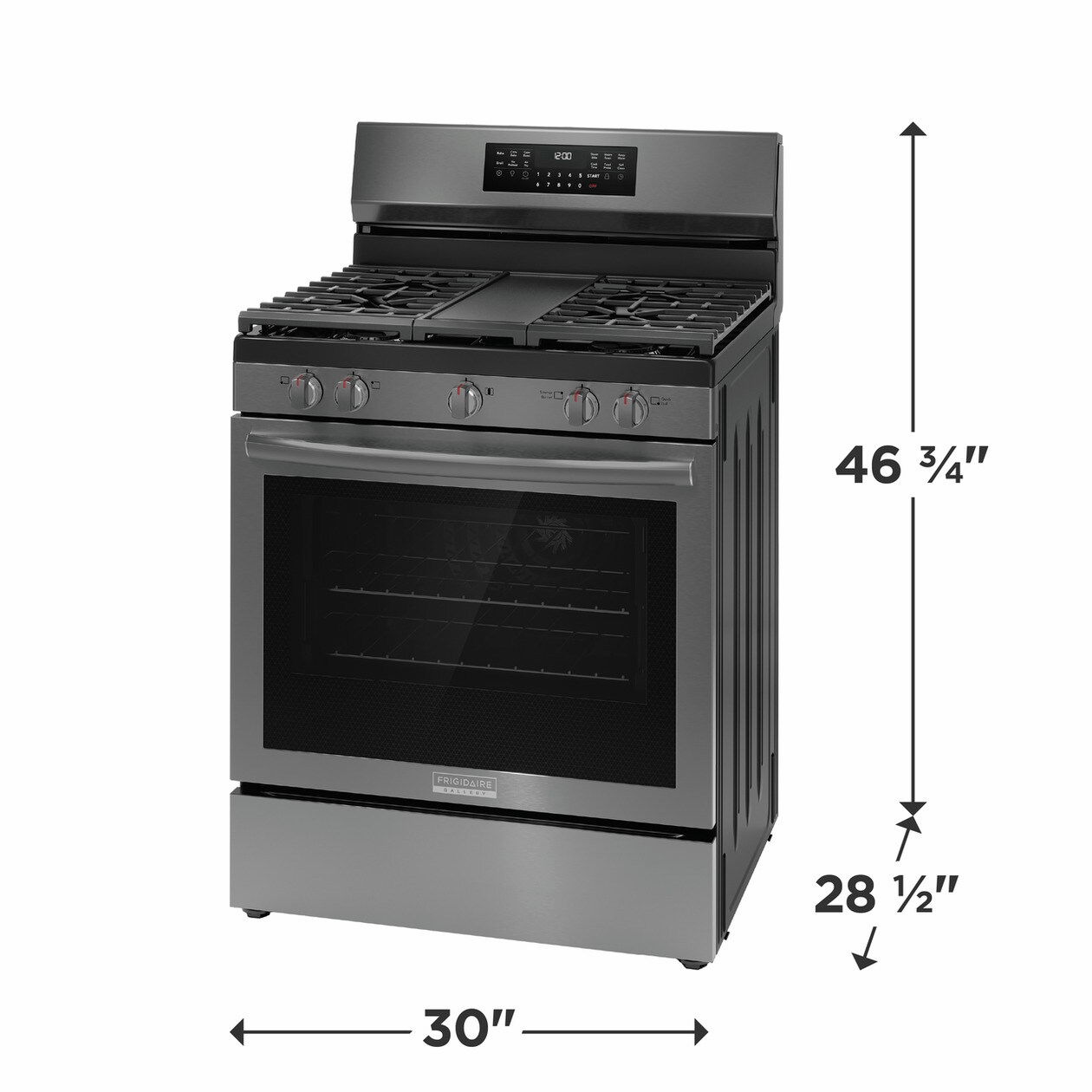

Minimum Height | 46 3/4" |
Maximum Height | 47 3/4" |
Width | 30" |
Depth | 26" |
Depth With Door 90° Open | 47 5/16" |
Depth With Handle | 28 1/2" |
Oven Interior Height | 17 5/8" |
Oven Interior Width | 25 3/16" |
Oven Interior Depth | 19 7/8" |
Oven Capacity | 5.1 Cu. Ft. |
Electrical Specifications | |
Minimum Circuit Required | 12 Amps |
Voltage Rating | 120 V |
Installation | |
Adjustable Leveling Legs | Yes |
Power Cord Included | Yes |
General Specifications | |
Product Weight | 190 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Safety Certifications and Approvals | |
CSA Listed | Yes |
