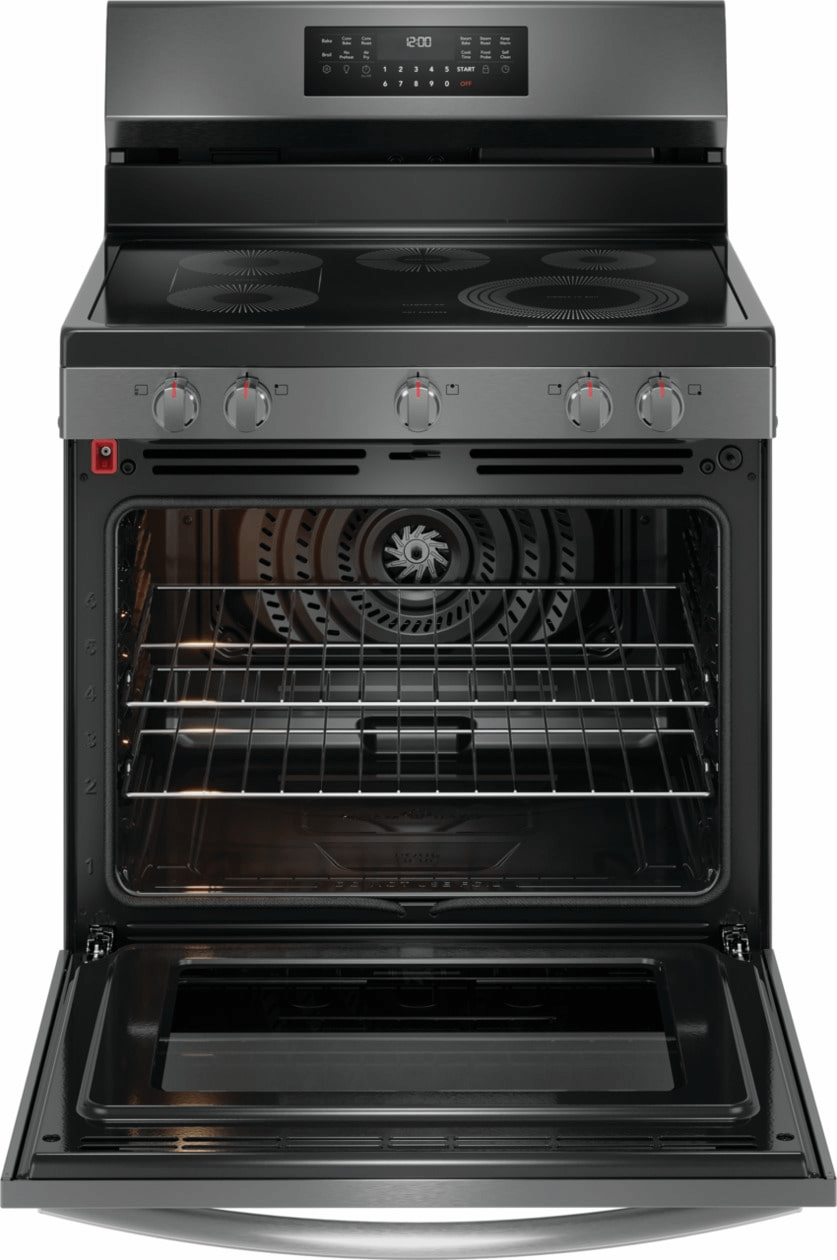

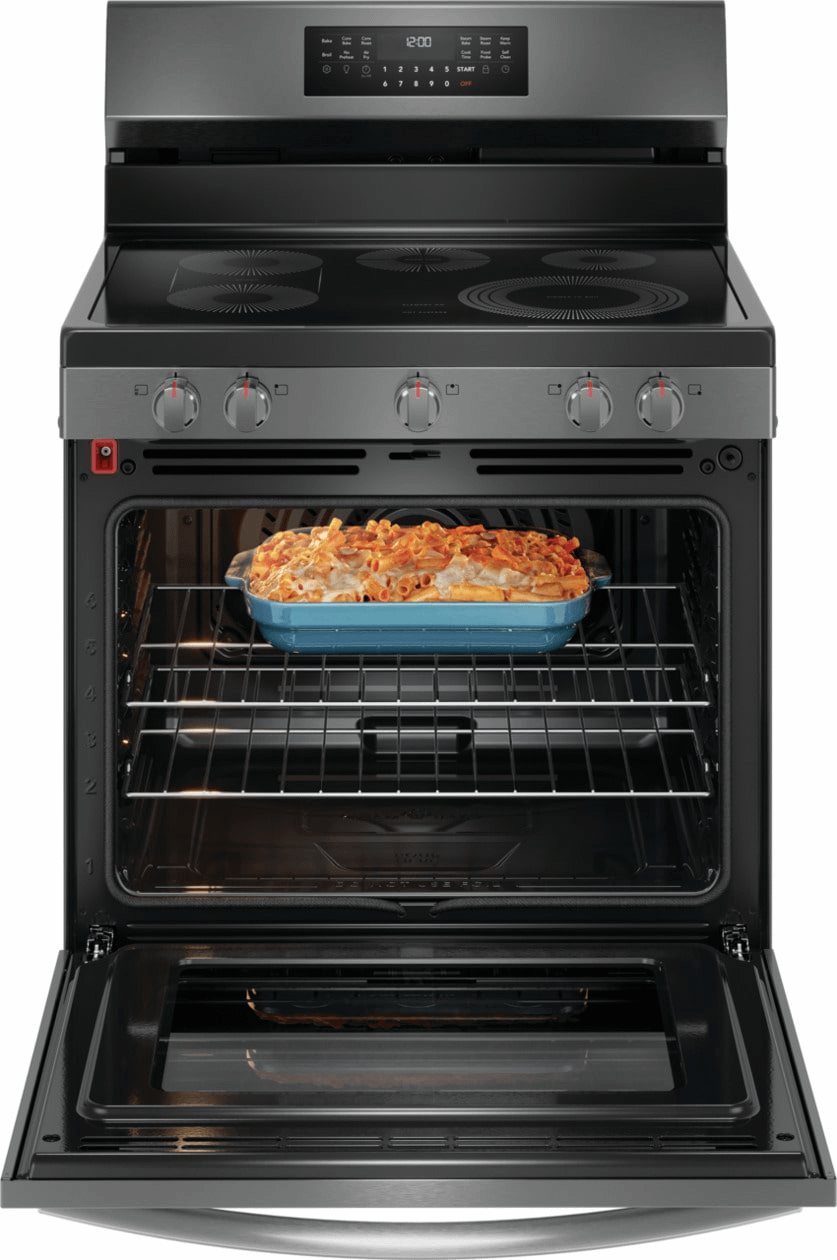

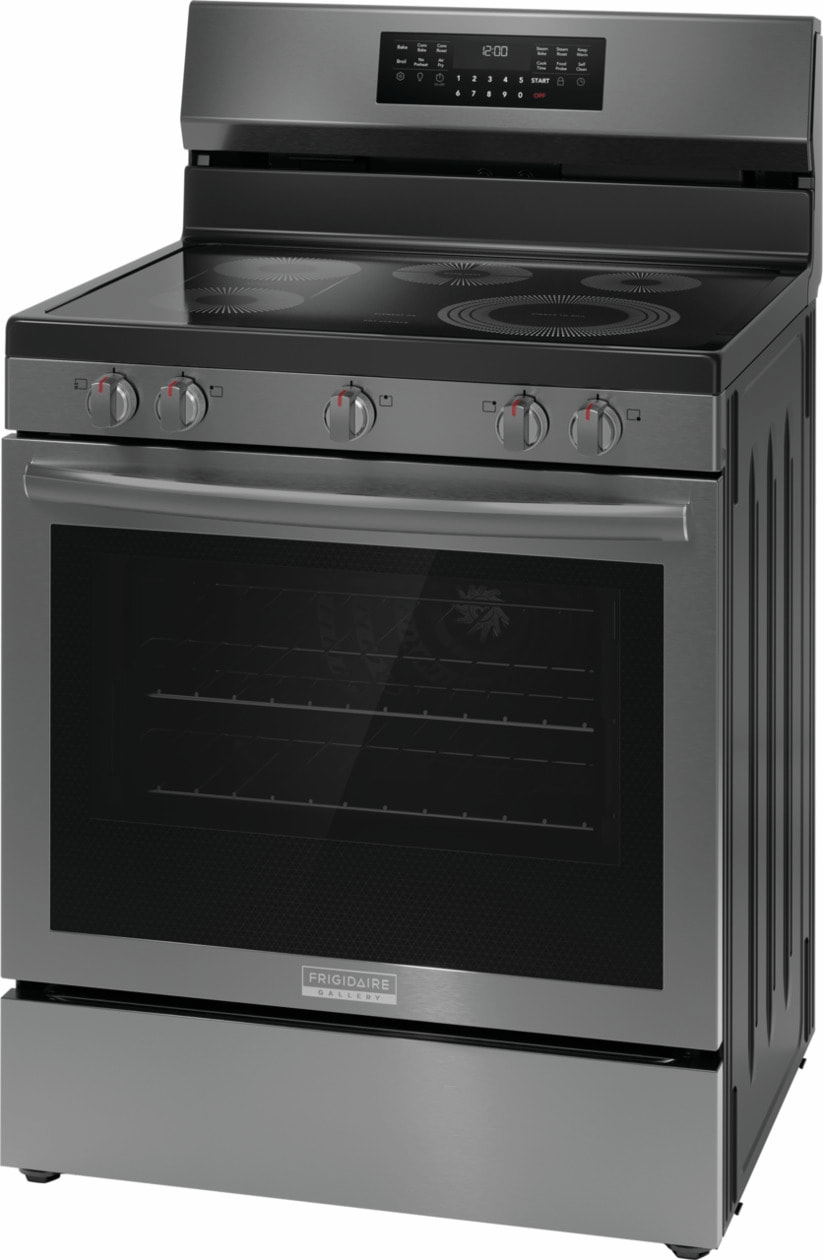

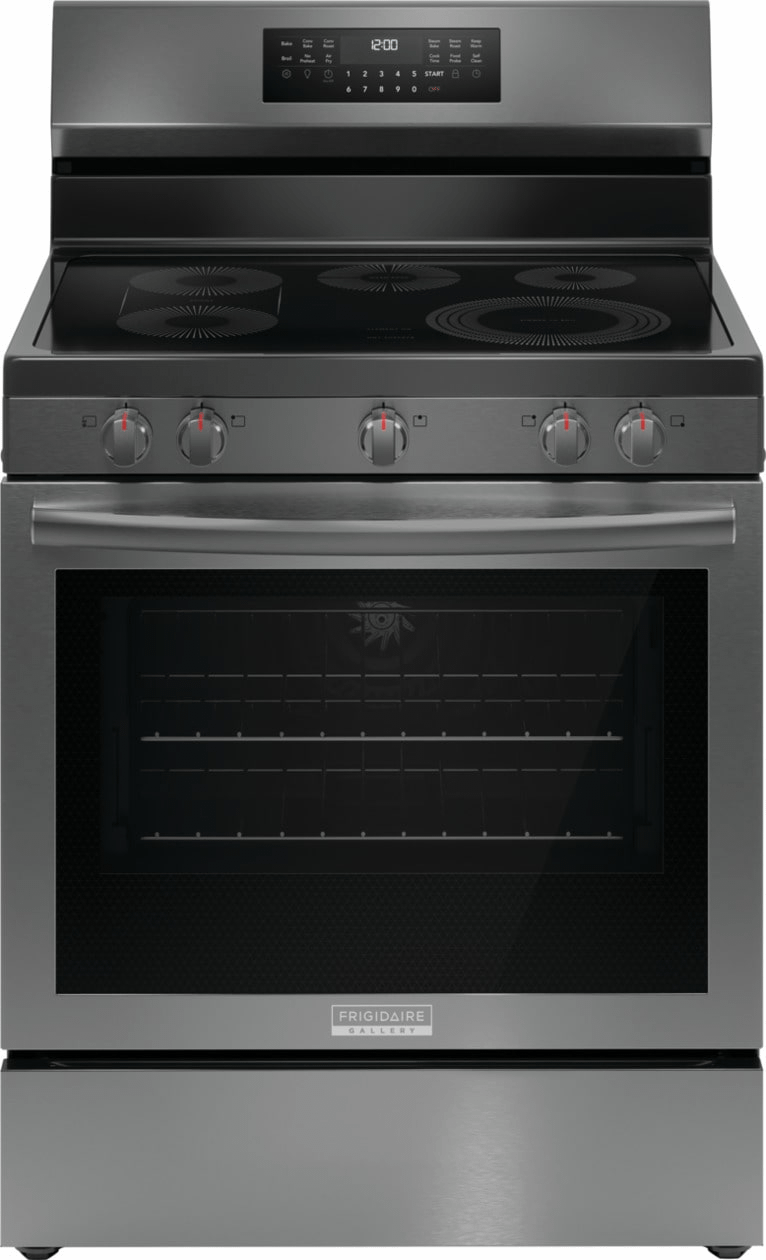

The Frigidaire Gallery 30" Rear Control Electric Range features our most powerful and advanced convection system, Total Convection, enabling so many cooking modes like No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Air Sous Vide, Convection Roast, Convection Bake and more! The flexible five element cooktop includes a powerful 3,200 Watt EvenTemp® element and a convenient bridge element - designed to handle all of your cooking needs. Also includes our fingerprint resistant, Smudge-Proof® Stainless Steel finish.
- Total Convection System
- Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide and more!
- No Preheat
- Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time. * No Preheat is best used for single-rack baking of frozen or pre-made items and food that needs to cook for longer than 10 minutes.
- Air Fry
- Make healthier and delicious meals for your entire family - right in your oven.

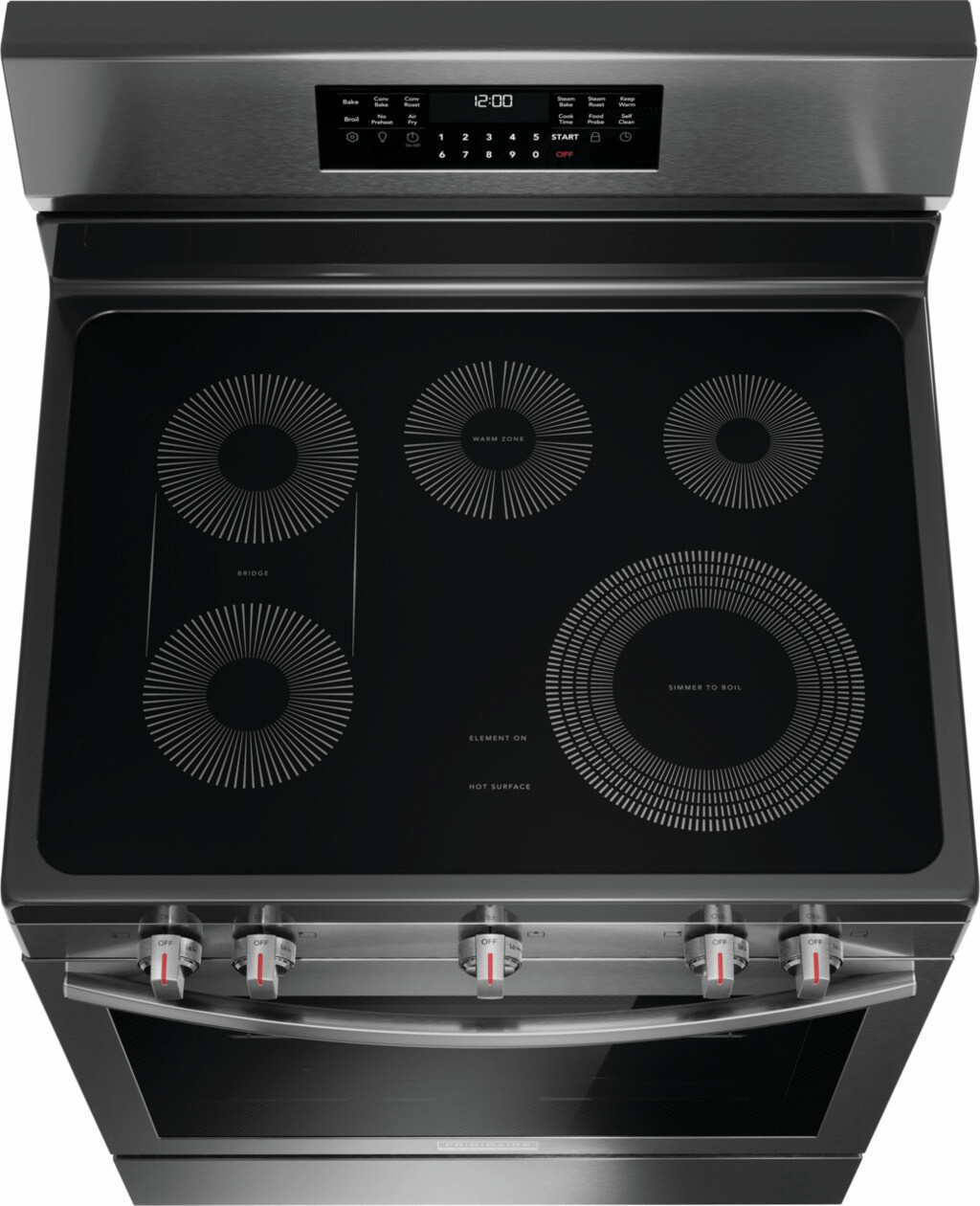

- Five Element Cooktop
- Designed to handle all of your cooking needs with a powerful 3,200 Watt EvenTemp(R) Element and convenient Bridge Element.
- Slow Cook
- Your food cooks slowly and at a lower temperature (as low as 100(degree) F), allowing you to lock in moisture and flavor without over or undercooking your food.
- Temperature Probe
- Monitors and alerts when the desired finished cooking temperature has been reached.
- Steam Bake
- With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
- Self and Steam Clean Cycles
- Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
- Bridge Element
- Connects two elements to create a larger cooking surface, perfect for a griddle or large pan.
- Steam Roast
- Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.
- Air Sous Vide
- Uses precisely-controlled temperature and airflow to lock in flavor and moisture to cook foods to the finish temperature you want.
- Extra Wide Store-More(TM) Storage Drawer
- Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
- Large Oven Capacity
- Cook more at once with our large, 5.3 cu. ft. capacity oven.
- Smudge-Proof(R) Black Stainless Steel
- Resists fingerprints and cleans easily.
- Proudly Assembled in the USA
Product Line | Electric Range |
Power Type | Electric 240v |
Size | 30" |
Installation Type | Free-Standing |
Factory | Springfield |
Color | Black Stainless Steel |
Cooktop | |
Bridge Element | Yes |
Bridge Element Location | Left |
Cooking Surface Type | Smooth |
Element On Indicator Light | Yes |
Hot-Surface Indicator Light | Yes |
Cooktop Performance | |
Right Front Element Burner Size | 9" |
Right Rear Element Burner Size | 6" |
Left Front Element Burner Size | 7" |
Left Rear Element Burner Size | 7" |
Right Front Element Burner | 3200 Watts |
Right Rear Element Burner | 1200 Watts |
Left Front Element Burner | 1800 Watts |
Left Rear Element Burner | 1800 Watts |
Center Rear Element Burner | 100 Watts |
Keep Warm Burner Location | Center Rear |

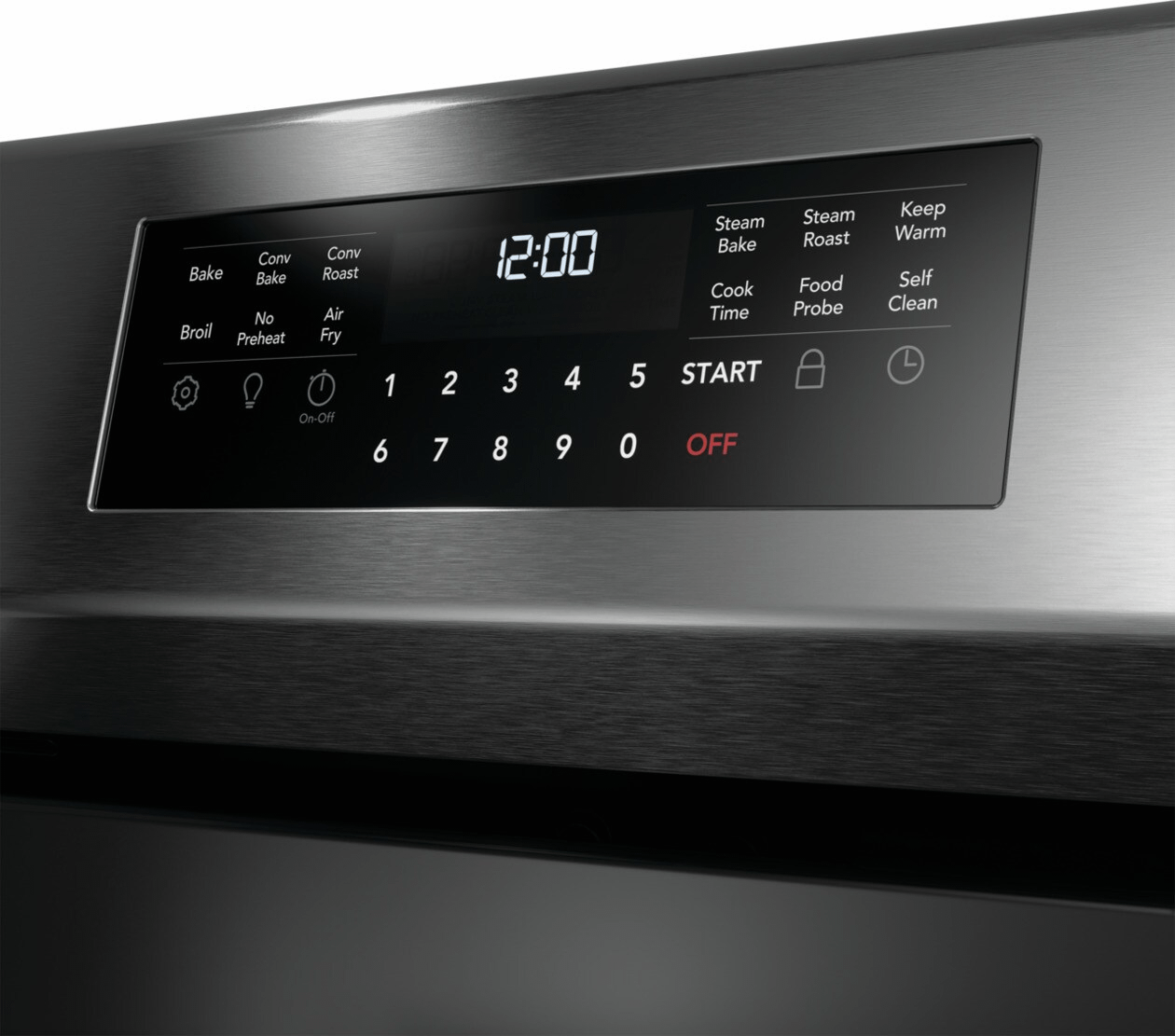

Cooking Controls | |
Air Fry | Yes |
Air Sous Vide | Yes |
Bake | Yes |
Bake Time | Yes |
Broil | Yes |
Clock | Yes |
Convection Bake | Yes |
Convection Roast | Yes |
Cook Time | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Door Lock | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Light | Yes |
Lockout | Yes |
No Preheat | Yes |
Numerical Keypad | Yes |
Off | Yes |
Oven Light | Yes |
Probe | Yes |
Self Clean | Yes |
Set Clock | Yes |
Slow Cook | Yes |
Start | Yes |
Steam Bake | Yes |
Steam Clean | Yes |
Steam Roast | Yes |
Temperature Display | Yes |
Timer On / Off | Yes |
User Preferences | Yes |
Warm Zone | Yes |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Oven | |
Bake Element | 2500 Watts |
Bake Element Pass | 8 |
Bake Element Type | Hidden |
Broil Element | 4000 Watts |
Broil Element Pass | 6 |
Cleaning System | Yes |
Convection | Yes |
Convection Element | 3800 Watts |
Convection Type | Total |
Number of Convection Fans | 1 |
Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Drawer | |
Drawer Handle Style | Integrated |
Drawer Type | Storage |
Controls | |
Control Lock | Yes |
Sabbath Mode | Yes |
Display | |
Control Location | Rear |
Display Interface Color | White |
Exterior | |
Exterior Finish | Smudge-Proof® Black Stainless Steel |

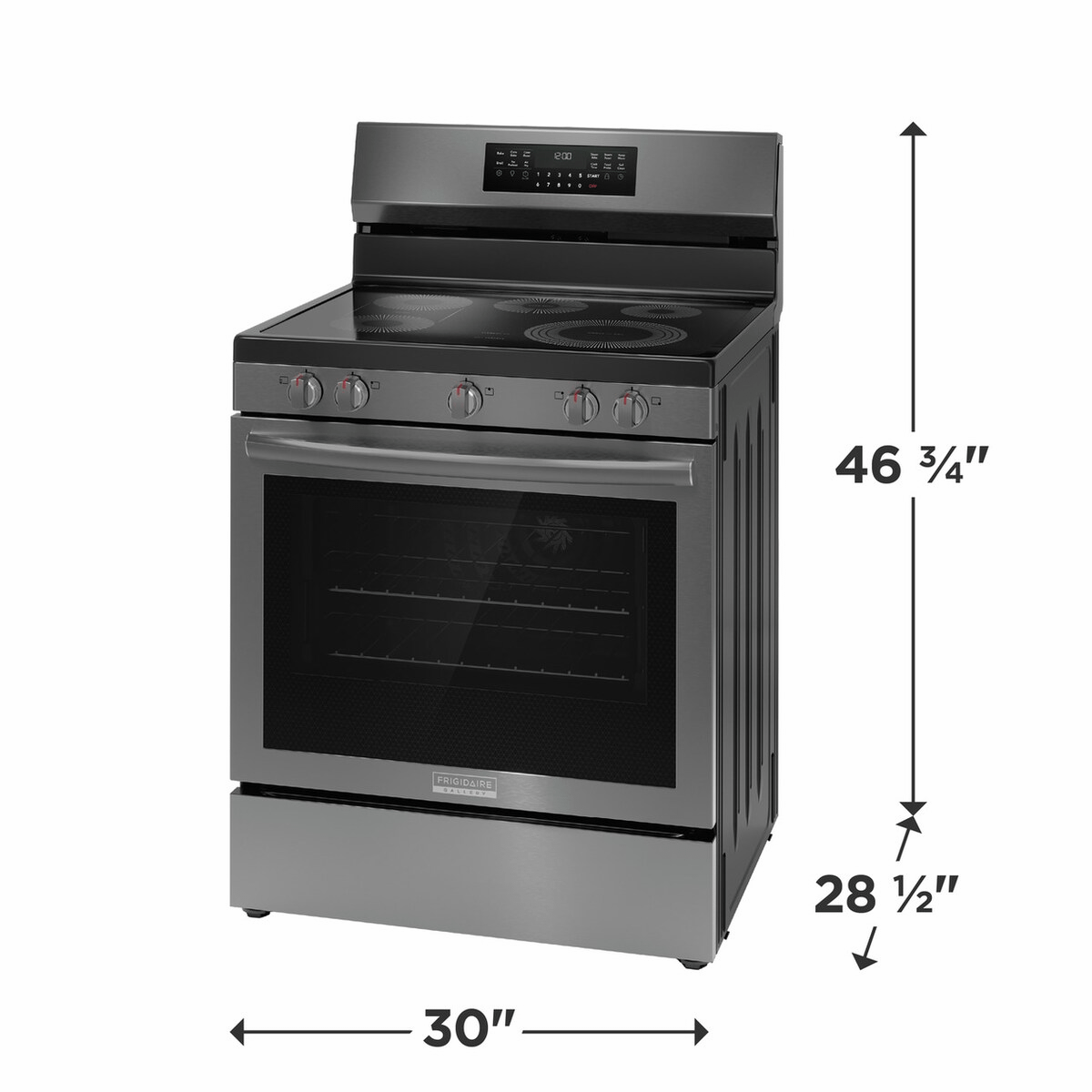

Dimensions and Volume | |
Minimum Height | 46 3/4" |
Maximum Height | 47 3/4" |
Width | 30" |
Depth | 26" |
Depth With Door 90° Open | 47 5/16" |
Depth With Handle | 28 1/2" |
Oven Interior Height | 18 1/8" |
Oven Interior Width | 25 3/16" |
Oven Interior Depth | 19 7/8" |
Oven Capacity | 5.3 Cu. Ft. |
Electrical Specifications | |
Amps @ 240 Volts | 40 Amps |
Connected Load @ 240V | 13 kW |
Voltage Rating | 240 V |
Installation | |
Adjustable Leveling Legs | Yes |
General Specifications | |
Product Weight | 170 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Certifications and Approvals | |
Star-K Certification | Yes |
UL Listed | Yes |
