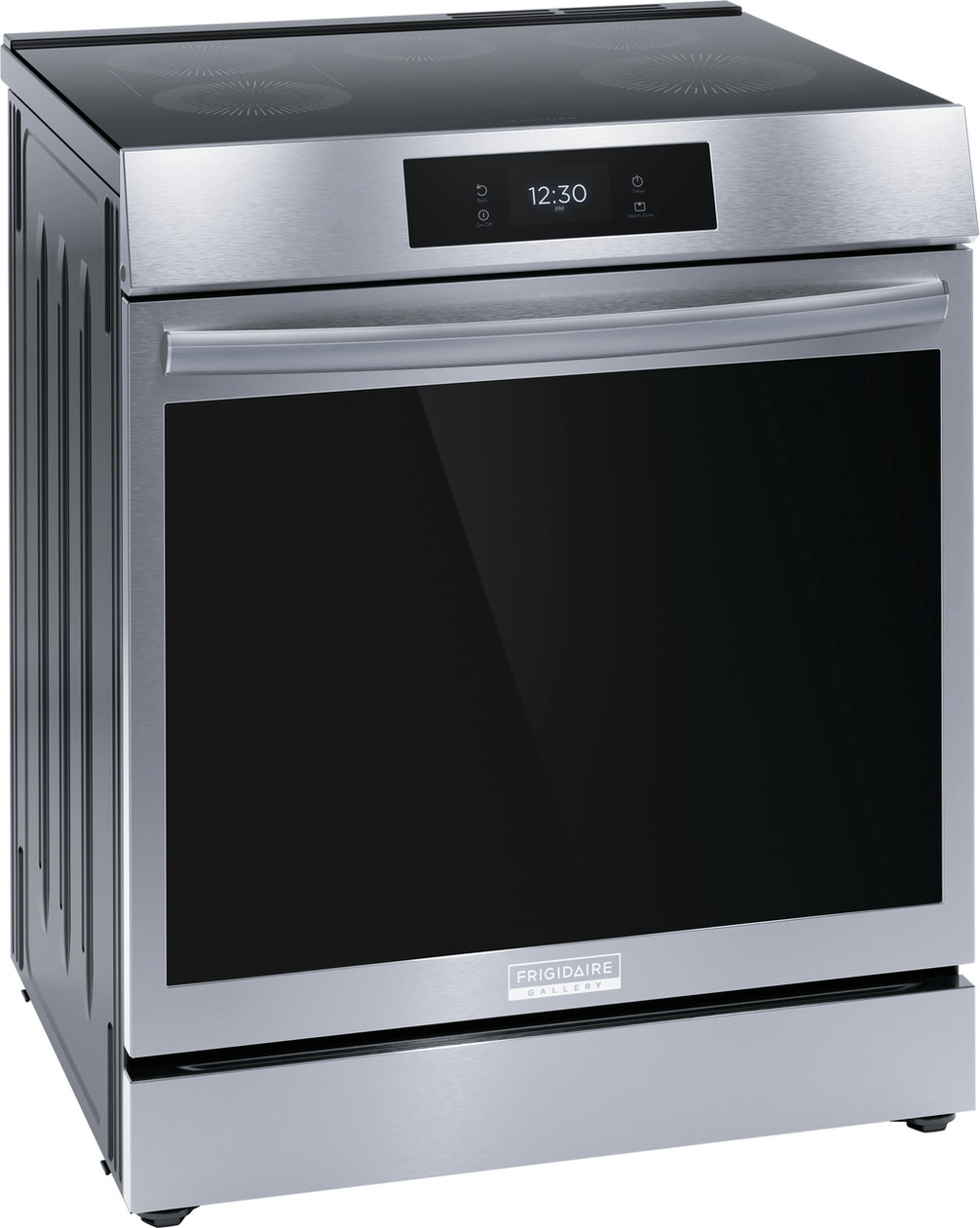

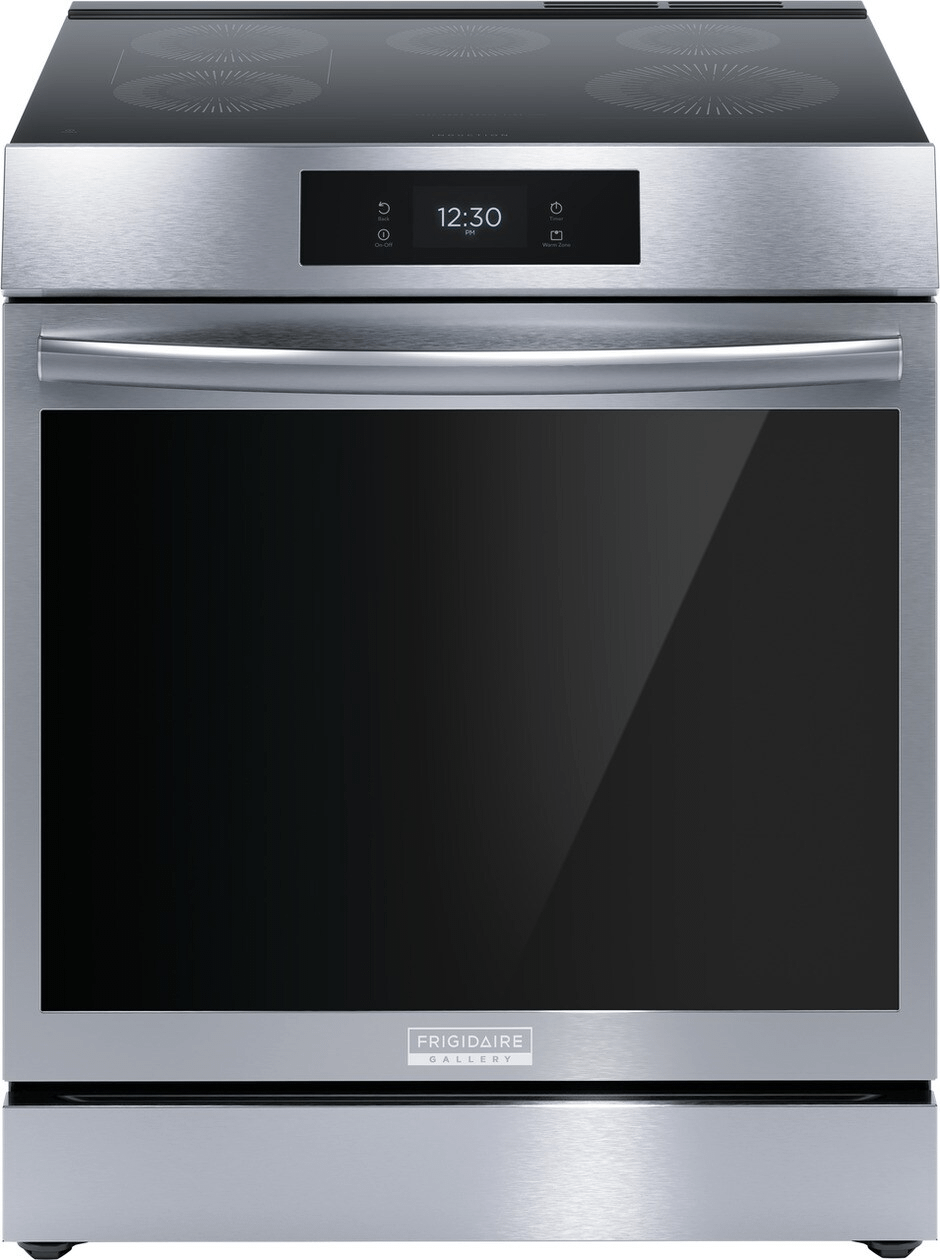

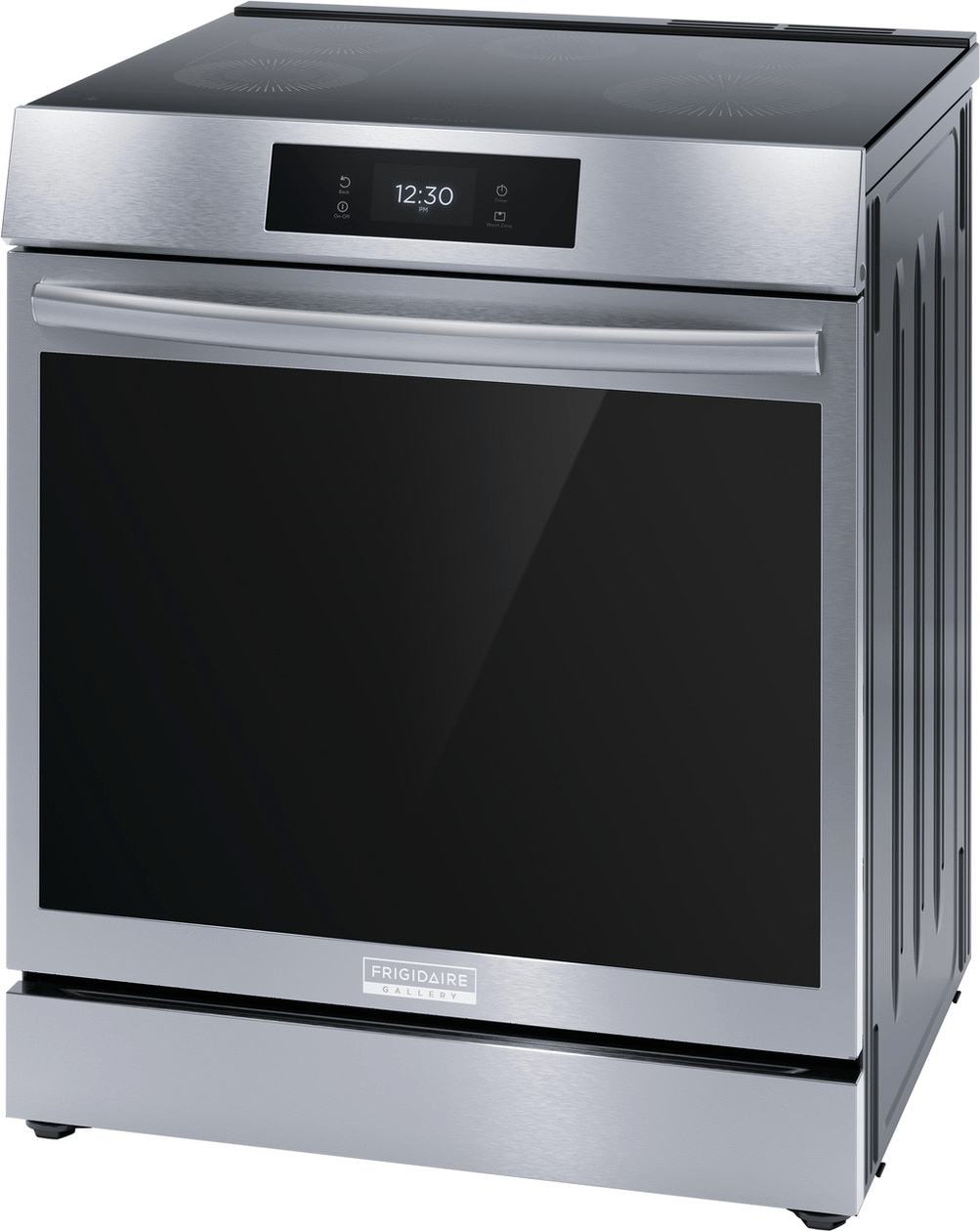

The Frigidaire Gallery 30" Front Control Induction Range with Total Convection, features our most powerful and advanced convection system, which enables over 15 cooking modes like No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Air Sous Vide, Convection Roast, Convection Bake, Bread Proof and more! Plus no cooktop is easier to clean than induction, since induction heats the pan and not the cooktop around it, spills wipe up more easily. Also, you can get dinner on the table faster with the induction cooktop, which boils water faster than gas and electric. Plus, enjoy precision cooktop temperature control with our new TempLock™ technology.
- Total Convection System
- Get over 15 ways to cook - Total Convection powers cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Air Sous Vide, Bread Proof, Dehydrate and more!
- Easy-to-Clean Cooktop
- Unlike traditional electric and gas cooktops, induction only heats the pan and the food in it, so the area around the pan stays cooler, allowing you to clean up spills and splatters while you cook.

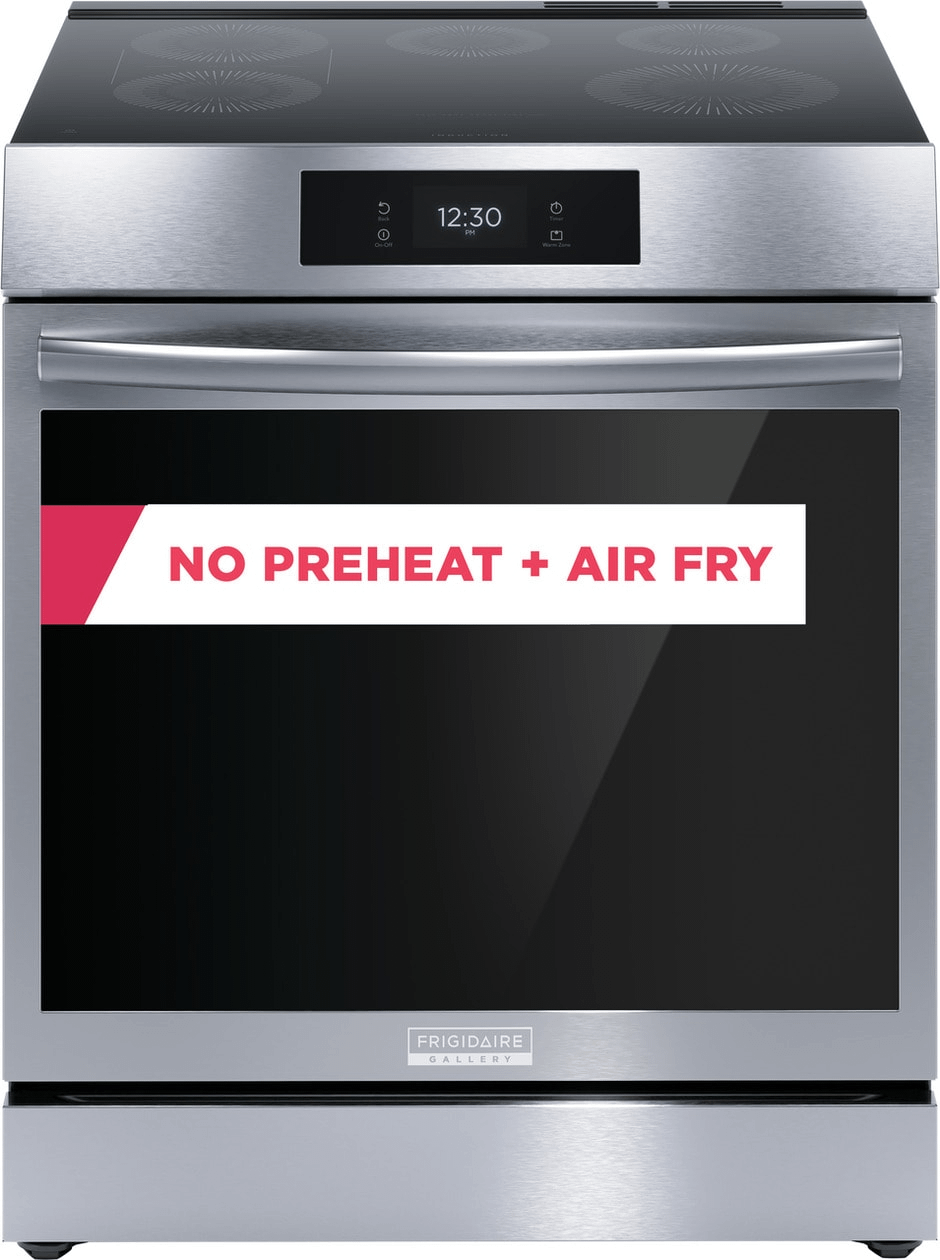

- No Preheat
- Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to mealtime, in no time. * No Preheat is best used for single-rack baking of frozen or pre-made items and food that needs to cook for longer than 10 minutes.
- Air Fry
- Make healthier and delicious meals for your entire family - right in your oven.
- Slow Cook
- With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100(degree) F), allowing you to lock in moisture and flavor without over or undercooking your food.
- Faster Boil Times
- Heat transfers directly to the cookware bypassing the cooktop surface, making induction incredibly fast.
- Temperature Probe
- Monitors and alerts when the desired finished cooking temperature has been reached.
- Steam Bake
- With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
- Consistent temperature with TempLock(TM)
- Sensors in the cooktop automatically adjust the power level to maintain a consistent temperature the entire time you cook. It's like cruise control for your cooktop.
- Self and Steam Clean Cycles
- Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2-, 3- and 4-hour cycles.
- Steam Roast
- Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.
- Bridge Element
- Connects two elements to allow for simultaneous control, perfect for a griddle pan.

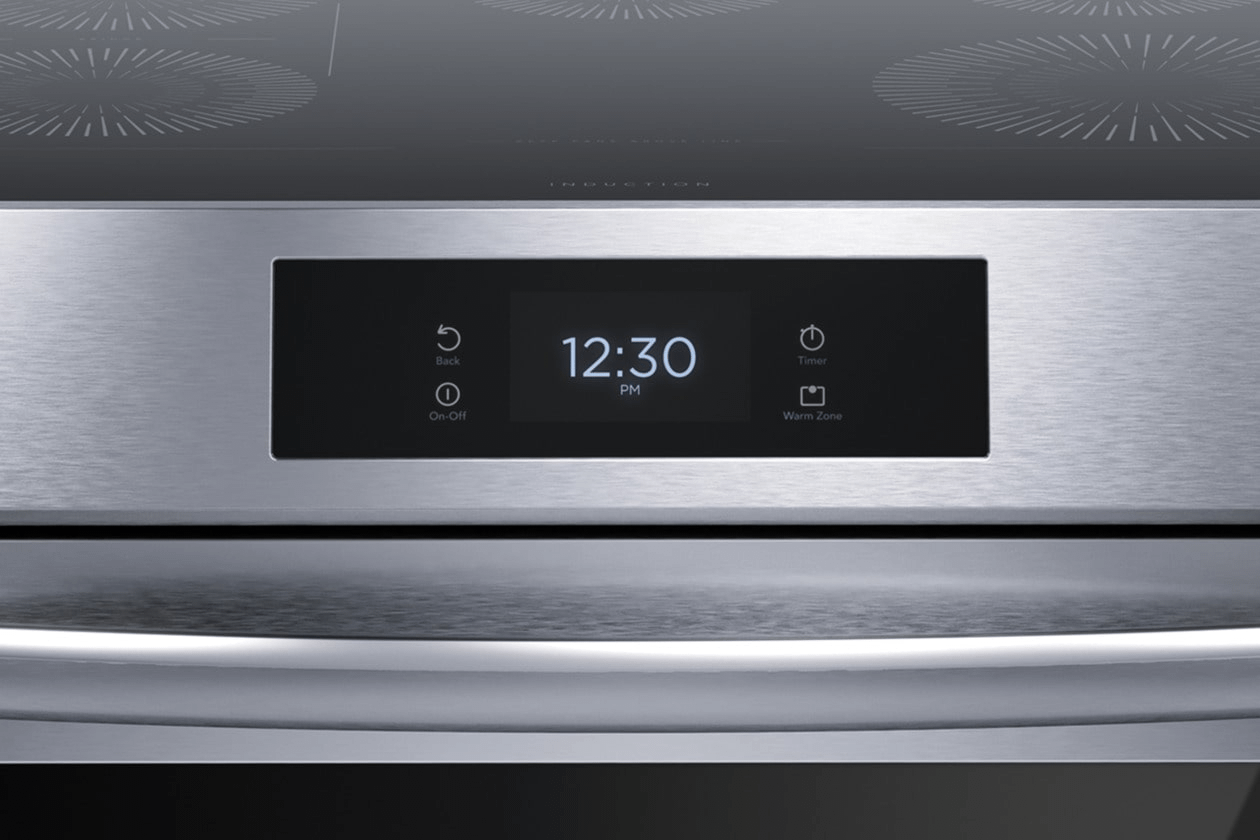

- Premium Touch Screen Control Panel
- Features a responsive 4.3-inch, full color, capacitive touch digital control panel.
- Safer Cooktop Surface
- Induction heats the pan and the food in it, so the area around the pan stays cooler.
- Air Sous Vide
- Uses precisely-controlled temperature and airflow to lock in flavor and moisture to cook foods to the finish temperature you want.
- Smudge-Proof(R) Stainless Steel
- Resists fingerprints and cleans easily.

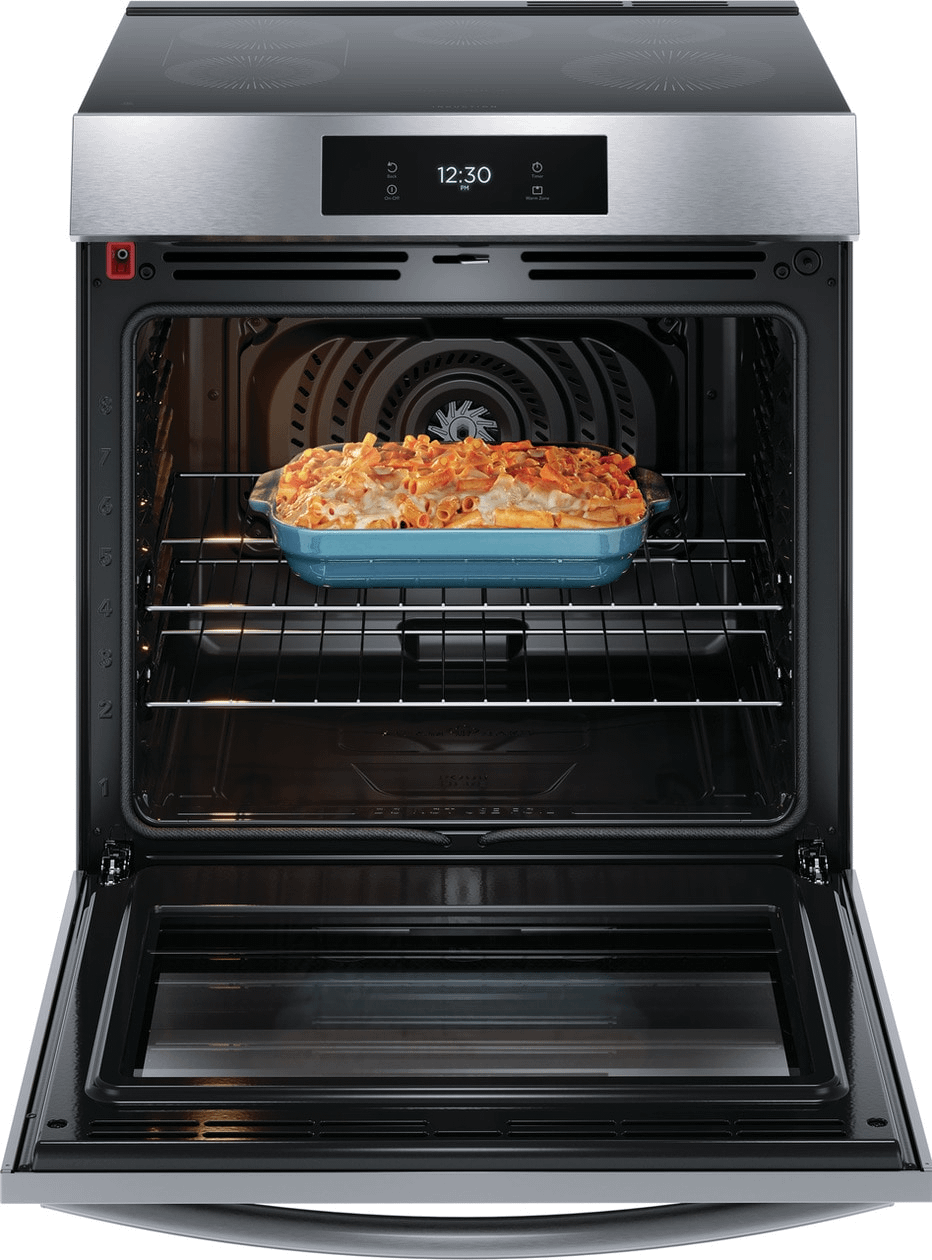

- Extra Large Oven Capacity
- Cook more at once with our extra-large, 6.2 cu. ft. capacity oven.
- Proudly Assembled in the USA
Product Line | Induction Range |
Power Type | Electric 240v |
Size | 30" |
Installation Type | Free-Standing |
Factory | Springfield |
Color | Stainless Steel |
Cooktop | |
Auto Pan Detect | Yes |
Cooking Surface Type | Smooth |
Element On Indicator Light | Yes |
Hot-Surface Indicator Light | Yes |
Cooktop Performance | |

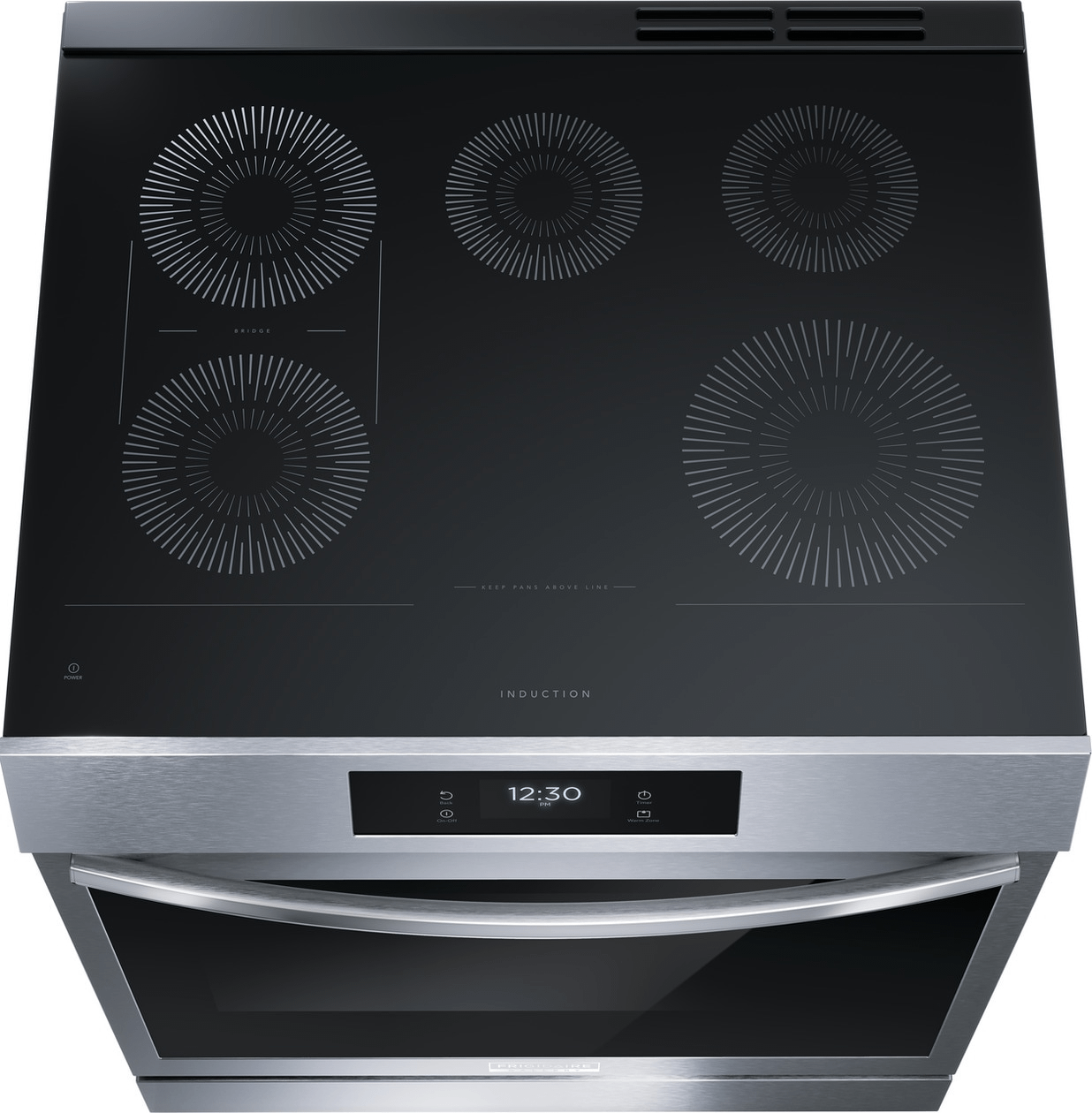

Right Front Element Burner Size | 8 3/10" |
Right Rear Element Burner Size | 5 1/2" |
Left Front Element Burner Size | 7" |
Left Rear Element Burner Size | 7" |
Center Rear Element Burner Size | 5 1/2" |

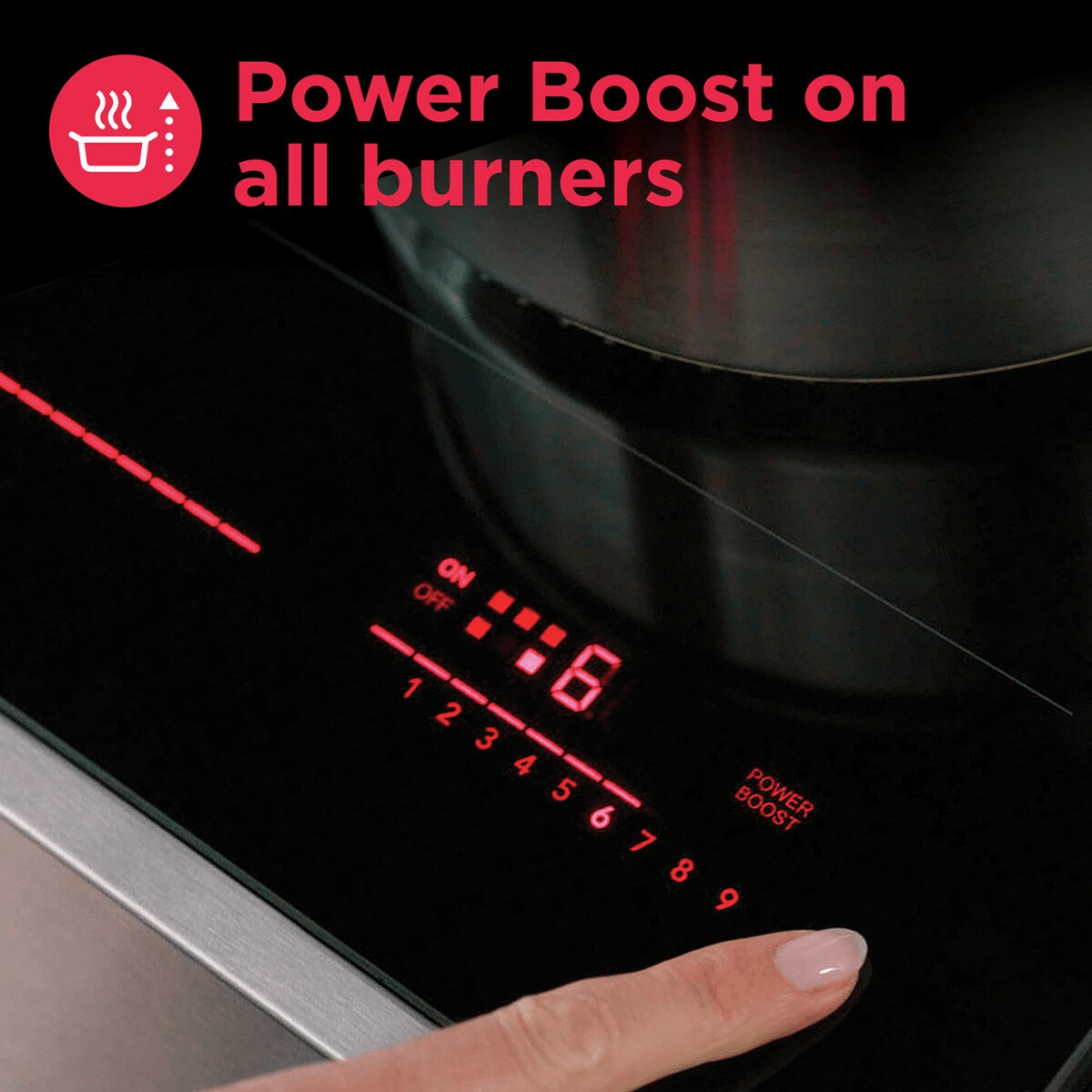

Right Front Element Burner | 2,300 / 3,600 Watts (Boost) |
Right Rear Element Burner | 1,400 / 2,500 Watts (Boost) |
Left Front Element Burner | 1,800 / 2,800 Watts (Boost) |
Left Rear Element Burner | 1,800 / 2,800 Watts (Boost) |
Center Element Burner | 1,400 / 2,500 Watts (Boost) |
Cooking Controls | |
Air Fry | Yes |
Air Sous Vide | Yes |
Bake | Yes |
Bake Time | Yes |
Bread Proof | Yes |
Broil | Yes |
Child Lock | Yes |
Clock | Yes |
Convection Bake | Yes |
Convection Roast | Yes |
Cook Time | Yes |
Cooktop Lockout | Yes |
Dehydrate | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Door Lock | Yes |
Hot Surface | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Light | Yes |
Lockout | Yes |
No Preheat | Yes |
Oven Light | Yes |
Oven Lock | Yes |
Perfect Turkey | Yes |
Preheat | Yes |
Probe | Yes |
Self Clean | Yes |
Set Clock | Yes |
Slow Cook | Yes |
Start | Yes |
Steam Bake | Yes |
Steam Clean | Yes |
Steam Roast | Yes |
Temperature Display | Yes |
Timed Bake | Yes |
Timer On / Off | Yes |
User Preferences | Yes |
Cooking Controls Function | |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Timed Cooking | Yes |
Oven | |
Bake Element | 2500 Watts |
Bake Element Pass | 8 |
Bake Element Type | Hidden |
Broil Element | 4000 Watts |
Broil Element Pass | 6 |
Cleaning System | Yes |

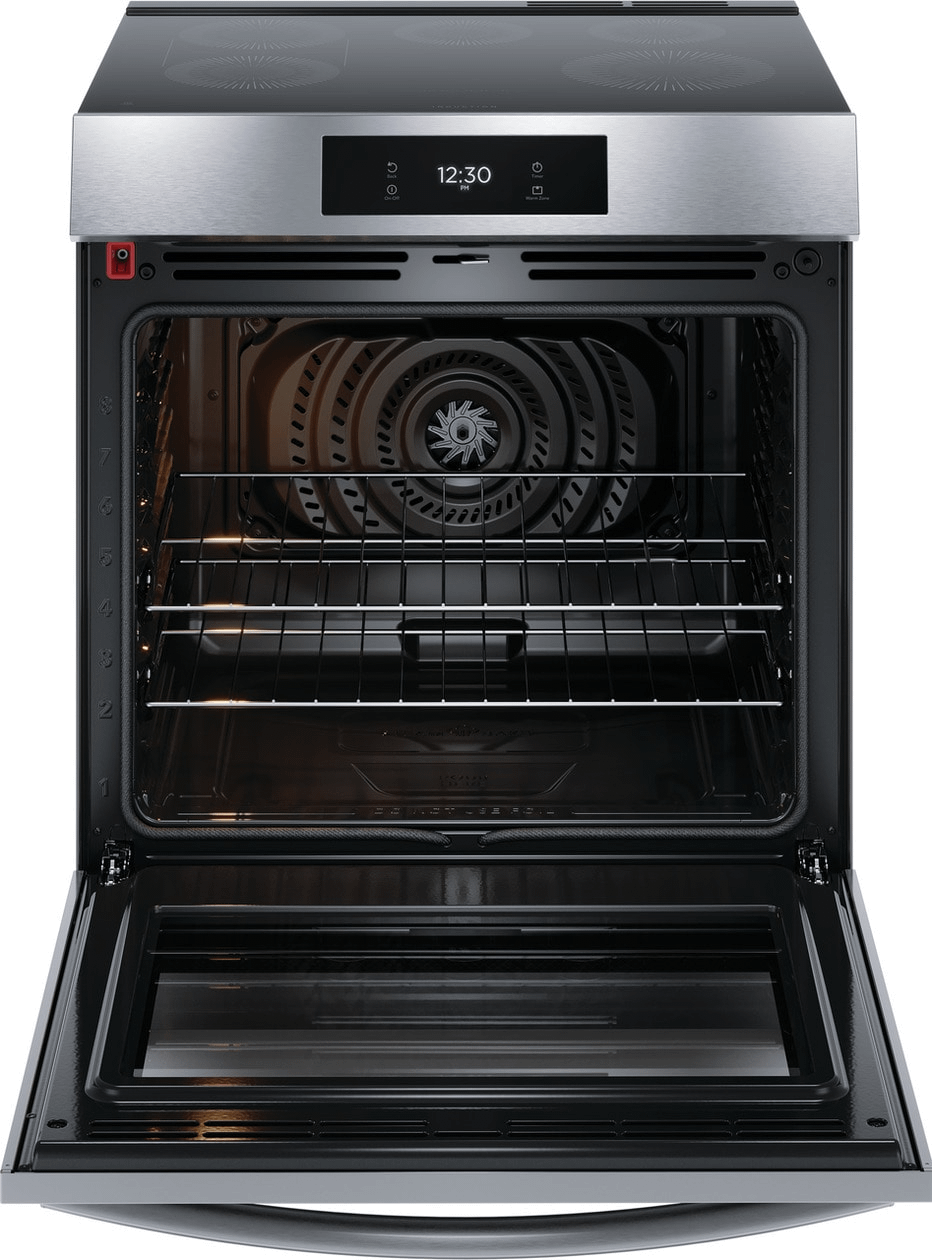

Convection | Yes |
Convection Element | 3800 Watts |
Convection Type | Total |
Number of Convection Fans | 1 |
Number of Rack Positions | 8 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 2 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Drawer | |
Drawer Handle Style | Integrated |
Drawer Type | Storage |
Controls | |
Control Lock | Yes |
Sabbath Mode | Yes |
Display | |
Control Location | Front |
Cooktop Control Location | Top |
Display Light Color | White |
Cooktop Light Color | Red |
Display Type | Capacitive Touch |
Exterior | |
Exterior Finish | Smudge-Proof® Stainless Steel |
Dimensions and Volume | |

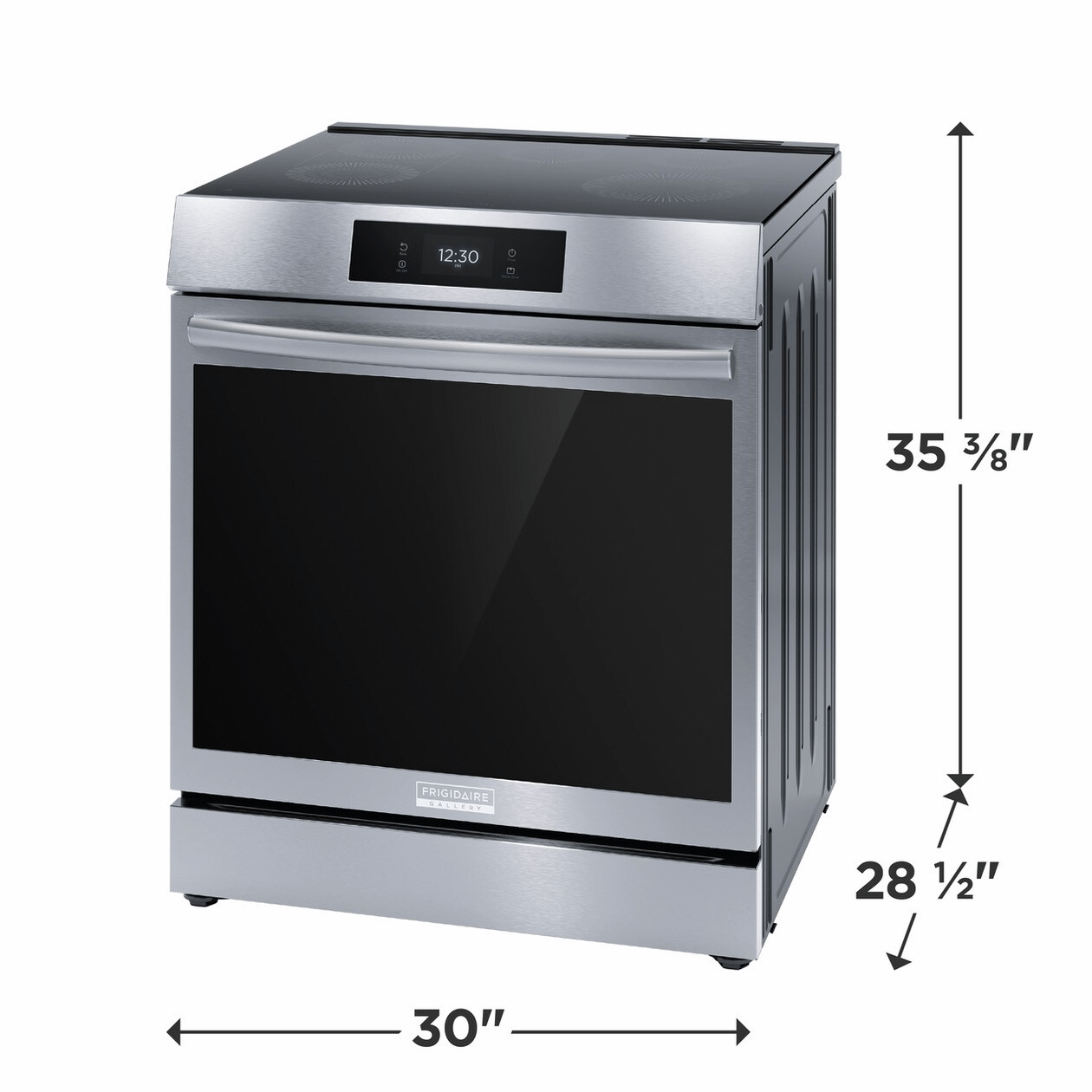

Minimum Height | 35 3/8" |
Maximum Height | 36 3/8" |
Width | 30" |
Depth | 26" |
Depth With Door 90° Open | 47 5/16" |
Depth With Handle | 28 1/2" |
Oven Interior Height | 21 1/4" |
Oven Interior Width | 25 3/16" |
Oven Interior Depth | 19 7/8" |
Oven Capacity | 6.2 Cu. Ft. |
Electrical Specifications | |
Connected Load @ 240V | 15 kW |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
Installation | |
Adjustable Leveling Legs | Yes |
General Specifications | |
Product Weight | 178 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Certifications and Approvals | |
ADA Compliant | Yes |
RoHS | Yes |
Star-K Certification | Yes |
UL Listed | Yes |
