Overview & Specifications
Overview & Specifications

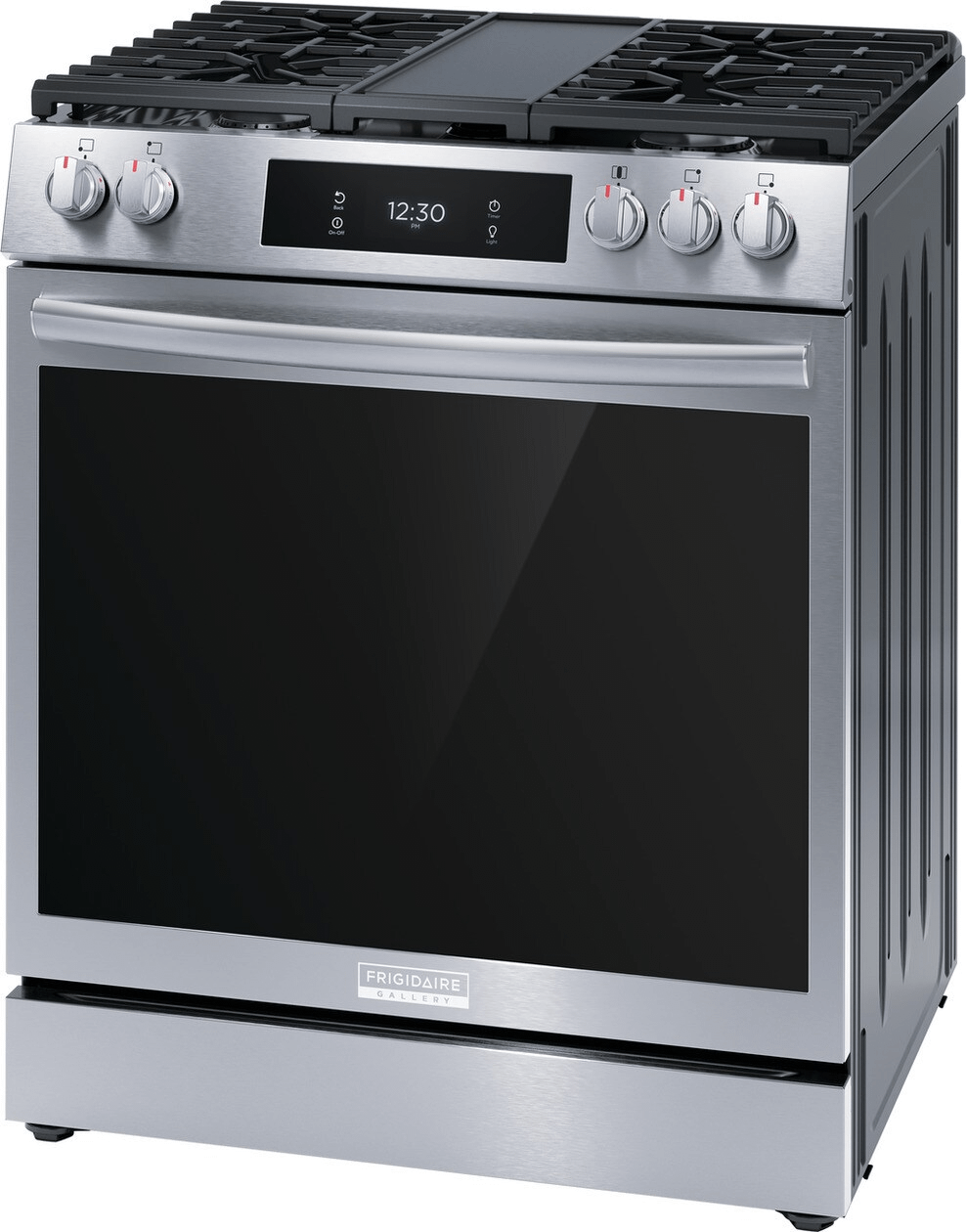

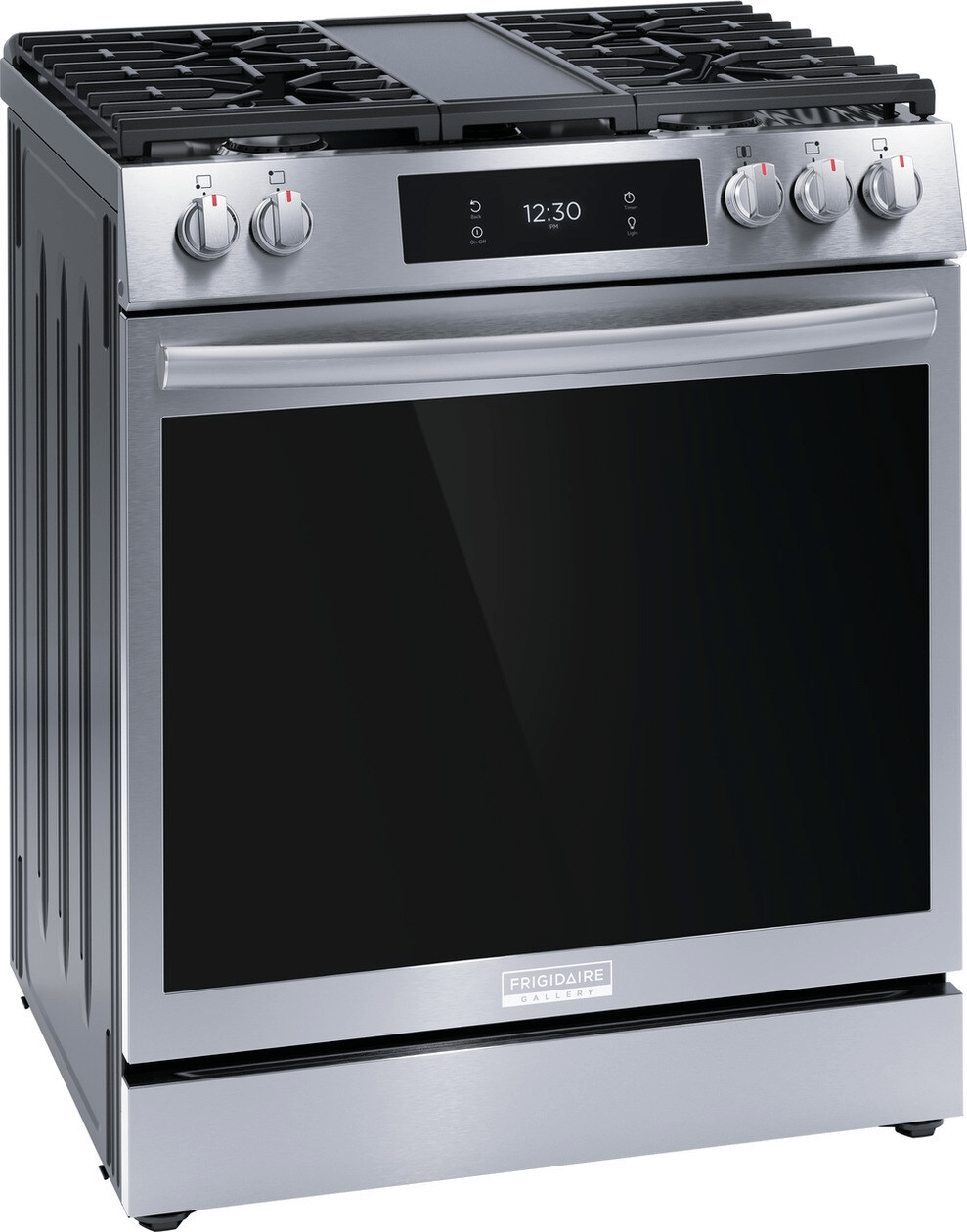

The Frigidaire Gallery 30" Front Control Gas Range with Total Convection features our most powerful and advanced convection system, which enables cooking modes like No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Air Sous Vide, Convection Roast, Convection Bake, Bread Proof and more! The flexible five burner cooktop includes a powerful 18,000 BTU Quick Boil Burner and a center oval burner with an integrated cast iron griddle. This range also features backlit LED knobs, our premium touch screen digital control panel and our fingerprint resistant, Smudge-Proof® Stainless Steel finish.
- Total Convection System
- Get over 15 ways to cook - Total Convection powers cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Air Sous Vide, Bread Proof, Dehydrate and more!

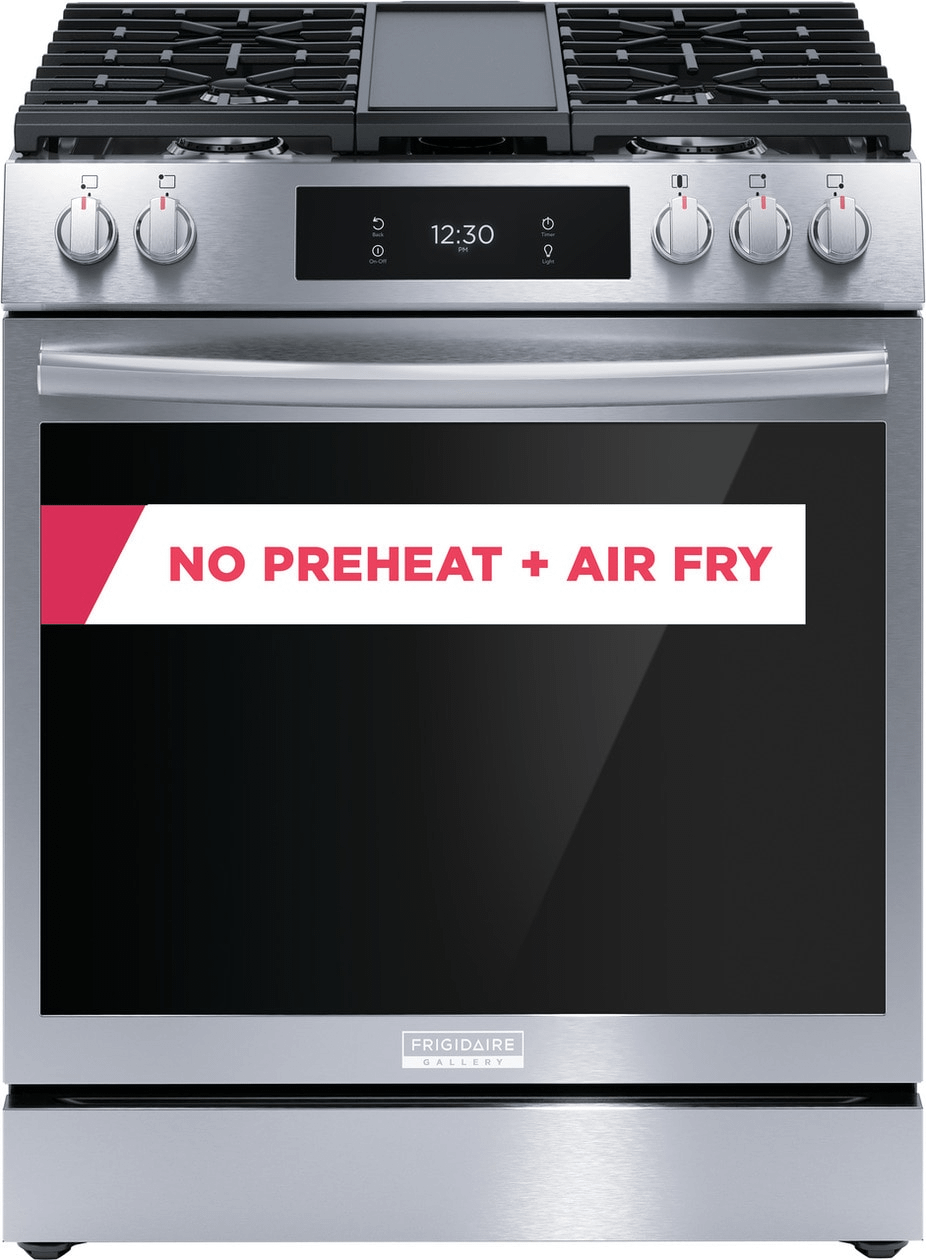

- No Preheat
- Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time. * No Preheat is best used for single-rack baking of frozen or pre-made items and food that needs to cook for longer than 10 minutes.
- Air Fry
- Make healthier and delicious meals for your entire family - right in your oven.

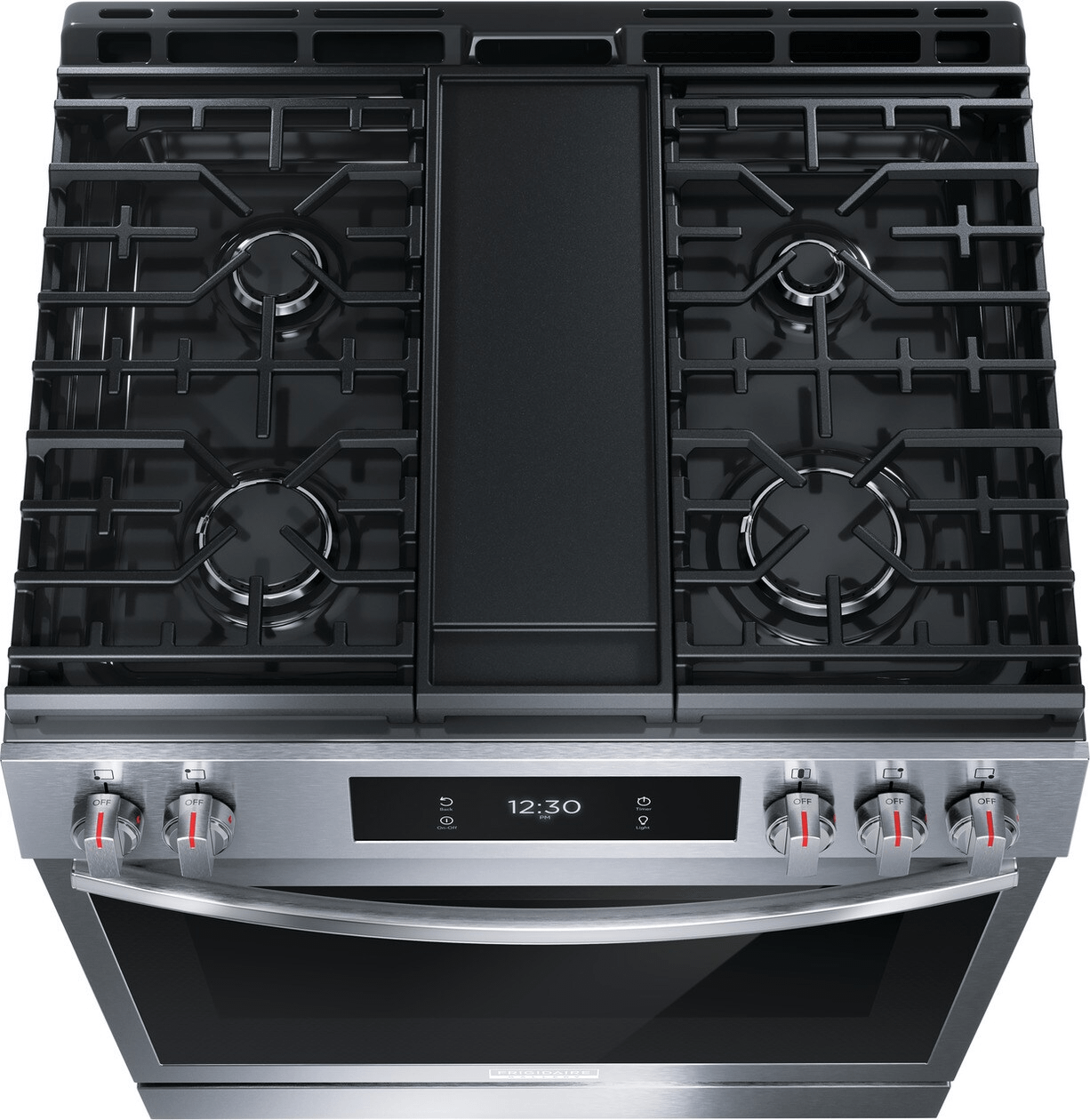

- Five Burner Cooktop
- Designed to meet all of your cooking needs with a powerful 18,000 BTU Quick Boil Burner and a center oval burner with an integrated cast iron griddle.
- Slow Cook
- With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100(degree) F), allowing you to lock in moisture and flavor without over or undercooking your food.
- Temperature Probe
- Monitors and alerts when the desired finished cooking temperature has been reached.
- Steam Bake
- With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.

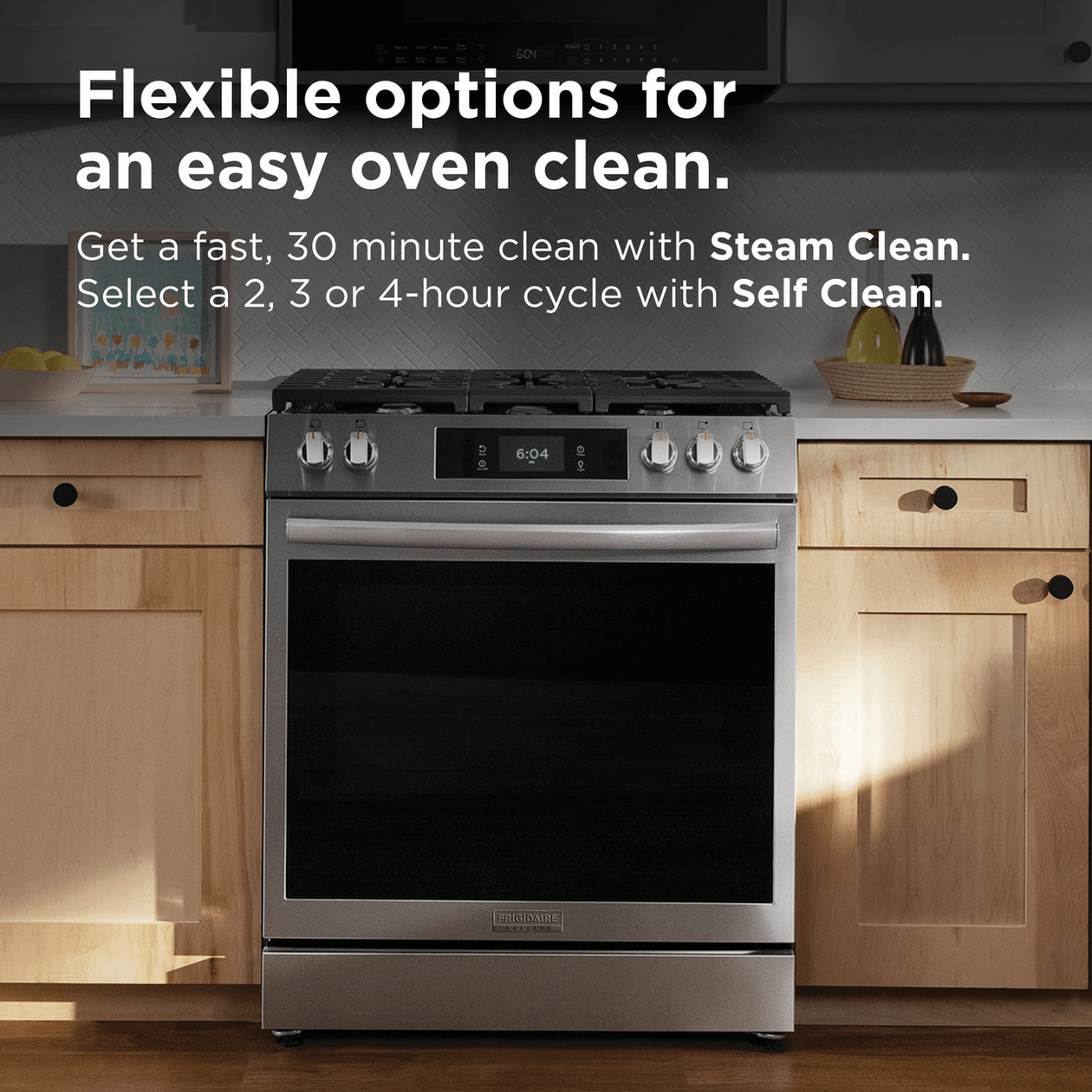

- Self and Steam Clean Cycles
- Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
- Integrated cooktop griddle
- Includes a premium cast-iron griddle pan that seamlessly integrates into your cooktop.
- Steam Roast
- Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.

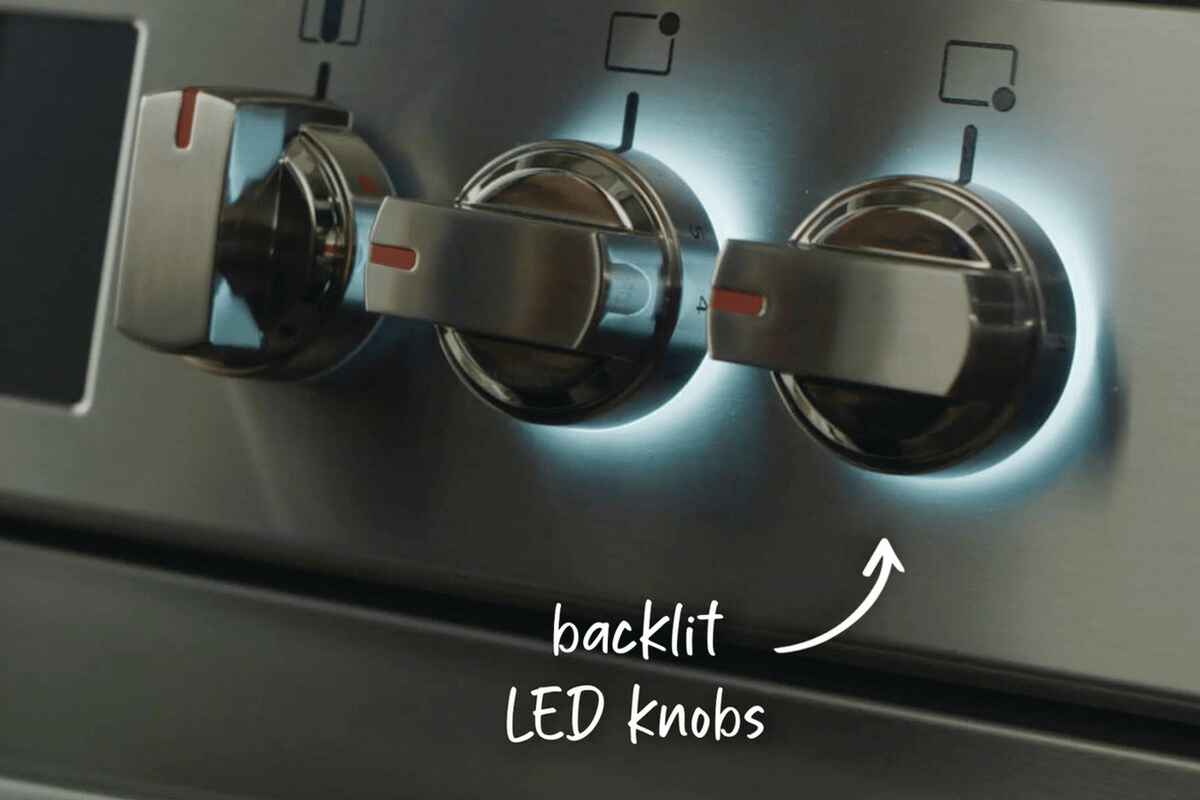

- Backlit LED Knobs
- Backlit LED knobs light up when your burner is turned on.
- Air Sous Vide
- Uses precisely-controlled temperature and airflow to lock in flavor and moisture to cook foods to the finish temperature you want.
- Frigidaire(R) Fit Promise
- We promise that your new 30" Frigidaire front control range will fit your existing range cutout of the same width and configuration, or we will reimburse you up to one hundred dollars for professionally modifying the countertop.

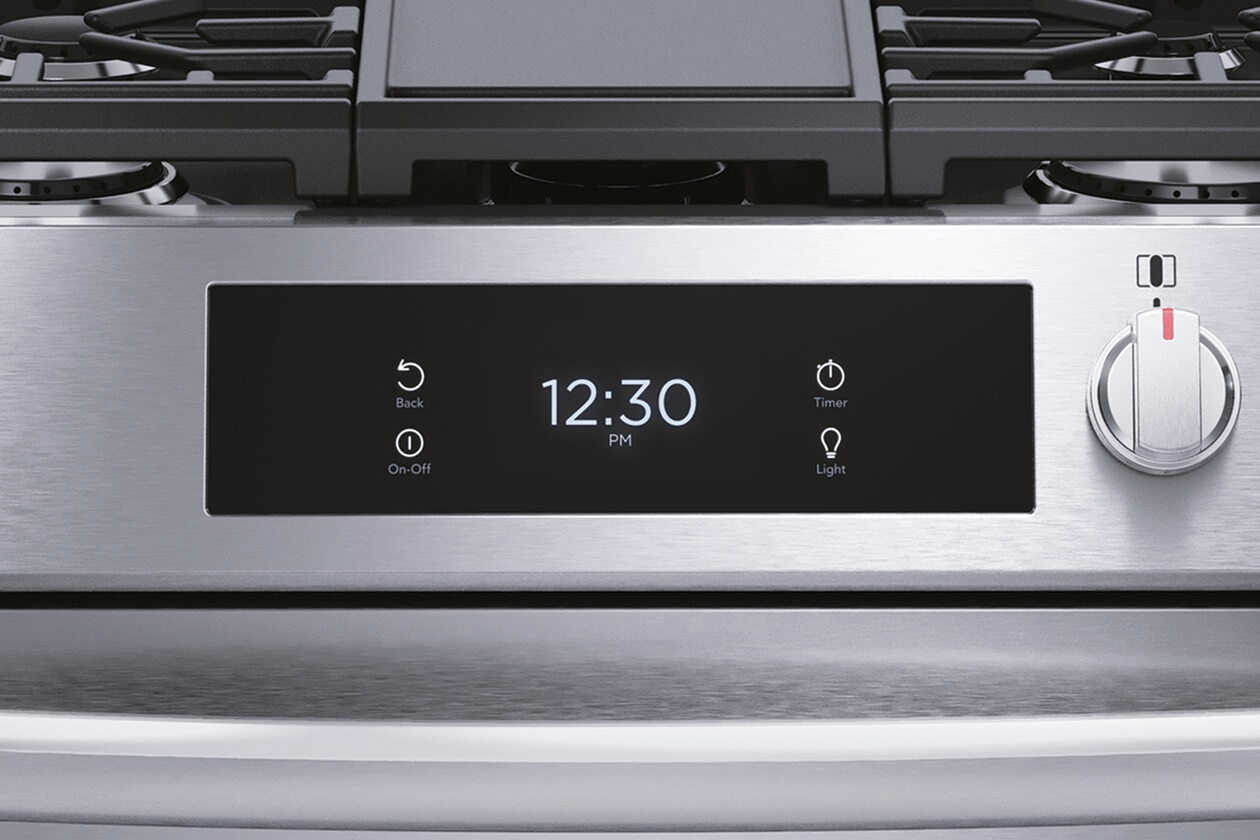

- Premium Touch Screen Control Panel
- Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
- Extra Wide Store-More(TM) Storage Drawer
- Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
- Extra Large Oven Capacity
- Cook more at once with our extra large, 6.0 cu. ft. capacity oven.
- Smudge-Proof(R) Stainless Steel
- Resists fingerprints and cleans easily.
- Proudly Assembled in the USA
Product Line | Gas Range |
Power Type | NG |
Size | 30" |
Installation Type | Free-Standing |
Factory | Springfield |
Color | Stainless Steel |
Cooktop | |
Center Grate Finish | Cast Iron |
Cooking Surface Type | Gas |
Grate Material | Cast Iron |
Grate Quantity | 3 |
Grate Style | Continuous |
Griddle Included | Yes |
Sealed Burners | Yes |
Cooktop Performance | |
Right Front Element Burner | 18000 BTU |
Right Rear Element Burner | 5000 BTU |
Left Front Element Burner | 14000 BTU |
Left Rear Element Burner | 10000 BTU |
Center Element Burner | 10000 BTU |
Cooking Controls | |
Air Fry | Yes |
Air Sous Vide | Yes |
Bake | Yes |
Bake Time | Yes |
Bread Proof | Yes |
Broil | Yes |
Clock | Yes |
Convection Bake | Yes |
Convection Convert | Yes |
Convection Roast | Yes |
Cook Time | Yes |
Dehydrate | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Door Lock | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Light | Yes |
Lockout | Yes |
Multi-Stage Cooking | Yes |
My Favorite | Yes |
No Preheat | Yes |
Off | Yes |
Oven Indicator Light | Yes |
Oven Light | Yes |
Oven Lock | Yes |
Perfect Turkey | Yes |
Preheat | Yes |
Probe | Yes |
Self Clean | Yes |
Set Clock | Yes |
Slow Cook | Yes |
Start | Yes |
Start Time | Yes |
Steam Bake | Yes |
Steam Clean | Yes |
Steam Roast | Yes |
Temperature Display | Yes |
Timed Bake | Yes |
Timer On / Off | Yes |
User Preferences | Yes |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Oven | |
Bake Element | 18000 BTU |
Broil Element | 13500 BTU |
Cleaning System | Yes |
Convection | Yes |
Convection Element | 1000 Watts |
Convection Type | Total |
Number of Convection Fans | 1 |
Number of Rack Positions | 8 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 2 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Drawer | |
Drawer Handle Style | Integrated |
Drawer Type | Storage |
Controls | |
Control Lock | Yes |
Sabbath Mode | Yes |
Display | |
Control Location | Front |
Display Interface Color | White |
Display Type | Capacitive Touch |
Exterior | |
Backlit Knobs | Yes |
Exterior Finish | Smudge-Proof® Stainless Steel |
Dimensions and Volume | |

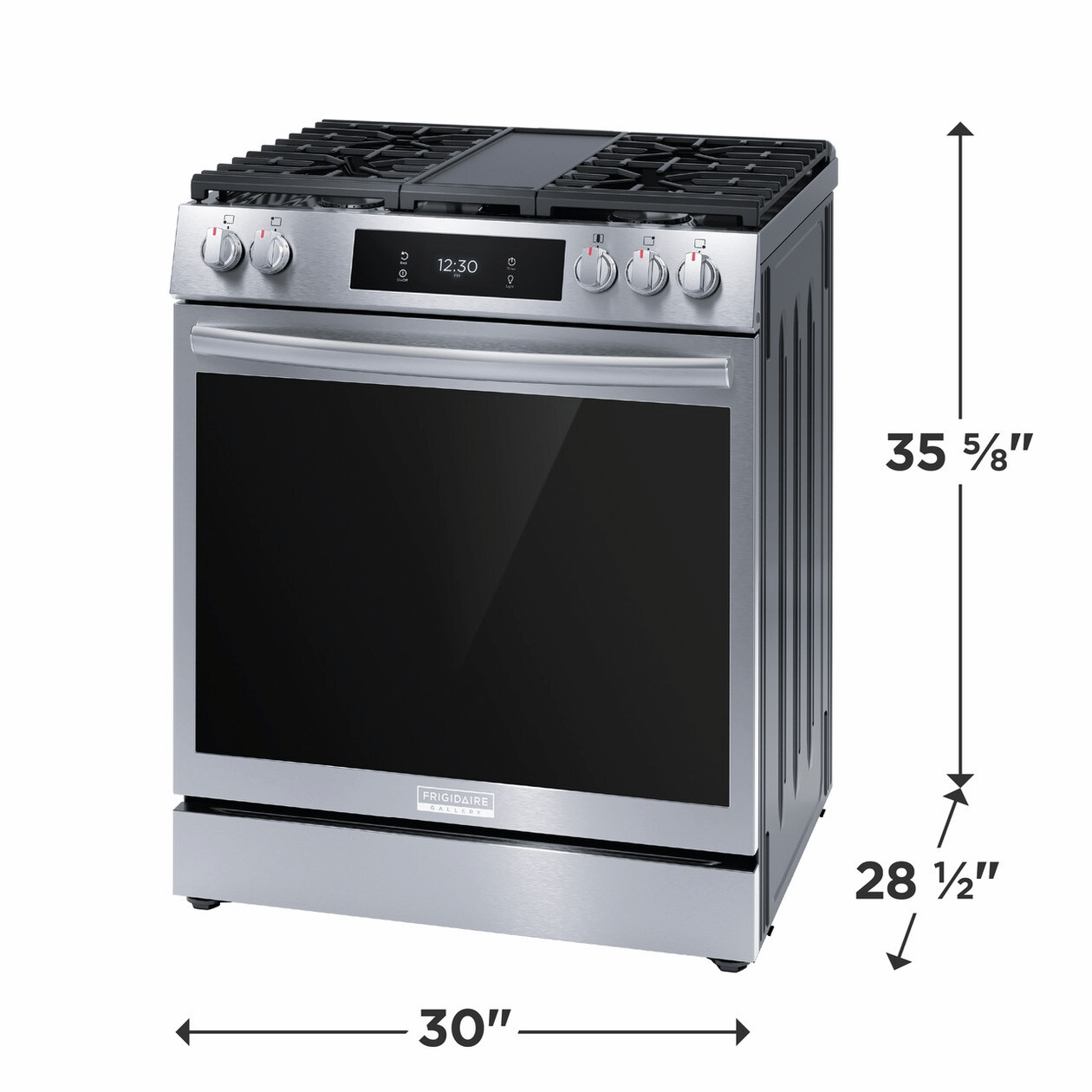

Minimum Height | 35 5/8" |
Maximum Height | 36 3/8" |
Width | 30" |
Depth | 26" |
Depth With Door 90° Open | 47 1/4" |
Depth With Handle | 28 1/2" |
Oven Interior Height | 20 11/16" |
Oven Interior Width | 25 3/16" |
Oven Interior Depth | 19 7/8" |
Oven Capacity | 6 Cu. Ft. |
Electrical Specifications | |
Minimum Circuit Required | 12 Amps |
Voltage Rating | 120 V |
Installation | |
Adjustable Leveling Legs | Yes |
Power Cord Included | Yes |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 204 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Certifications and Approvals | |
ADA Compliant | Yes |
CSA Listed | Yes |
RoHS | Yes |
Star-K Certification | Yes |
