Overview & Specifications
Overview & Specifications

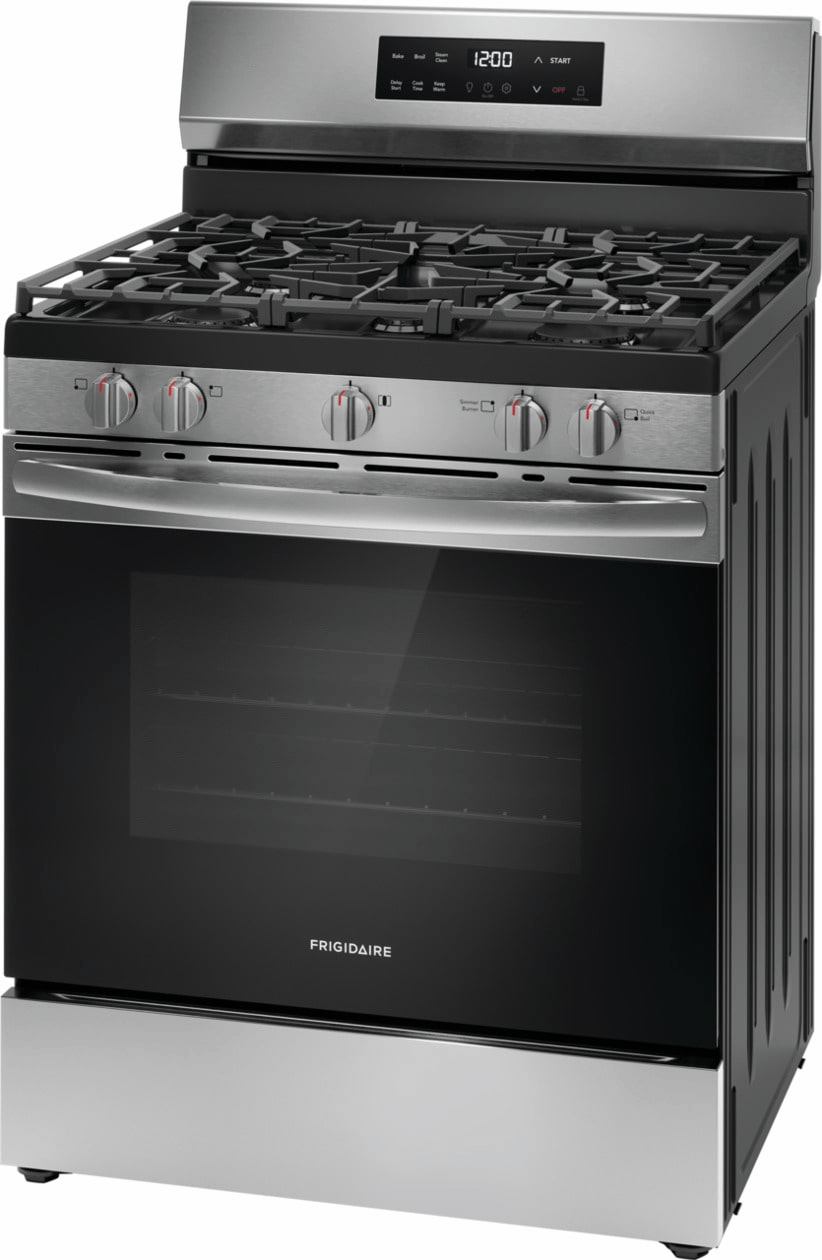

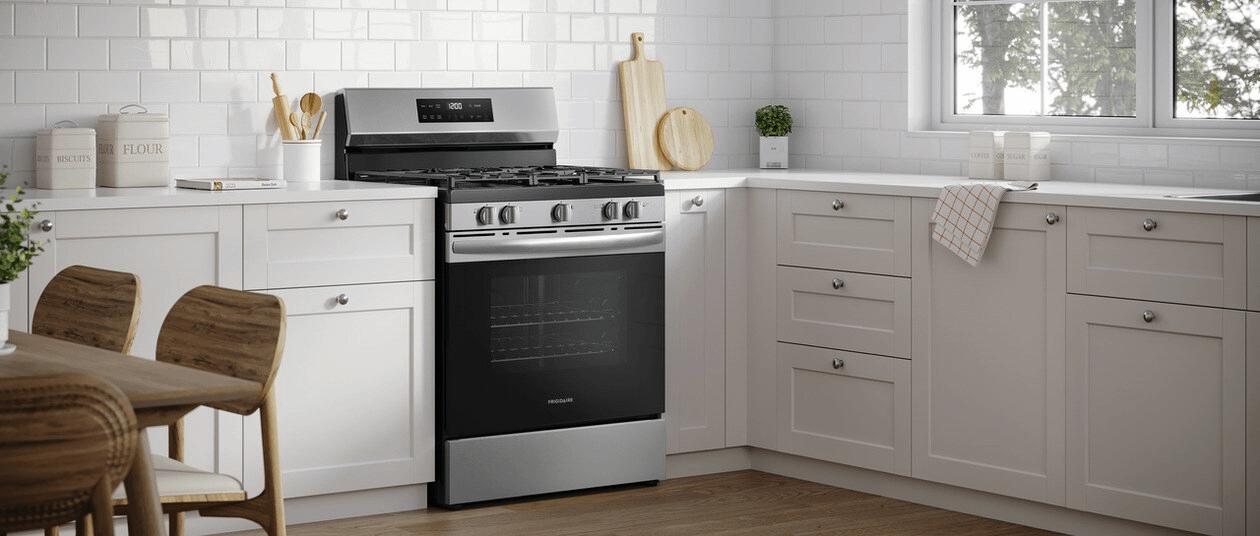

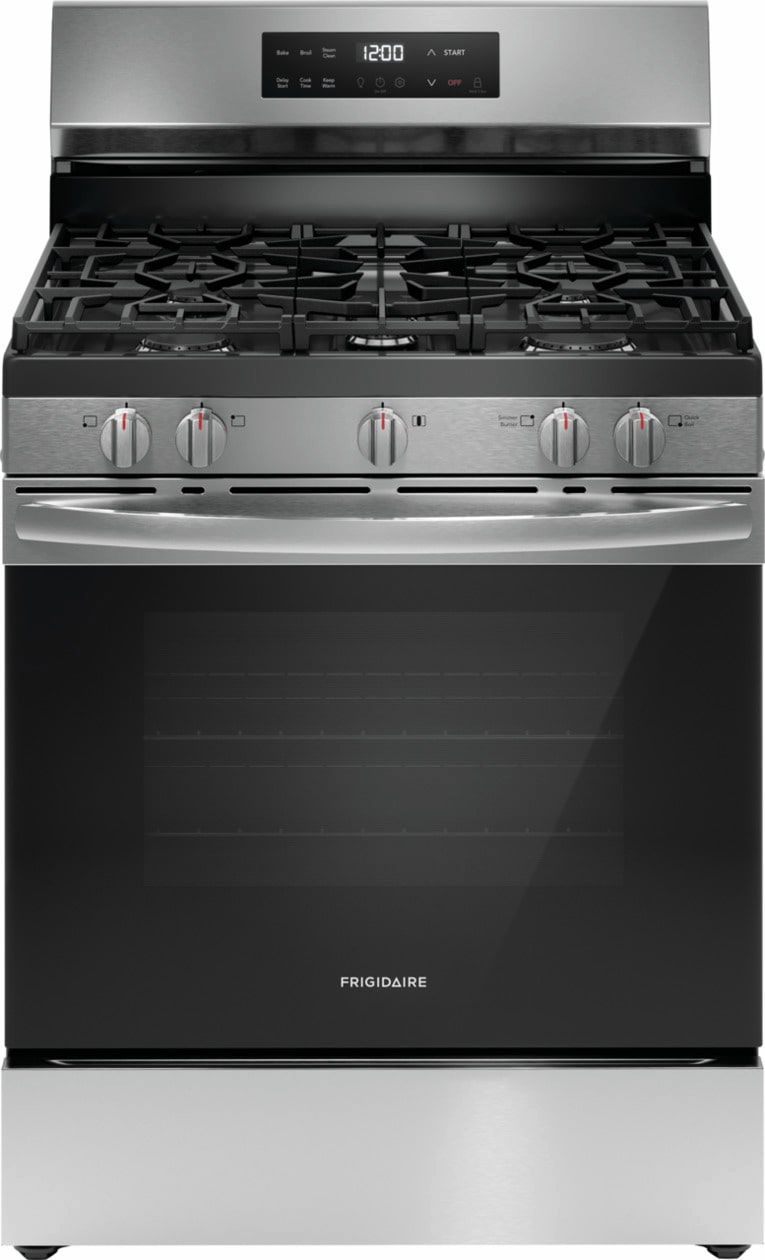

The Frigidaire 30" Gas Range with Quick Boil allows you to experience faster boil times with the 18,000 BTU Quick Boil burner and our flexible five burner cooktop was designed to fit all your cooking needs. For easier cleanup, our Steam Clean cycle provides a quick 30-minute oven cleaning that's chemical-free, odor-free and fast.
- Quick Preheat

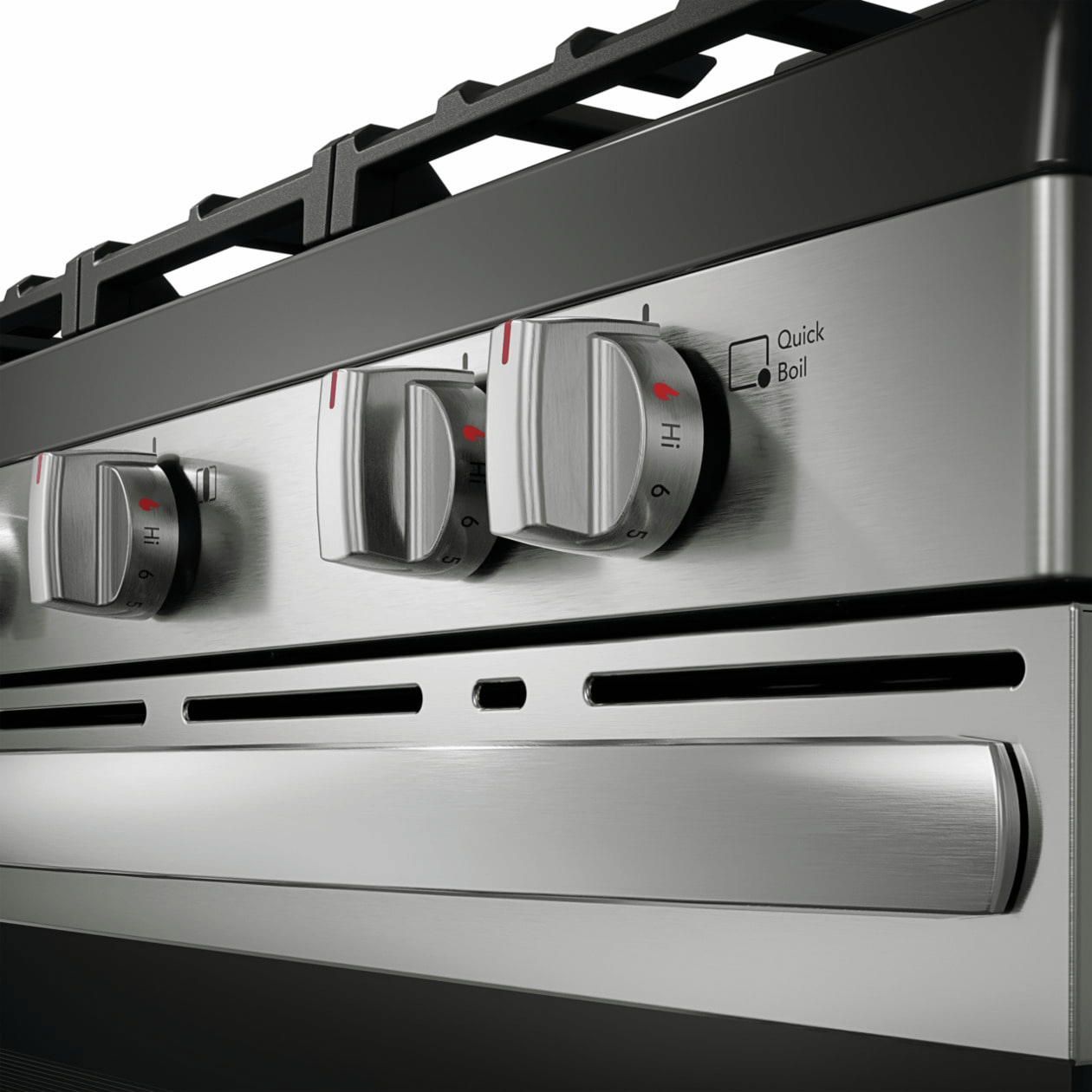

- Experience faster boil times and more powerful cooking with the 18,000 BTU burner.

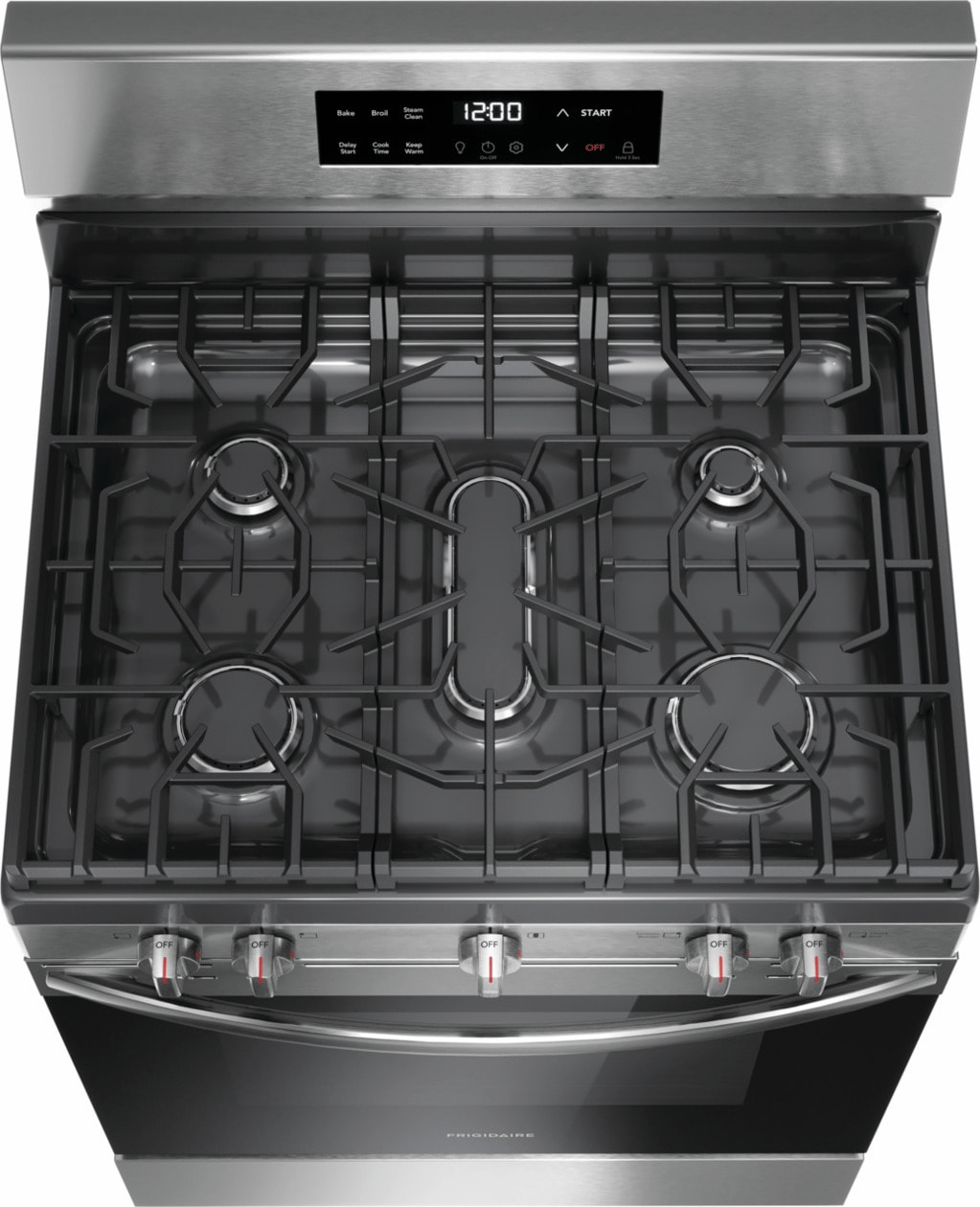

- Five Burner Cooktop
- Designed to meet all of your cooking needs with a 5,000-BTU simmer burner, 10,000-BTU center oval burner, and 18,000-BTU Quick Boil Burner.

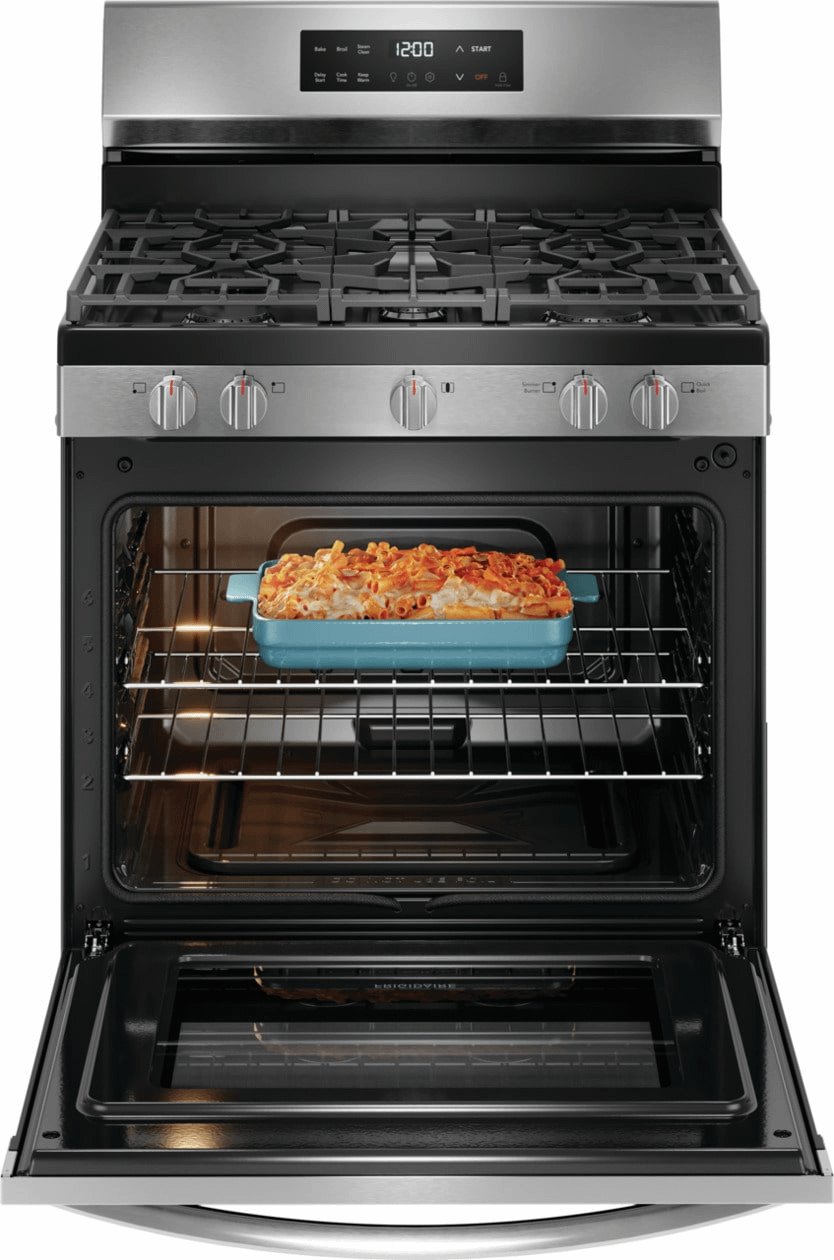

- Even Baking Technology
- Designed to deliver even baking results, every time.
- 30-Minute Steam Clean
- A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.
- Continuous Edge-to-Edge Grates
- Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
- Extra Wide Store-More(TM) Storage Drawer
- Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!

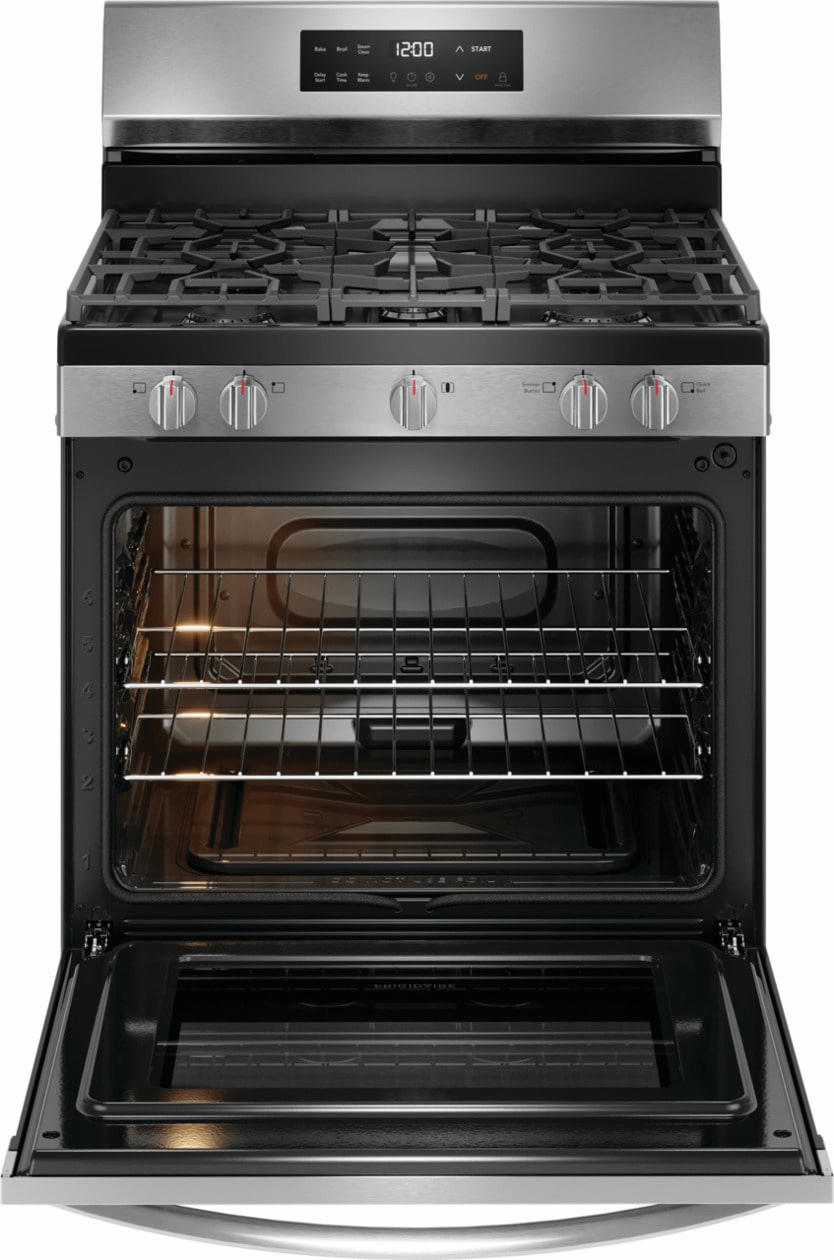

- 5.1 Cu. Ft. Oven Capacity
- Cook more at once with our large oven capacity.
- Dishwasher Safe Burner Caps
- Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
- Hidden Bake Element
- Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
- Proudly Assembled in the USA
Product Line | Gas Range |
Power Type | NG |
Size | 30" |
Installation Type | Free-Standing |
Factory | Springfield |
Color | Stainless Steel |
Cooktop | |
Cooking Surface Type | Gas |
Grate Material | Cast Iron |
Grate Quantity | 3 |
Grate Style | Continuous |
Cooktop Performance | |
Right Front Element Burner | 18000 BTU |
Right Rear Element Burner | 5000 BTU |
Left Front Element Burner | 14000 BTU |
Left Rear Element Burner | 10000 BTU |
Center Rear Element Burner | 10000 BTU |

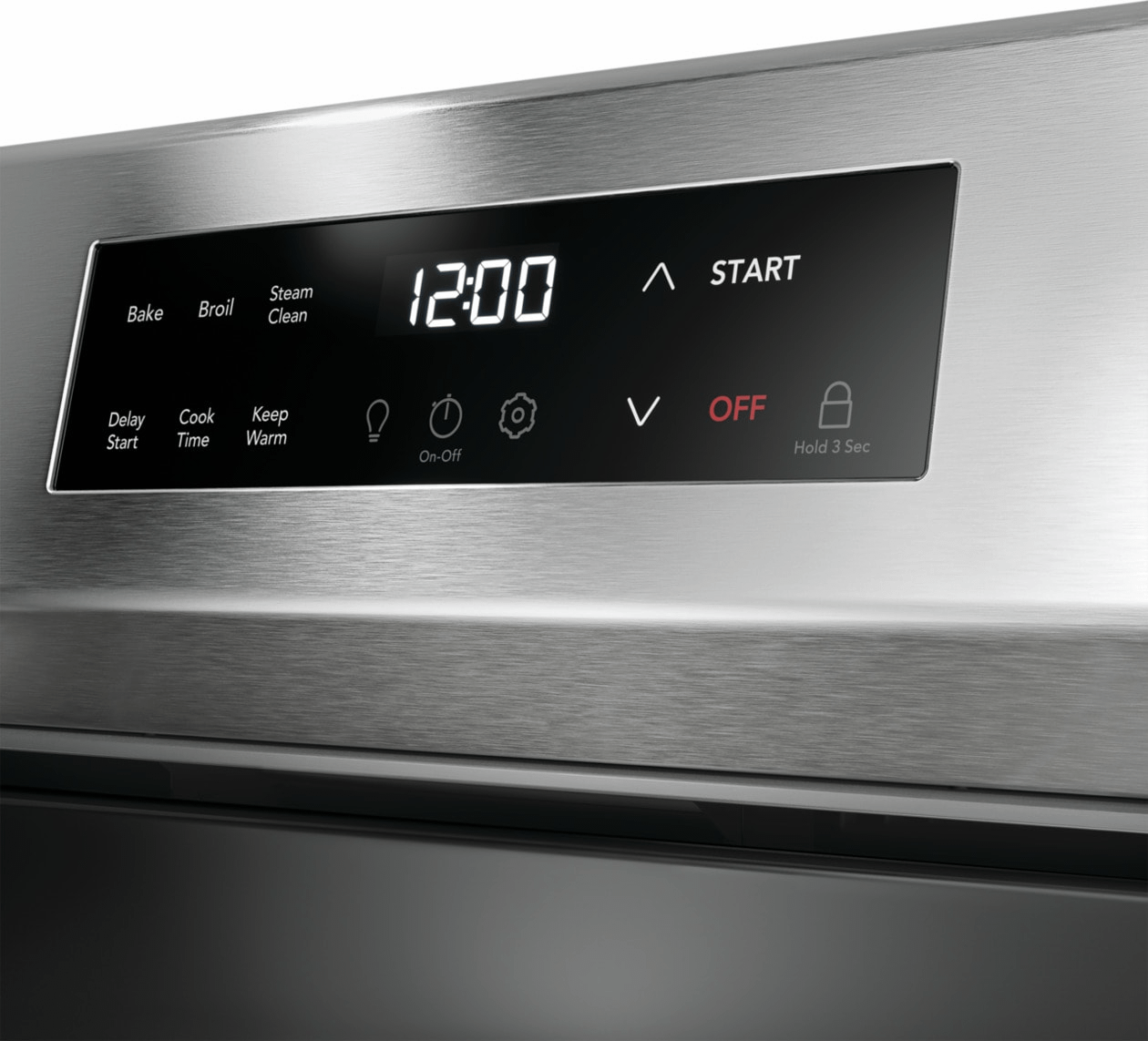

Cooking Controls | |
Bake | Yes |
Broil | Yes |
Clock | Yes |
Cook Time | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Light | Yes |
Lockout | Yes |
Off | Yes |
Oven Light | Yes |
Set Clock | Yes |
Start | Yes |
Steam Clean | Yes |
Temperature Display | Yes |
Timer On / Off | Yes |
Up / Down Arrow | Yes |
User Preferences | Yes |
Cooking Controls Function | |
Adjustable Volume Feedback | Yes |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Oven | |
Bake Element | 17000 BTU |
Broil Element | 1400 Watts |
Broil Element Pass | 6 |
Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Drawer | |
Drawer Handle Style | Integrated |
Drawer Type | Storage |
Controls | |
Control Lock | Yes |
Display | |
Control Location | Rear |
Display Interface Color | White |
Display Type | Membrane |

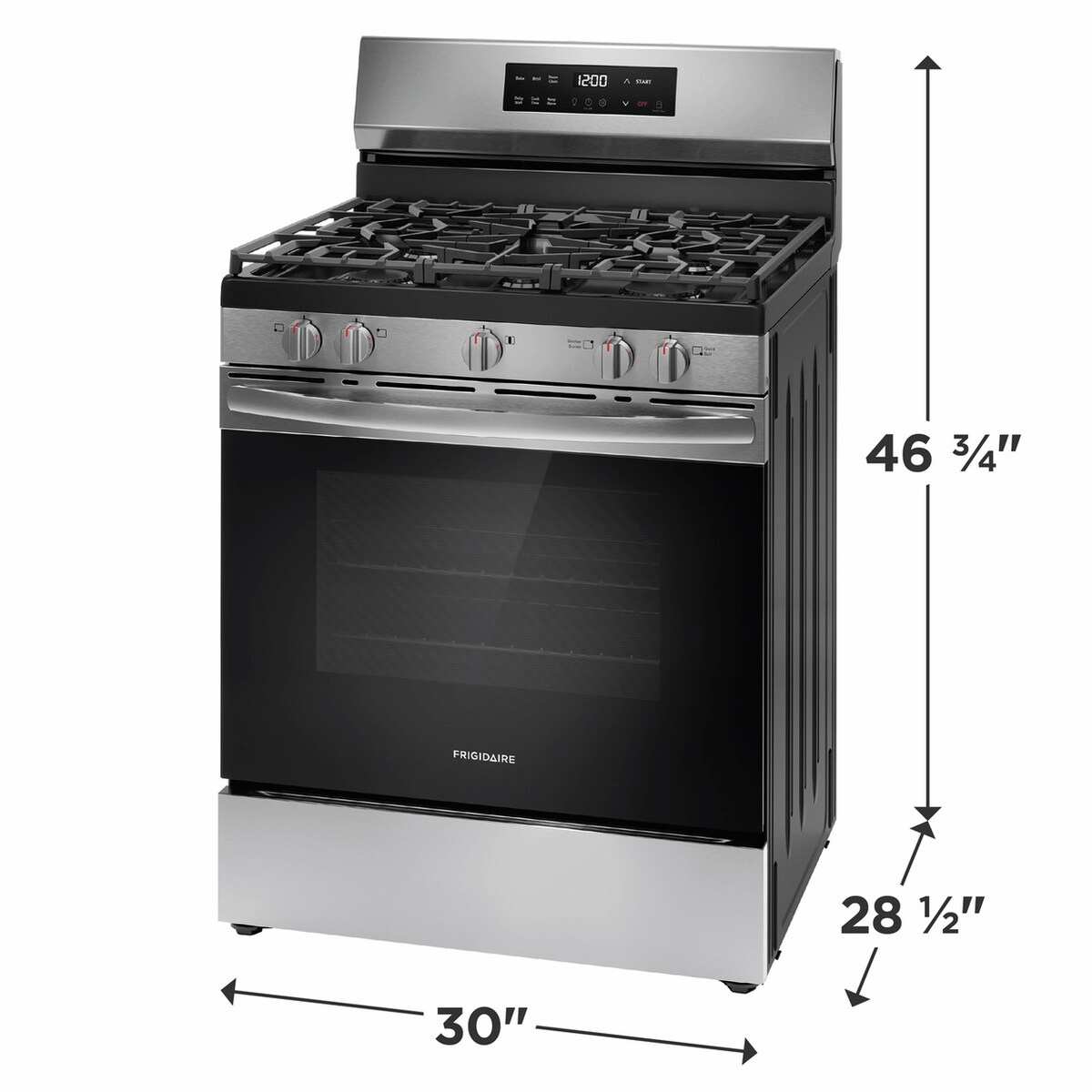

Dimensions and Volume | |
Minimum Height | 46 3/4" |
Maximum Height | 47 3/4" |
Width | 30" |
Depth | 26" |
Depth With Door 90° Open | 47 5/16" |
Depth With Handle | 28 1/2" |
Oven Interior Height | 17 5/8" |
Oven Interior Width | 25 3/16" |
Oven Interior Depth | 19 7/8" |
Oven Capacity | 5.1 Cu. Ft. |
Electrical Specifications | |
Minimum Circuit Required | 12 Amps |
Voltage Rating | 120 V |
Installation | |
Adjustable Leveling Legs | Yes |
Power Cord Included | Yes |
General Specifications | |
Product Weight | 180 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Safety Certifications and Approvals | |
CSA Listed | Yes |
