The Frigidaire 30" Gas Range allows you to get to mealtime faster with the powerful 18,000 BTU Quick Boil burner. Experience the ultimate in cooktop flexibility with our five burner cooktop, designed to handle all of your cooking needs. Enjoy consistent, even baking results with our Even Baking Technology. Plus, cook more at once with our large 5.1 cu. ft. capacity oven.
- Quick Boil
- Experience faster boil times and more powerful cooking with the 18,000 BTU Quick Boil burner.
- Five Burner Cooktop
- Get the ultimate cooking flexibility with a cooktop that has five burners designed to handle all of your cooking needs.
- Even Baking Technology
- Designed to deliver even baking results, every time.
- Continuous Edge-to-Edge Grates
- Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
- 5.1 Cu. Ft. Oven Capacity
- Large 5.1 cu. ft. oven capacity allows you to cook more at once.
- Extra Wide Store-More(TM) Storage Drawer
- Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
- Dishwasher Safe Burner Caps
- Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
- Proudly Assembled in the USA
Product Line | Gas Range |
Power Type | NG |
Size | 30" |
Installation Type | Free-Standing |
Factory | Springfield |
Color | Stainless Steel |
Cooktop | |
Cooking Surface Type | Gas |
Grate Material | Cast Iron |
Grate Quantity | 3 |
Grate Style | Continuous |
Sealed Burners | Yes |
Cooktop Performance | |
Right Front Element Burner | 18000 BTU |
Right Rear Element Burner | 5000 BTU |
Left Front Element Burner | 14000 BTU |
Left Rear Element Burner | 10000 BTU |
Center Element Burner | 10000 BTU |
Cooking Controls | |
Bake | Yes |
Broil | Yes |
Clock | Yes |
Off | Yes |
Oven Light | Yes |
Preheat | Yes |
Timer On / Off | Yes |
Up / Down Arrow | Yes |
Cooking Controls Function | |
Program Fahrenheit or Celsius | Yes |
Oven | |
Bake Element | 17000 BTU |
Broil Element | 1400 Watts |
Broil Element Pass | 6 |
Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Drawer | |
Drawer Handle Style | Integrated |
Drawer Type | Storage |
Display | |
Control Location | Rear |
Display Interface Color | White |
Display Type | LED |
Dimensions and Volume | |

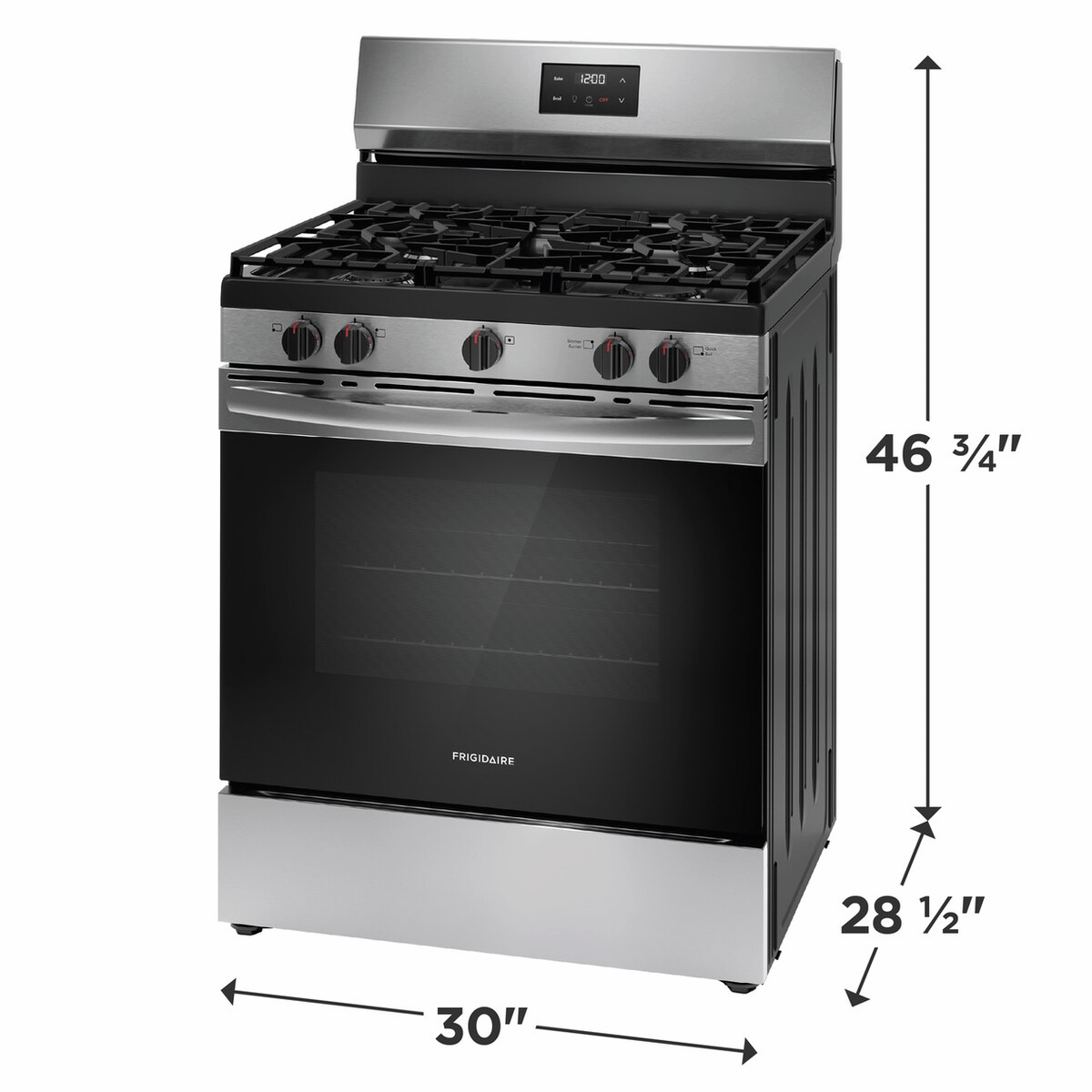

Minimum Height | 46 3/4" |
Maximum Height | 47 3/4" |
Width | 30" |
Depth | 26" |
Depth With Door 90° Open | 47 5/16" |
Depth With Handle | 28 1/2" |
Oven Interior Height | 17 5/8" |
Oven Interior Width | 25 3/16" |
Oven Interior Depth | 19 7/8" |
Oven Capacity | 5.1 Cu. Ft. |
Electrical Specifications | |
Voltage Rating | 120 V |
Installation | |
Adjustable Leveling Legs | Yes |
Power Cord Included | Yes |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 160 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Safety Certifications and Approvals | |
CSA Listed | Yes |
