Overview & Specifications
Overview & Specifications

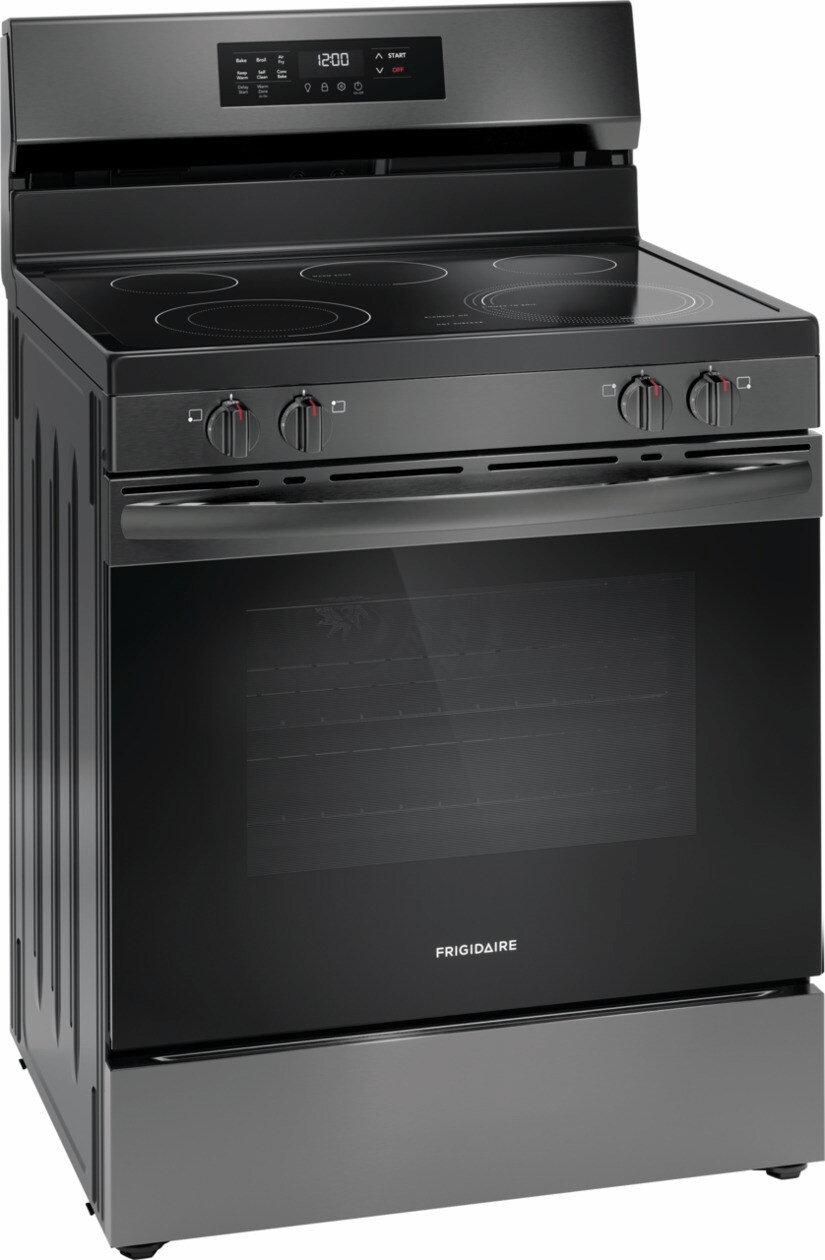

The Frigidaire 30" Electric Range with Air Fry allows you to get that same great taste and crispy texture of deep frying with little to no oil, right in your oven. Also, enjoy consistent results every time with our new EvenTemp® cooktop element which reduces hot and cold spots in your pan. Plus, this cooktop features five flexible elements, designed to handle all of your cooking needs.

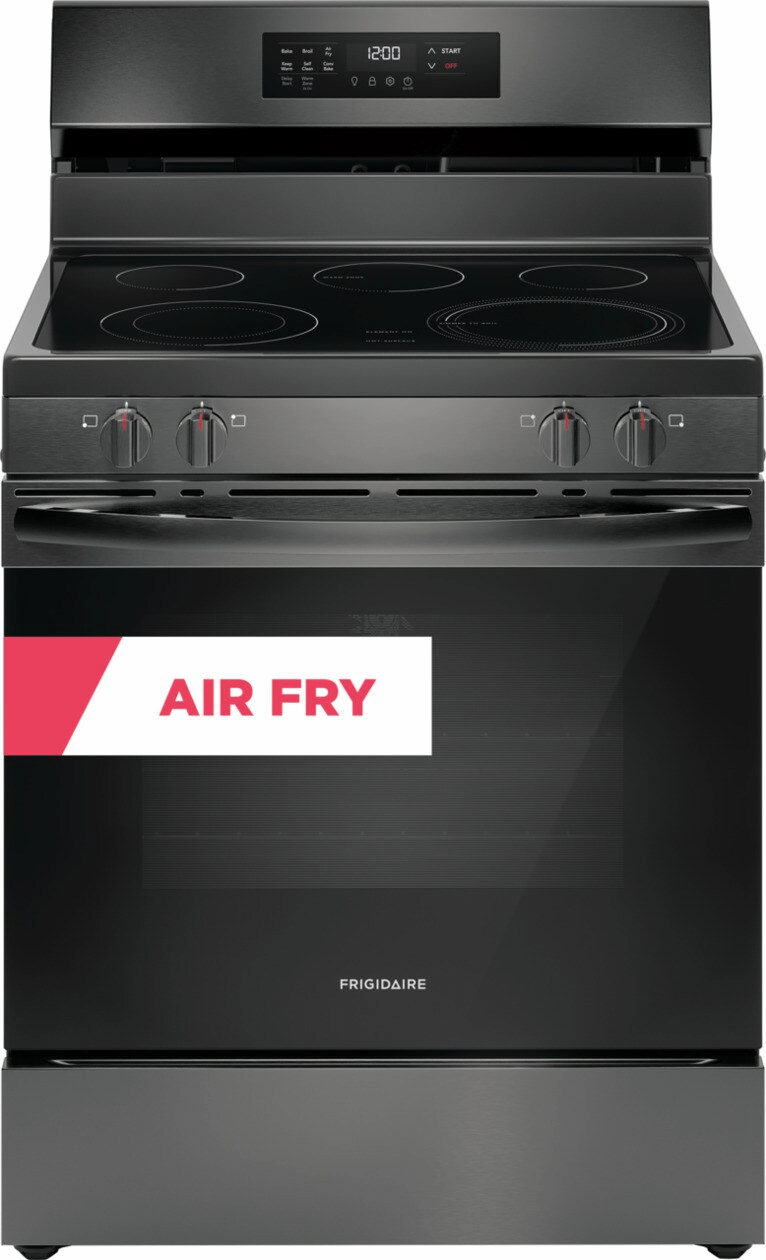

- Air Fry
- Make healthier and delicious meals for your entire family - right in your oven.

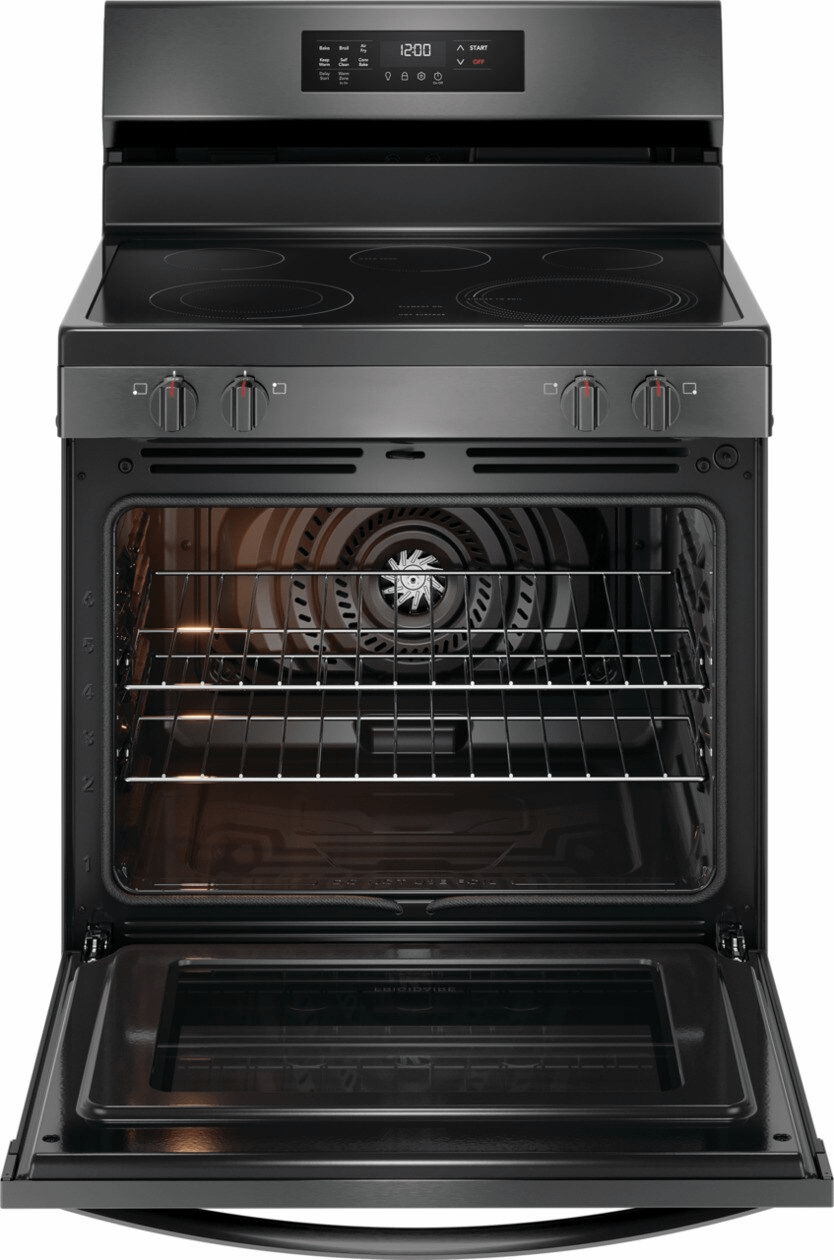

- Convection Bake
- Get faster, more even baking results with our fan convection baking system.
- EvenTemp(R) Element
- Heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

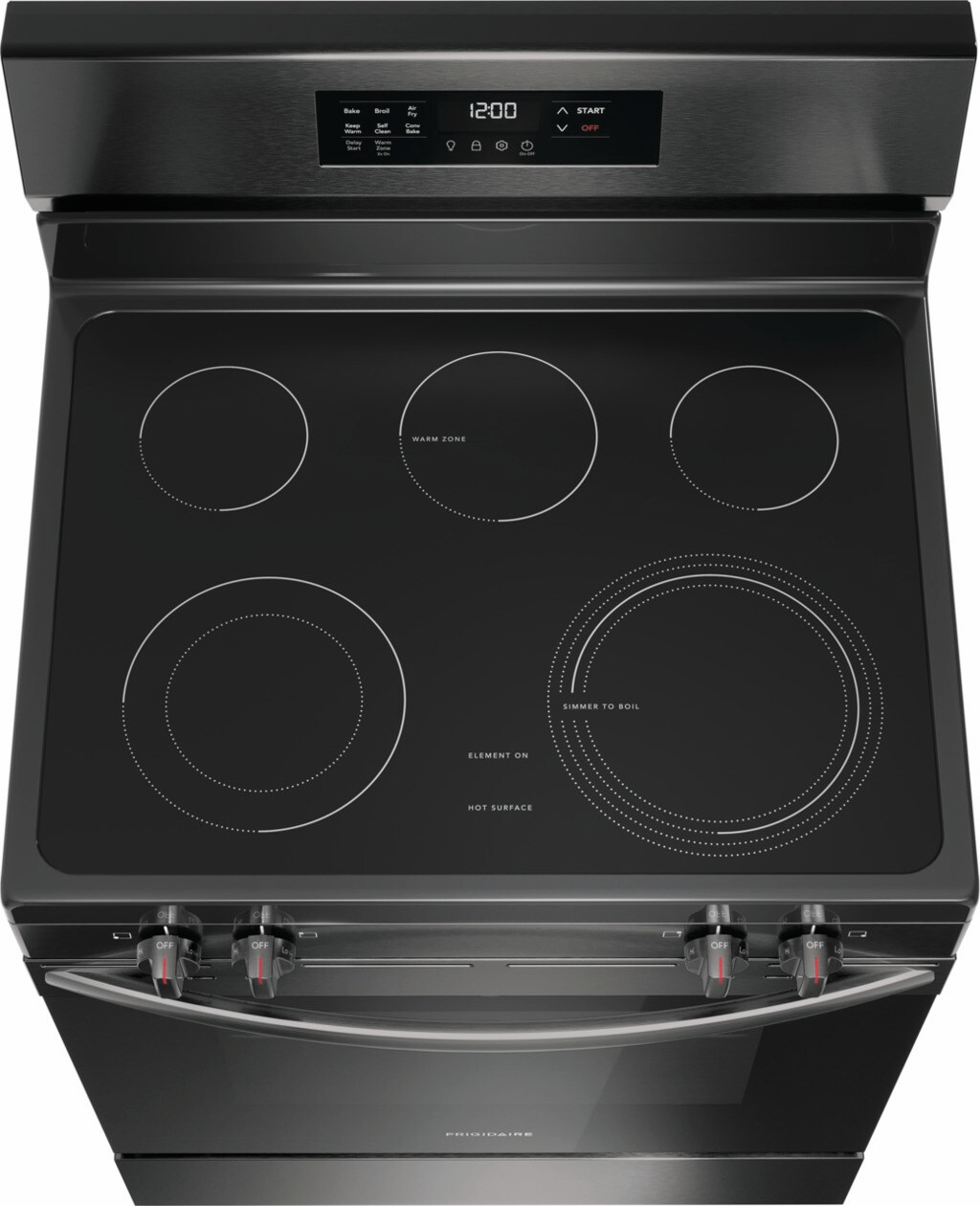

- Five Element Cooktop
- Designed to handle all of your cooking needs - features our powerful 3,200 Watt EvenTemp(R) Element.
- Food Network Editor's Pick
- Recipient of the 2024 Food Network Editor's Pick Award
- One-Touch Self Clean
- A convenient 3 hour self clean cycle cleans your oven, so you don't have to.
- Extra Wide Store-More(TM) Storage Drawer
- Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!

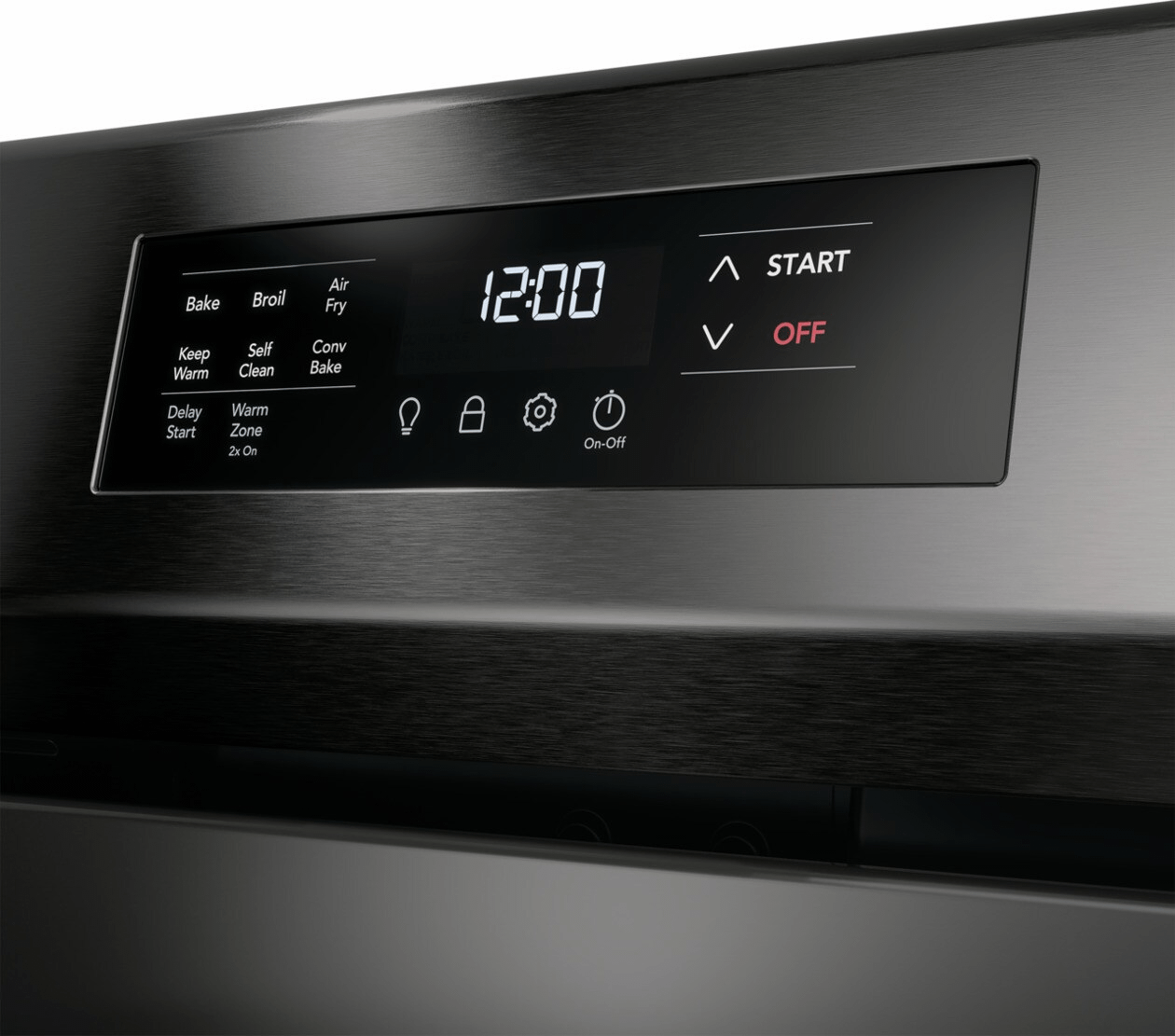

- Capacitive Touch Control Panel
- Easy to to use, glass capacitive touch control panel.
- Extra Large Oven Capacity
- Cook more at once with our extra-large, 5.3 cu. ft. capacity oven.
- Cooktop Keep Warm Zone
- Keep food warm until everything - and everyone - is ready.
- Hidden Bake Element
- Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
Product Line | Electric Range |
Power Type | Electric 240v |
Size | 30" |
Installation Type | Free-Standing |
Factory | Springfield |
Color | Black Stainless Steel |
Cooktop | |
Cooking Surface Type | Smooth |
Element On Indicator Light | Yes |
Hot-Surface Indicator Light | Yes |
Cooktop Performance | |
Right Front Element Burner Size | 9" |
Right Rear Element Burner Size | 6" |

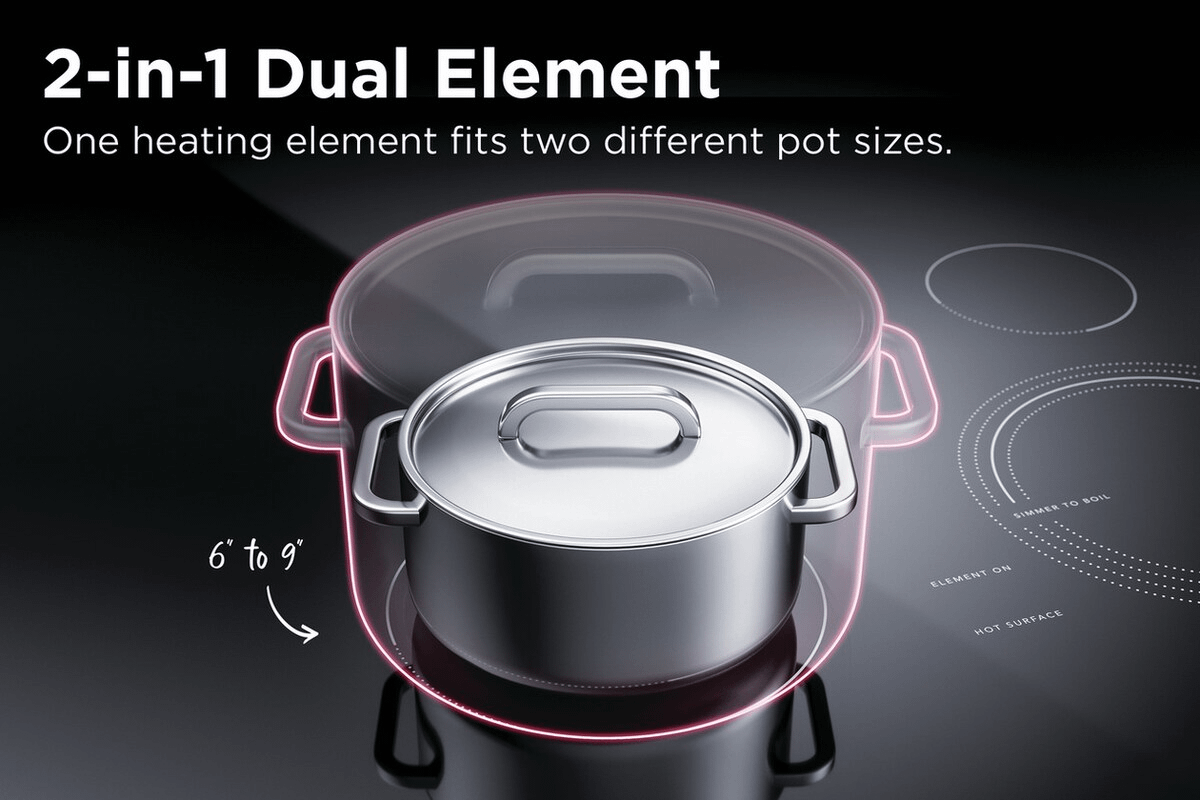

Left Front Element Burner Size (Small) | 6" |
Left Front Element Burner Size (Large) | 9" |
Left Rear Element Burner Size | 6" |
Right Front Element Burner | 3200 Watts |
Right Rear Element Burner | 1200 Watts |
Left Front Element Burner (Small) | 1400 Watts |
Left Front Element Burner (Large) | 3000 Watts |
Left Rear Element Burner | 1200 Watts |
Center Rear Element Burner | 100 Watts |
Keep Warm Burner Location | Center Rear |
Cooking Controls | |
Air Fry | Yes |
Bake | Yes |
Broil | Yes |
Child Lock | Yes |
Clock | Yes |
Convection Bake | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Light | Yes |
Lockout | Yes |
Off | Yes |
Oven Light | Yes |
Preheat | Yes |
Self Clean | Yes |
Set Clock | Yes |
Start | Yes |
Temperature Display | Yes |
Timer On / Off | Yes |
Up / Down Arrow | Yes |
User Preferences | Yes |
Warm Zone | Yes |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Oven | |
Bake Element | 2500 Watts |
Bake Element Pass | 8 |
Bake Element Type | Hidden |
Broil Element | 4000 Watts |
Broil Element Pass | 6 |
Broil System | Yes |
Cleaning System | Yes |
Convection | Yes |
Convection Type | Fan |
Number of Convection Fans | 1 |
Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Drawer | |
Drawer Handle Style | Integrated |
Drawer Type | Storage |
Controls | |
Control Lock | Yes |
Display | |
Control Location | Rear |
Display Interface Color | White |
Display Type | LED |

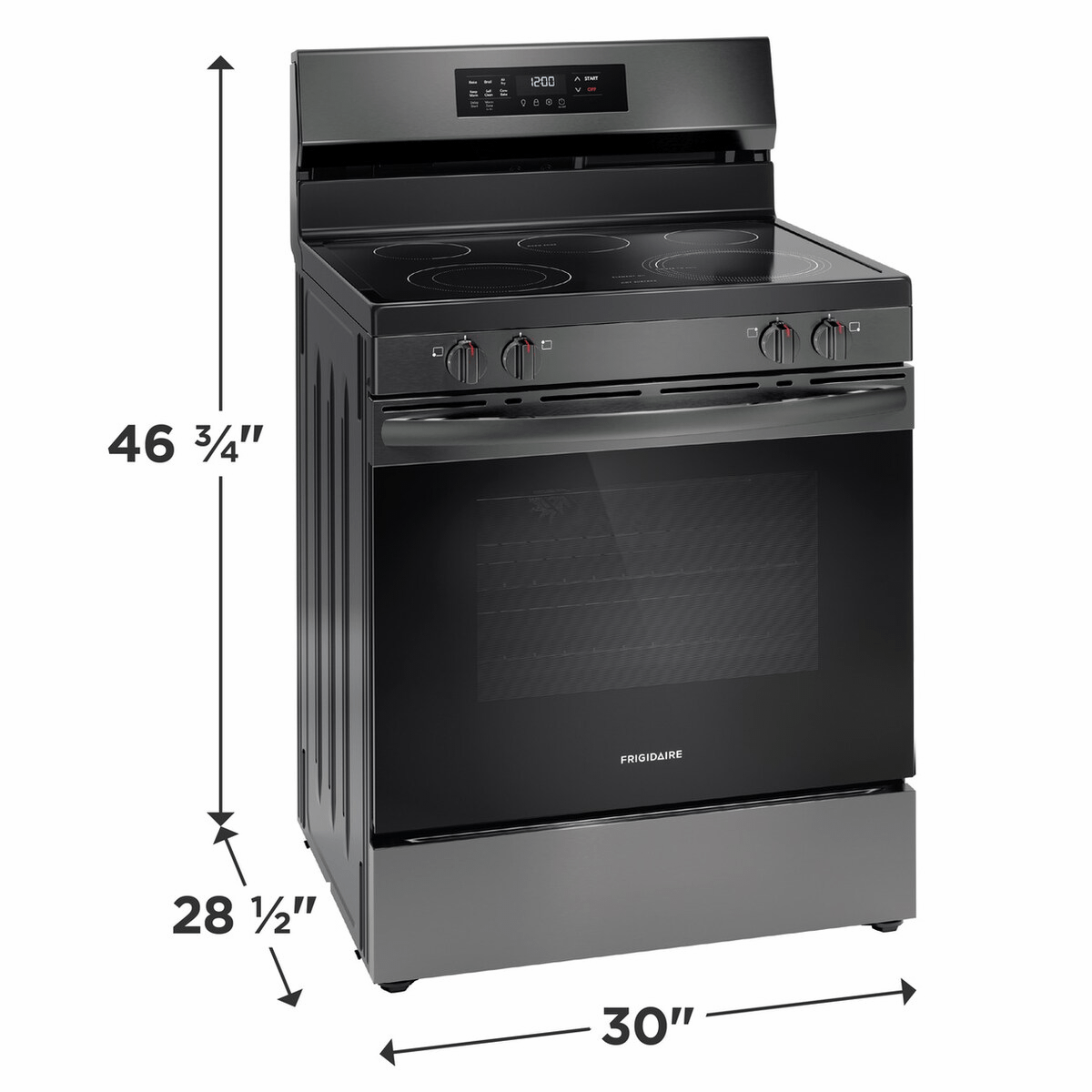

Dimensions and Volume | |
Minimum Height | 46 3/4" |
Maximum Height | 47 3/4" |
Width | 30" |
Depth | 26" |
Depth With Door 90° Open | 47 5/16" |
Depth With Handle | 28 1/2" |
Oven Interior Height | 18 1/8" |
Oven Interior Width | 25 3/16" |
Oven Interior Depth | 19 7/8" |
Oven Capacity | 5.3 Cu. Ft. |
Electrical Specifications | |
Amps @ 240 Volts | 13 Amps |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
Installation | |
Adjustable Leveling Legs | Yes |
General Specifications | |
Product Weight | 167 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Performance Certifications and Approvals | |
ENERGY STAR Certified | Yes |
UL Listed | Yes |
