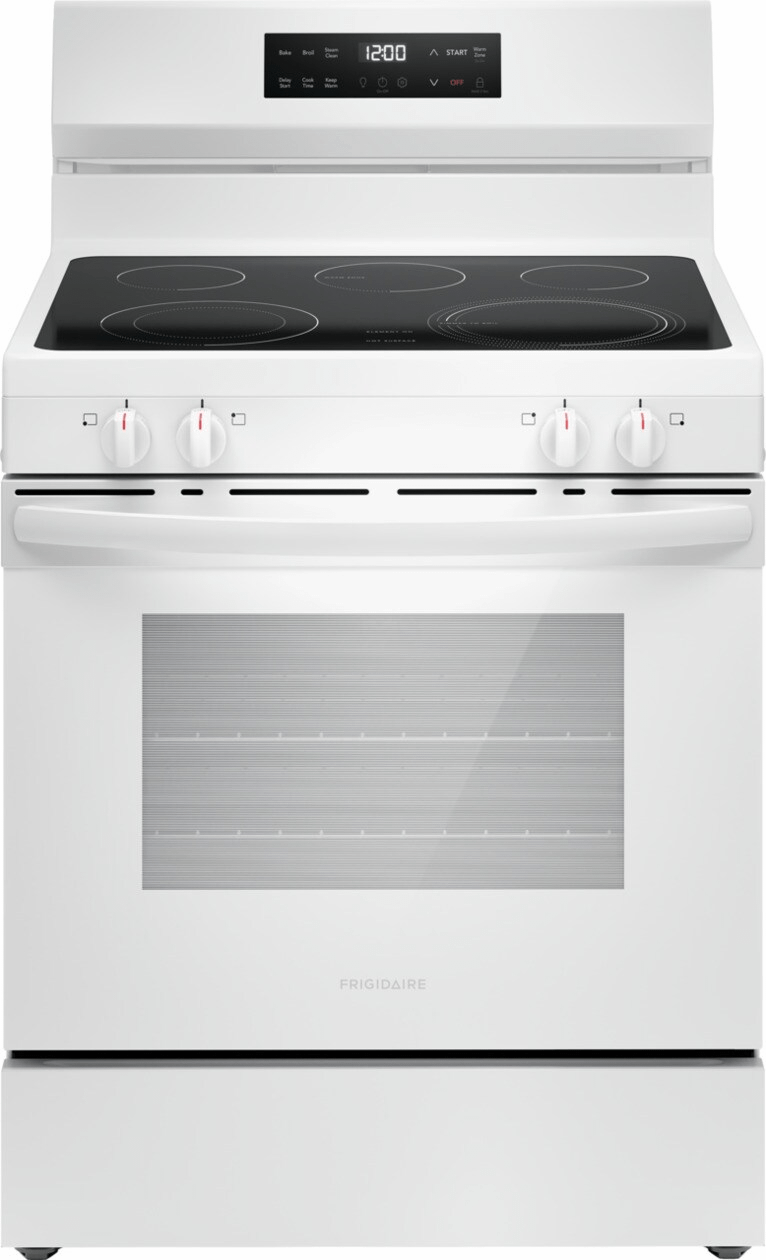

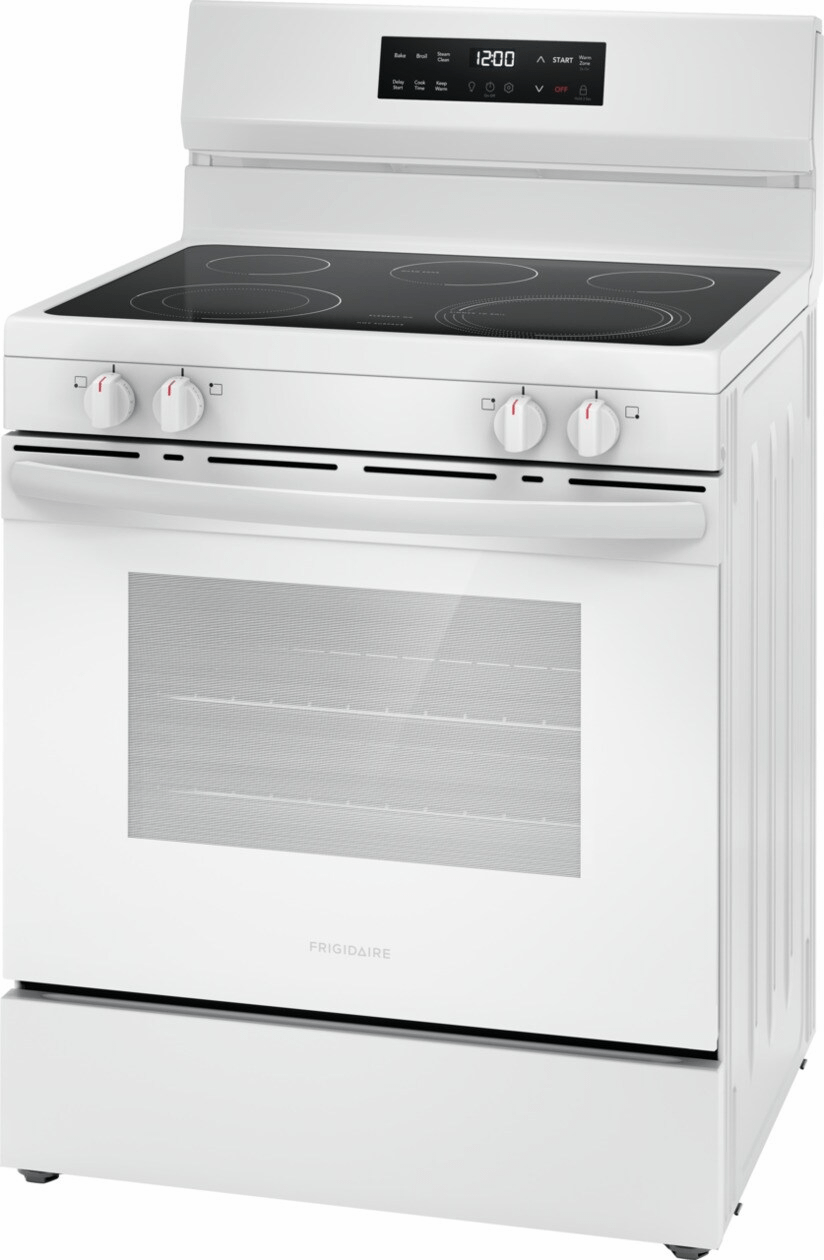

The Frigidaire 30" Electric Range with the EvenTemp® cooktop element delivers consistent results every time, because it reduces hot and cold spots in your pan. Plus, enjoy easier cleanup with our Steam Clean cycle that provides a quick 30-minute oven cleaning that's chemical-free, odor-free and fast.
- EvenTemp(R) Element
- Heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

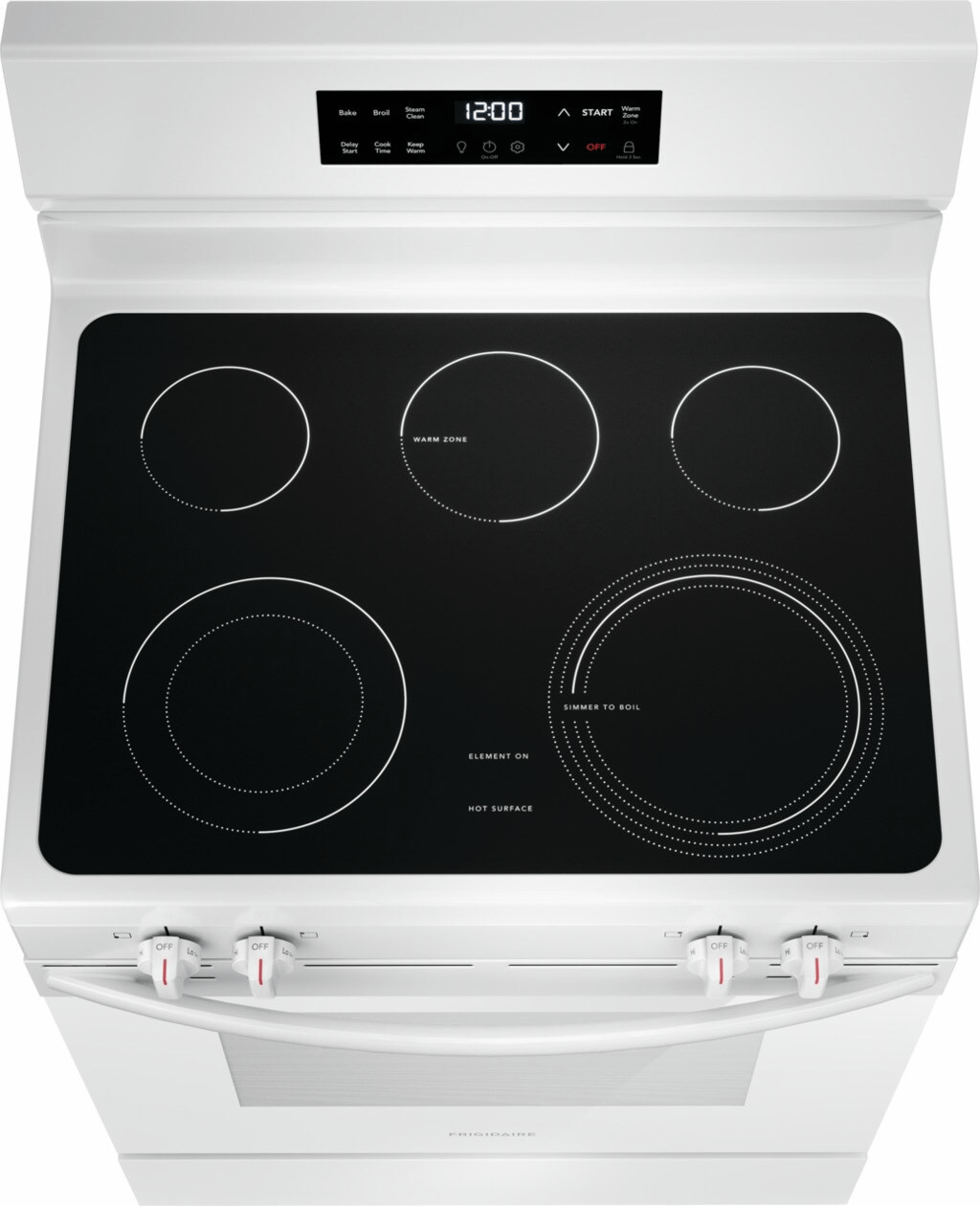

- Five Element Cooktop
- Designed to meet all of your cooking needs with a powerful 3,200 Watt EvenTemp(R) Element, Dual Expandable Element, and convenient Keep Warm Zone.
- Even Baking Technology
- Designed to deliver even baking results, every time.
- 30-Minute Steam Clean
- A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.
- SpaceWise(R) Dual Expandable Element
- Our convenient 2-in-1 element expands from 6" for smaller pots to 9" for larger cookware, providing more cooktop flexibility.
- Extra Wide Store-More(TM) Storage Drawer
- Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!

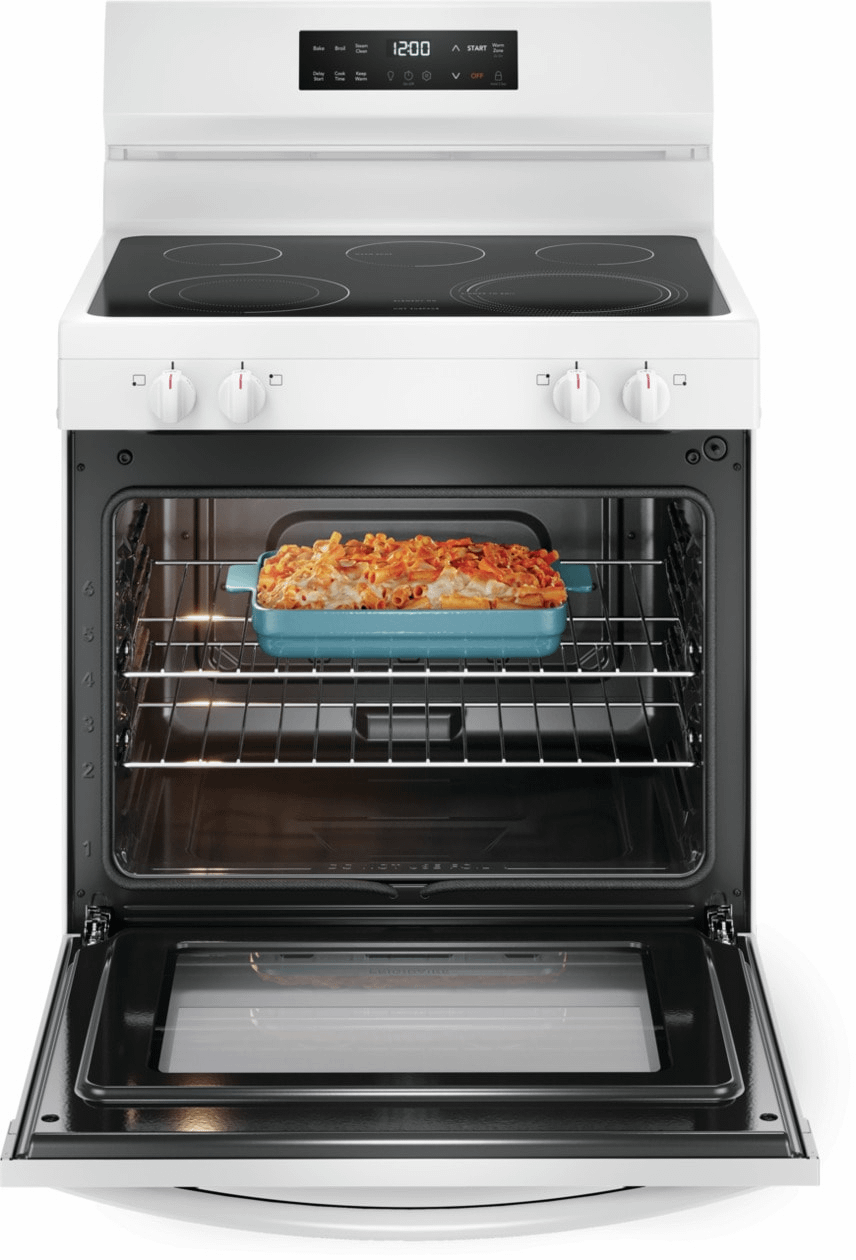

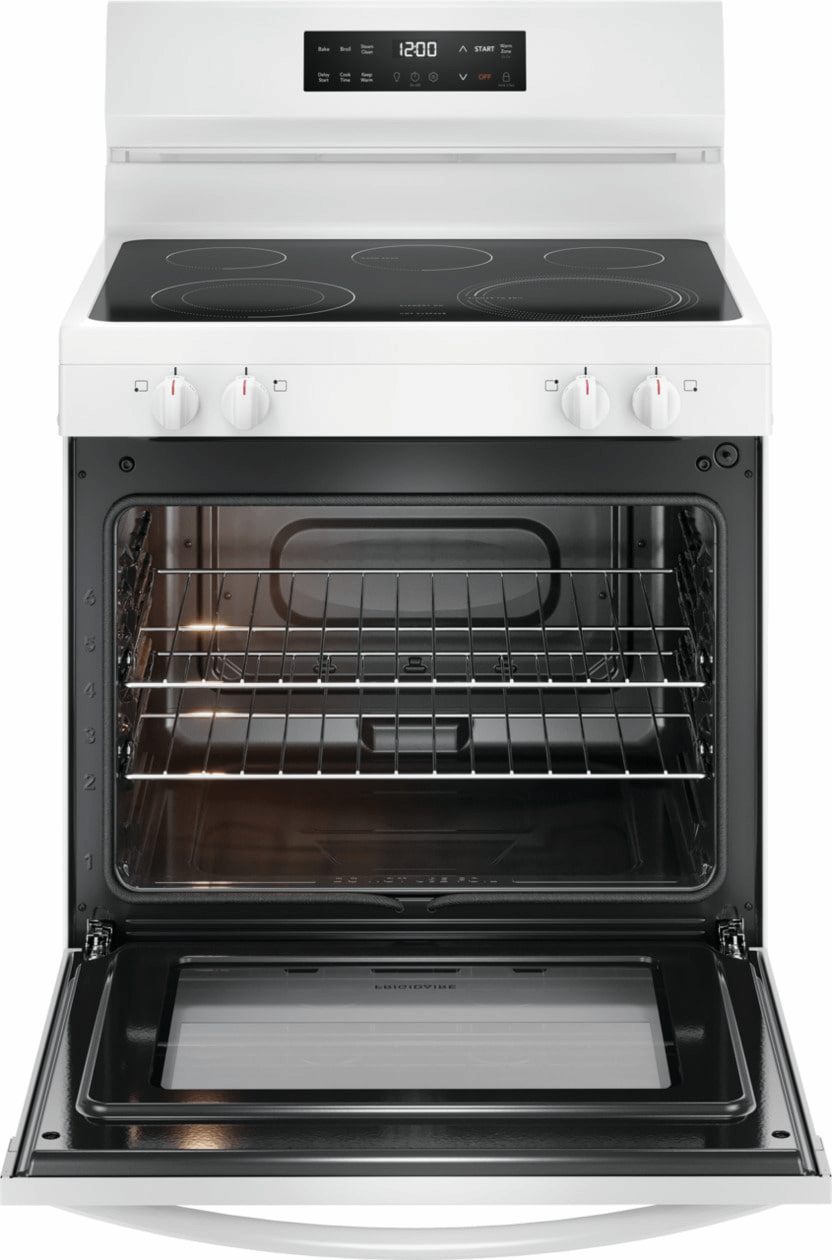

- Extra-Large Oven Capacity
- Cook more at once with our extra-large 5.3 cu. ft. capacity oven.
- Hidden Bake Element
- Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
- Cooktop Keep Warm Zone
- Keep food warm until everything - and everyone - is ready.
- Proudly Assembled in the USA
Product Line | Electric Range |
Power Type | Electric 240v |
Size | 30" |
Installation Type | Free-Standing |
Factory | Springfield |
Color | White |
Cooktop | |
Cooking Surface Type | Smooth |
Element On Indicator Light | Yes |
Hot-Surface Indicator Light | Yes |
Keep Warm Zone Light | Yes |
Cooktop Performance | |
Right Front Element Burner Size | 9" |
Right Rear Element Burner Size | 6" |
Left Front Element Burner Size (Small) | 6" |
Left Front Element Burner Size (Large) | 9" |
Left Rear Element Burner Size | 6" |
Right Front Element Burner | 3200 Watts |
Right Rear Element Burner | 1200 Watts |
Left Front Element Burner (Small) | 1400 Watts |
Left Front Element Burner (Large) | 3000 Watts |
Left Rear Element Burner | 1200 Watts |
Center Rear Element Burner | 100 Watts |
Keep Warm Burner Location | Center Rear |

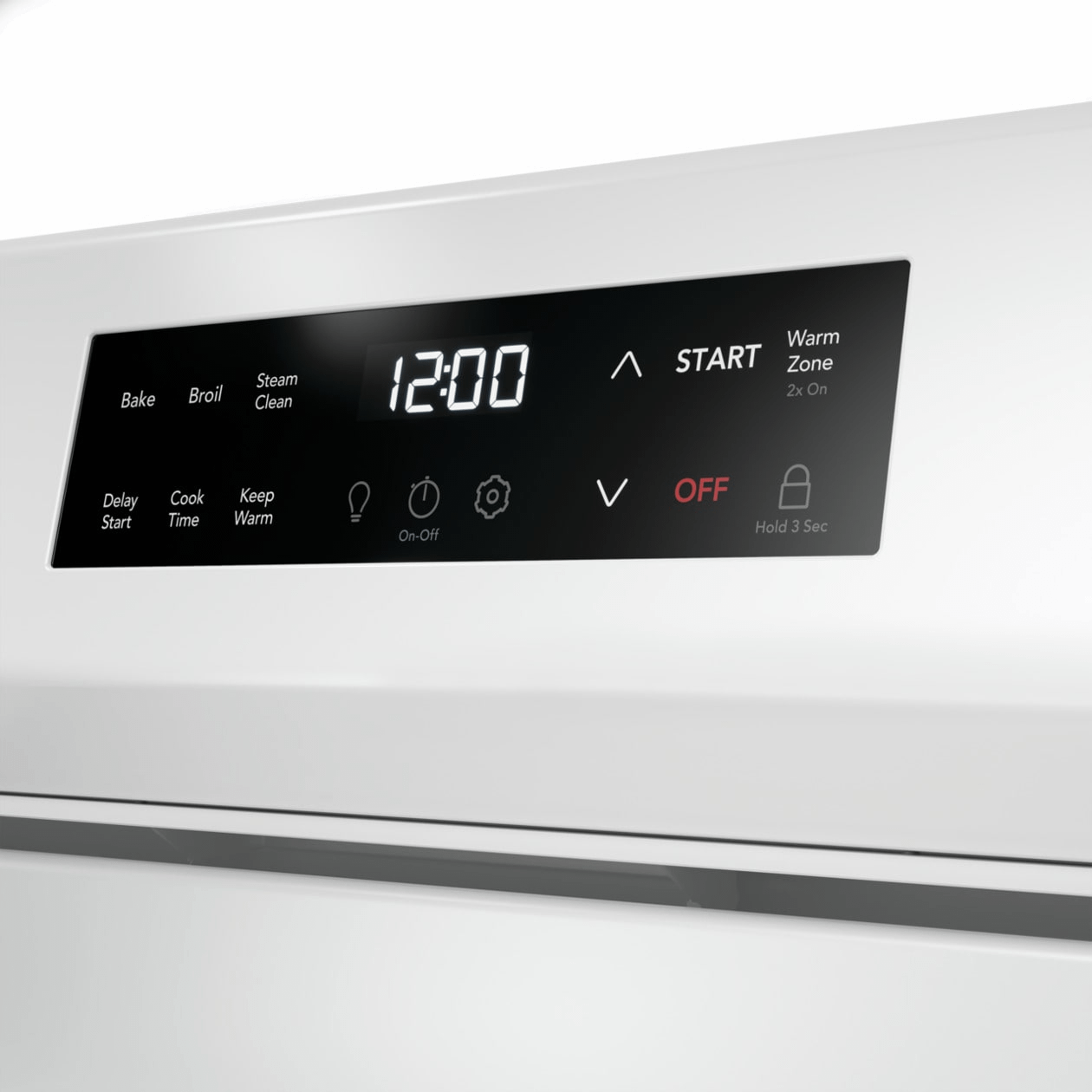

Cooking Controls | |
Bake | Yes |
Broil | Yes |
Clock | Yes |
Cook Time | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Light | Yes |
Lockout | Yes |
Off | Yes |
Oven Light | Yes |
Set Clock | Yes |
Start | Yes |
Steam Clean | Yes |
Temperature Display | Yes |
Timer On / Off | Yes |
Up / Down Arrow | Yes |
User Preferences | Yes |
Warm Zone | Yes |
Cooking Controls Function | |
Adjustable Volume Feedback | Yes |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Oven | |
Bake Element | 2500 Watts |
Bake Element Pass | 8 |
Bake Element Type | Hidden |
Broil Element | 3000 Watts |
Broil Element Pass | 4 |
Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Drawer | |
Drawer Handle Style | Integrated |
Drawer Type | Storage |
Controls | |
Control Lock | Yes |
Display | |
Control Location | Rear |
Display Interface Color | White |
Display Type | Membrane |

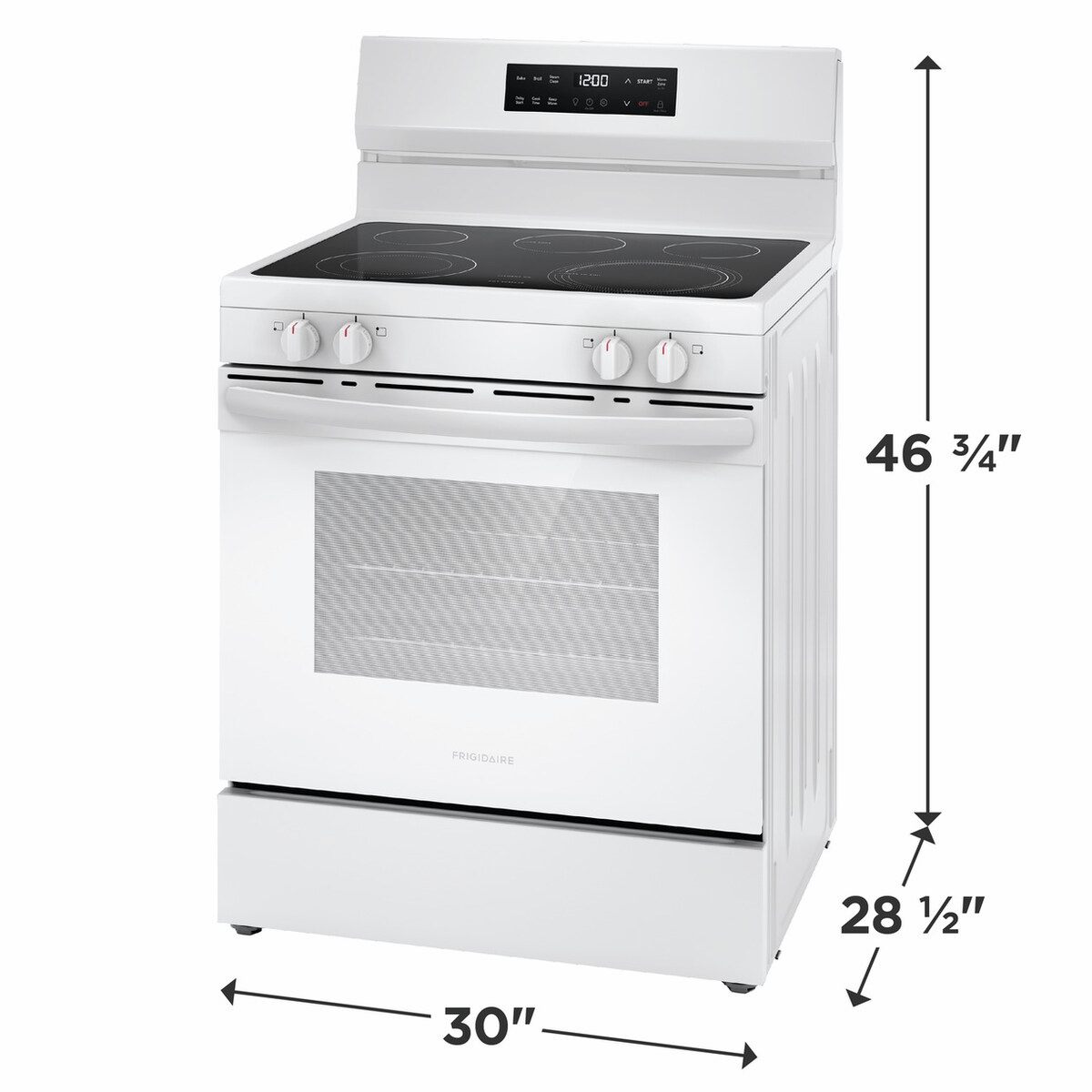

Dimensions and Volume | |
Minimum Height | 46 3/4" |
Maximum Height | 47 3/4" |
Width | 30" |
Depth | 26" |
Depth With Door 90° Open | 47 5/16" |
Depth With Handle | 28 1/2" |
Oven Interior Height | 18 1/8" |
Oven Interior Width | 25 3/16" |
Oven Interior Depth | 19 7/8" |
Oven Capacity | 5.3 Cu. Ft. |
Electrical Specifications | |
Connected Load @ 240V | 12 kW |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
Installation | |
Adjustable Leveling Legs | Yes |
General Specifications | |
Product Weight | 145 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Safety Certifications and Approvals | |
RoHS | Yes |
UL Listed | Yes |
