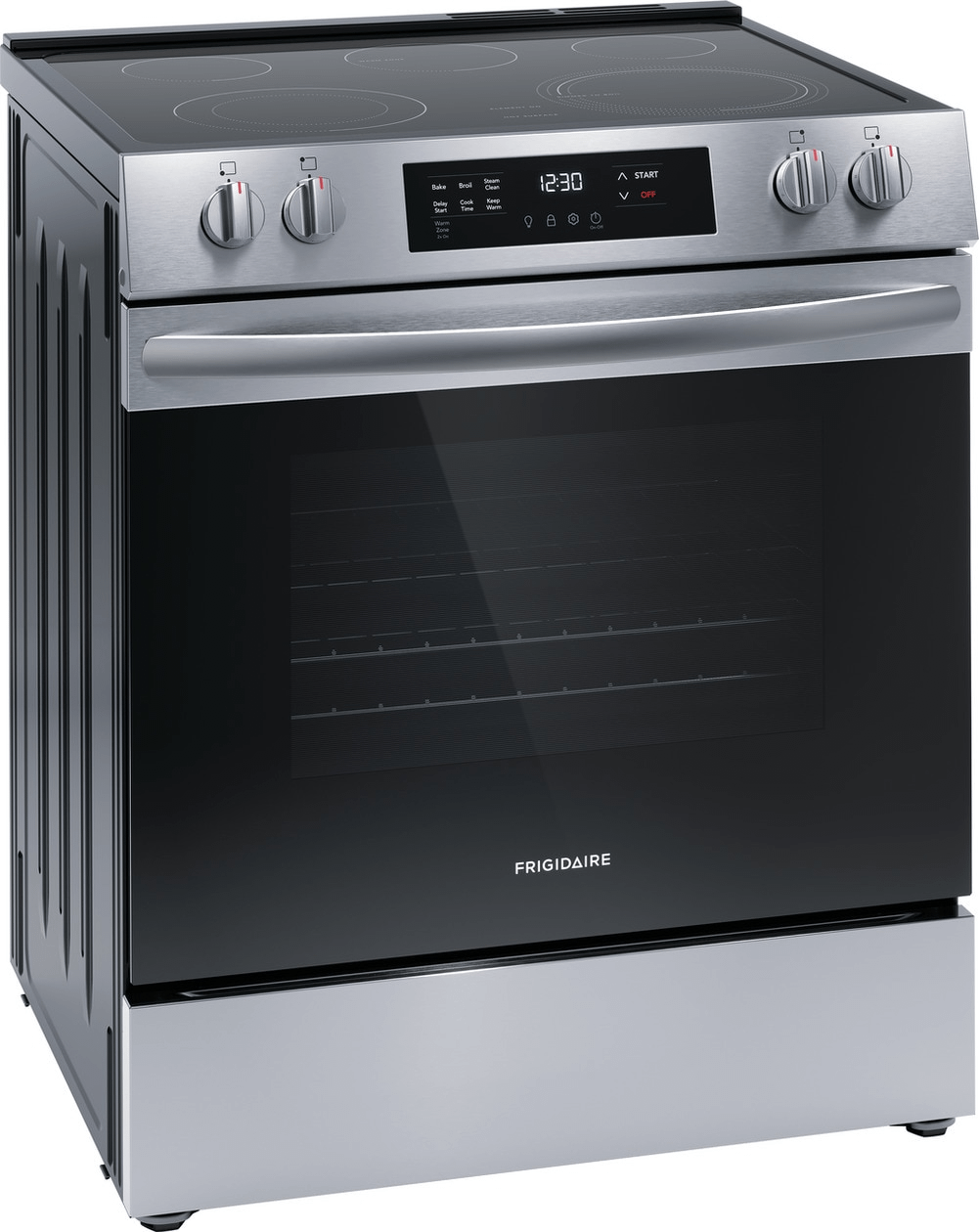

The Frigidaire 30" Front Control Electric Range with the EvenTemp® cooktop element delivers consistent results every time, because it reduces hot and cold spots in your pan. Plus, enjoy easier cleanup with our Steam Clean cycle that provides a quick 30-minute oven cleaning that's chemical-free, odor-free and fast.
- EvenTemp(R) Element
- Heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

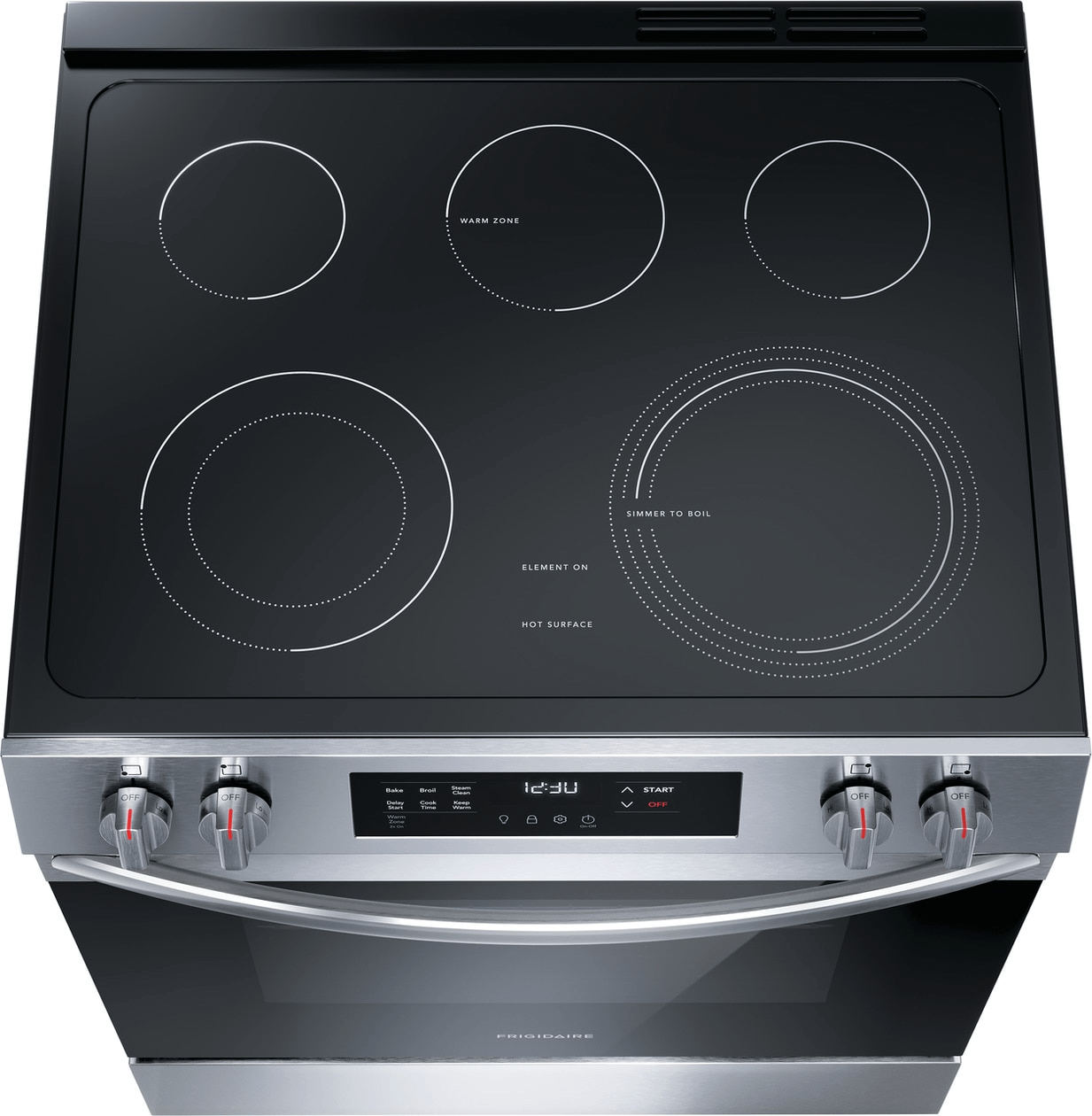

- Five Element Cooktop
- Designed to meet all of your cooking needs with a powerful 3,200 Watt EvenTemp(R) Element, Dual Expandable Element, and convenient Keep Warm Zone.
- Even Baking Technology
- Designed to deliver even baking results, every time.
- 30-Minute Steam Clean
- A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.

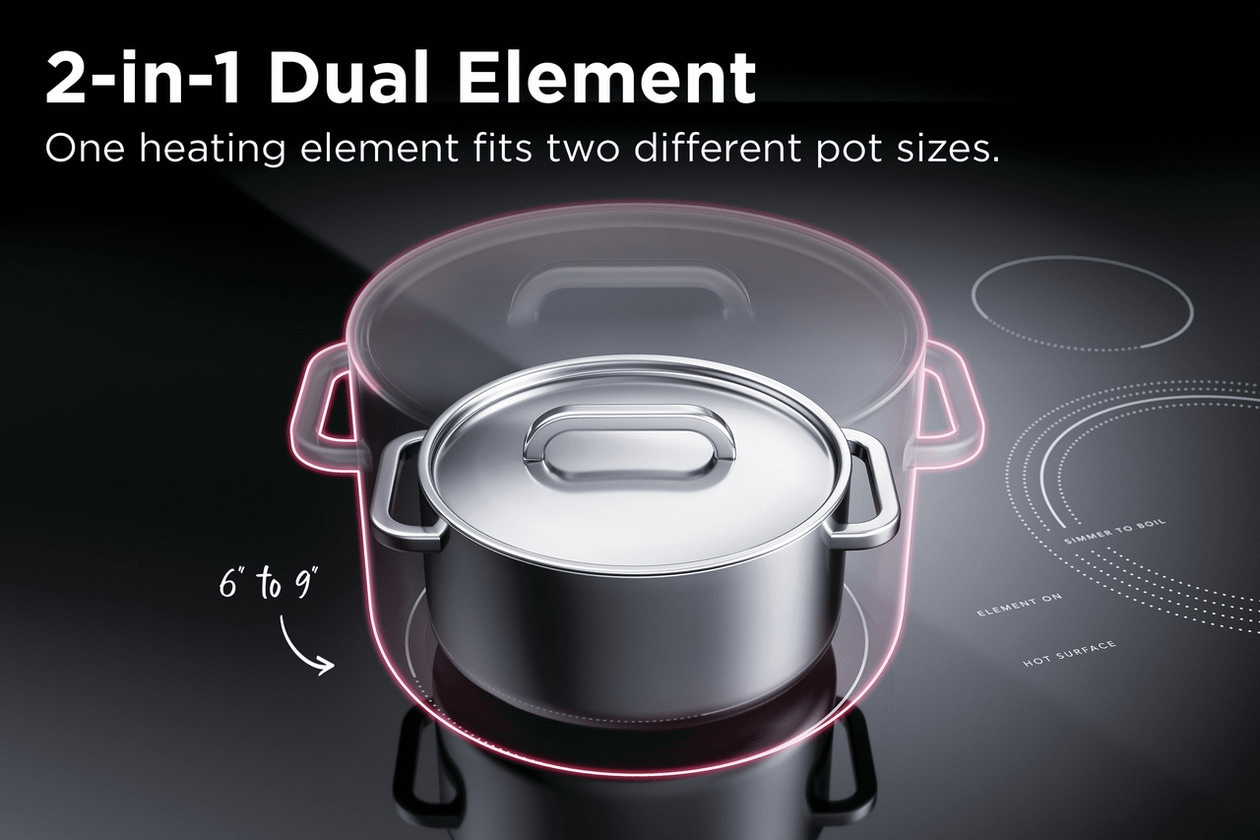

- SpaceWise(R) Dual Expandable Element
- Our convenient 2-in-1 element expands from 6" for smaller pots to 9" for larger cookware, providing more cooktop flexibility.
- Extra Wide Store-More(TM) Storage Drawer
- Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!

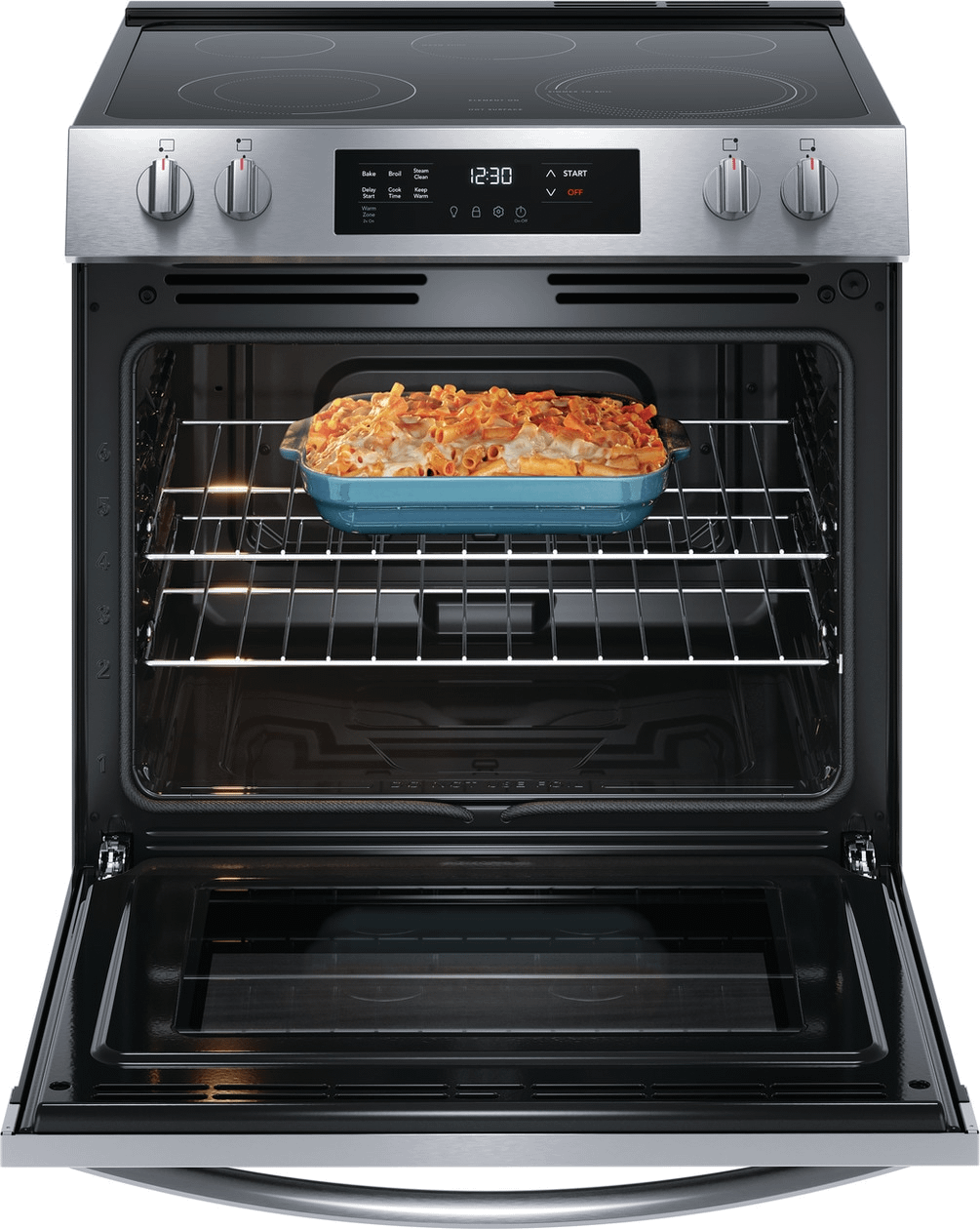

- Extra-Large Oven Capacity
- Cook more at once with our extra-large 5.3 cu.ft. capacity oven.

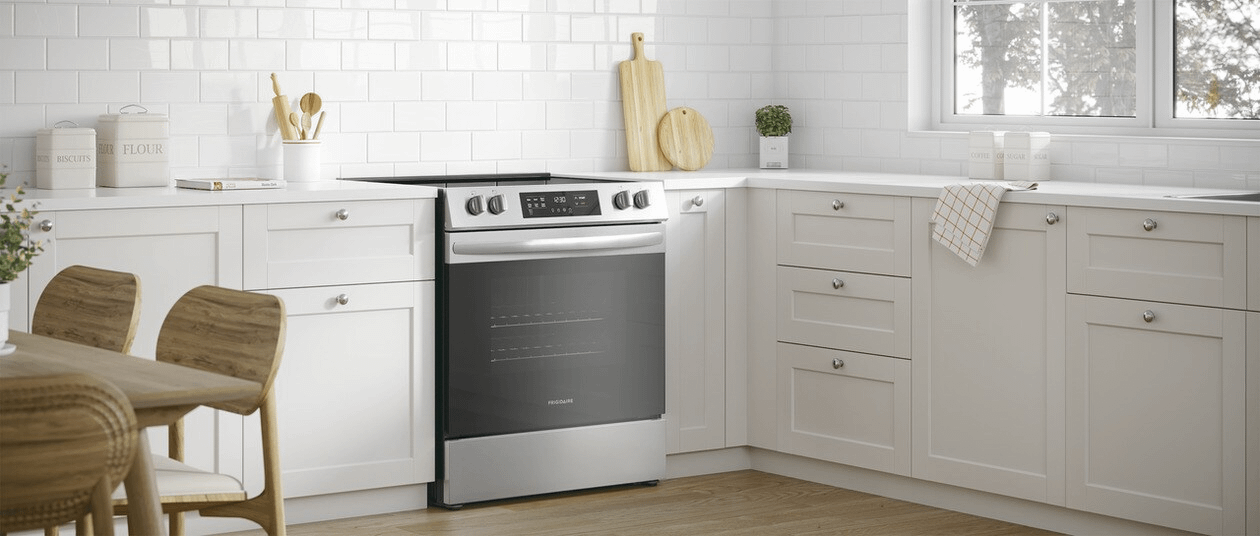

- Built-in Design
- Get the look of a built-in range, without the remodel. This Front Control Range easily fits the space of your existing 30" range.
- Frigidaire(R) Fit Promise
- We promise that your new 30" Frigidaire front control range will fit your existing range cutout of the same width and configuration, or we will reimburse you up to one hundred dollars for professionally modifying the countertop. * Via mail-in rebate. See https://www.Frigidaire.com/Fit-Promise for additional information.
- Hidden Bake Element
- Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
- Cooktop Keep Warm Zone
- Keep food warm until everything - and everyone - is ready.
Product Line | Electric Range |
Power Type | Electric 240v |
Size | 30" |
Installation Type | Free-Standing |
Factory | Springfield |
Color | Stainless Steel |
Cooktop | |
Cooking Surface Type | Smooth |
Element On Indicator Light | Yes |
Hot-Surface Indicator Light | Yes |
Cooktop Performance | |
Right Front Element Burner Size | 9" |
Right Rear Element Burner Size | 6" |
Left Front Element Burner Size (Small) | 6" |
Left Front Element Burner Size (Large) | 9" |
Left Rear Element Burner Size | 6" |
Right Front Element Burner | 3200 Watts |
Right Rear Element Burner | 1200 Watts |
Left Front Element Burner (Small) | 1400 Watts |
Left Front Element Burner (Large) | 3000 Watts |
Left Rear Element Burner | 1200 Watts |
Center Rear Element Burner | 100 Watts |

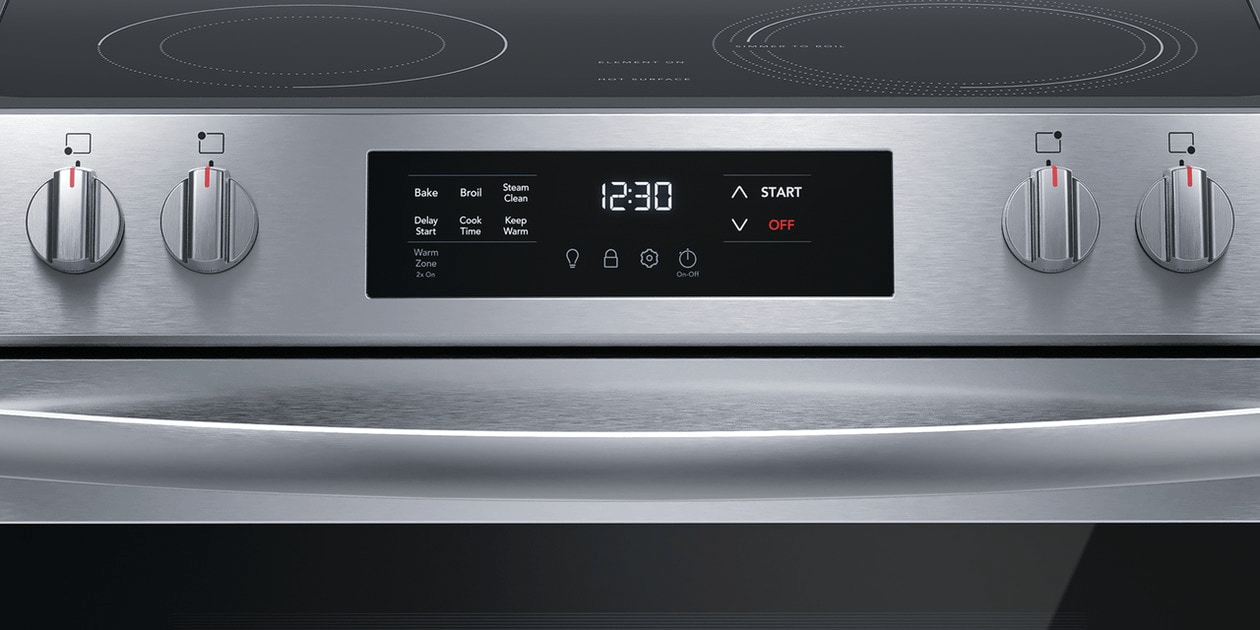

Cooking Controls | |
Bake | Yes |
Broil | Yes |
Cancel | Yes |
Clear Off | Yes |
Clock | Yes |
Cook Time | Yes |
Delay Start | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Lockout | Yes |
On / Off (for each element) | Yes |
Oven Light | Yes |
Preheat | Yes |
Probe | No |
Steam Clean | Yes |
Temperature Display | Yes |
Timed Bake | Yes |
Timer On / Off | Yes |
Warm Zone | Yes |
Cooking Controls Function | |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Oven | |
Bake Element | 2500 Watts |
Bake Element Pass | 8 |
Bake Element Type | Hidden |
Bake System | Yes |
Broil Element | 3000 Watts |
Broil Element Pass | 4 |
Broil System | Yes |
Cleaning System | Yes |

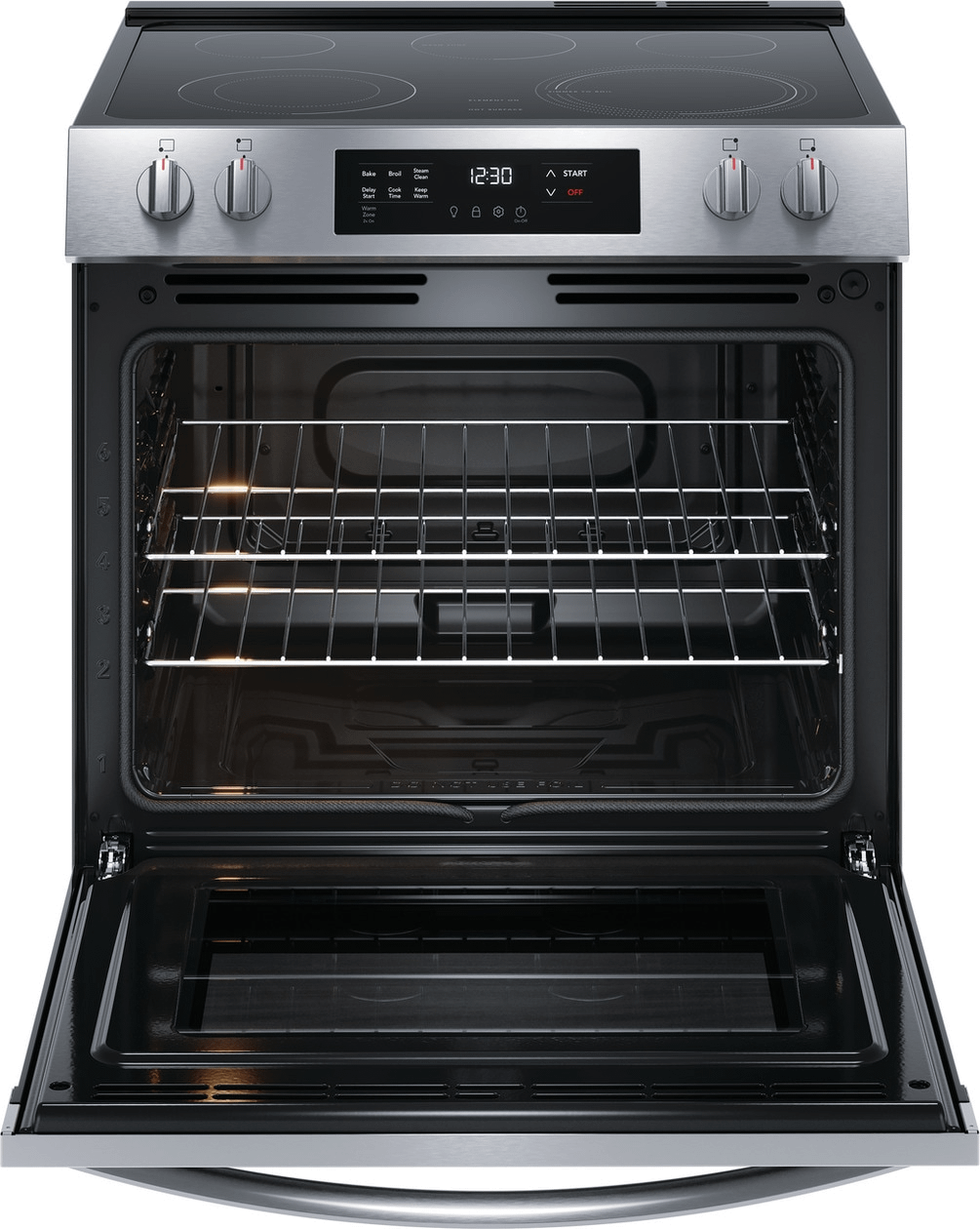

Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Drawer | |
Drawer Handle Style | Integrated |
Drawer Type | Storage |
Controls | |
Control Lock | No |
Sabbath Mode | No |
Display | |
Control Location | Front |
Display Interface Color | White |
Display Type | Capacitive Touch |
Dimensions and Volume | |

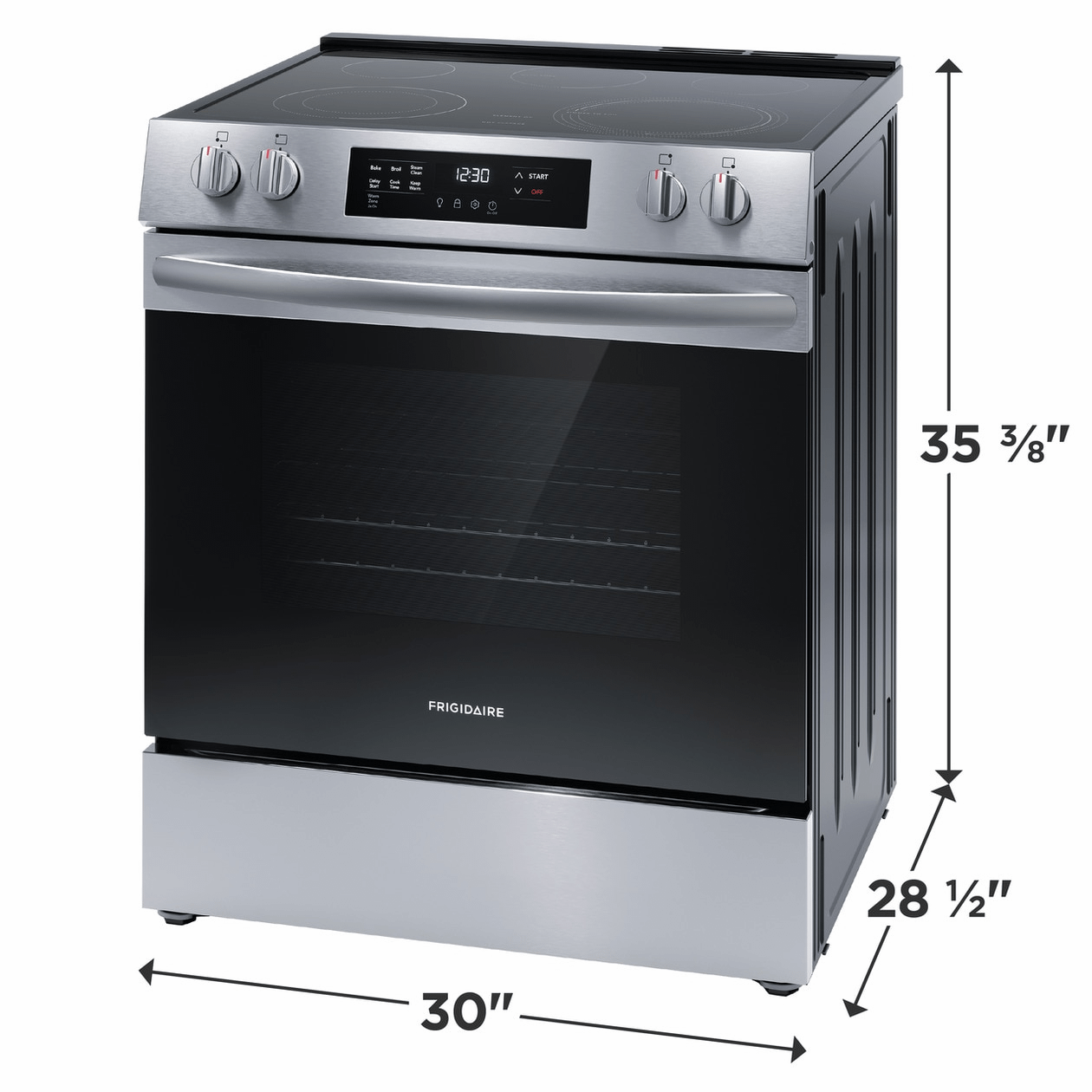

Minimum Height | 35 3/8" |
Maximum Height | 36 3/8" |
Width | 30" |
Depth | 26" |
Depth With Door 90° Open | 47 5/16" |
Depth With Handle | 28 1/2" |
Oven Interior Height | 18 1/8" |
Oven Interior Width | 25 3/16" |
Oven Interior Depth | 19 7/8" |
Oven Capacity | 5.3 Cu. Ft. |
Electrical Specifications | |
Connected Load @ 240V | 12 kW |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 149 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Certifications and Approvals | |
ADA Compliant | Yes |
cUL Listed | Yes |
ENERGY STAR Certified | Yes |
UL Listed | Yes |
