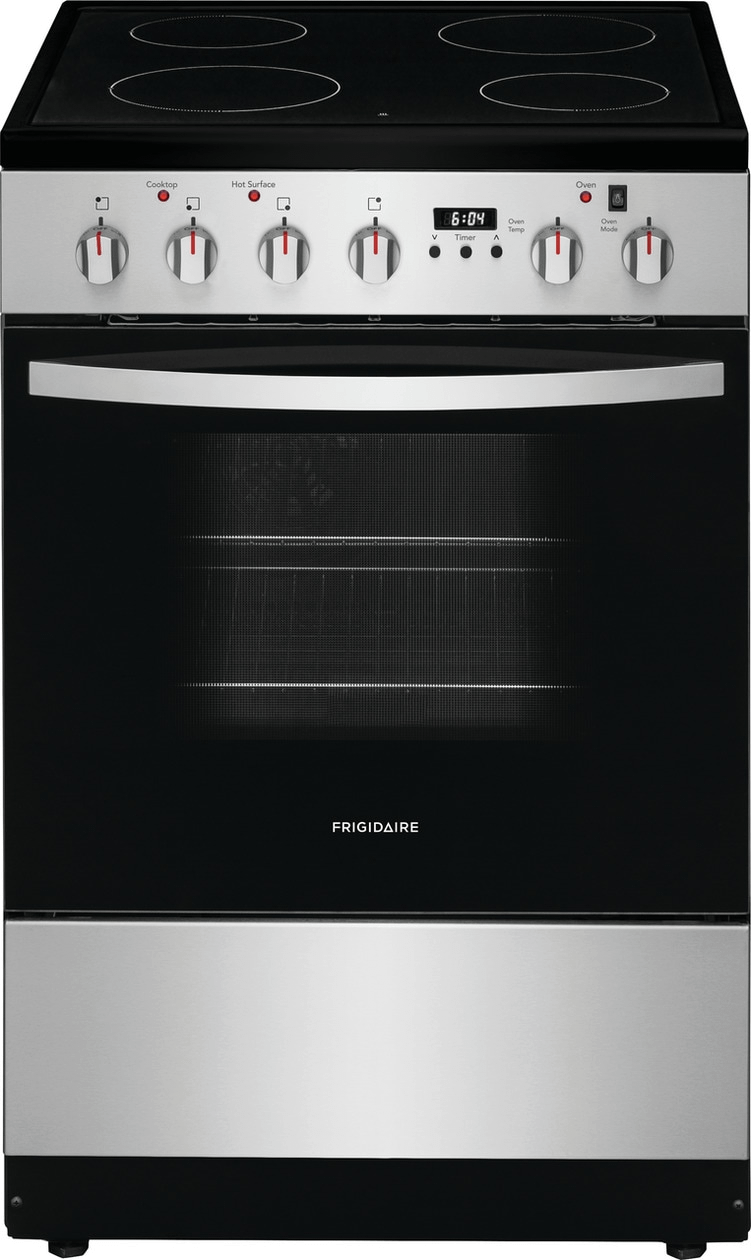

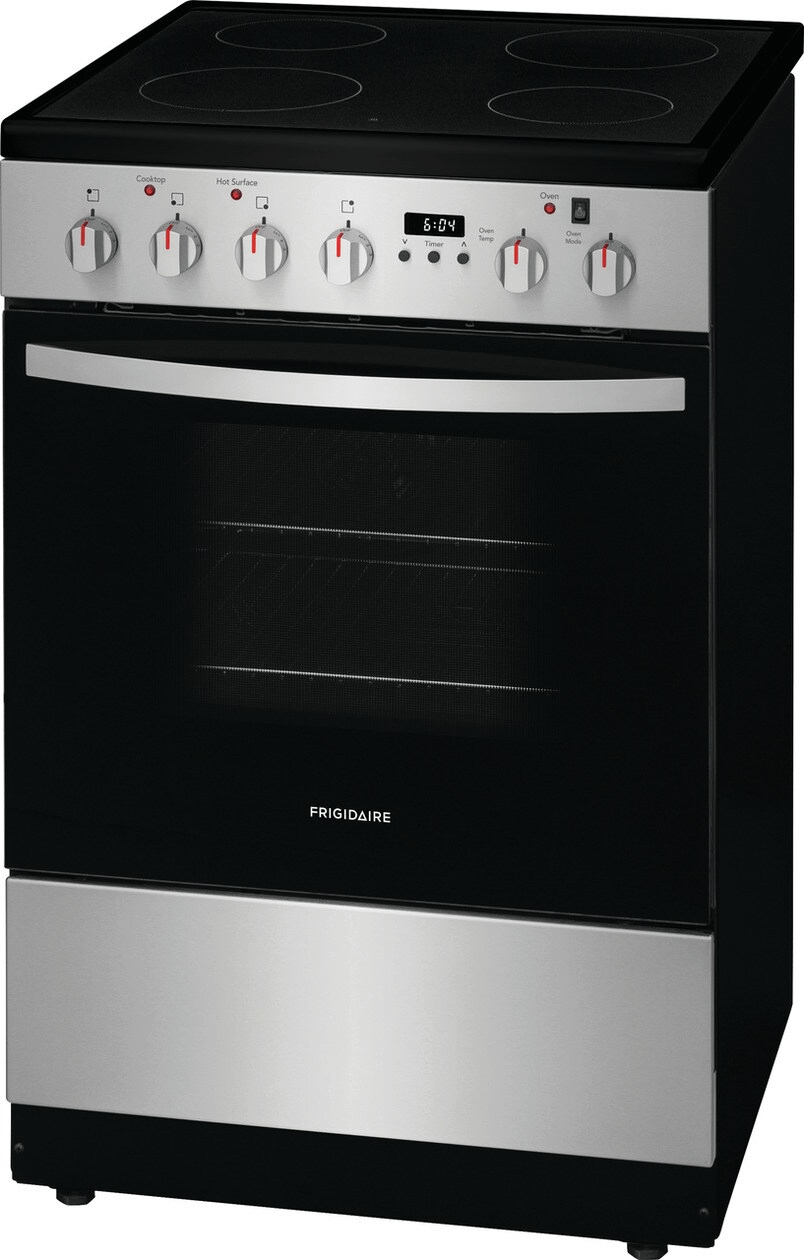

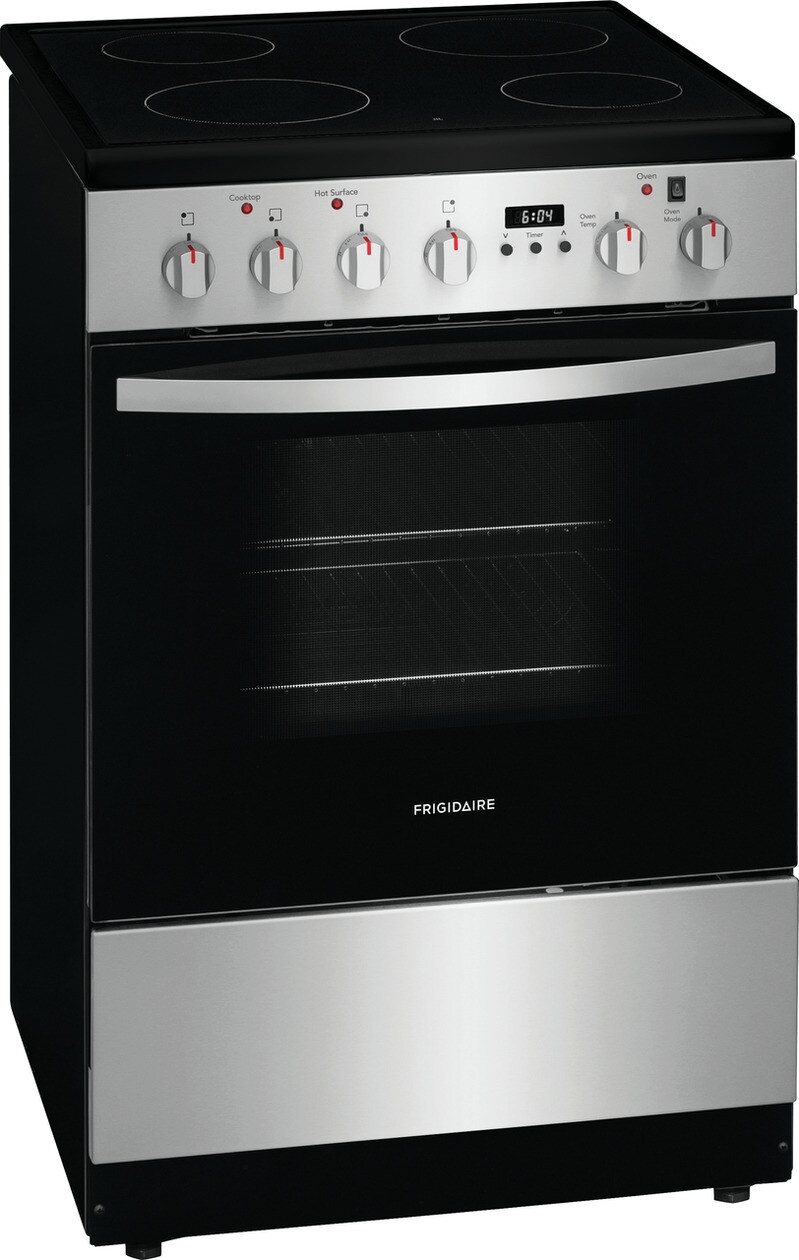

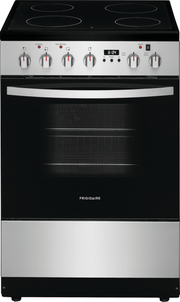

The Frigidaire 24" Radiant Smoothtop Freestanding Range features a powerful fan convection system that delivers consistent, more-even baking results, every time. For easier clean up, the oven features a smooth glass cooktop and Hidden Bake.

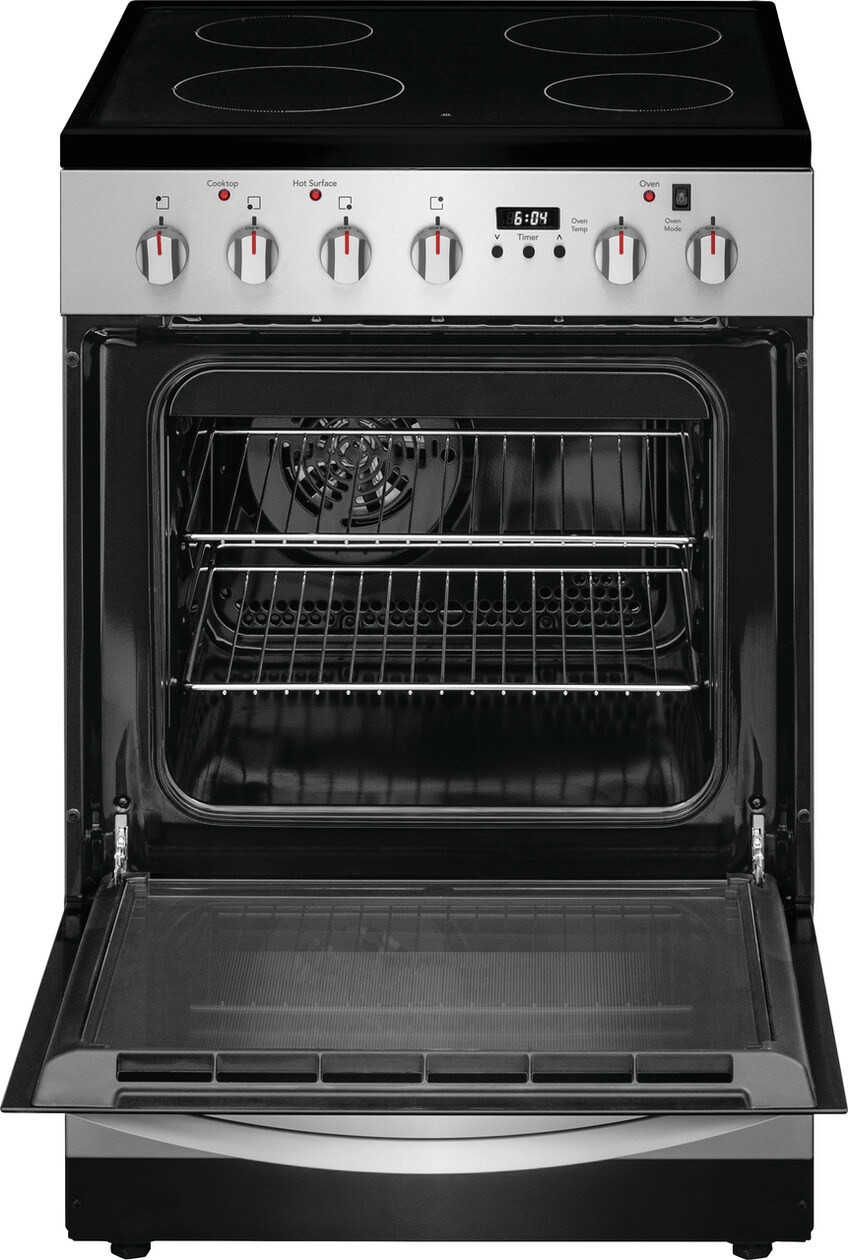

- Fan Convection
- Our fan convection system uses a powerful convection fan to evenly circulate heat around the oven cavity, resulting in more even baking and browning every time.

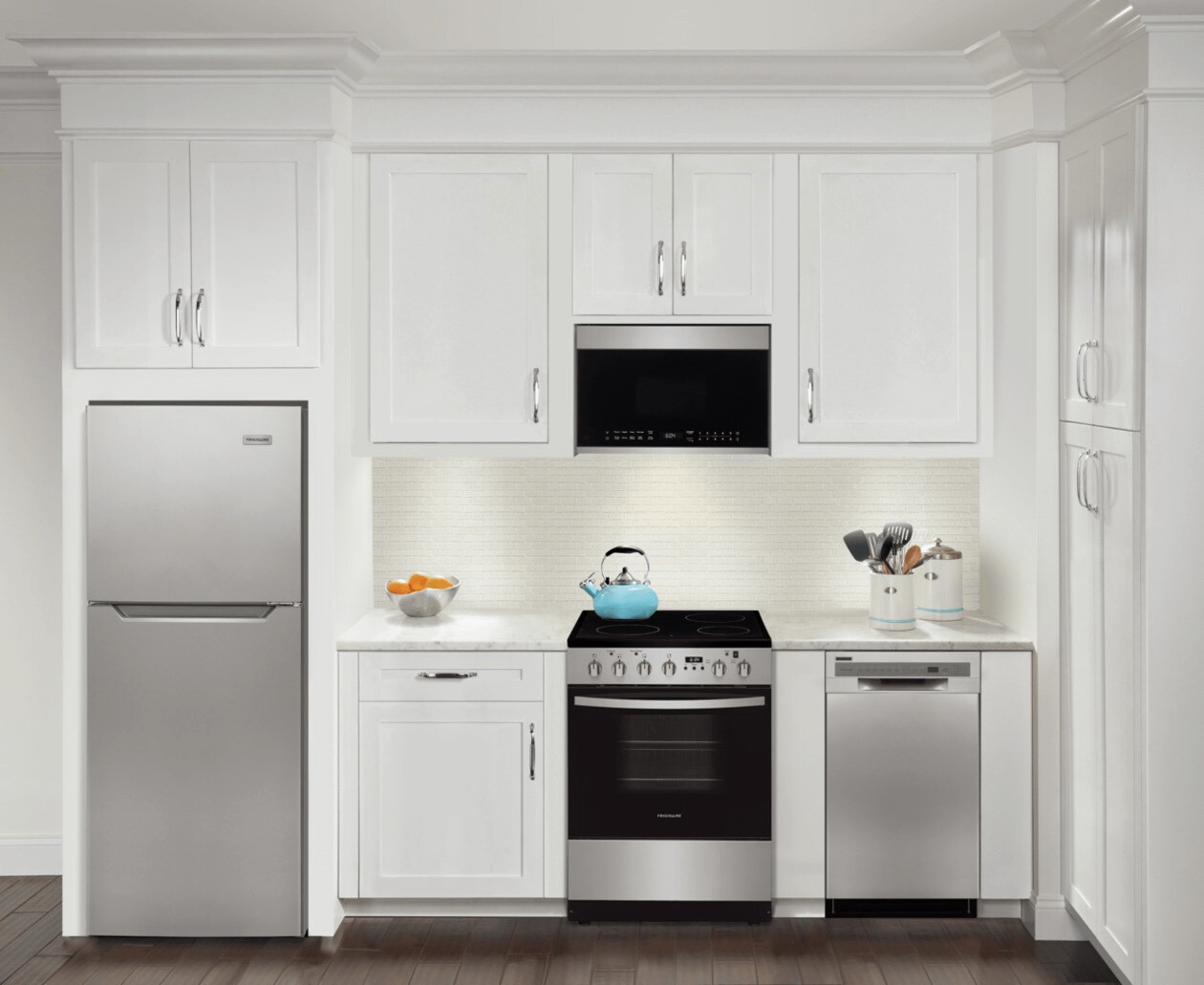

- Compact design for smaller kitchens
- This 24" electric range is compact in design and fits perfectly into smaller kitchens without compromising on interior capacity.

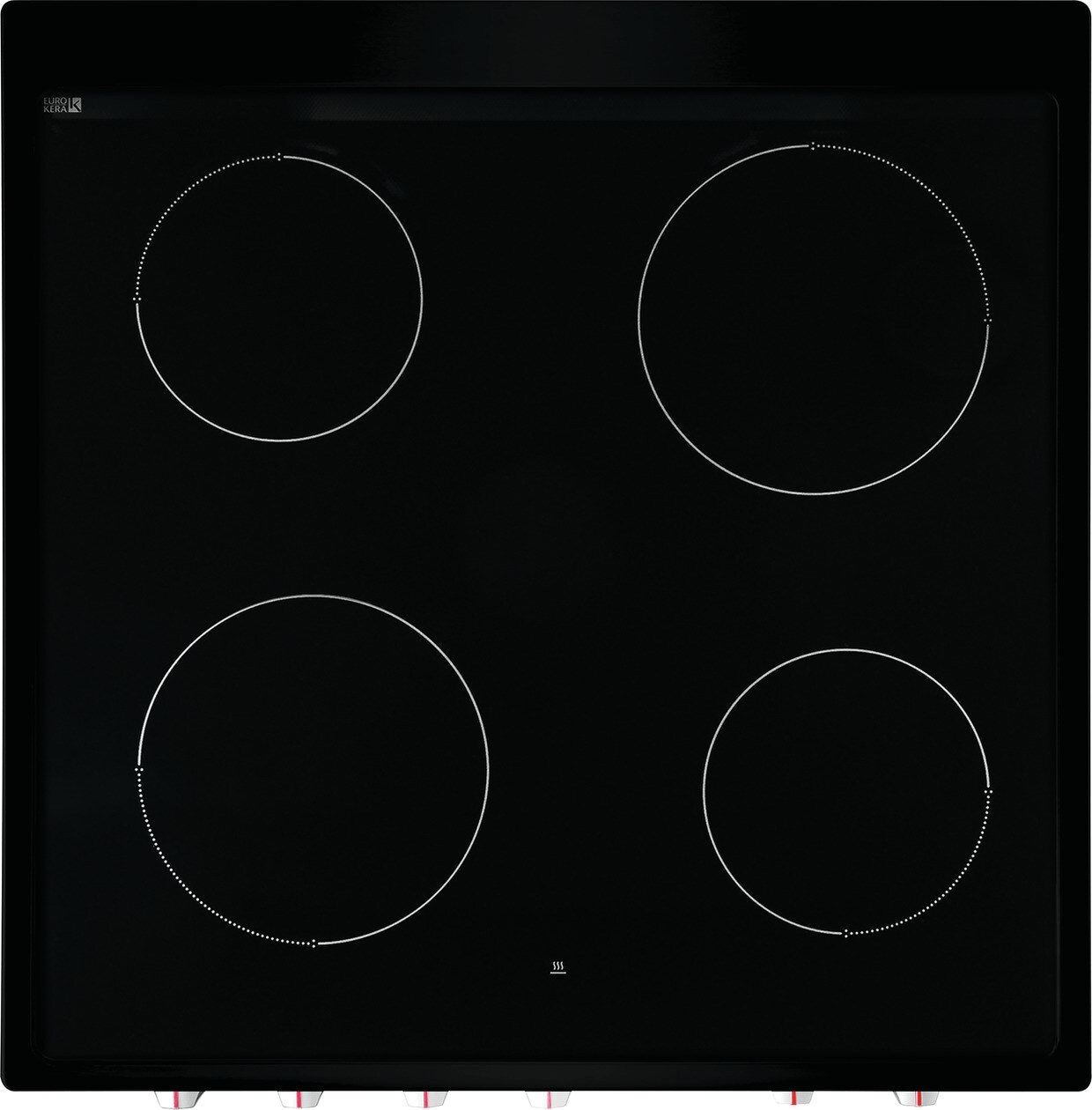

- Smooth glass cooktop is easy to clean
- The smooth, glass design of the cooktop seamlessly integrates with your countertop, making it easy to clean.
- Hidden Bake Element
- The lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
- Storage Drawer
- Convenient storage drawer offers extra space to store your cookware.
Product Line | Electric Range |
Power Type | Electric 240v |
Size | 24" |
Installation Type | Free-Standing |
Factory | Romania |
Color | Stainless Steel |
Cooktop | |
Cooking Surface Type | Smooth |
Element On Indicator Light | Yes |
Hot-Surface Indicator Light | Yes |
Cooktop Performance | |
Right Front Element Burner Size | 6" |
Right Rear Element Burner Size | 7" |
Left Front Element Burner Size | 7" |
Left Rear Element Burner Size | 6" |
Right Front Element Burner | 1200 Watts |
Right Rear Element Burner | 1800 Watts |
Left Front Element Burner | 1800 Watts |
Left Rear Element Burner | 1200 Watts |

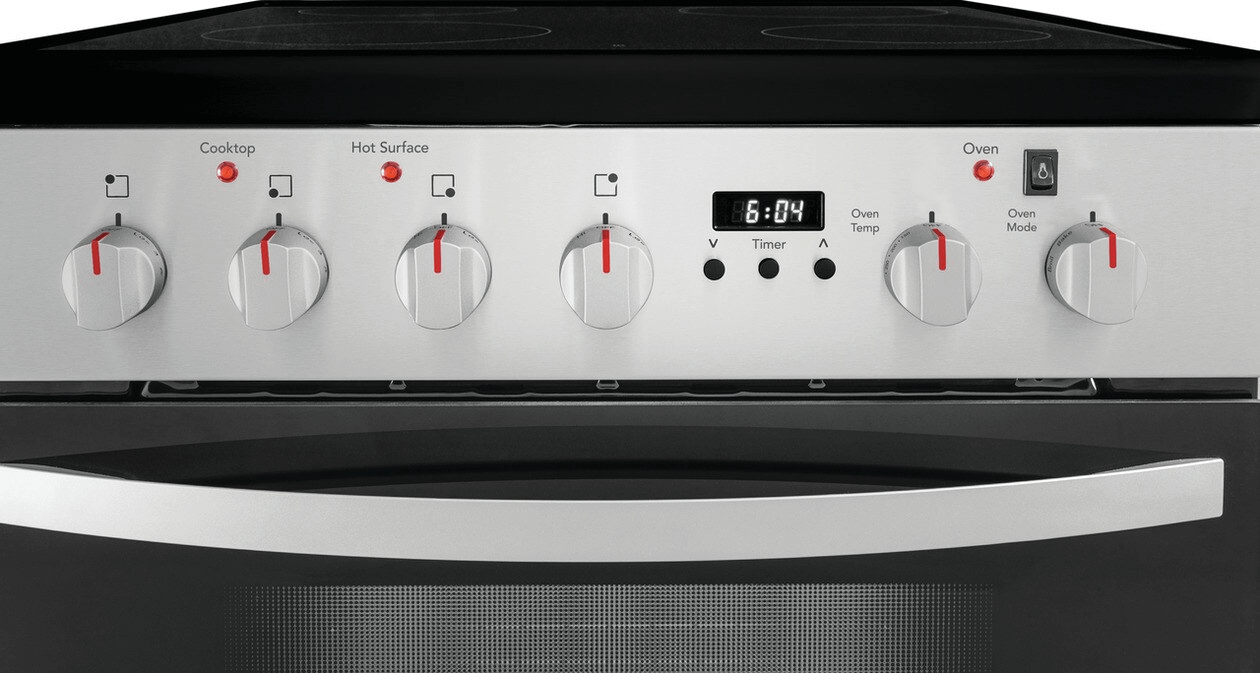

Cooking Controls | |
Bake | Yes |
Broil | Yes |
Clock | Yes |
Kitchen Timer | Yes |
Oven Indicator Light | Yes |
Oven Light | Yes |
Preheat | Yes |
Up / Down Arrow | Yes |

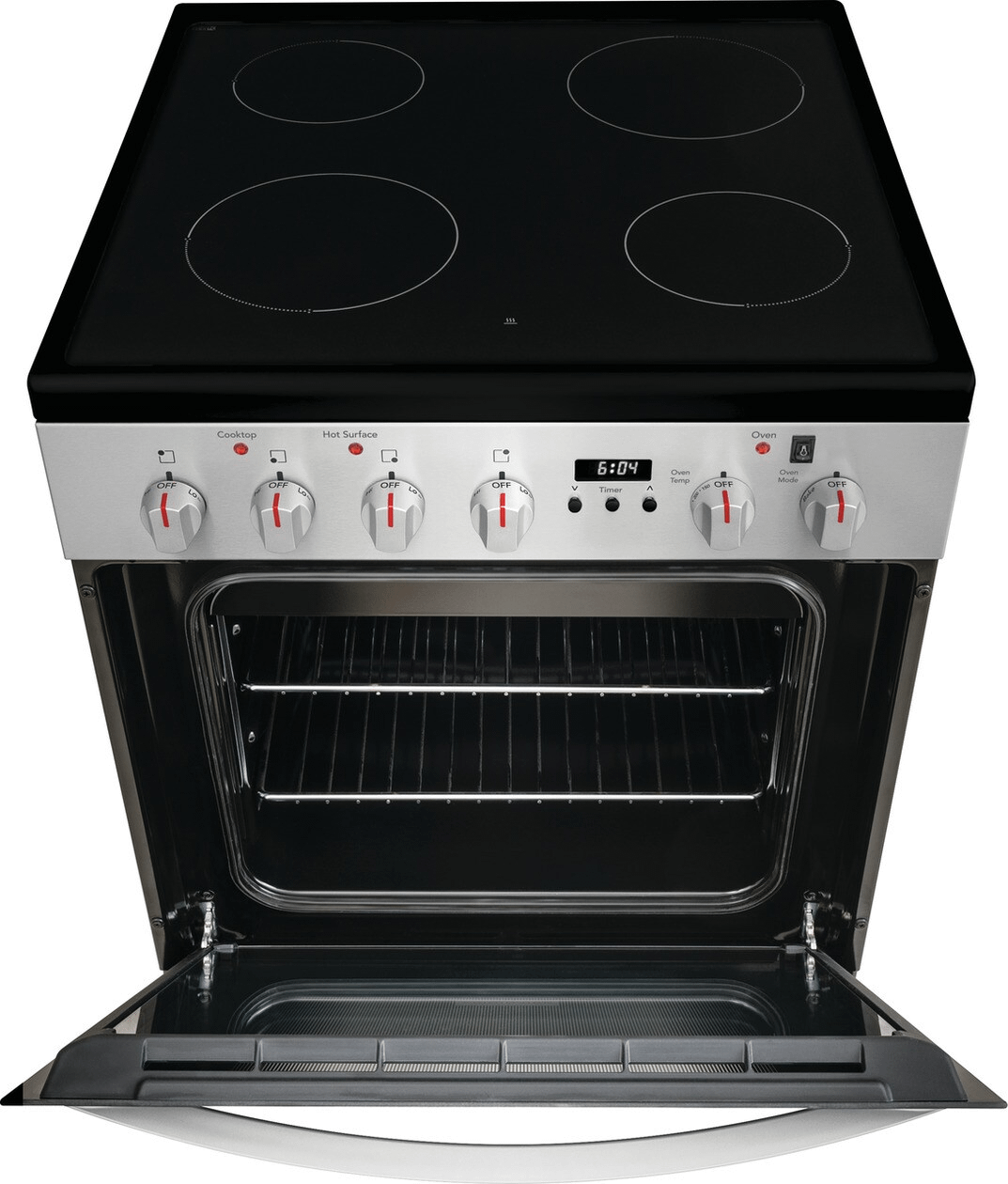

Oven | |
Bake Element | 1100 Watts |
Bake Element Pass | 4 |
Broil Element | 1800 Watts |
Broil Element Pass | 4 |
Number of Rack Positions | 4 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 25 Watts |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Drawer | |
Drawer Handle Style | Integrated |
Drawer Type | Storage |
Controls | |
Sabbath Mode | No |
Display | |
Control Location | Front |
Exterior | |
Cooking Surface Color | Stainless Steel |
Drawer Finish | Stainless Steel |
Manifold Finish | Stainless Steel |
Side Color | Stainless Steel |

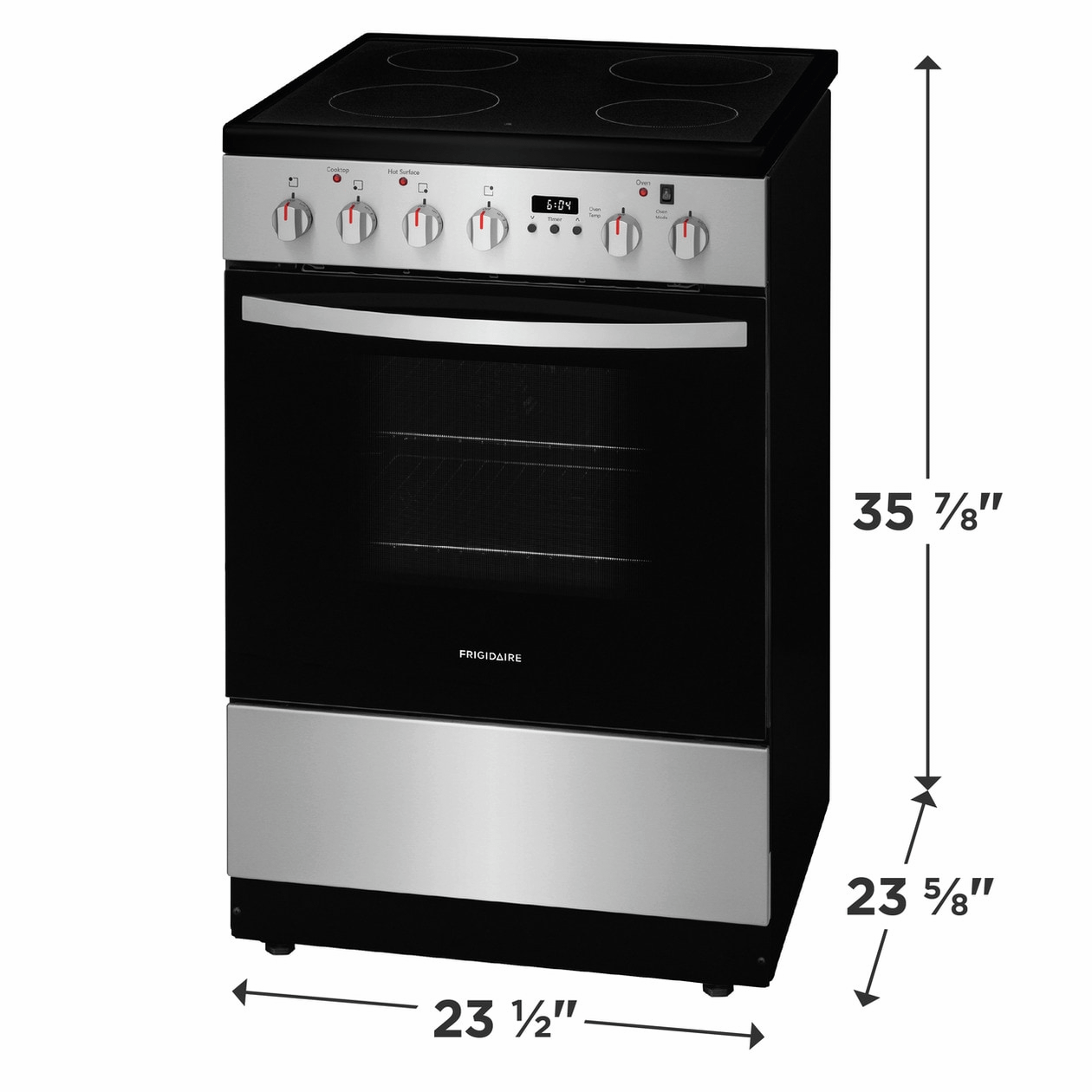

Dimensions and Volume | |
Minimum Height | 35 7/8" |
Maximum Height | 36 7/8" |
Width | 23 1/2" |
Depth | 23 5/8" |
Depth With Door 90° Open | 41 1/2" |
Oven Interior Height | 12 7/8" |
Oven Interior Width | 16 1/8" |
Oven Interior Depth | 16 3/8" |
Oven Capacity | 1.9 Cu. Ft. |
Electrical Specifications | |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
General Specifications | |
Product Weight | 121 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Certifications and Approvals | |
ADA Compliant | Yes |
RoHS | Yes |
UL Listed | Yes |
