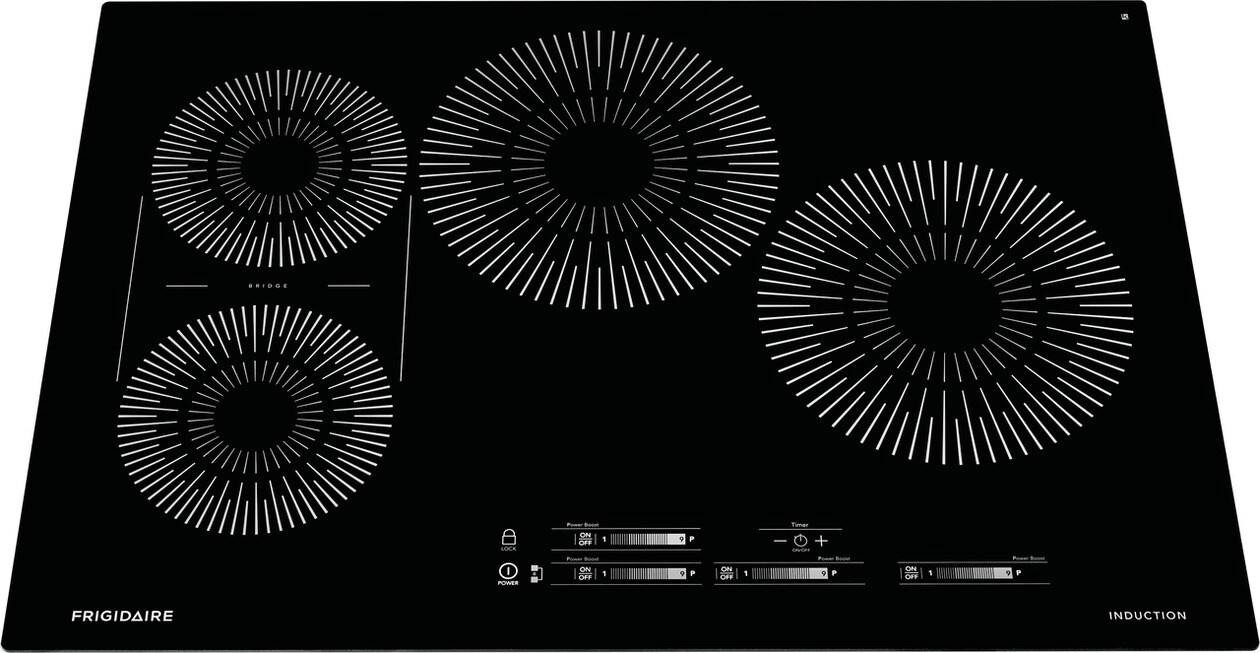

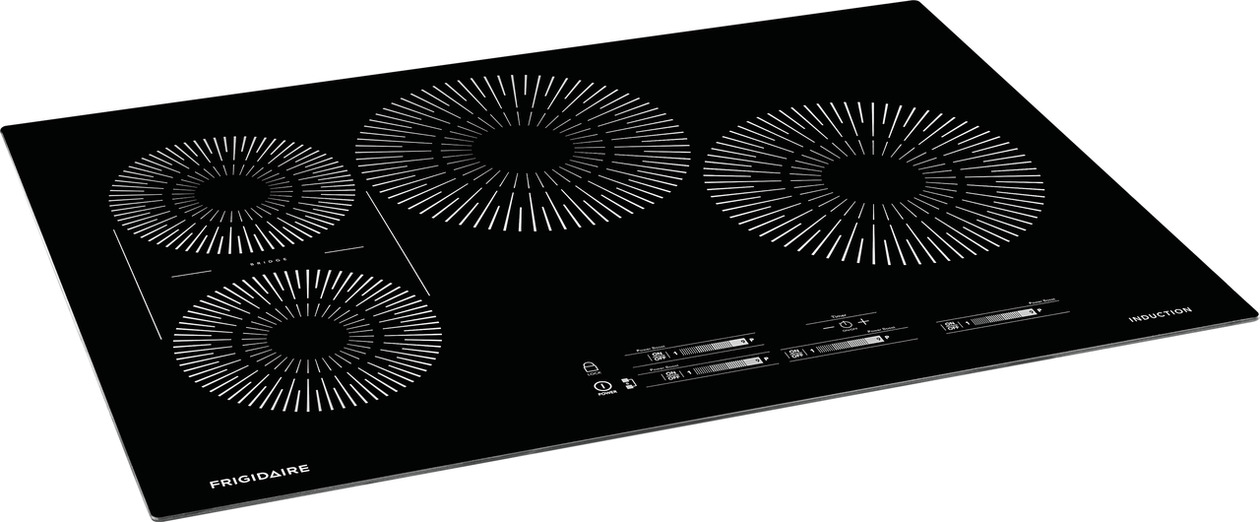

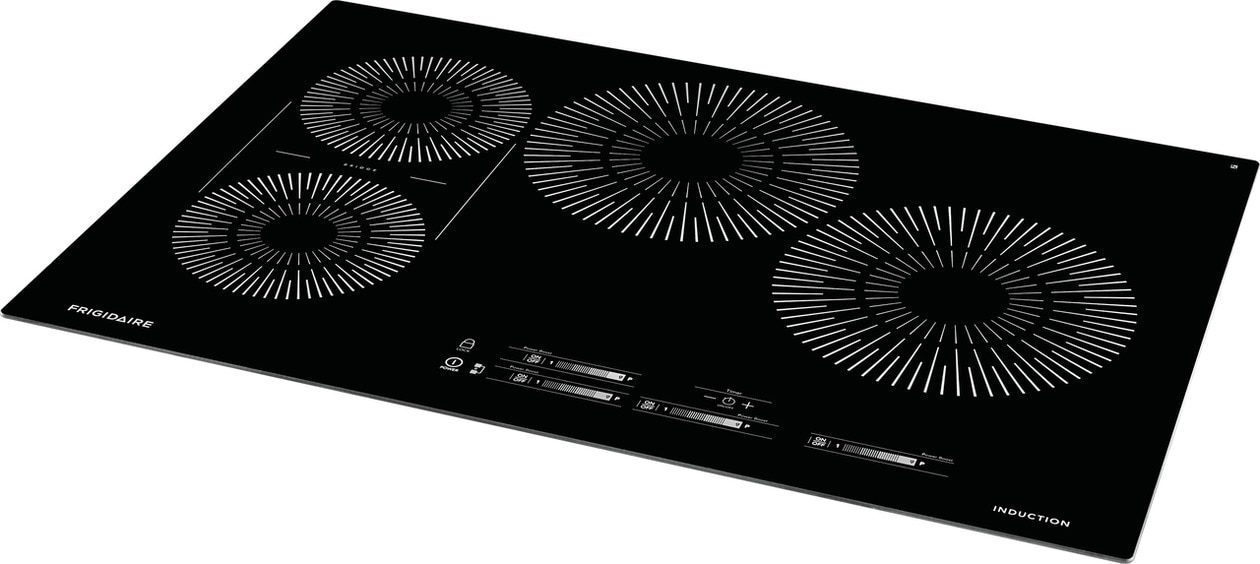

The Frigidaire Induction 30" Cooktop helps make cleaning easier than ever since induction heats the cooking surface and not the area around it, spills won't burn on. Plus, induction offers amazingly fast results helping make mealtime easier. Our convenient bridge element allows you to connect two elements allowing for simultaneous control, perfect for a griddle pan.
- Easy-to-Clean Cooktop
- Unlike traditional electric and gas cooktops, Induction only heats the pan and the food in it, so the area around the pan stays cooler, allowing you to clean up spills and splatters while you cook.
- Faster Boil Times
- With induction, heat transfers directly to the cookware bypassing the cooktop surface, making induction incredibly fast.

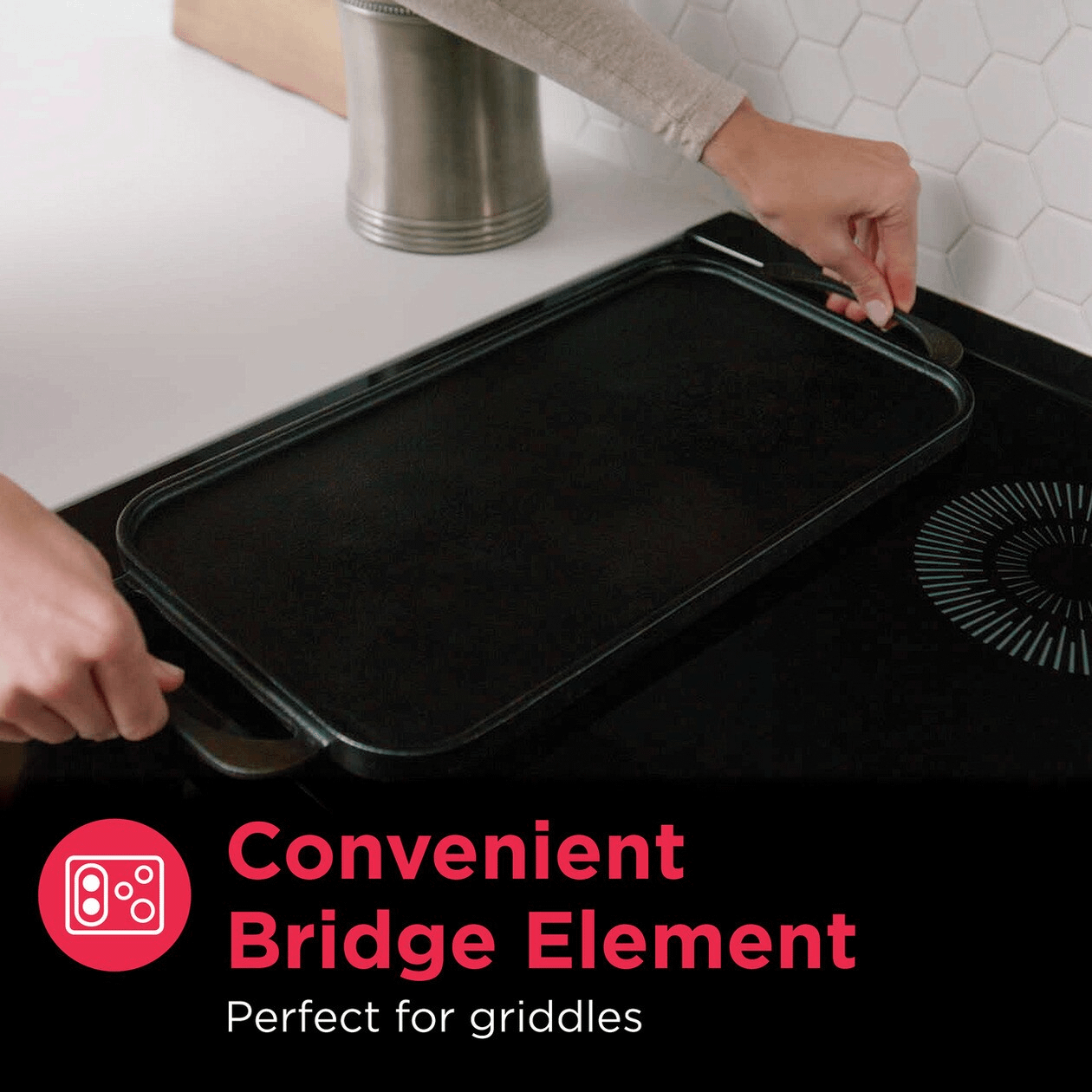

- Convenient Bridge Element
- Connects two elements to allow for simultaneous control, perfect for a griddle pan.
- Safer cooktop surface
- Induction only heats the pan and the food in it, so the area around the pan stays cooler.
- Frigidaire(R) Fit Promise
- We promise that your new 30" Frigidaire induction cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
- Energy Efficient Cooking
- Use less energy while you cook with energy-efficient induction technology which heats the pan directly so less heat loss in the cooking process.
- Compatible with most cookware
- Most stainless steel and cast iron cookware is compatible with induction elements. Rule of thumb: if a magnet sticks to the bottom of the cookware, it's induction-compatible.
- 2022 ENERGY STAR(R) Emerging Tech Award

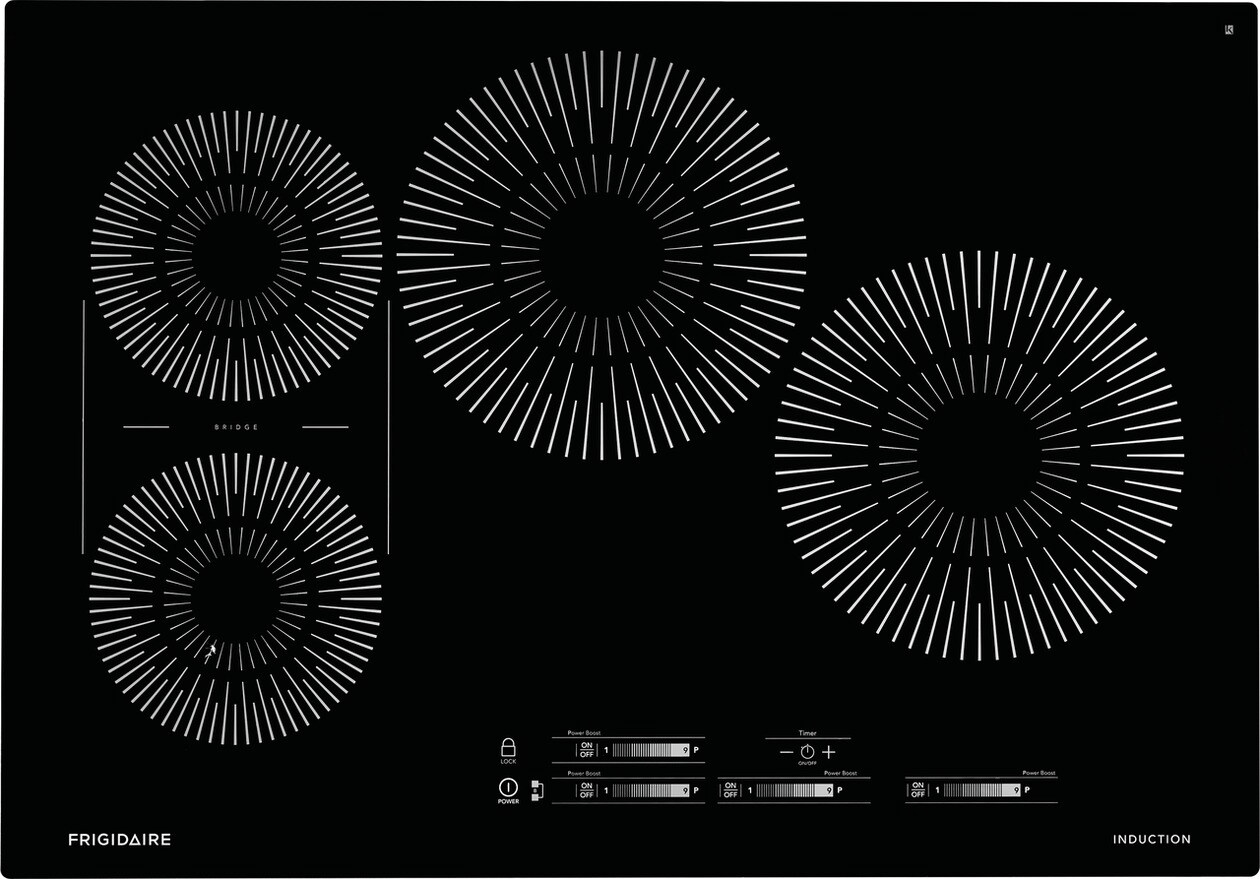

Product Line | Induction Cooktop |
Power Type | Electric 240v |
Size | 30" |
Installation Type | Built-In |
Factory | Rayong |
Color | Black |
Cooktop | |
Auto Pan Detect | Yes |
Bridge Element | Yes |
Bridge Element Location | Left |
Cooking Surface Type | Smooth |
Cooktop Performance | |
Right Front Element Burner Size | 8" |
Left Front Element Burner Size | 7" |
Left Rear Element Burner Size | 7" |
Center Rear Element Burner Size | 8" |

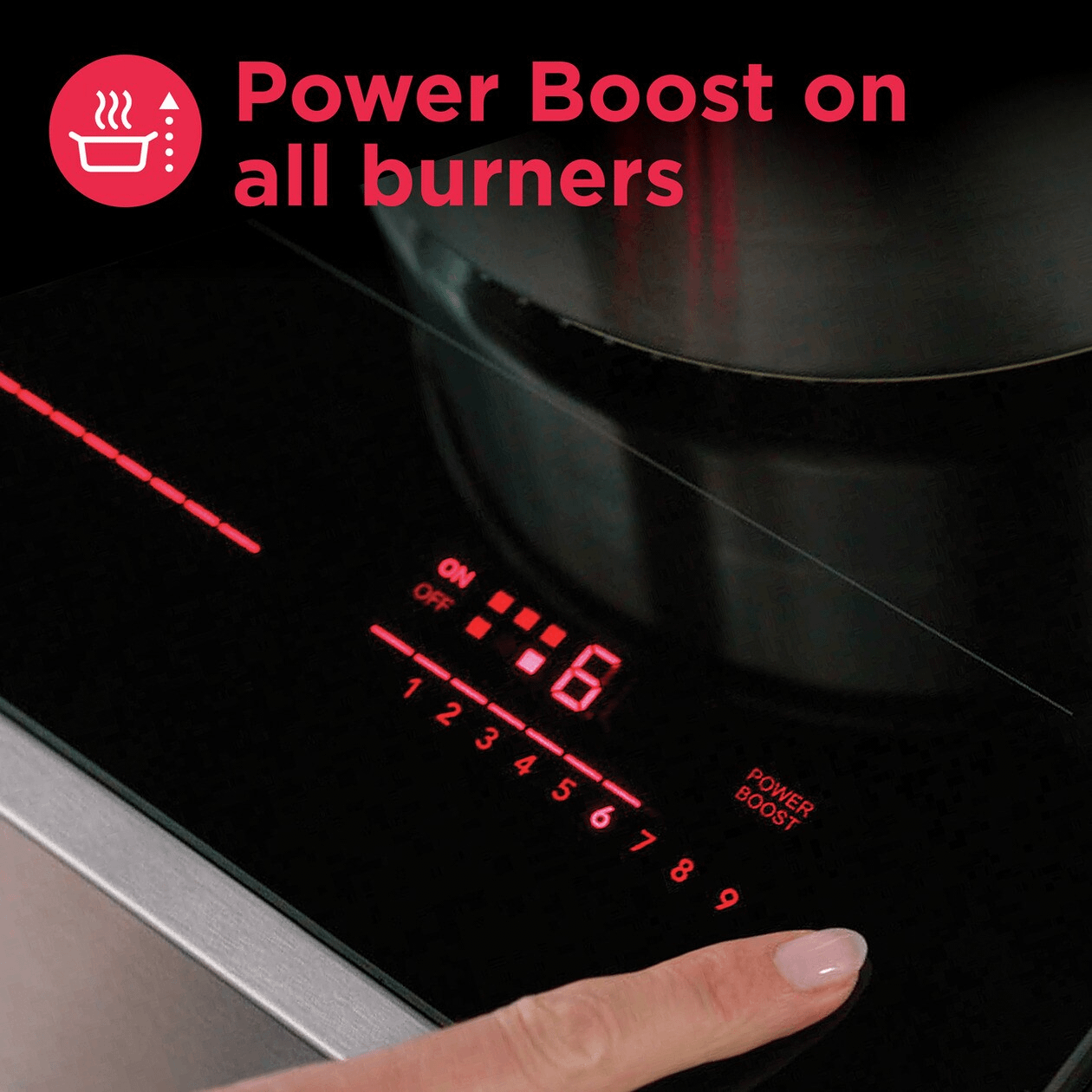

Right Front Element Burner | 2,300 / 3,600 Watts (Boost) |
Left Front Element Burner | 1,800 / 2,600 Watts (Boost) |
Left Rear Element Burner | 1,800 / 2,600 Watts (Boost) |
Center Element Burner | 2,300 / 3,600 Watts (Boost) |
Display | |
Control Location | Front |
Display Interface Color | Red |

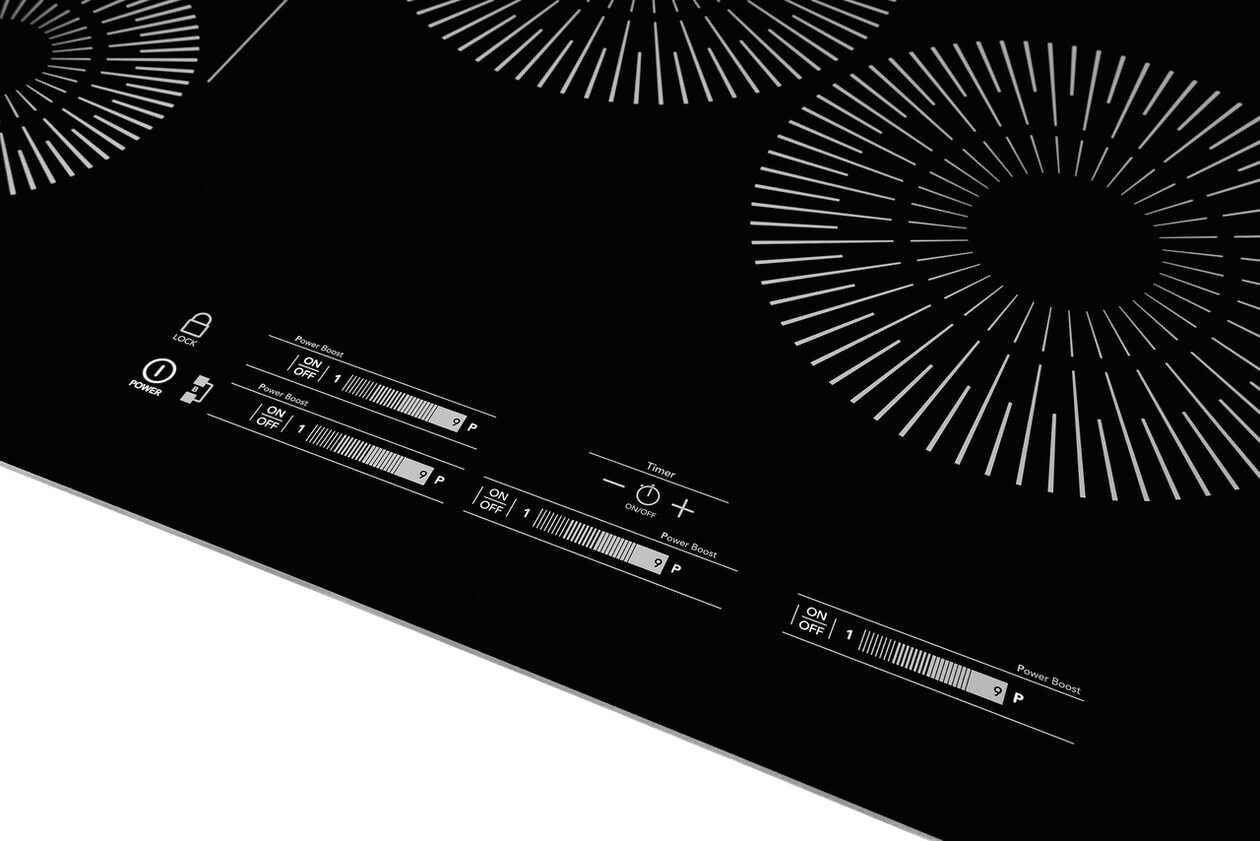

Display Type | Capacitive Touch |
Dimensions and Volume | |

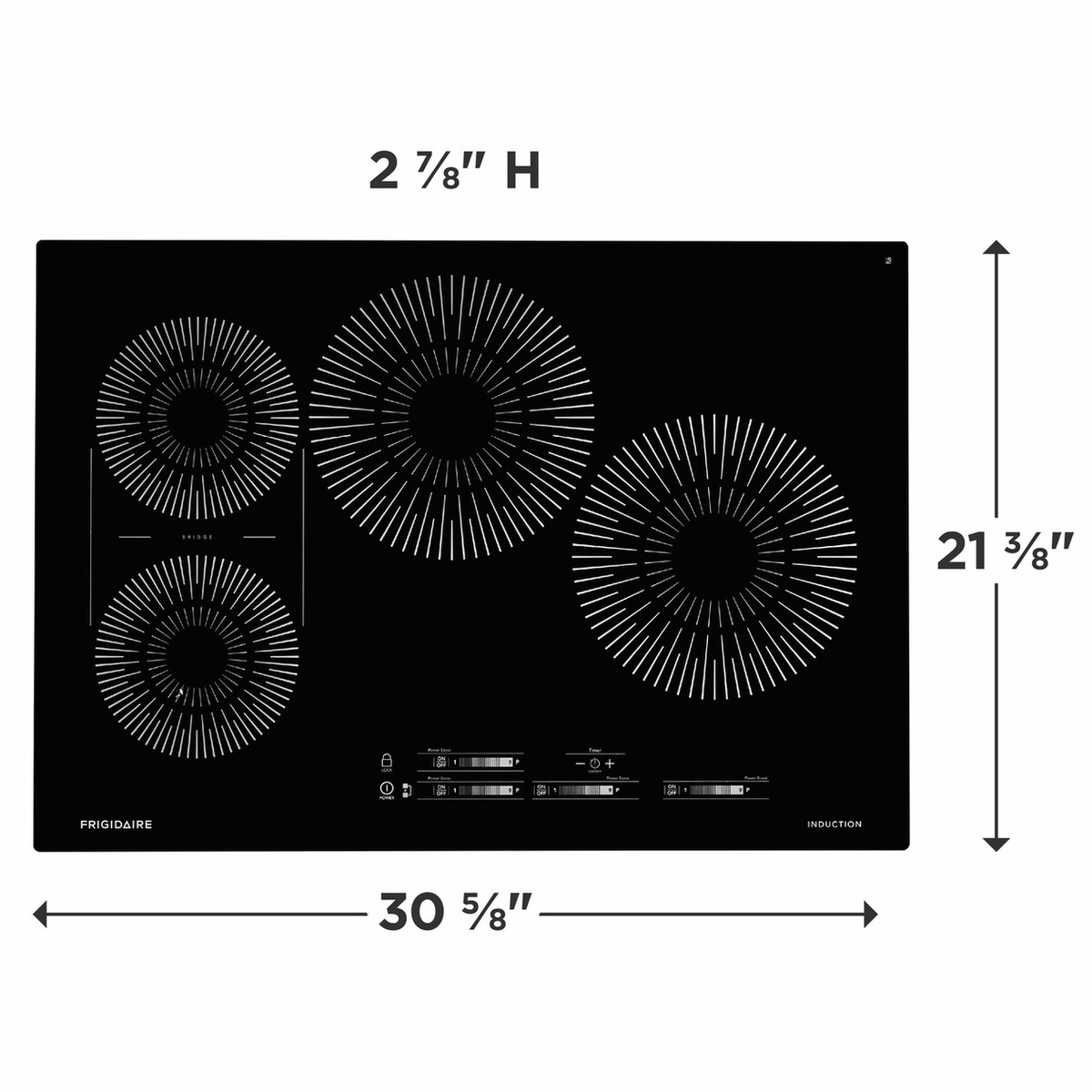

Height | 2 7/8" |
Width | 30 5/8" |
Depth | 21 3/8" |
Cutout Height | 3 5/8" |
Minimum Cutout Width | 28 1/2" |
Minimum Cutout Depth | 19 5/8" |
Maximum Cutout Width | 29 7/8" |
Maximum Cutout Depth | 20 1/2" |
Electrical Specifications | |
Amps @ 240 Volts | 30 Amps |
Minimum Circuit Required | 30 Amps |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 39 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Installation | |
Installed Over a Wall Oven | Yes |
Power Supply Connection Location | Right Bottom |
Certifications and Approvals | |
ADA Compliant | Yes |
cUL Listed | Yes |
ENERGY STAR Certified | Yes |
RoHS | Yes |
UL Listed | Yes |
