Dacor DRF485300AP
Overview & Specifications
Overview & Specifications
- PRECISE COOLING TECHNOLOGY
- Our Digital Inverter Technology maintains consistent performance with minimal temperature fluctuation. Our Digital Compressor offers superior performance compared to a standard A/C compressor.
- HIDDEN TOUCH CONTROL PANEL
- Touch to reveal a display that regulates temperature to preserve freshness.

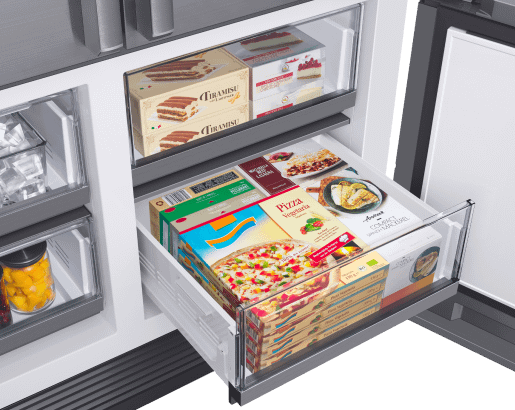

- FRESHZONE+(TM) COMPARTMENT
- Convert from freezer to refrigerator for flexibility that fits your needs.

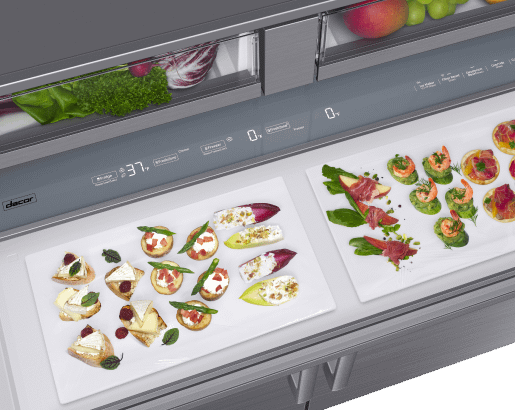

- FRESHZONE(TM)
- Full-width storage drawer provides optimal temperature control for storing everything from meat and fish, to chilled drinks or deli. Adjustable temperature settings includes the option of safely defrosting items within a controlled space.

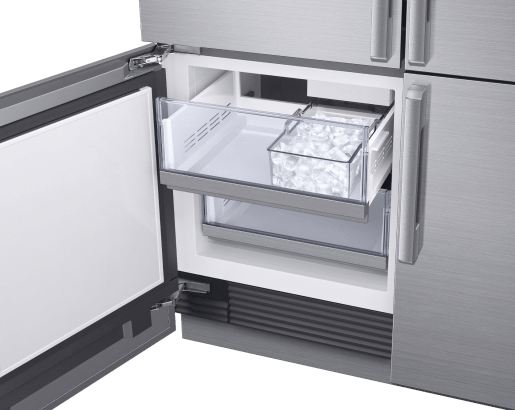

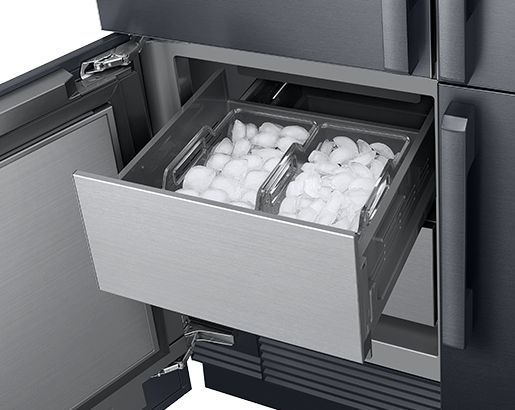

- ICEMAKER
- Creates crescent shaped ice.

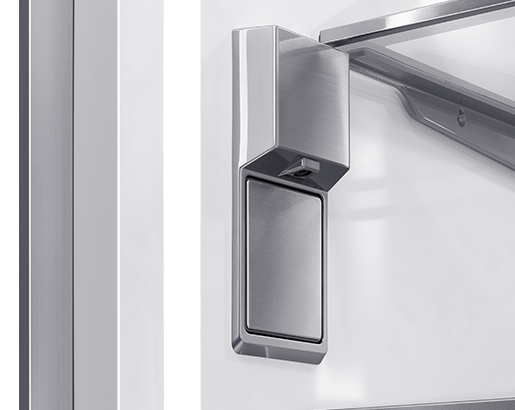

- INTERNAL WATER DISPENSER
- Serves fresh, filtered water and easily fill cups or pitchers.
- METAL COOLING
- The stainless steel paneling helps maintain consistent temperature throughout the refrigerator.
- SMART CONNECTIVITY
- Whether you're near the kitchen or away from home, iQ Control(TM) with SmartThings(R) integration makes controlling your refrigerator effortless. Monitor everything from temperature and water filter status to care diagnostics. Never be caught without ice for a party by enabling ice-making functions all from the convenience of your mobile device.
| OVERALL DIMENSIONS | Width : 47-1/4" Height : 83-3/8" Depth : 23-13/16" Please refer to the Installation Instructions for more detailed dimensions. |
| INTERIOR CAPACITY | Total Unit Gross Capacity - AHAM : 27.7 cu. ft. Refrigerator Gross Capacity : 19.7 cu. ft. Freezer Gross Capacity : 8 cu. ft. |
| REQUIREMENTS | Electrical: 115V, 60Hz, 6A |
| ACCESSORIES | RAT48AMAASR/DA - French Door Refrigerator Panel Kit: Silver Stainless RAT48AMAAMS/DA - French Door Refrigerator Panel Kit: Graphite Stainless |
| INTERIOR CONFIGURATION | Full Width Shelves - Refrigerator : 1 ea. Adjustable Shelves - Refrigerator : 4 ea. Shelf Material - Refrigerator : Tempered Glass Shelves w/Metal Trim Full Extension Drawers at 90° Door Opening Angle : Yes FreshZone Drawer : Yes - Cheese (37°F) / ColdDrinks (33°F) / Mea.t (29°F) Crisper Drawers : 2 ea. Door Bins -Refrigerator : 6 ea. Freezer Drawers : 4 ea. |
| TEMPERATURE RANGES | Refrigerator : 34°F (1°C) to 44°F (7°C) Refrigerator - Power Cool : 34°F (1°C) FreshZone™ Drawer : 37°F (3°C) / 33°F (1°C) / 29°F (-1°C) FreshZone™ Plus Compartment : -8°F (-23 °C) to 33°F (1 °C) Freezer : -8°F (-23°C) to 5°F (-15°C) Freezer - Power Freeze : -8°F (-23°C) |
| EFFICIENCY | ENERGY STAR Qualified : Yes Annual Energy Consumption : 629 kWh |
| CONFIGURATIONS | DRF485300AP/DA : 48 Inch French Door Refrigerator, Panel Ready DRF485300AP/DA RAT48AMAASR/DA : 48 Inch French Door Refrigerator, Silver Stainless (Panel Kit) DRF485300AP/DA RAT48AMAAMS/DA : 48 Inch French Door Refrigerator, Graphite Stainless (Panel Kit) |
