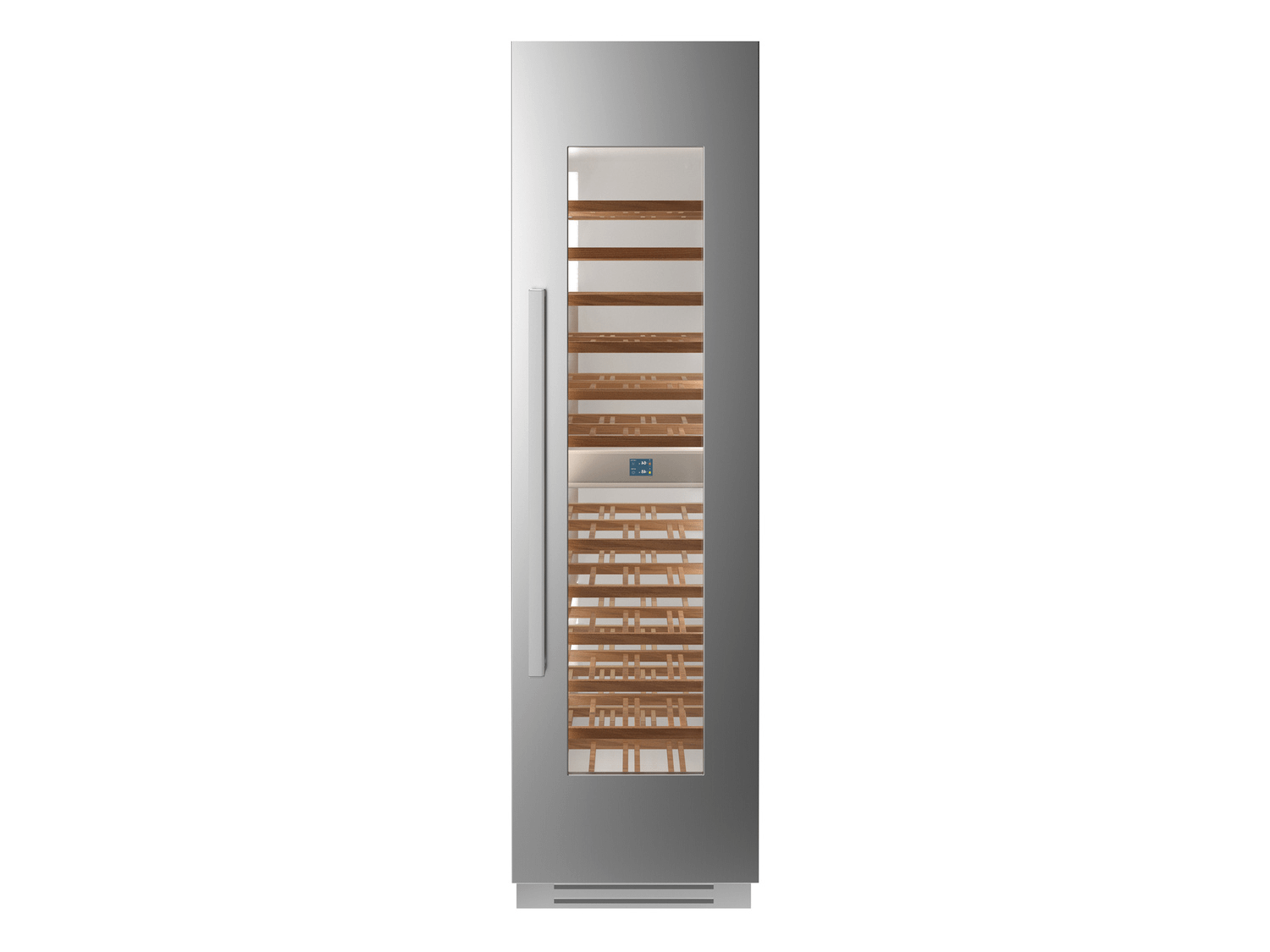

These premium built-in column wine cellars are masterpieces of Bertazzoni design and technology. Their stylish stainless-steel and glass front doors reflect close attention to detail and high-quality materials.

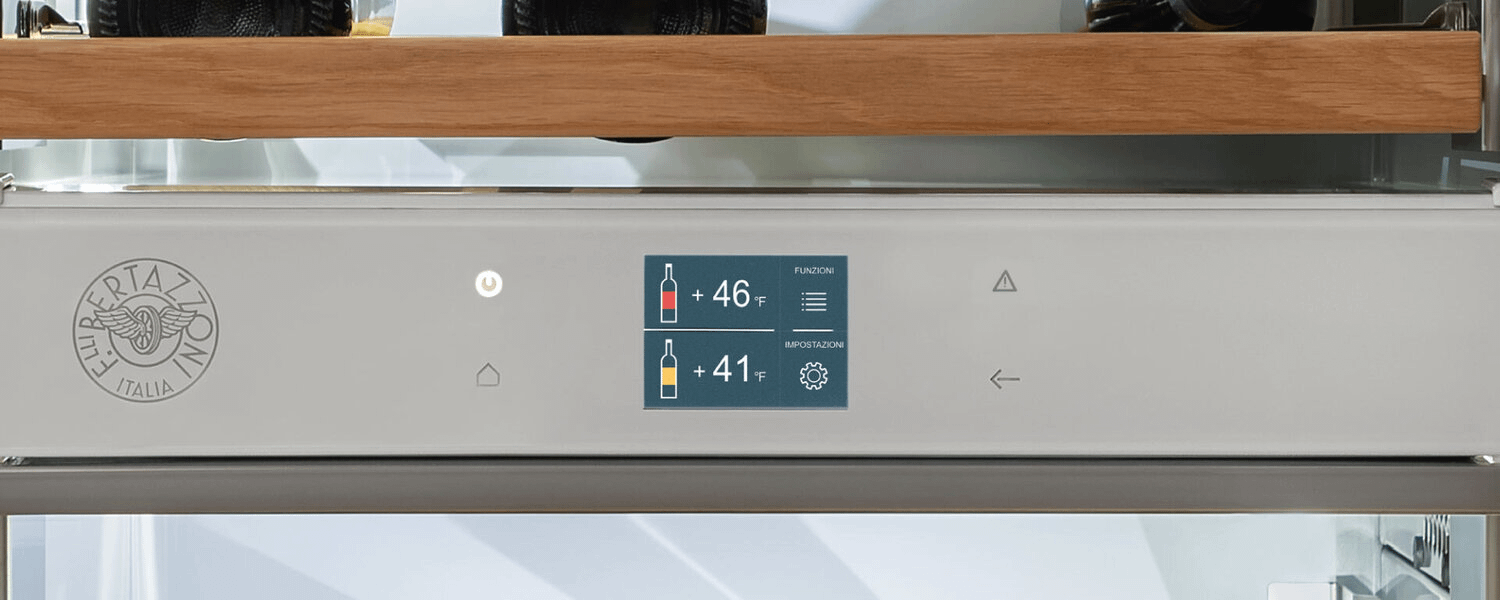

Designed to keep your wine at its best, it offers a high level of control with 2 temperature zones for red and white wine that cool between 40(degree) F and 65(degree) F. The unique side-to-side airflow circulation maintains the correct temperature in each zone when opening the door for reloading. The intuitive digital touch-control interface let you select the perfect temperature range and control the humidity. Red wine ageing function lets you lay down the bottles that will be kept in the best condition possible.
A tinted triple glass UV protected door protects your valuable wine collection from light damage. A vibration damping system on the compressor lets wine rest undisturbed. Custom lighting keeps the lights on for 12 hours for maximum visual impact.
Designed to allow for elegant configurations of wine cellar, refrigerator and freezer in any desired width, they work in harmony with handles and finishes available for every Series.
Handle kits are sold separately.
Bertazzoni built-in column wine cellars are designed with pride in Italy and covered by an industry-leading 2-year parts and labor warranty.
See predecessor model here .
Size | 24 in |
User interface | TFT Touch & Scroll interface |
General features | |
Size | 24 in |
Cooling system | two temperature zones |
User interface | TFT Touch & Scroll interface |
Display functions | Door ajar alarm, Humidity level setting, Closed door lights on mode, Sabbath Mode |
Lighting | LED surround illumination |
Door ajar alarm | yes |
Door finishing | stainless steel |
Cabinet finishing | white metal |

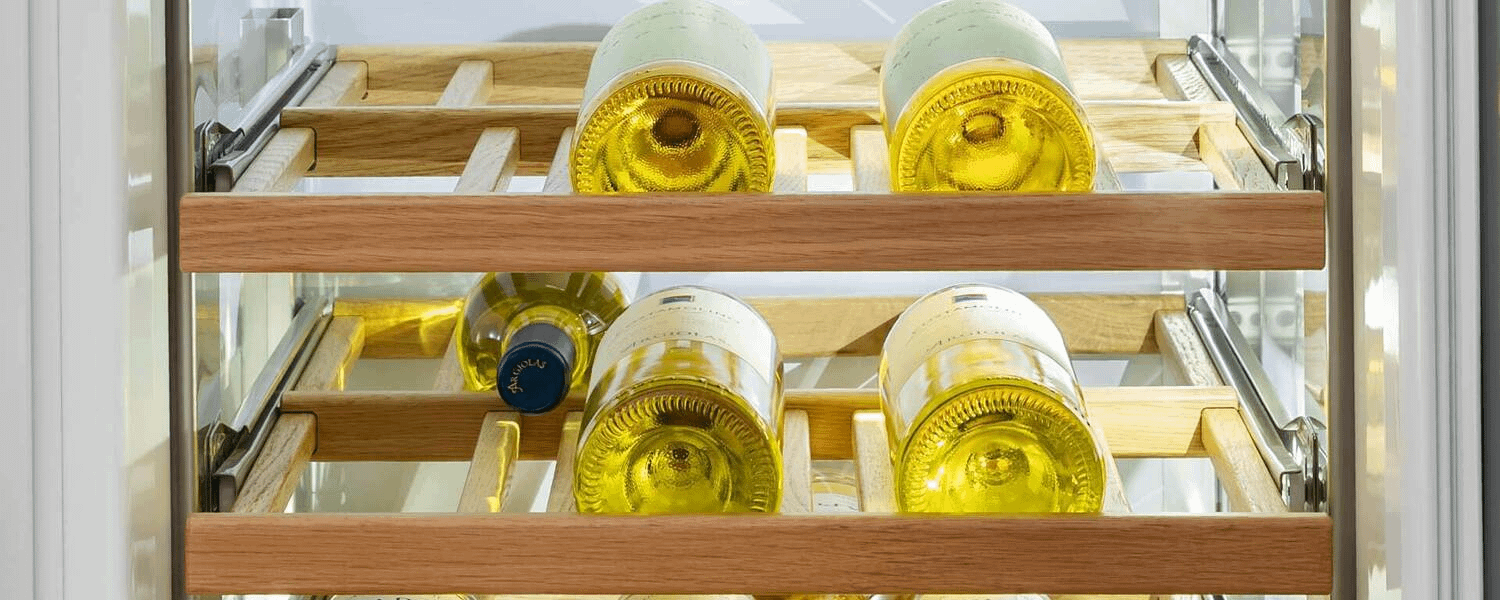

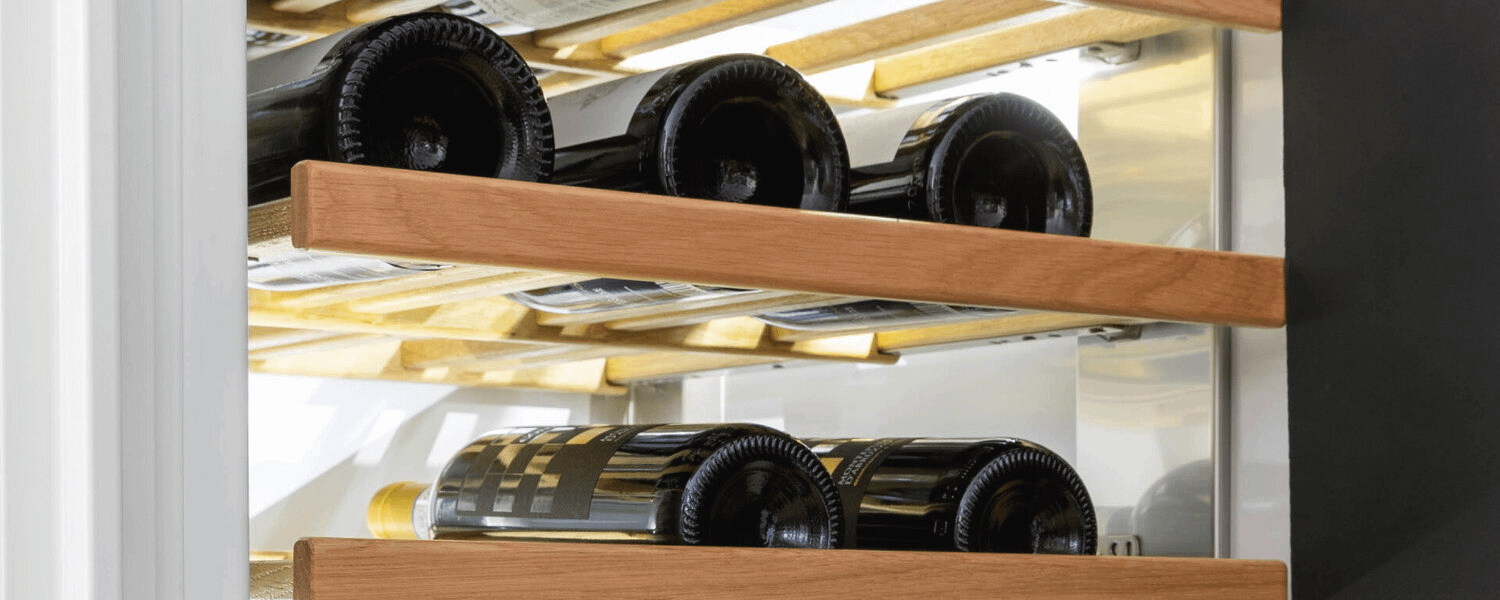

Wine racks | 12 wooden shelves |
Bottle capacity | 80 bottles |
Sound rating | 41 dbA |
Certification | CETLUS |
Technical specifications | |
Electrical supply | 115 V - 60 Hz - 1.4 A |
Power rating | 152 W |
Power connection | NEMA 5-15P with 79" power cord |
Energy consumption | 475.0 kWh/yr |
Rebates
Rebates
Bertazzoni Buy More Save Even More Rebate
Receive a $700 rebate with purchase of a qualifying Bertazzoni Cooking Appliances, Bundle with any number of qualifying products and get even more savings.
Rebate FormBertazzoni Buy More Save Even More Rebate
Receive a $700 rebate with purchase of a qualifying Bertazzoni Cooking Appliances, Bundle with any number of qualifying products and get even more savings.
Rebate FormBertazzoni Extended Warranty Rebate
Purchase a qualifying Bertazzoni Appliance and receive an Extended Warranty.
Rebate Form
Documents
Documents
- Specifications sheet REF24WCPIXR/23
- Specifications sheet REF24WCPIXL/23
- Built-in Columns Installation Guide EN-FR-ES
- Built-in Wine Cabinets User Manual EN-FR-ES
- Bertazzoni Built-in Columns Design Guide
- Installation drawings Wine Cabinet REF24WCPIXR/23
- Installation drawings Wine Cabinet REF24WCPIXL/23
- Energy guide 24 Wine Cabinets
- Dimension Diagram
- Specifications PDF
