Overview & Specifications
Overview & Specifications

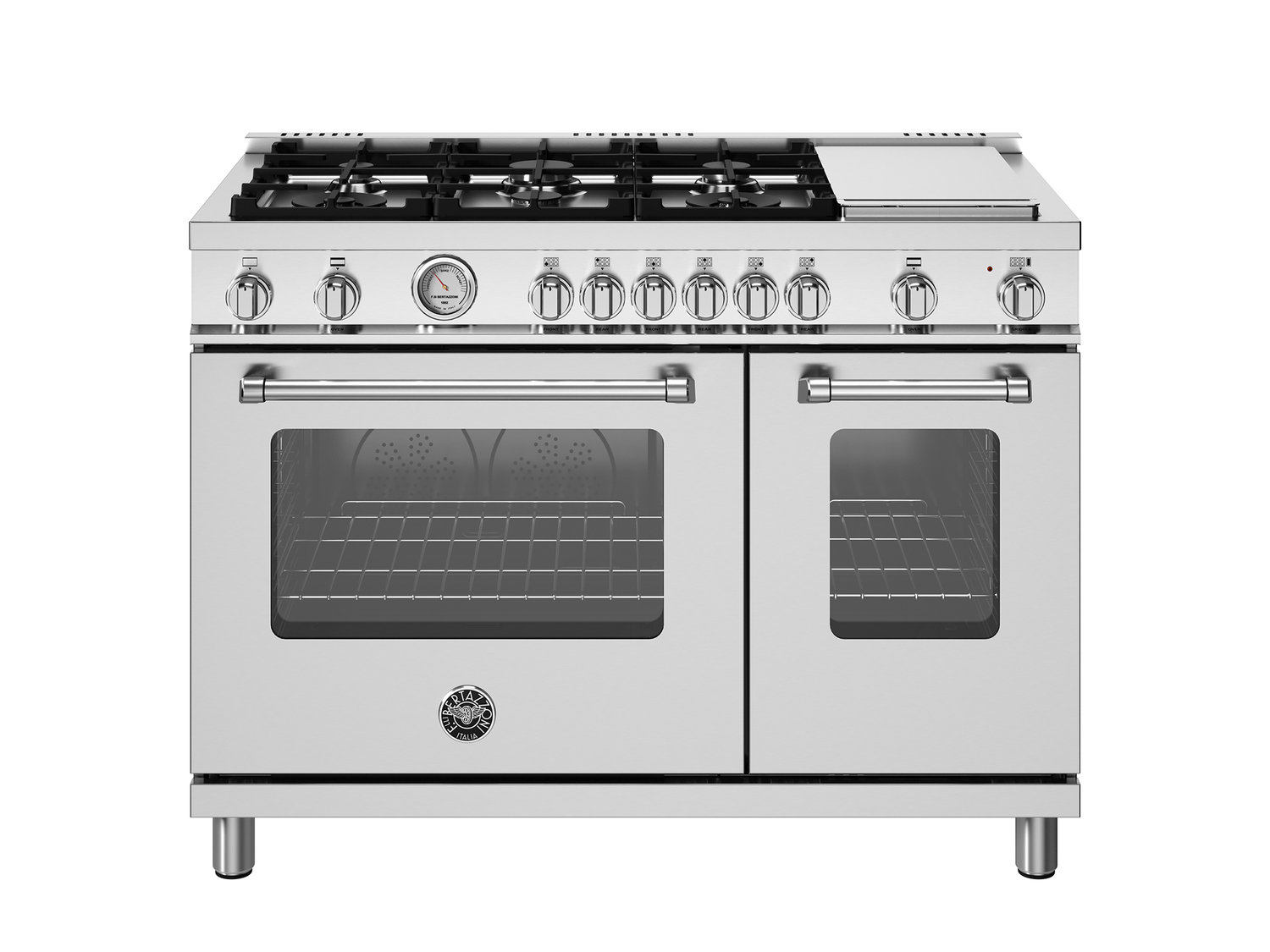

The new Bertazzoni ranges are superb cooking appliances designed, engineered and made in Italy. All Bertazzoni appliances integrate seamlessly into style-harmonized suites for a true, high-performing kitchen.

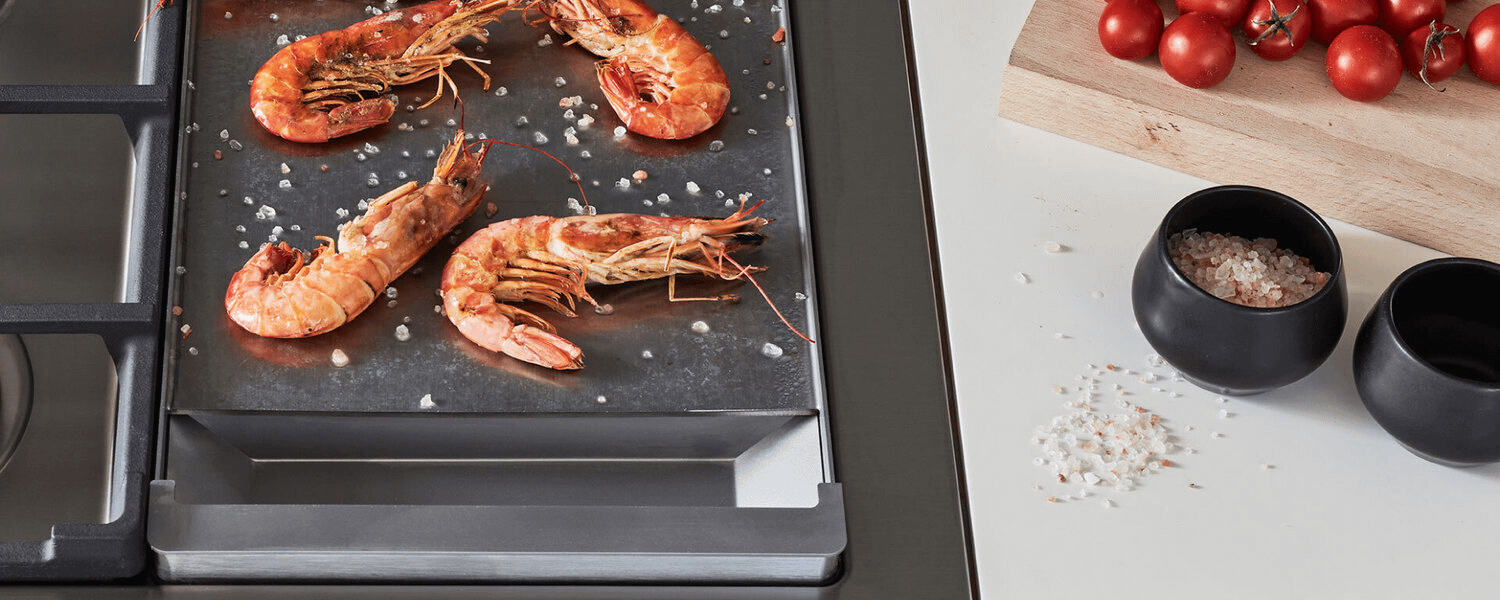

The high-efficiency maintop with 6 burners and electric griddle features 2 dual ring 19,000 BTU power-burners that boil water in under 6 minutes (best in class), and 4 additional MonoBloc burners of variable size and power to suit every style of cooking, with delicate simmer at 750 BTUs. The stainless steel griddle with integrated cover provides additional cooking options.

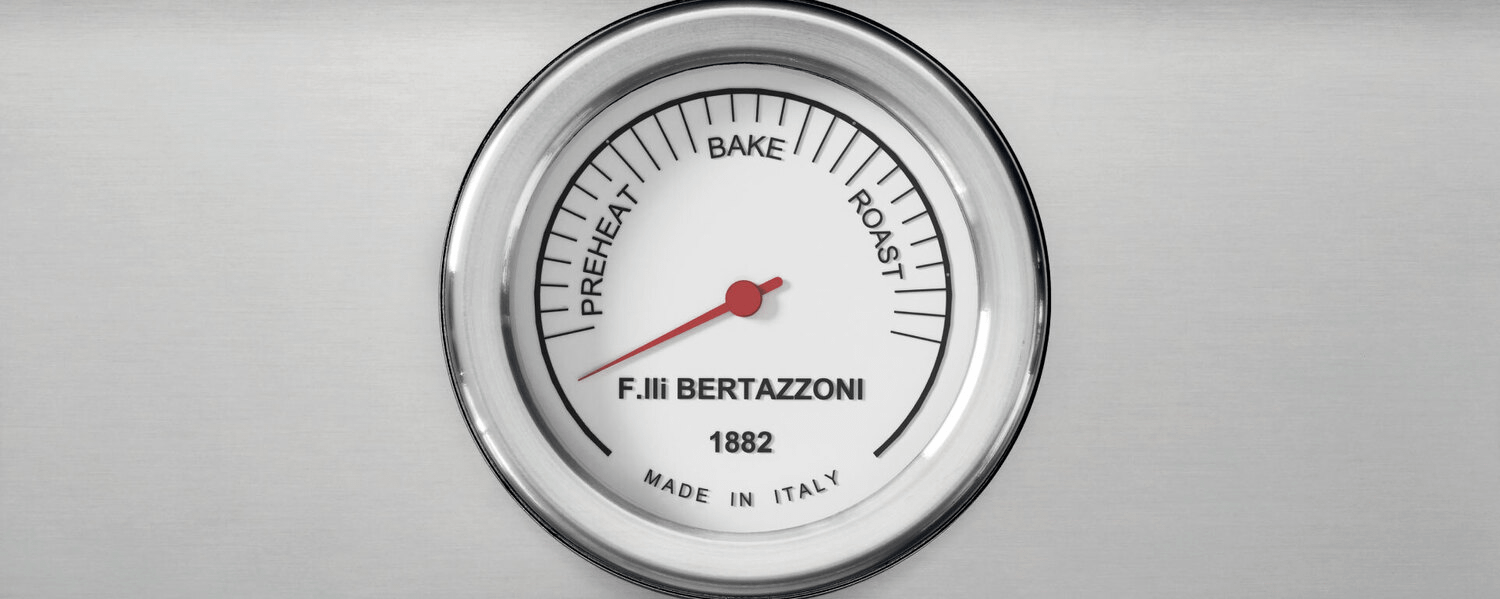

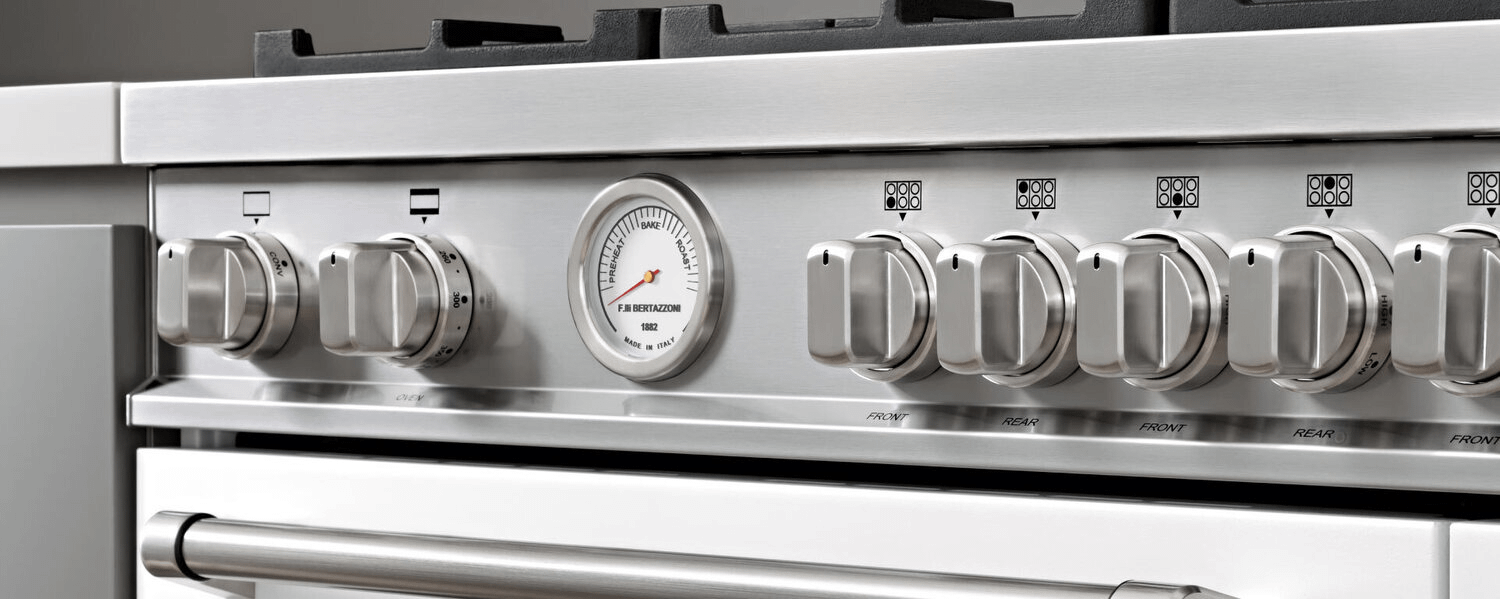

The 4.7 cubic feet main oven cavity is the largest in its class, with dual convection fan for balanced airflow and even temperature baking and roasting on 7 shelf levels. The elegant large temperature gauge monitors the actual temperature in the oven. The extra wide infrared gas broiler is ideal for grilling and searing at high heat. The 2.4 cubic feet auxiliary oven is perfect for smaller dishes and for warming. Both ovens include convenient soft-motion doors. The edge-to-edge interior oven glass door maximizes interior volume and can be wiped clean without effort.
Optional Collezione Metalli d(eback)cor sets knobs and handles are available in contrasting metals - satin gold and black nickel to personalize these accent style elements on your range, as well as all refrigerators and dishwashers in your kitchen suite.
All Bertazzoni appliances are covered by a 2-year warranty.
Size | 48 in |
Number of gas zones | 6 |

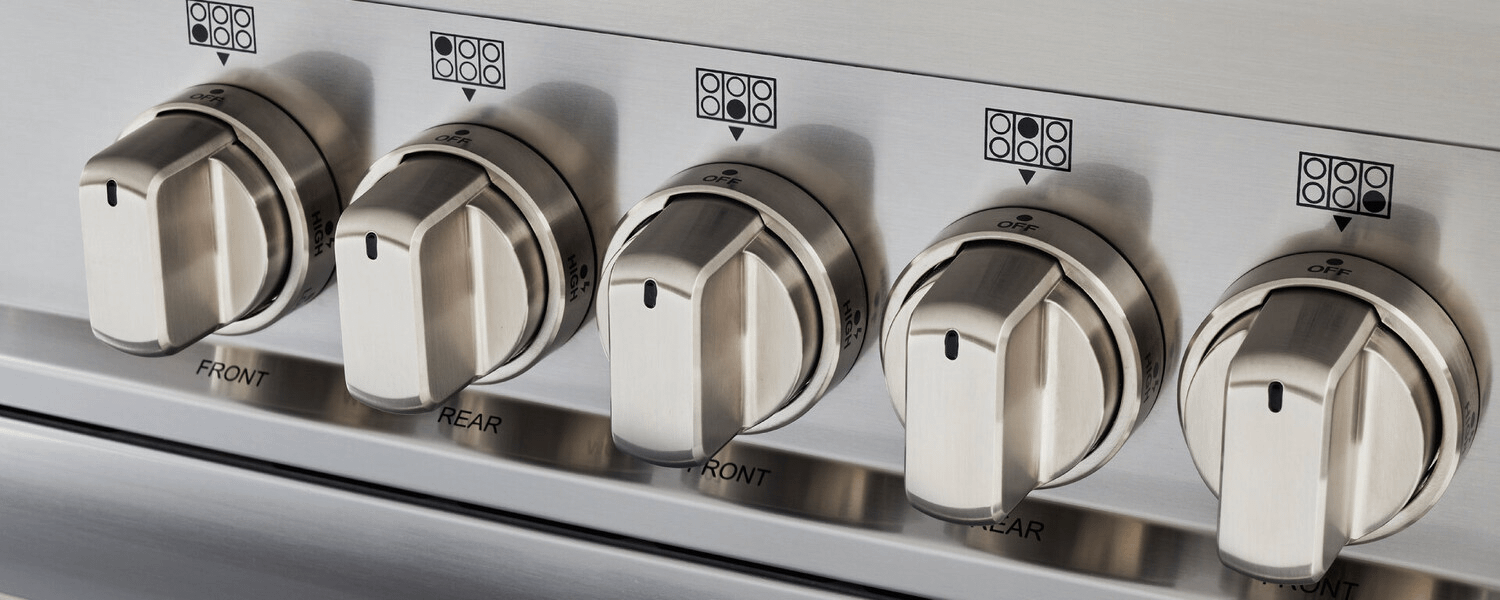

Knobs | solid metal |
Burner type | aluminum |
Main oven type | fan assisted gas |
Auxiliary oven type | gas conventional |
Worktop | |
Size | 48 in |
Cooking zones | 7 |
Number of gas zones | 6 |
Griddle zones | electric |
Worktop type | electric / gas |
Worktop design | stainless steel squared |
Worktop controls | knobs |
Knobs | solid metal |
Burner type | aluminum |
Grates | cast iron |
Continous grating | yes |
Thermocouple safety device | yes |
One-hand ignition | yes |
Backguard | yes |
Simmer ring | yes |
Cooking zones | |
Power burners | 1300 BTU/h - 19 000 BTU/h (2) |
Rapid burner | 2500 BTU/h - 10 400 BTU/h (1) |
Medium burner | 1500 BTU/h - 5900 BTU/h (2) |
Simmer burner | 750 BTU/h - 3500 BTU/h (1) |
Griddle power | 1100 W |
Oven cavity | |
Oven configuration | double |
Oven fuel | gas |
Oven convection system | dual horizontal fans |
Main oven type | fan assisted gas |
Main oven broiler type | gas |
Main oven functions | bake / broiler / convection bake |
Main oven volume | 4.7 ft |
Auxiliary oven type | gas conventional |
Auxiliary oven functions | bake |
Auxiliary oven volume | 2.4 ft |
Oven controls | knobs / thermometer |
Inner oven door | triple |
Removable inner glass | yes |
Cooling fan | yes |
Oven levels | 7 |
Door hinges | soft-motion |
Wire-shelves | 2 each cavity |
Tray | 1 baking tray with grill trivet |
Grill trivet for tray | yes |
Oven lights | double lateral |
Bottom | |
Legs | stainless steel |
Technical specifications | |
Absorbed current (A) | 10 A with dedicated circuit |
Electrical supply | 110V 60 Hz - 1200W |
