Overview & Specifications
Overview & Specifications

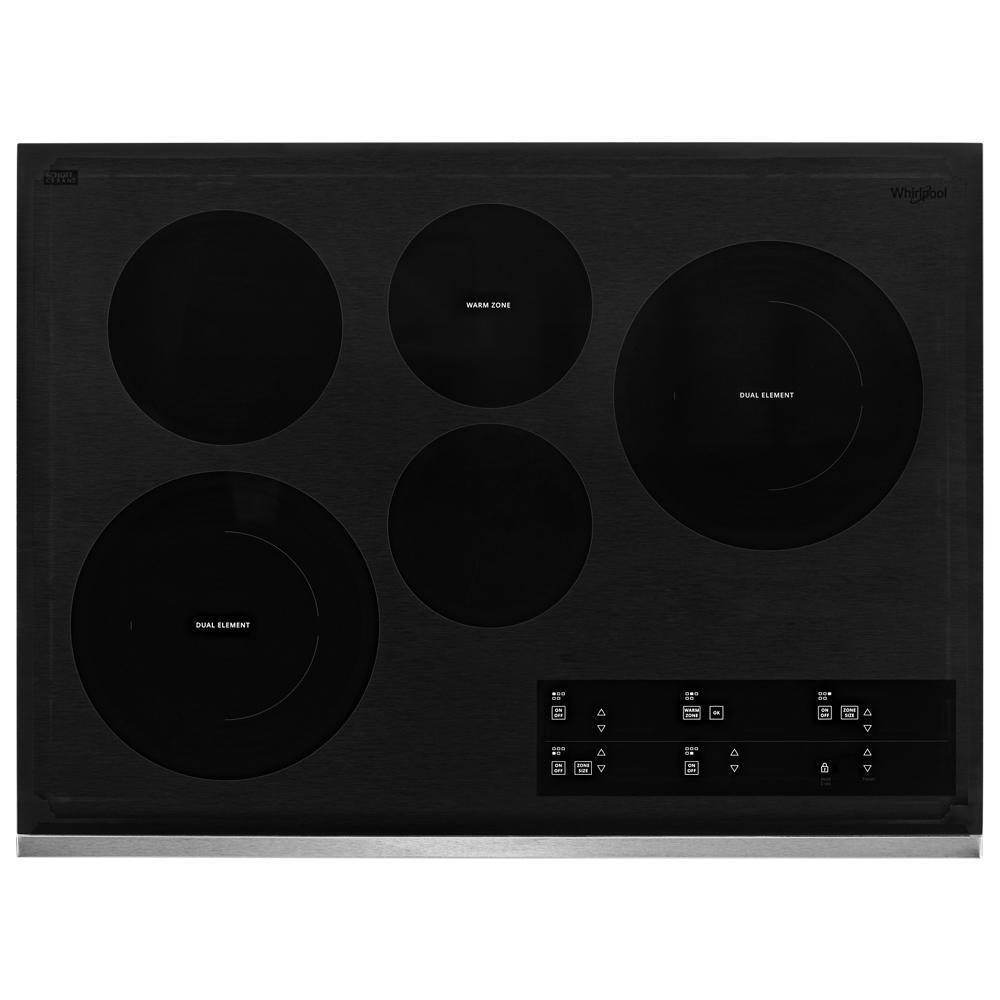

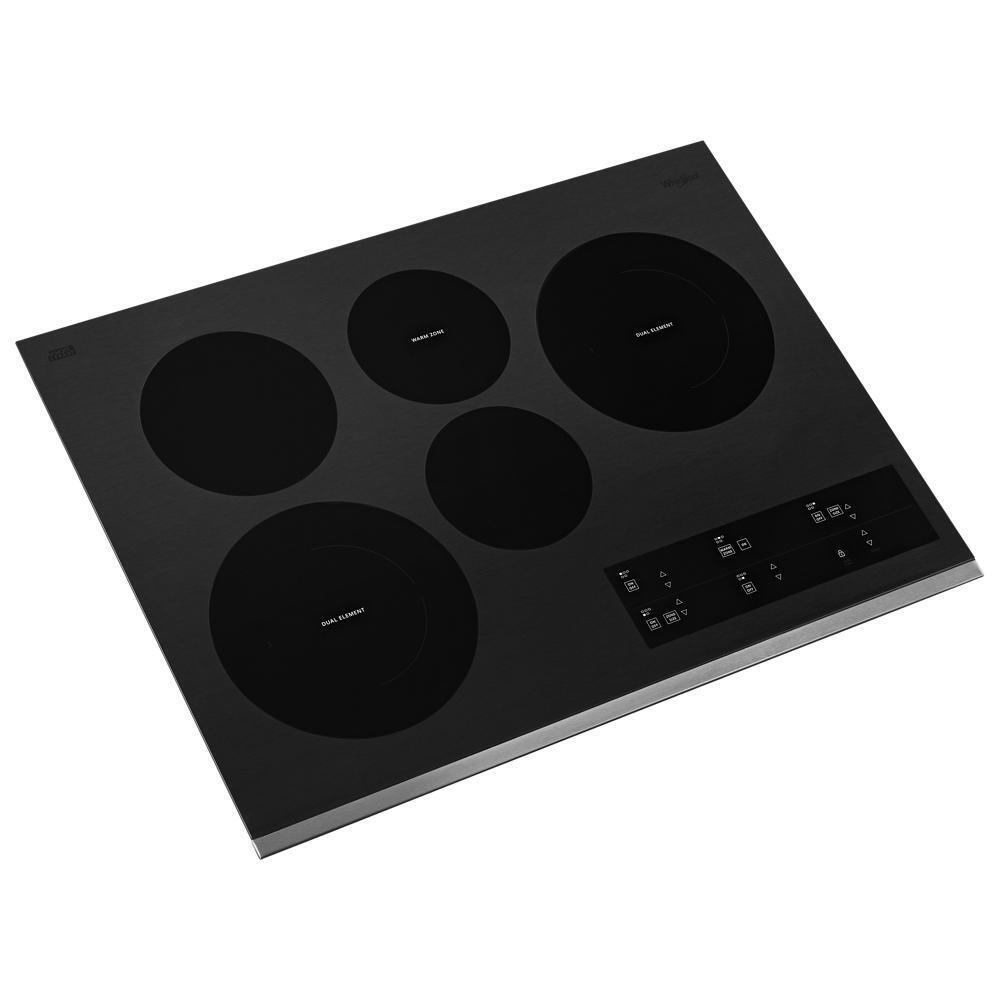

Cook all your family s favorites at once and clean up quick with a 5-burner cooktop that makes the most of your mealtime routine. Two FlexHeat™ Dual Radiant Elements provide more flexibility, and the Warm Zone Element keeps food warm while you re finishing the rest of the meal. Then, cleanup is easy with smooth Tap Touch Controls and Control Lock Mode.
- 30 & 40 Amp Installation
- Properly install with either a 30 or 40 amp hookup, so there's no need to rewire.
- 5 Element Cooktop
- Cook more of your family's favorites and enjoy added versatility with a fifth element.
- 5-Element Cooktop
- Provides five independent cooking surface areas.
- 6" Extra Element
- Cook small dishes like sides and sauces on the 6" Extra Element.
- 8" Extra Element
- Cook small dishes like sides and sauces on the 8" Extra Element.
- ADA compliant
- This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
- Control Lock Mode
- Disable the control panel to avoid unintended use and easily clean controls.
- Easy-Wipe Ceramic Glass Cooktop
- Wiping up spills is simple with the easy-to-clean cooktop.
- FlexHeat(TM) Dual Radiant Element
- Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
- Hot Surface Indicator Light
- See when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.
- Kitchen Timer
- Keep track of cook times with an easy-to-clean Kitchen Timer that s integrated into the Tap Touch Controls.
- Tap Touch Controls
- Clean the controls as easily as you use them.
- Wall Oven Compatible
- Install this cooktop in a counter above select Whirlpool(R) Single Wall Ovens or on its own for more flexibility.
- Warm Zone Element
- Keep food warm while you're finishing the rest of the meal using this low-powered element.
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Right Front |
Control Type | Tap Touch |
Infinite Heat Controls | No |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Digital Display | Yes |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Automatic Pan Size Adjustment | No |
Combinations With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
Cooktop Configuration | All Burners |
Fuel Type | Electric |
Installs Over Built-in Oven | Yes |
Lp Convertible | No |
Power Outage Compatible | No |

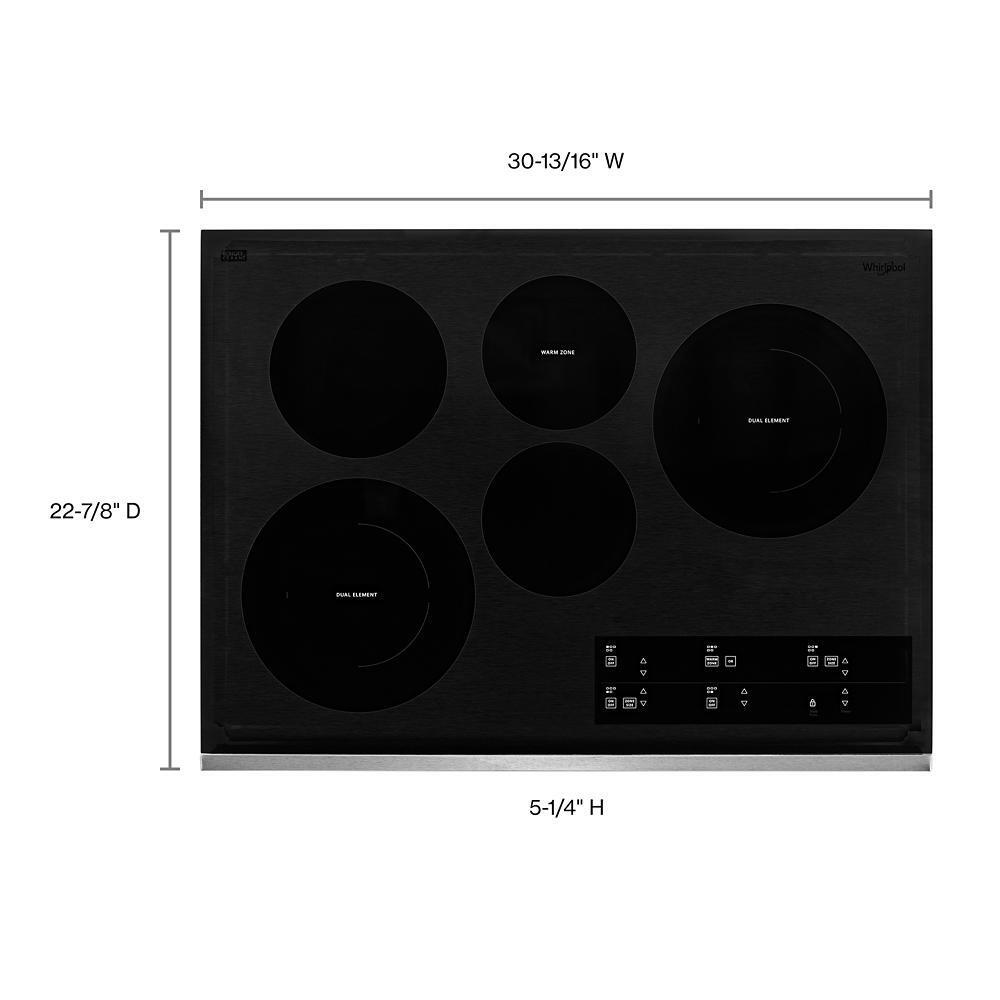

Dimensions | |
Product Height | 5.25 |
Carton Height | 9.25 |
Gross Weight | 46 |
Carton Depth | 25 |
Carton Width | 35 |
Product Depth | 22.8125 |
Cutout Depth Min | 20.375 |
Cutout Width Max | 29.563 |
Net Weight | 41 |
Product Width | 30.8125 |
Cutout Depth Max | 20.563 |
Cutout Width Min | 29.063 |
Electrical | |
208v Compatible | Yes |
Power Cord Included | No |
Element/burner Details | |
Center Front Element-burner Power | 1,200W |
Center Front Element-burner Size | 6in. |
Center Front Element-burner Type | Standard |
Center Rear Element-burner Power | 100W |
Center Rear Element-burner Size | 6in. |
Center Rear Element-burner Type | Round |
Cooktop Element Style | Radiant |
Cooktop Type | Standard |
Left Front Element-burner Power | 3000W/1900W |
Left Front Element-burner Size | 10in./6in. |
Left Front Element-burner Type | Dual |
Left Rear Element-burner Power | 1,800W |
Left Rear Element-burner Size | 8in. |
Left Rear Element-burner Type | Standard |
Number of Cooking Element-burners | 5 |
Power Boost | No |
Right Rear Element-burner Power | 3000W/1900W |
Right Rear Element-burner Size | 10in./6in. |
Right Rear Element-burner Type | Dual |
General | |
Combination Match With Oven | WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
Ventilation Details | |
Downdraft Vent | No |
