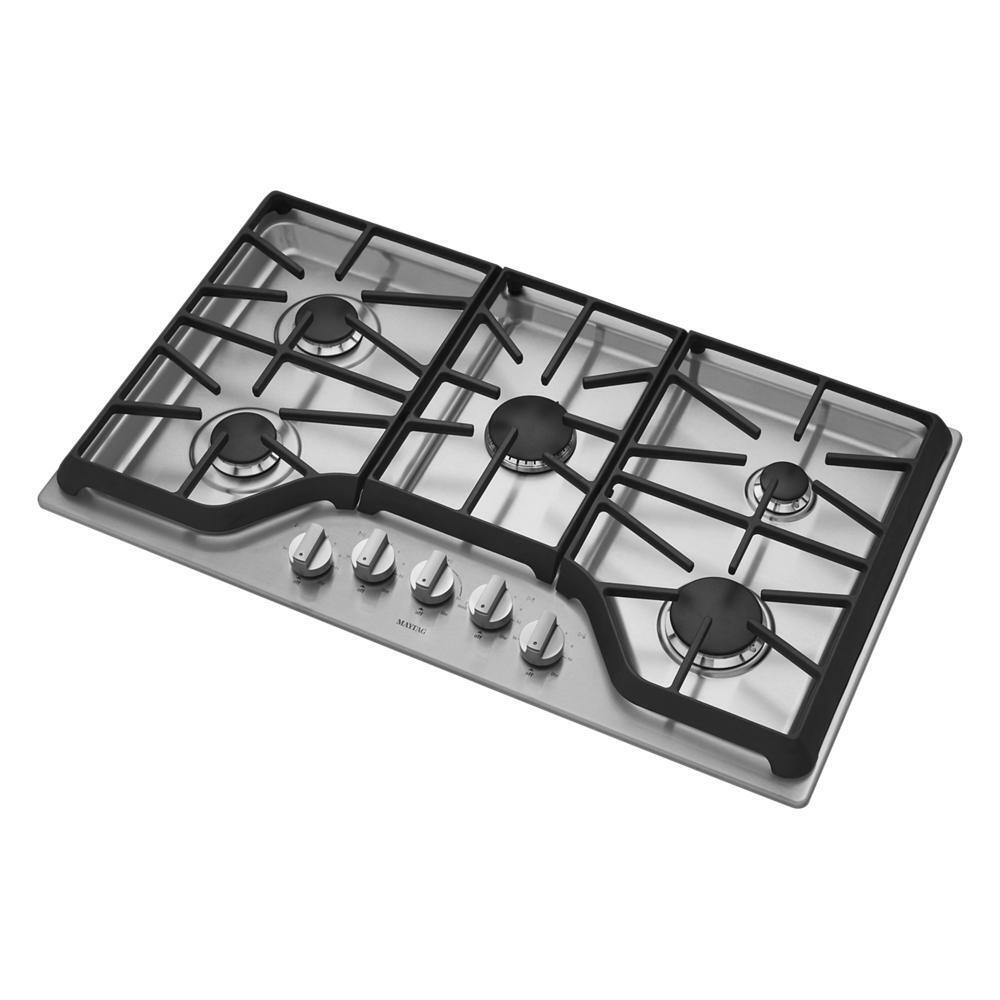

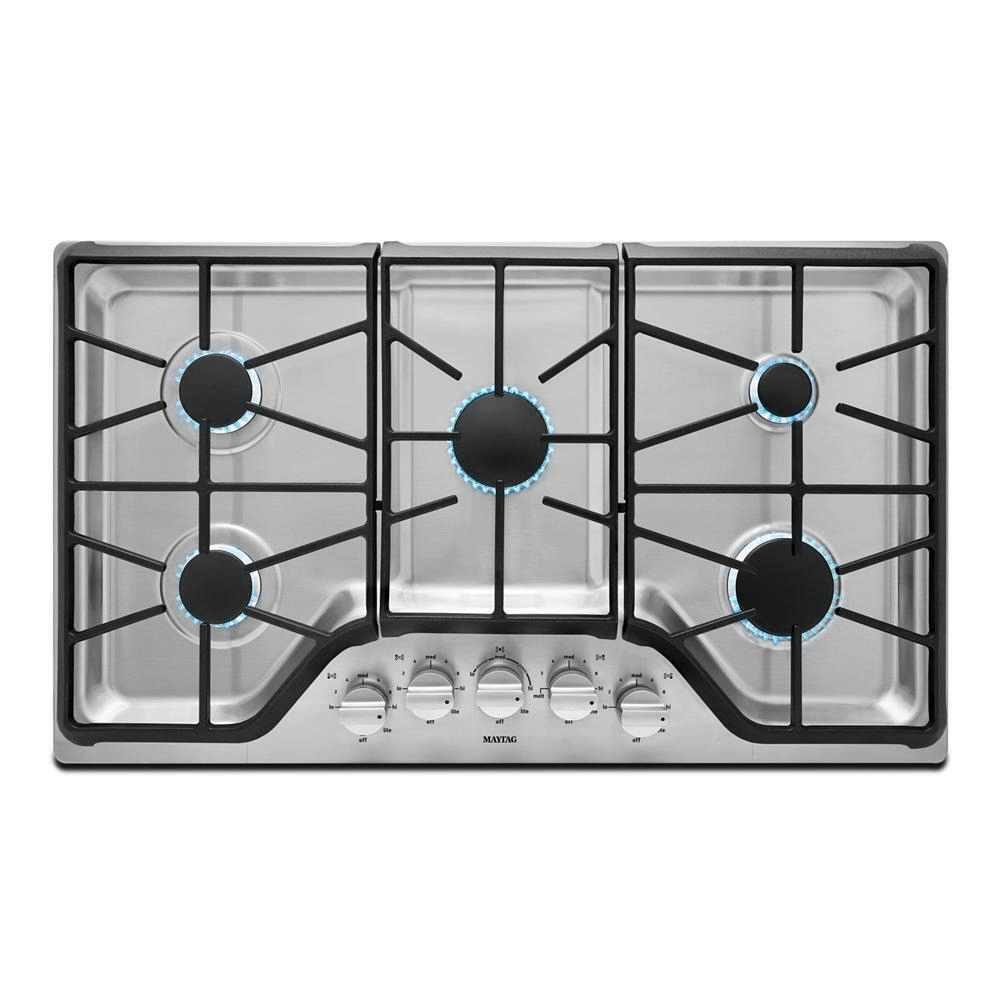

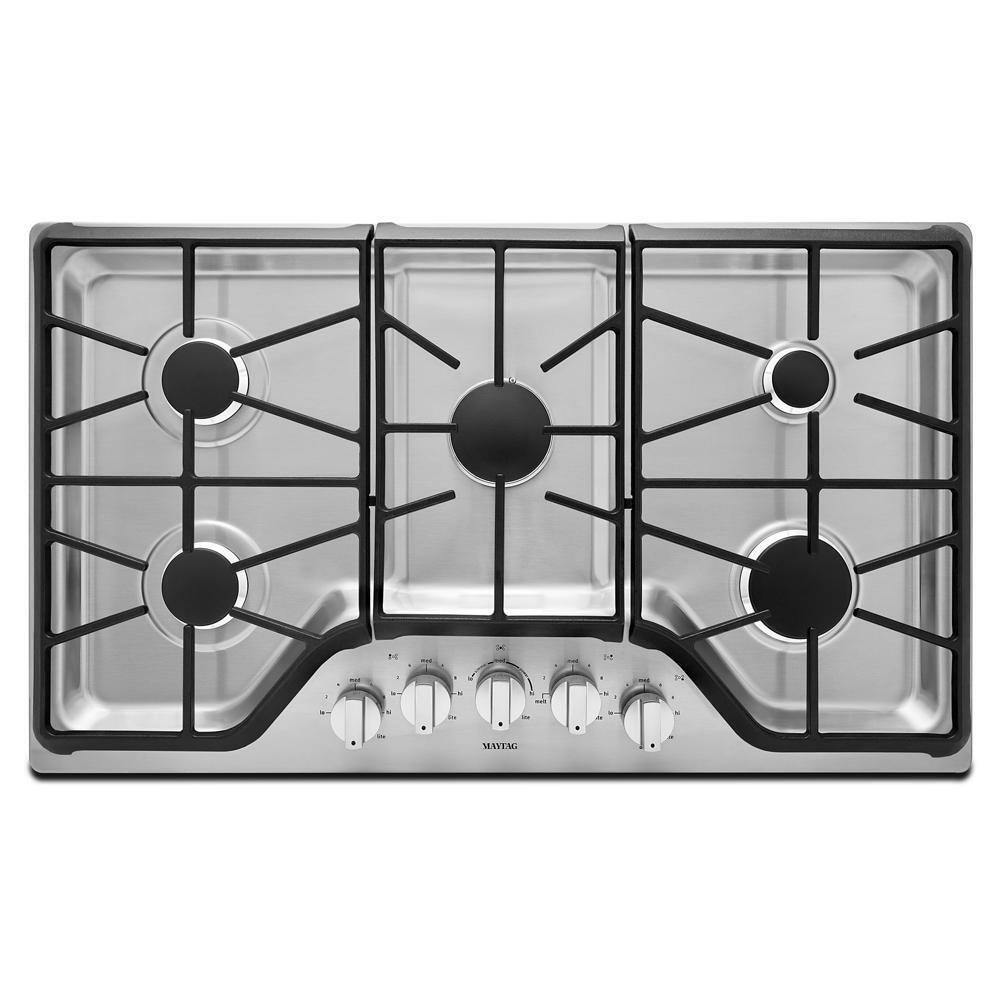

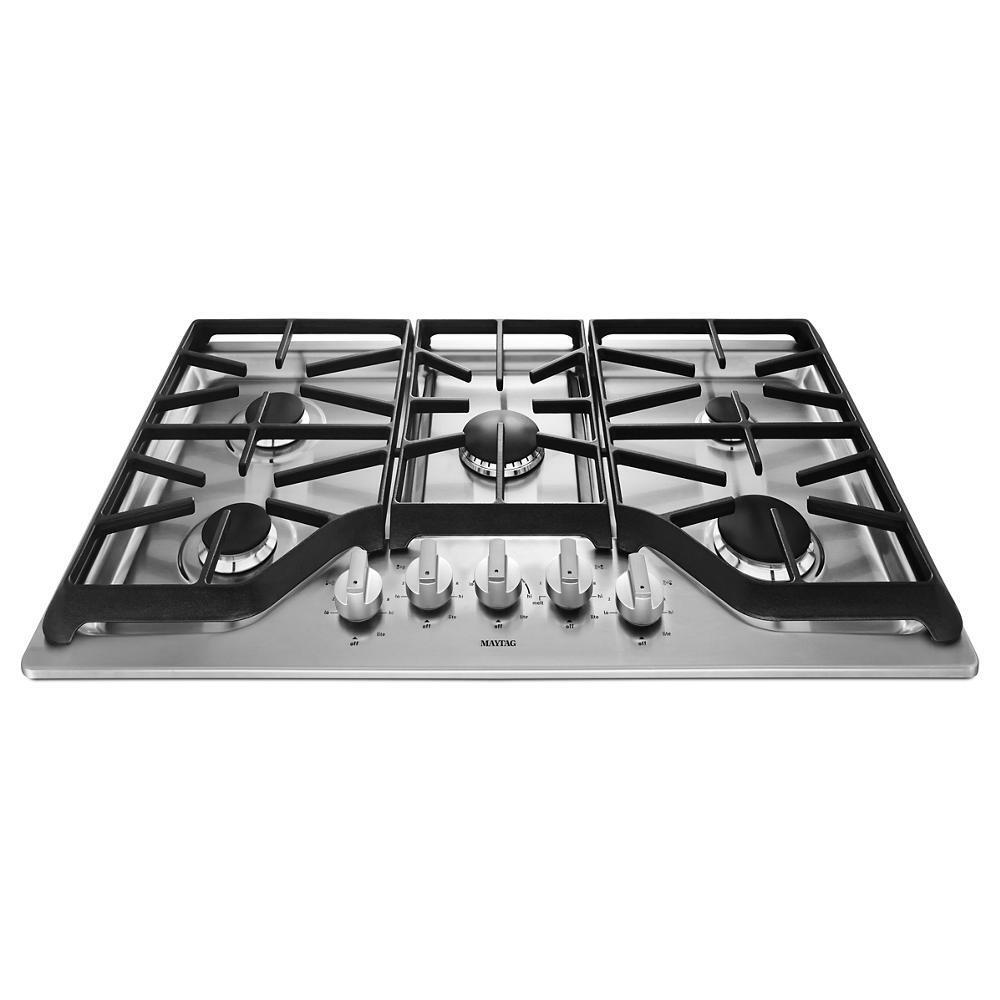

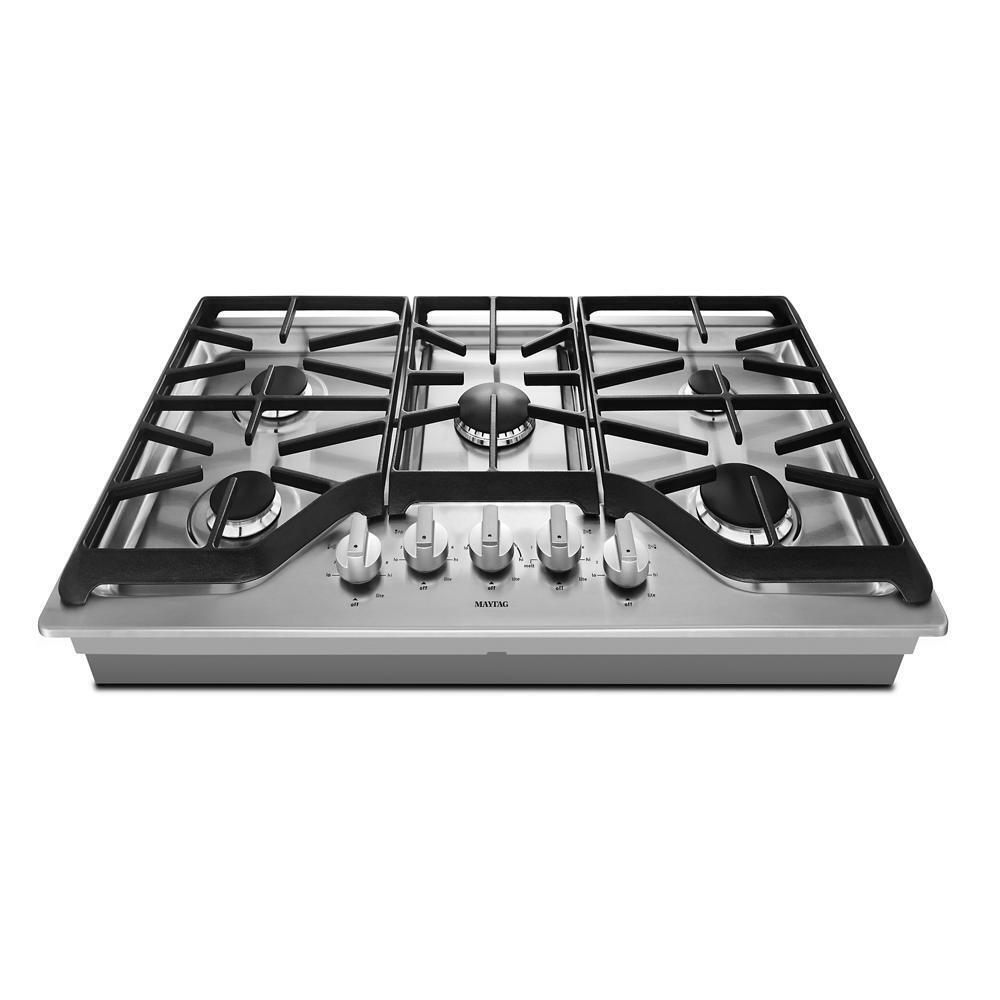

Take charge of your cooking experience with Maytag® gas cooktops. The 18,000-BTU Power™ Burner delivers heat on demand to sear flavor and juices into main dishes, while the Power Simmer dual stacked burner on this 36-inch gas cooktop allows for delicate control of savory sauces and soups. And this 5-burner cooktop will clean with ease through years of use thanks to features like the DuraGuard™ protective finish and heavy-duty DuraClean™ continuous cast-iron grates.
- 10 Year Limited Parts Warranty
- With a 10-year limited parts warranty on the cooktop burners and cast-iron metal grates, we built these cooktops tough enough to keep cookin' for years.
- 5 Burners
- With an extra burner you have the flexibility to prepare all your meals without juggling pots and pans.
- Designed, Engineered, and Assembled in the USA
- From Tennessee to you, these cooktops are designed, engineered and assembled in the U.S.A.

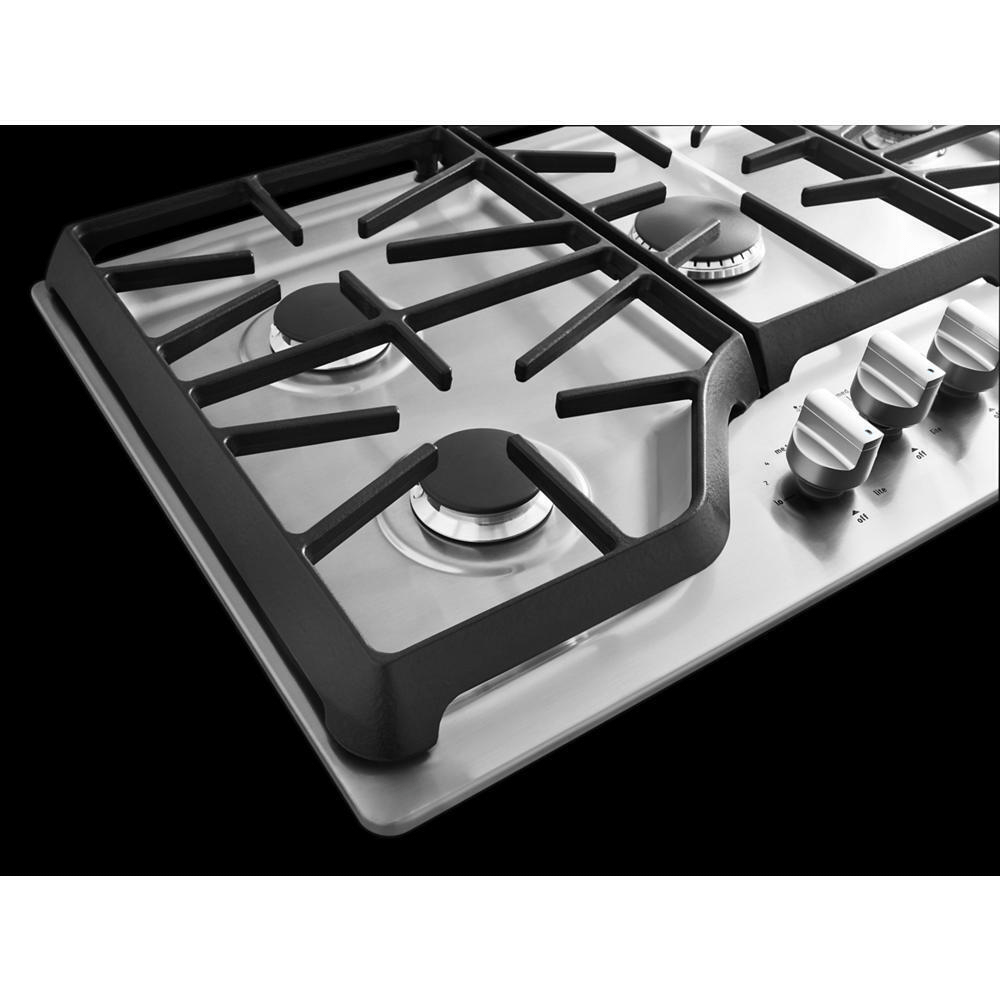

- DuraClean(TM) Continuous Cast Iron Grates

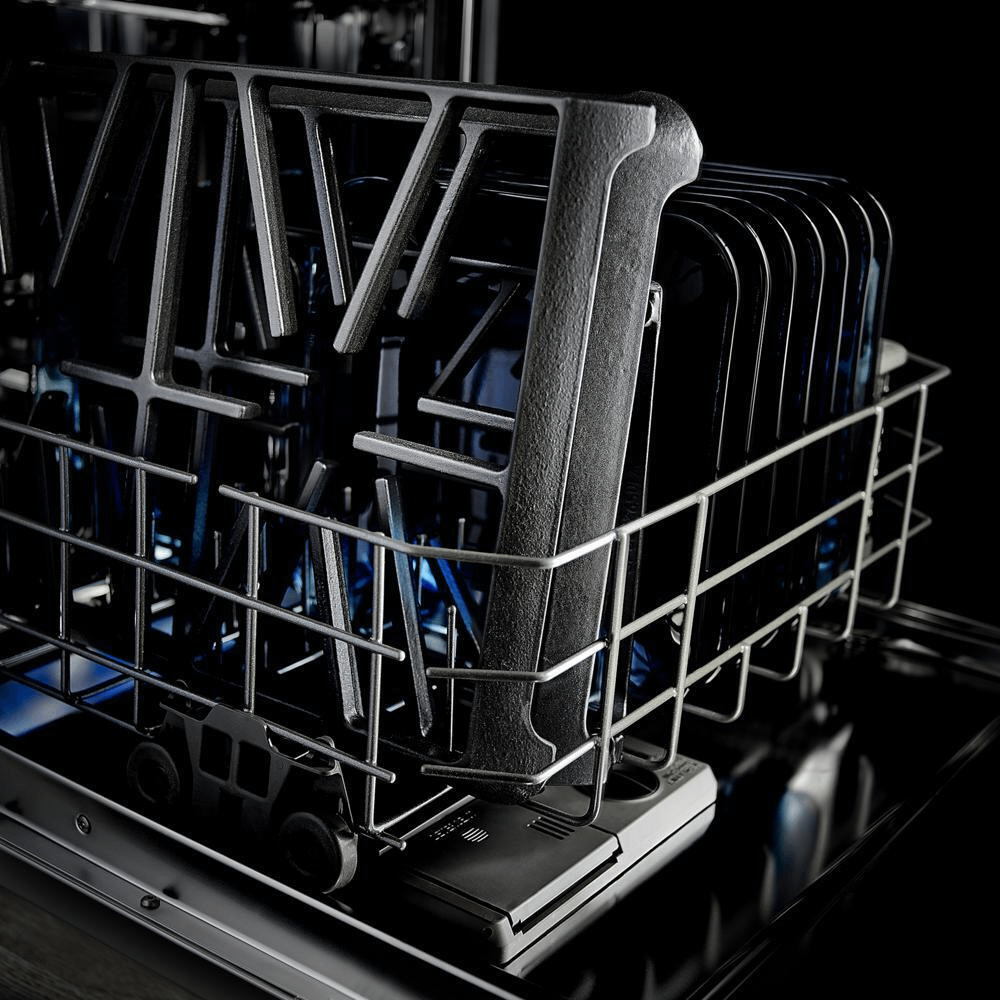

- Dishwasher safe DuraClean(TM) cast-iron grates let pots and pans smoothly slide around the cooktop for fewer spills and easier transitions from burner to burner.
- DuraGuard(TM) Protective Finish
- The DuraGuard(TM) protective finish keeps the cooktop surface lookin' like new and cleans with ease year after year.

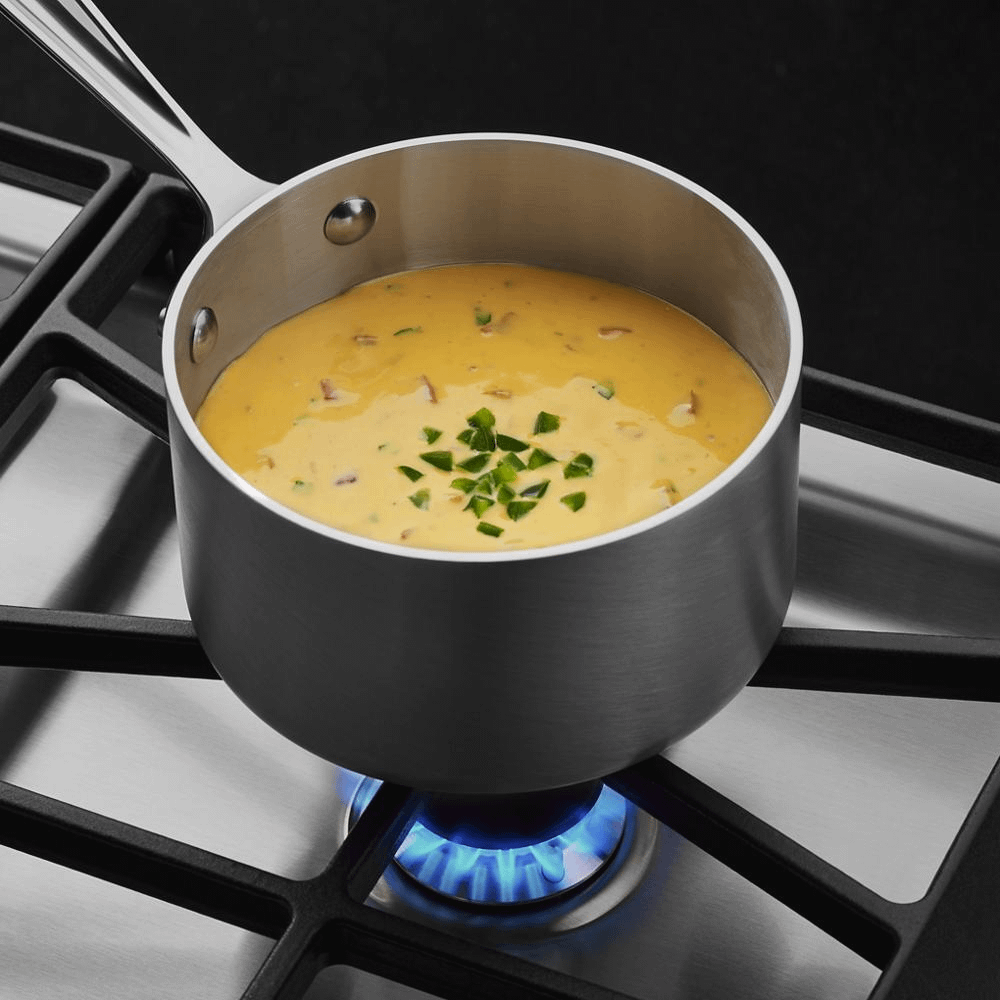

- Power Simmer Dual Stack Burner
- The Power simmer dual stacked burner gives you precise control over your cooktop, allowing you to boil water rapidly or gently hold low temperatures to simmer sauces - all with one burner.

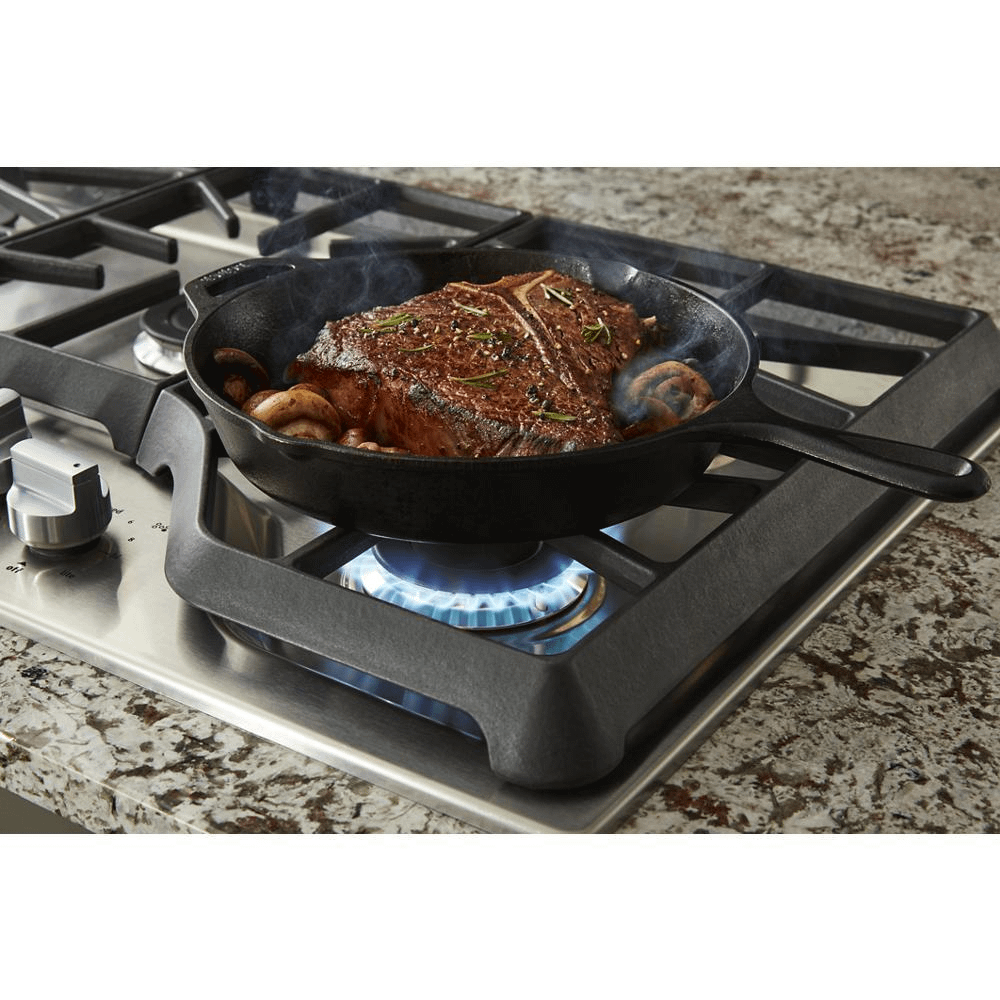

- Power(TM) Burner
- The Power(TM) Burner allows for a slow, even saute and the intense heat for a seared, juicy steak.

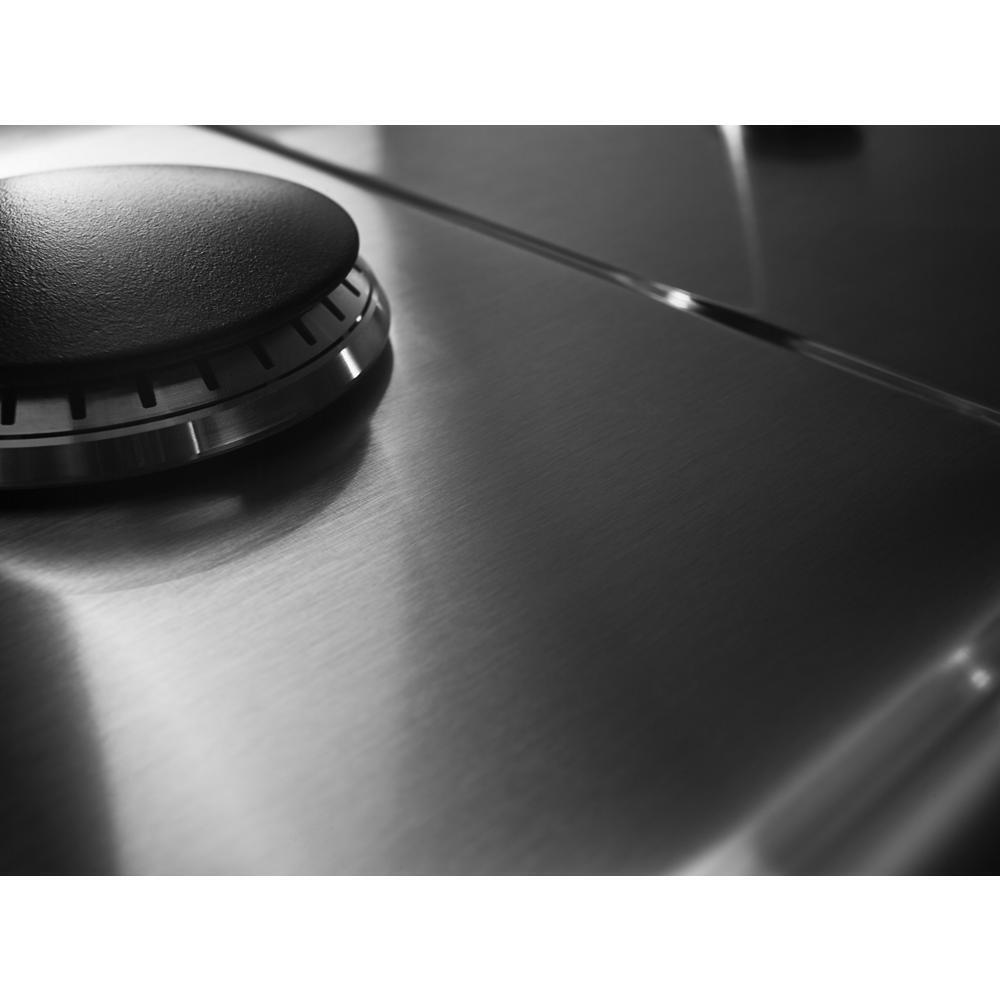

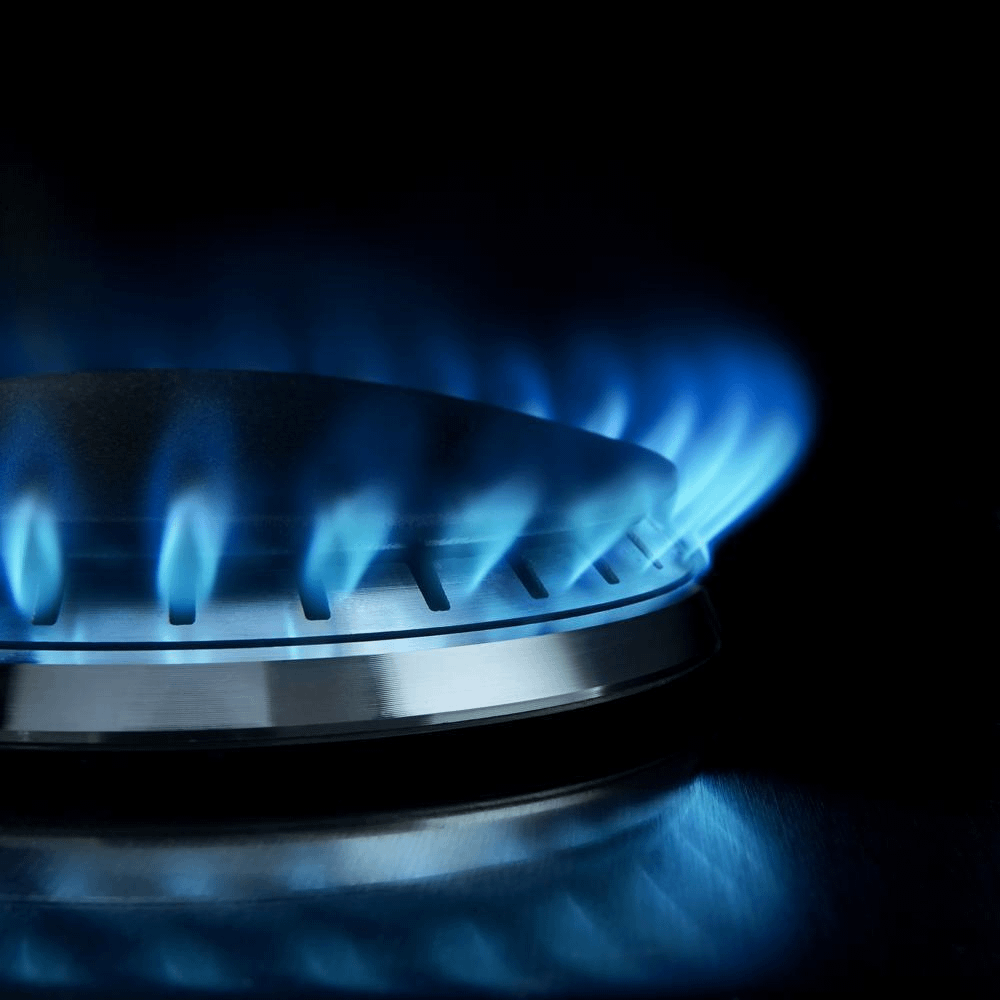

- Sealed Surface Burners
- These burners are sealed, creating a smooth surface for even heating, easy cleanup and extended grate life. Plus, it helps to keep food from falling below the cooktop.

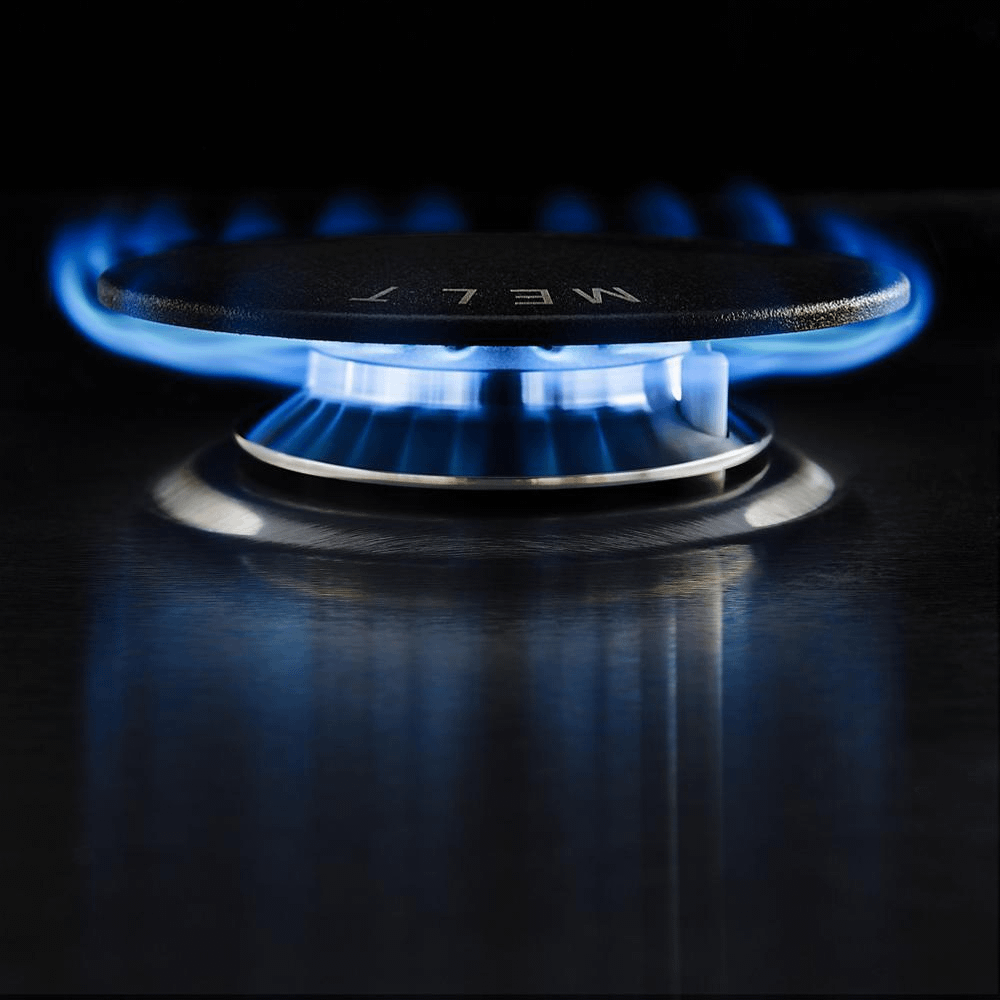

- Simmer Burner with Melt Cap
- The simmer burner allows for adjustable heat control from 800 to 5,000 BTUs. The addition of a melt cap on the burner diffuses the flame for low-heat melting or warming without the need for constant monitoring.
Certifications | |
Ada Compliant | ADA Height and Side Reach Compliant |
Prop65 | Standard |
Ul | Yes |

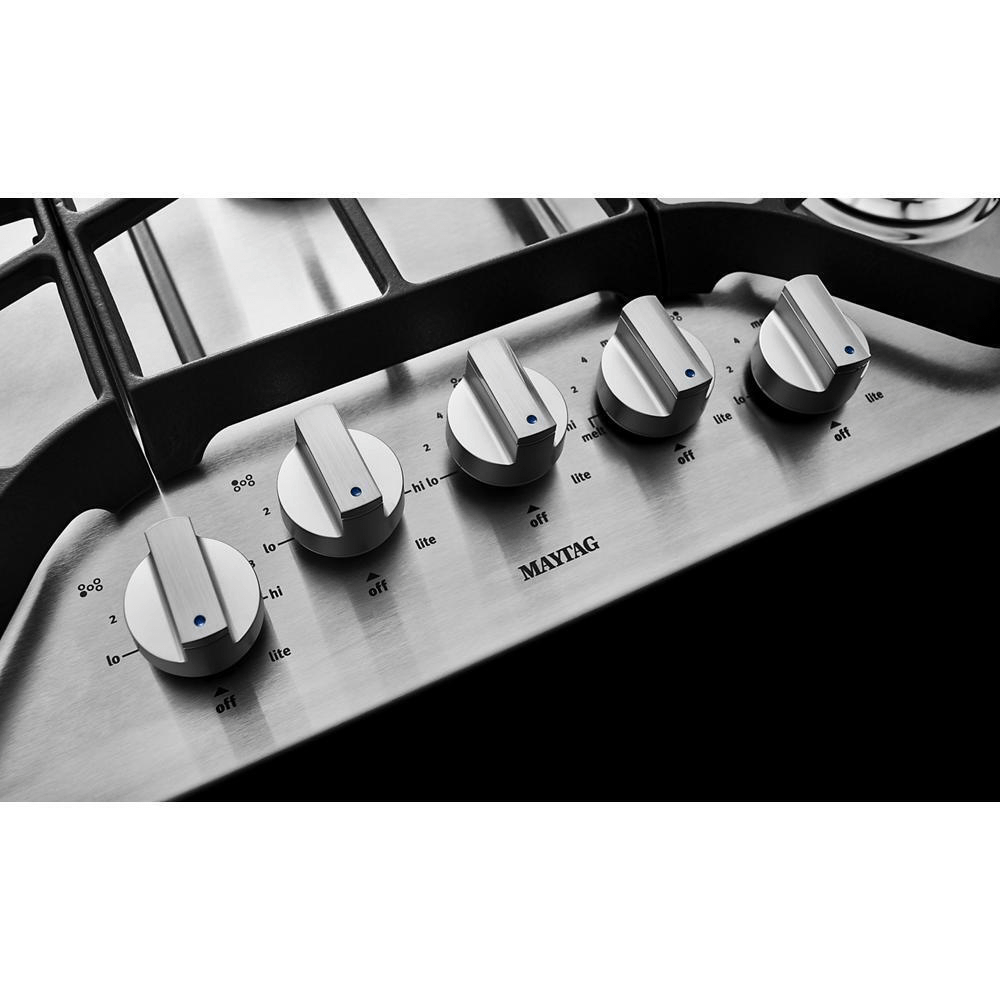

Controls | |
Control Location | Front |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Color Coordinated |
Cooktop Surface Material | Stainless/Porcelain Coated Steel |
Digital Display | No |
Griddle Included | N/A |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Ignition Type | Direct Spark Ignition |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |

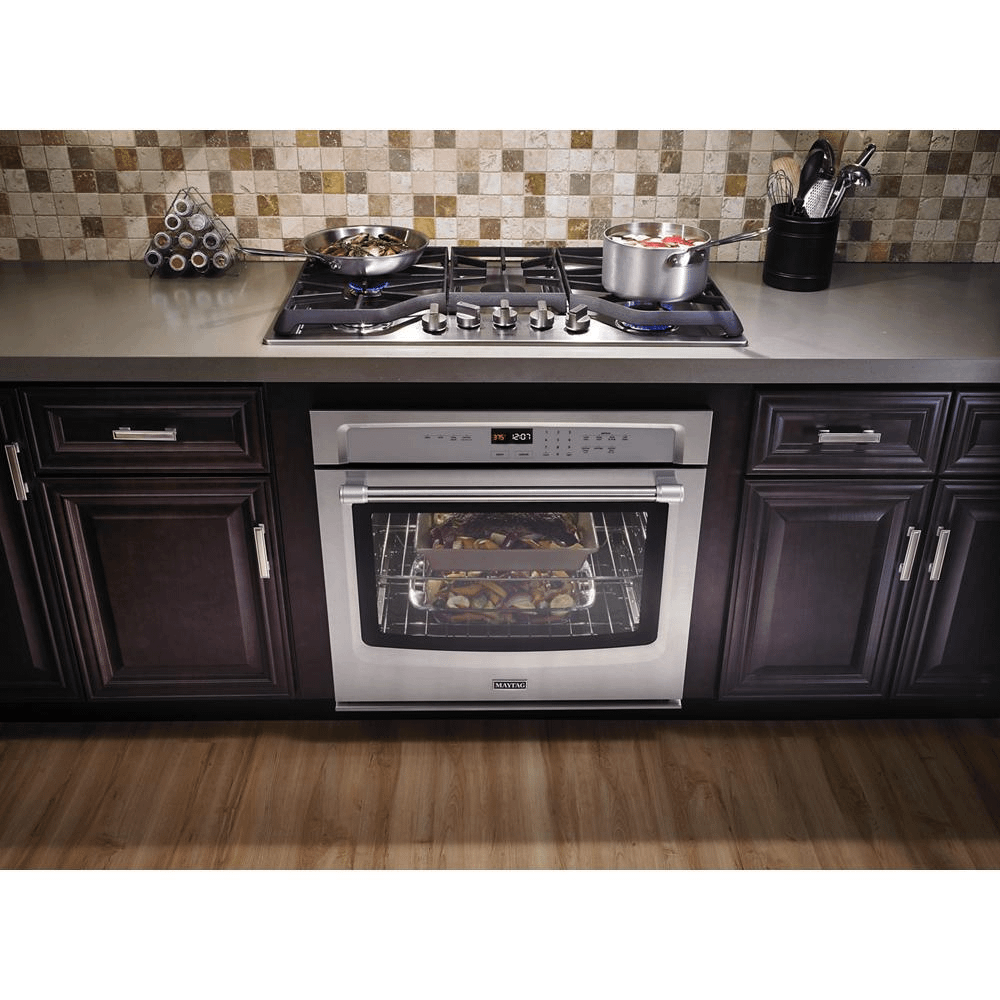

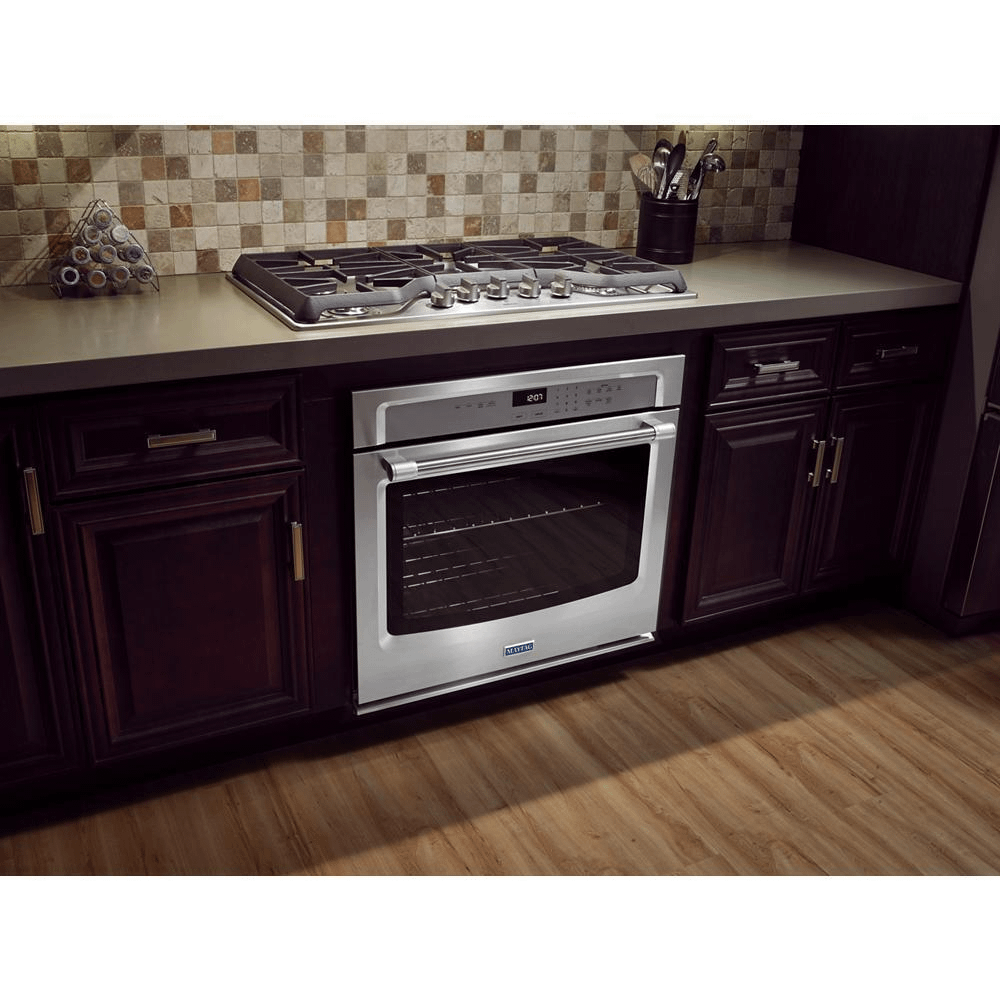

Combinations With Oven | MEW9527; MEW9530 |
Fuel Type | Gas |
Installs Over Built-in Oven | Yes |
Lp Convertible | Yes - Kit Included |
Power Outage Compatible | Yes |

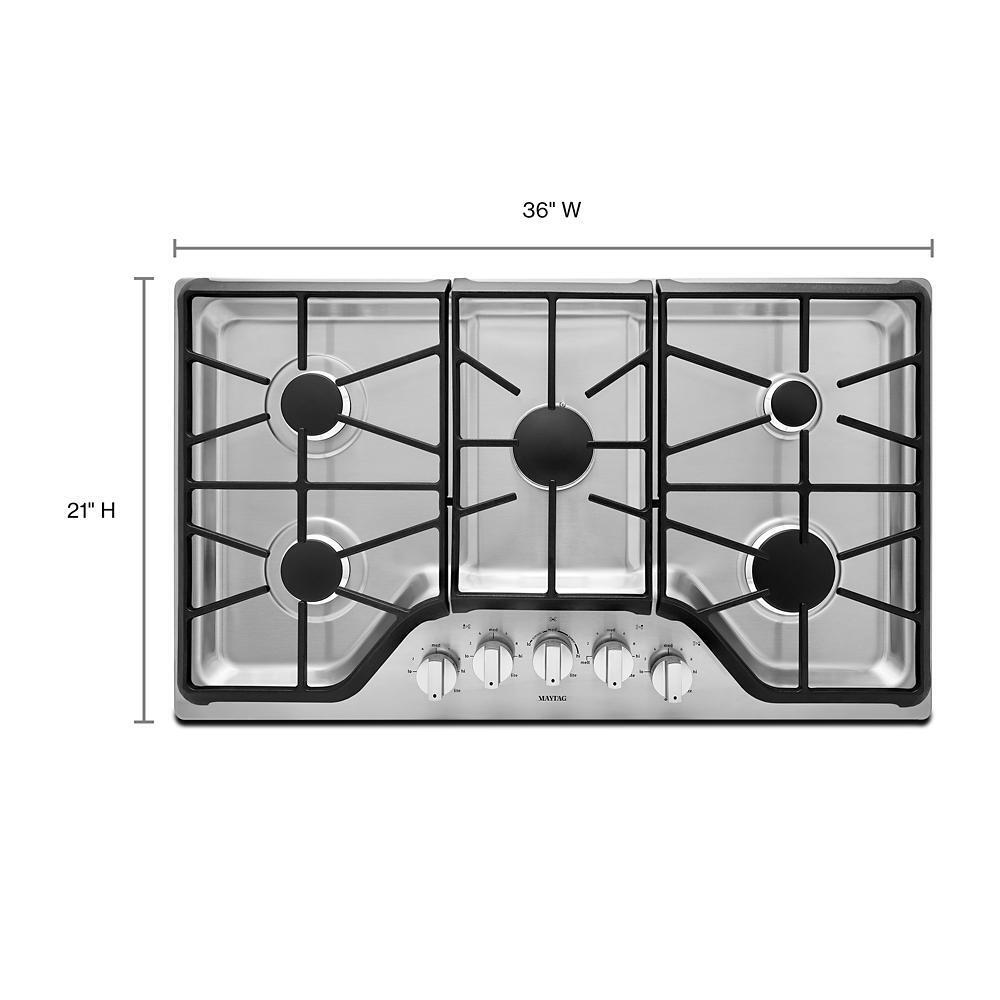

Dimensions | |
Product Height | 3.6875 |
Carton Height | 12.04 |
Gross Weight | 69.6 |
Carton Width | 44.41 |
Product Depth | 21.0 |
Cutout Depth Max | 20 |
Cutout Width Min | 33.875 |
Cutout Depth | 19.938 |
Cutout Height | 5.25 |
Carton Depth | 25 |
Cutout Width | 34.5 |
Cutout Depth Min | 19 |
Cutout Width Max | 35.25 |
Net Weight | 61.6 |
Product Width | 36.0 |
Electrical | |

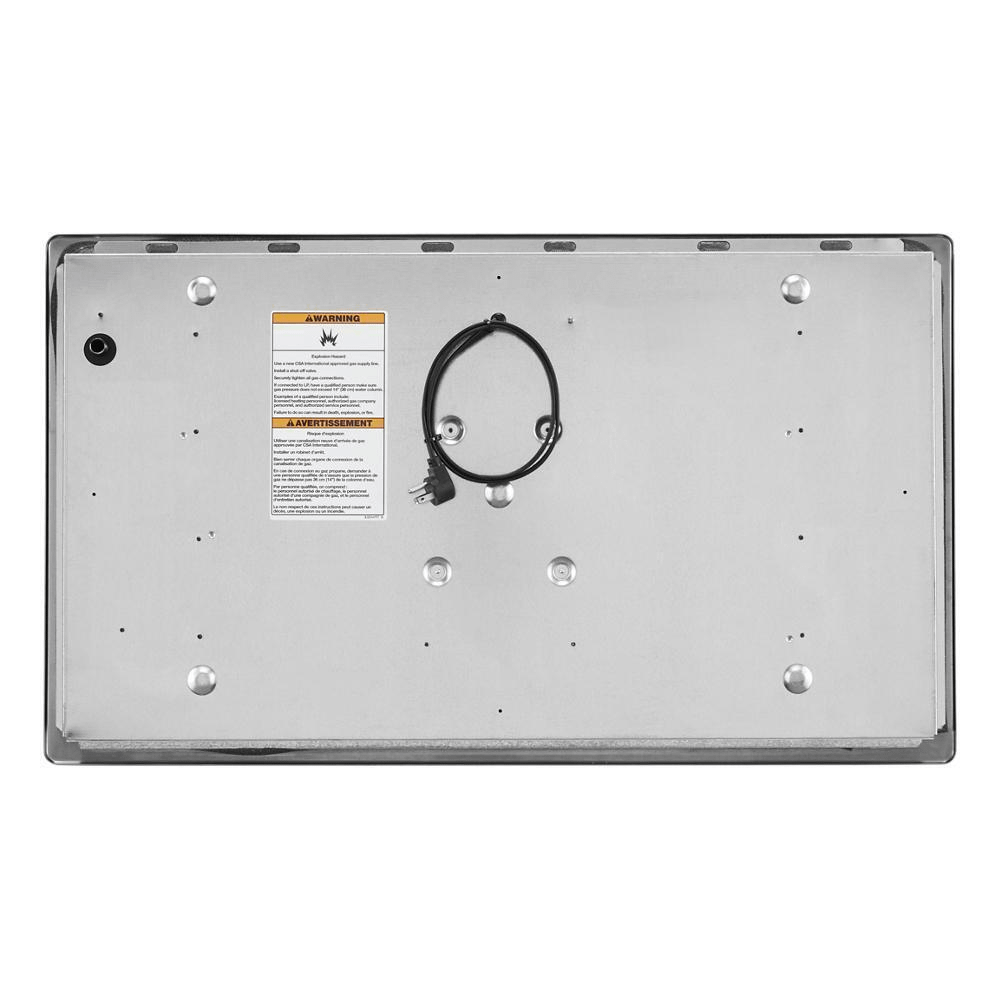

Power Cord Included | Yes |
Element/burner Details | |
Center Rear Element-burner Power | 18,000 BTU |
Center Rear Element-burner Type | Dual |
Cooktop Element Style | Sealed Burner |
Cooktop Type | Standard |
Left Front Element-burner Power | 9,100 BTU |
Left Front Element-burner Type | Sealed Burner |
Left Rear Element-burner Power | 9,100 BTU |
Left Rear Element-burner Type | Sealed Burner |
Number of Cooking Element-burners | 5 |
Power Boost | No |
Right Front Element-burner Power | 12,000 BTU |
Right Front Element-burner Type | Sealed Burner |
Right Rear Element-burner Power | 5,000 BTU |
Right Rear Element-burner Type | Simmer |
Exterior Details | |

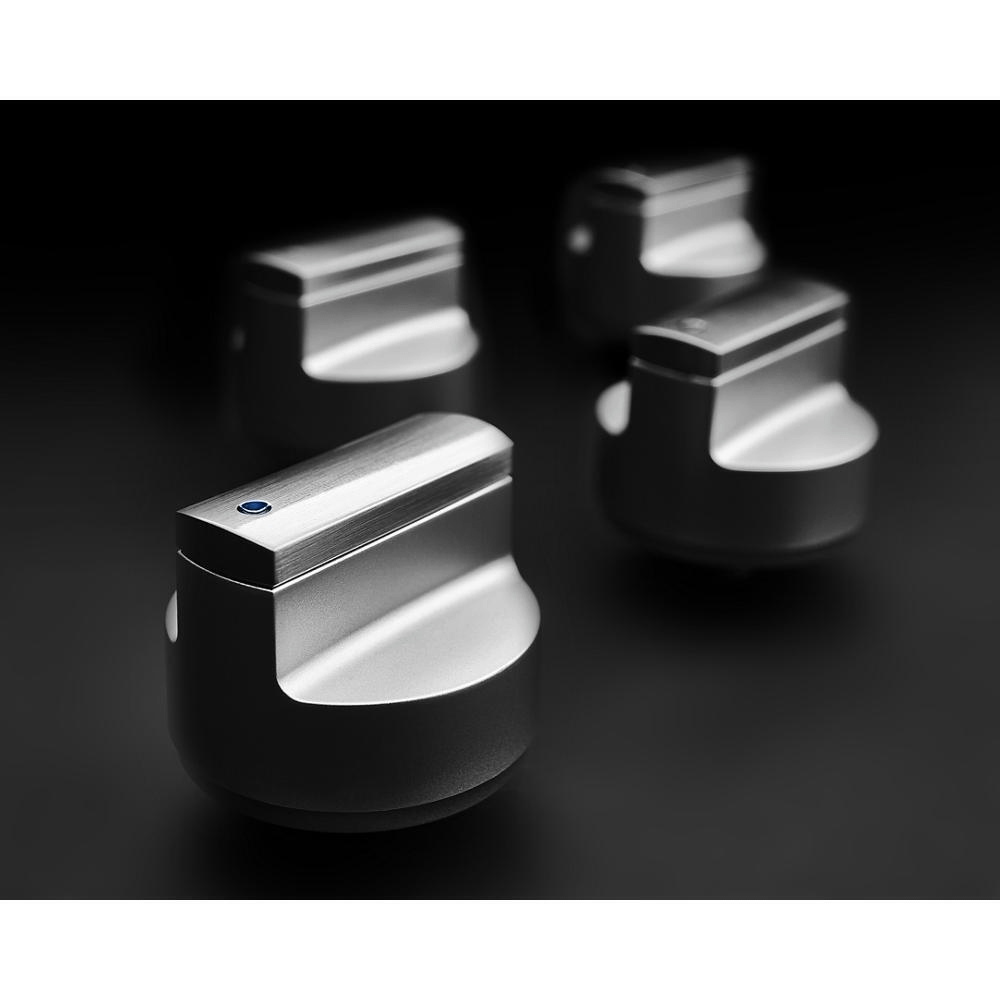

Knob Color | Stainless Steel |
Knob Type | Metal |
General | |
Combination Match With Oven | MEW9527; MEW9530 |
Grate Details | |
Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
Number of Grates | 3 |
Ventilation Details | |
Downdraft Vent | No |
