Overview & Specifications
Overview & Specifications
This 15" automatic ice maker uses Clear Ice Technology to help produce cubes of uniform shape and clarity for every occasion. Distinctive styling makes it an appealing complement to other KitchenAid® appliances, with Fully Flush Installation for a built-in look. The signature handle design opens the door to reveal a storage bin that holds up to 25 pounds of ice.
- Built-In Drain Pump System
- Allows this ice maker to be installed nearly anywhere in the home within 100 feet of an under-sink drain line, so you can keep a continuous supply of clear ice in your kitchen or entertaining space
- Clear Ice Technology
- provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.

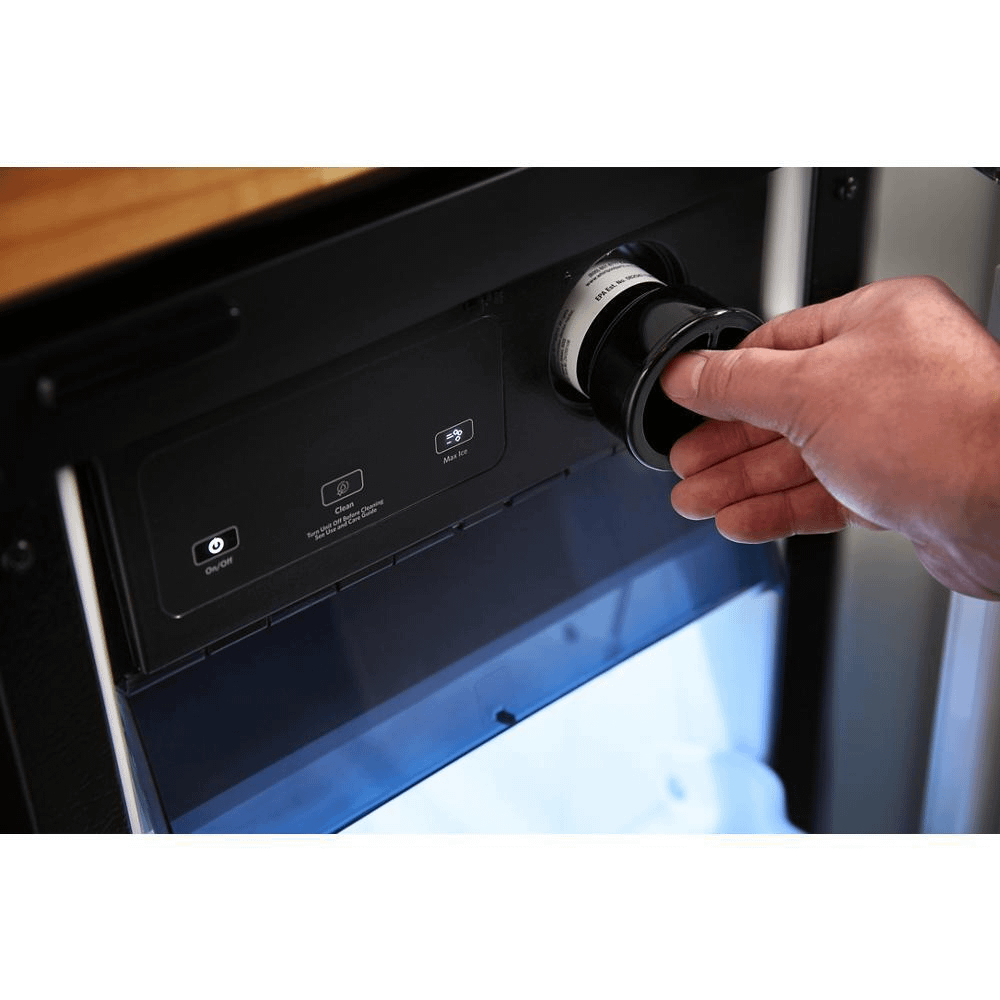

- Filter-Ready
- provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.
- Fully Flush Installation with Articulating Hinge
- allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.
- Holds 25 Pounds of Ice
- ensures a generous supply of fresh ice is conveniently at your fingertips.
- Max Ice
- PrintShield(TM) Finish
- resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
- Reversible Door
- offers flexible installation options by allowing hinge installation on either side of the door.
- Self Cleaning Cycle
- Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.
Certifications | |
Ada Compliant | No |
Prop65 | Standard |
Ul | Yes |
Controls | |
Ambient Temperature Range | 55F to 110F |
Control Location | Interior Up Front |
Control Type | Electronic Touch |
Details | |
Door Opening Direction | Right |
Drain Connection | Rear Access 5/8in. OD |
Drain Pump | Pump Included |
Ice Capacity Storage | 25 |
Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
Water Inlet Connection | 1/4in. OD PEX Tubing |
Water Supply Pressure | 30 - 120 psi |

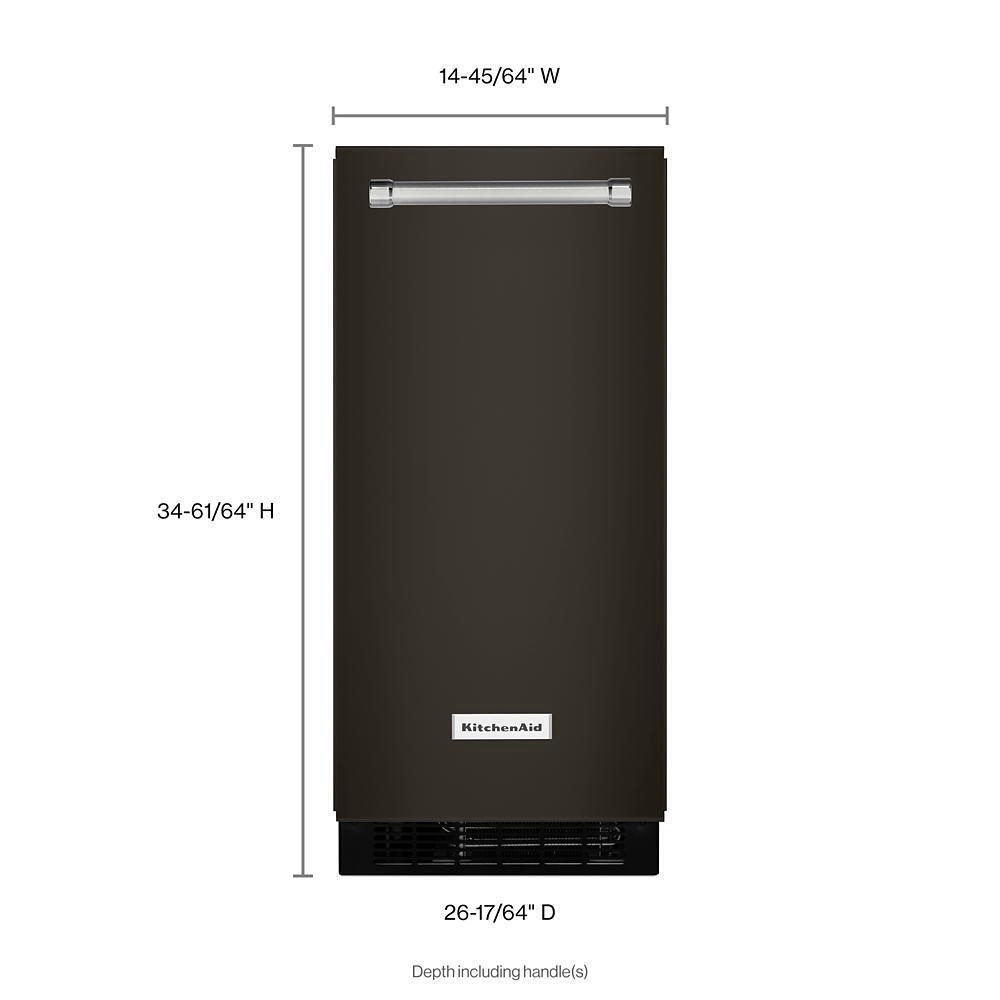

Dimensions | |
Carton Depth | 28.37 |
Carton Height | 36.07 |
Carton Width | 17.25 |
Cutout Depth | 25 |
Cutout Height | 34.5 |
Cutout Width | 15 |
Gross Weight | 107 |
Height To Top of Cabinet | 33.625 |
Height To Top of Door Hinge | 34.063 |
Net Weight | 96.5 |
Exterior Details | |
Cabinet Finish | Textured |
Cabinet Material | Prepainted Steel |
Handle Color | Stainless Steel |
Handle Location | Horizontal |
Handle Material | Metal |
Handle Type | Towel Bar |
Reversible Door | Yes |
Filter Details | |
Water Filter Indicator/reset | Yes |
Water Filter Location | Interior |
Water Filter Part Number | F2WC9I1 |
Freezer Details | |
Defrost Type | Automatic Defrost |
Icemaker Details | |
Ice Maker On/off | Yes |
Oven Details | |
Interior Light | LED |
Refrigerator Details | |
Interior Liner Finish | Plastic |
Liner Color | White |
