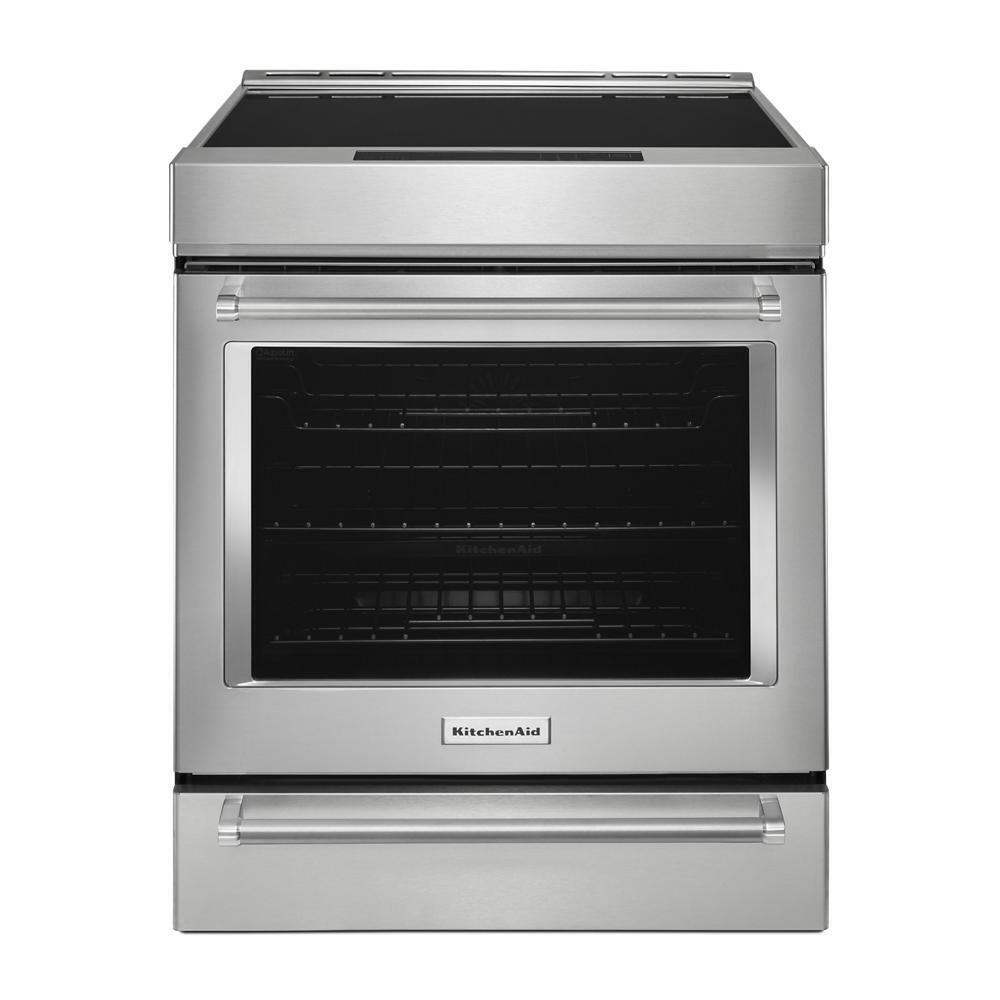

This KitchenAid® 6.4 cu. ft. 30-inch 4-Element Induction Slide-In Convection Range combines the precision of induction with the power of Air Fry. Sensor-induction cooktop generates heat directly within cookware, and the oven features Even-Heat™ True Convection plus air fry mode, with an included dishwasher-safe air fry basket that aids in crisping and browning.

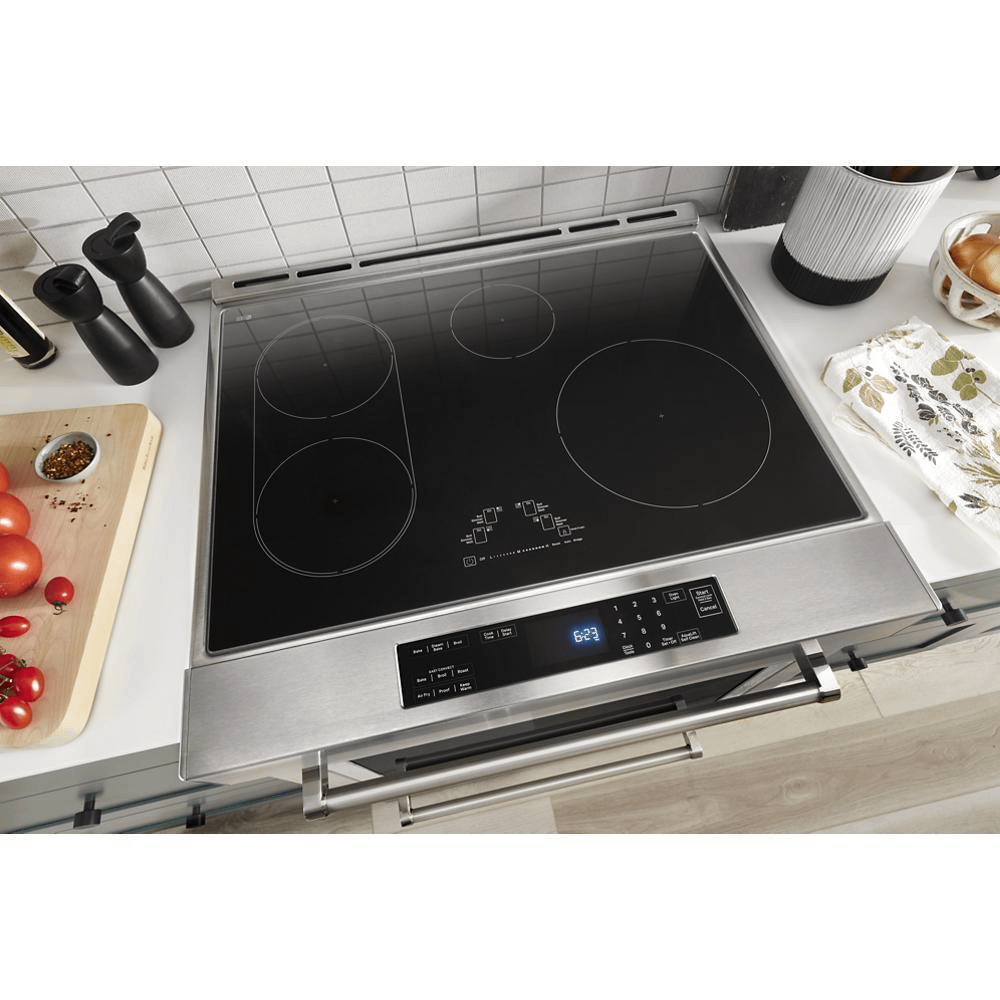

- 4 induction elements with a bridge zone
- provides four induction cooking surfaces that allows for flexibility on your range. It features two 7 inch cooking zones with a bridge element that combines them into one large surface. The range also has a 6 and 11 inch cooking zone.
- 6.4 Cu. Ft. Total Capacity
- A generous 6.4 cu. ft. total capacity of the oven cavity and baking drawer lets you cook multiple dishes on multiple racks at once.
- 6.4 cu. ft. total capacity
- provides a large cooking capacity that easily handles multiple dishes at once.
- ADA Compliant
- Models with this feature meet standards set by the Americans with Disabilities Act when installed in compliance with current ADA standards.
- This range meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.

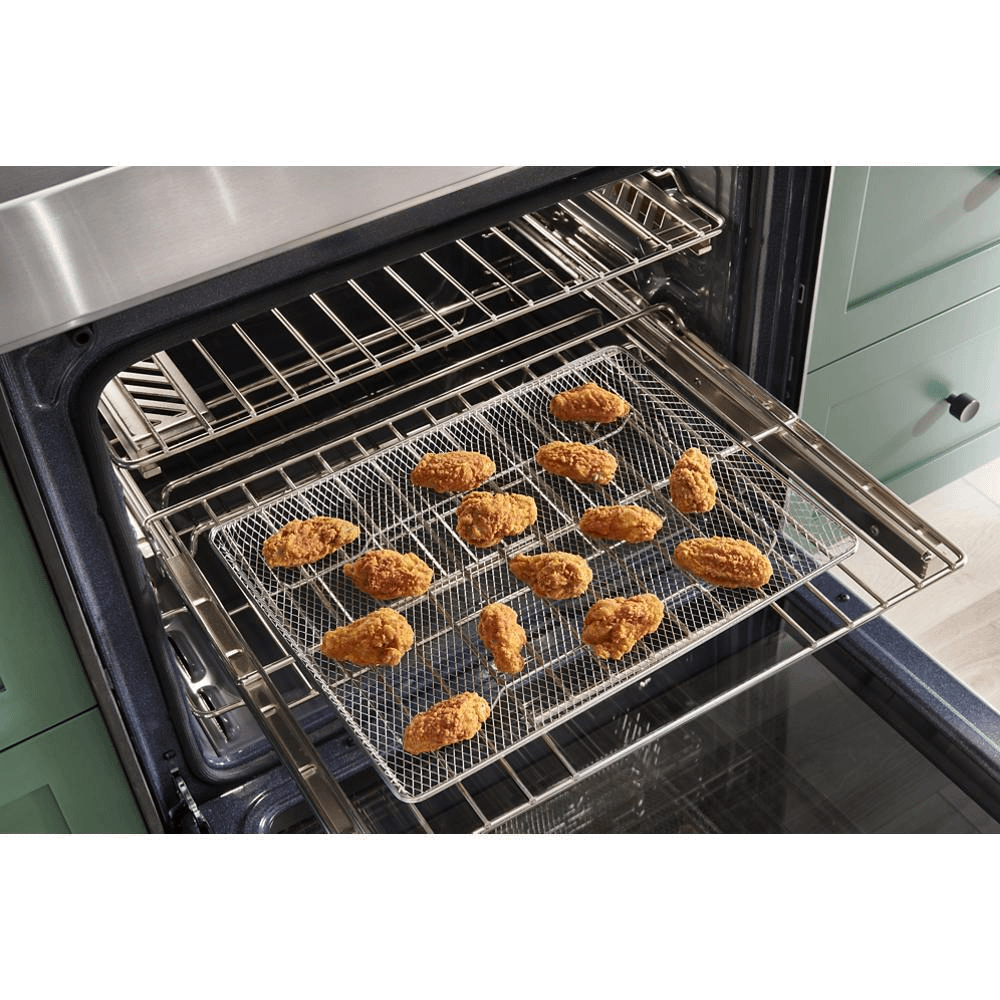

- Air Fry Mode
- Heating elements and a fan circulate hot air around the included air fry basket, crisping and browning food with less oil*
*When compared to deep frying - AquaLift(R) Self-Cleaning Technology
- Clean the oven with minimal odors at a temperature below 248(degree)F. This innovative 40-minute cycle combines low heat with water to release baked-on spills that can be wiped away once the cycle is complete.* *Unlike traditional Adjustable Self-Clean Cycle which burns off soils, when using Aqualift(R) self-clean technology, add water, run the cycle and then manually remove the water and soils with a wet sponge when the cycle is finished.
- Aqualift(R) Self-Cleaning Technology
- Clean your oven without harsh chemicals in a 40 minute* cycle with AquaLift(R) Self-Cleaning Technology. Add water, run the cycle and then wipe away any remaining soils once the cycle is done.**
- Dishwasher-Safe Air Fry basket
- allows air to circulate around food as it cooks for crisping and browning. Place in dishwasher for easy cleanup.
- EasyConvect(TM) Conversion System
- Takes the guesswork out of convection cooking by ensuring exceptional results when experimenting with new recipes or familiar favorites.

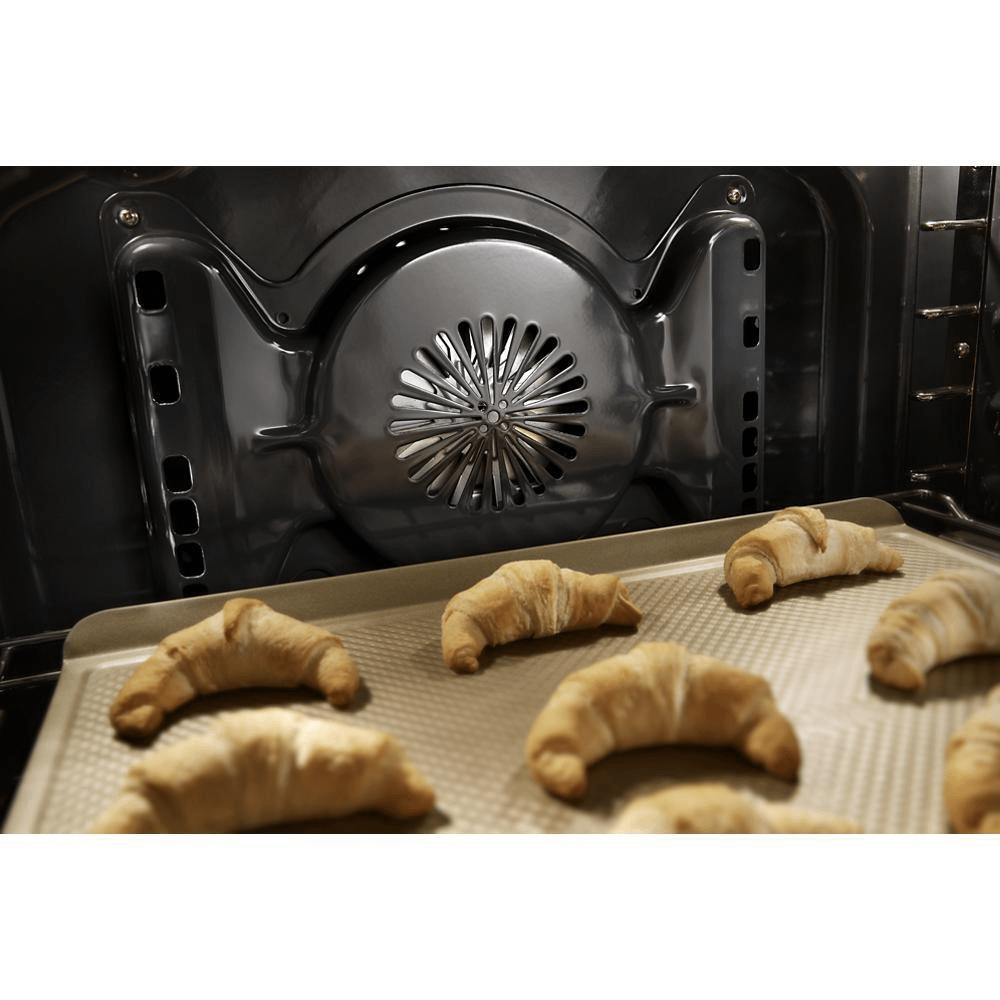

- Even-Heat(TM) True Convection
- features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
- FIT System Limited Guarantee*
*Based on existing cutout width of 30", cabinet depth of 23"-24" and countertop cutout depth of 24"-25". For complete details, visit www.kitchenaid.com/fitsystemlimitedguarantee - is our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
- Glass Touch Controls
- Offer an intuitive, easy-to-use touch screen experience.
- Glass-Touch Controls
- Intuitive controls are activated by a light touch, look elegant and allow for easy cleaning.

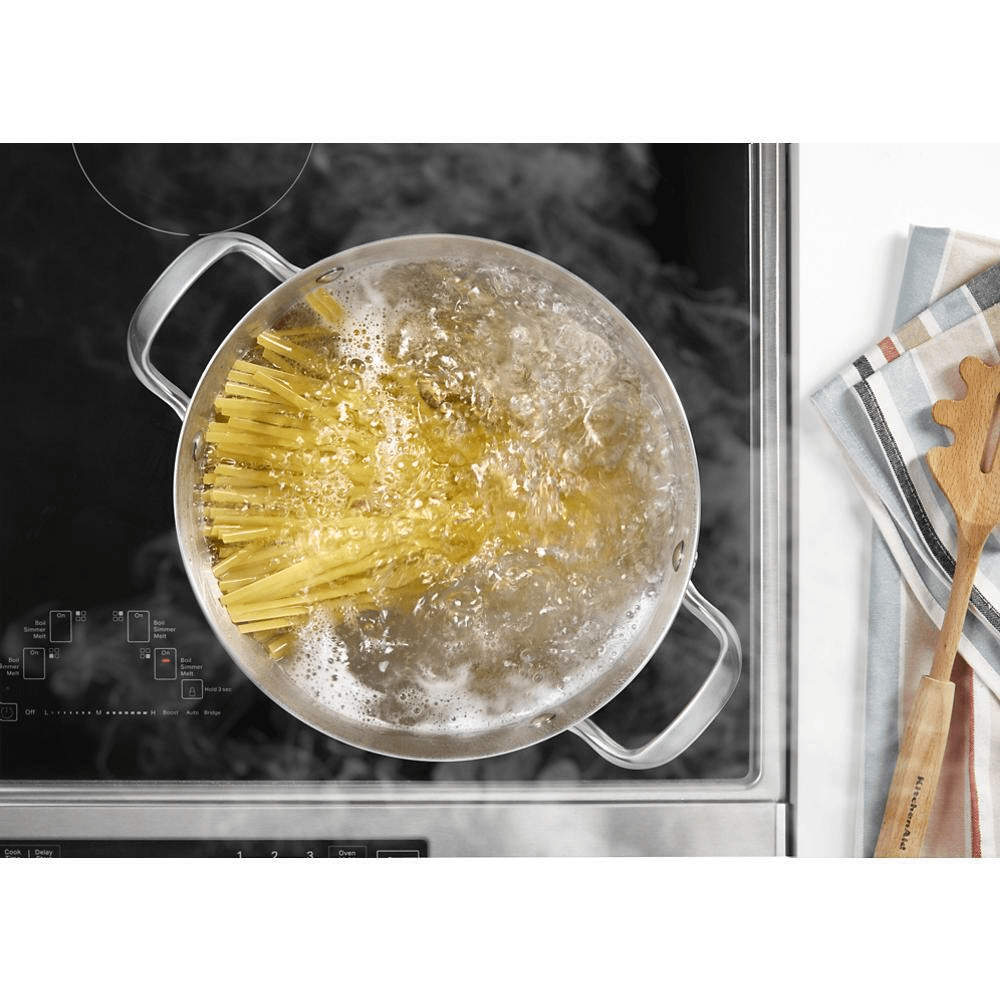

- Power Boost
- Helps to rapidly heat your cookware by boosting cooktop temperatures above the highest level for 10 minutes to help get to boiling water
- Requires Induction-Compatible Cookware
- such as multi-ply stainless steel, enameled steel or cast iron. Aluminum and copper cookware will not work unless it has a base made of iron or steel. Look for pans marked "Works with Induction" or test to see if a magnet will stick to the bottom.

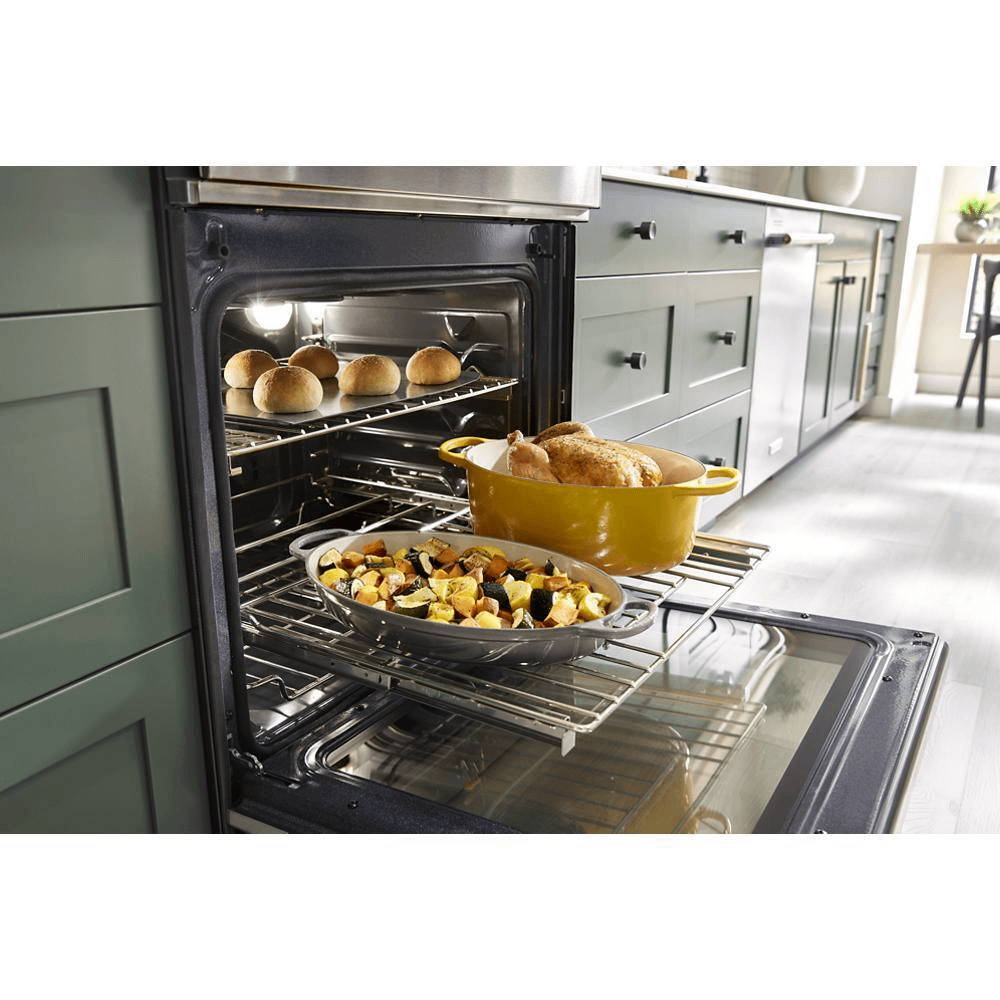

- SatinGlide(TM) Roll-Out Extension Rack
- makes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.

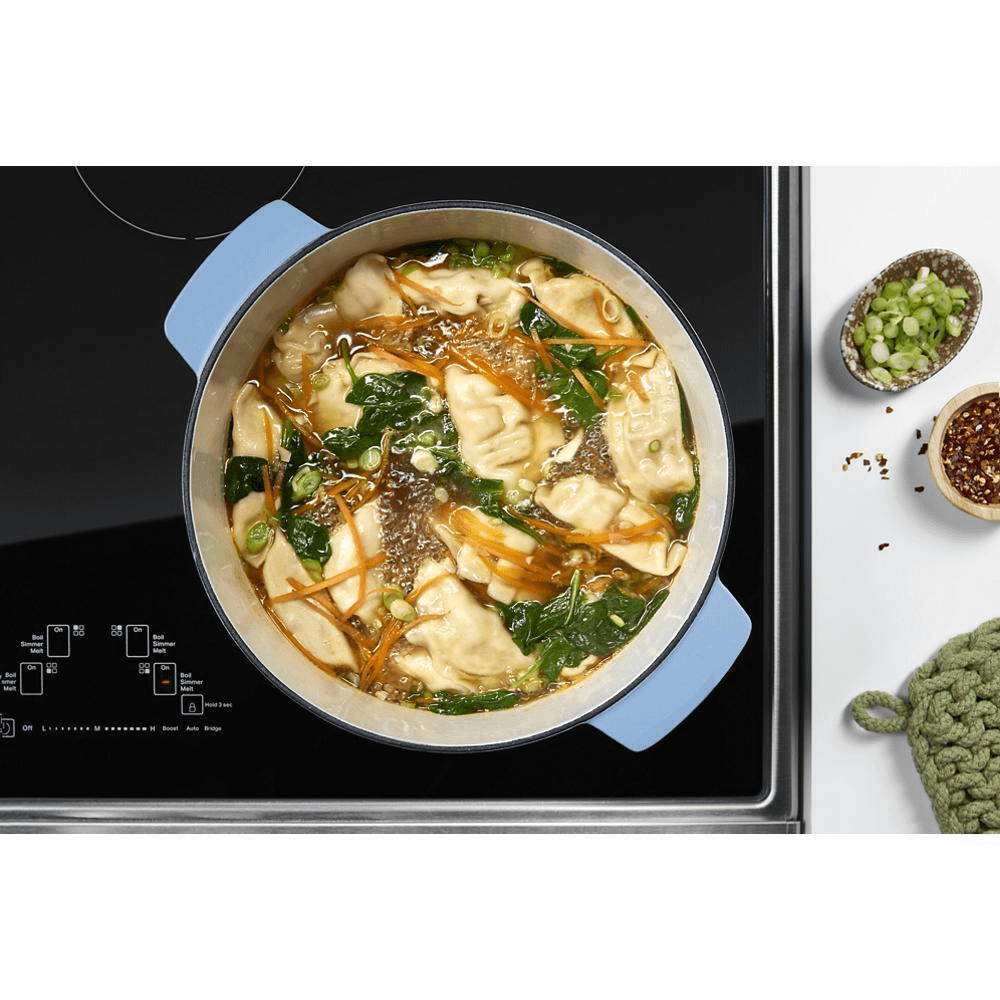

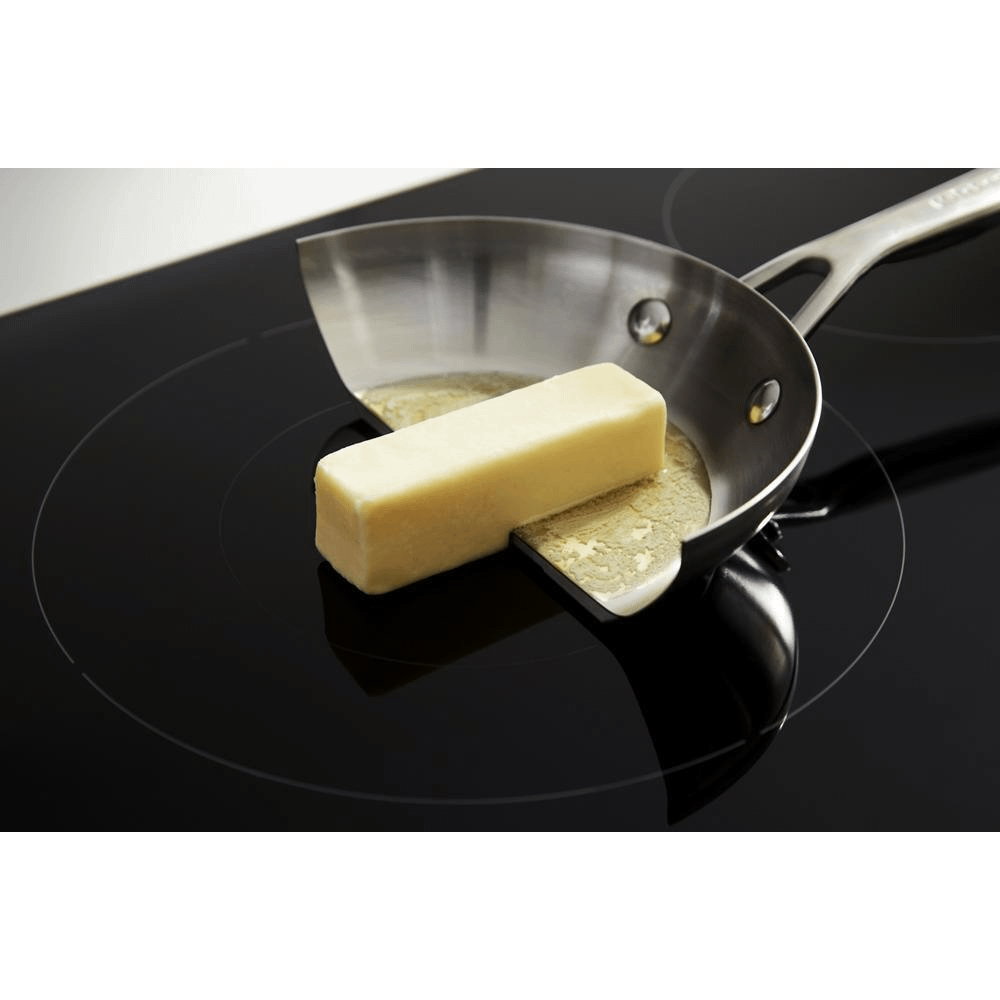

- Sensor Induction Technology
- generates heat directly within cookware, reaching high temperatures quickly and cooling down rapidly for precise control that enables a full range of cooking techniques.
- Side Trim Accessory Kit (Sold separately)
- (sold separately) available in Black, White and Stainless fills gaps between countertop and range for a built-in look. Can also be used to cover unfinished edges on older range models to refresh their look.

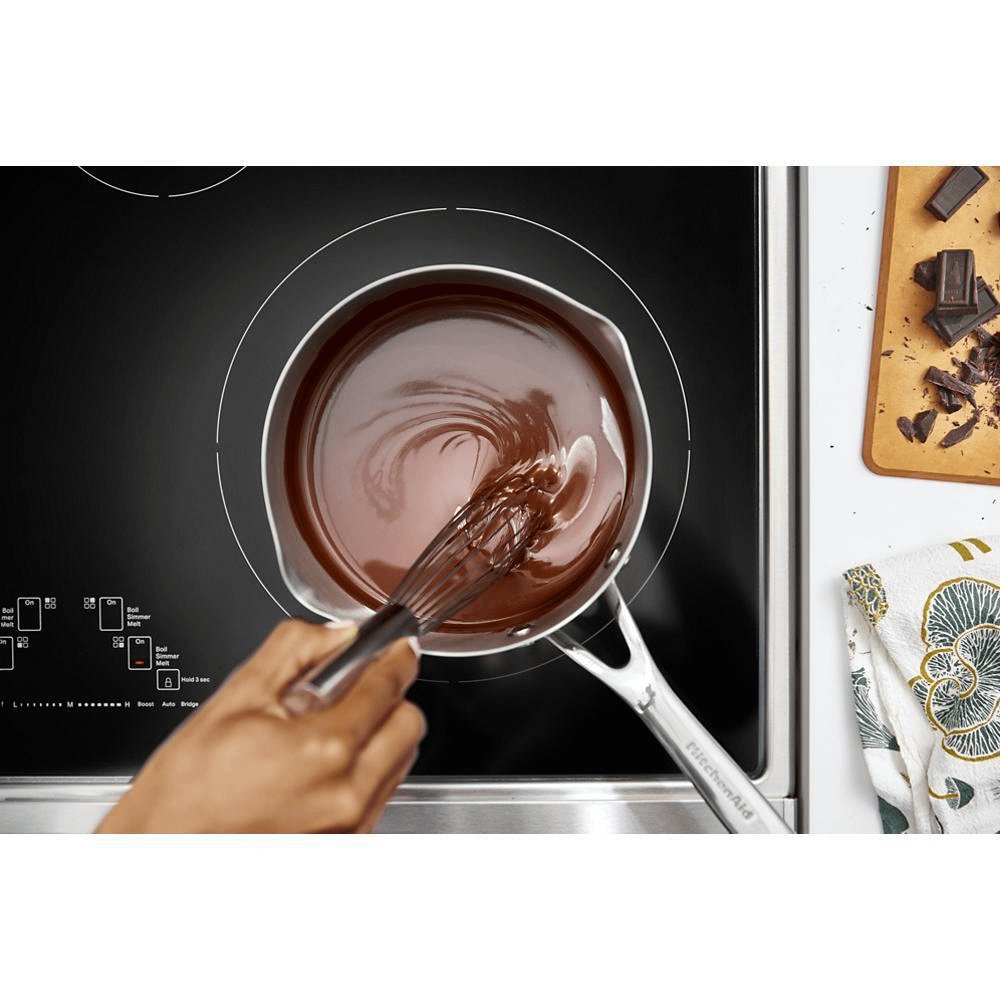

- Simmer, Melt, Boil
- automatically set the right heat for different techniques and stages of cooking, taking the guesswork out of choosing settings.

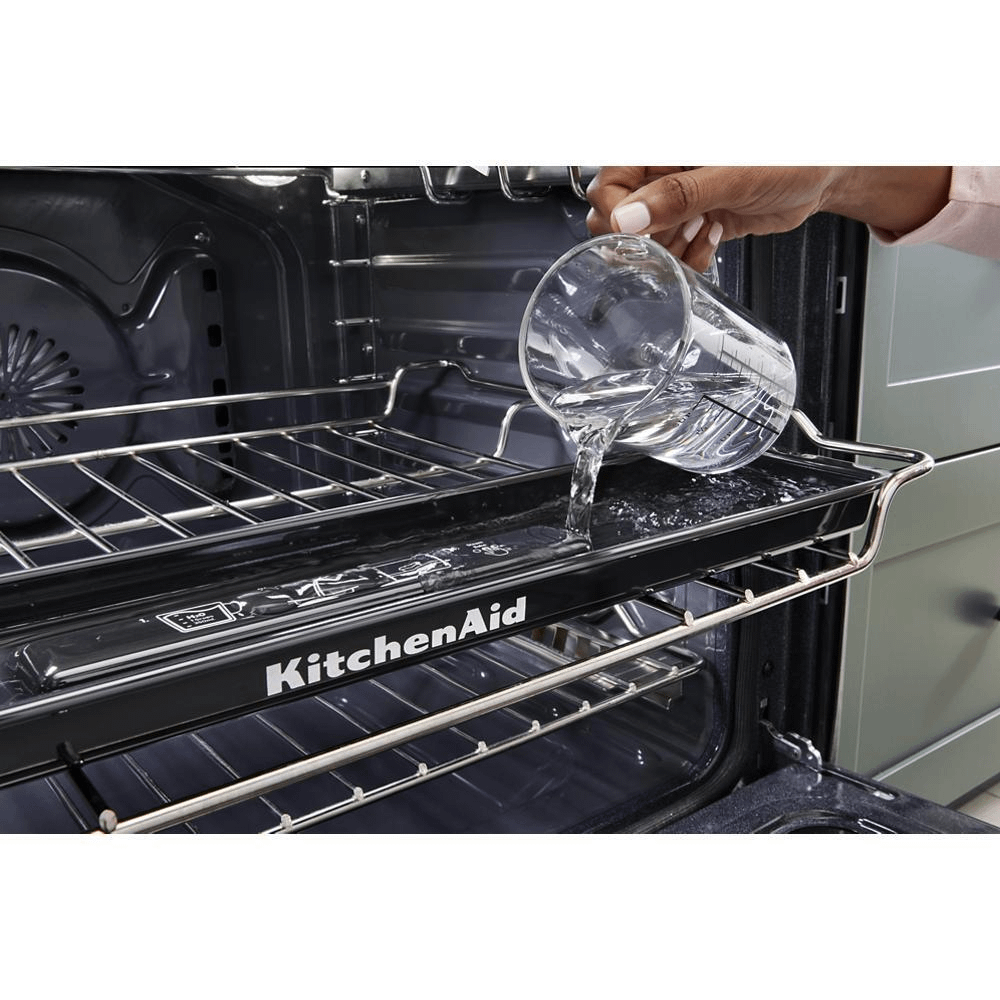

- Steam Bake
- The Steam Bake function works in conjunction with the included steam rack to provide additional moisture during baking. Add 1 1/2 cups (350mL) of water in the reservoir located on the steam rack which heats up and releases steam.
- Steam Rack
- Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.

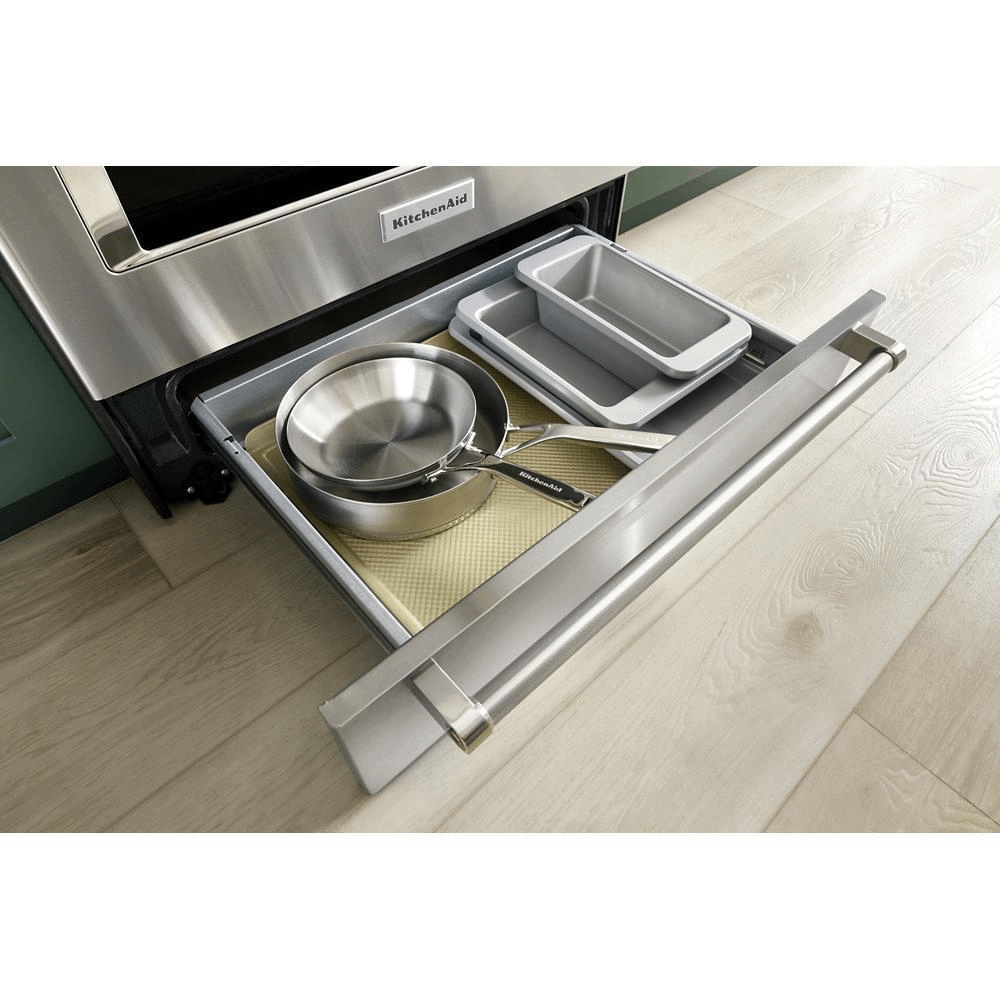

- Storage Drawer
- Adds additional storage space that s perfect for pots, pans and baking sheets.
Certifications | |
Ada Compliant | Yes |
Cul | Yes |
Energy Rating | 395 |
Energy Rating (kwh/year) | 395 |
Prop65 | Standard |
Ul | Yes |
Controls | |
Display Color | Red |
Electronic Display Type | LED |
Cooktop Details | |
Cooktop Control Location | Front |
Cooktop Control Type | Electronic Touch |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Griddle Included | No |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Details | |
Automatic Convection Conversion Temperature Adjust | Yes |
Cooktop Configuration | All Burners |
Oven Automatic Shut-off | No |
Oven Light Switch Location | Top of Console |
Power On Indicator Light | Yes |
Range Drawer Type | Storage Drawer |
Range Type | Slide-in |

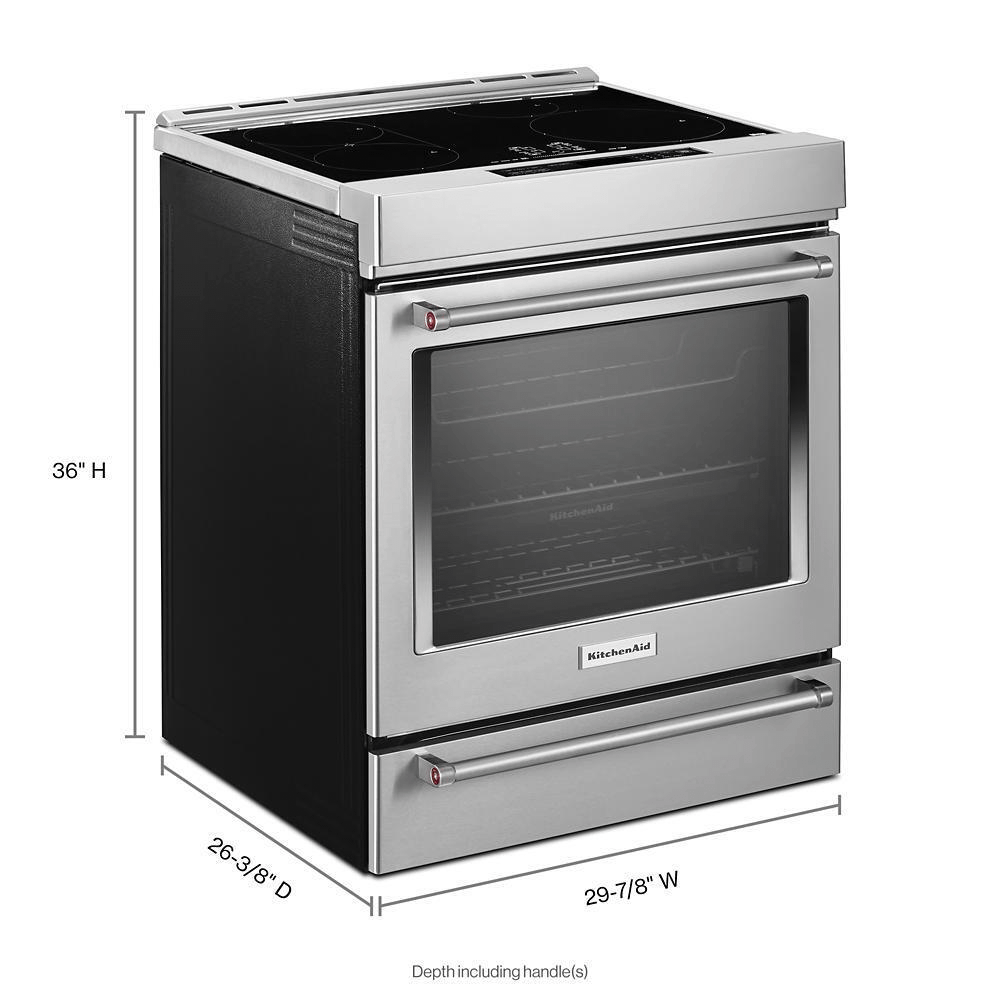

Dimensions | |
Carton Depth | 31 |
Carton Height | 43 |
Carton Width | 32 |
Depth Closed Excluding Handles | 26.313 |
Depth Closed Including Handles | 28.75 |
Depth With Door Open 90 Degree | 48.75 |
Gross Weight | 229 |
Net Weight | 211 |
Oven Interior Depth | 20.625 |
Oven Interior Height | 22.125 |
Oven Interior Width | 24.125 |
Electrical | |
Power Cord Included | Yes |
Element/burner Details | |
Cooktop Element Style | Induction |
Left Front Element-burner Size | 7in. |
Left Front Element-burner Type | Bridge |
Left Rear Element-burner Size | 7in. |
Left Rear Element-burner Type | Bridge |
Number of Cooking Element-burners | 4 |
Right Front Element-burner Size | 10in. |
Right Front Element-burner Type | Power |
Right Rear Element-burner Size | 5 1/2 in. |
Right Rear Element-burner Type | Standard |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Handle Type | Reach Through Handle |
Oven Control Location | Front |
Oven Control Type | Electronic Touch |
Oven Window Size | Large |
Oven Details | |
Bake Element Power | 3,600 W |
Broiler Element Power | 4,000 W |
Broiler Location | Top of Oven |
Convection Element Power | 3,200 W |
Convection Element Type | True Bow Tie |
Door Removable | Yes |
Hidden Bake Element | Yes |
Interior Color | Grey |
Number of Oven Lights | 2 |

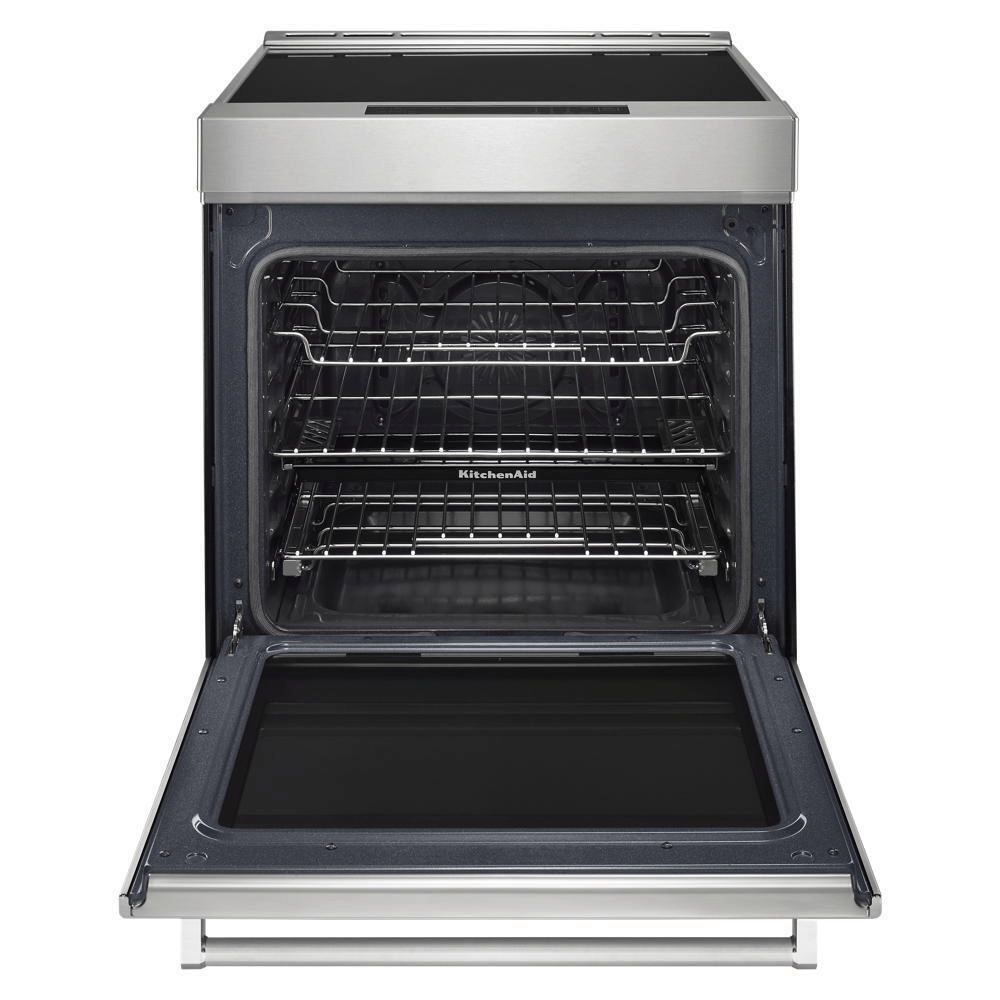

Number of Oven Racks | 3 |
Number of Rack Guides | 7 |
Oven Cleaning Type | Self-Cleaning |
Oven Cooking System | True Convection |
Oven Light Type | Halogen |
Oven Rack Type | Gliding Roll-Out; Max Capacity; Steam Rack |
Smart Compatibility | |
Connectivity | No |
