Overview & Specifications
Overview & Specifications

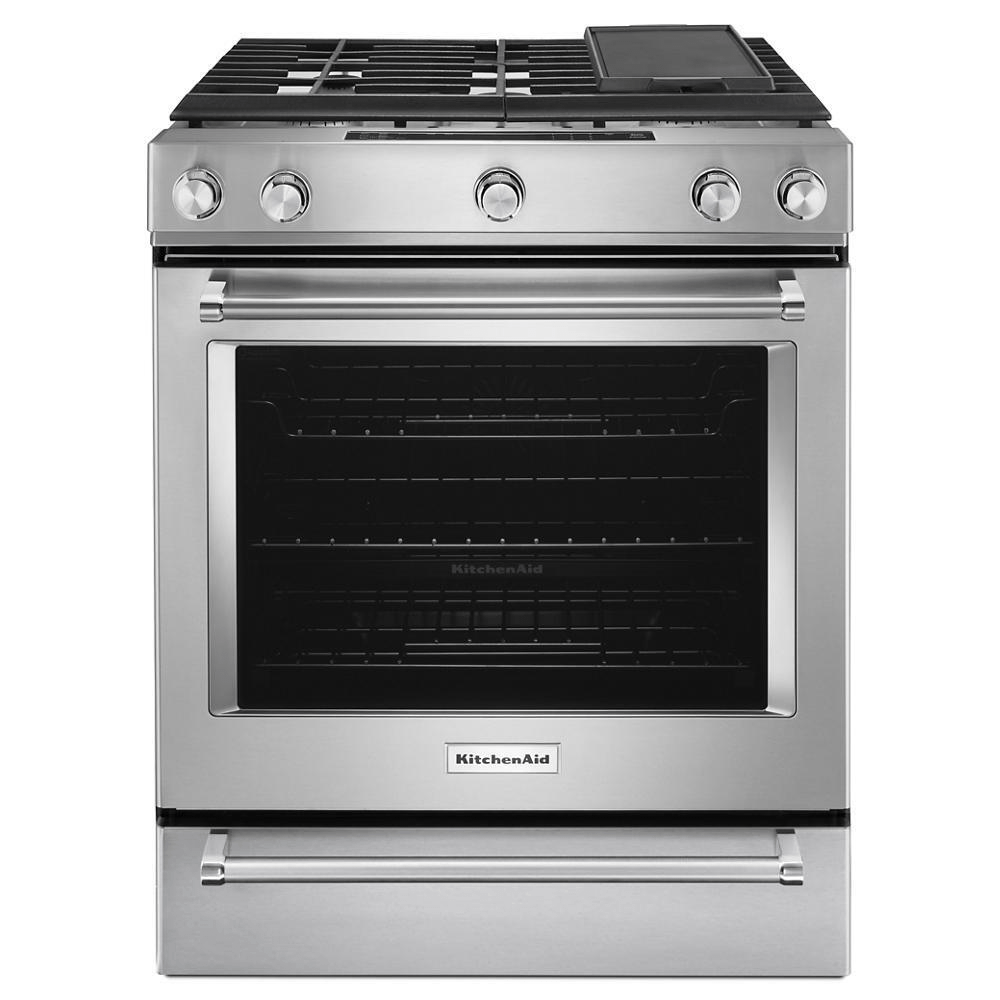

This versatile gas range provides a Baking Drawer that adds more options to the oven. The separate compartment allows you to bake at a different temperature. This range also features flawless cooking results from Even-Heat™ True Convection, with the unique bow-tie design and convection fan that ensures the entire oven is heated to, and stays at, the perfect temperature.

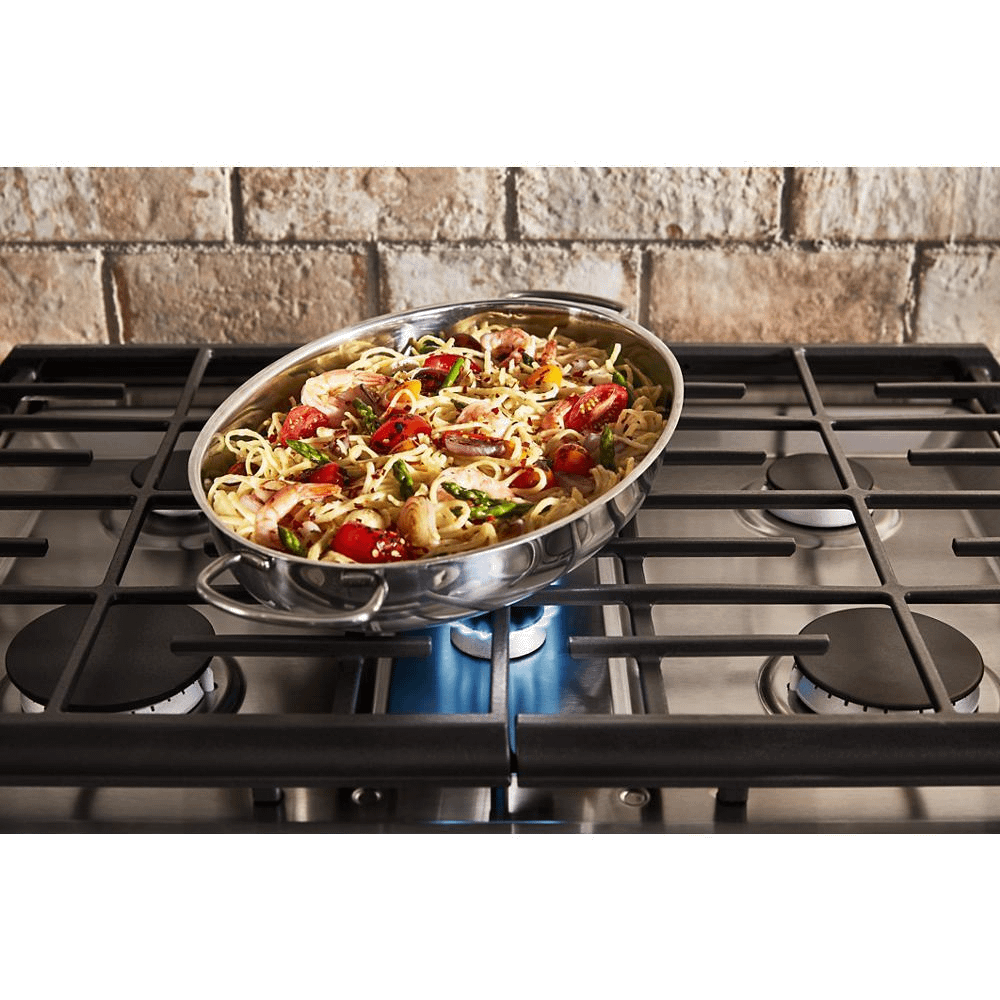

- 5 burners (5k, 8k, 9.2k, 15k and 19k)
- Provides the perfect range of cooking power from 5,000 to19,000 BTU, so you can go from a rolling boil to a delicate simmer.
- 6.5 cu ft Total Capacity
- This gas slide-in range provides an extra-large cooking Capacity in the oven for multiple dishes at once and gives you the flexibility of a separate temperature zone in the baking drawer.
- Aqualift(R)
- Cleans your oven in less than an hour without odors and at a temperature below 200(degree)F. This innovative system combines low heat with water to release baked-on spills.
- Baking Drawer
- Adds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm.

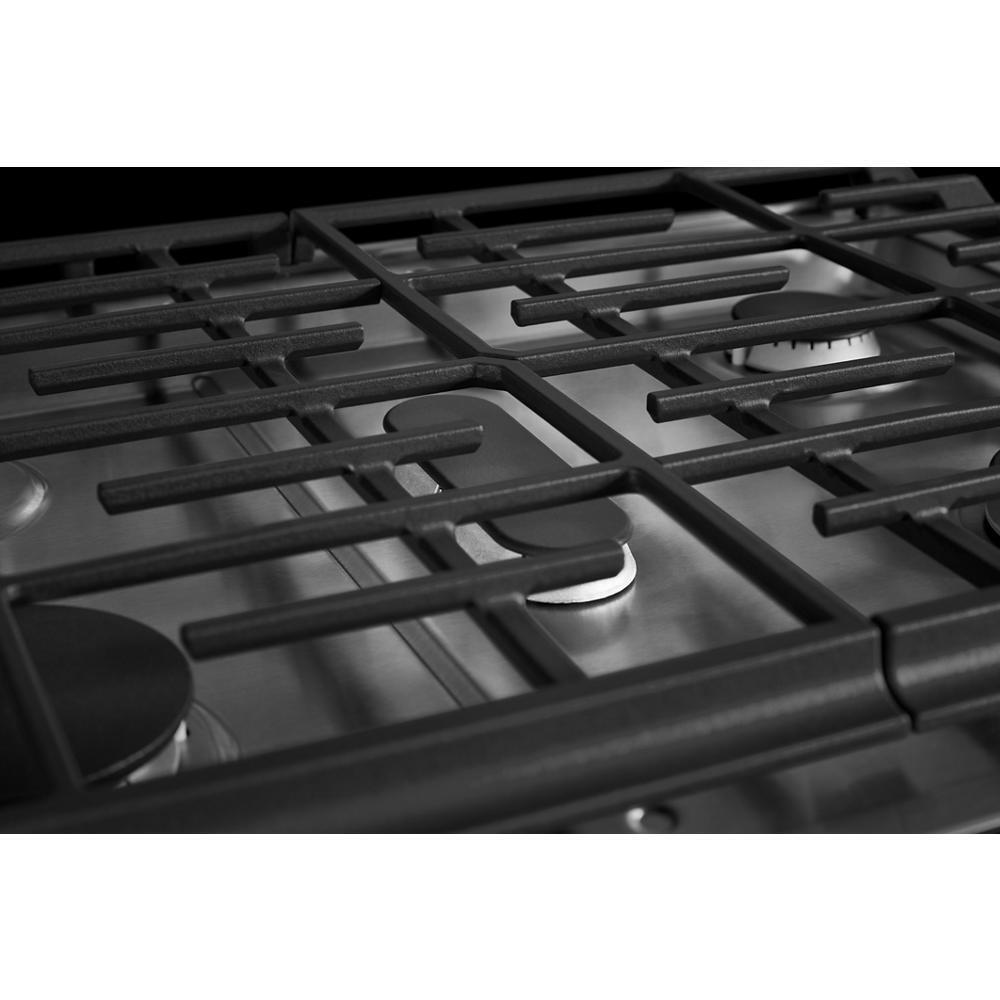

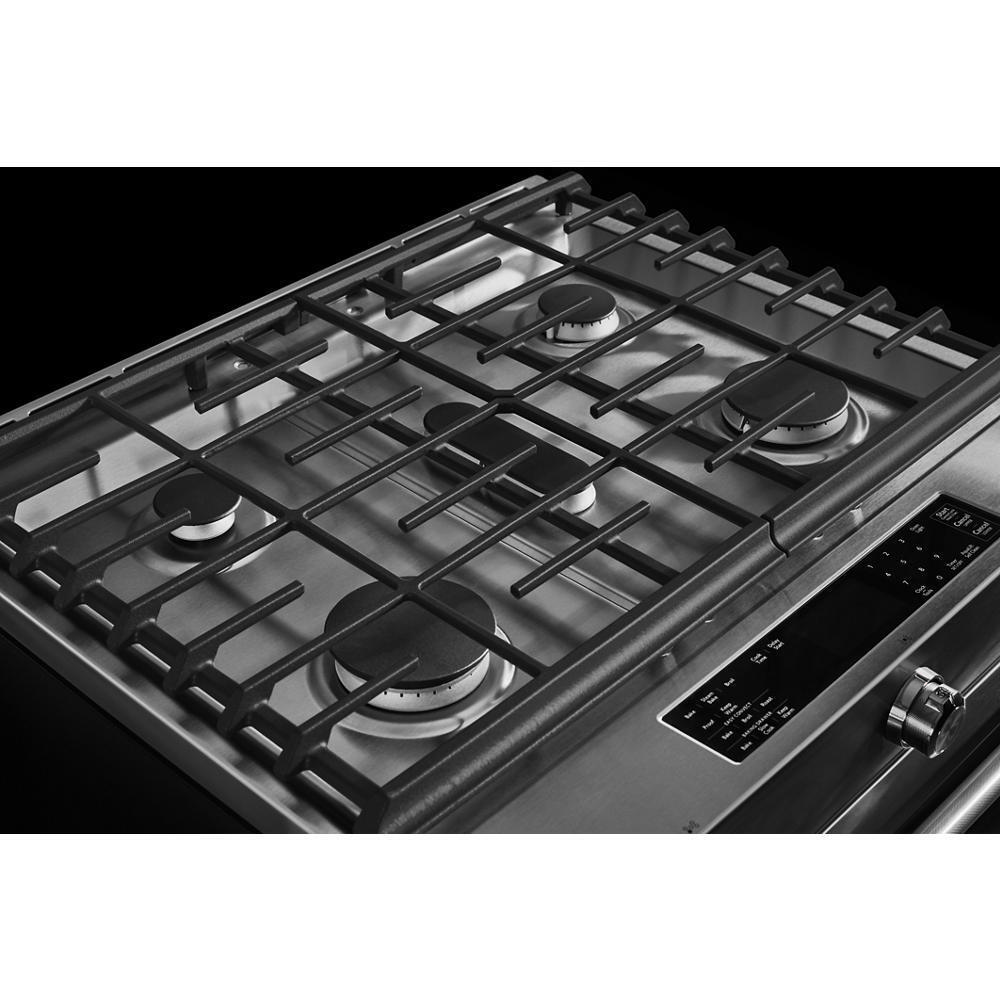

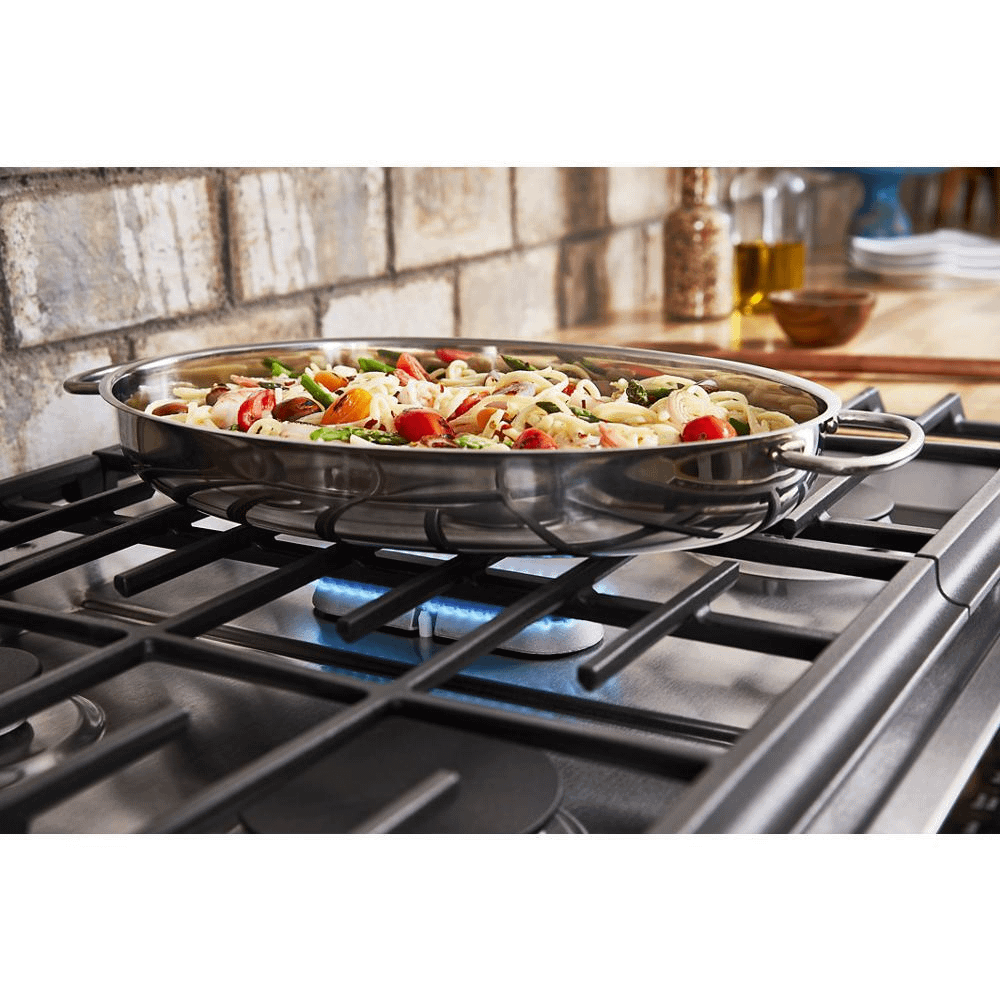

- Continuous Interlocking Grates
- Provide a level cooking surface that lets you easily change burners and move pots and pans across the entire range.
- EasyConvect(TM) Conversion
- Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
- Even-Heat(TM) True Convection
- Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures combined with airflow for crisp, flaky baked goods, juicy, well-browned roasts and caramelized vegetables.

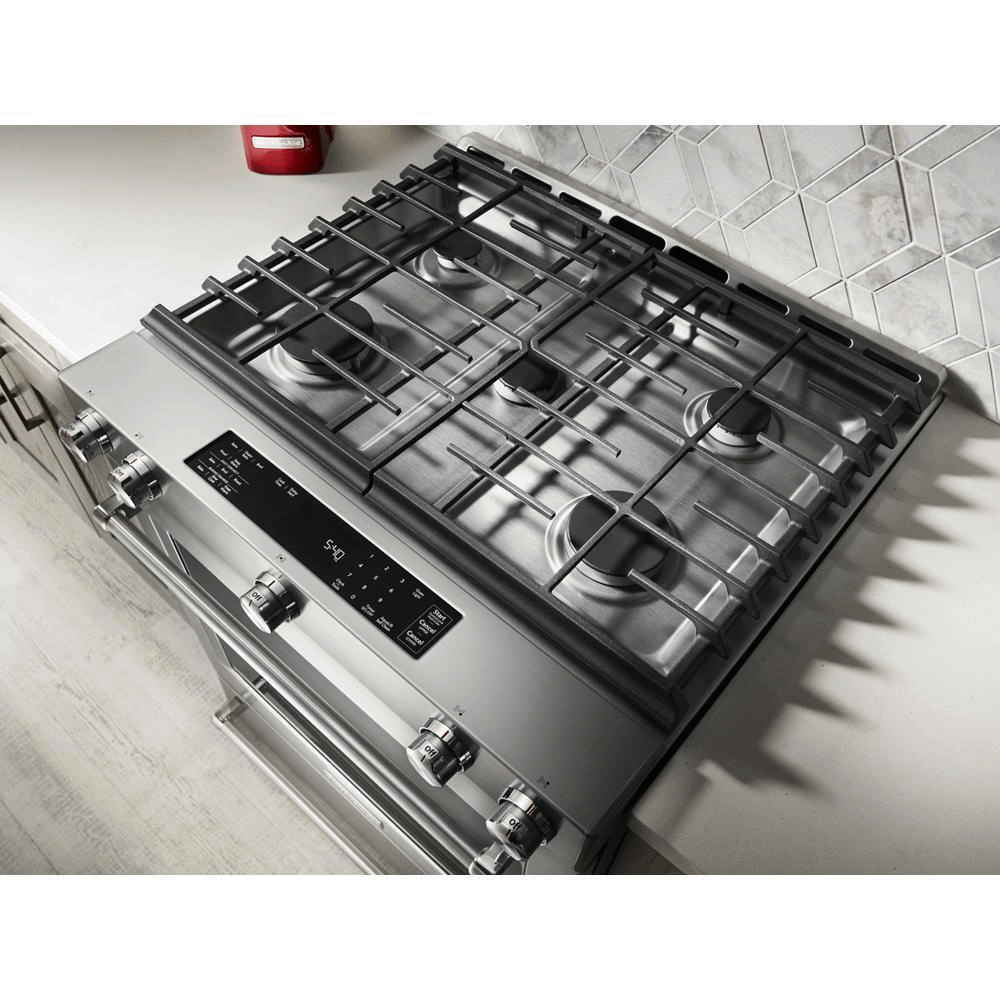

- FIT Guarantee
- Is our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
- Glass Touch Controls
- Offer an intuitive, easy-to-use touch screen experience.

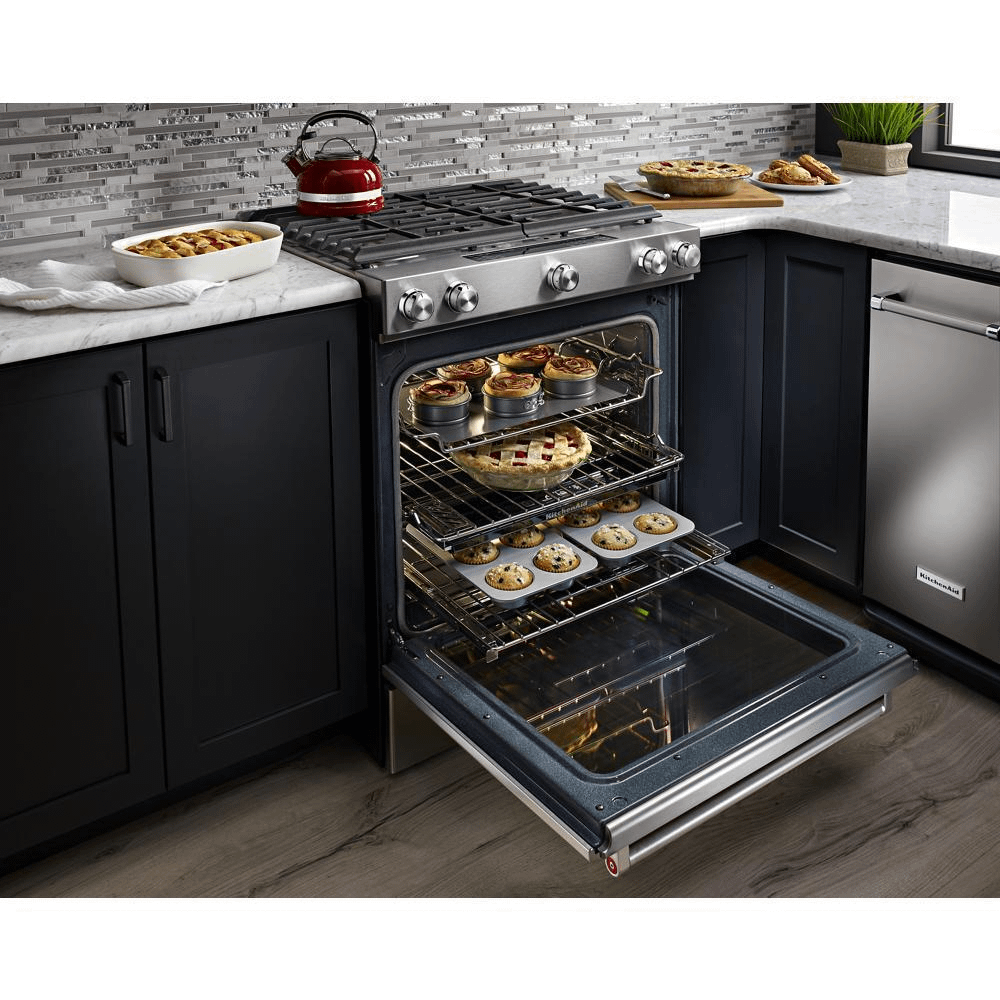

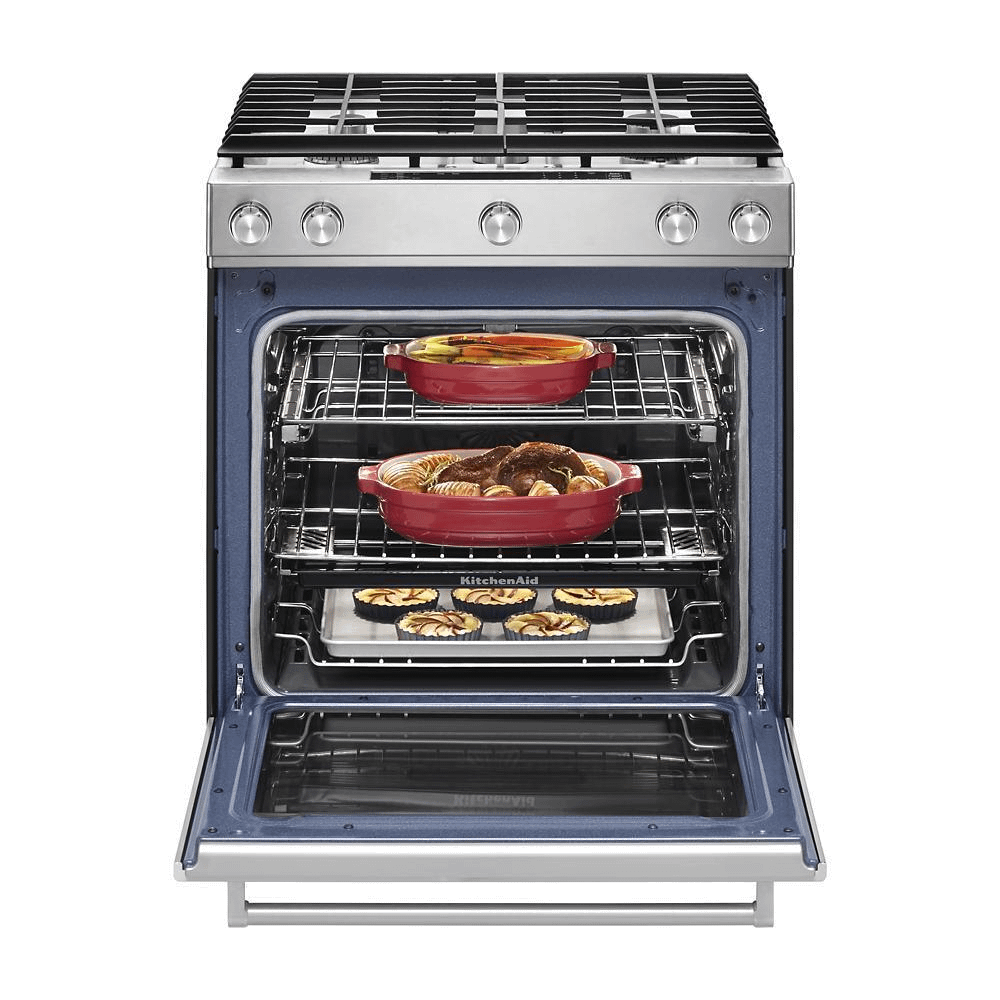

- SatinGlide(R) Max Racks
- Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.

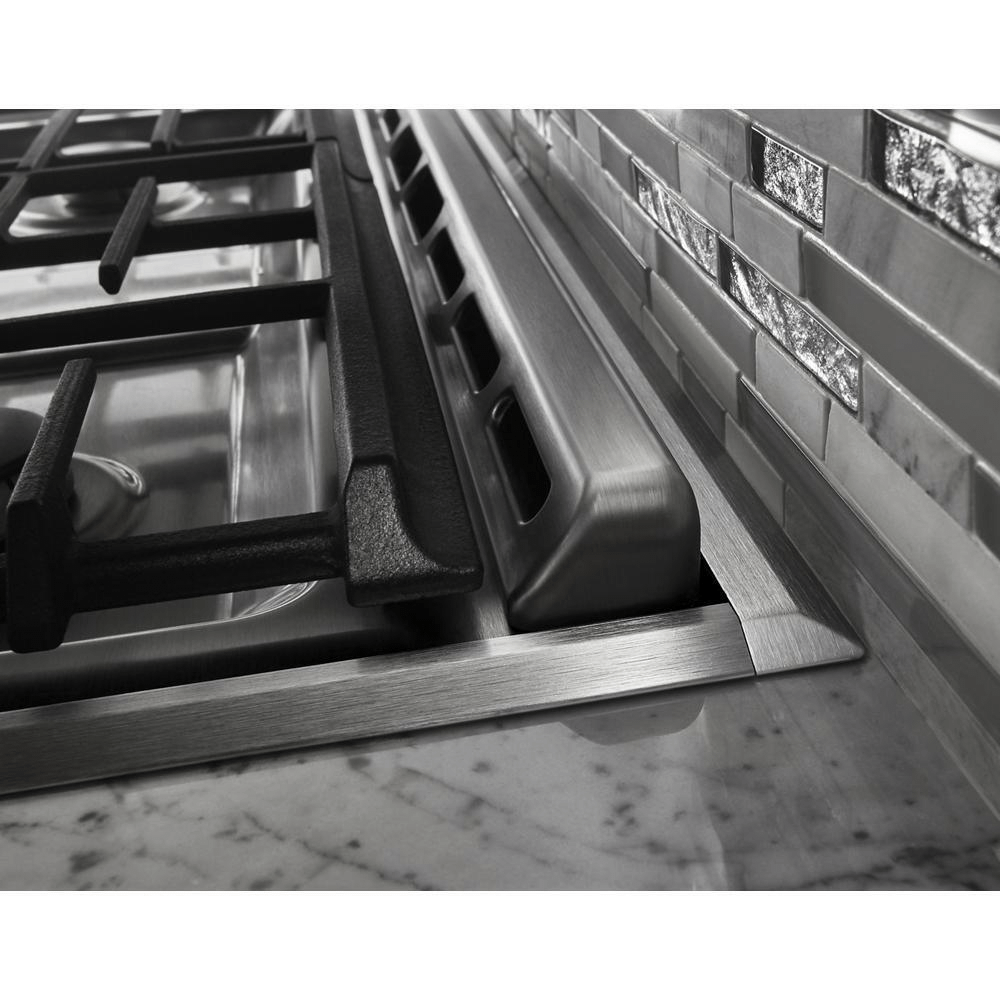

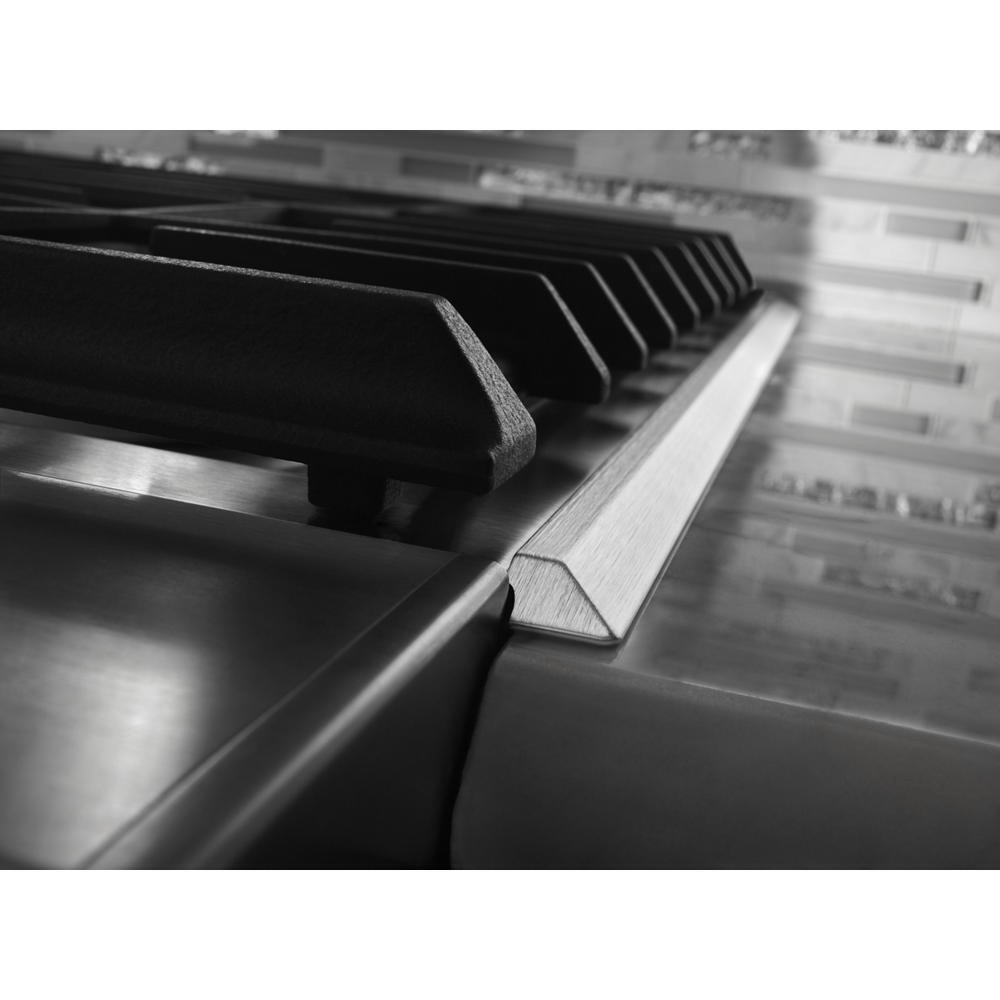

- Side Trim Accessory Kit
- This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
- Steam Rack
- Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Prop65 | Standard |
Ul | Yes |
Controls | |
Display Color | Red; White |
Electronic Display Type | Digital |
Cooktop Details | |
Auto Re-ignition | No |
Cooktop Control Location | Front |
Cooktop Control Type | Knobs |
Cooktop Surface Color | Color Coordinated |
Griddle Included | Included |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Ignition Type | Electronic |
Details | |
Automatic Convection Conversion Temperature Adjust | Yes |
Fuel Type | Gas |
Lp Convertible | Yes |
Oven Configuration | Single Oven |
Power On Indicator Light | Yes |
Power Outage Compatible | No |
Range Configuration | Slide-In |
Range Drawer Type | Baking Drawer |
Range Type | Slide-in |

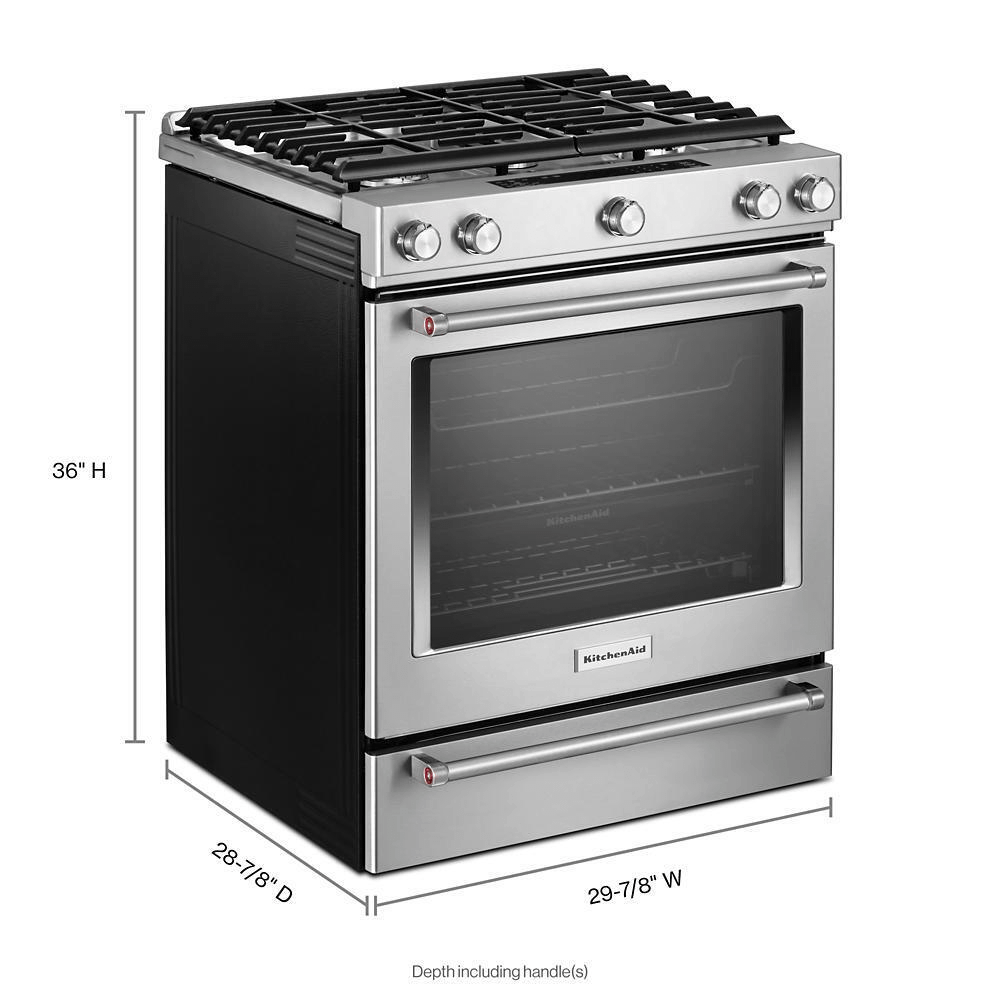

Dimensions | |
Carton Depth | 30.5 |
Carton Height | 43.5 |
Carton Width | 31.5 |
Depth Closed Excluding Handles | 26.375 |
Depth Closed Including Handles | 28.875 |
Depth With Door Open 90 Degree | 48.75 |
Gross Weight | 262 |
Net Weight | 215 |
Oven Interior Depth | 20.625 |
Oven Interior Height | 22.125 |
Oven Interior Width | 24.125 |
Electrical | |
Power Cord Included | Yes |
Element/burner Details | |
Center Rear Element-burner Power | 8,000 BTU |
Center Rear Element-burner Type | Sealed Burner |
Cooktop Element Style | Gas Burner |
Left Front Element-burner Power | 19,000 BTU |
Left Front Element-burner Type | Sealed Burner |
Left Rear Element-burner Power | 5,000 BTU |
Left Rear Element-burner Type | Sealed Burner |
Number of Cooking Element-burners | 5 |
Right Front Element-burner Power | 15,000 BTU |
Right Front Element-burner Type | Sealed Burner |
Right Rear Element-burner Power | 9,200 BTU |
Right Rear Element-burner Type | Sealed Burner |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Handle Type | Towel Bar |
Knob Color | Stainless Steel |
Knob Type | Metal |
Oven Control Type | Electronic Touch |
Oven Window Size | Large |
Grate Details | |
Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
Number of Grates | 2 |
Oven Details | |
Bake Element Power | 18,000 BTU |
Broiler Element Power | 13,000 BTU |
Broiler Location | Top of Oven |
Convection Element Power | 900 |
Convection Element Type | Fan |
Convection Functions | Bake; Broil; Roast |
Hidden Bake Element | Yes |
Interior Color | Grey |
Number of Oven Lights | 2 |
Number of Oven Racks | 3 |
Number of Rack Guides | 7 |
Oven Cleaning Type | AquaLift® Self Clean |
Oven Cooking System | Convection |
Oven Light Type | Incandescent |
Oven Rack Type | 1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack |
