This all-in-one eclectic range includes Downdraft, which integrates the ventilation system so a separate hood is not needed. Smoke and odors can be removed outside or filtered air can be recirculated inside. This range helps you achieve flawless cooking results thanks to Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the entire oven is heated perfectly. It also has a Steam Rack that offers the ability to add moisture to the oven and enhances cooking results.

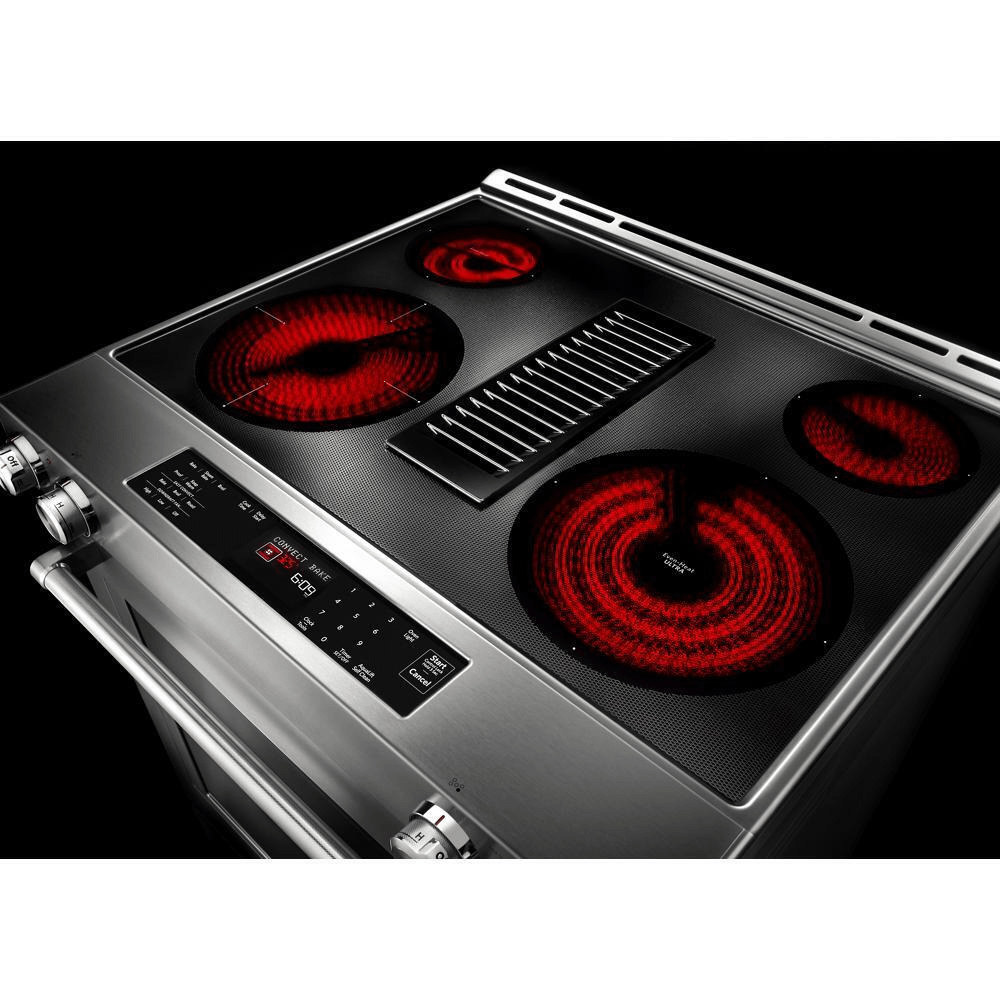

- 4 Cooking Elements
- Provides four independent cooking surfaces that allow you to do more on your range. It features a double cooking zone of 6 and 10 inches, one 10 inch zone, plus two 6 inch cooking zones.
- 6.4 cu ft Capacity
- This electric slide-in range provides a large cooking capacity that easily handles multiple dishes at once.
- Aqualift(R)
- Cleans your oven in less than an hour without odors and at a temperature below 200(degree)F. This innovative system combines low heat with water to release baked-on spills.

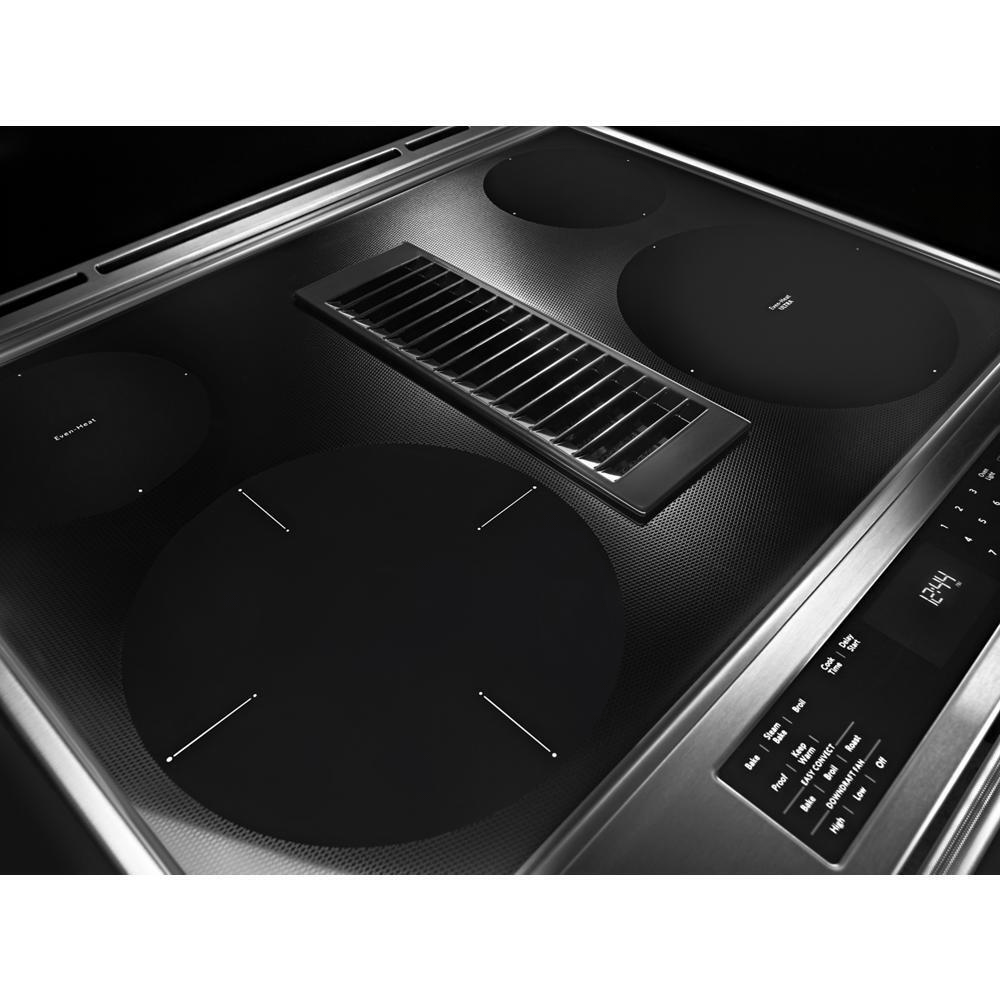

- Downdraft
- Integrates the ventilation system right into the range so that a separate hood is not needed. Smoke and odors can be removed and taken outside or air can be filtered and recirculated inside. A duct free kit can be purchased separately.
- EasyConvect(TM) Conversion
- Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
- Even-Heat(TM) True Convection
- Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures combined with airflow for crisp, flaky baked goods, juicy, well-browned roasts and caramelized vegetables.
- Glass Touch Controls
- Offer an intuitive, easy-to-use touch screen experience.
- SatinGlide(R) Max Racks
- Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
- Side Trim Accessory Kit
- This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
- Steam Rack
- Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Energy Rating | 639 |
Energy Rating (kwh/year) | 639 |
Prop65 | Standard |
Ul | Yes |
Controls | |
Display Color | Red; White |
Electronic Display Type | Digital |
Cooktop Details | |
Auto Re-ignition | No |
Cooktop Surface Color | Black |
Cooktop Surface Material | Ceramic Glass |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Details | |
Automatic Convection Conversion Temperature Adjust | Yes |
Fuel Type | Electric |
Lp Convertible | No |
Oven Automatic Shut-off | Yes |
Oven Configuration | Single Oven |
Oven Light Switch Location | Oven Control |
Oven Selections | Cancel/Off; Clock; Cook Time Indicator; Delay Start; Keep Warm Setting; Proofing; Sabbath Mode; Steam Bake; Timer |
Power On Indicator Light | Yes |
Power Outage Compatible | No |
Range Configuration | Slide-In |
Range Drawer Type | Access Panel |
Range Type | Slide-in |

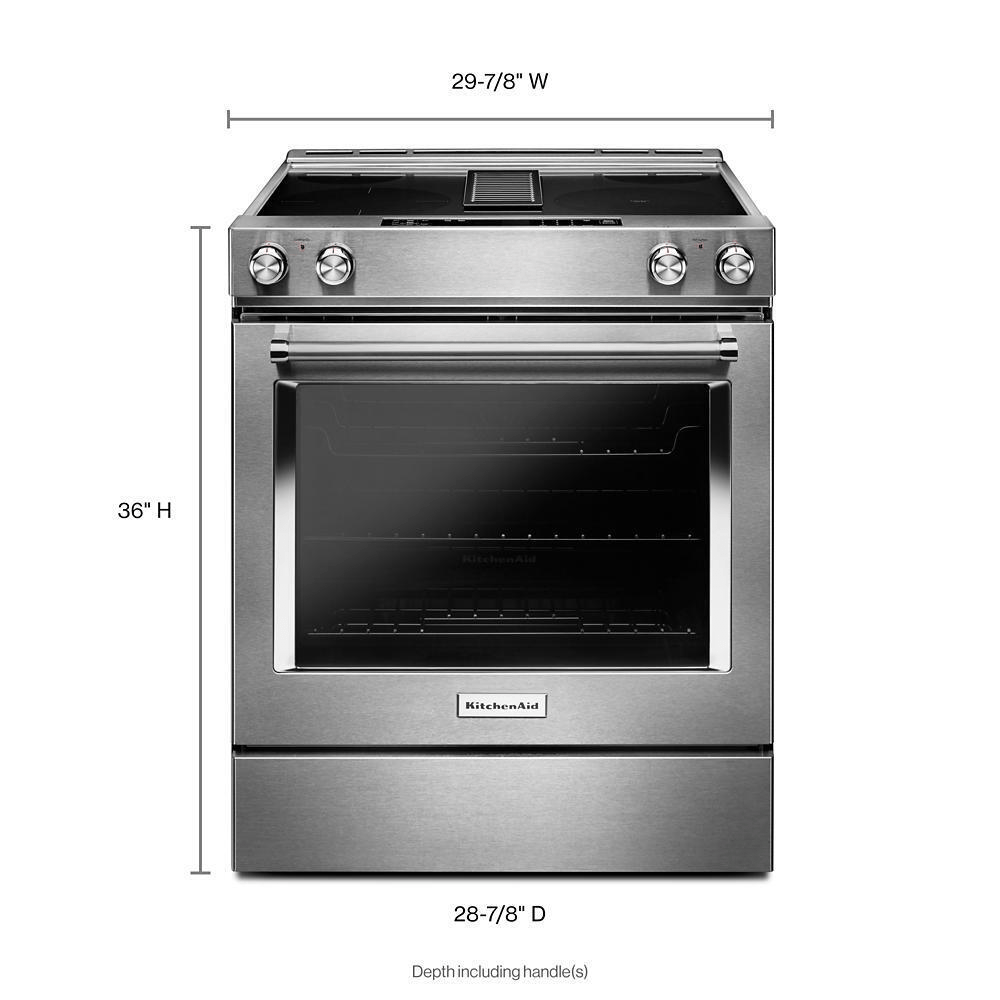

Dimensions | |
Carton Depth | 30.51 |
Carton Height | 43.5 |
Carton Width | 31.5 |
Depth Closed Including Handles | 28.875 |
Depth With Door Open 90 Degree | 48.75 |
Gross Weight | 180 |
Net Weight | 162 |
Oven Interior Depth | 20.625 |
Oven Interior Height | 22.125 |
Oven Interior Width | 24.125 |
Electrical | |
Power Cord Included | No |
Element/burner Details | |
Cooktop Element Style | Radiant |
Left Front Element-burner Power | 3,000W |
Left Front Element-burner Size | 12in./6in. |
Left Front Element-burner Type | Dual |
Left Rear Element-burner Power | 1,300W |
Left Rear Element-burner Size | 6in. |
Left Rear Element-burner Type | Radiant Hyper |
Number of Cooking Element-burners | 4 |
Right Front Element-burner Power | 3,200W |
Right Front Element-burner Size | 10in. |
Right Front Element-burner Type | Radiant Hyper |
Right Rear Element-burner Power | 1,200W |
Right Rear Element-burner Size | 6in. |
Right Rear Element-burner Type | Radiant |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Handle Type | Towel Bar |
Knob Color | Stainless Steel |
Knob Type | Metal |
Oven Control Type | Electronic Touch |
Oven Window Size | Large |
Oven Details | |
Bake Element Power | 3,600 W |
Broiler Element Power | 4,000 W |
Broiler Location | Top of Oven |
Convection Element Power | 3,200 |
Convection Element Type | Fan |
Convection Functions | Bake; Broil; Roast |
Door Removable | Yes |
Hidden Bake Element | Yes |
Interior Color | Grey |
Number of Oven Lights | 2 |
Number of Oven Racks | 3 |
Number of Rack Guides | 7 |
Oven Cleaning Type | AquaLift® Self Clean |
Oven Cooking System | Convection |
Oven Light Type | Incandescent |
Oven Rack Type | 1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack |
