Overview & Specifications
Overview & Specifications
This versatile electric range provides a Baking Drawer that adds more options to the oven. The separate compartment allows you to bake at a different temperature. This range also features Even-Heat™ True Convection, helping you achieve flawless cooking results. The unique bow-tie design and convection fan ensure the entire oven is heated to, and stays at, the perfect temperature.
- 5 Cooking Elements Including a Warm Zone
- Provides five independent cooking surfaces that allow you to do more on your range. It features a Triple cooking zone of 6, 9 and 12 inches, one 10 inch zone and two 6 inch cooking zones, plus a dedicated warming zone.
- 7.1 Cu Ft. Total Capacity
- This slide-in range provide an extra-large cooking capacity in the oven for multiple dishes at once and gives you the flexibility of a separate temperature zone in the baking drawer.
- Aqualift(R)
- Cleans your oven in less than an hour without odors and at a temperature below 200(degree)F. This innovative system combines low heat with water to release baked-on spills.

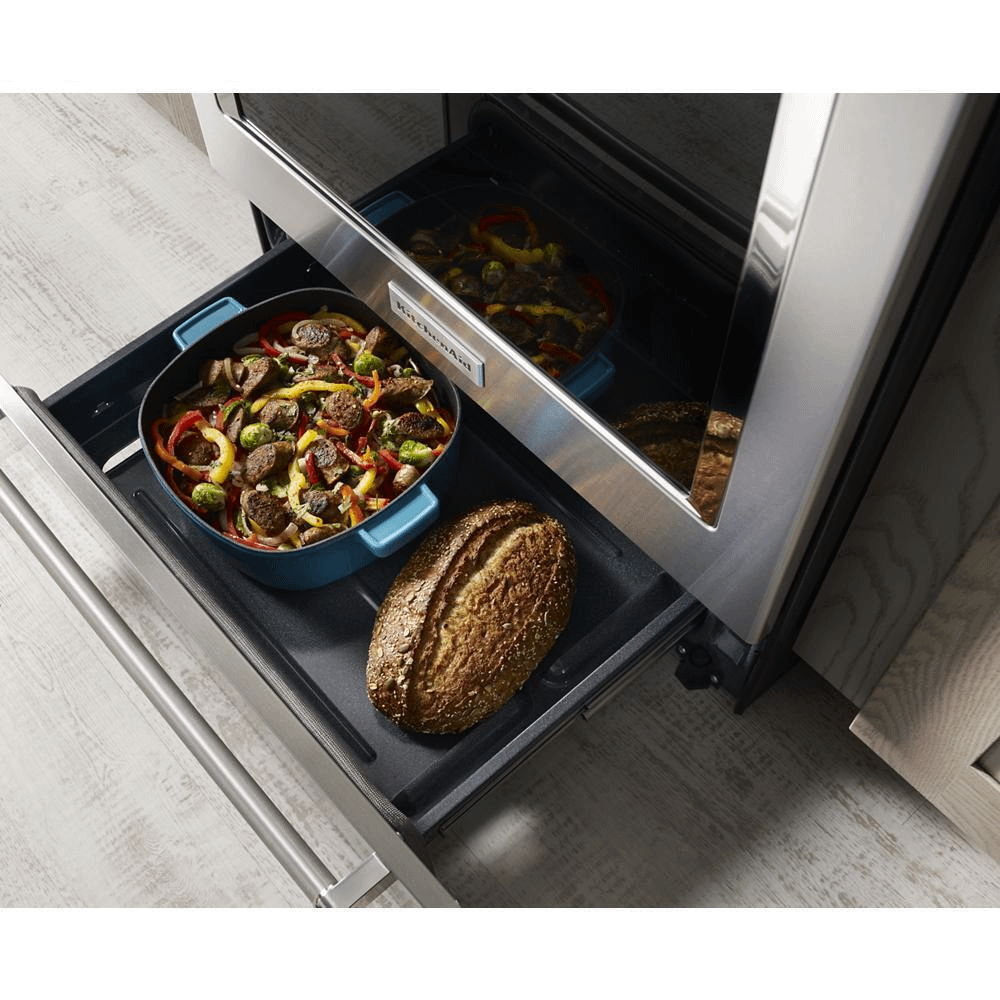

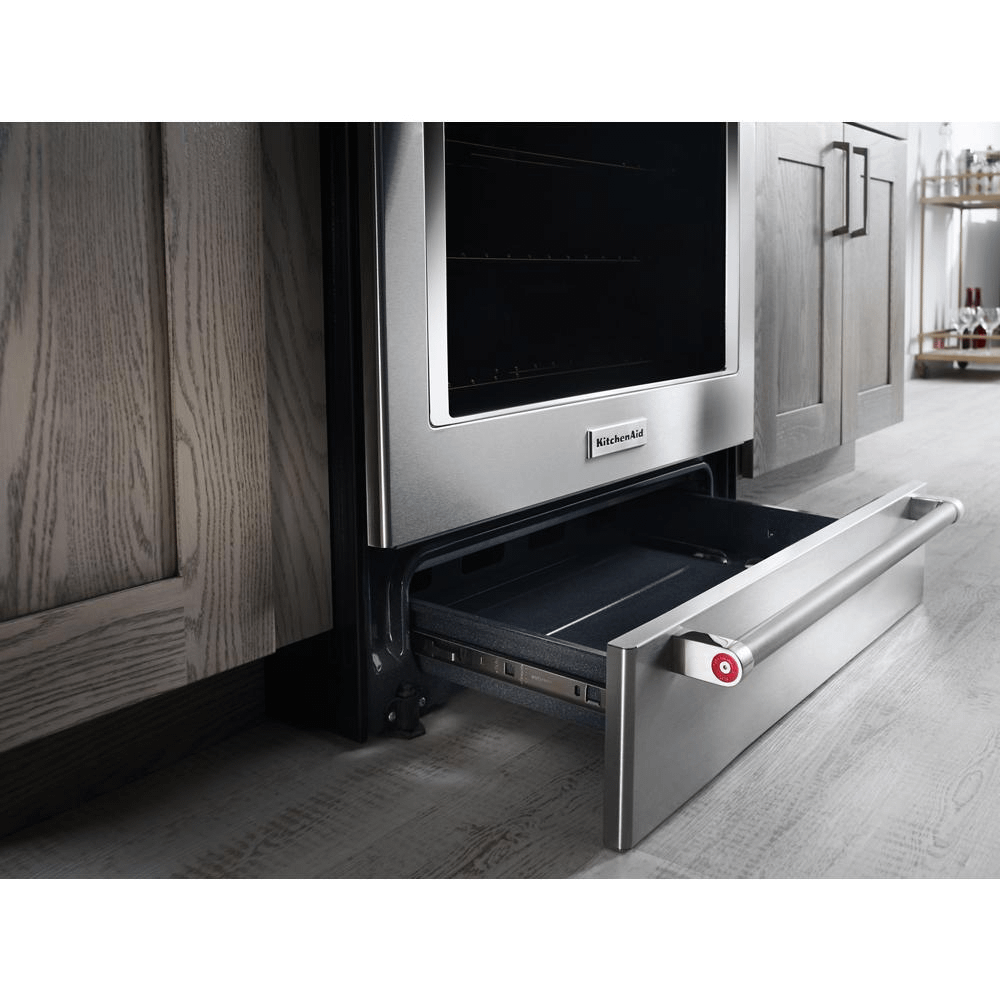

- Baking Drawer
- Adds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm.
- EasyConvect(TM) Conversion
- Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
- Even-Heat(TM) True Convection
- features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
- FIT Guarantee
- Is our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
- Glass Touch Controls
- Offer an intuitive, easy-to-use touch screen experience.
- Glass-Touch Controls
- Intuitive controls are activated by a light touch, look elegant and allow for easy cleaning.
- SatinGlide(R) Max Racks
- Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
- Side Trim Accessory Kit
- This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
- Steam Rack
- Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Prop65 | Standard |
Ul | Yes |
Controls | |
Display Color | Red; White |
Electronic Display Type | Digital |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Ceramic Glass |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Details | |
Automatic Convection Conversion Temperature Adjust | Yes |
Fuel Type | Electric |
Lp Convertible | No |
Oven Configuration | Single Oven |
Power On Indicator Light | Yes |
Power Outage Compatible | No |
Range Configuration | Slide-In |
Range Drawer Type | Baking Drawer |
Range Type | Slide-in |

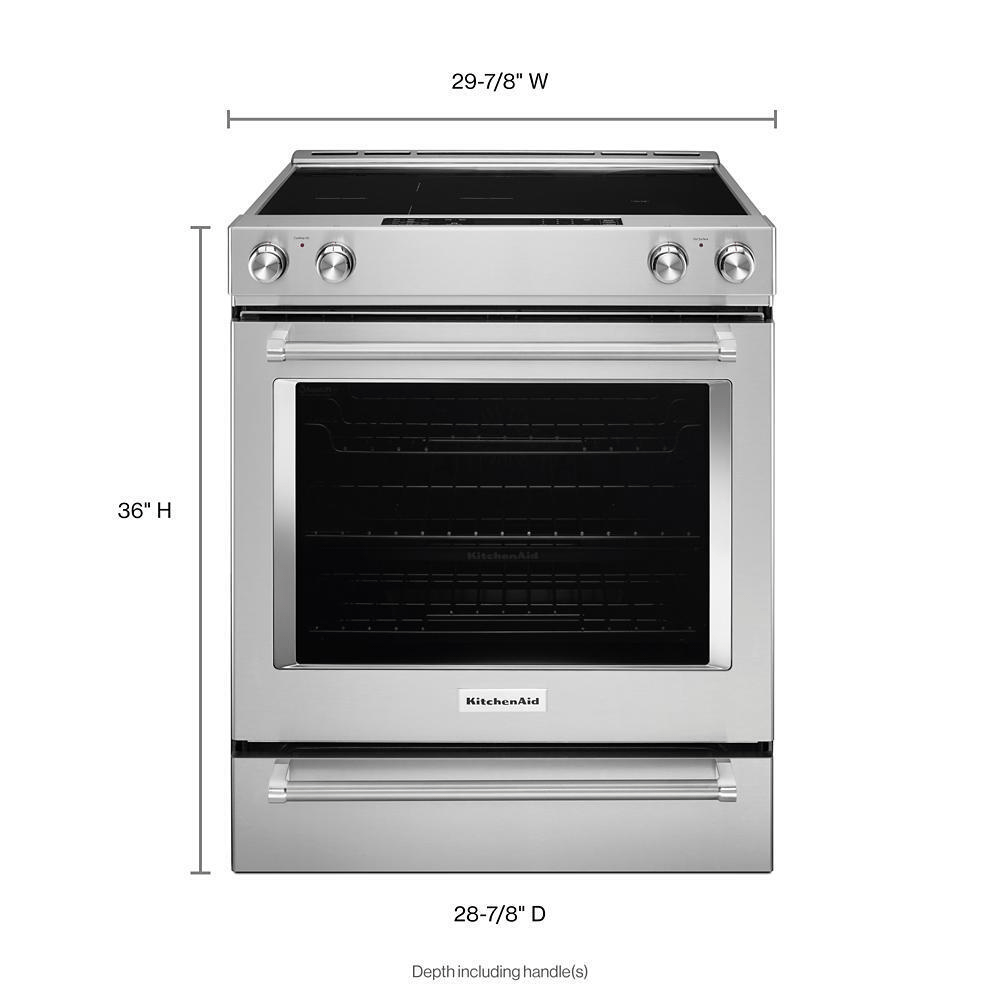

Dimensions | |
Carton Depth | 30.5 |
Carton Height | 43.5 |
Carton Width | 31.5 |
Depth Closed Excluding Handles | 26.375 |
Depth Closed Including Handles | 28.875 |
Depth With Door Open 90 Degree | 48.75 |
Gross Weight | 235 |
Net Weight | 192 |
Oven Interior Depth | 20.625 |
Oven Interior Height | 22.125 |
Oven Interior Width | 24.125 |
Electrical | |
Power Cord Included | No |
Element/burner Details | |
Center Rear Element-burner Power | 100W |
Center Rear Element-burner Size | 6in. |
Center Rear Element-burner Type | Warming |
Cooktop Element Style | Radiant |
Left Front Element-burner Power | 3000W/1950W/1050W |
Left Front Element-burner Size | 12in./9in./6in. |
Left Front Element-burner Type | Triple |
Left Rear Element-burner Power | 1,300W |
Left Rear Element-burner Size | 6in. |
Left Rear Element-burner Type | Hyper |
Number of Cooking Element-burners | 5 |
Right Front Element-burner Power | 3,200W |
Right Front Element-burner Size | 10in. |
Right Front Element-burner Type | Hyper |
Right Rear Element-burner Power | 1,200W |
Right Rear Element-burner Size | 6in. |
Right Rear Element-burner Type | Single |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Handle Type | Towel Bar |
Knob Color | Stainless Steel |
Knob Type | Metal |
Oven Control Knob Color | Stainless Steel |
Oven Control Type | Electronic Touch |
Oven Window Size | Large |
Oven Details | |
Bake Element Power | 3,600 W |
Broiler Element Power | 4,000 W |
Broiler Location | Top of Oven |
Convection Element Power | 3,200 |
Convection Element Type | Fan |
Convection Functions | Bake; Broil; Roast |
Hidden Bake Element | Yes |
Interior Color | Grey |
Number of Oven Lights | 2 |
Number of Oven Racks | 3 |
Number of Rack Guides | 7 |
Oven Cleaning Type | AquaLift® Self Clean |
Oven Cooking System | Convection |
Oven Light Type | Incandescent |
Oven Rack Type | 1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack |
