Overview & Specifications
Overview & Specifications
This all-in-one dual fuel range includes Downdraft, which integrates the ventilation system so a separate hood is not needed. Smoke and odors can be removed outside or filtered air can be recirculated inside. This range allows you to achieve flawless cooking results thanks to Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the entire oven is heated perfectly. It also has a Steam Rack that offers the ability to add moisture to the oven and enhances cooking results.

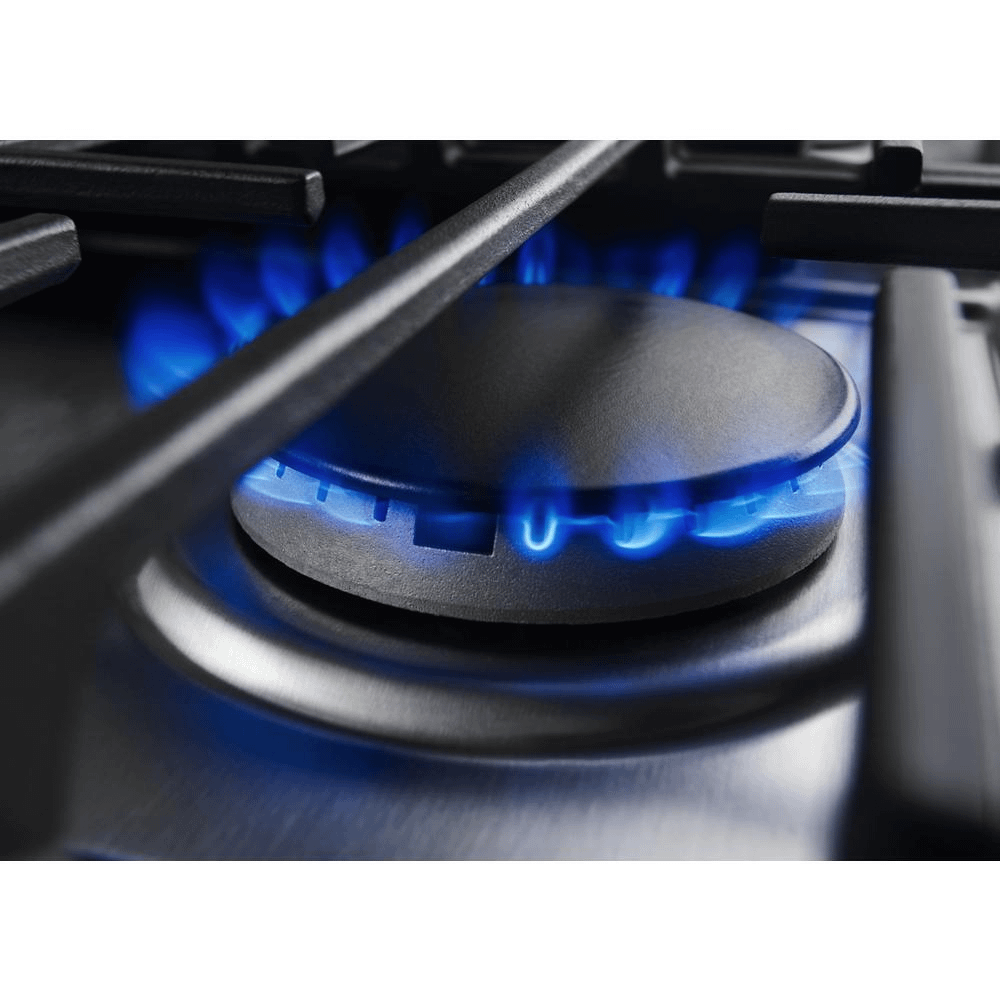

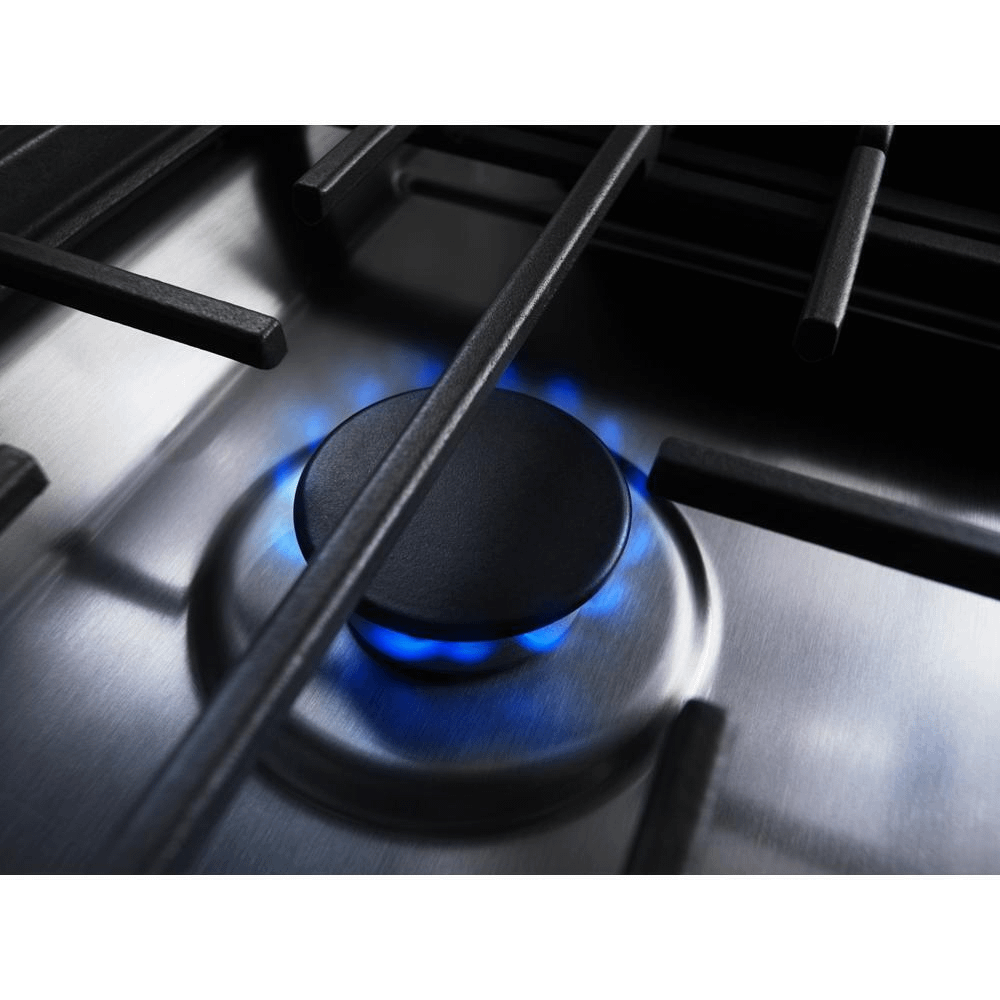

- 4 burners (5k, 9.2k, 15k and 17k)
- Provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.
- 6.4 Cu. Ft. Capacity
- 6.4 cu ft capacity
- this gas slide-in range provides a large cooking capacity that easily handles multiple dishes at once.
- Aqualift(R)
- Cleans your oven in less than an hour without odors and at a temperature below 200(degree)F. This innovative system combines low heat with water to release baked-on spills.

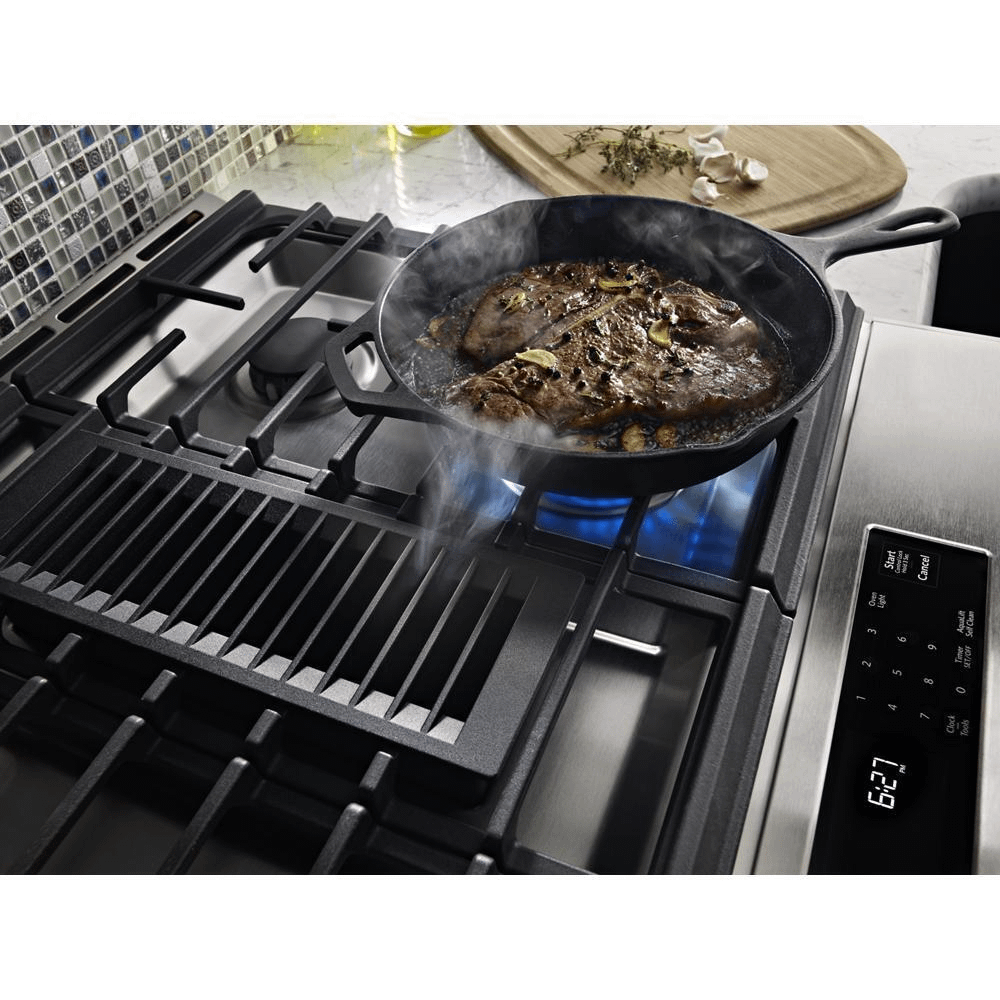

- Downdraft
- Integrates the ventilation system right into the range so that a separate hood is not needed. Smoke and odors can be removed and taken outside or air can be filtered and recirculated inside. A duct free kit can be purchased separately.
- EasyConvect(TM) Conversion
- Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
- Even-Heat(TM) True Convection
- Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures combined with airflow for crisp, flaky baked goods, juicy, well-browned roasts and caramelized vegetables.
- Glass Touch Controls
- Offer an intuitive, easy-to-use touch screen experience.
- SatinGlide(R) Max Racks
- Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
- Side Trim Accessory Kit
- This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
- Steam Rack
- Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Energy Rating | 393 |
Energy Rating (kwh/year) | 393 |
Prop65 | Standard |
Ul | Yes |
Controls | |
Display Color | Red; White |
Electronic Display Type | Digital |
Cooktop Details | |
Auto Re-ignition | No |
Cooktop Surface Color | Color Coordinated |
Cooktop Surface Material | Stainless Steel |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Details | |
Automatic Convection Conversion Temperature Adjust | Yes |
Fuel Type | Dual Fuel |
Lp Convertible | Yes |
Oven Automatic Shut-off | Yes |
Oven Configuration | Single Oven |
Oven Light Switch Location | Oven Control |
Oven Selections | Cancel/Off; Clock; Cook Time Indicator; Delay Start; Keep Warm Setting; Proofing; Steam Bake; Timer |
Power On Indicator Light | Yes |
Power Outage Compatible | No |
Range Configuration | Slide-In |
Range Drawer Type | Access Panel |
Range Type | Slide-in |

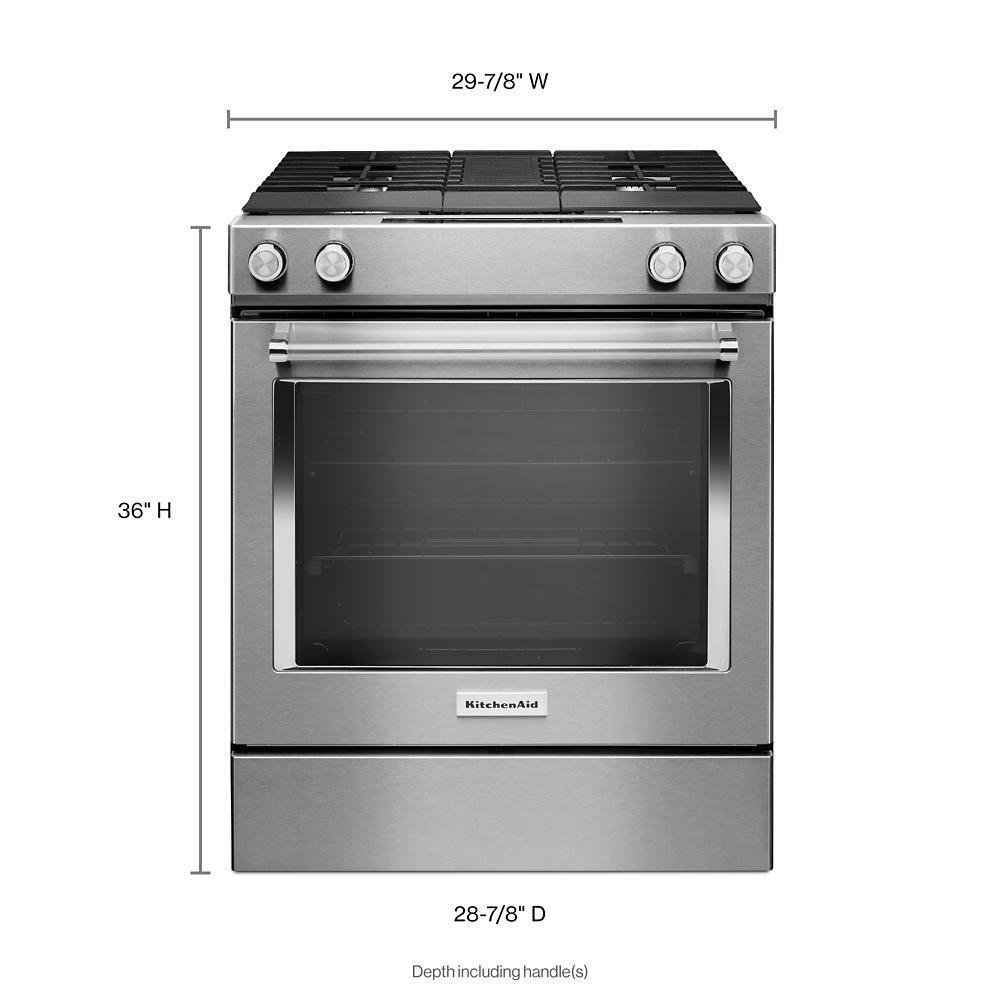

Dimensions | |
Carton Depth | 30.51 |
Carton Height | 43.5 |
Carton Width | 31.5 |
Depth Closed Including Handles | 28.875 |
Depth With Door Open 90 Degree | 48.75 |
Gross Weight | 205 |
Net Weight | 183 |
Oven Interior Depth | 20.75 |
Oven Interior Height | 22.125 |
Oven Interior Width | 24.125 |
Electrical | |
Power Cord Included | No |
Element/burner Details | |
Cooktop Element Style | Gas Burner |
Left Front Element-burner Power | 17,000 BTU |
Left Front Element-burner Type | Burner |
Left Rear Element-burner Power | 5,000 BTU |
Left Rear Element-burner Type | Burner |
Number of Cooking Element-burners | 4 |
Right Front Element-burner Power | 15,000 BTU |
Right Front Element-burner Type | Burner |
Right Rear Element-burner Power | 9,200 BTU |
Right Rear Element-burner Type | Burner |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Handle Type | Towel Bar |
Knob Color | Stainless Steel |
Knob Type | Metal |
Oven Control Type | Electronic Touch |
Oven Window Size | Large |
Grate Details | |
Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
Number of Grates | 3 |
Oven Details | |
Bake Element Power | 3,600 W |
Broiler Element Power | 4,000 W |
Broiler Location | Top of Oven |
Convection Element Power | 3,200 |
Convection Element Type | Fan |
Convection Functions | Bake; Broil; Roast |
Door Removable | Yes |
Hidden Bake Element | Yes |
Interior Color | Grey |
Number of Oven Lights | 2 |
Number of Oven Racks | 3 |
Number of Rack Guides | 7 |
Oven Cleaning Type | AquaLift® Self Clean |
Oven Cooking System | Convection |
Oven Light Type | Incandescent |
Oven Rack Type | 1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack |
