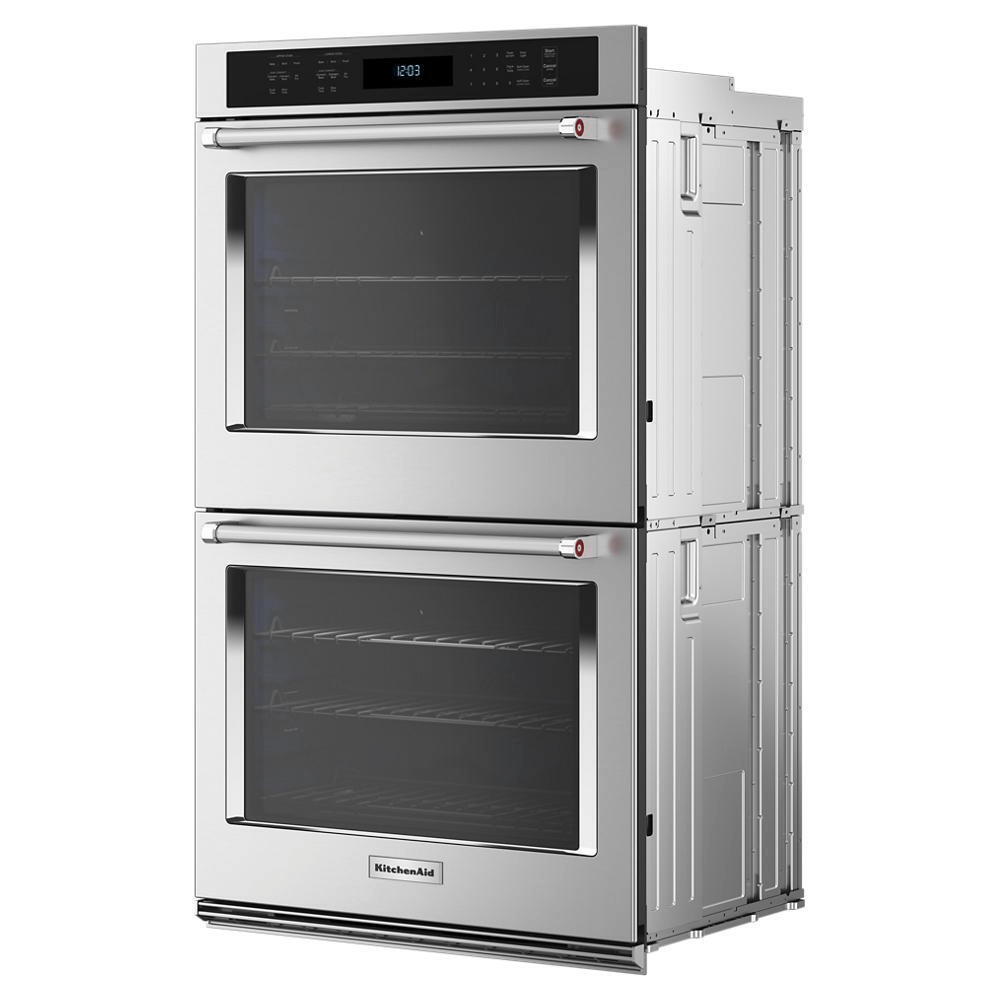

Get the crisp you crave, right from your oven. KitchenAid® Double Wall Ovens with Air Fry Mode circulate hot air around the included basket to cook with less oil.* An integrated thermometer takes the guesswork out of roasting meat just the way you like. *When compared to deep frying.
- 4,000-Watt Broil Element
- Uses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.

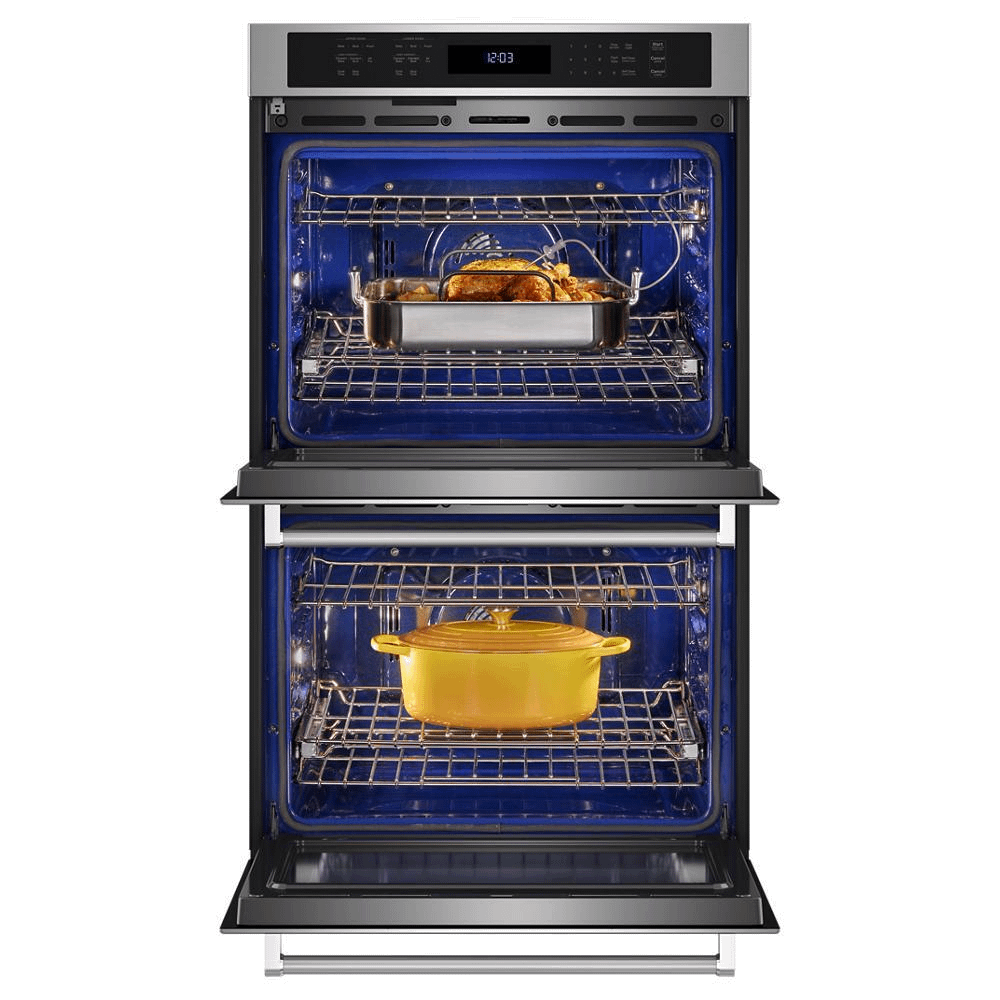

- 5.0 Cu. Ft. Oven Capacity

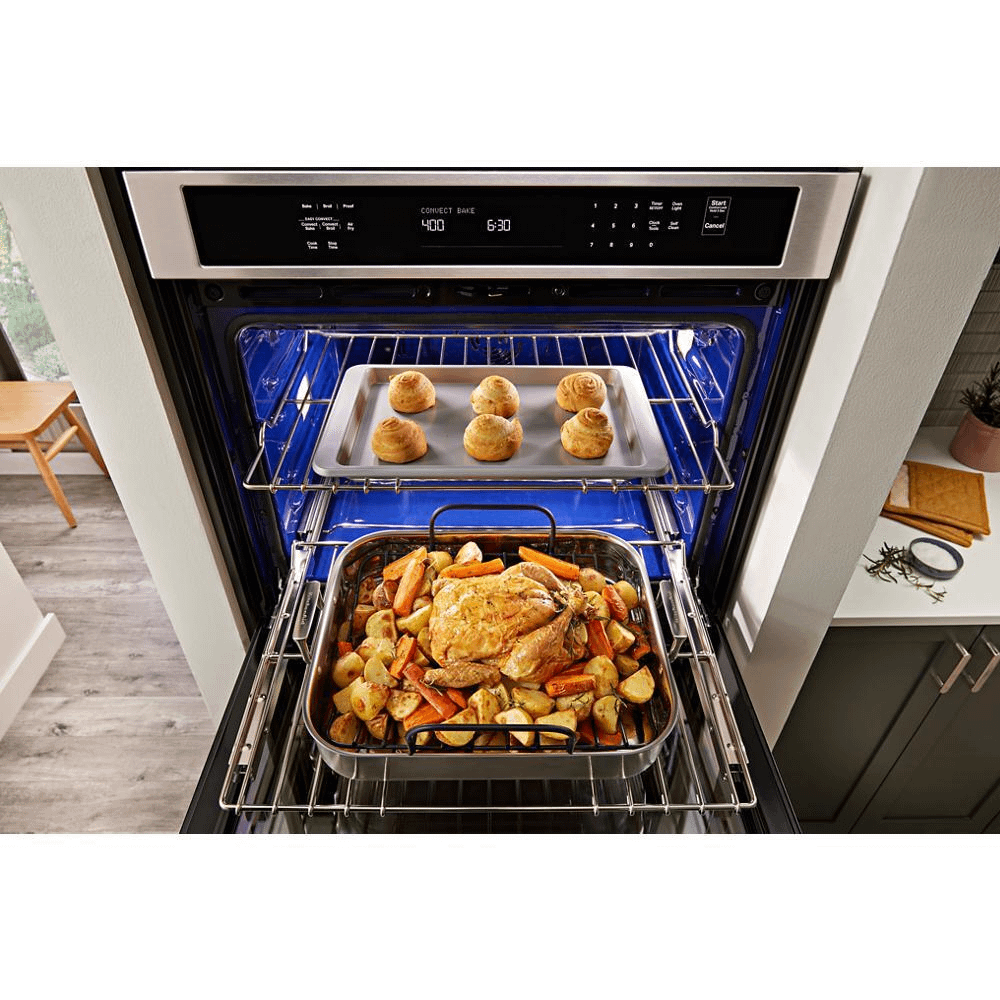

- In both ovens provides space and flexibility to cook multiple dishes at different temperatures, so you can roast a whole turkey with sides in one, while baking dessert in the other.
- Air Fry Mode
- Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.*
*When compared to deep frying. - Dishwasher-Safe Air Fry Basket
- Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
- EasyConvect(TM) Conversion System
- Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
- Even-Heat(TM) Preheat
- Raises the oven temperature an extra 40(degree)F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.

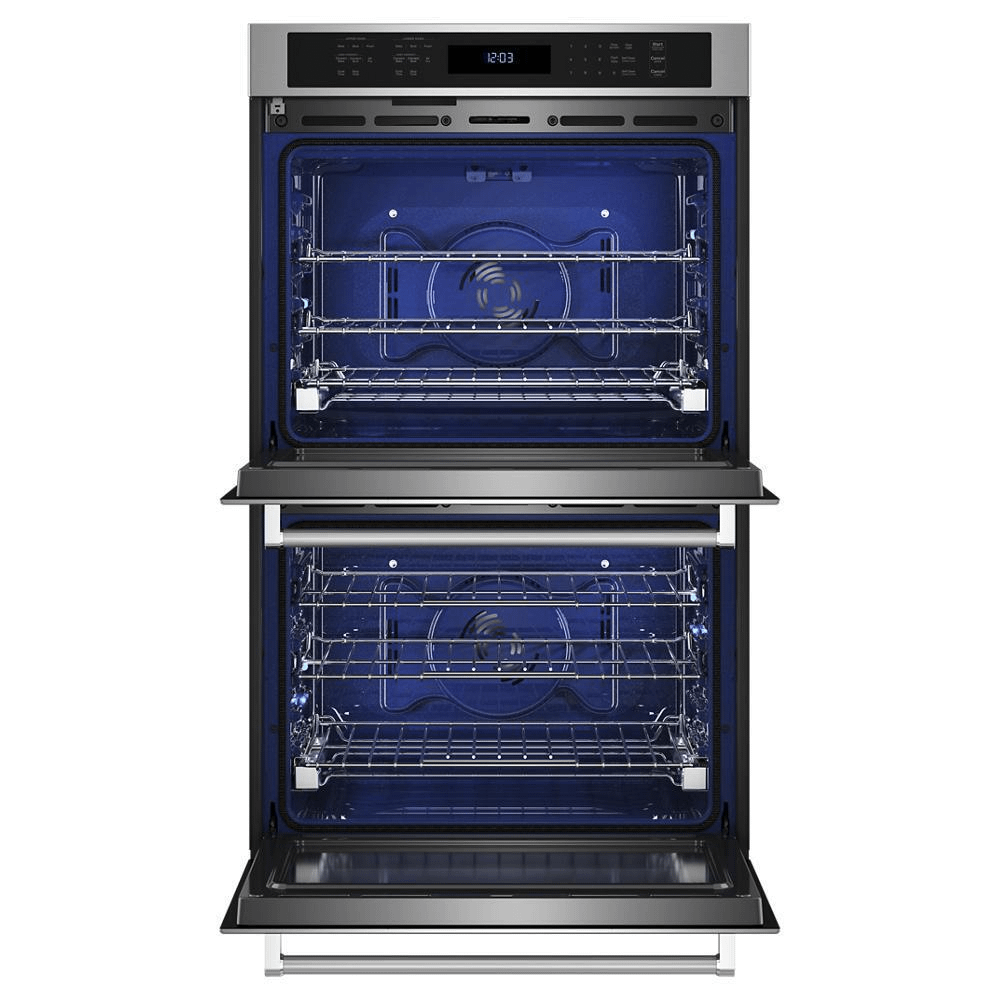

- Even-Heat(TM) True Convection
- Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.

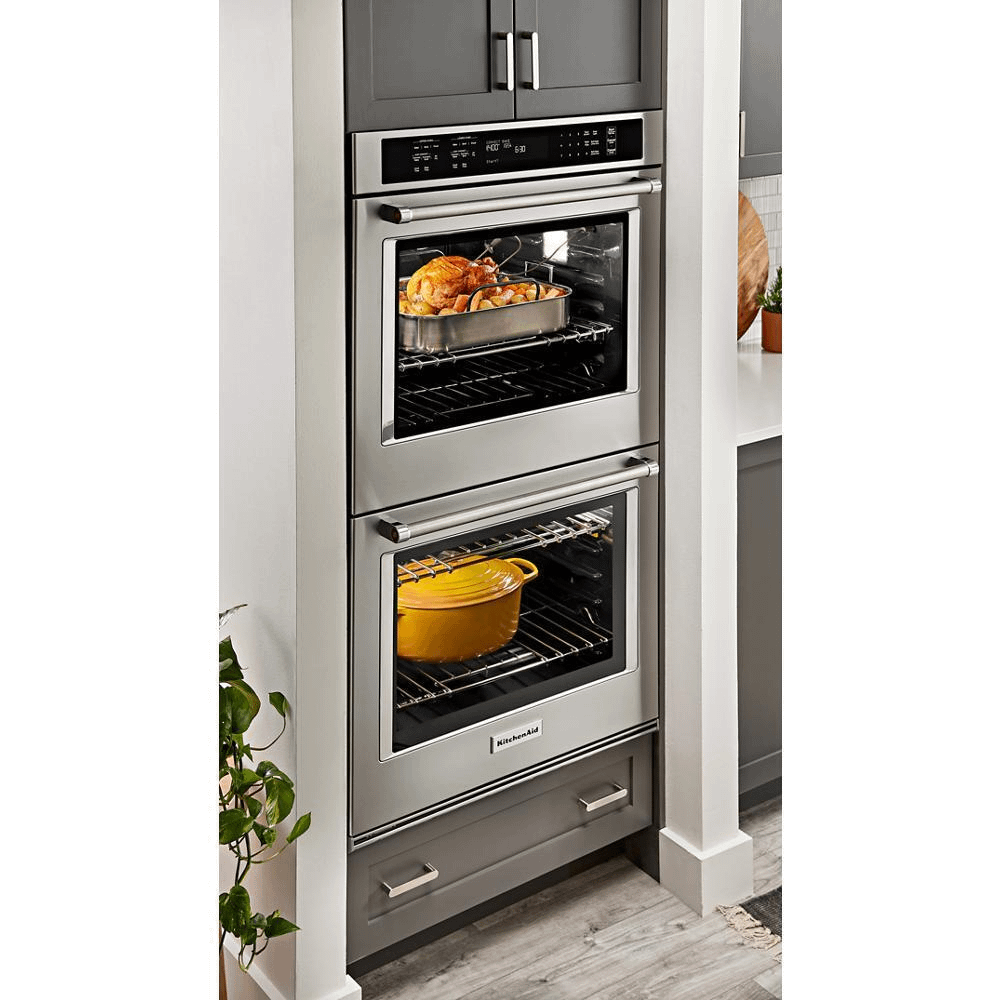

- FIT System Limited Guarantee
- Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.*
*On 27" and 30" KitchenAid(R) wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit kitchenaid.com/promotions. - Integrated Meat Thermometer
- Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.

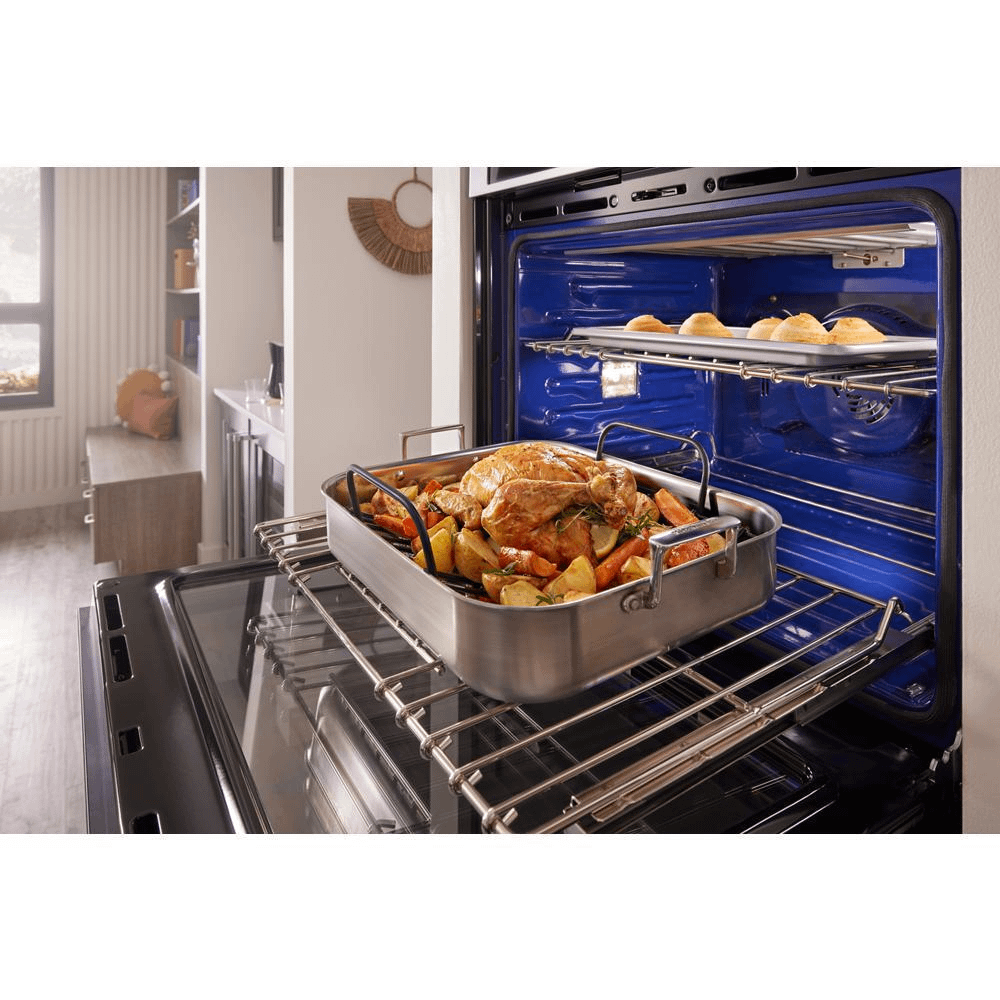

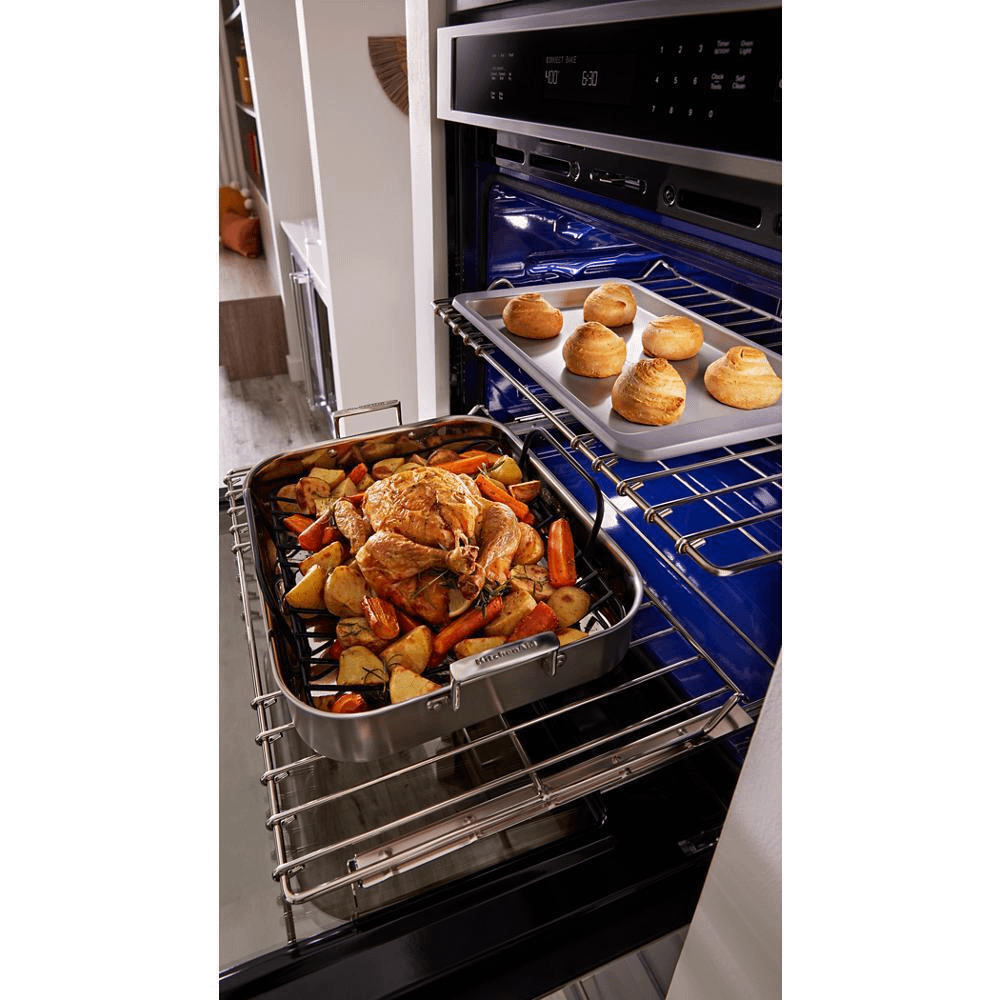

- SatinGlide(TM) Roll-Out Extension Racks
- Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
- Self-Cleaning Cycle
- Uses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
- Self-Close Doors
- Feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
- Star-K Certified
- To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
- What's in the box
- Double Wall Oven includes a Dishwasher-Safe Air Fry Basket and an Integrated Meat Thermometer
Certifications | |
Ada Compliant | No |
Cul | Yes |
Energy Rating | 355 |
Energy Rating (kwh/year) | 355 |
Prop65 | Standard |
Star K Certified | Star K Certified |
Ul | Yes |
Controls | |

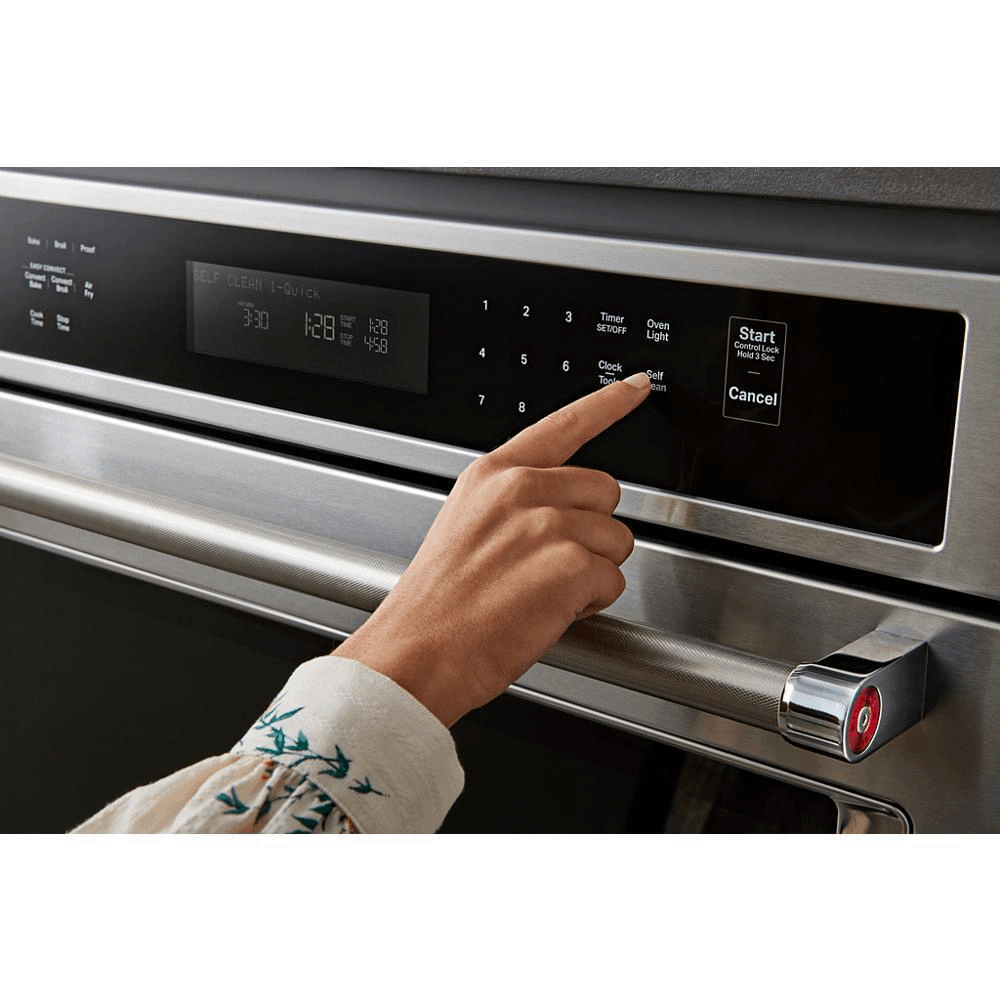

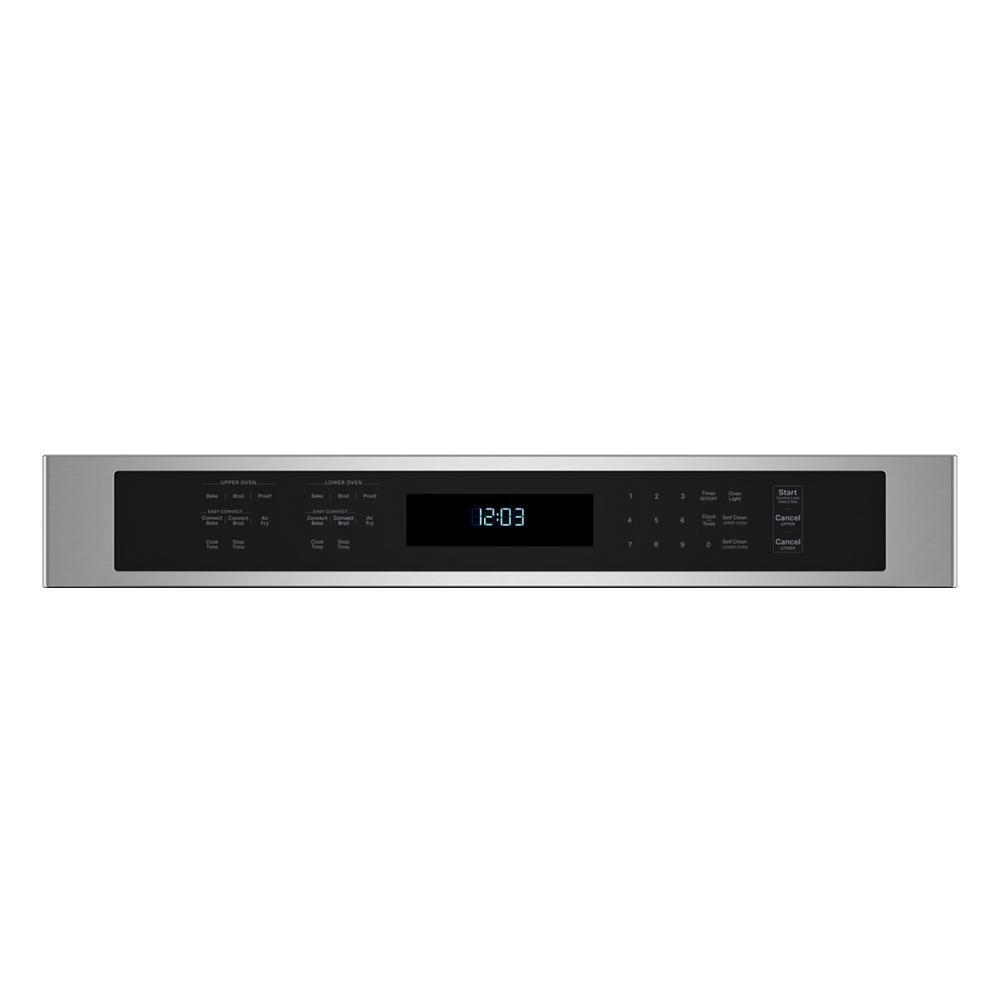

Control Type | Electronic Touch |
Display Color | White |
Electronic Display Type | Digital |
Details | |
Delay Clean | No |
Flush Installation Approved | Yes |
Fuel Type | Electric |
Light Control | Oven Light Touch Pad |
Oven Automatic Shut-off | Yes |
Oven Type | Double |
Power On Indicator Light | Yes |
Dimensions | |

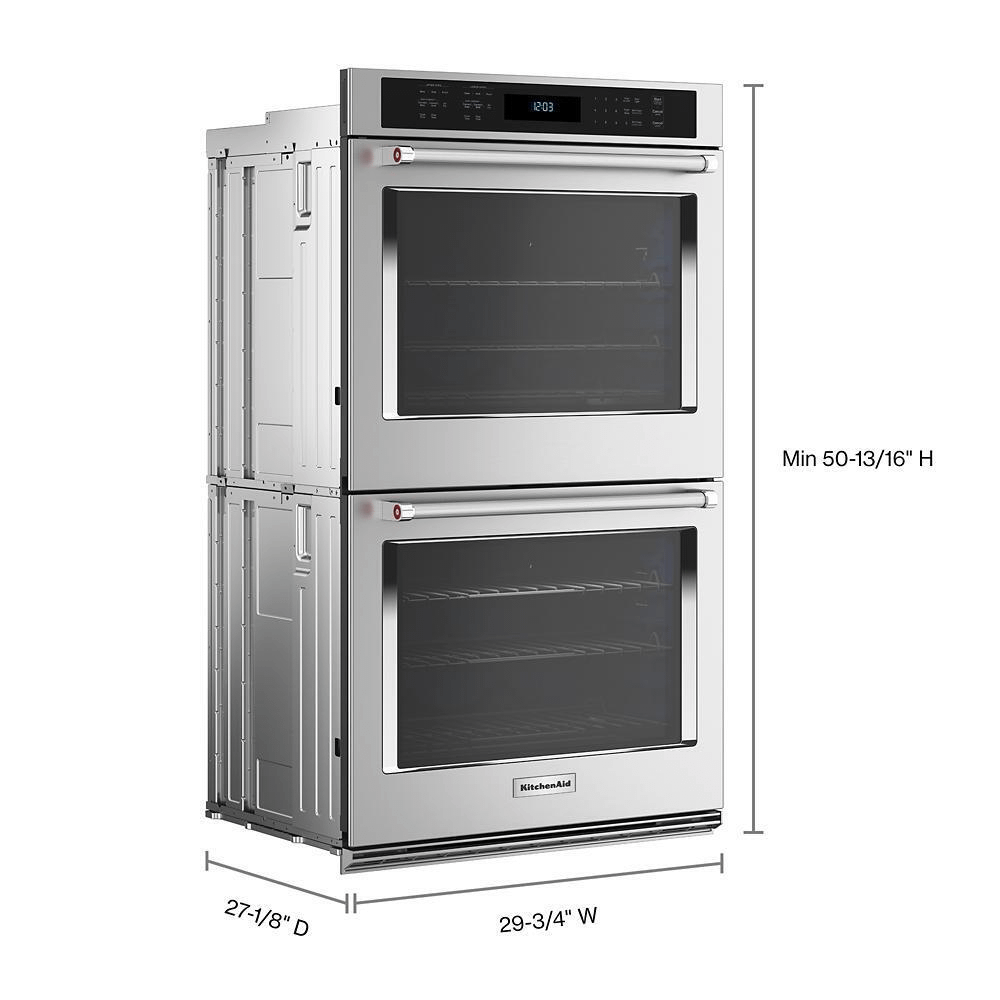

Product Height | 50.8125 |
Carton Height | 53.5 |
Gross Weight | 280 |
Carton Width | 34.8 |
Lower Oven Interior Height | 18 |
Upper Oven Interior Width | 25 |
Product Depth | 27.125 |
Depth With Door Open 90 Degree | 46.75 |
Lower Oven Interior Width | 25 |
Cutout Depth | 24 |
Cutout Height | 50.25 |
Depth Closed Excluding Handles | 24.5 |
Depth Closed Including Handles | 27.125 |
Upper Oven Interior Depth | 19 |
Carton Depth | 30.8 |
Cutout Width | 28.5 |
Upper Oven Interior Height | 18 |
Net Weight | 254 |
Product Width | 29.75 |
Lower Oven Interior Depth | 19 |
Electrical | |
Power Cord Included | No |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Oven Window Size | Extra Large |
Microwave Details | |
Language Conversion | English/French/Spanish |
Oven Details | |
Bake Element Power | 2,800 W Both |
Broiler Element Power | 4,000 W Both |
Broiler Location | Top of Oven |
Convection Element Power | 3,200 Both |
Convection Element Type | True Convection |
Convection Functions | Bake; Broil; Convection Conversion |
Door Broil Position | Closed |
Door Lock | Yes |
Door Removable | Yes |
Hidden Bake Element | Yes |
Installable Under Cooktop | No |
Interior Coating | Porcelain |
Interior Color | Blue |
Light Type | Halogen |
Lower Oven Number of Oven Lights | 2 |
Number of Bake Elements | 2 |
Number of Broil Elements | 1 |
Number of Lower Oven Racks | 3 |
Number of Lower Rack Guides | 6 |
Number of Upper Oven Racks | 3 |
Number of Upper Rack Guides | 6 |
Oven Cleaning Type | Self-Cleaning |
Oven Cooking System | Convection Both |
Self-cleaning Oven Racks | No |
Upper Oven Number of Oven Lights | 2 |
Smart Compatibility | |
Connectivity | No |
Works With | No |
