Overview & Specifications
Overview & Specifications

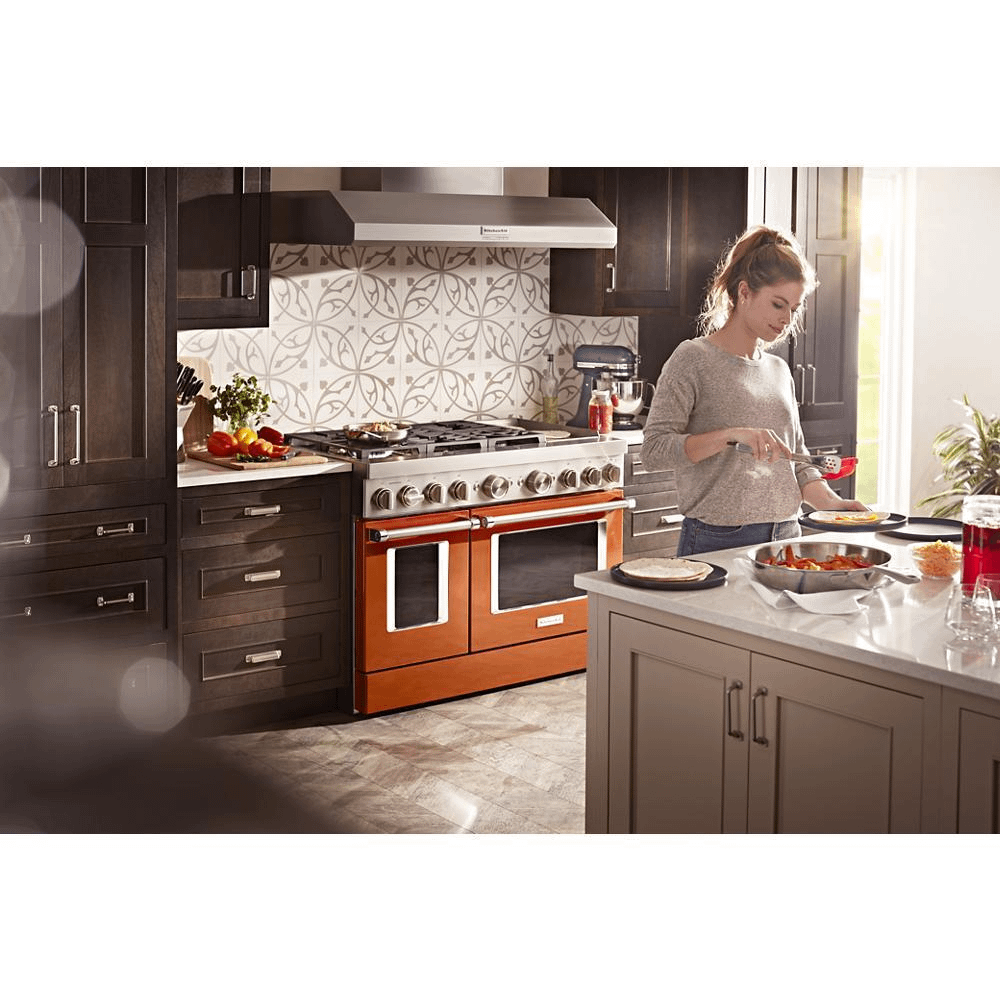

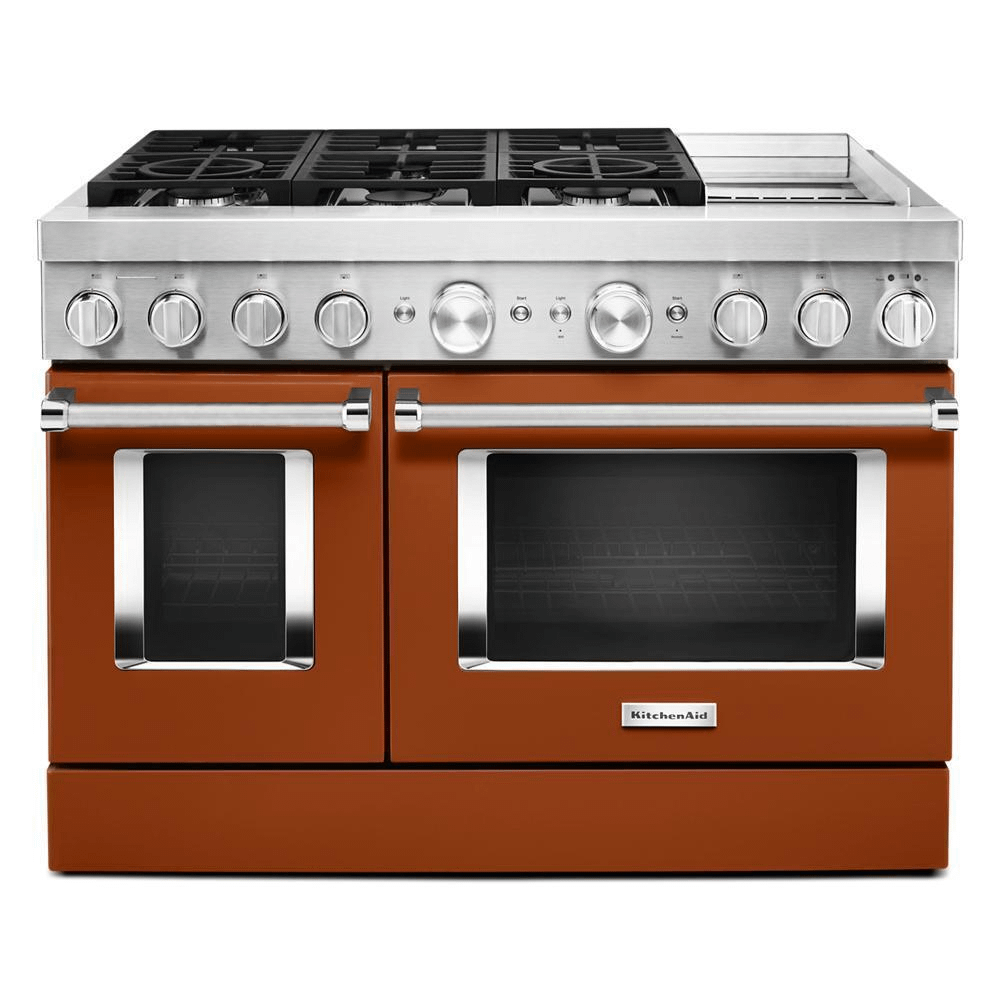

Satisfy your craving to create with a 48-inch KitchenAid® Commercial-Style Range with Even-Heat™ Chrome Electric Griddle. This dual fuel range combines an electric double oven with a 6-burner gas cooktop. Two 20,000 BTU Ultra Power™ Dual-Flame Burners offer power and precision to successfully sear, simmer, stir-fry and saut(eback). Even-Heat™ True Convection helps you achieve more consistent baking and roasting.

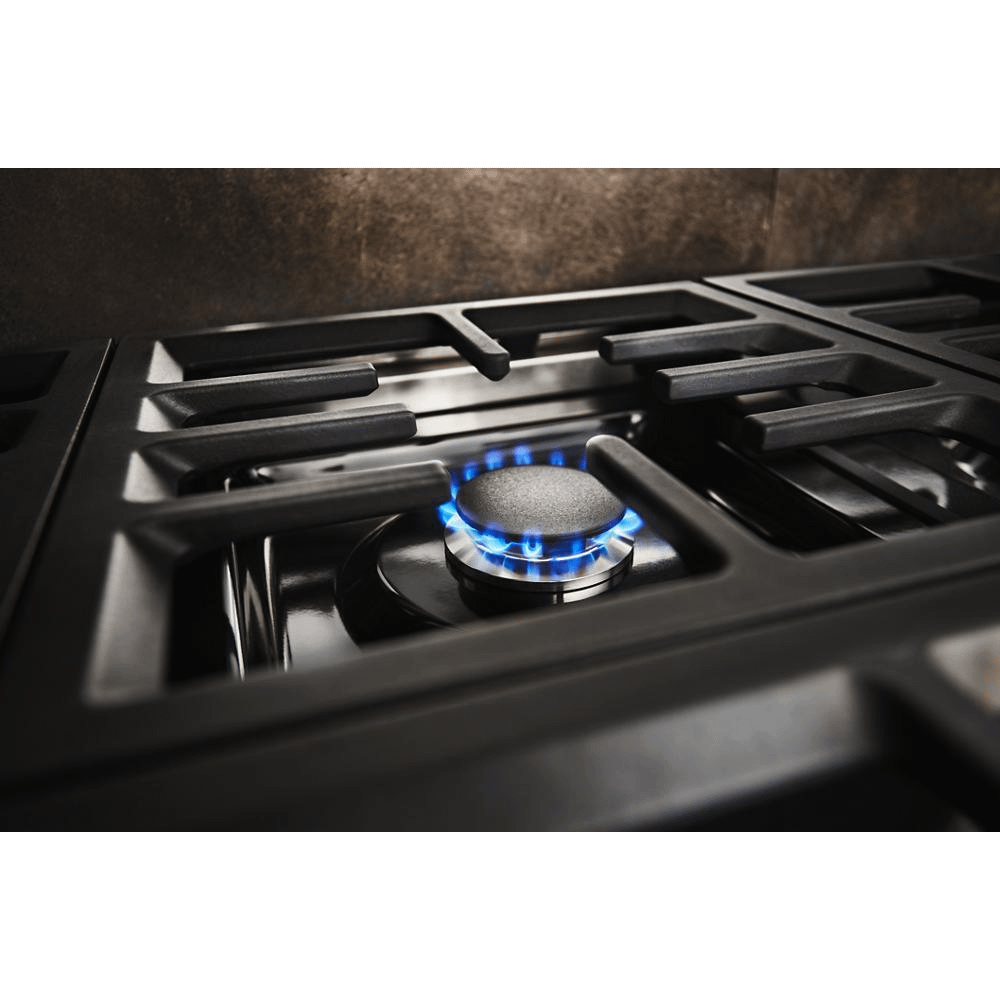

- 5,000 BTU Simmer & Melt Burner
- with a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.
- 6.3 Cu. Ft. Total Capacity
- with two oven cavities provides extra space and the flexibility to cook multiple dishes at different temperatures, so you can roast a whole turkey in the larger oven, while baking dessert in the other.

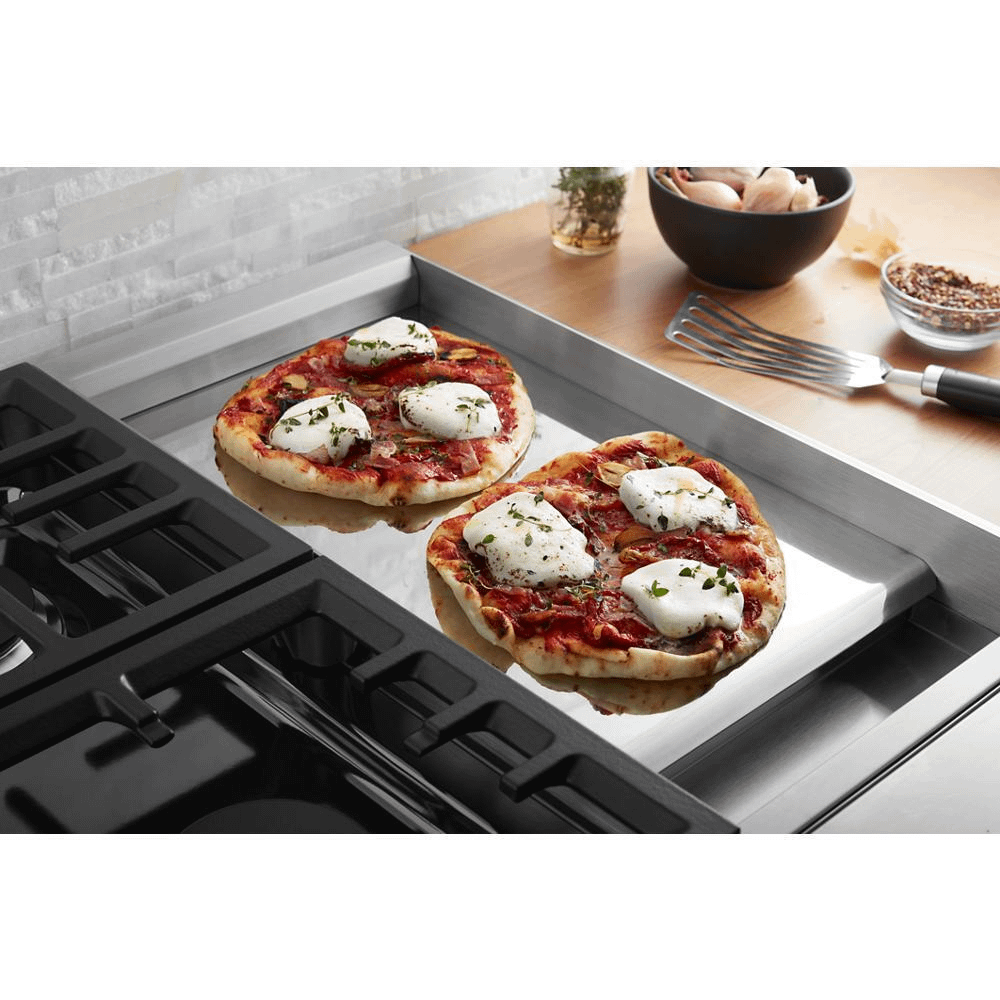

- Chrome-Infused Electric Griddle
- features quick preheating and precise temperature control to expertly brown, sear and crisp edge-to-edge. The smooth, recessed surface assists your technique, making it easy to flip even delicate foods, and provides plenty of room to cook for a crowd.

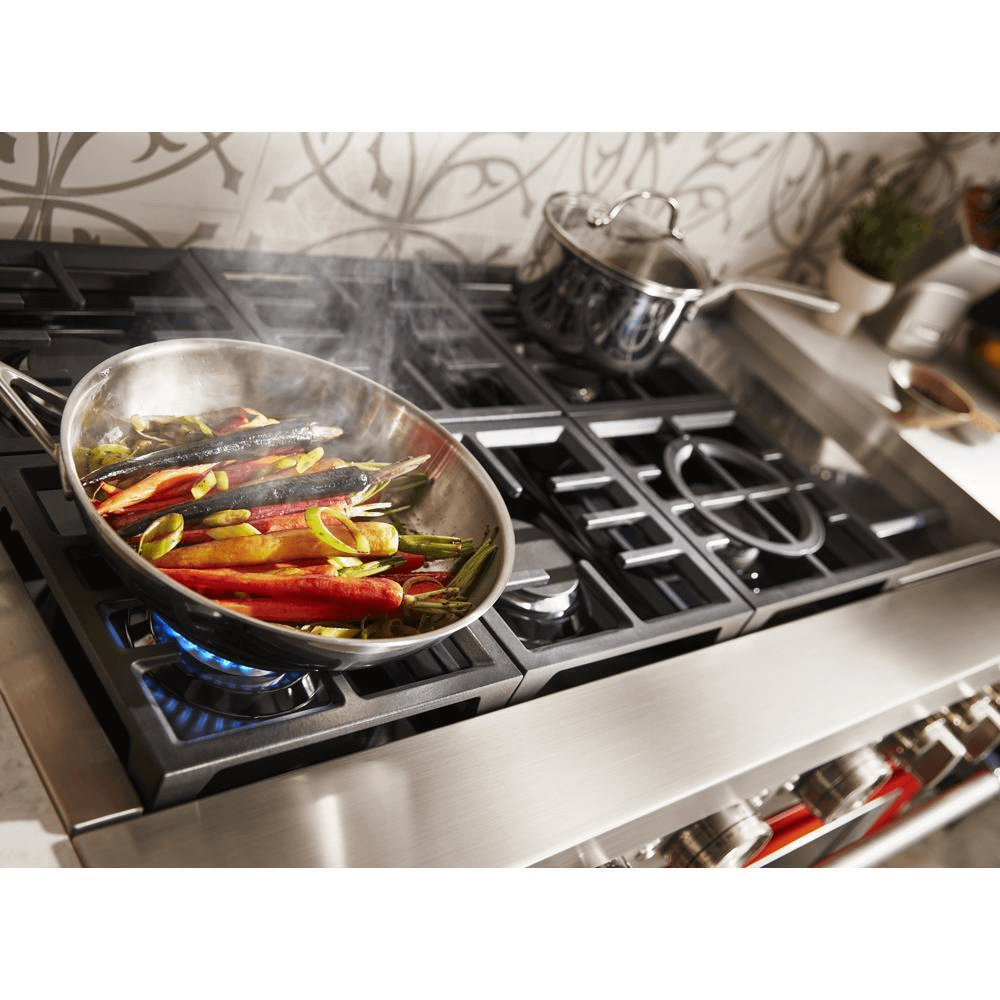

- Dual Fuel Range
- satisfies the needs of the most demanding cooks by combining the precise control of a gas cooking surface with the even baking, roasting and broiling of an electric oven.

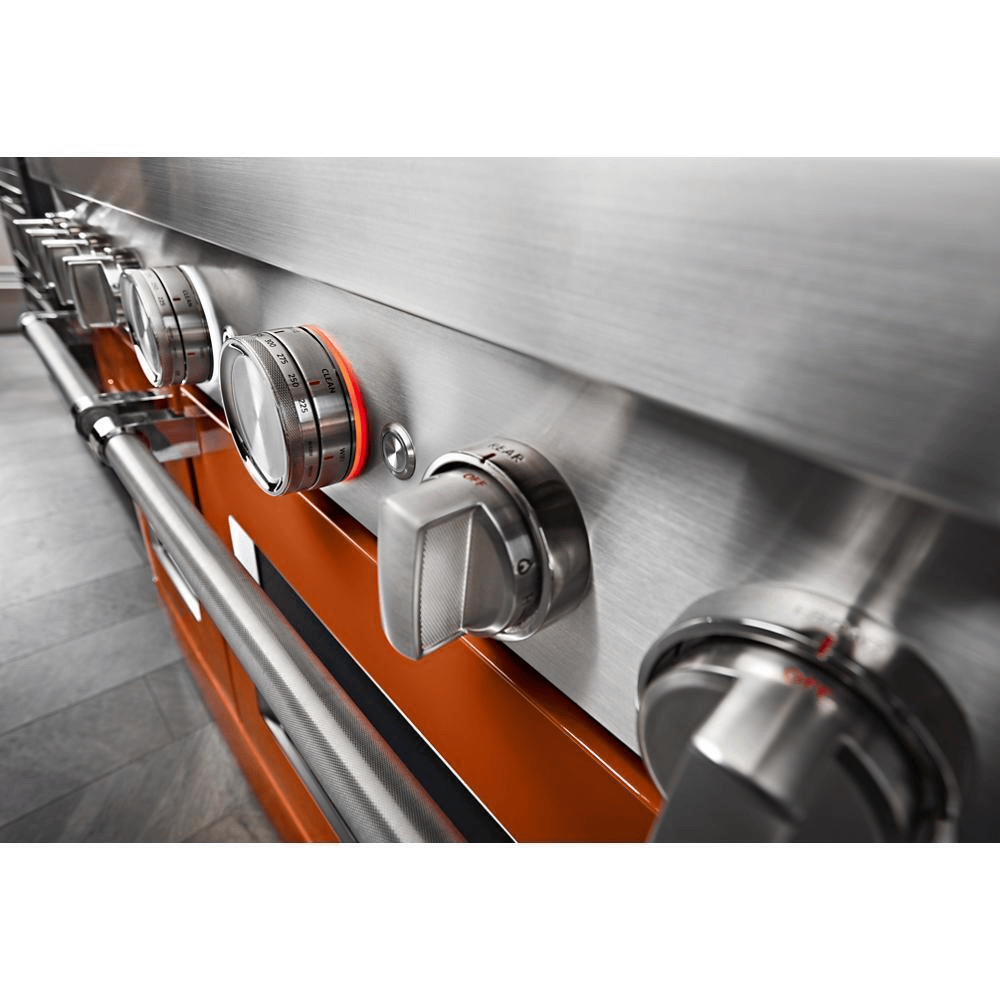

- Dual-Concentric Oven Knob
- provides one-handed control of both oven mode and temperature. Two knobs in one let you first choose Bake, Broil or Convection, then select the temperature. Responsive backlighting confirms settings are correct or alerts you to needed adjustments.
- EasyConvect(TM) Conversion System
- Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid(TM) app, making it effortless to use convection with recipes of all kinds.

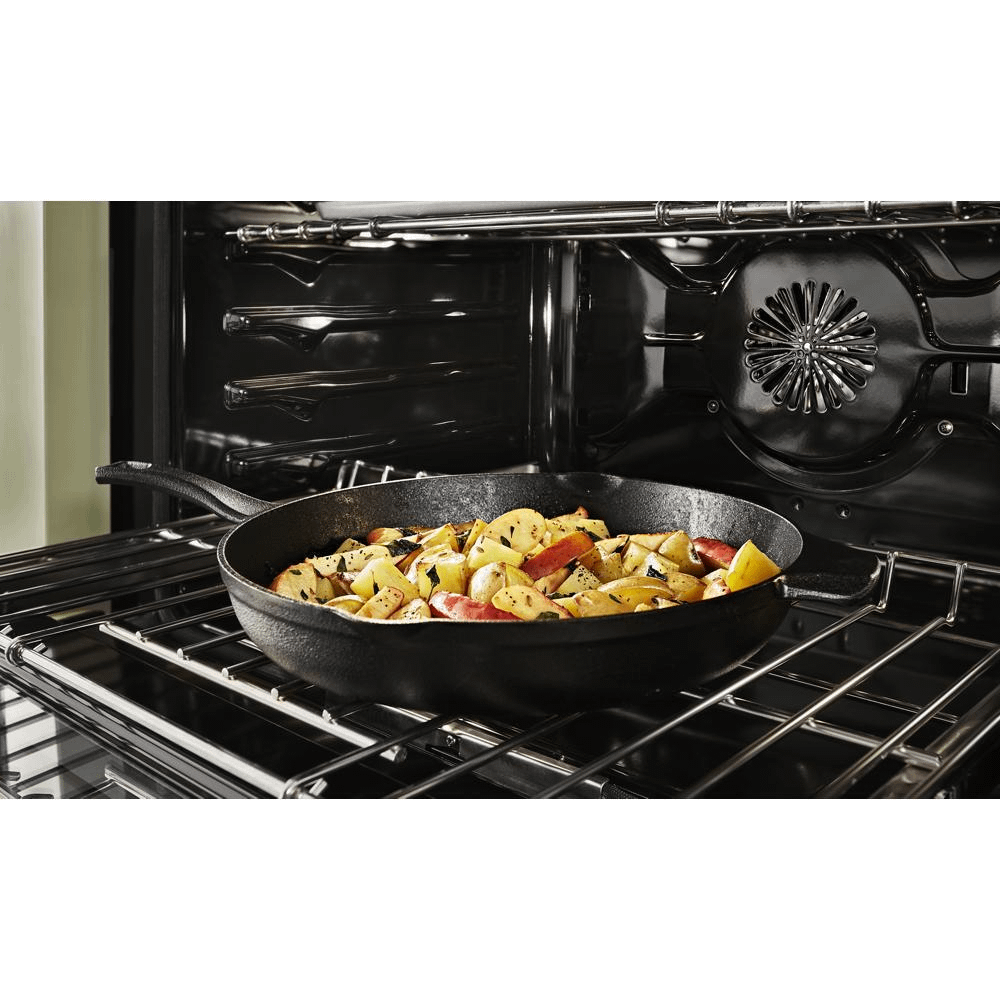

- Even-Heat(TM) True Convection
- features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

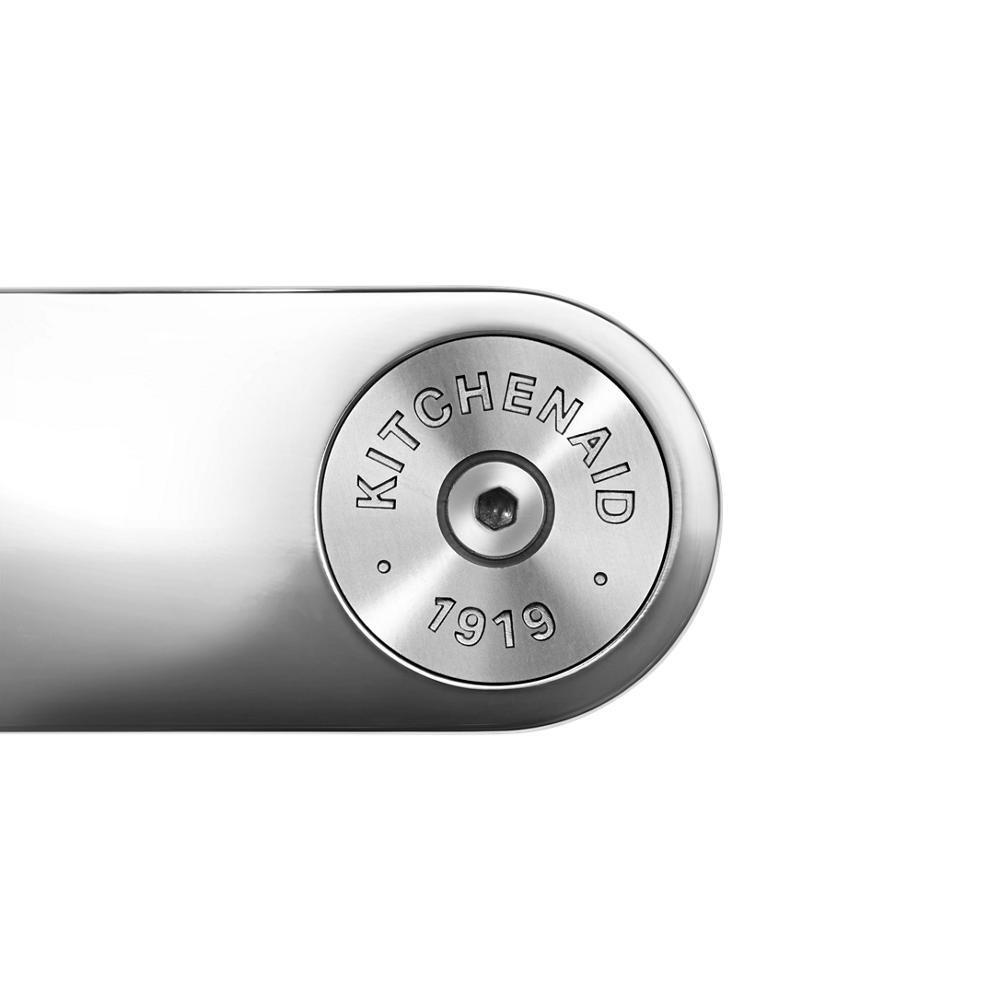

- KitchenAid(R) Handle Medallion Kit (sold separately)
- lets you change the color of your commercial-style range handle medallions to add a custom accent. Available in Silver, Dark Blue, Bronze, Black, Copper, Red, New Gold, and Mascarpone. Each kit includes two medallions and a 1/8" hex allen wrench for easy replacement (sold separately)

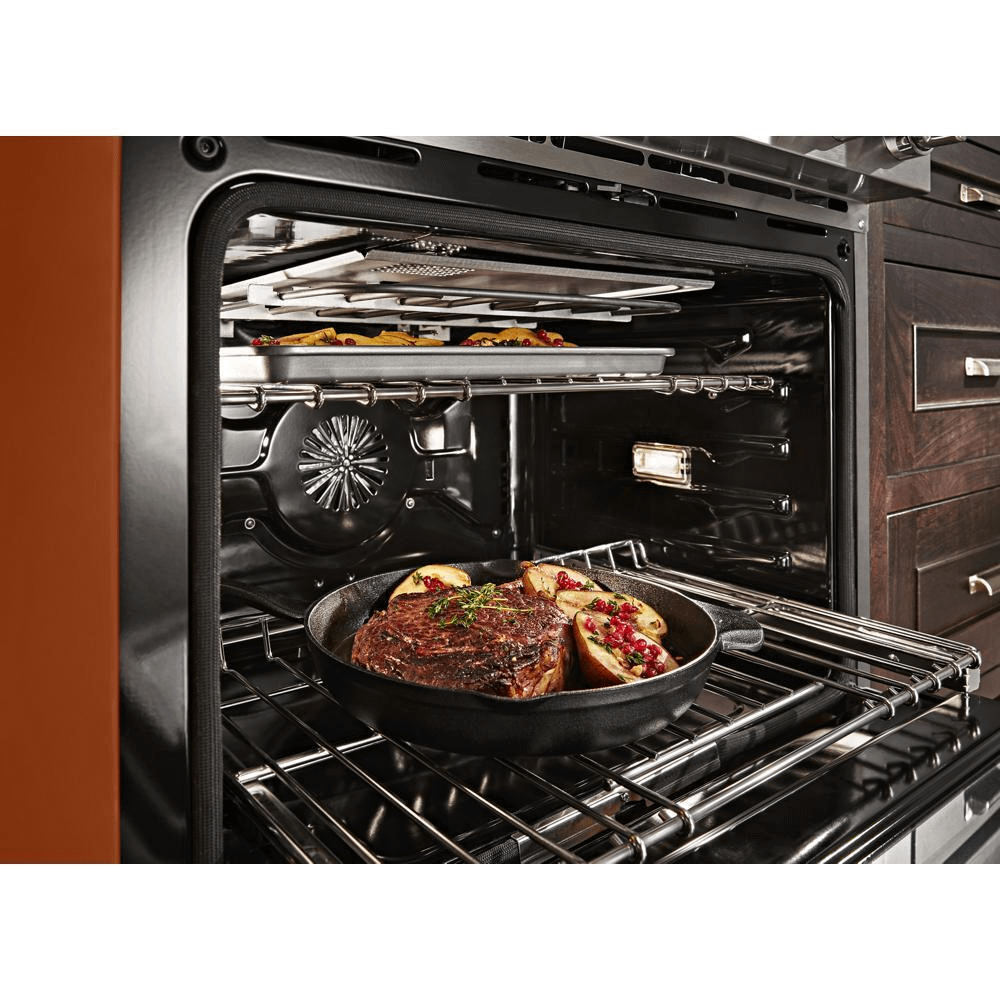

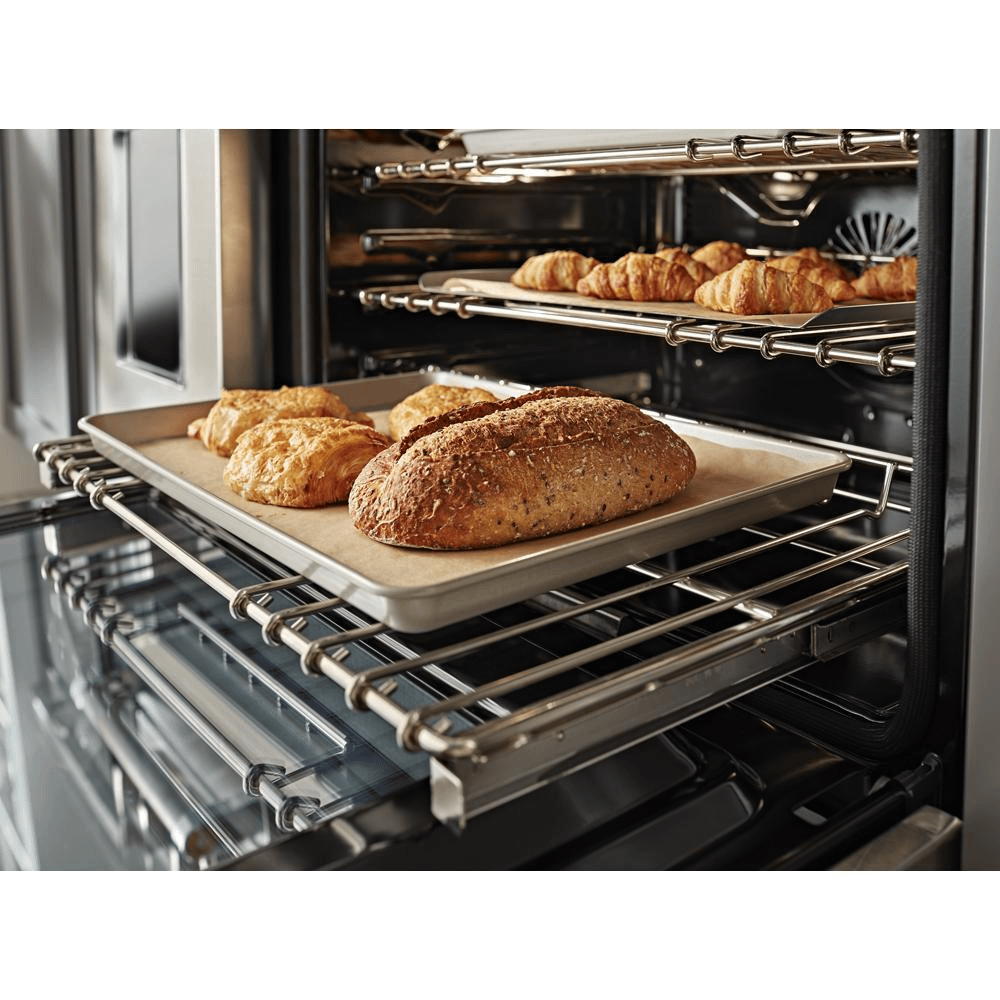

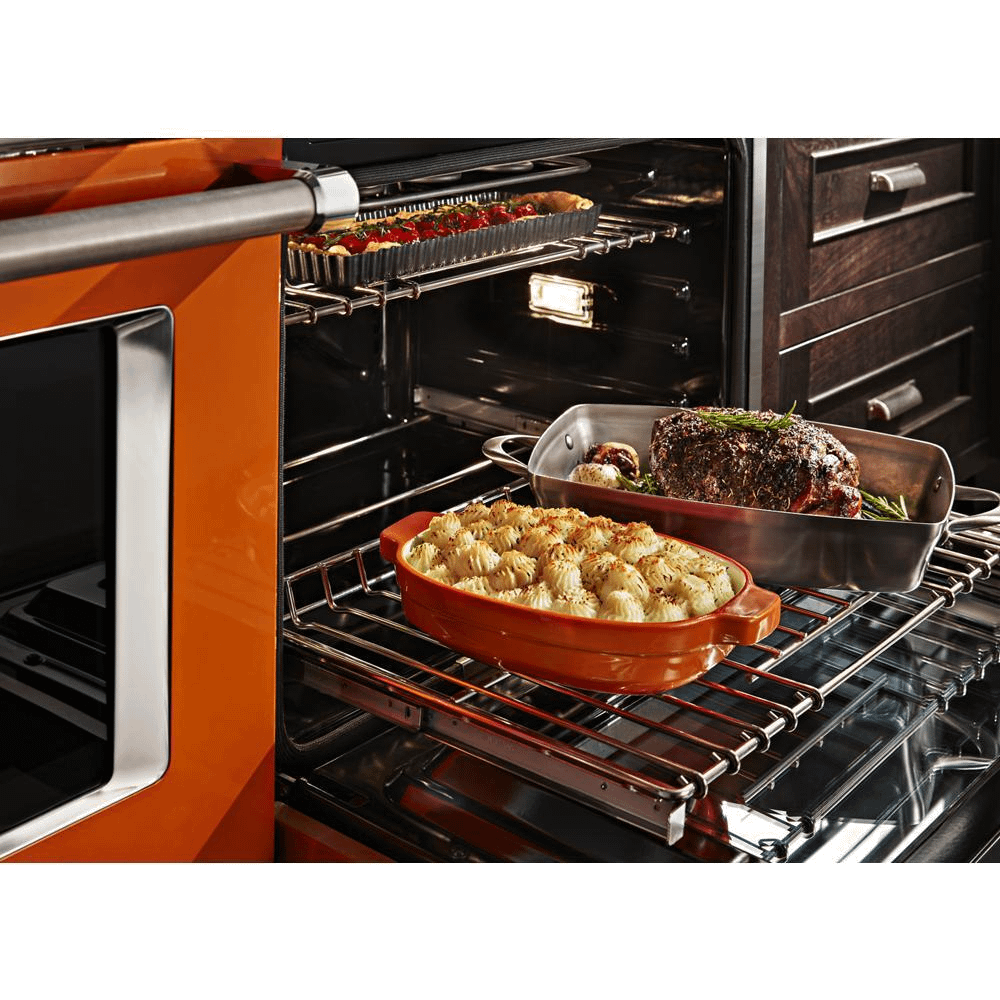

- SatinGlide(TM) Roll-Out Extension Rack
- makes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
- Smart Appliance
- lets you control the oven with your Google Assistant or an Alexa-enabled device to stay hands on or hands off. Use the KitchenAid(TM) App to preheat, proof, bake and roast, save custom cooking instructions for favorite recipes and more.
- Star-K Certified
- to meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
- Three 15,000 BTU Burners
- deliver the high-heat you need for successful searing, saut(eback)ing, stir-frying and quickly bringing large stock pots to a rolling boil.

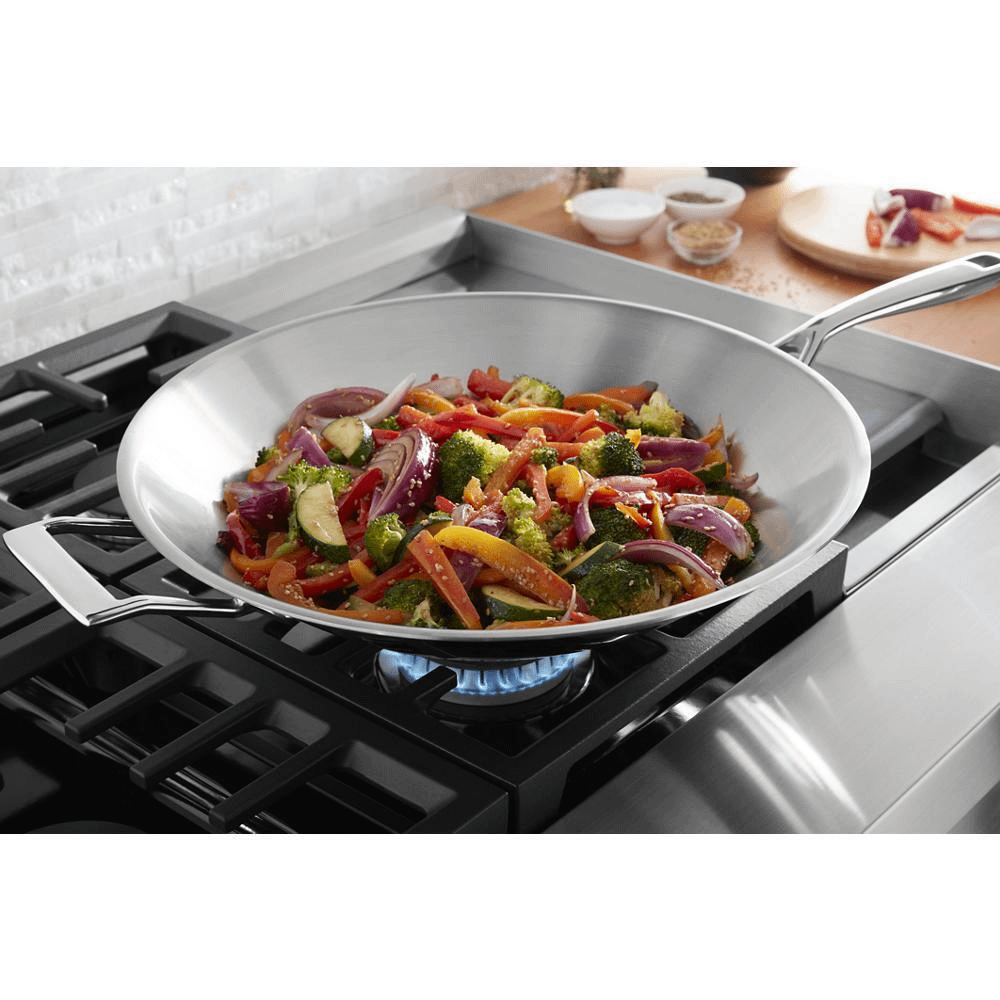

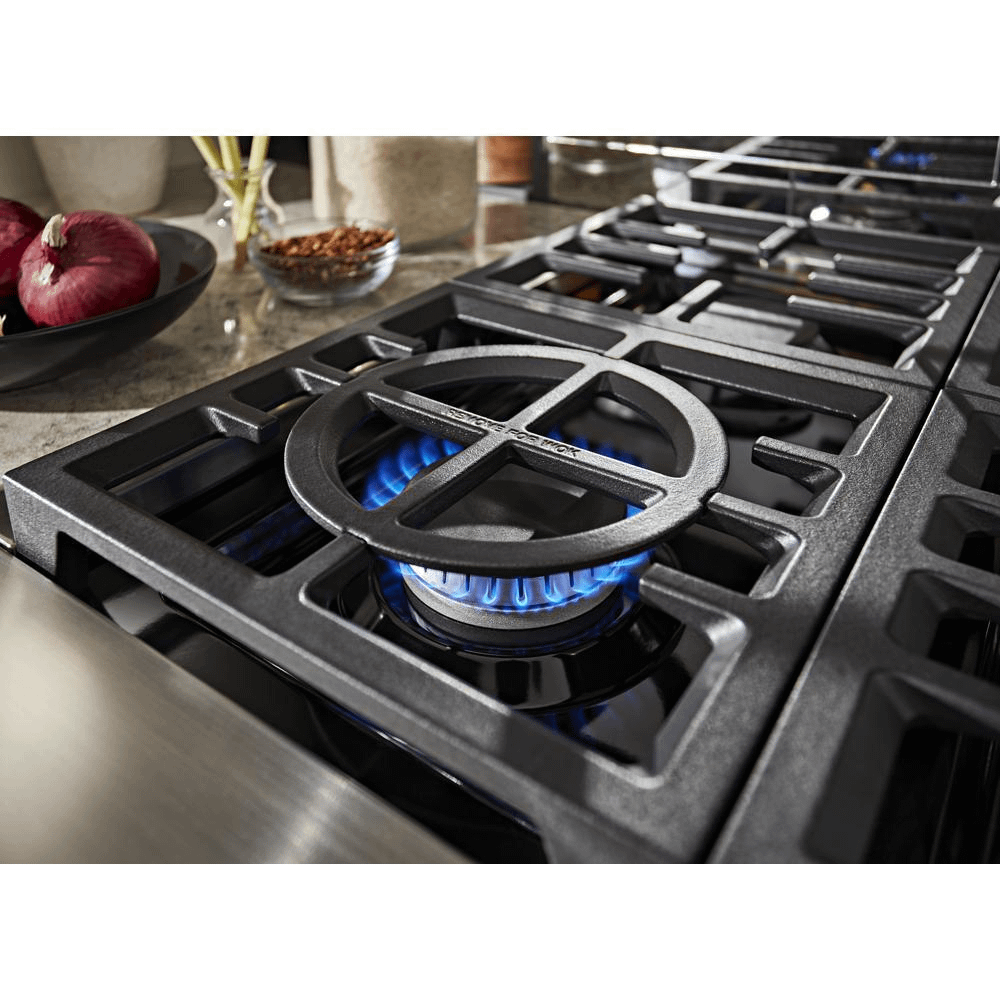

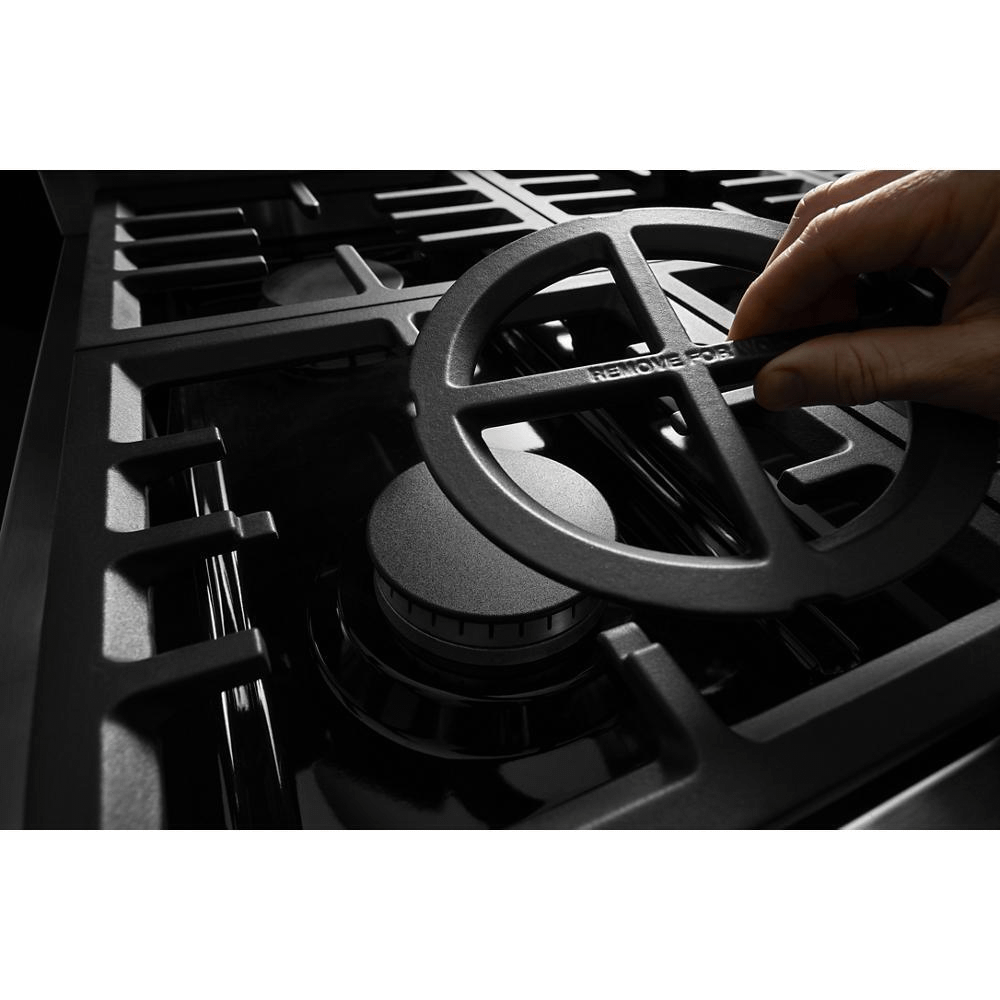

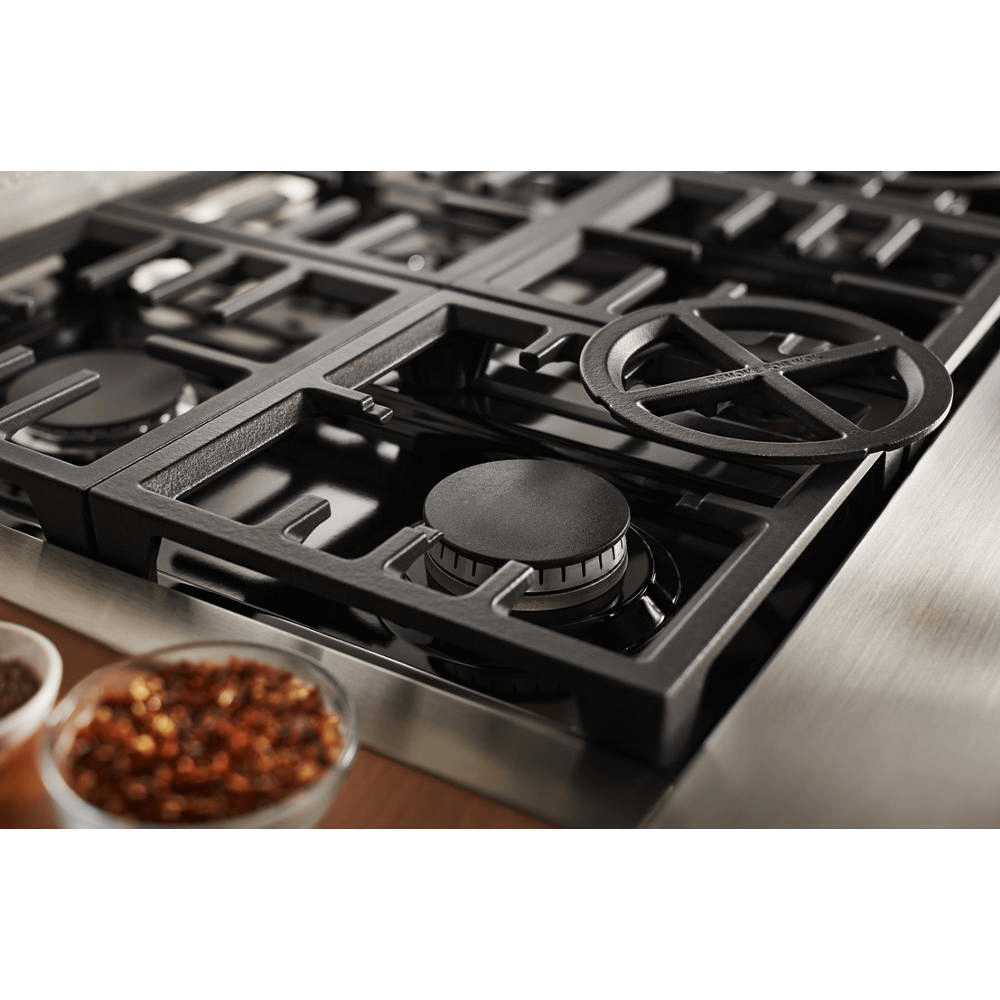

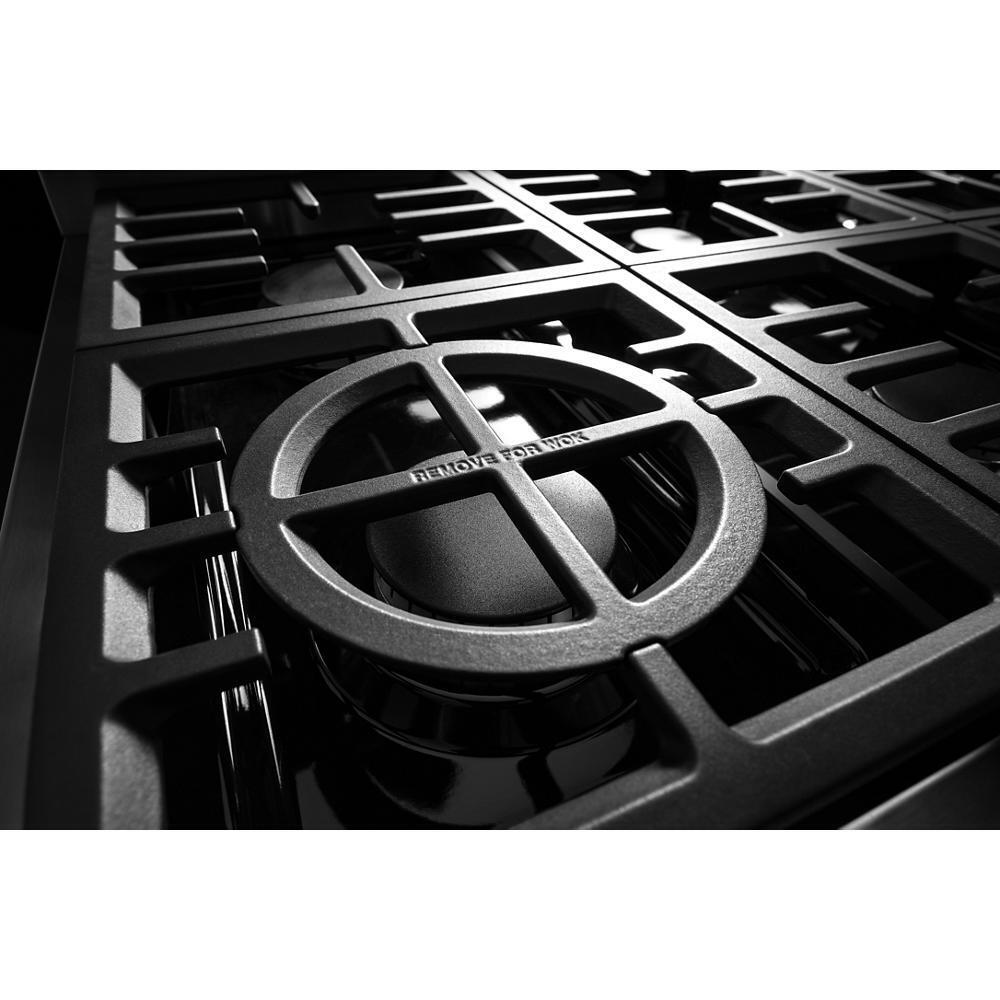

- Three-Level Convertible Grates
- with removable inserts match the heat to your technique. Leave the insert level for high-heat searing and saut(eback)ing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.

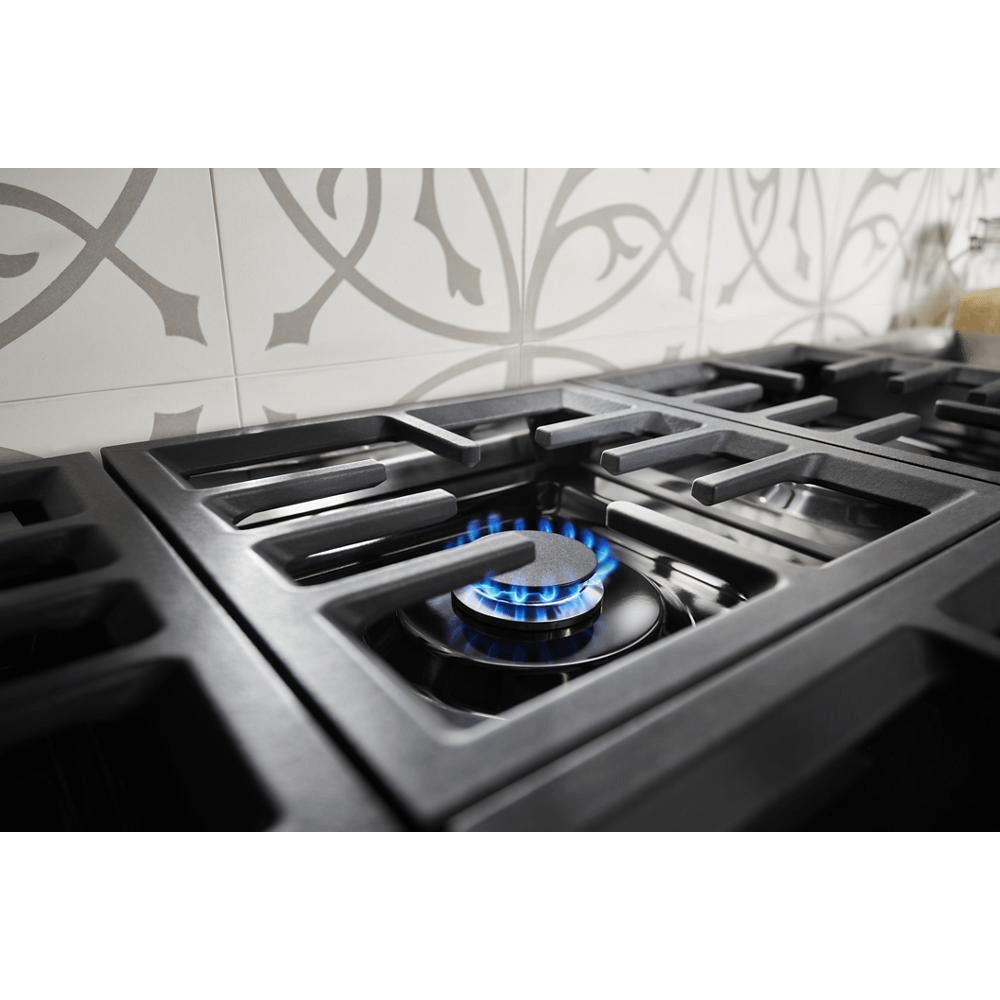

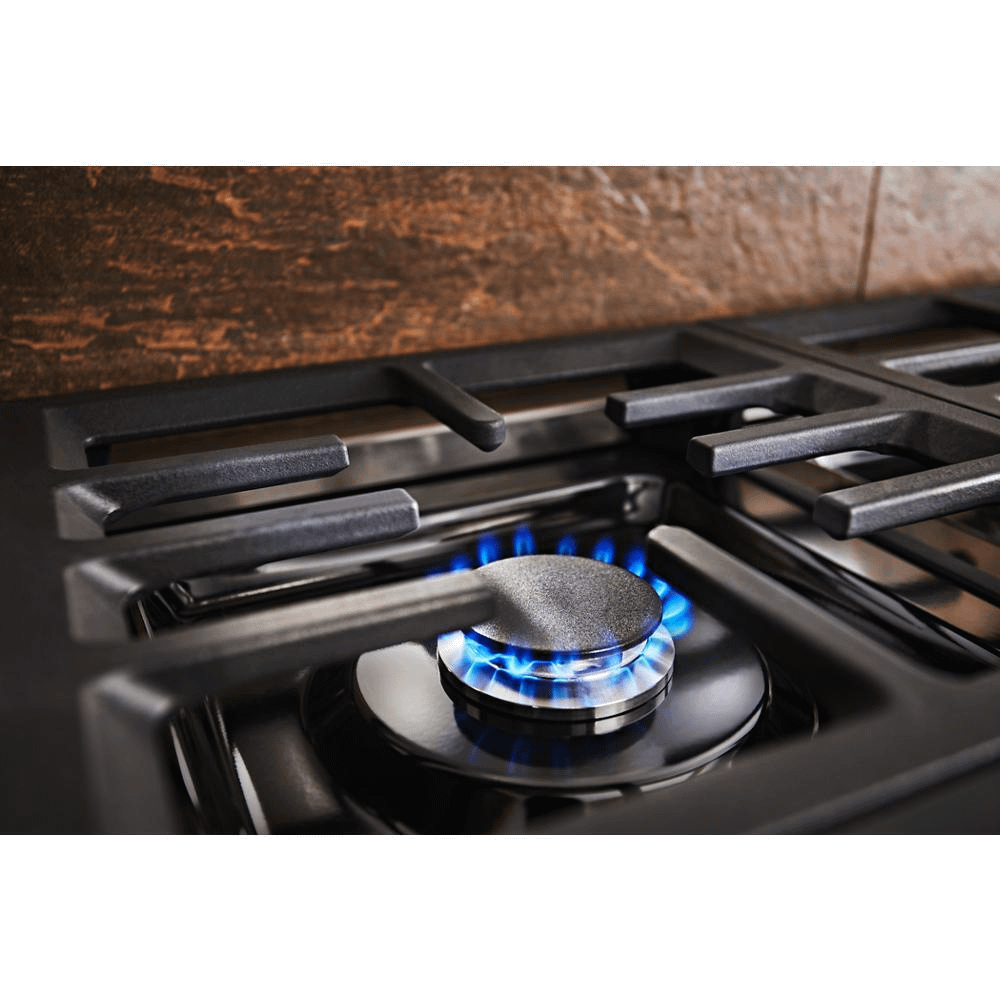

- Two 20,000 BTU Ultra Power(TM) Dual-Flame Burners
- give you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, saut(eback), simmer and sizzle, all on the same burner.
Certifications | |
Ada Compliant | No |
Cul | Yes |
Energy Rating | 279 |
Energy Rating (kwh/year) | 279 |
Prop65 | Standard |
Star K Certified | Yes |
Ul | Yes |
Cooktop Details | |
Auto Re-ignition | Yes |
Cooktop Control Knob Color | Stainless Steel |
Cooktop Control Knob Type | Metal |
Cooktop Control Location | Front |
Cooktop Control Type | Knobs |
Cooktop Surface Color | Black |
Cooktop Surface Material | Porcelain Coated Steel |
Griddle Included | Yes, Integrated |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | No |
Ignition Type | Flame-Sensing™ Re-ignition |
Details | |
Automatic Convection Conversion Temperature Adjust | Yes |
Cooktop Configuration | Burners with Integrated Griddle |
Fuel Type | Dual Fuel |
Lp Convertible | Yes - Kit Included |
Oven Automatic Shut-off | Yes |
Oven Configuration | Single Oven |
Oven Light Switch Location | Oven Control |
Oven Selections | Audible Signal; Bake; Broil; Cancel/Off; Convect Modes; Easy Convect Baked Goods; Easy Convect Meats; Easy Convect Pizza; Favorites; Keep Warm Setting; Proofing; Sabbath Mode; Temperature Probe |
Power On Indicator Light | Yes |
Power Outage Compatible | Yes |
Range Configuration | Freestanding |
Range Type | Freestanding |

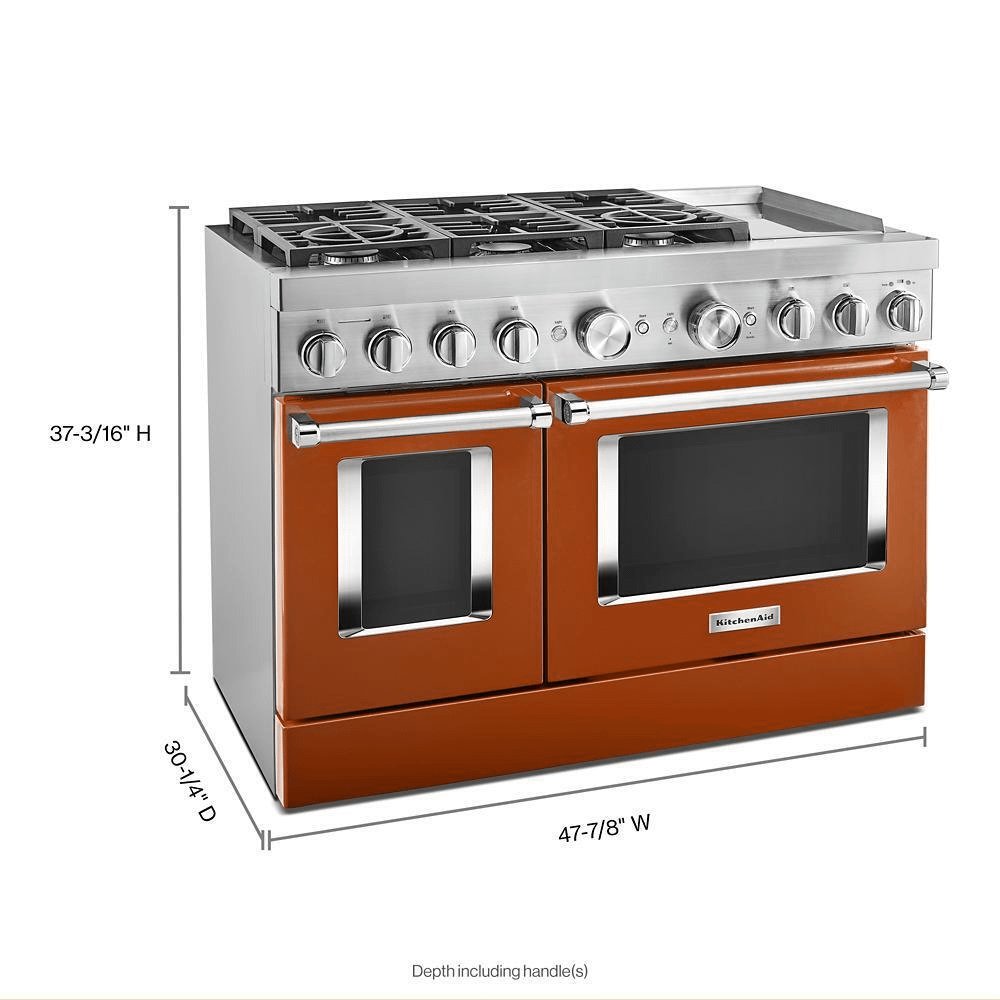

Dimensions | |
Carton Depth | 35.5 |
Carton Height | 47.5 |
Carton Width | 35.8 |
Cutout Depth | 24 |
Cutout Height | 36 |
Cutout Width | 48 |
Depth Closed Excluding Handles | 27.75 |
Depth Closed Including Handles | 30.25 |
Depth With Door Open 90 Degree | 46.5 |
Gross Weight | 408 |
Left Oven Capacity | 2.2 |
Left Oven Interior Depth | 16.3 |
Left Oven Interior Height | 14.3 |
Left Oven Interior Width | 12 |
Net Weight | 358 |
Right Oven Capacity | 4.1 |
Right Oven Interior Depth | 16.3 |
Right Oven Interior Height | 14.3 |
Right Oven Interior Width | 24 |
Electrical | |
Power Cord Included | No |
Element/burner Details | |
Center Front Element-burner Power | 15,000 BTU |
Center Front Element-burner Type | Sealed Burner |
Center Rear Element-burner Power | 5,000 BTU |
Center Rear Element-burner Type | Sealed Burner |
Cooktop Element Style | Sealed Burners |
Left Front Element-burner Power | 20,000 BTU/14,000 LP |
Left Front Element-burner Type | Dual-Stacked Burner |
Left Rear Element-burner Power | 15000 BTU/11000 LP |
Left Rear Element-burner Type | Sealed Burner |
Number of Cooking Element-burners | 6 |
Right Front Element-burner Power | 20,000 BTU/14,000 LP |
Right Front Element-burner Type | Dual-Stacked Burner |
Right Rear Element-burner Power | 15,000 BTU/11,000 LP |
Right Rear Element-burner Type | Sealed Burner |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Handle Type | Towel Bar |
Oven Control Knob Color | Stainless Steel |
Oven Control Knob Type | Metal |
Oven Control Location | Front |
Oven Control Type | Knobs |
Oven Window Size | Large |
Grate Details | |
Grate Details | Dishwasher Safe; Individual; Matte Finish; Porcelain Coated Cast Grates |
Number of Grates | 6 |
Oven Details | |
Bake Element Power | 3,000 W |
Broiler Element Power | 5,500 W |
Broiler Location | Top Center |
Convection Element Power | 1,600 |
Convection Element Power-left Oven | 1,600 |
Convection Element Type | True Bow Tie |
Convection Functions | Bake; Broil; Roast |
Door Removable | Yes |
Hidden Bake Element | Yes |
Interior Color | Black |
Natural Gas Convertible | Yes |
Number of Oven Lights | 2 Left / 3 Right |
Number of Oven Racks | 2 Left-3 Right |
Number of Rack Guides | 5 left-5 right |
Oven Cleaning Type | Self-Cleaning |
Oven Cooking System | True Convection |
Oven Light Type | Halogen |
Oven Rack Guide Type | Molded |
Oven Rack Type | Gliding Roll-Out; Standard (Both) |
Smart Compatibility | |
Connectivity | Amazon Alexa; Android; Google Assistant; iOS |
Smart Appliance | Yes |
Works With | App; Remote Access; Voice Controlled; WiFi |
