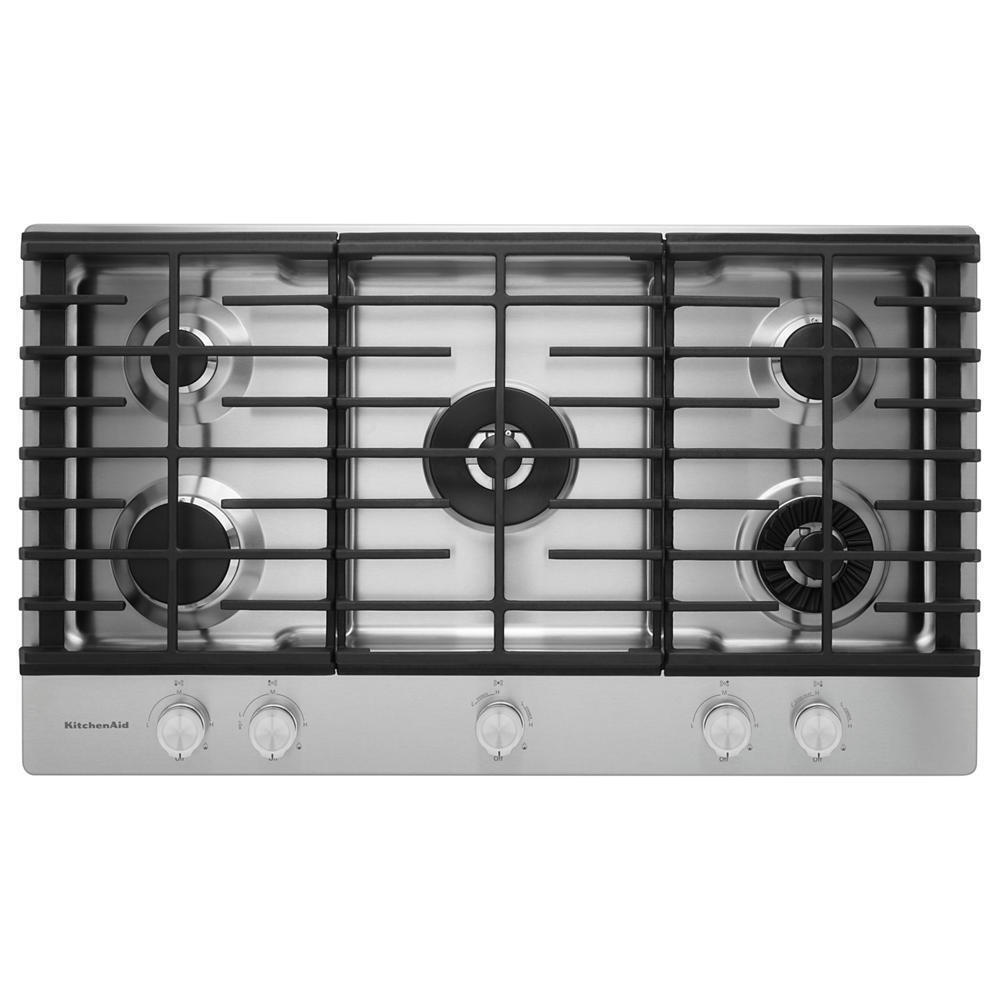

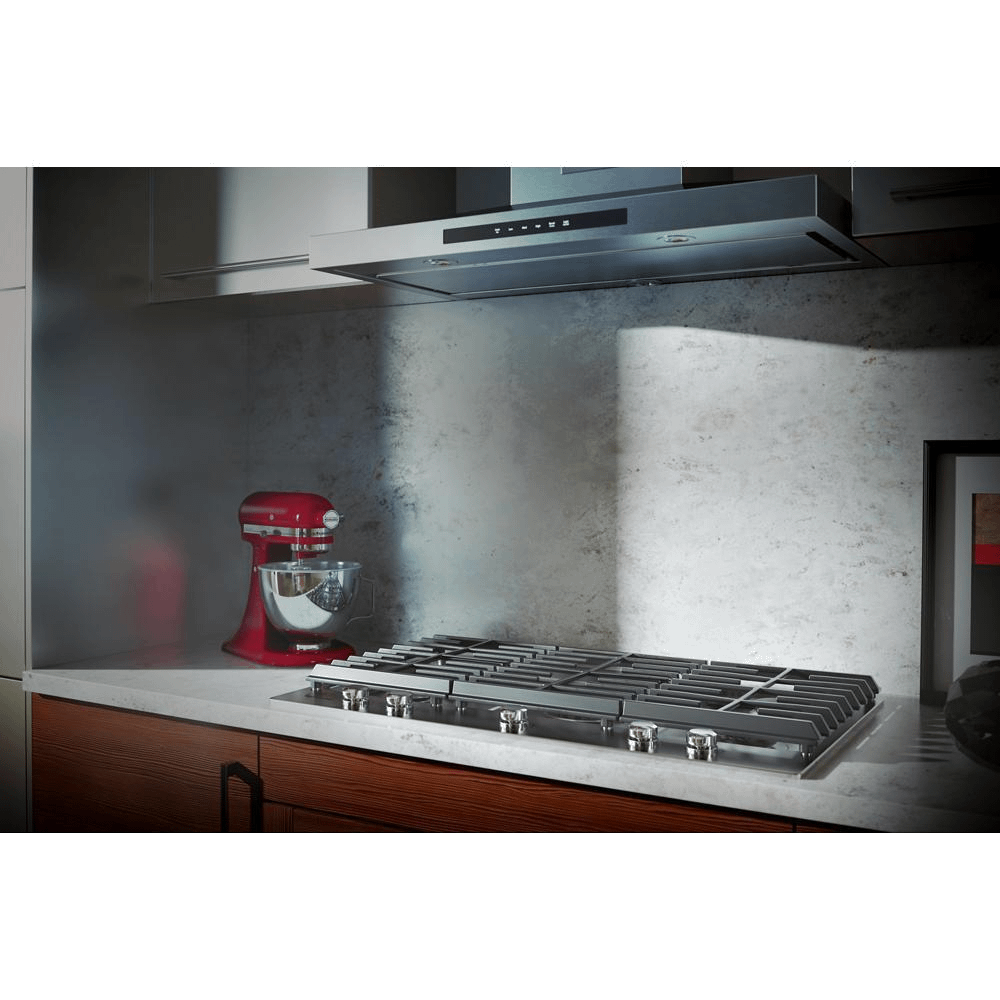

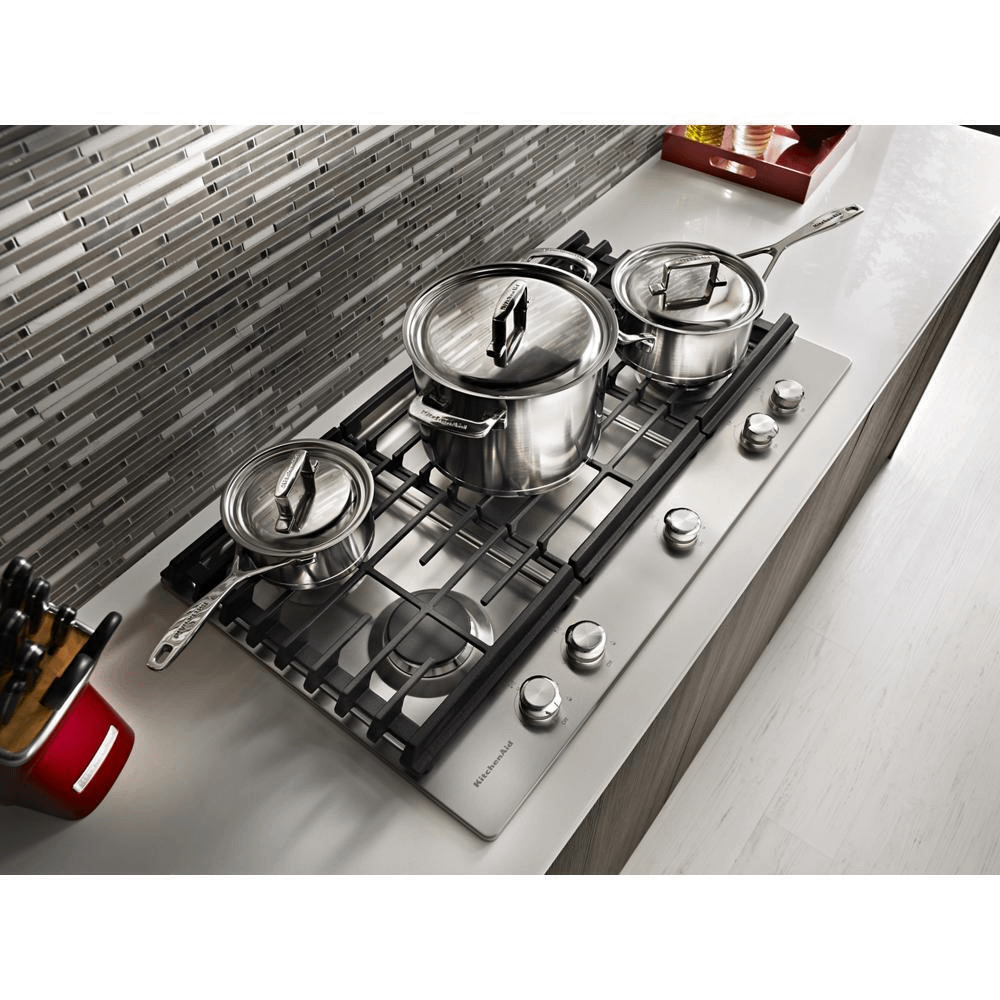

Five burners and a removable griddle give this 36-inch gas cooktop the power and versatility challenging recipes demand. The 20,000 BTU Professional Dual Ring Burner is among the most powerful in the industry, and our innovative Even-Heat™ Torch Burner provides even coverage to ensure proper heating without scorching. Multi-Finish Knobs and the scratch-resistant CookShield Finish help protect the surface against stains that may occur with high-temperature cooking.
- 10,000 BTU Even-Heat(TM) Torch Burner
- Features an exclusive design that provides a small flame for delicate simmering and a larger one that distributes high heat across the whole pan for more even cooking.
- 20,000 BTU Professional Dual Ring Burner
- Allows you to go from one small flame for precise simmering to a dual flame for powerful boiling, all on the same burner.
- 6,000 BTU Even-Heat(TM) Simmer Burner
- A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
- CookShield Finish
- protects the cooktop from stains that may
occur with high temperature cooking. The
permanent finish makes it easy to wipe clean
without harsh chemicals so it looks clean,
bright and beautiful even longer. - Electronic Ignition and Automatic Re-Ignition
- Lights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.
- Full-Width Cast-Iron Grates
- Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
- LP Conversion Kit
- Allows you to convert the cooktop so it can be used with LP gas.
- Multi-Finish Back-Lit Knobs
- Deliver a beautiful accent with pleasant LED lights that let you know when the burner is in use.

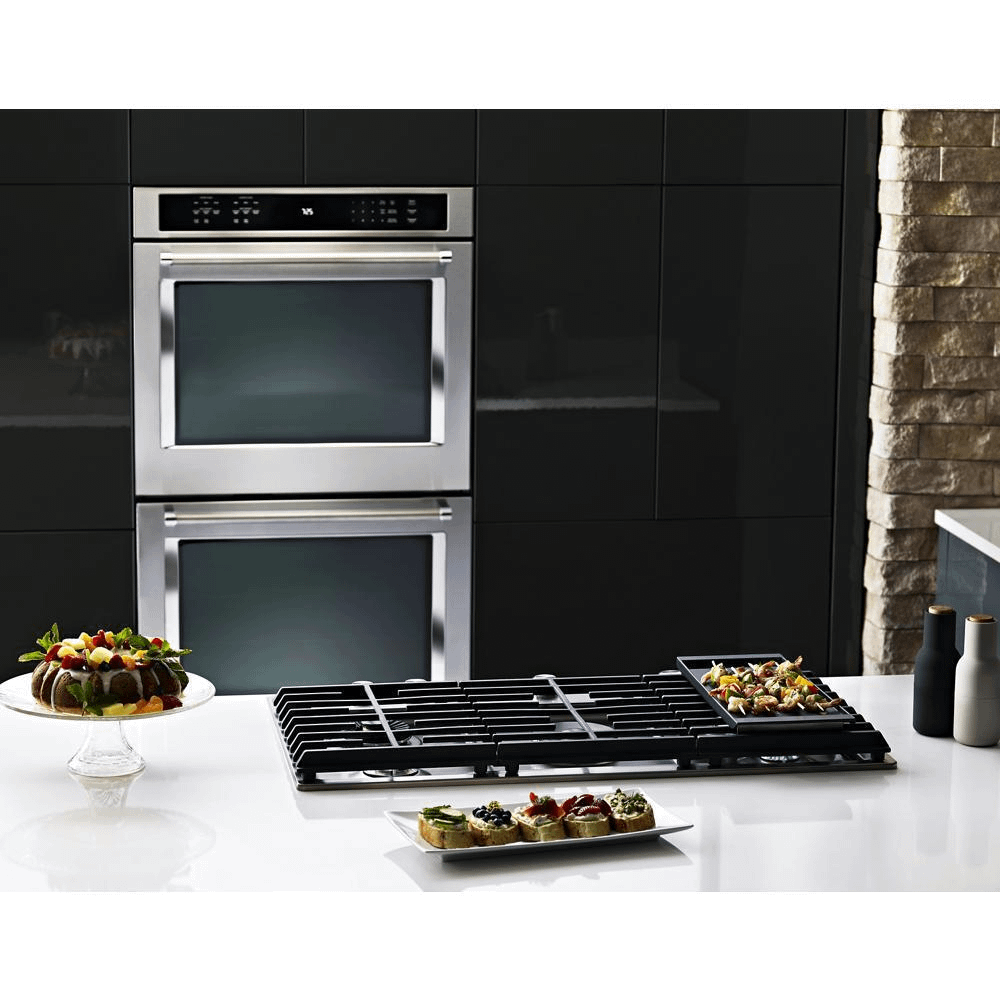

- Removable Griddle Included
- Provides a one-piece flat surface that can be used on the right, left, or center of the cooktop surface, and is ideal for making a range of dishes from crepes to quesadillas.
Certifications | |
Ada Compliant | ADA Height and Side Reach Compliant |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Front |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Color Coordinated |
Cooktop Surface Material | Stainless Steel |
Digital Display | No |
Griddle Included | Included |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | No |
Ignition Type | Direct Spark Ignition |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Combinations With Oven | KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
Cooktop Selections | Automatic Reignition; Simmer |
Fuel Type | Gas |
Installs Over Built-in Oven | Yes |
Lp Convertible | Yes - Kit Included |
Power Outage Compatible | Yes |
Dimensions | |
Product Height | 3.6875 |
Carton Height | 12.04 |
Gross Weight | 74 |
Carton Width | 44.41 |
Product Depth | 21.0 |
Cutout Depth Max | 20 |
Cutout Width Min | 34.875 |
Cutout Depth | 19.813 |
Cutout Height | 5.25 |
Carton Depth | 25 |
Cutout Width | 35.188 |
Cutout Depth Min | 19.5 |
Cutout Width Max | 35.625 |
Net Weight | 0 |
Product Width | 36.25 |
Electrical | |
Power Cord Included | Yes |
Element/burner Details | |
Center Rear Element-burner Power | 20,000 BTU |
Center Rear Element-burner Type | Professional Dual Tier |
Cooktop Element Style | Sealed Burner |
Cooktop Type | Standard |
Left Front Element-burner Power | 12,000 BTU |
Left Front Element-burner Type | Burner |
Left Rear Element-burner Power | 6,000 BTU |
Left Rear Element-burner Type | Simmer |
Number of Cooking Element-burners | 5 |
Power Boost | No |
Right Front Element-burner Power | 10,000 BTU |
Right Front Element-burner Type | Even-Heat™ |
Right Rear Element-burner Power | 7,000 BTU |
Right Rear Element-burner Type | Burner |
Exterior Details | |
Knob Color | Stainless Steel - Lighted Knobs |
Knob Type | Metal |
General | |
Combination Match With Oven | KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
Grate Details | |
Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
Number of Grates | 3 |
Ventilation Details | |
Downdraft Vent | No |
