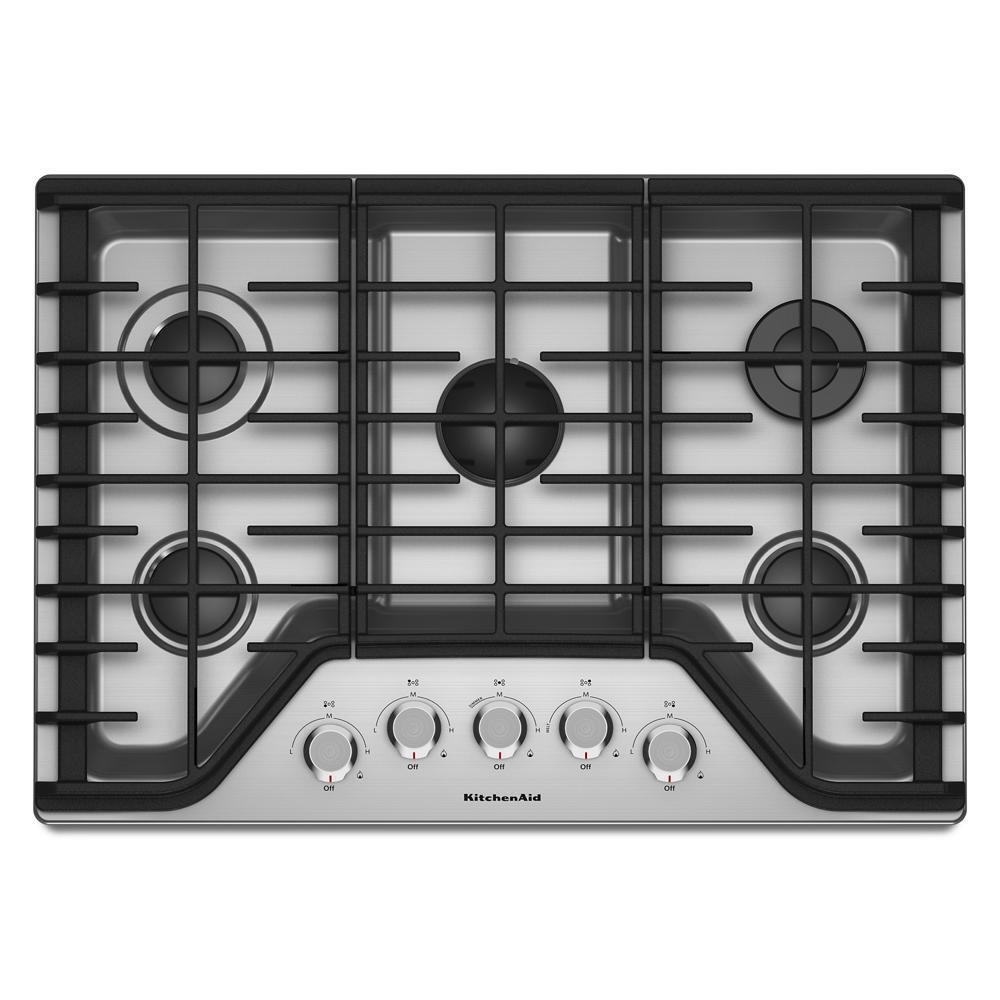

A 17,000 BTU Multiflame Burner and 5,000 BTU Even-Heat™ Simmer Burner are two of five burners that make this 30-inch gas cooktop a workhorse for any kitchen. You'll love the feel of the Multi-Finish Knobs and the continuous cast-iron grates that allow you to effortlessly move pots from one burner to another.
- 17,000 BTU Multiflame Burner
- Works as an all-purpose professional burner, providing the ability to use both high- and low-temperature cooking methods so you can go from a boil to a simmer without changing burners.

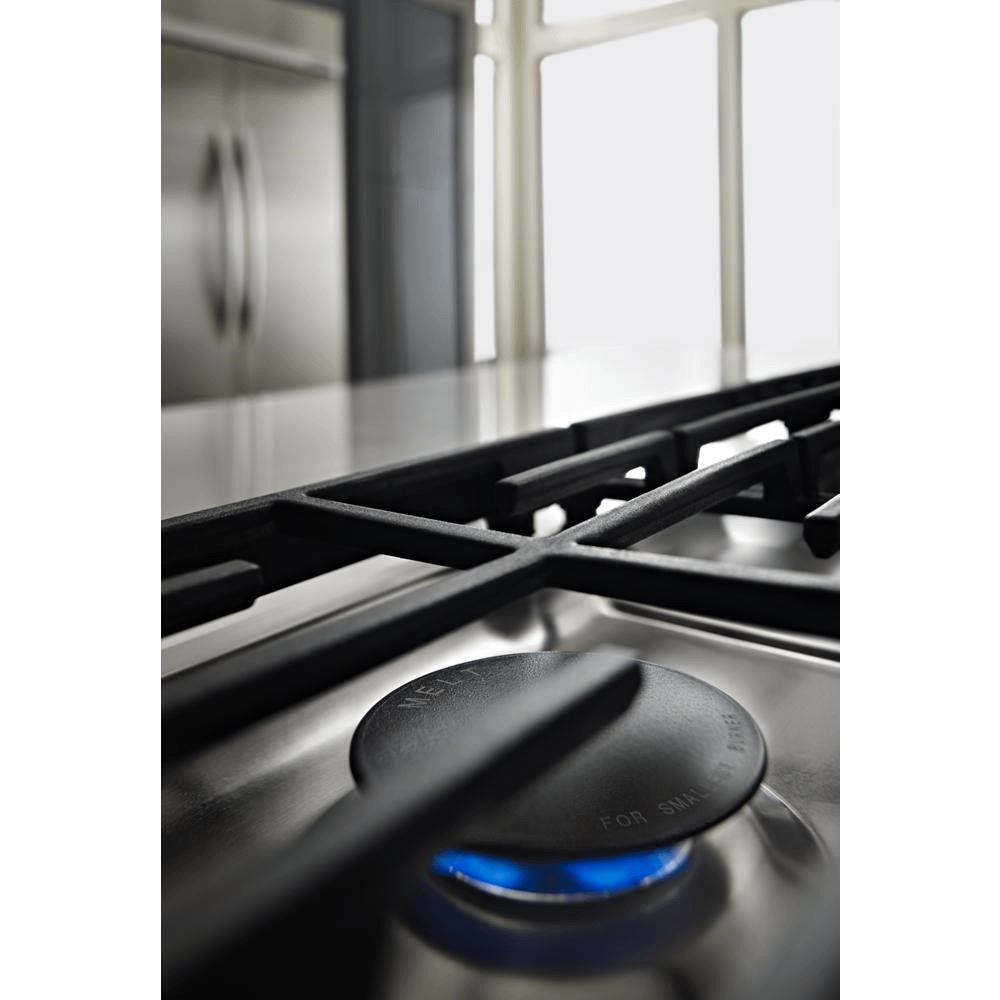

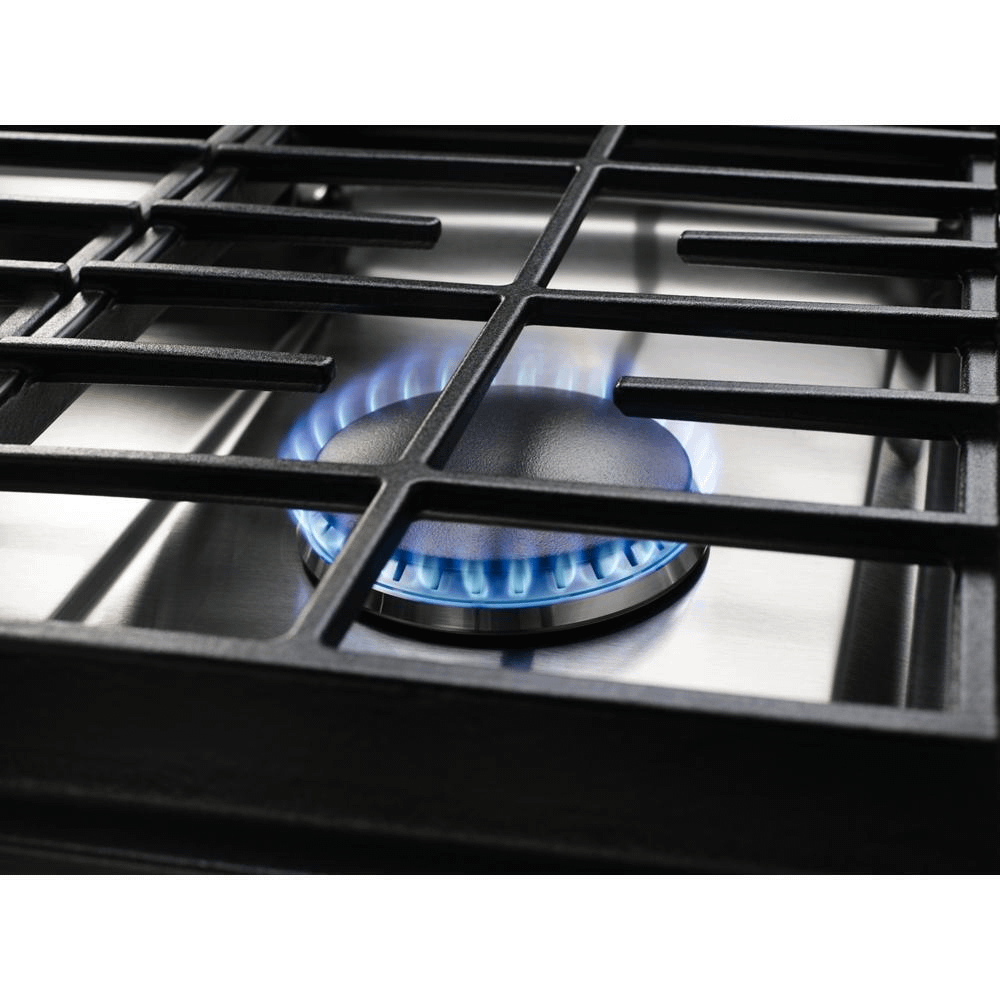

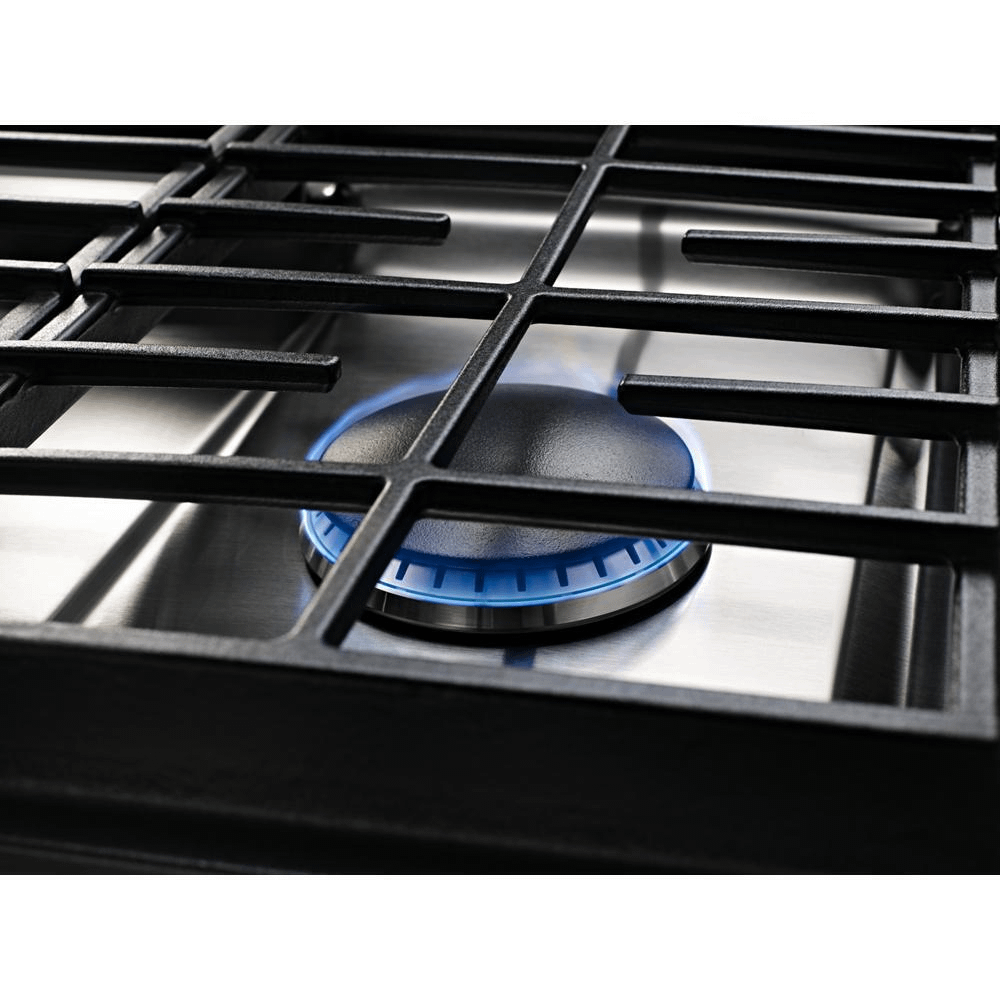

- 5,000 BTU Even-Heat(TM) Simmer Burner
- A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.

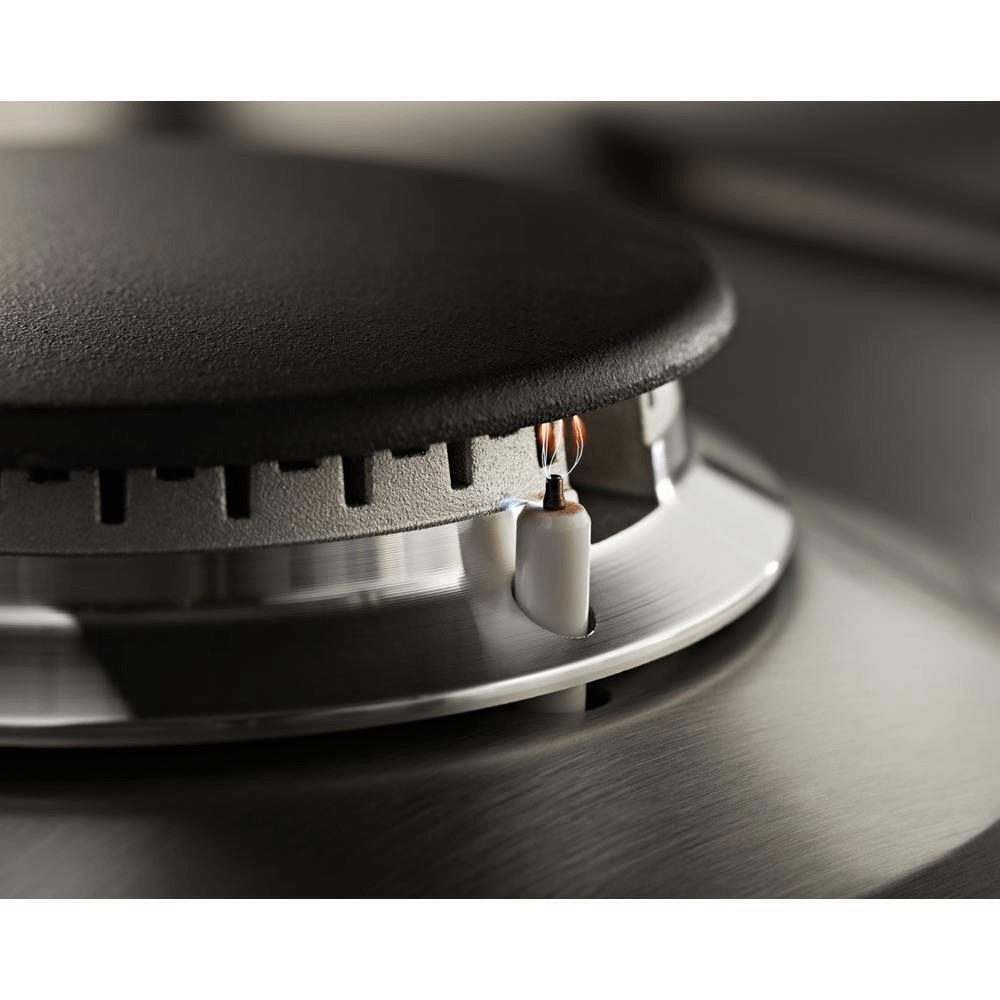

- Electronic Ignition
- Automatically lights burners so no standing pilot light is needed

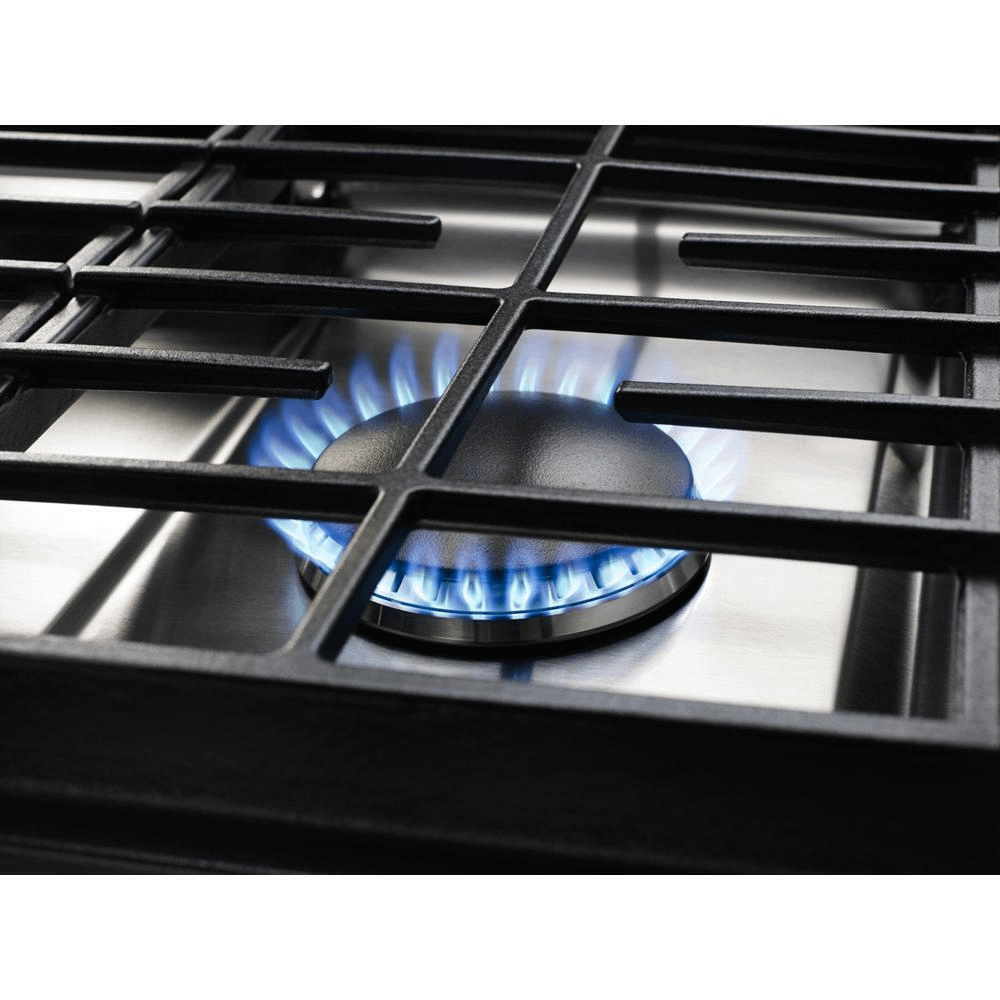

- Full-Width Cast-Iron Grates
- Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.

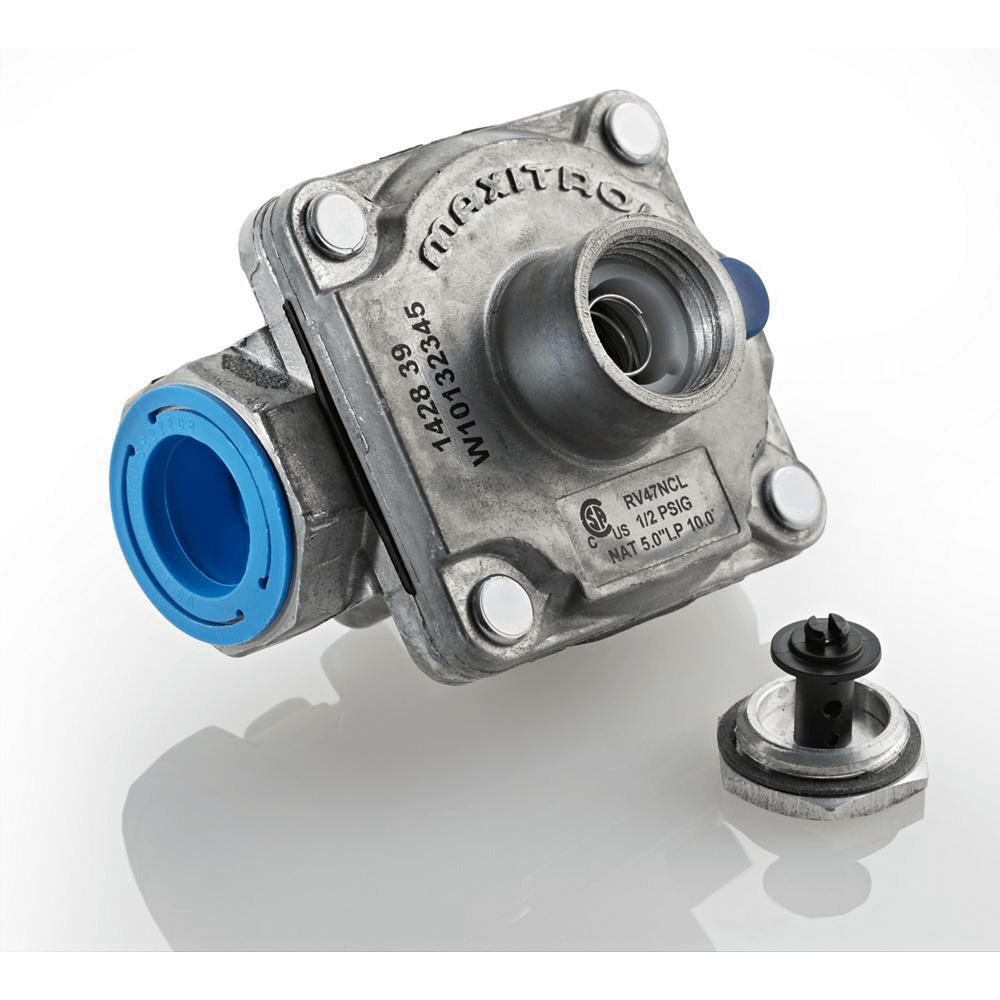

- LP Conversion Kit
- Allows you to convert the cooktop so it can be used with LP gas.

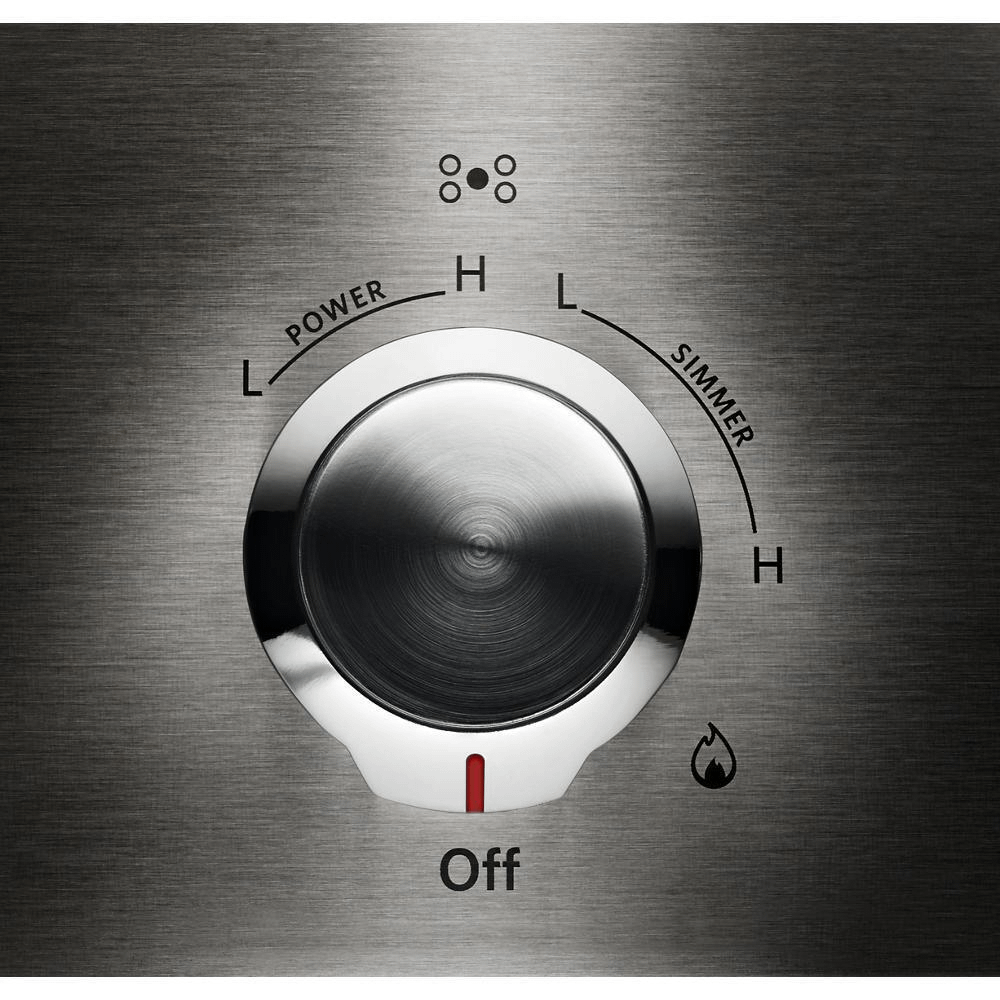

- Multi-Finish Knobs
- Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
Certifications | |
Ada Compliant | ADA Height and Side Reach Compliant |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Front |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Color Coordinated |
Cooktop Surface Material | Stainless Steel |
Digital Display | No |
Griddle Included | Optional Accessory |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Ignition Type | Direct Spark Ignition |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Combinations With Oven | KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
Fuel Type | Gas |
Installs Over Built-in Oven | Yes |
Lp Convertible | Yes - Kit Included |
Power Outage Compatible | Yes |

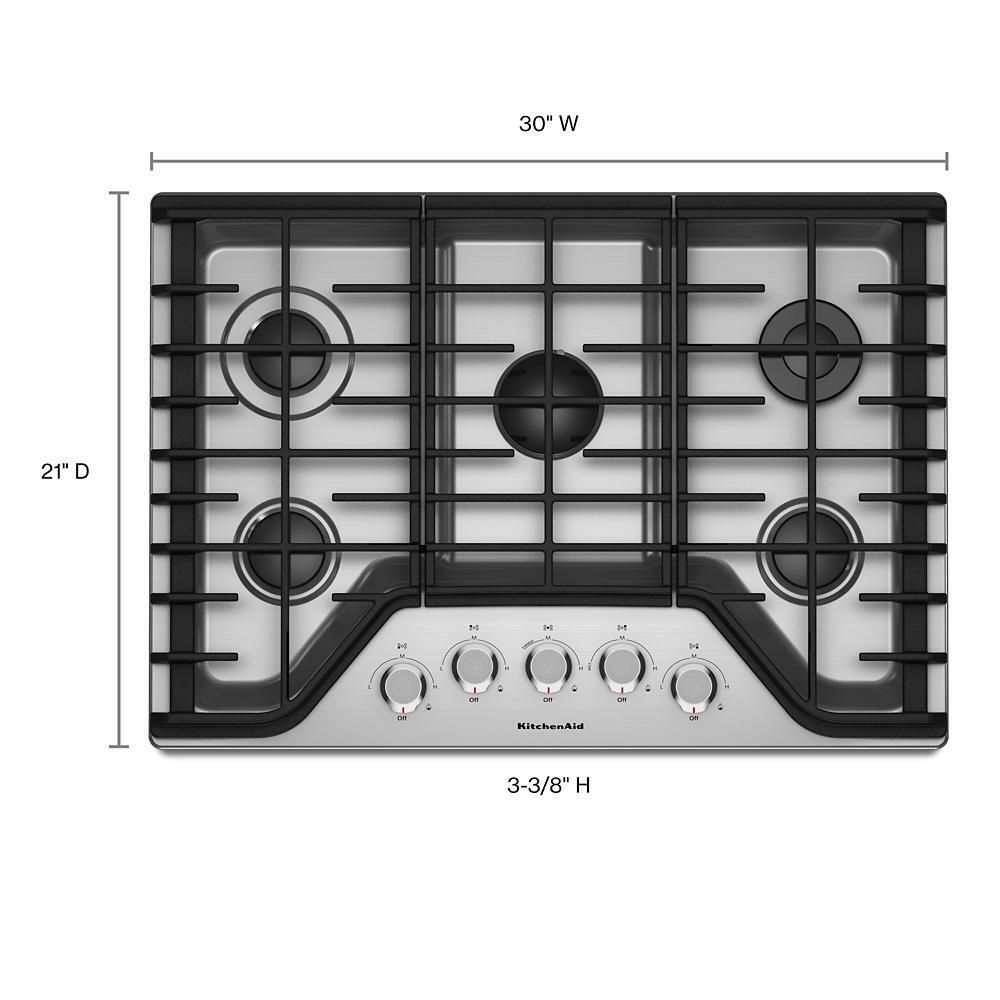

Dimensions | |
Product Height | 3.6875 |
Carton Height | 12.04 |
Gross Weight | 62 |
Carton Width | 34.76 |
Product Depth | 21.0 |
Cutout Depth Max | 20 |
Cutout Depth | 19 |
Cutout Height | 5.25 |
Carton Depth | 25 |
Cutout Width | 29 |
Cutout Width Max | 29.313 |
Net Weight | 58 |
Product Width | 30.0 |
Electrical | |
Power Cord Included | Yes |
Element/burner Details | |
Center Rear Element-burner Power | 17,000 BTU |
Center Rear Element-burner Type | Dual |
Cooktop Element Style | Sealed Burner |
Cooktop Type | Standard |
Left Front Element-burner Power | 9,100 BTU |
Left Front Element-burner Type | Burner |
Left Rear Element-burner Power | 10,000 BTU |
Left Rear Element-burner Type | Burner |
Number of Cooking Element-burners | 5 |
Power Boost | No |
Right Front Element-burner Power | 9,100 BTU |
Right Front Element-burner Type | Burner |
Right Rear Element-burner Power | 5,000 BTU |
Right Rear Element-burner Type | Simmer |
Exterior Details | |
Knob Color | Stainless Steel |
Knob Type | Metal |
General | |
Combination Match With Oven | KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
Grate Details | |
Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
Number of Grates | 3 |
Ventilation Details | |
Downdraft Vent | No |
