Indulge your untamed appetite for more with a radiant cooktop that unleashes heat at your command. Experience a surface that ascends to new levels of power and precision. Potent. Palatable. A force to be reckoned with, featuring the most powerful radiant element in its class.

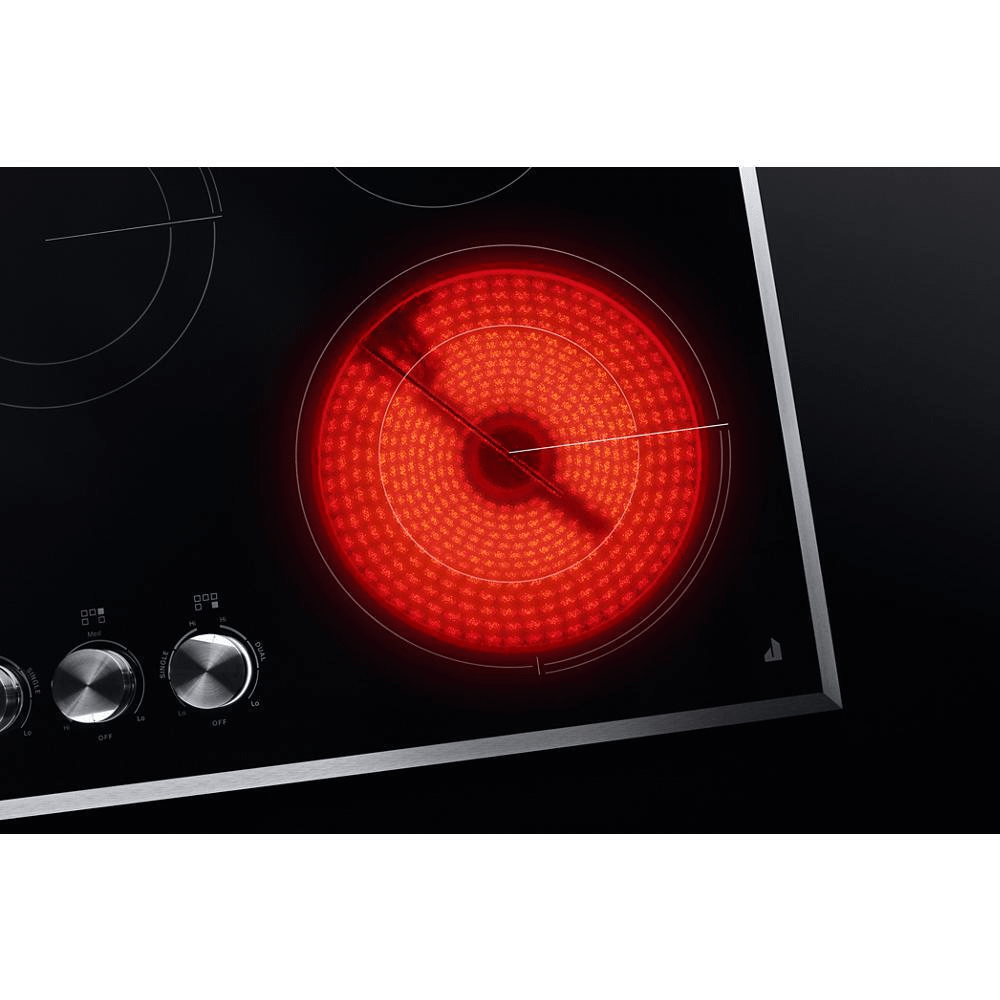

- 10 /6 Dual-Choice(TM) Element
- This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of up to 3,000 watts when both elements are active.
- This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of up to 3,000 watts when both elements are active.

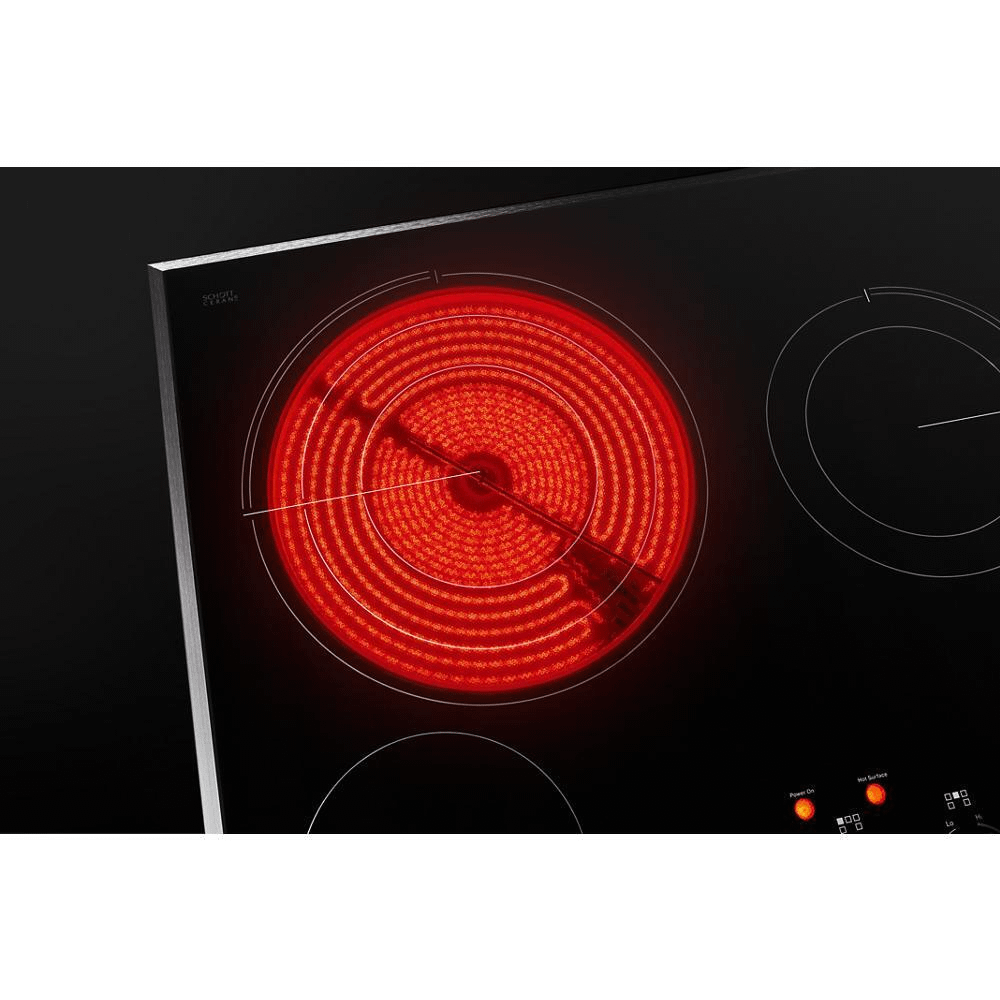

- 12 /9 /6 Triple-Choice(TM) Element
- Reaching a powerful 4,500 watts, this three-tiered element provides versatility in both power levels and heating efficiency while accommodating various-sized cookware.
- 6 1,200-Watt Single Element
- A fast-heating heating element ideally sized for small sauce pans and sauciers that can reach up to 1,200 watts of power.
- 6 1,300-Watt Single Element
- A fast-heating element ideally sized for small sauce pans and sauciers that can reach up to 1,300 watts of power and as low as 300 watts.
- 9"/6" Dual-Choice(TM) Element
- Enjoy cooking flexibility and efficiency with an electric element that features two element sizes at one position with a maximum output of 2,000 watts for greater cooking flexibility.
- ADA Compliant
- Designed to meet ADA standards when installed according to the ADA guidelines.
- Badasses at the Ready
- Our crew relentlessly engages with JennAir(R) appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you-from sales to installation to ownership.

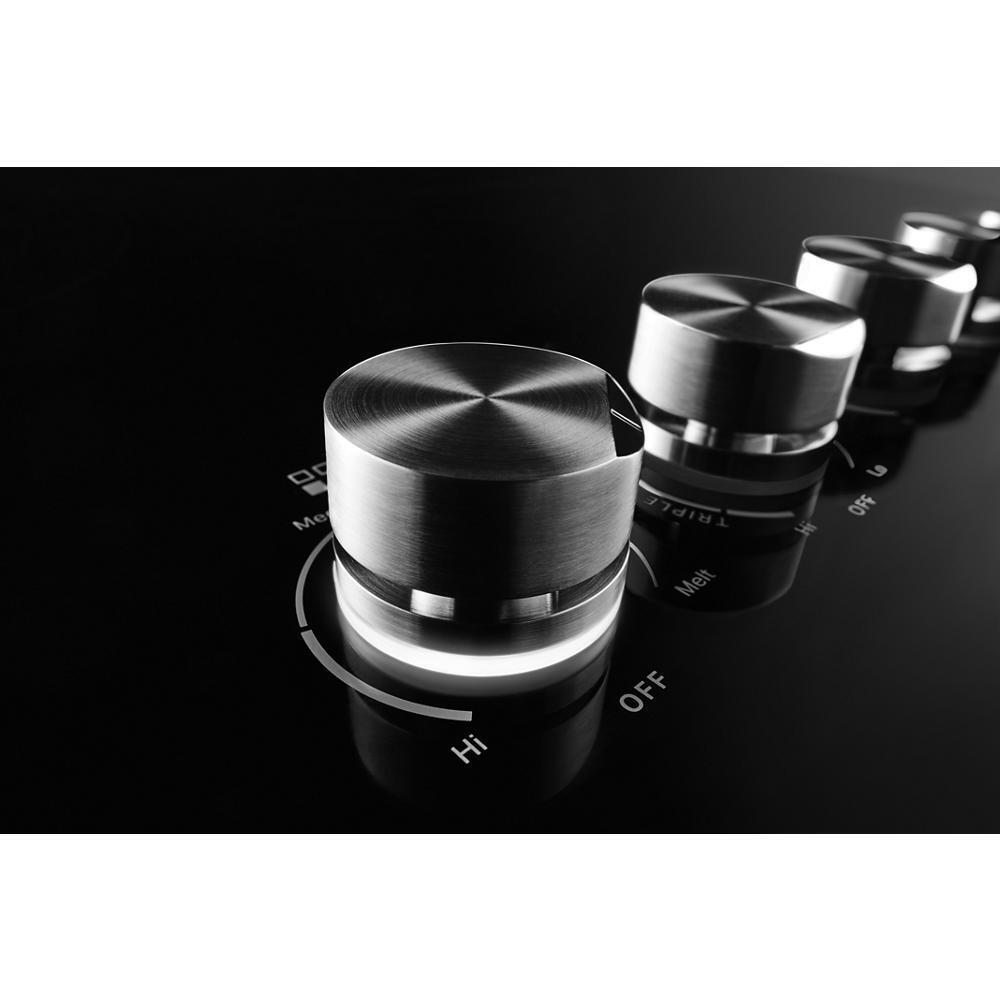

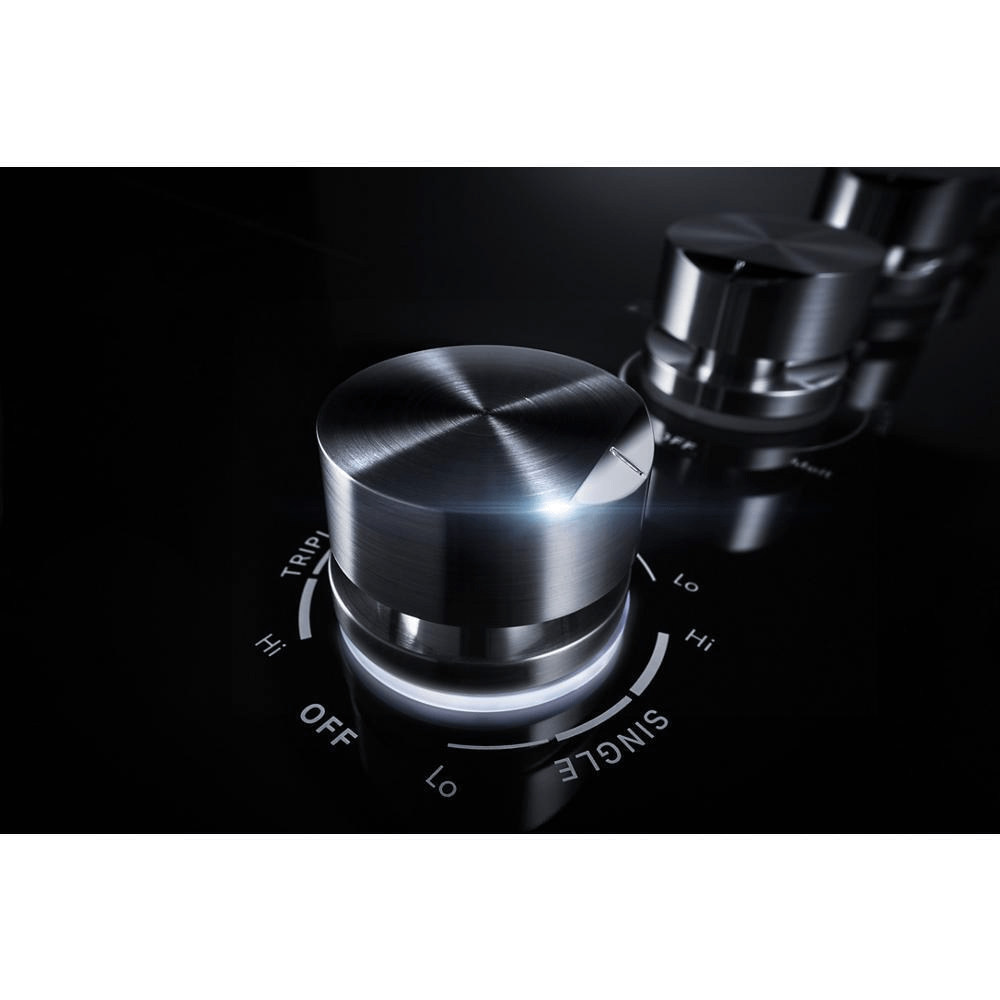

- Halo-Effect Knobs
- A halo of luminary LEDs glows softly when the element is on.
- Hot Surface Indicators
- Light(s) positioned at the controls instantly show which element is still hot-even if the element has been turned off.
- Install Over Single Wall Oven
- Versatility and functionality converge with the ability to install in a countertop above our single wall oven.

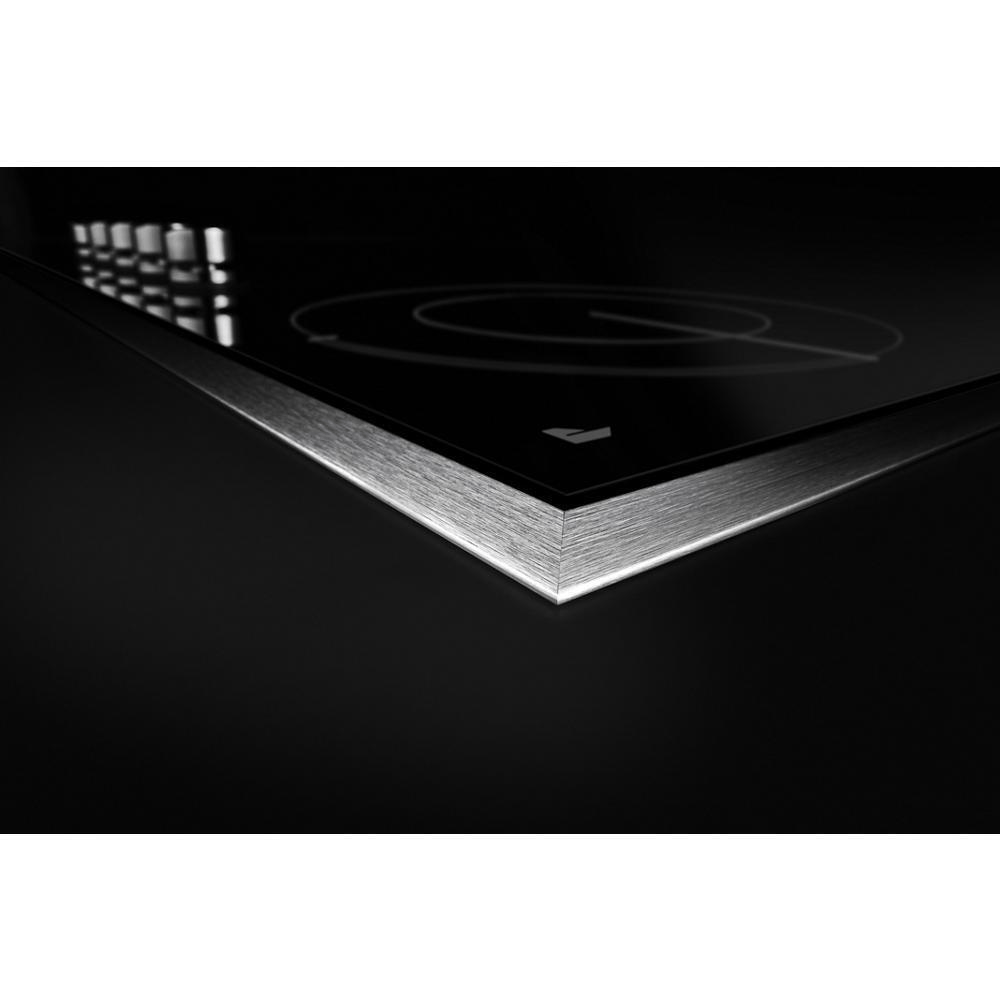

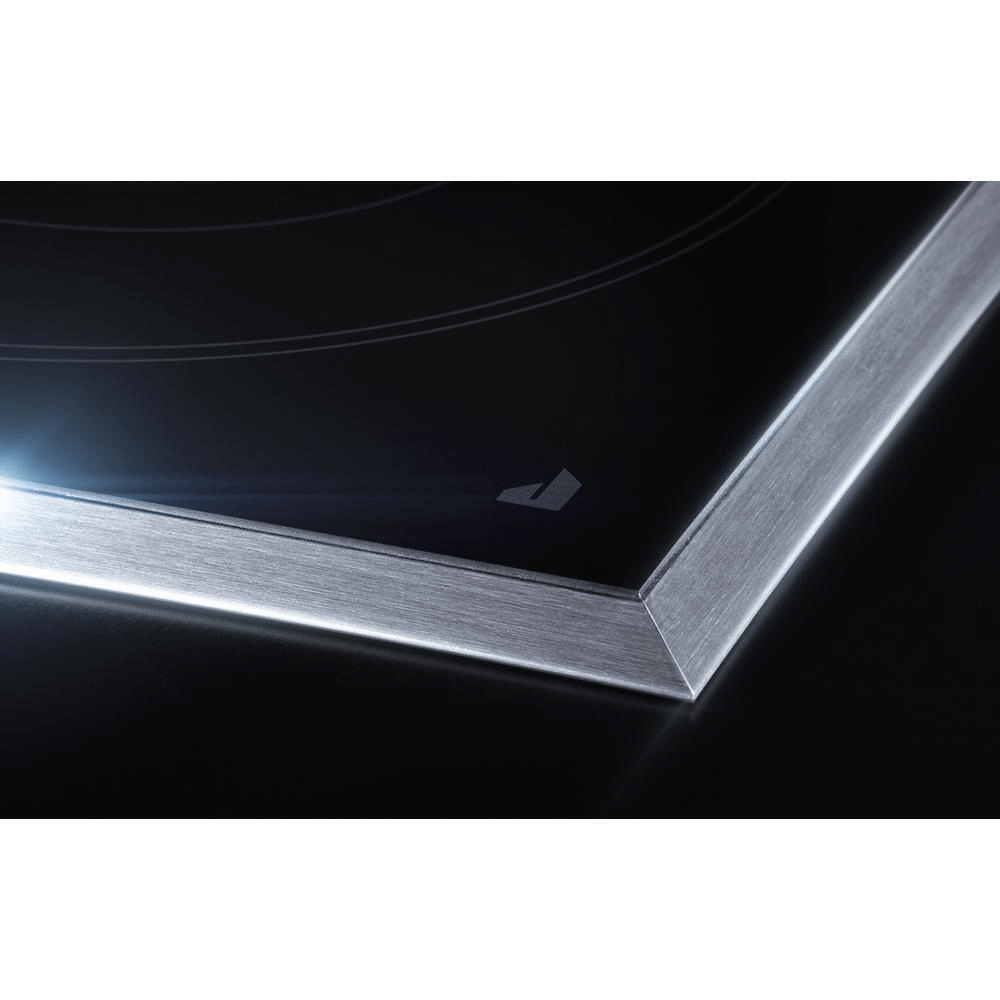

- Lustre Brushed Metal Design
- Blur the lines of temptation with tight corners of lustrous brushed metal that will leave you reeling.
- Melt Function
- Ribbons of molten chocolate. Butter that yields to your knife. All elements are at your beck and call, ready to melt and soften with delicate heat that ignites passionate appetites.
- Oblivion Glass Surface
- Plunge into the tranquility of smooth, shadow-black glass that lures you in-and wipes down easily.
- Power On Indicator Light
- See at a glance that power is on for an electric radiant element.

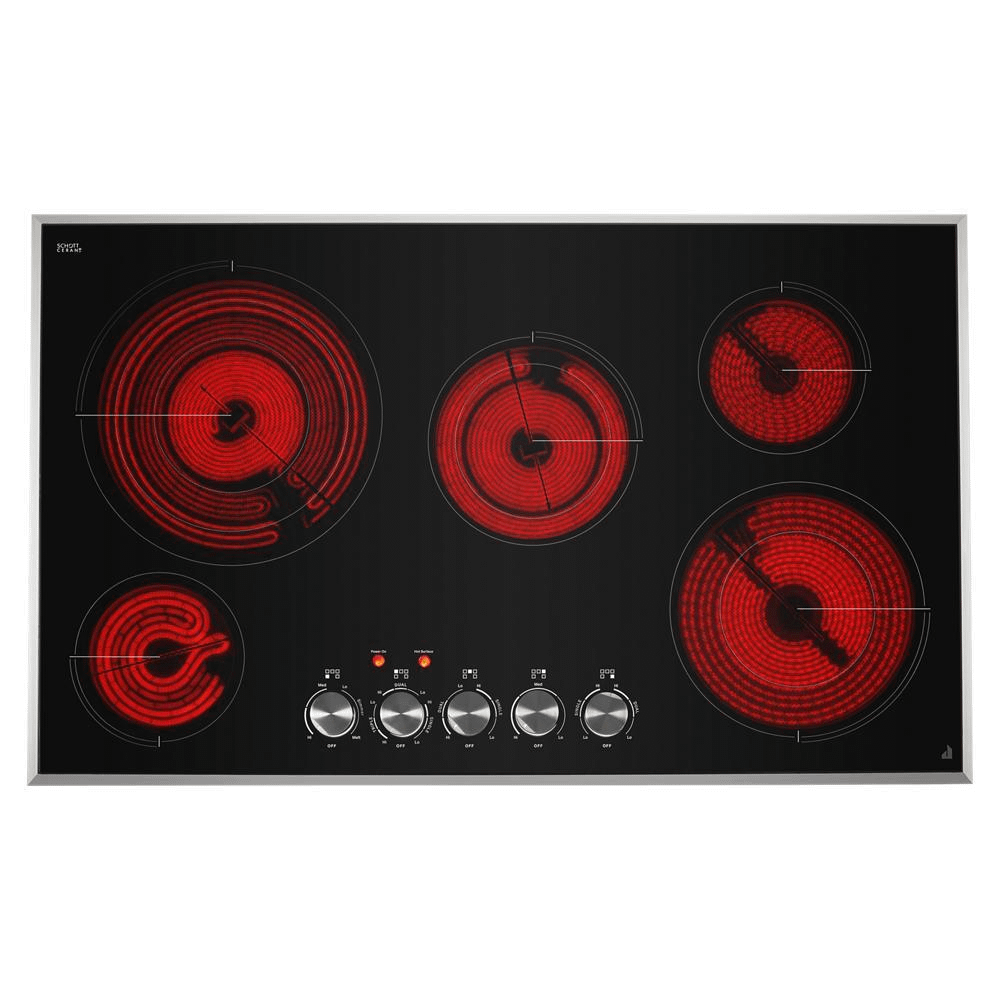

- Radiant Elements
- Beneath the sleek, black cooktop surface, fast-heating elements deliver heat upon command.
- Serviced by a Select Few
- We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
- Simmer Function
- Provides the optimal temperature for gently cooking delicate sauces and foods.

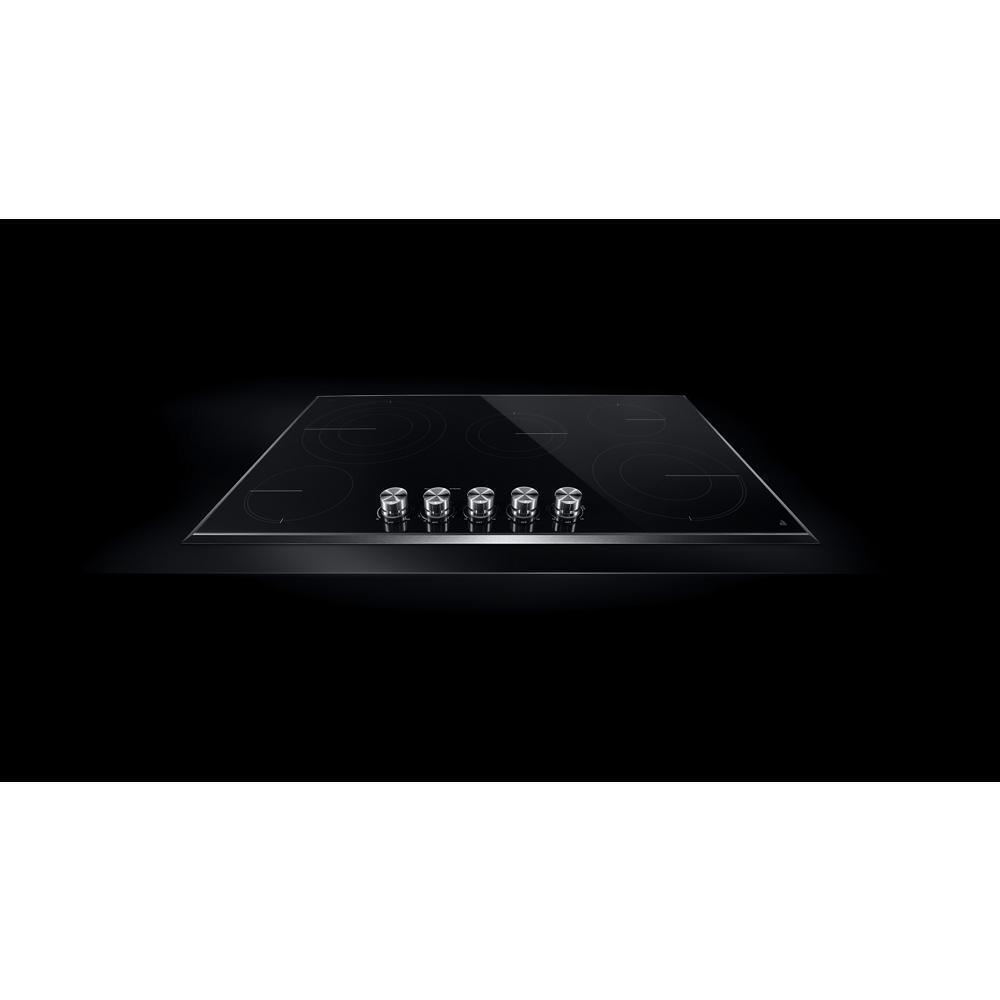

- True Flush Installation
- Pique curiosity. A true flush installation makes the black surface melt into its surroundings, luring you in and creating a seamless sightline throughout your kitchen.
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Front |
Control Type | Knobs |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Digital Display | No |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Combinations With Oven | JJW2424; JJW2427; JJW2430; JJW3430; JJW6024 |
Cooktop Configuration | All Burners |
Design Expression | Lustre Stainless |
Fuel Type | Electric Radiant |
Installs Over Built-in Oven | Yes |
Lp Convertible | No |
Power Outage Compatible | No |
Dimensions | |
Product Height | 6.0625 |
Carton Height | 10.25 |
Gross Weight | 50 |
Carton Width | 40.75 |
Product Depth | 21.75 |

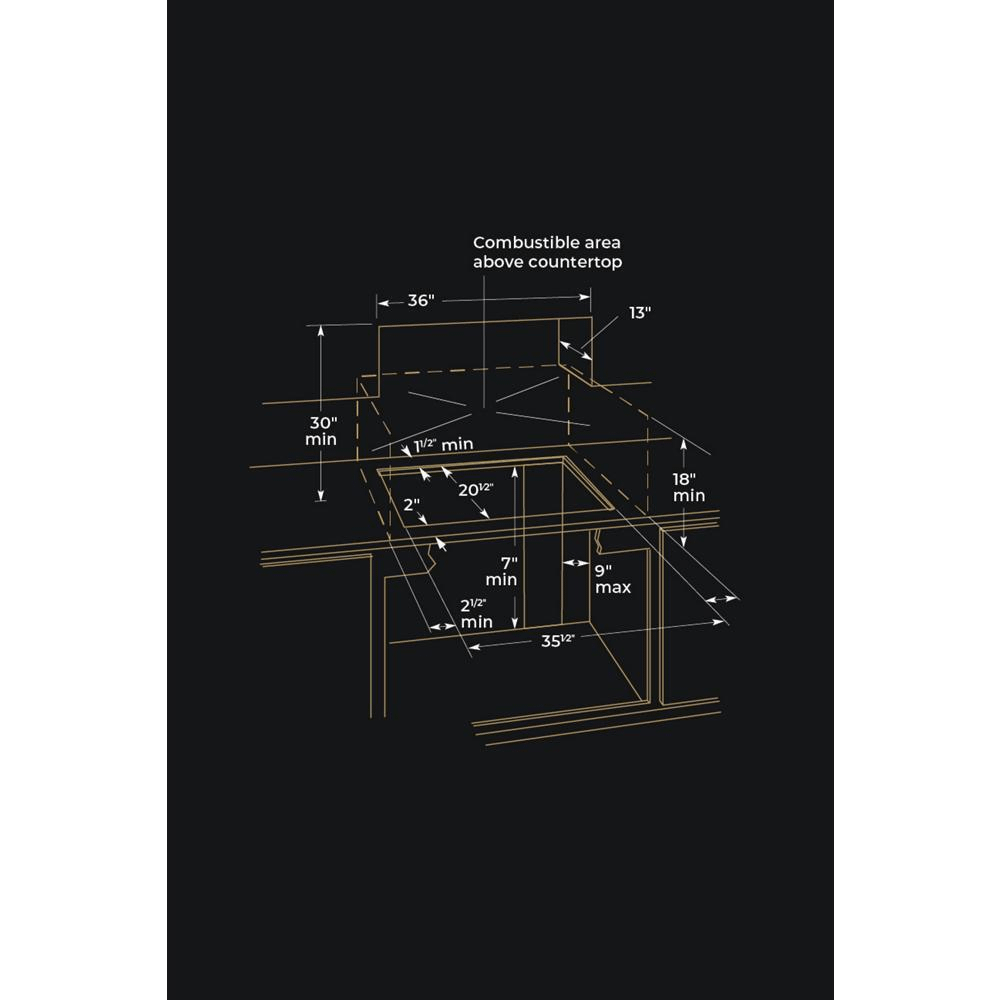

Cutout Depth Max | 20.563 |
Cutout Width Min | 34.563 |
Cutout Depth | 20.375 |
Carton Depth | 25 |
Cutout Width | 34.563 |
Cutout Depth Min | 20.375 |
Cutout Width Max | 35.563 |
Net Weight | 44 |
Product Width | 36.3125 |
Electrical | |
208v Compatible | Yes |
Power Cord Included | No |

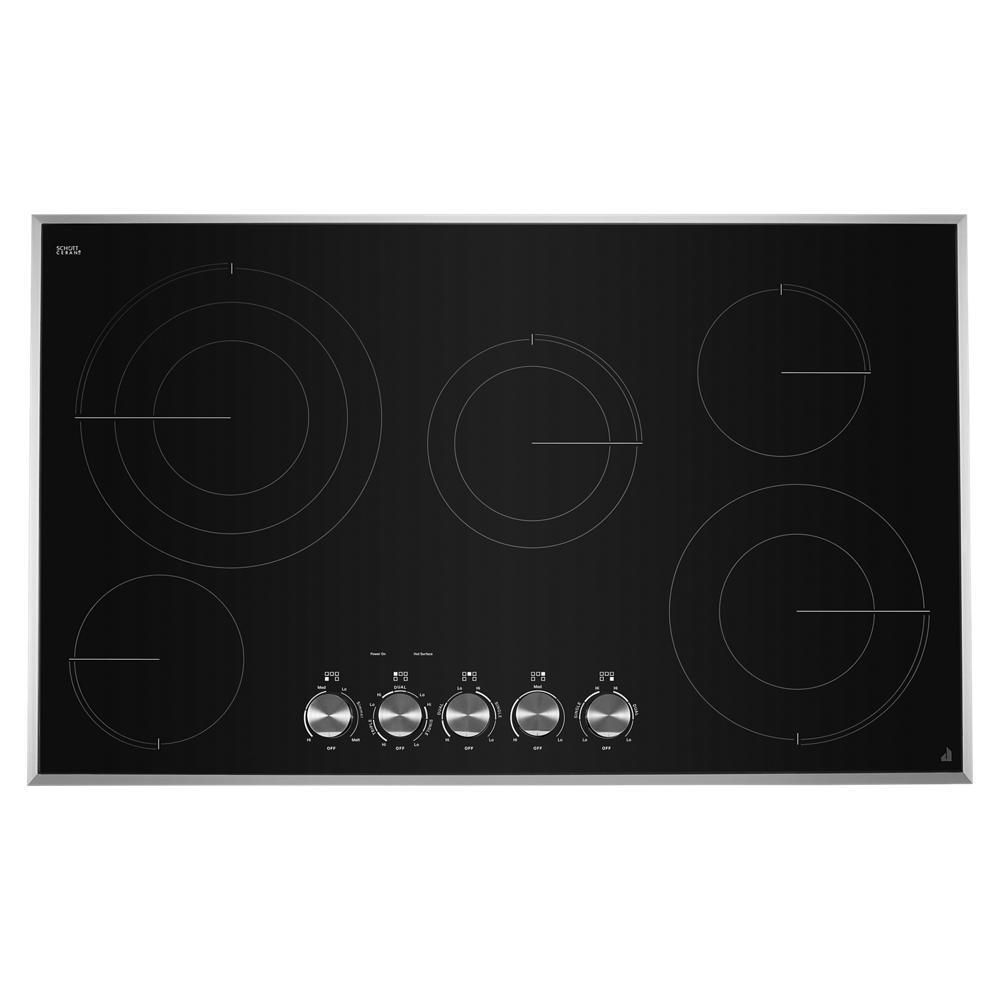

Element/burner Details | |
Center Rear Element-burner Power | 2000/1000W |
Center Rear Element-burner Size | 9in./6in. |
Cooktop Element Style | Radiant |
Cooktop Type | Traditional |
Left Front Element-burner Power | 1,300W |
Left Front Element-burner Size | 6in. |
Left Front Element-burner Type | Standard |
Left Rear Element-burner Power | 3000W/2200W/1100W |
Left Rear Element-burner Size | 12in./9in./6in. |
Left Rear Element-burner Type | Triple |

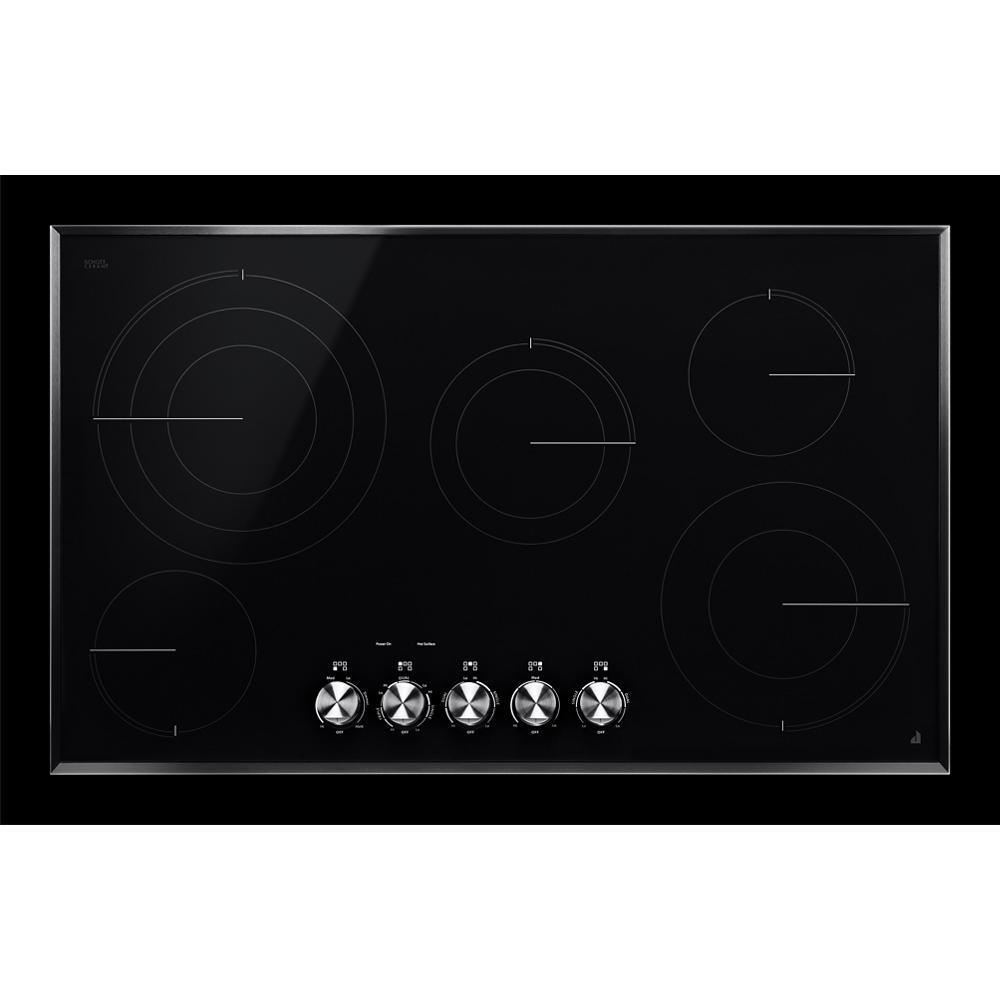

Number of Cooking Element-burners | 5 |
Power Boost | No |
Right Front Element-burner Power | 3000W/1900W |
Right Front Element-burner Size | 10in./6in. |
Right Front Element-burner Type | Dual |
Right Rear Element-burner Power | 1,200W |
Right Rear Element-burner Size | 6in. |
Right Rear Element-burner Type | Standard |
Exterior Details | |
Knob Color | Stainless Steel |
Knob Type | Metal |
General | |
Combination Match With Oven | JJW2424; JJW2427; JJW2430; JJW3430; JJW6024 |
Ventilation Details | |
Downdraft Vent | No |
