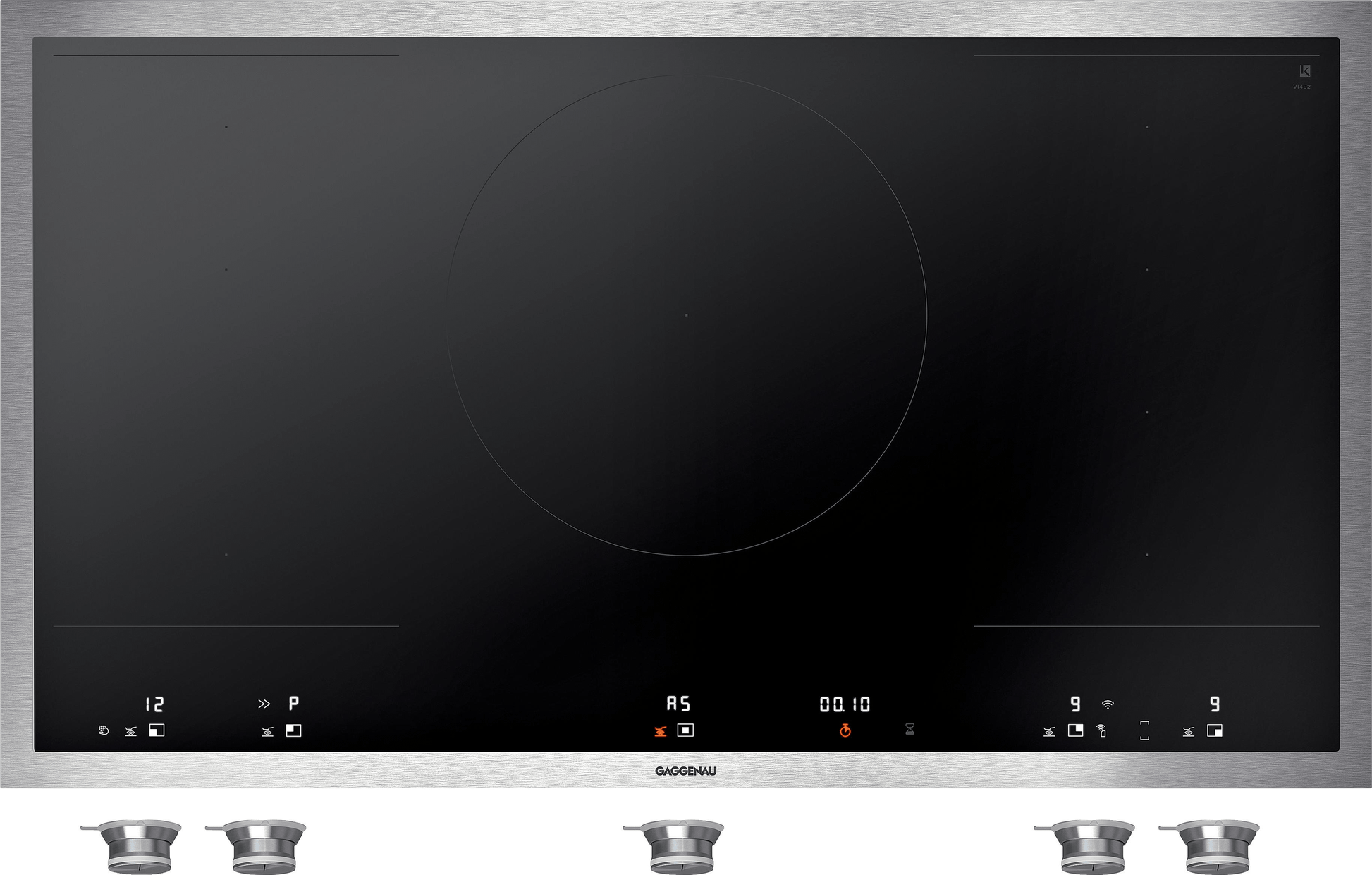

Gaggenau VI492613 400 Series Vario Flex Induction Cooktop 36''
Request a Consultation or Quote
Reach out for a personalized quote or consultation. Our team will get back to you quickly with tailored advice and pricing.
Call us to learn about discounts on display models and Grade A open boxes!
Why Isn't Pricing Shown?
Pricing for these premium products isn't displayed online due to industry policies that require a personalized approach. To ensure you receive the most accurate information and best service, we offer customized quotes and consultations.
For detailed pricing and advice, please contact us directly or visit our showroom. We're here to assist you in making the best choice for your home.
Gaggenau VI492613
Overview & Specifications
Overview & Specifications
Cooking zones
2 flex induction cooking zones 7 1/2" x 9" (2200 W, with booster 3,700 W), linked together 15" x 9" (3300 W, with booster 3,700 W).
2 flex induction cooking areas 7 1/2" x 9" (2200 W, with booster 3600 W), linked together 15" x 9" (3300 W, with booster 3600 W).
1 induction cooking zone 8 1/4" (21cm) (2200 W, with booster 3700 W), automatically switches to 10 1/4" (26cm) (2600 W, with booster 3700 W) and to 12 5/8" (3300 W, with booster 3700 W).
Operation
Control knobs with illuminated
ring, cooking zone and output level markings.
Electronic power control in 17 output levels.
User friendly control with bi-coloured display (white / orange).
Features
Flex function for rectangular cooking areas.
Frying sensor function.
Booster function.
Stopwatch.
Short-term timer.
Options menu.
Power management.
Cooktop-based ventilation control (with suitable hood).
Home network integration for digital services (Home Connect) wireless via WiFi.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
Safety
Operation indicator.
Pot detection.
Digital 2 stage residual heat indicator
Safety shut-off.
Planning notes
Depending on the type of installation - surface- or flush-mounted, with or without cover - the specific location of the cut-out and the control knob positions may vary.
The horizontal positioning of the knobs may be aligned with the specific areas.
The adjacent drawing "Installation of the control knob" must be observed if the panel is more than 1" thick. There must be a recess at the rear for proper electronic knob installation.
If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.
The bearing capacity and stability,
in the case of thin countertops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
Additional instructions for flush mounting:
Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.
The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
The joint width may vary due to size tolerances of the combinations and of the countertop cut-out.
If installing several appliances in individual cut-outs allow for a division bar of inimum 1 " (50 mm) between the individual cut-outs.
Operates with magnetic (induction)
iron pots and pans only. For an optimal heat distribution, the use of flat bottom cookware is recommended.
Appliance can be snapped into the countertop from above.
Appliance weight: approx. 28 kg.
Rating
Total rating: Connected load: 9360 W
Total Amps: 50 A.
208 - 240 V / 60 Hz.
Plan for a 59 1/16"connecting cable
without plug (hardwire required).
Please check the user manual for how to switch off the WiFi module.
