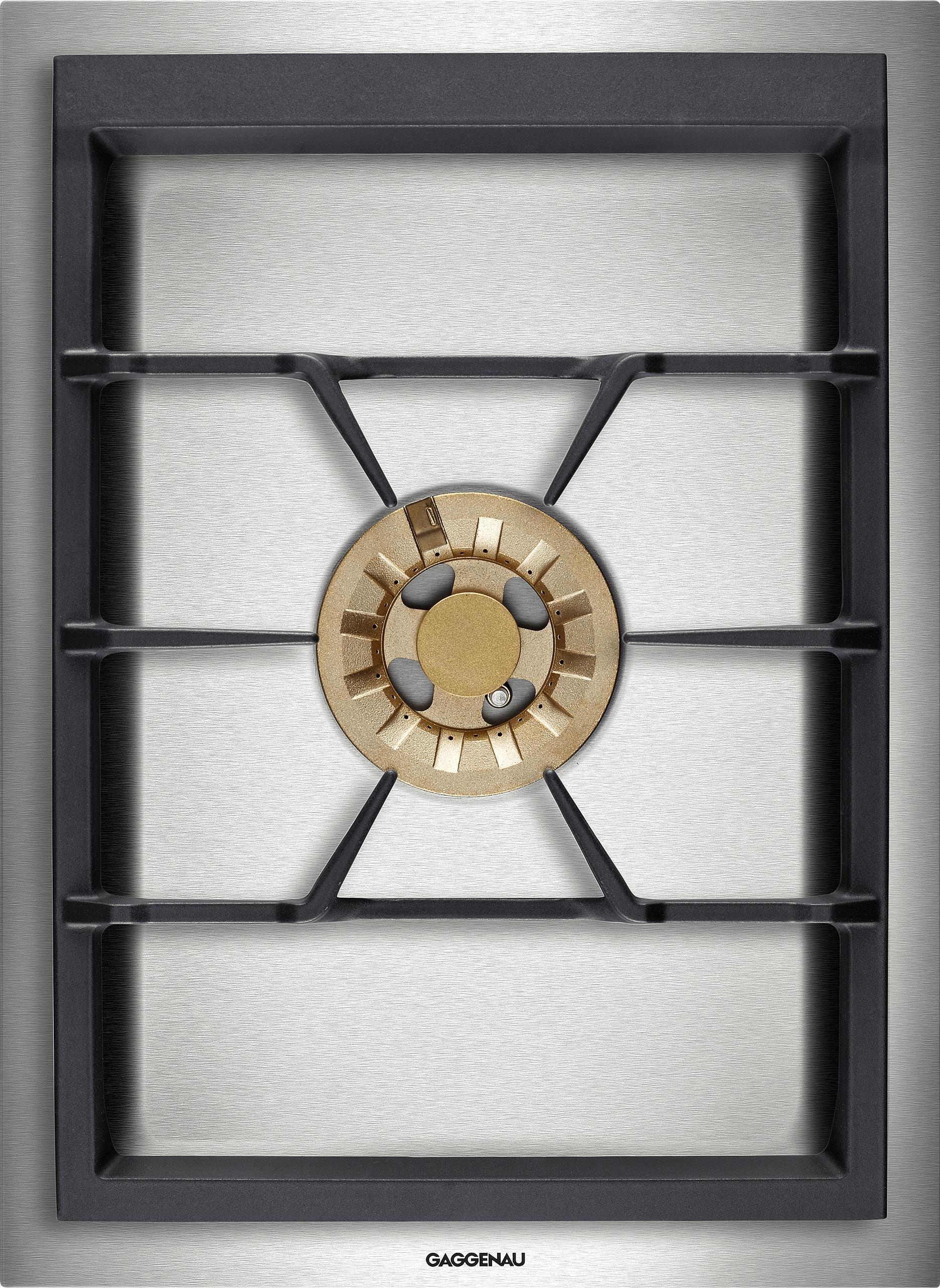

Gaggenau VG415211CA 400 Series Vario Gas Cooktop 15'' Natural Gas 15 Mbar
Request a Consultation or Quote
Reach out for a personalized quote or consultation. Our team will get back to you quickly with tailored advice and pricing.
Call us to learn about discounts on display models and Grade A open boxes!
Why Isn't Pricing Shown?
Pricing for these premium products isn't displayed online due to industry policies that require a personalized approach. To ensure you receive the most accurate information and best service, we offer customized quotes and consultations.
For detailed pricing and advice, please contact us directly or visit our showroom. We're here to assist you in making the best choice for your home.
Gaggenau VG415211CA
Overview & Specifications
Overview & Specifications
Cooktop type
Gas cooktop
Width (in.)
38 cm
Total number of cooktop burners
1
Power of the heating elements
1 x 5.5 KW
Basic surface material
brushed stainless steel
Frame type
Standard design
Variant color
Stainless steel
Energy efficiency of hob
54.7 %
Included accessories
1 x WOK attachment ring
Dimensions
158 x 380 x 520 mm
Minimum height for installation
134 mm
Maximum height for installation (in.)
134 mm
Minimum width for installation
359 mm
Maximum width for installation
361 mm
Depth for installation
491 mm
Previous Next Previous Next [{? it.layer }] [{?}] [{? it.layer }] [{?}]
Cooktop-based hood control
No
Watts
15 W
Gas connection rating
5,500 W
Fuse protection
15 A
Volts
120 V
Power cord length
140 cm
Plug type
120V-3 prong
Gas type
Natural gas 15 mbar (USA)
Cooking zones
1 three-ring wok burner (300 W - 5,500 W) 1,000 - 18,800 BTU, suitable for pots up to max. 12 5/8"
Operation
Control knobs with illuminated
ring, cooking zone and output level markings.
One-handed operation.
Full electronic control in 12 output levels for exact power level regulation plus simmer function.
Automatic quick ignition.
Features
Simmer function.
Cast-iron pan support with flat, continuous pot surface.
Brass burner rings.
Safety
Electronic flame monitoring with automatic re-ignition.
Residual heat indicator.
Safety shut-off.
Planning notes
Depending on the type of installation - surface-/ or flush-mounted, with or without cover - the specific location of the control knob positions may vary.
The adjacent drawing "Installation of the control knob" must be observed if the panel is more than 1" thick. There must be a recess at the rear for proper electronic knob installation.
If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.
The bearing capacity and stability,
in the case of thin countertops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
Additional instructions for flush mounting:
Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.
The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
The joint width may vary due to size tolerances of the combinations and of the countertop cut-out.
If installing several appliances in individual cut-outs allow for a division bar of inimum 1 " (50 mm) between the individual cut-outs.
Special nozzles can be ordered as spare parts.
Plan for an electrical connection (the appliance is not operable without power supply).
Air intake from above.
No intermediate shelf required.
The rear panel must consist of a non-flammable material. Wall trims must be resistant to heat.
The minimum distance from the side of appliance edge to the wall or furnishing components must be at least 6".
When used with VL 414 downdraft ventilation, the air deflector AA 414 is recommended to ensure maximum permance of the cooktop.
Appliance can be snapped into the countertop from above.
Rating
Total rating: 18,800 BTU (5.5 kW).
Total Amps: 15 A.
120 V / 60 Hz.
Connecting cable 55" (1.4 m) with plug.
Show All Technical Information
