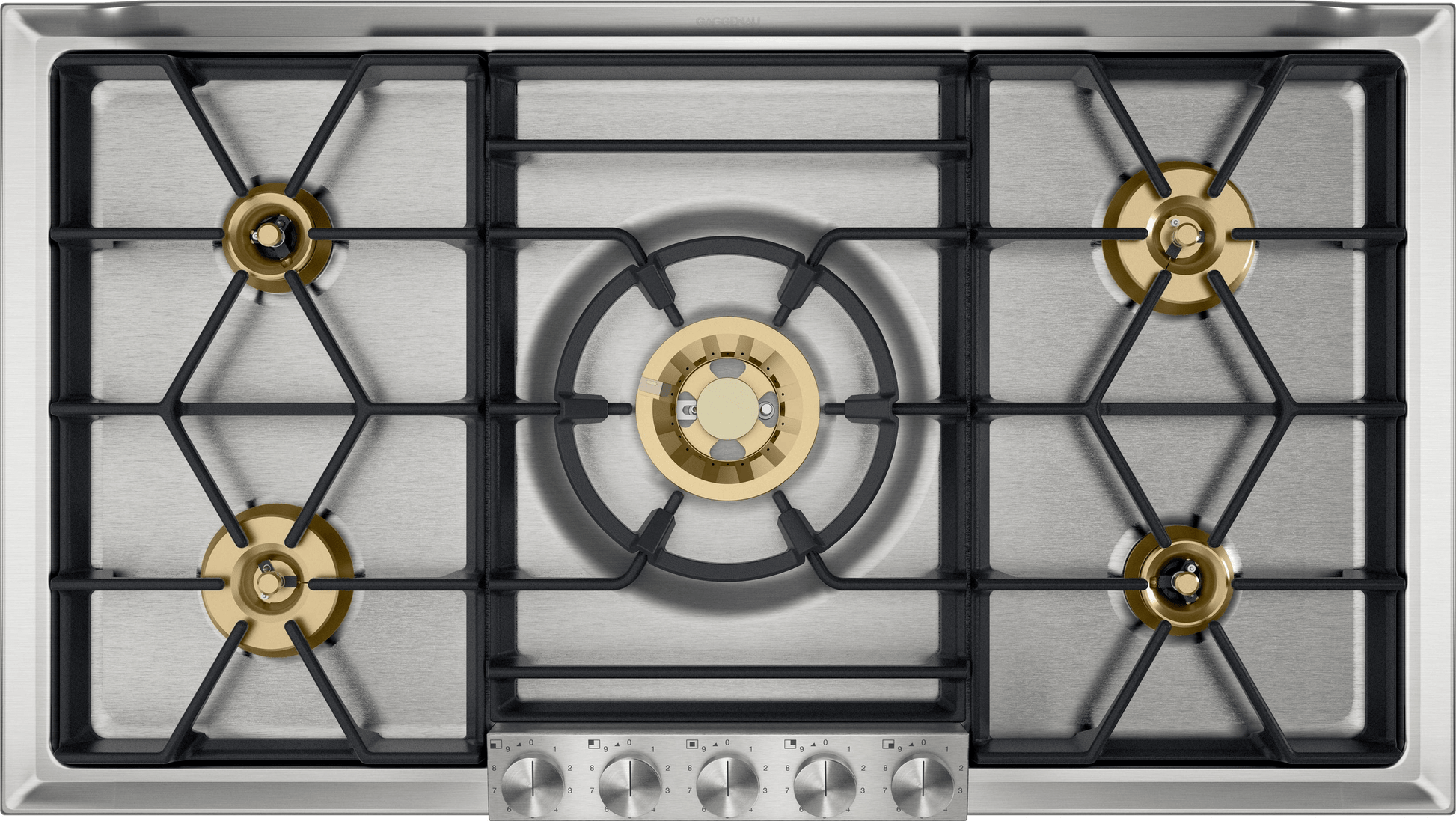

Gaggenau VG295150CA
Overview & Specifications
Overview & Specifications
Cooktop type
Gas cooktop
Type
Self-sufficient gas hobs
Width (in.)
90 cm
Total number of cooktop burners
5
Power of the heating elements
1 x 5.0 KW, 2 x 2.0 KW, 2 x 4.0 KW
Basic surface material
brushed stainless steel
Frame type
Standard design
Variant color
Stainless steel
Energy efficiency of hob
55.2 %
Included accessories
1 x WOK attachment ring
Dimensions
132 x 914 x 510 mm
Minimum height for installation
106 mm
Maximum height for installation (in.)
106 mm
Minimum width for installation
885 mm
Maximum width for installation
885 mm
Depth for installation
492 mm
Previous Next Previous Next [{? it.layer }] [{?}] [{? it.layer }] [{?}]
Cooktop-based hood control
No
Watts
10 W
Gas connection rating
17,000 W
Fuse protection
15 A
Volts
110-120 V
Power cord length
150 cm
Plug type
120V-3 prong
Gas type
Liquid gas 27,5 mbar (USA)
Cooking zones
1 multi-ring wok burner 1,000 - 18,800 BTU (300 W - 5000 W), suitable for pots up to max. 12 5/8".
2 two-ring high output burners 600 - 13,600 BTU (170 W - 4000 W), suitable for pots up to max. 11".
2 two-ring standard burners 600 - 6,800 BTU (170 W - 2000 W), suitable for pots up to max. 9 1/2".
Operation
Control knobs with illuminated ring.
Integrated control panel.
One-handed operation.
Electric ignition.
Features
Three-part cast iron pan support with flat, continuous pot surface.
Brass burner rings.
Safety
Thermoelectric safety pilot.
Residual heat indicator.
Operation indicator.
Planning notes
No intermediate shelf required.
Appliance can be snapped into the countertop from above.
The rear panel must consist of a non-flammable material. Wall trims must be resistant to heat.
Installation in a 36" (90 cm) wide base cabinet is required.
Above countertop minimum clearance of at least 11 13/16" from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation must be installed.
Minimum distance between gas cooktop(s) with more than 37,533 BTU (11kW) and ventilation hood must be 30" (76cm).
Appliance weight: approx. 29 kg.
Rating
Total rating: 58000 BTU (17.0 KW).
Total Amps: 1 A. 120 V / 60 Hz
Connecting cable 59 1/16" (1.5 m) with plug.
