Overview & Specifications
Overview & Specifications

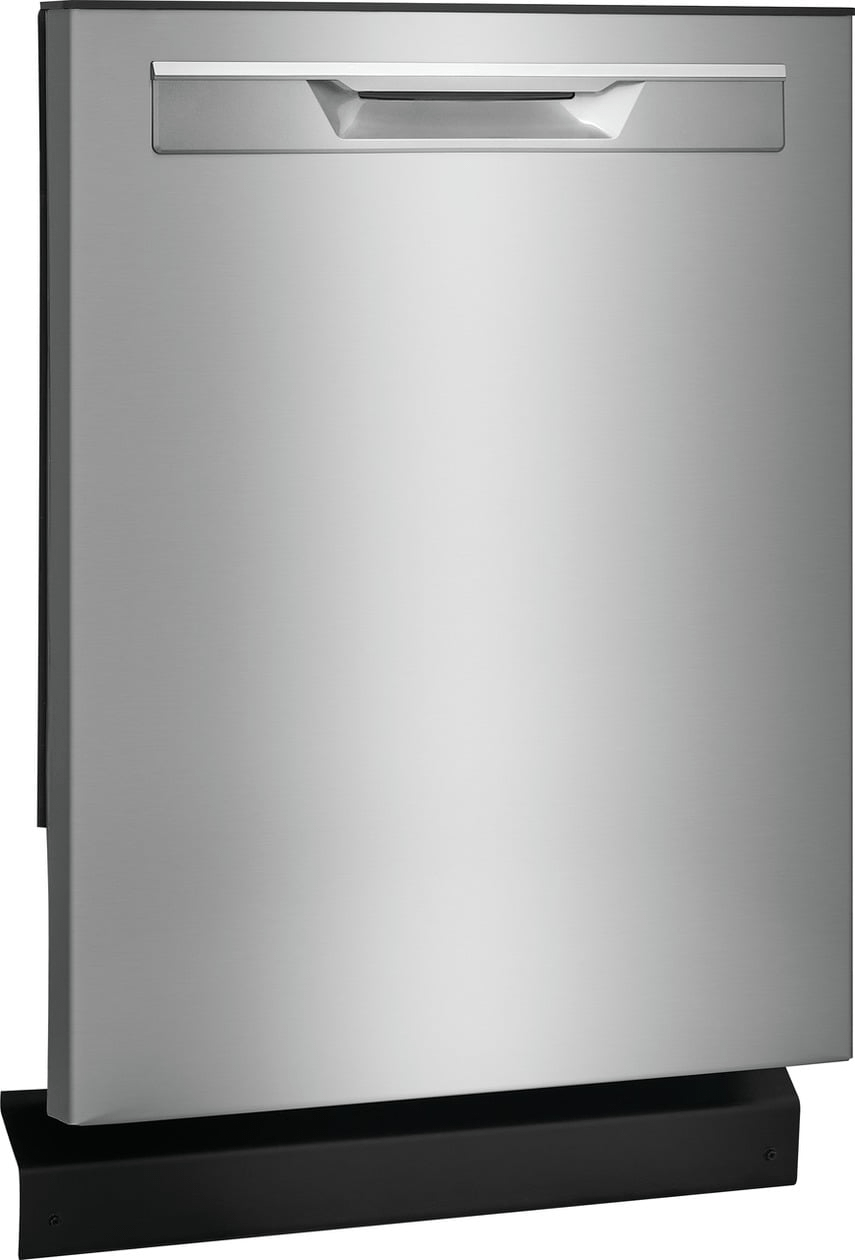

The Frigidaire Gallery 24" Built-In Dishwasher offers a more complete clean with sensor technology that adjusts cleaning performance based on soil levels and the OrbitClean® Wash System with multi-directional spray patterns. Forget the hand towel with the MaxBoost™ Dry system. This quiet dishwasher (52 dBA) also offers a sanitize option, adjustable racks to fit more dish sizes, and LED floor indicator light, a 34 minute quick wash, and is Energy Star® certified.
- DishSense(R) Sensor Technology
- Skip pre-rinsing with our DishSense(R) sensor technology that adjusts cleaning performance based on the soil level of your dishes.
- OrbitClean(R) Wash System
- Using a rotating wash arm with multi-directional spray patterns provides maximum coverage without using more water.
- Enhanced Drying with MaxBoost Dry(TM)
- MaxBoost(TM) Dry technology uses heating and a fan to push out moist air and pull in fresh, dry air so you don't have to hand dry.
- NSF(R) Certified Sanitize Option
- Remove 99.9% of common household bacteria with NSF-Certified Sanitize Option.
- ENERGY STAR(R) Certified
- Save money and maximize energy efficiency.
- Keep your Kitchen Quiet with 52 dBA
- Keep your kitchen quiet and the noise inside your dishwasher where it belongs with extra, quality insulation.

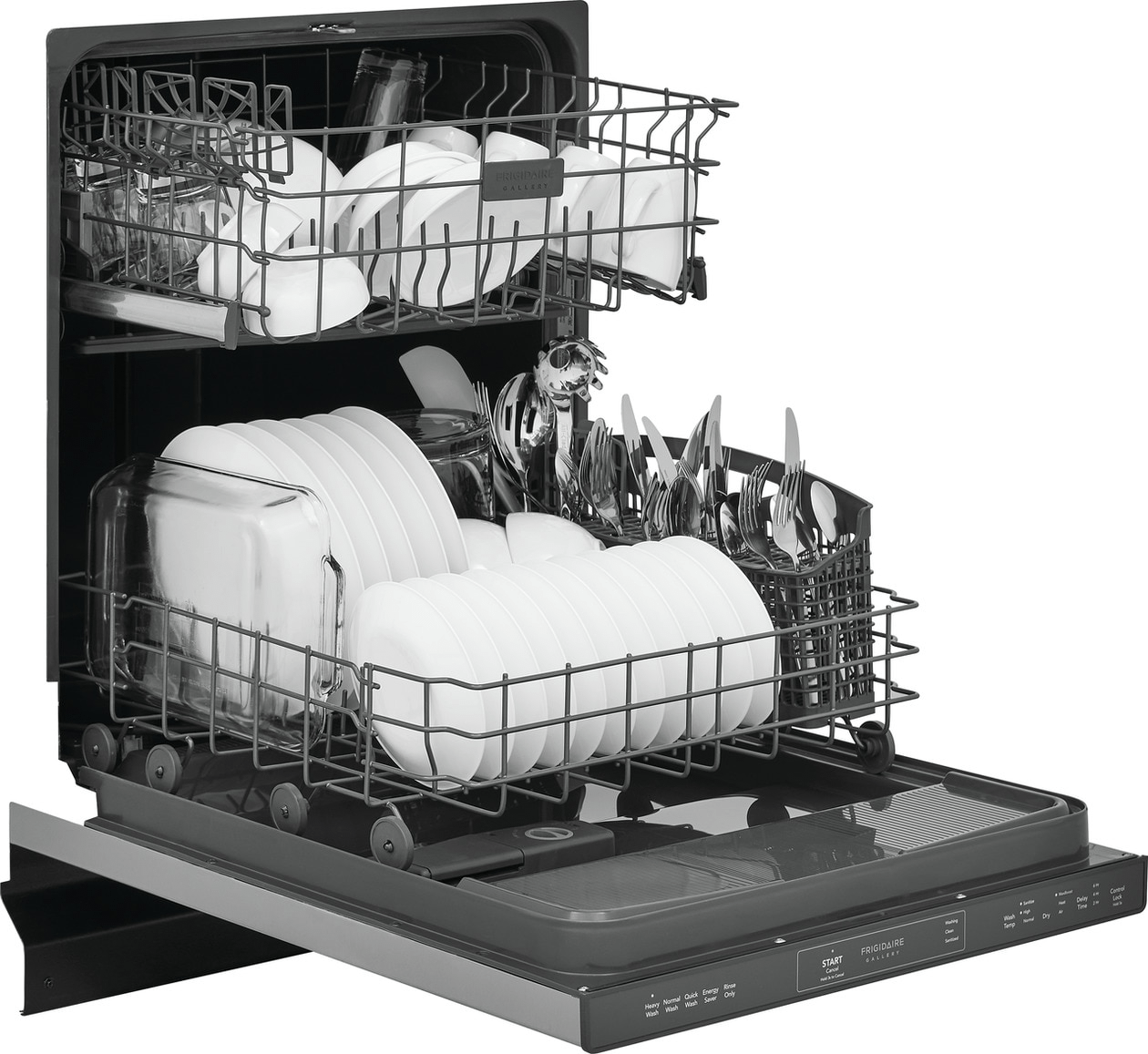

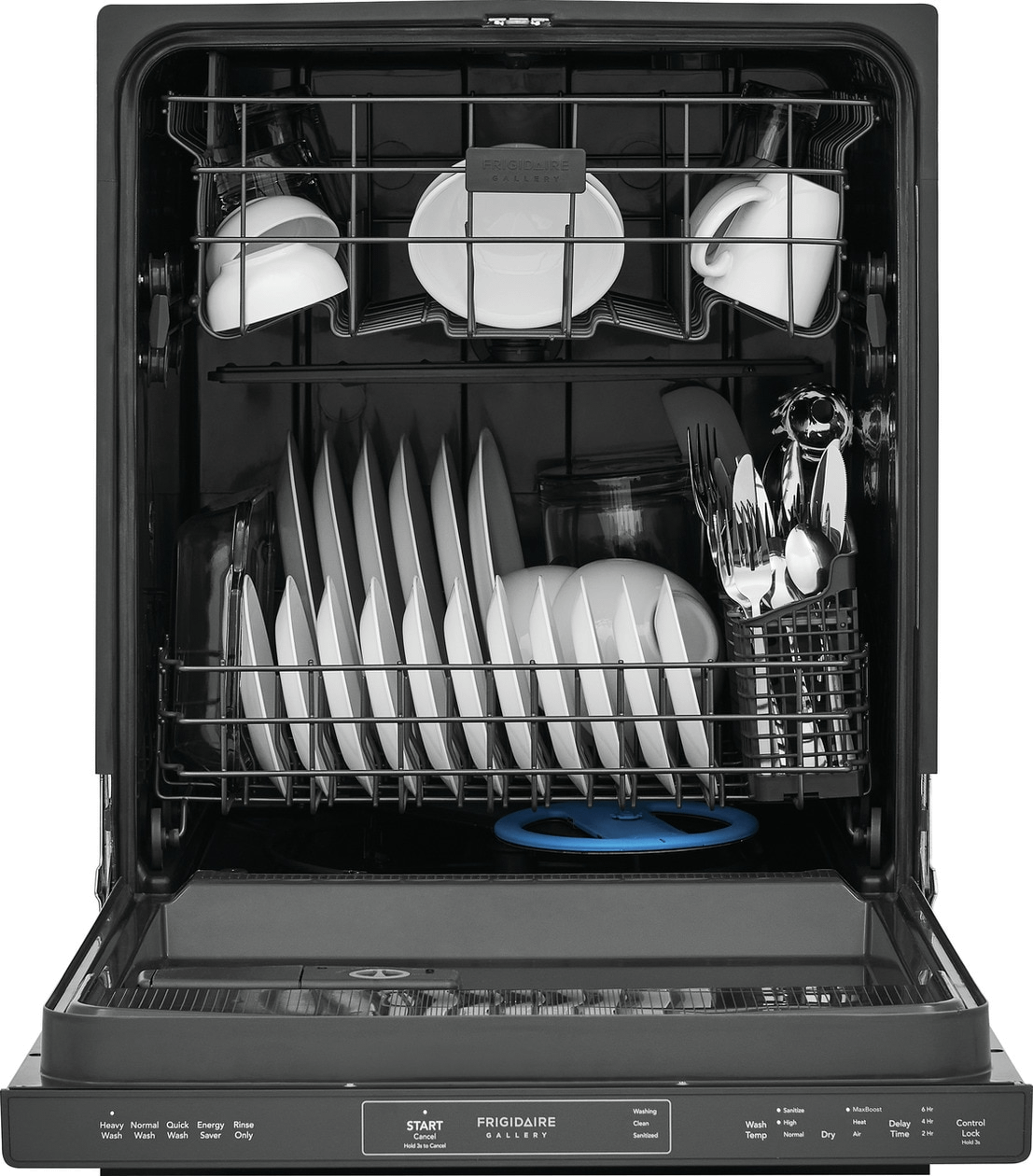

- Easily Fit Dishes with Adjustable Racks
- Make loading the dishwasher easier with adjustable racks and enough space to fit even your largest items.
- Convenient Status Indicator Floor Light
- Convenient LED floor light shows cycle status- blue when your dishes are washing and green when they are clean.
- 34-Minute Quick Wash
- Save time and cleans dishes in just 34-minutes.

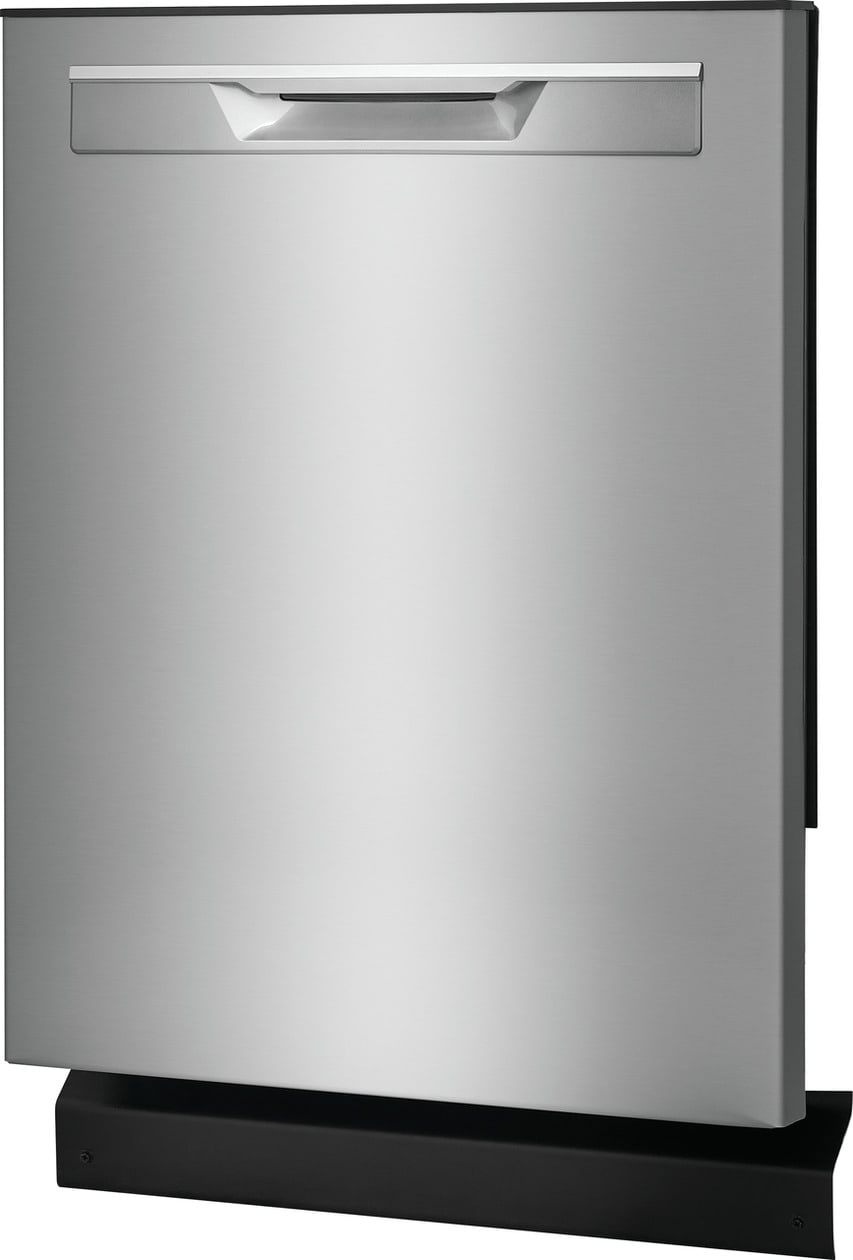

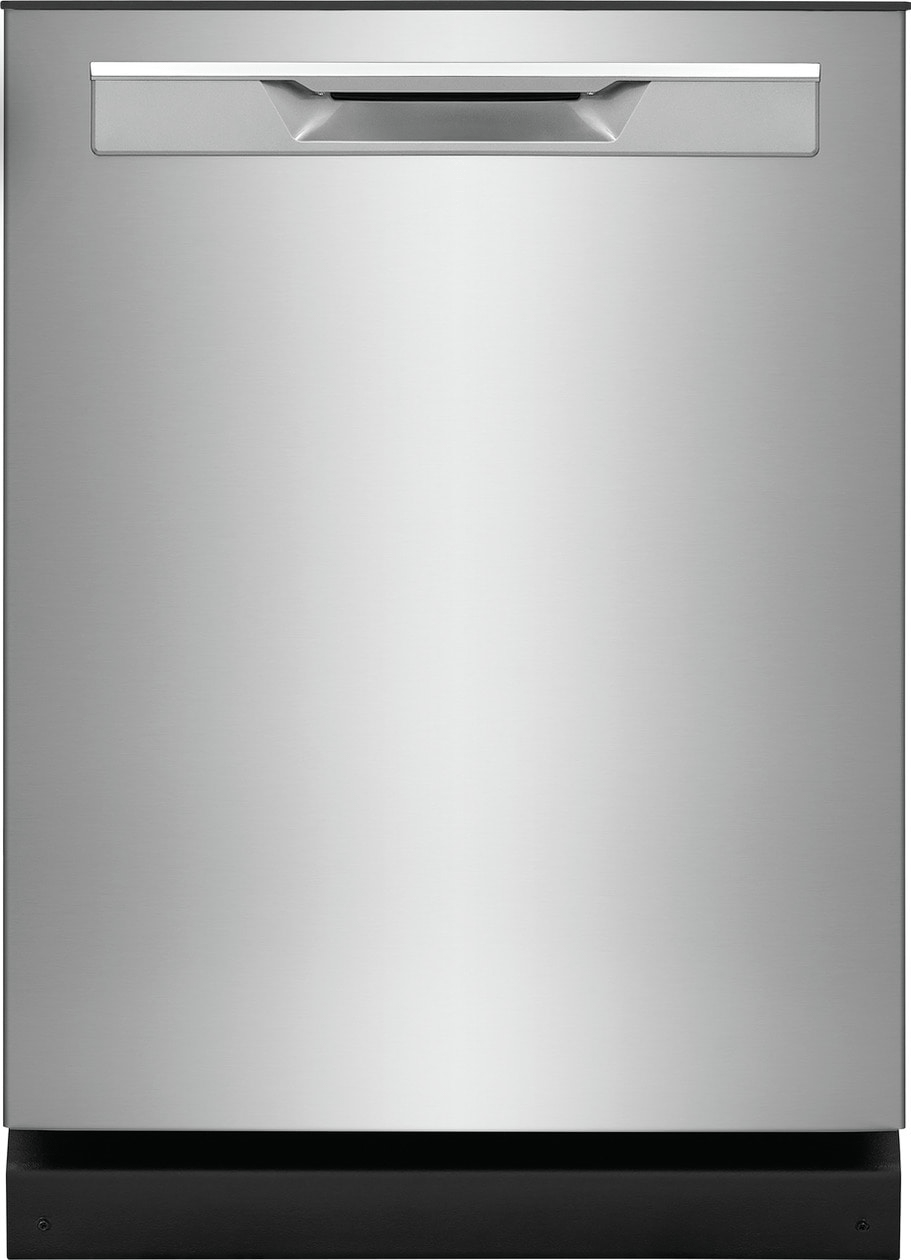

- Smudge-Proof(R) Stainless Steel Finish
- Resists fingerprints and cleans easily.

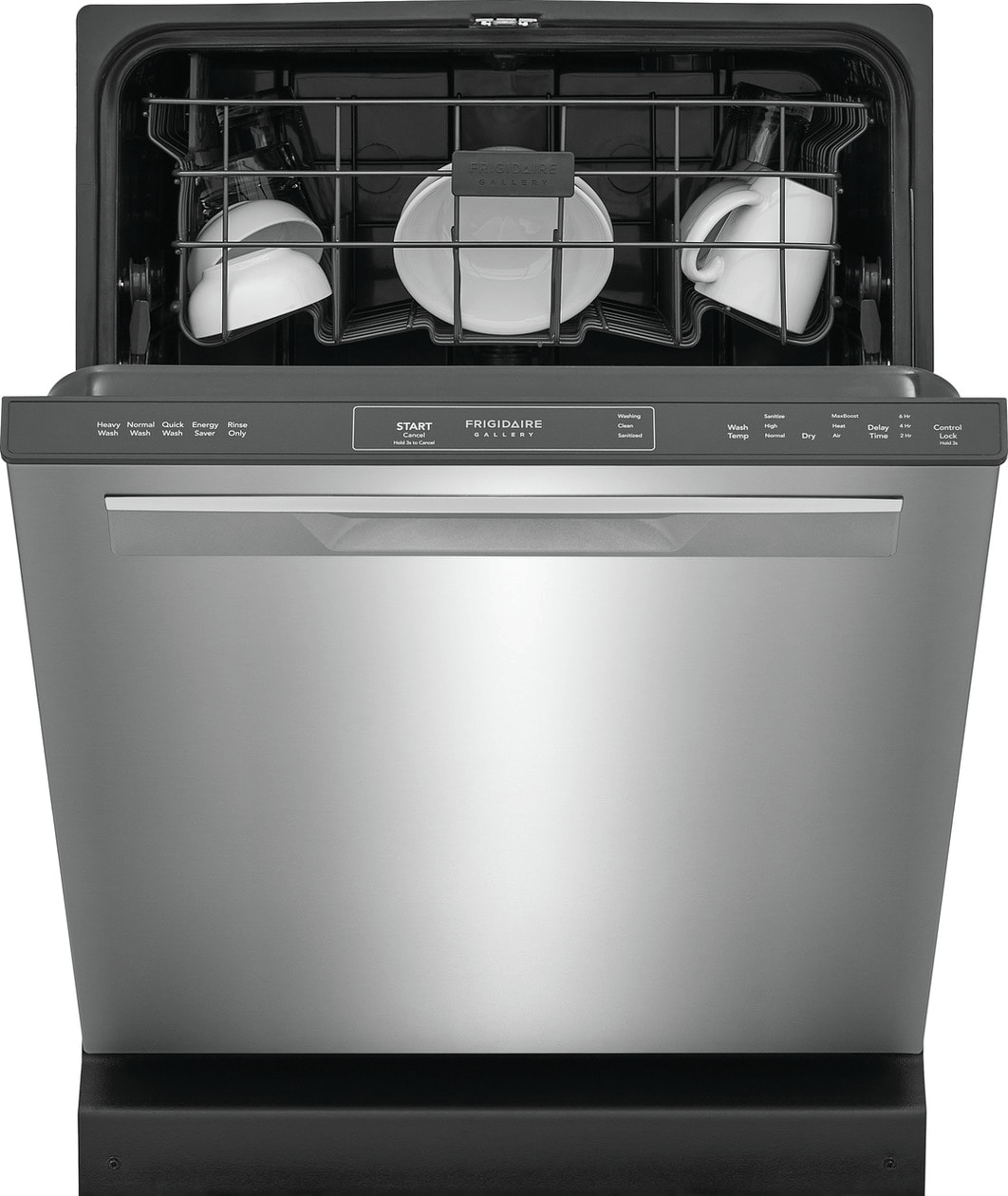

- Stay-Put Door Allows For Easier Loading
- The door stays put at whatever angle you open it for easy loading and unloading.
Product Line | Dishwasher |
Power Type | Electric 120v |
Size | 24" |
Installation Type | Built-In |
Factory | Kinston |
Color | Stainless Steel |
Dishwasher | |
Detergent Dispenser | Yes |
Filter Material | Stainless Steel |
Filter Trap | Removable |
Filtered Water | 100 % |
Hard Food Disposer or Filtration | Yes |
Interior Light | No |
Motor Speeds | Single-Speed |
Place Setting Capacity | 14 |
Rinse Aid Dispenser | Yes |
Smart Soil Sensor | Yes |

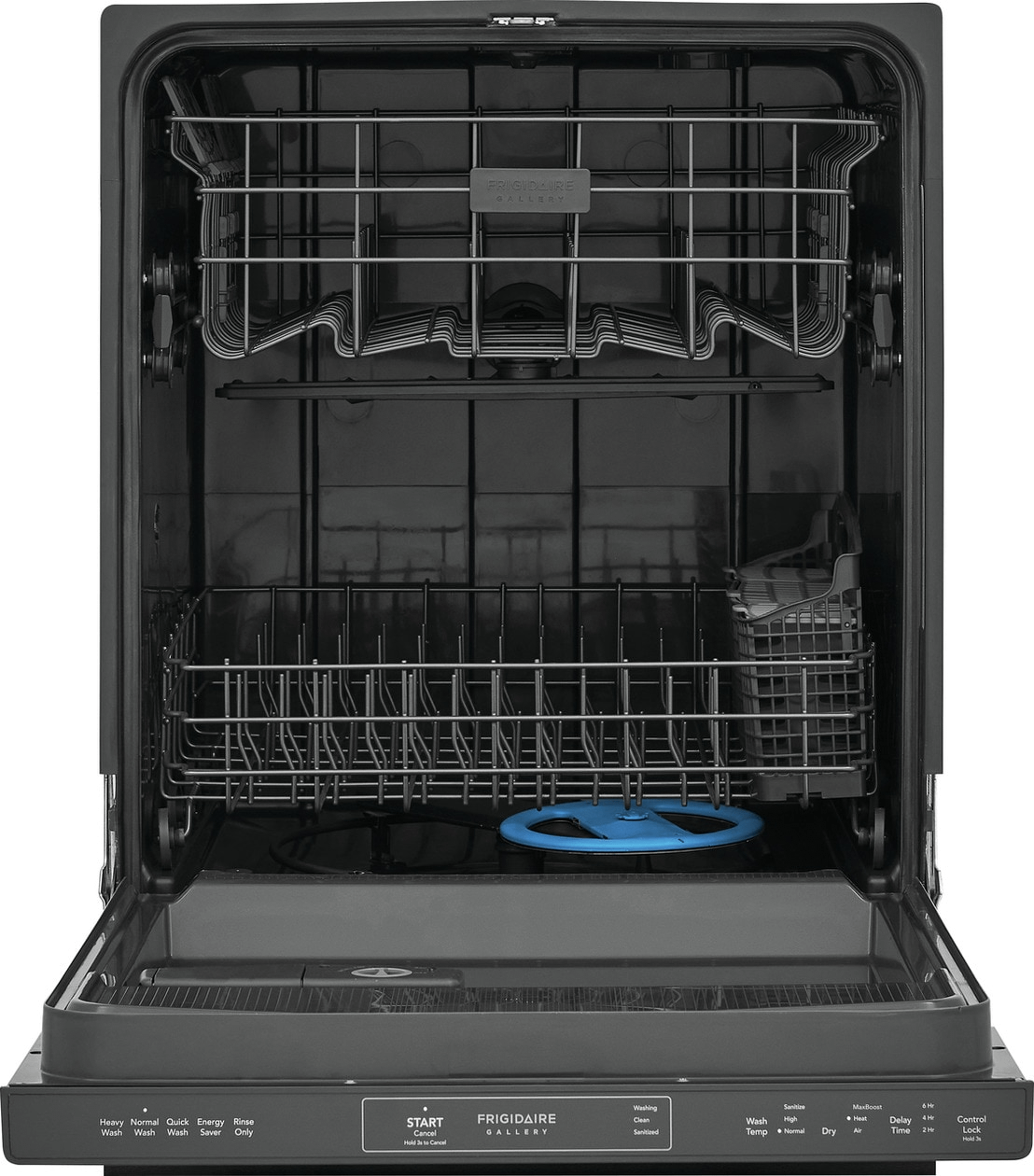

Lower Spray Arm | Orbit |
Middle Spray Arm | Bi-Beam |
Upper Spray Arm | Spray Arm |
Status Indicator Floor Beam | Yes |
Tub Color | Midnight Ink |
Tub Design | Tall Tub |
Tub Material | Plastic |
Wash Levels | 5 |
Wash System | Direct Feed |
Water Pressure | 120 psi |
Dishwasher Cycles | |
Energy Saver | Yes |
Heavy | Yes |
Normal | Yes |
Number of Cycles | 5 |
Quick | Yes |
Rinse Only | Yes |
Dishwasher Options | |
Air Dry | Yes |
Drying System | MaxBoost |
Heated Dry | Yes |
High Temperature | Yes |
Start/Cancel | Yes |
Lower Rack | |
Fold-Down | No |
Maximum Height Clearance | 13" |
Minimum Height Clearance | 11" |
Number of Silverware Basket | 1 |
Number of Silverware Basket Lids | 3 |
Rack Type | Standard |
Upper Rack | |
Minimum Height Clearance | 8" |
Rack Spacer | Yes |
Rack Type | Adjustable |
General Specifications | |
Sound Level | 52 dBA |
Annual Energy | 240 kWh |
Product Weight | 56 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |

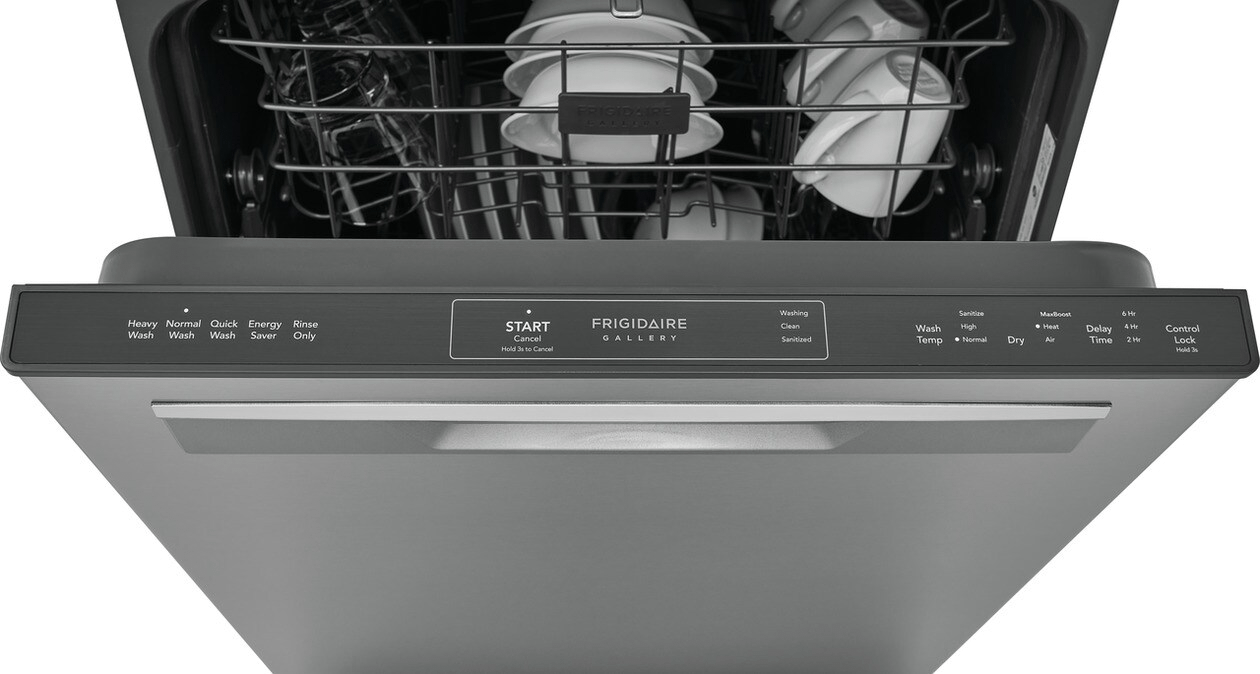

Controls | |
Control Color | Stainless Steel |
Control Location | Top |
Delay Start Hours | 2-6 Hours |
Digital Display | No |
Control Lock | Yes |
Rinse Aid Indicator | Yes |
Exterior | |
Door and Handle Design | |
Door Latch | Pull |
Door Type | StayPut |
Exterior Finish | Smudge-Proof® Stainless Steel |
Dimensions and Volume | |
Minimum Height | 33 1/2" |
Maximum Height | 35" |
Width | 24" |
Depth | 25" |
Depth With Door Open | 49 1/4" |
Electrical Specifications | |
Amps @ 120 Volts | 10 Amps |
Connected Load @ 120V | 1.2 kW |
Voltage Rating | 120 V |
Installation | |
Connection Location | Right Bottom |
Number of Leveling Legs | 4 |
Water Inlet Location | Left Bottom Front |
Performance Certifications and Approvals | |
CEE Tier | Tier 1 |
cUL Listed | Yes |
ENERGY STAR Certified | Yes |
Meets ASSE 1006 Requirements | Yes |
NSF Certified | Yes |
UL Listed | Yes |
