Overview & Specifications
Overview & Specifications
The Frigidaire Gallery 30" Electric Cooktop provides delicious results every time with the EvenTemp® Element that delivers consistent heat across the elements surface, reducing hot and cold spots in your pan. Enjoy ultimate cooking flexibility with powerful elements designed to meet all of your cooking needs, including a Dual Expandable Element and Keep Warm Zone. Plus, these cooktops feature bright, backlit LED knobs that light up when the cooktop is in use, conveniently placed on the front of the cooktop.
- EvenTemp(R) Element
- Heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.
- Five Element Cooktop
- Designed to meet all of your cooking needs with a powerful 3,200 Watt EvenTemp(R) Element, Dual Expandable Element, and convenient Keep Warm Zone.
- Backlit LED Knobs
- Lights up when the burner is turned on.
- Frigidaire(R) Fit Promise
- We promise that your new 30" Frigidaire radiant cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100. * Via mail-in rebate. See https://www.Frigidaire.com/FitPromise for additional information.
- SpaceWise(R) Dual Expandable Element
- Our convenient 2-in-1 element expands from 5" for smaller pots to 7" for larger cookware, providing more cooktop flexibility.
- Cooktop Keep Warm Zone
- Keep food warm until everything - and everyone - is ready.

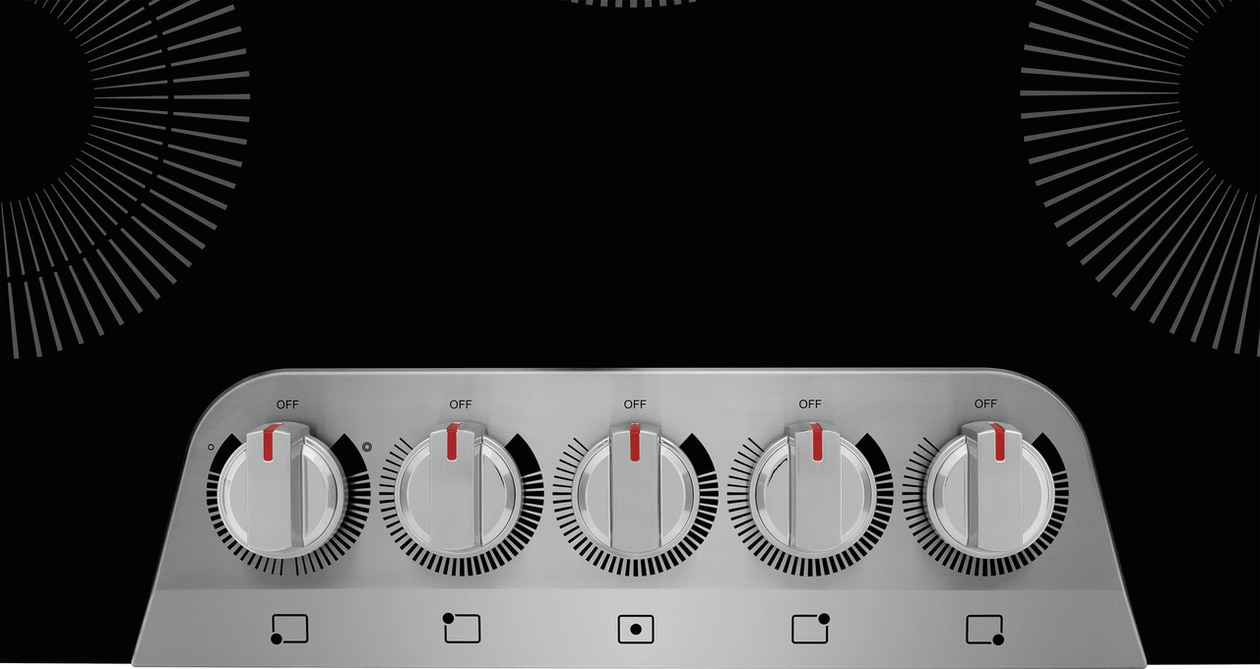

- Easy to Use Front Controls
- Located on the front of the cooktop so you to adjust the temperature without reaching over hot items.
- Easy-to-Clean Glass Cooktop
- Wipe away spills more easily with the smooth ceramic glass cooktop.
- Installation over Wall Oven Approved
- Cooktops are approved for installation above any of our Frigidaire electric wall ovens.
Product Line | Electric Cooktop |
Power Type | Electric 240v |
Size | 30" |
Installation Type | Built-In |
Factory | Rayong |
Color | Stainless Steel |
Cooktop | |
Cooking Surface Type | Smooth |
Hot-Surface Indicator Light | Yes |
Cooktop Performance | |
Right Front Element Burner Size | 7" |
Right Rear Element Burner Size | 6" |
Left Front Element Burner Size (Small) | 5" |
Left Front Element Burner Size (Large) | 7" |
Left Rear Element Burner Size | 6" |
Center Rear Element Burner Size | 9" |
Right Front Element Burner | 1800 Watts |
Right Rear Element Burner | 1200 Watts |
Left Front Element Burner (Small) | 750 Watts |
Left Front Element Burner (Large) | 1800 Watts |
Left Rear Element Burner | 1200 Watts |
Center Rear Element Burner | 3200 Watts |
Controls | |
Sabbath Mode | No |
Display | |
Control Location | Front |
Display Type | Mechanical |

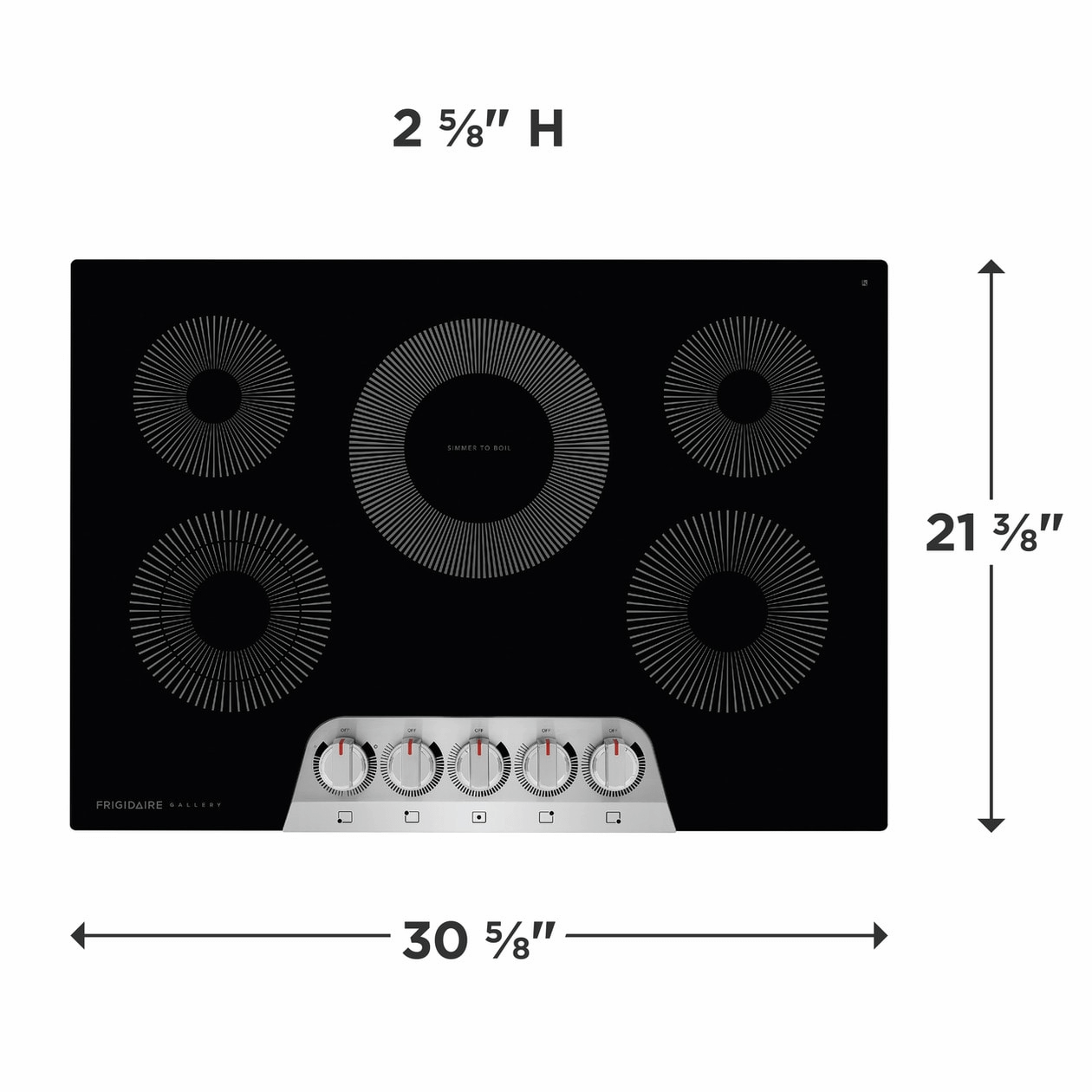

Dimensions and Volume | |
Height | 2 5/8" |
Width | 30 5/8" |
Depth | 21 3/8" |
Cutout Height | 5" |
Minimum Cutout Width | 28 1/2" |
Minimum Cutout Depth | 19 5/8" |
Maximum Cutout Width | 29 7/8" |
Maximum Cutout Depth | 20 1/2" |
Electrical Specifications | |
Amps @ 240 Volts | 38.3 Amps |
Connected Load @ 240V | 9.2 kW |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 31 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Installation | |
Installed Over a Wall Oven | Yes |
Power Supply Connection Location | Right Center |
Certifications and Approvals | |
ADA Compliant | Yes |
CSA Listed | Yes |
UL Listed | Yes |
