The Frigidaire Gallery 27 in. Electric Wall Oven features a large 3.8 cu. ft. oven so you have more room to cook multiple items. Express-Select Control panel makes it easy to set cooking temperature at the touch of a button and the side swing door allows you to take dishes out of the oven with ease. True Convection features a third element and a single fan to distribute heat throughout the oven for faster and more even multi-rack baking.
- Vari-Broil(TM) Temperature Control
- Allows you to choose between two heat levels.
- True Convection
- A third heating element and single convection fan circulate hot air throughout the oven for faster and more even multi-rack baking.
- Power Broil
- Added power means you can broil food faster.
- Smudge-Proof(R) Stainless Steel
- Resists fingerprints and cleans easily.
- Quick Clean
- Quickly clean your oven in 2 hours with our quick self-clean cycle.
- One-Touch Keep Warm Setting
- Keep food warm until everything - and everyone - is ready.
- Delay Start
- Set your oven to begin cooking on your schedule. It can be programmed from one to 24 hours.
- Express-Select(R) Controls
- Easily set cooking temperature or choose one-touch cooking options.
- ADA Compliant
- Product complies with the Americans with Disabilities Act. * When properly installed, meets the appliance standards in the Americans with Disabilities Act and the Architectural Barriers Act Accessibility Guidelines as published by the United States Access Board on June 23, 2004, as amended August 5, 2005.
- Star-K(R) Certified
- Sabbath Mode Star-K(R) Certified
- Side Swing Reversible Door
- Easy and flexible reversible side swing door can be installed to open left or right based on your needs.
Product Line | Single Wall Oven |
Power Type | Electric 240v |
Size | 27" |
Installation Type | Built-In |
Factory | Springfield |
Color | Stainless Steel |
Cooking Controls | |
Add A Min | No |
Bake | Yes |
Broil | Yes |
Cancel | Yes |
Convection Convert | Yes |
Cook Time | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Lockout | Yes |
Numerical Keypad | Yes |
Off | Yes |
Oven Light | Yes |
Pizza | No |
Preheat | Yes |
Probe | Yes |
Quick Bake | Yes |
Quick Preheat | Yes |
Self Clean | Yes |
Set Clock | Yes |
Start | Yes |
Start Time | Yes |
Steam Clean | Yes |
Temperature Display | Yes |
Oven | |
Bake Element | 1450 Watts |
Bake System | Yes |
Broil Element | 3400 Watts |
Broil Element Pass | 6 |
Broil System | Yes |
Convection Element | 2500 Watts |
Convection Type | Fan |
Number of Rack Positions | 5 |
Oven Interior Color | Midnight Black |
Rack Position Type | Nickel Ladder |
Rack Type 1 | Handle |
Rack Type 1 Quantity | 2 |
Window Type | Large |
Controls | |
Sabbath Mode | Yes |
Display | |
Display Type | Membrane |
Exterior | |
Exterior Finish | Smudge-Proof® Stainless Steel |
Handle Color | Stainless Steel |

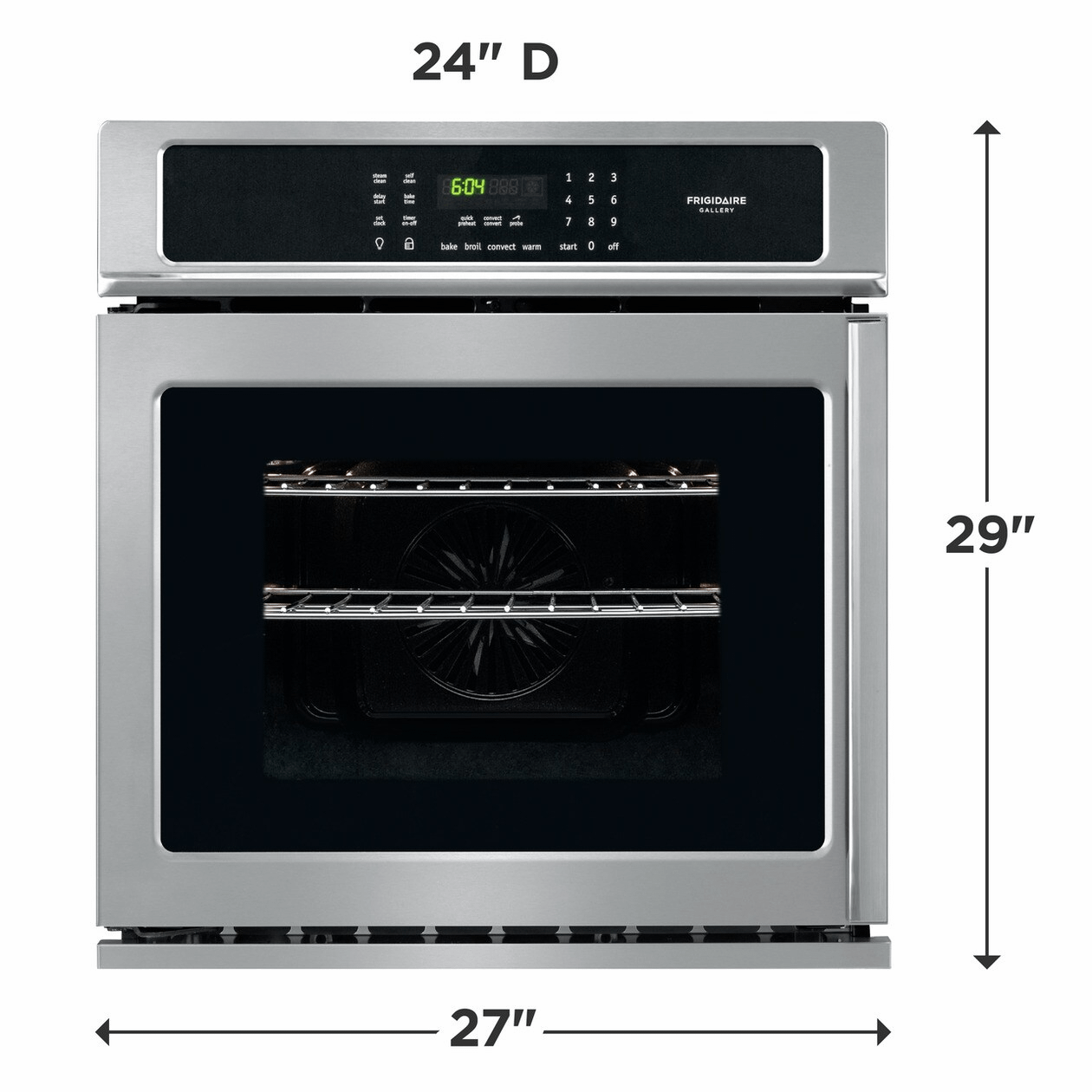

Dimensions and Volume | |
Height | 29" |
Width | 27" |
Depth | 24" |
Depth With Door 90° Open | 50 3/4" |
Oven Interior Height | 17" |
Oven Interior Width | 20 1/2" |
Oven Interior Depth | 18 3/4" |
Oven Capacity | 3.8 Cu. Ft. |
Electrical Specifications | |
Amps @ 240 Volts | 15.4 Amps |
Minimum Circuit Required | 20 Amps |
Voltage Rating | 240 V |
General Specifications | |
Product Weight | 119.23 lbs |
Prop 65 Label | No |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Certifications and Approvals | |
ADA Compliant | Yes |
CSA Listed | Yes |
UL Listed | Yes |
