The Frigidaire 30 in. Electric Cooktop has two different element sizes, and alerts you when the cooktop is on and is too hot to touch. This frameless drop-in cooktop has easy-to-use controls that make it easy to select cooking temperatures and options.
- Quick Boil Element
- Get meals on the table faster with our powerful 3,000W Quick Boil element.
- SpaceWise(R) Expandable Element
- Flexible element expands to accommodate various sizes of cookware.
- Frigidaire Fit Promise
- We promise that your new 30" or 36"Frigidaire(R) brand cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for modification costs up to $100.
- Ceramic Glass Cooktop
- For a more beautiful cooktop that's easy to clean.

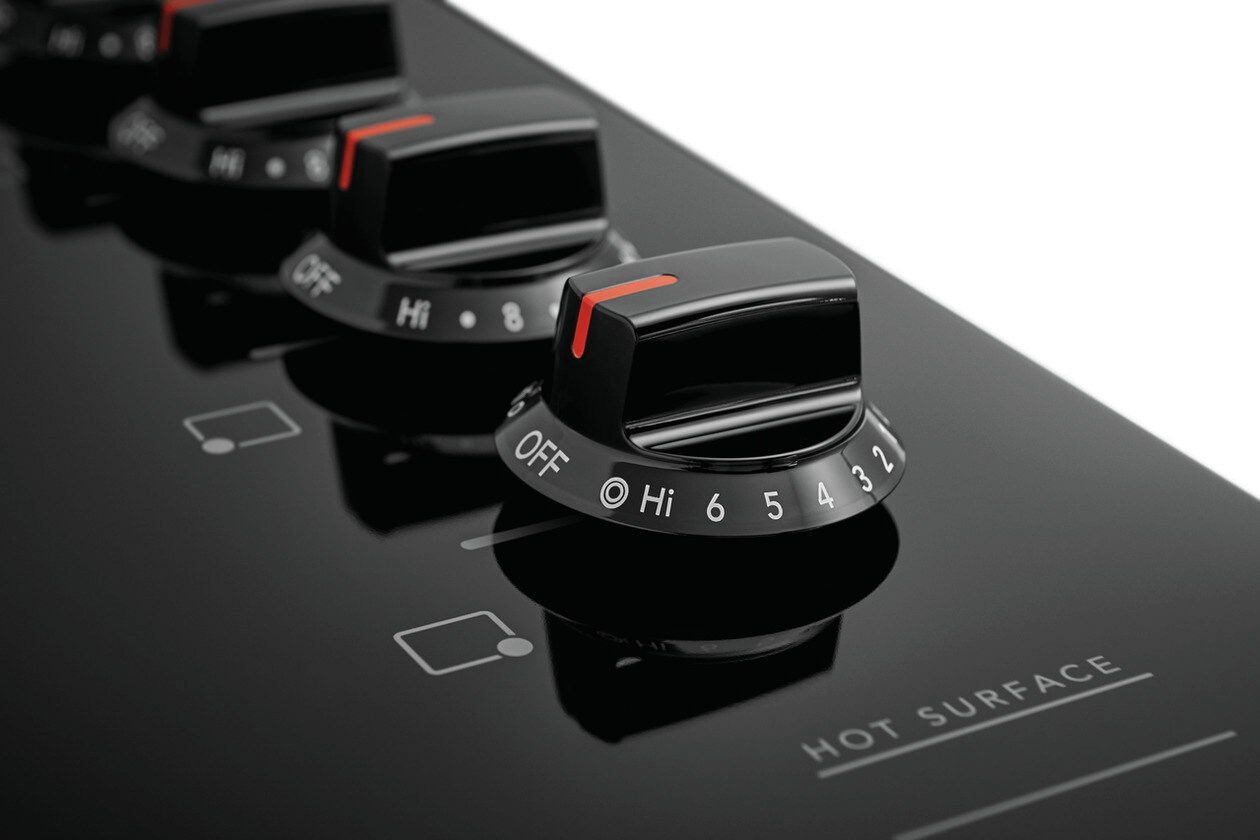

- Ready-Select(R) Controls
- Easily control your cooking temperature with our easy-to-use controls.
- Hot Surface Indicator
- Alerts you when your cooktop may be too warm to touch.
- Installation over Wall Oven Approved
- Cooktops are approved for installation above any of our single electric wall ovens.
Product Line | Electric Cooktop |
Power Type | Electric 240v |
Size | 30" |
Installation Type | Drop-In |
Factory | Rayong |
Color | Stainless Steel |
Cooktop | |
Cooking Surface Type | Smooth |
Hot-Surface Indicator Light | Yes |
Cooktop Performance | |
Right Front Element Burner Size (Small) | 6" |
Right Front Element Burner Size (Large) | 9" |
Right Rear Element Burner Size | 6" |
Left Front Element Burner Size | 6" |
Left Rear Element Burner Size | 9" |
Right Front Element Burner (Small) | 1600 Watts |
Right Front Element Burner (Large) | 3000 Watts |
Right Rear Element Burner | 1200 Watts |
Left Front Element Burner | 1200 Watts |
Left Rear Element Burner | 2500 Watts |
Controls | |
Sabbath Mode | No |
Display | |
Control Location | Right |
Display Type | Mechanical |
Dimensions and Volume | |

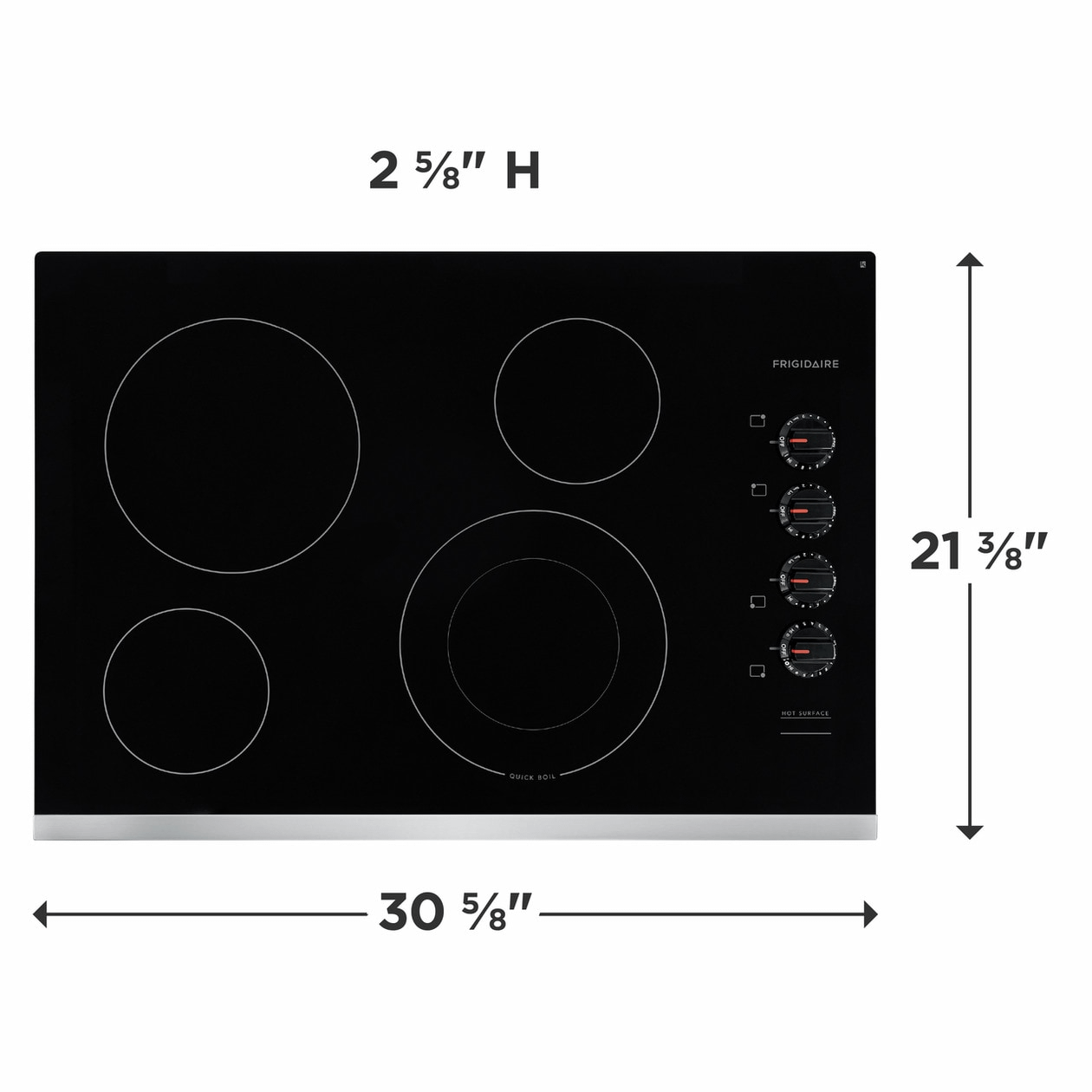

Height | 2 5/8" |
Width | 30 5/8" |
Depth | 21 3/8" |
Electrical Specifications | |
Amps @ 240 Volts | 32.9 Amps |
Connected Load @ 240V | 7.9 kW |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 29.45 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Installation | |
Installed Over a Wall Oven | Yes |
Power Supply Connection Location | Right Center |
Certifications and Approvals | |
ADA Compliant | No |
CSA Listed | Yes |
ETL Listed | No |
UL Listed | Yes |
