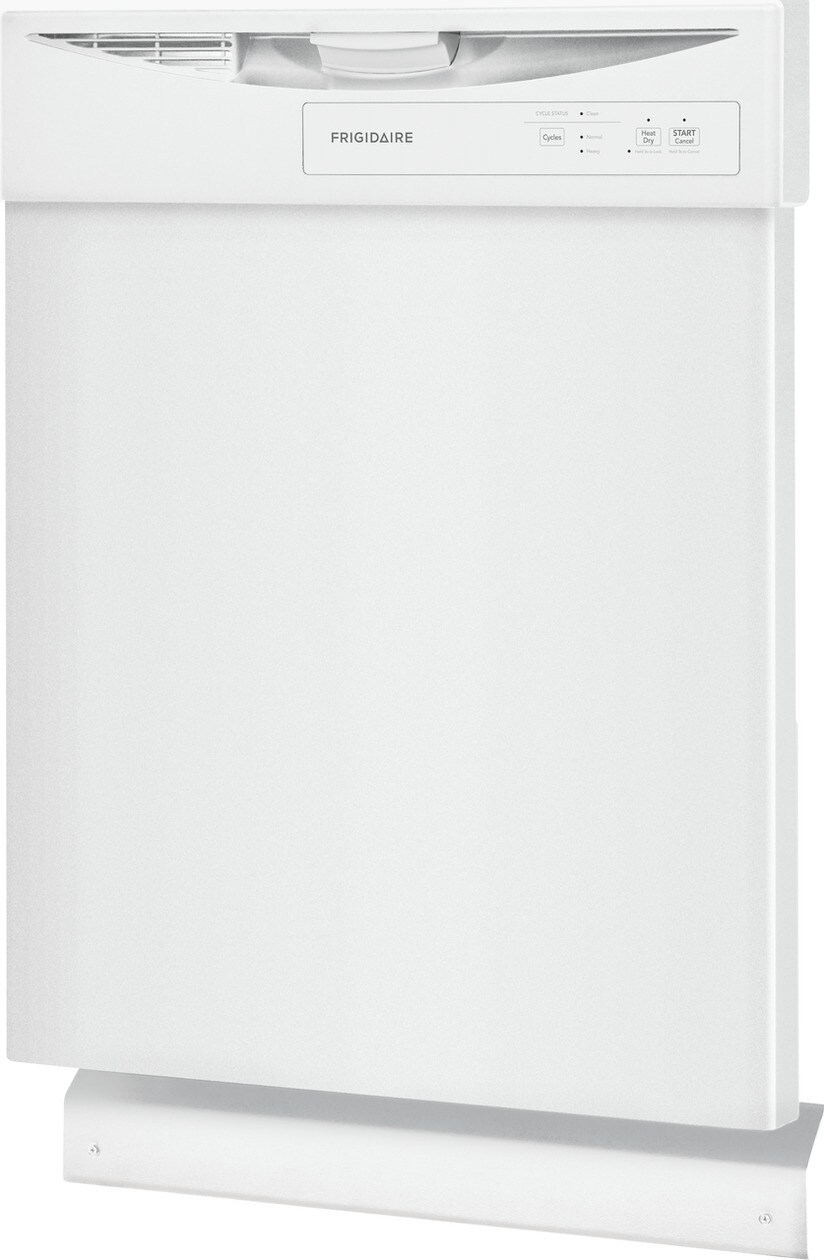

The Frigidaire 24 in. built-in dishwasher offers a complete clean with the 5 level wash system, featuring an upper spray nozzle, middle spray arm, and lower spray arm. Reduce energy use with the no heat dry option and clean 14 place settings in one cycle.
- 5-Level Wash System
- Get a complete clean with the 5-level wash system, featuring an upper spray nozzle, middle spray arm, and lower spray arm.
- Energy Saver Dry Option
- Reduce energy use with the no heat dry option.
- Fits up to 12 Place Settings
- Cleans up to 12 place settings in one cycle. See owner's manual for recommended loading instructions. * See owner's manual for recommended loading instructions.
Product Line | Dishwasher |
Power Type | Electric 120v |
Size | 24" |
Installation Type | Built-In |
Factory | Kinston |
Color | White |
Dishwasher | |
Detergent Dispenser | Yes |
Filter Material | Stainless Steel |
Filter Trap | Removable |
Filtered Water | 100 % |
Hard Food Disposer or Filtration | Yes |
Motor Speeds | Single-Speed |
Place Setting Capacity | 12 |
Rinse Aid Dispenser | Yes |
Smart Soil Sensor | No |
Lower Spray Arm | Bi-Beam |
Middle Spray Arm | Bi-Beam |
Upper Spray Arm | Nozzle |
Tub Design | Tall Tub |
Tub Material | Plastic |
Wash Levels | 5 |
Wash System | Direct Feed |
Water Pressure | 120 psi |
Water Usage | 5 Gallons |
Dishwasher Cycles | |
Heavy | Yes |
Normal | Yes |
Number of Cycles | 2 |
Upper Rack | Yes |
Dishwasher Options | |
Drying System | Static Vent |
Heated Dry | Yes |
Start/Cancel | Yes |
Lower Rack | |
Maximum Height Clearance | 13" |
Minimum Height Clearance | 11" |
Number of Silverware Basket | 1 |
Rack Type | Basic |
Upper Rack | |
Minimum Height Clearance | 8" |
General Specifications | |
Sound Level | 62 dBA |
Annual Energy | 240 kWh |
Product Weight | 78.85 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |

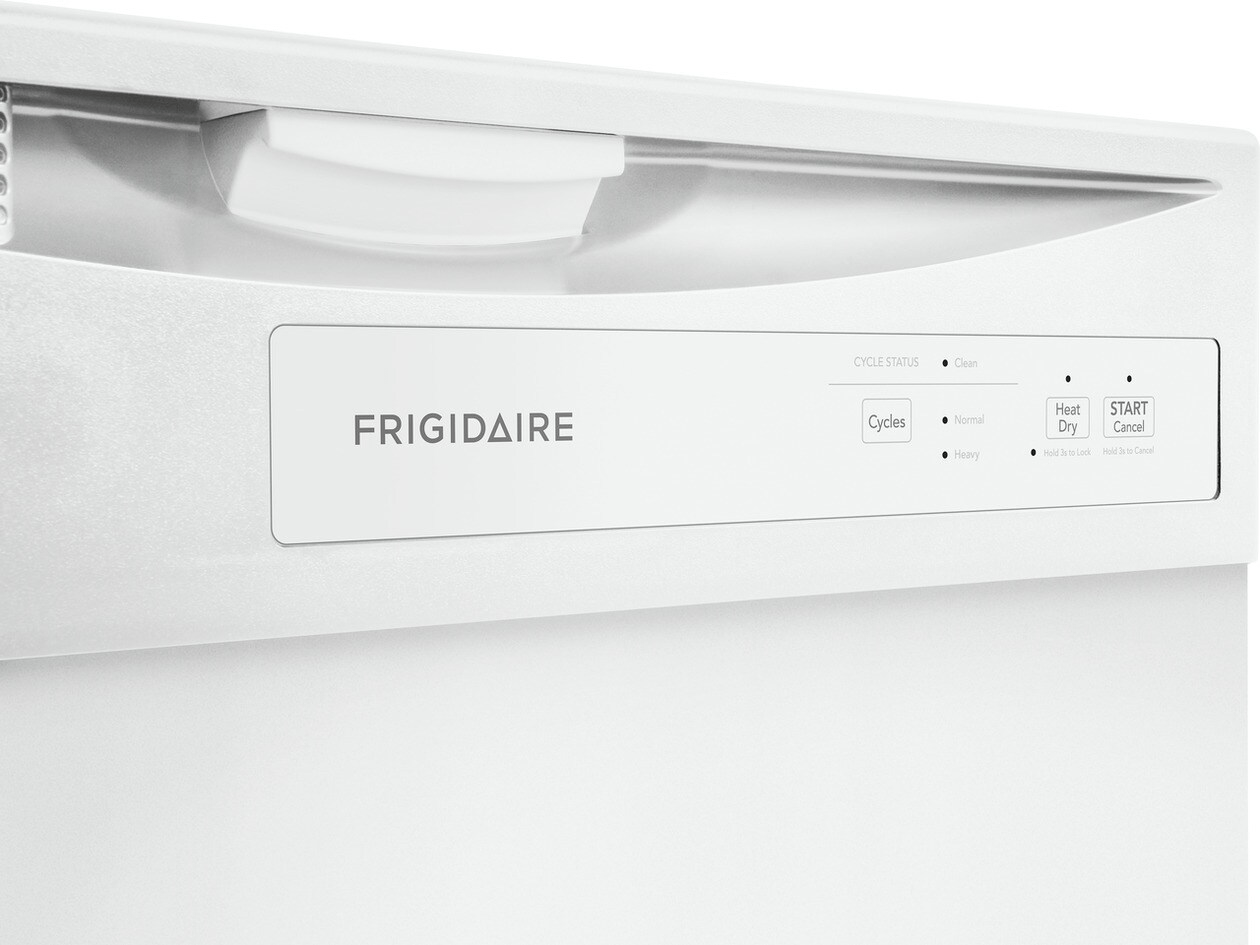

Controls | |
Control Location | Front |
Digital Display | No |
Control Lock | Yes |
Rinse Aid Indicator | Yes |
Exterior | |
Door and Handle Design | |
Door Latch | Squeeze |
Door Type | Standard |
Dimensions and Volume | |
Minimum Height | 33 1/2" |
Maximum Height | 35" |
Width | 24" |
Depth | 25" |
Depth With Door Open | 49 1/4" |
Electrical Specifications | |
Voltage Rating | 120 V |
Installation | |
Connection Location | Right Bottom |
Number of Leveling Legs | 4 |
Water Inlet Location | Bottom Left |
Certifications and Approvals | |
ADA Compliant | No |
CEE Tier | Tier 1 |
ENERGY STAR Certified | No |
Meets ASSE 1006 Requirements | Yes |
NSF Certified | No |
UL Listed | Yes |
