The Frigidaire 36" Gas Cooktop offers five powerful, flexible burners that get meals on the table faster and meet all your cooking needs. Edge-to-edge continuous grates make it easy to move pots and pans without lifting, providing an effortless cooking experience. These cooktops are part of our Frigidaire Fit Promise program that allow you to purchase with peace of mind that your new cooktop will fit your existing cut out.
- Quick Preheat
- Experience faster boil times and more powerful cooking with the 18,000 BTU burner.
- Five Burner Cooktop
- From a 5,000 BTU simmer burner to a powerful 18,000 BTU Quick Boil Burner, the five burner cooktop satisfies your cooking needs.
- Simmer Burner delivers low, gentle heat
- Simmer burner delivers a low heat that allows you to prepare delicate foods or sauces without burning or scorching the bottom.
- Dishwasher Safe Burner Caps
- Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
- Continuous Edge-to-Edge Grates
- Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
- Frigidaire(R) Fit Promise
- We promise that your new 36" Frigidaire gas cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100. * Via mail-in rebate. See https://www.Frigidaire.com/FitPromise for additional information.
- Spill Safe(R) Cooktop
- Clean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes.
- Installation over Wall Oven Approved
- Cooktops are approved for installation above any of our Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
Product Line | Gas Cooktop |
Power Type | NG |
Size | 36" |
Installation Type | Built-In |
Factory | Rayong |
Color | Stainless Steel |
Cooktop | |
Cooking Surface Type | Gas |
Grate Material | Cast Iron |
Grate Quantity | 3 |
Grate Style | Continuous |
Sealed Burners | Yes |
Cooktop Performance | |
Right Front Element Burner | 12000 BTU |
Right Rear Element Burner | 5000 BTU |
Left Front Element Burner | 9500 BTU |
Left Rear Element Burner | 9500 BTU |
Center Rear Element Burner | 18000 BTU |
Display | |
Control Location | Front |
Display Type | Mechanical |

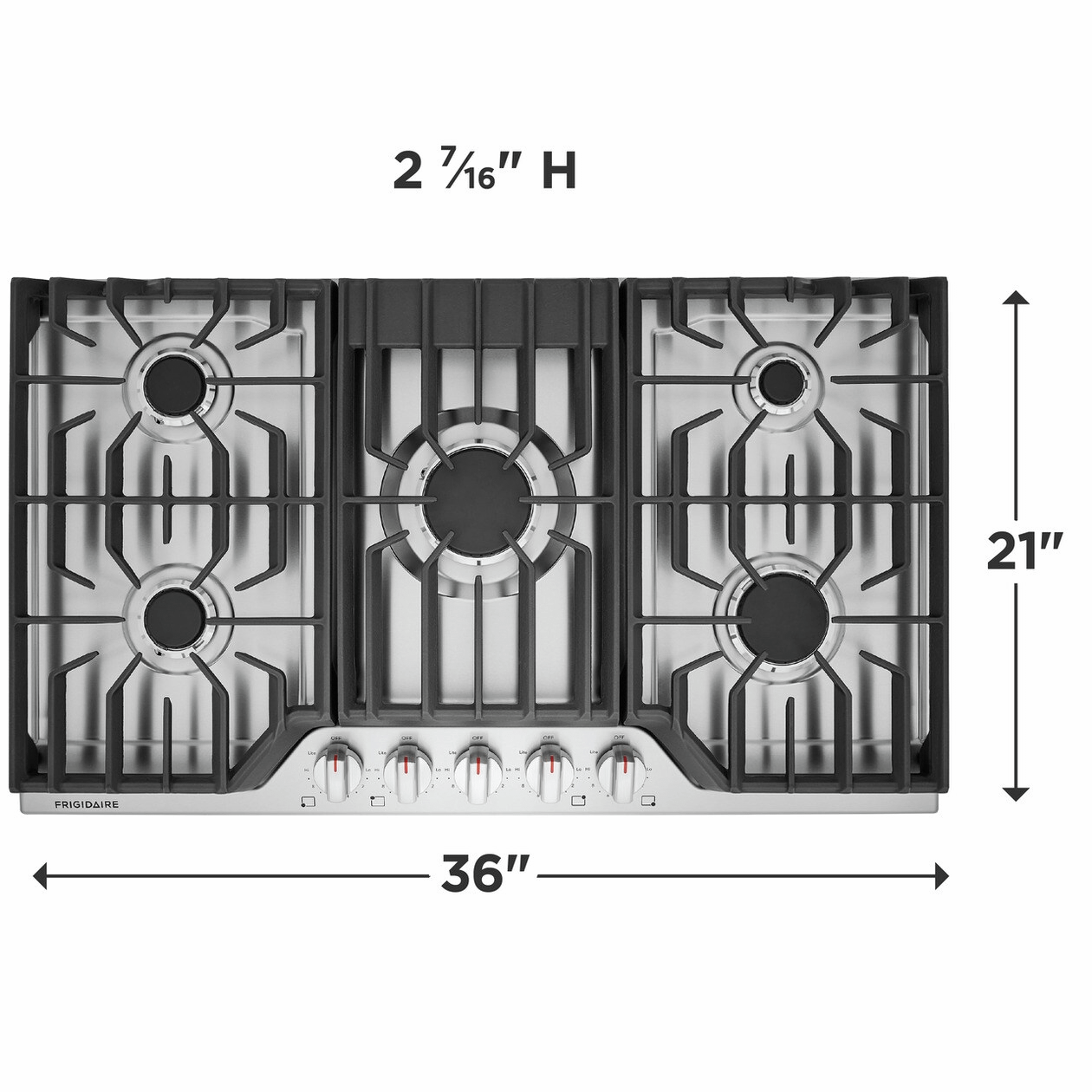

Dimensions and Volume | |
Height | 2 7/16" |
Width | 36" |
Depth | 21" |
Cutout Height | 7 1/2" |
Minimum Cutout Width | 33 7/8" |
Minimum Cutout Depth | 19" |
Maximum Cutout Width | 35 5/8" |
Maximum Cutout Depth | 20" |
Electrical Specifications | |
Minimum Circuit Required | 5 Amps |
Voltage Rating | 120 V |
Installation | |
Gas Supply Connection Location | Top Right |
Installed Over a Wall Oven | Yes |
LP Conversion Kit Included | Yes |
Power Cord Included | Yes |
Power Supply Connection Location | Top Right |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 50 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Certifications and Approvals | |
ADA Compliant | Yes |
CSA Listed | Yes |
UL Listed | Yes |
