Overview & Specifications
Overview & Specifications
Ultra Wash & Dry
This ultra-wash and dry dishwasher ensures sparkling clean, table-ready dishes. Its comprehensive wash system has over 90 jets and a reversing quad spray arm for full coverage. Plus a premium drying system dries every item completely

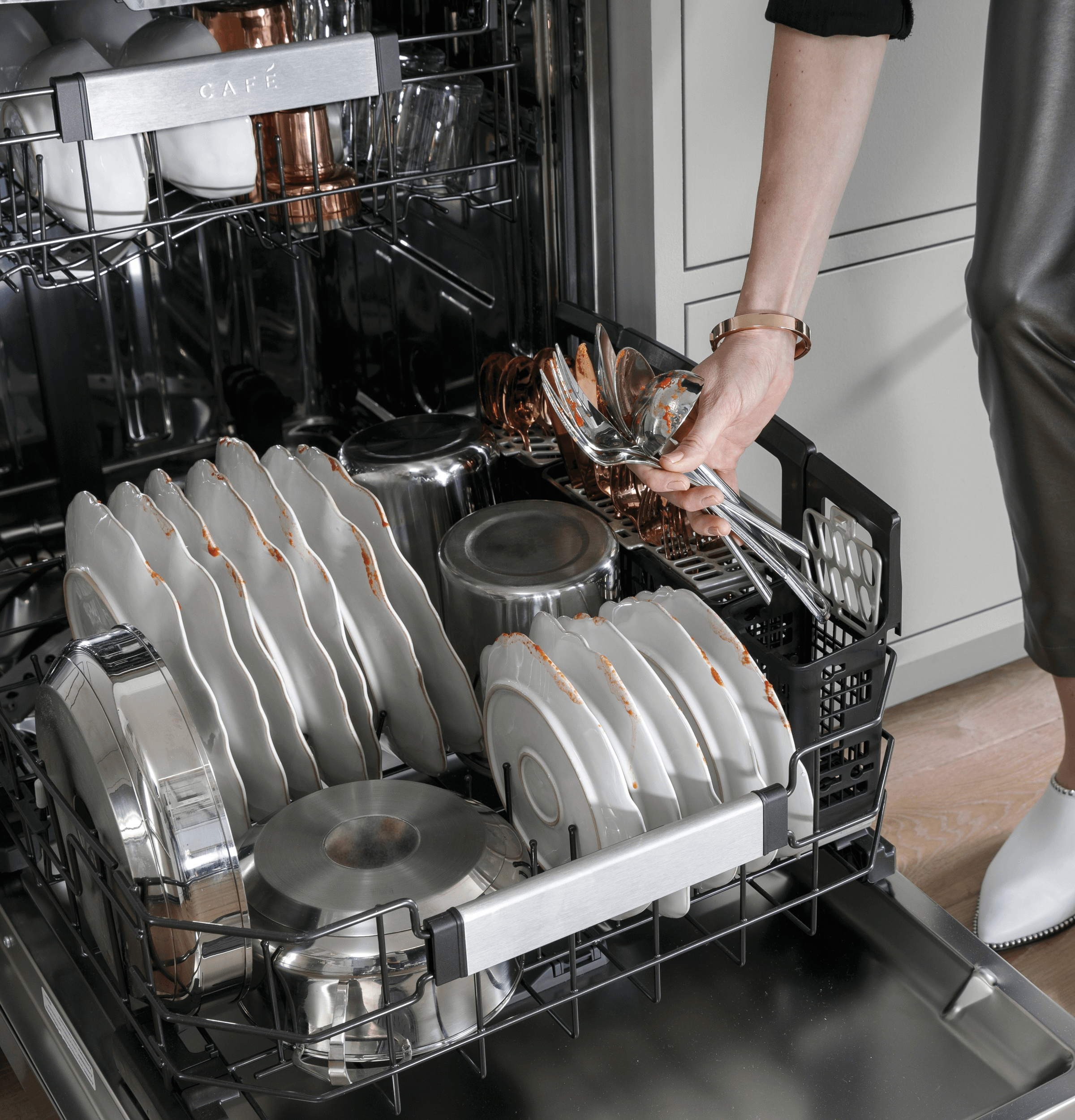

Loading Flexibility
A dishwasher with fold-down tines for uniquely shaped items and a third rack for extra capacity gives you the loading flexibility to store every dish how you want, and still get perfect results

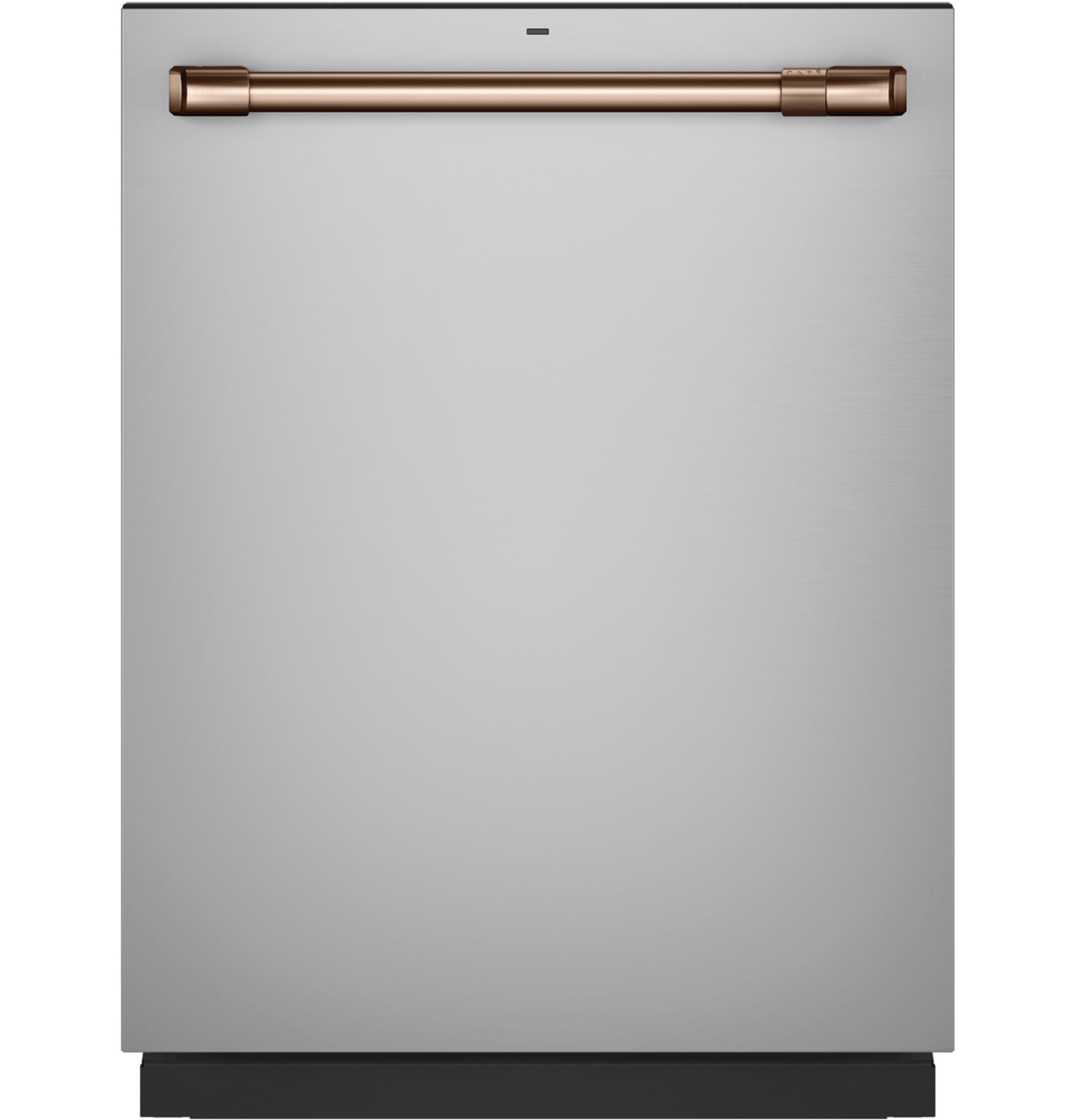

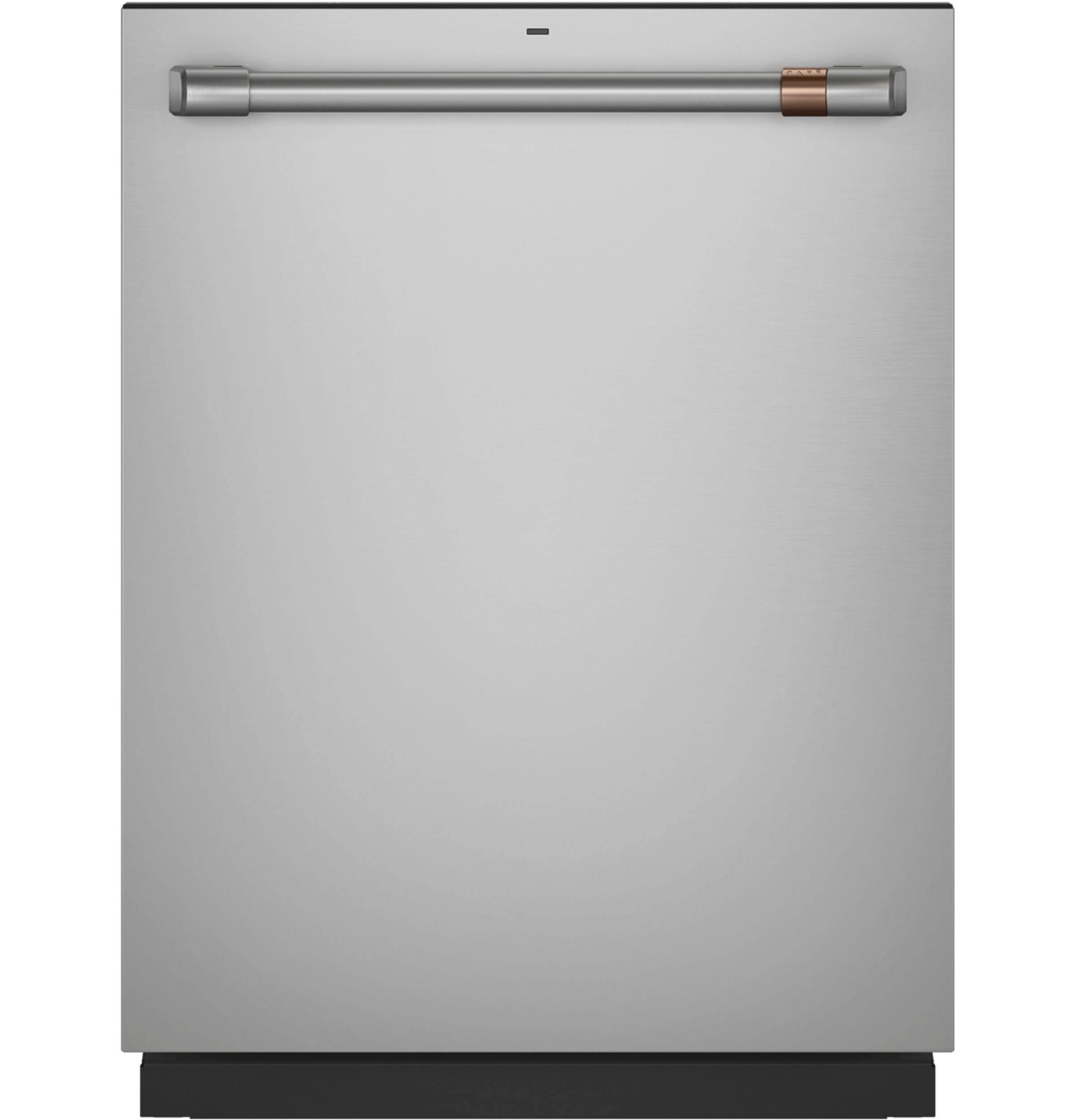

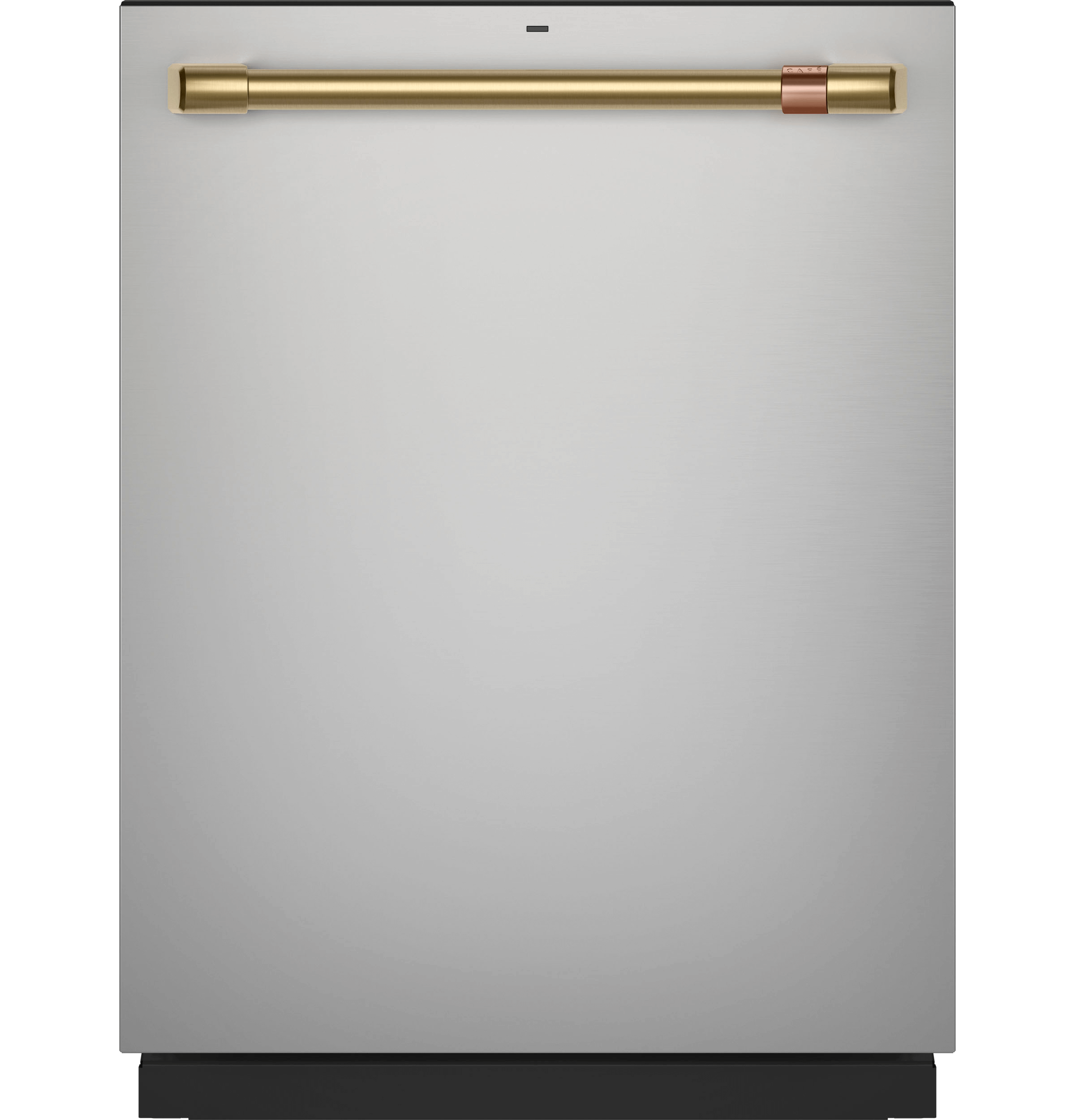

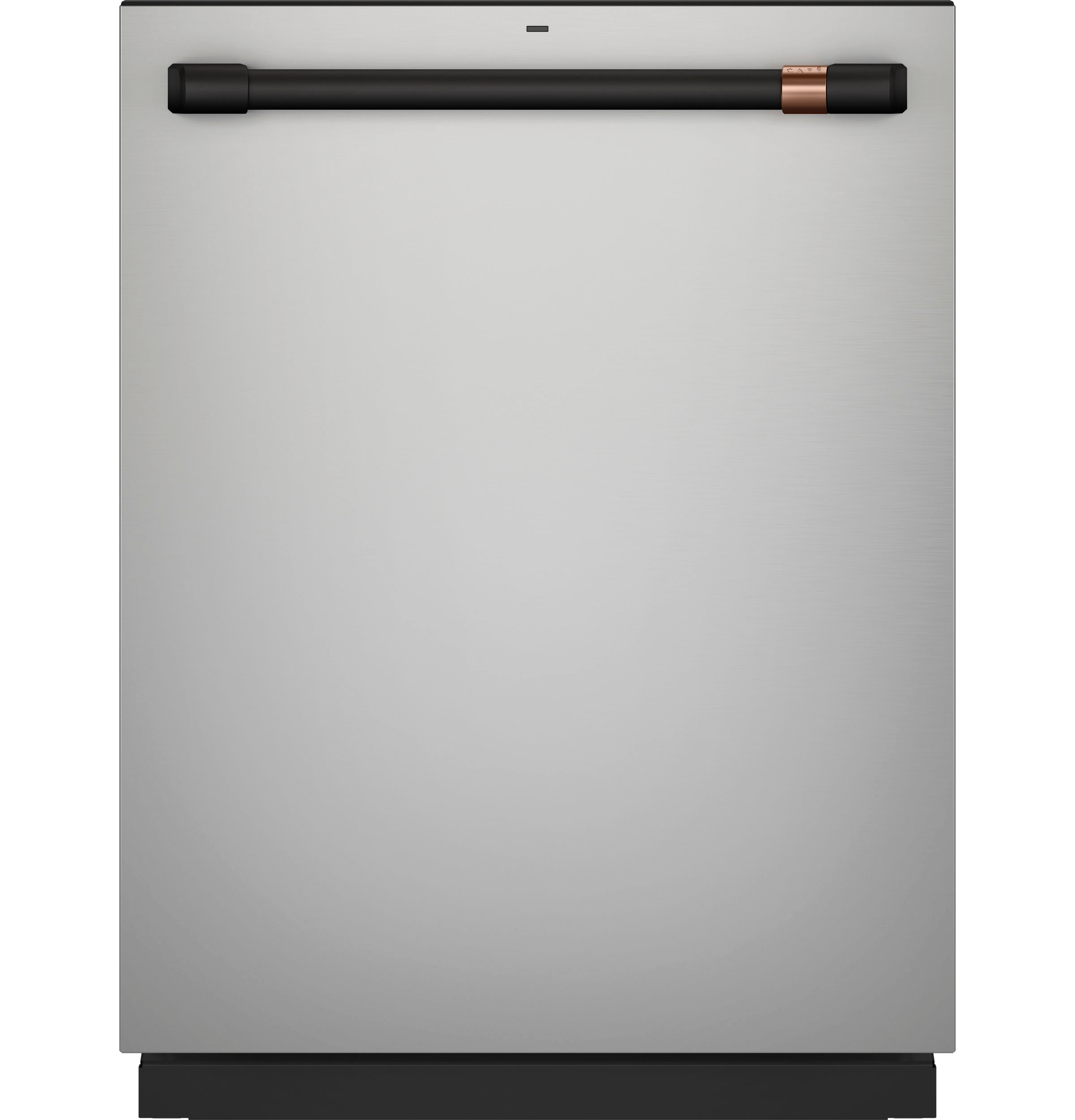

Customizable Hardware Options
Choose from six unique Caf(eback) handle finishes to complement the rest of your kitchen, or your other Caf(eback) appliances

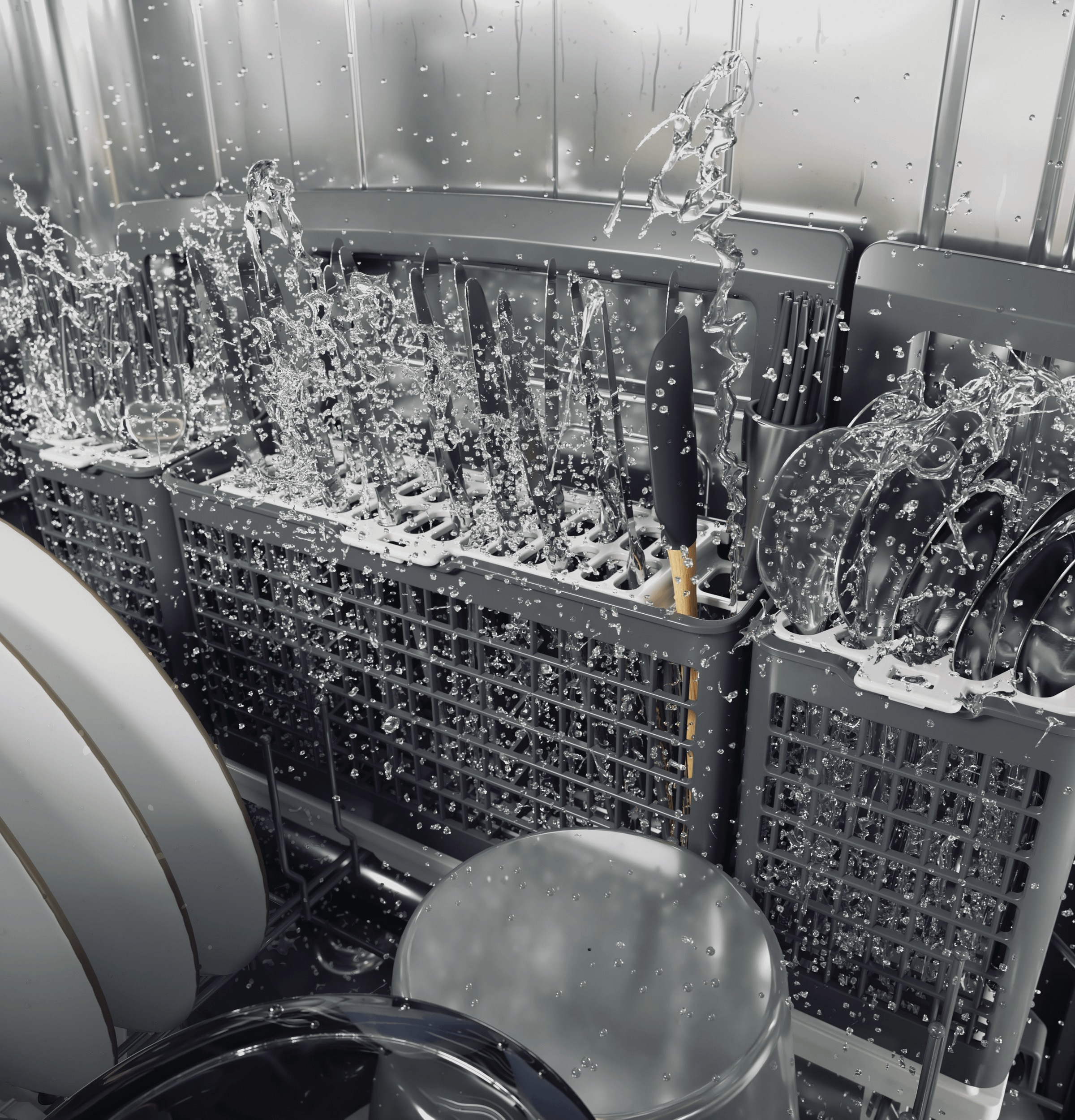

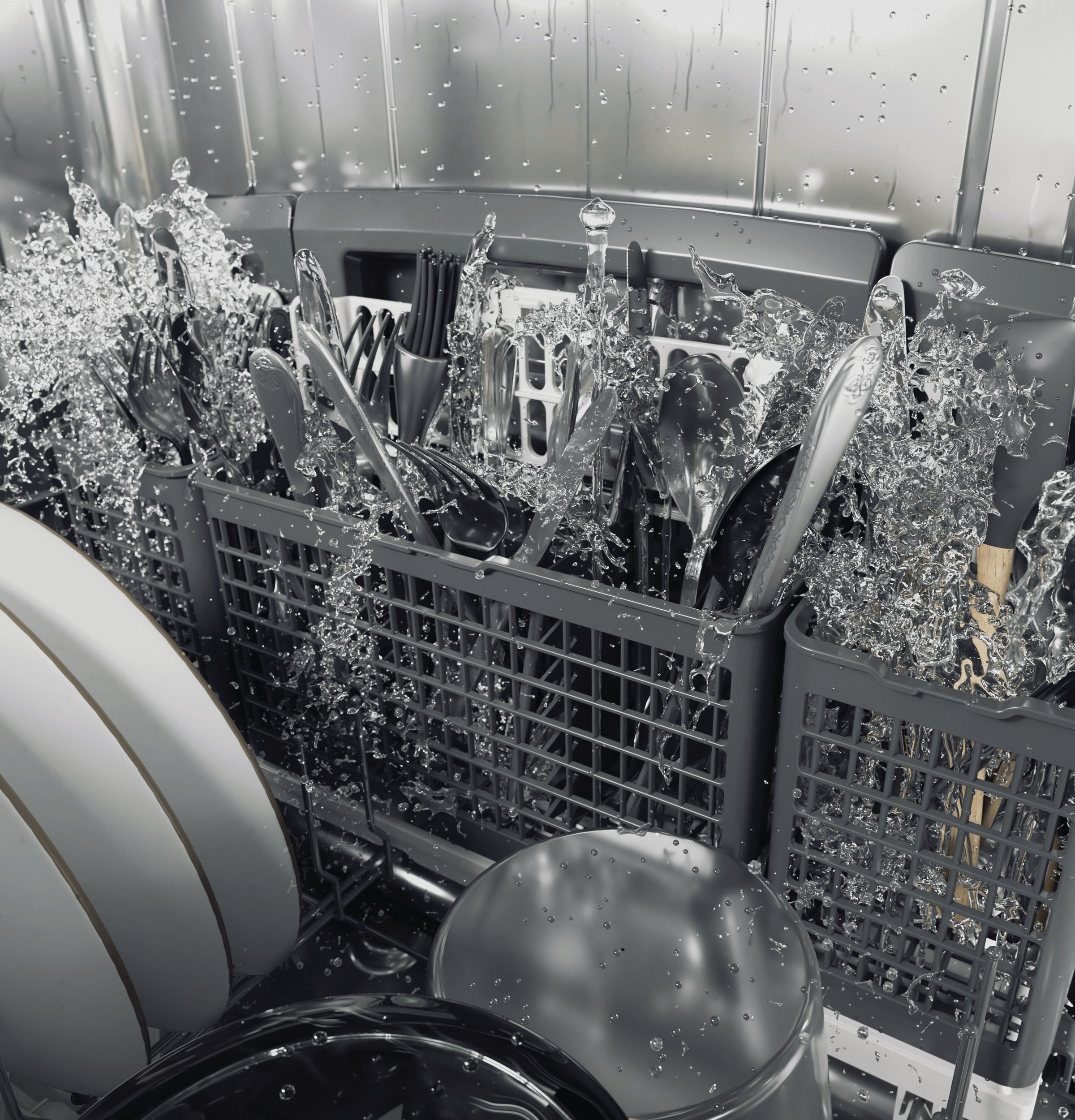

Deep Clean Silverware Jets
This dishwasher with powerful cleaning jets washes your silverware to perfection, no matter how you load it. A system of 40 jets blast the silverware basket from the bottom up, removing all stuck-on foods

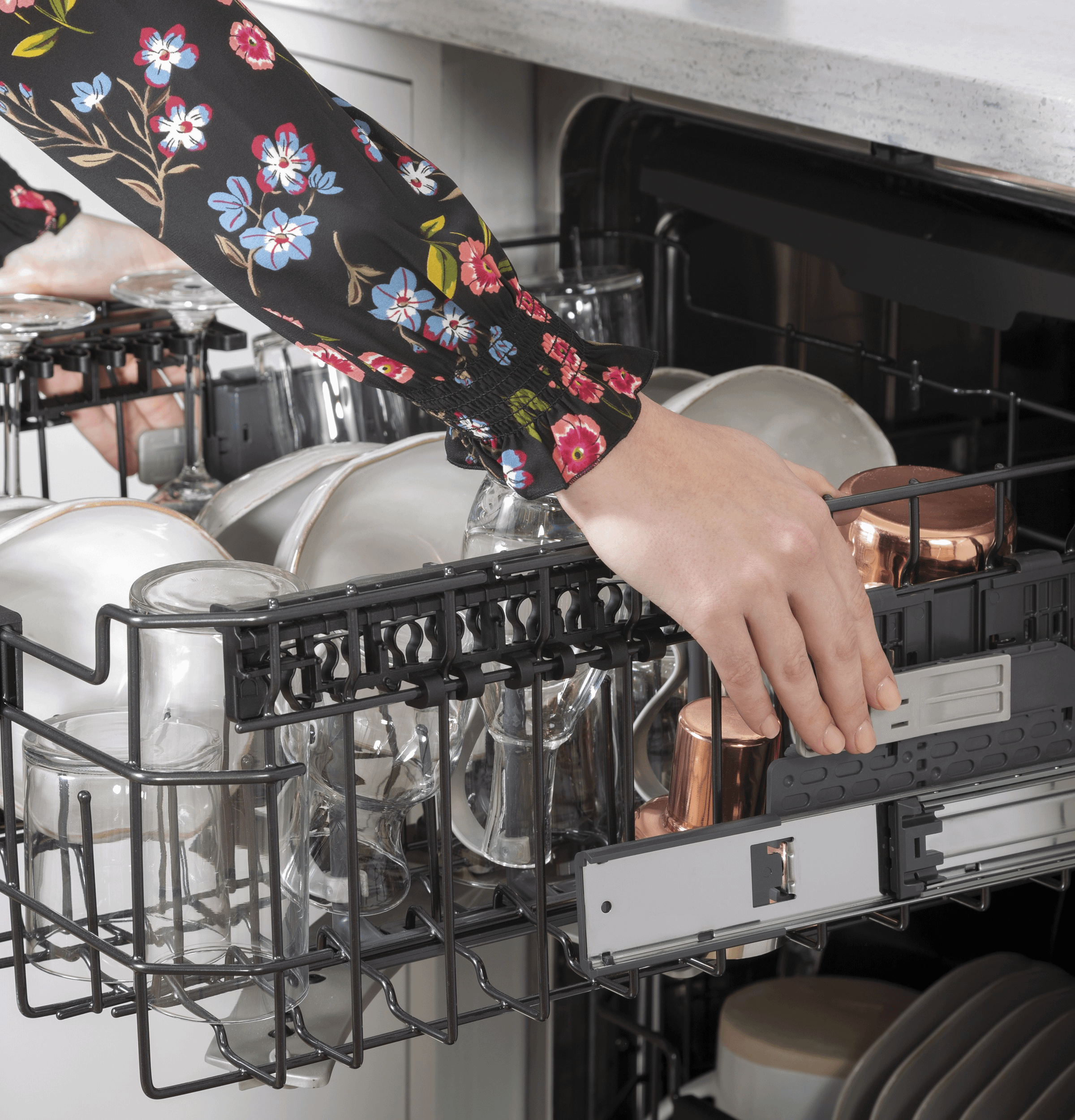

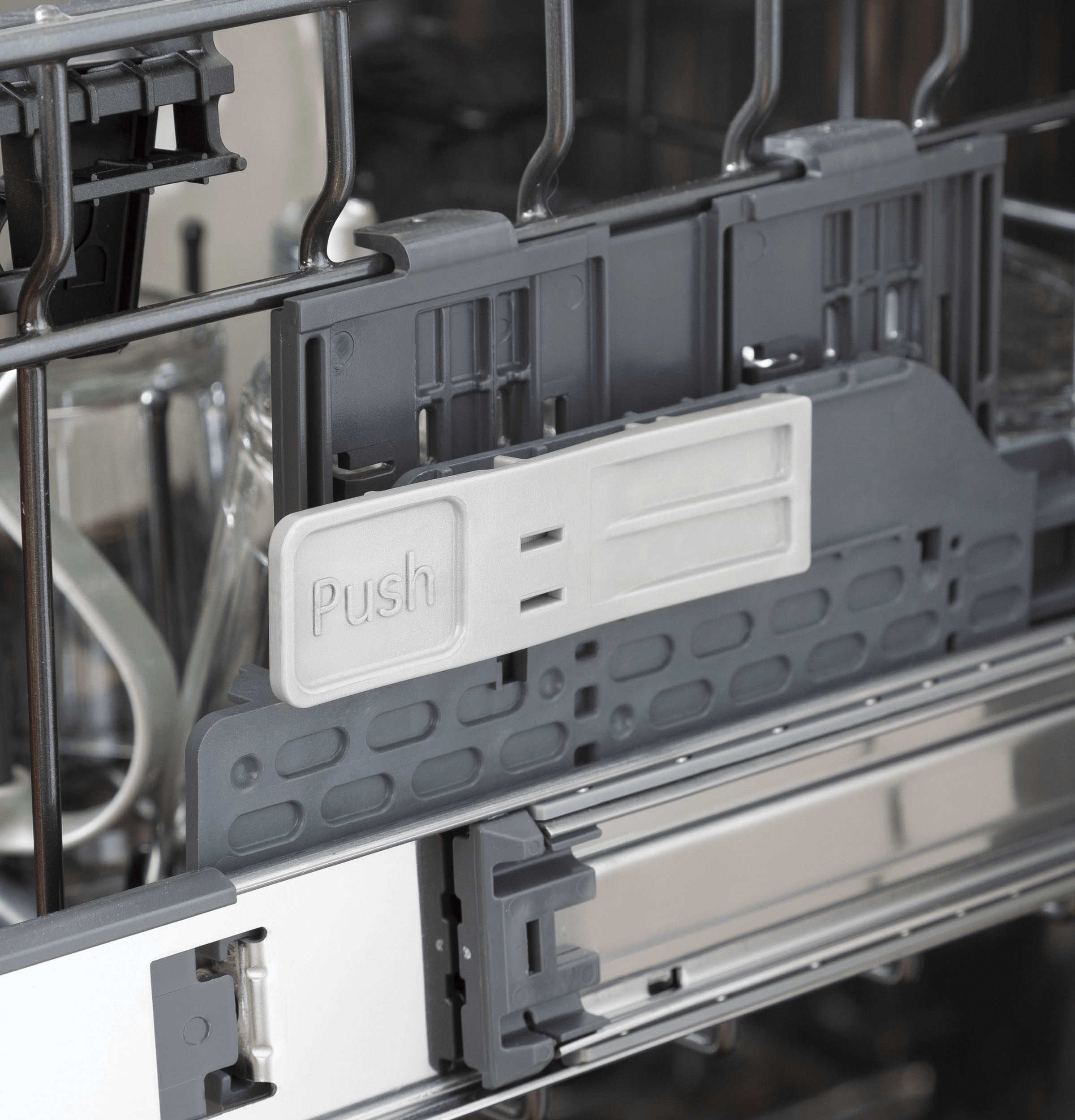

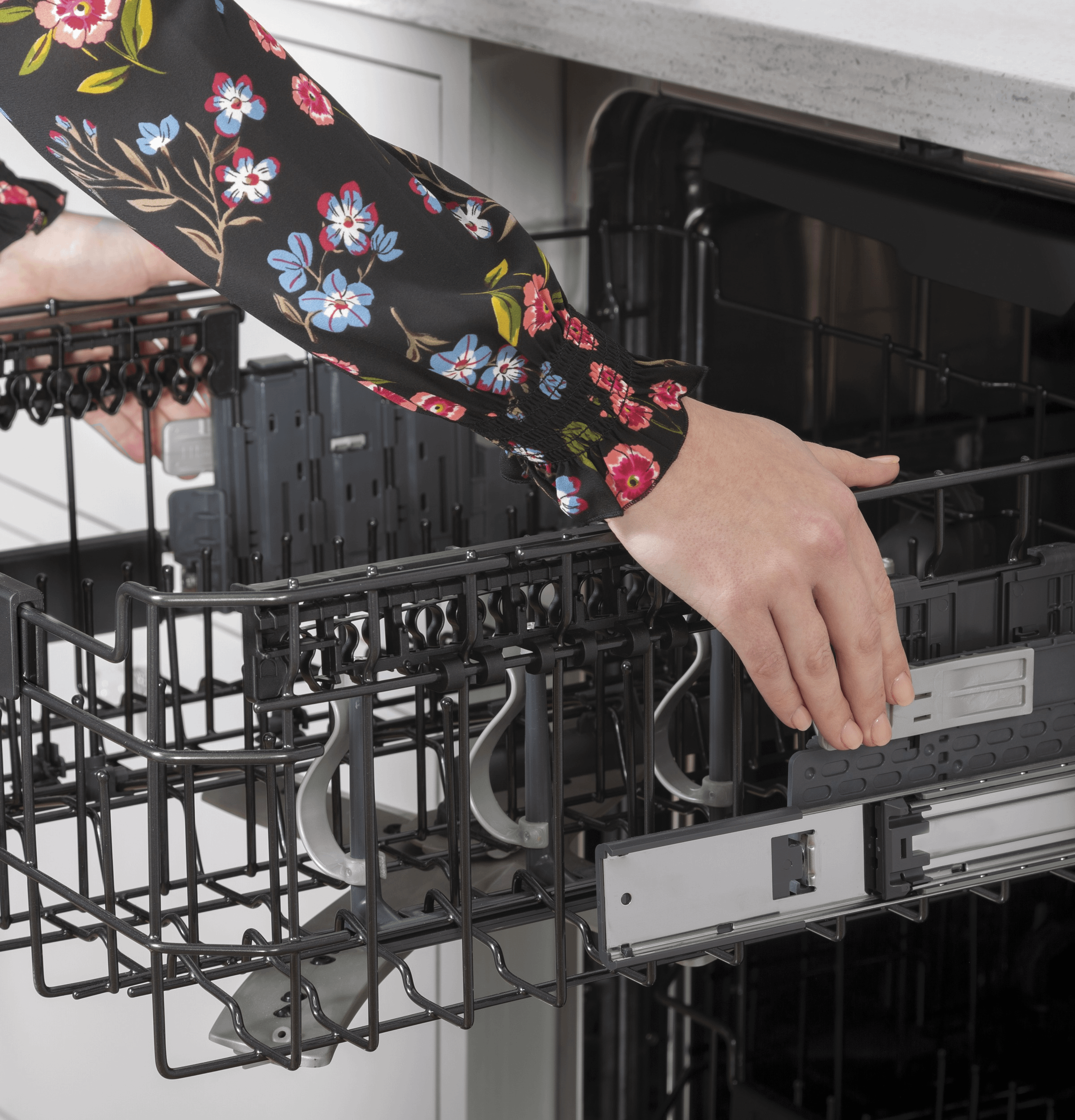

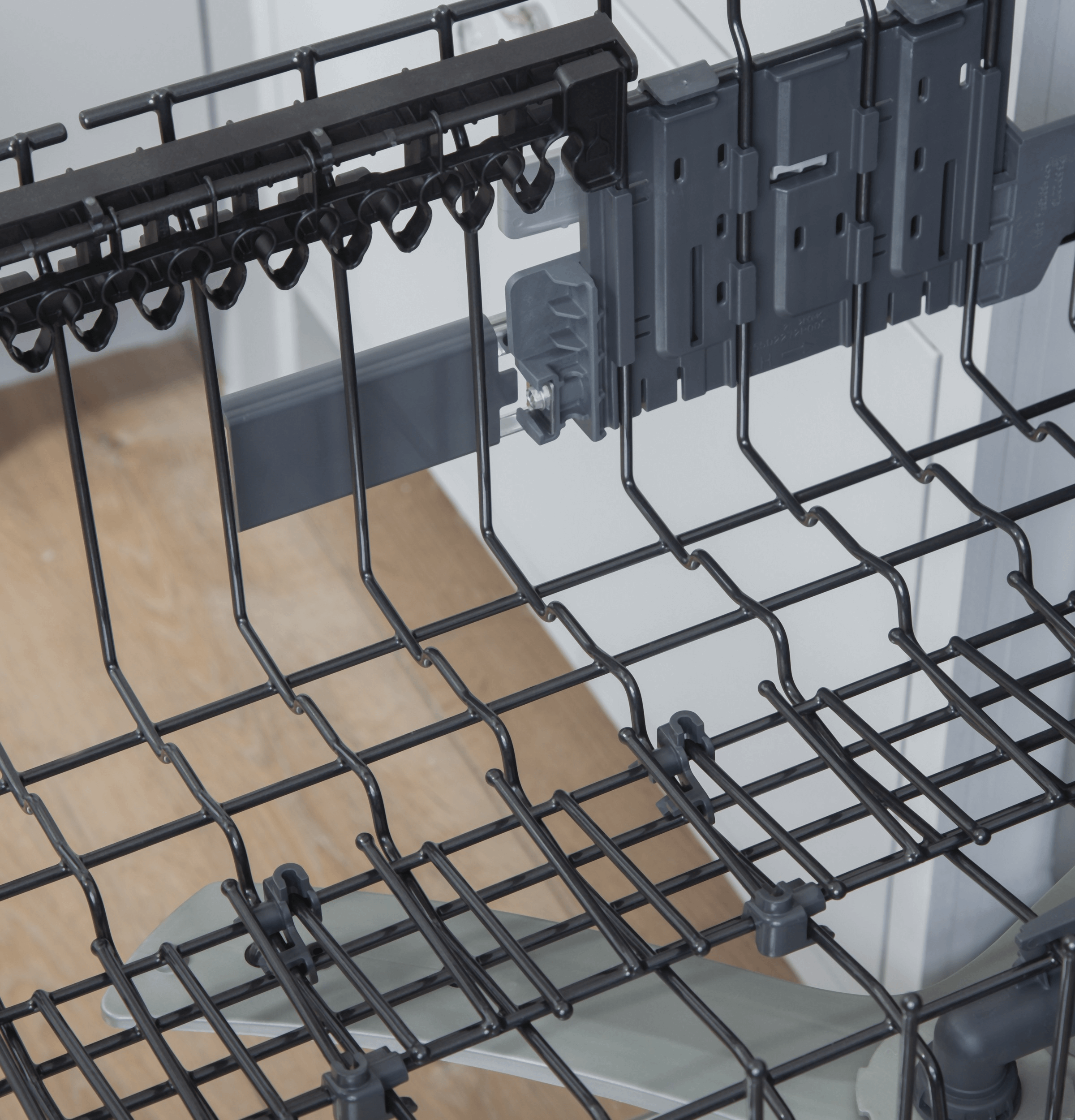

Adjustable Upper Rack
Enjoy a dishwasher with flexible loading with an adjustable upper rack. Easily move it up or down to fit bottles, large platters and other items as tall as 10.5"

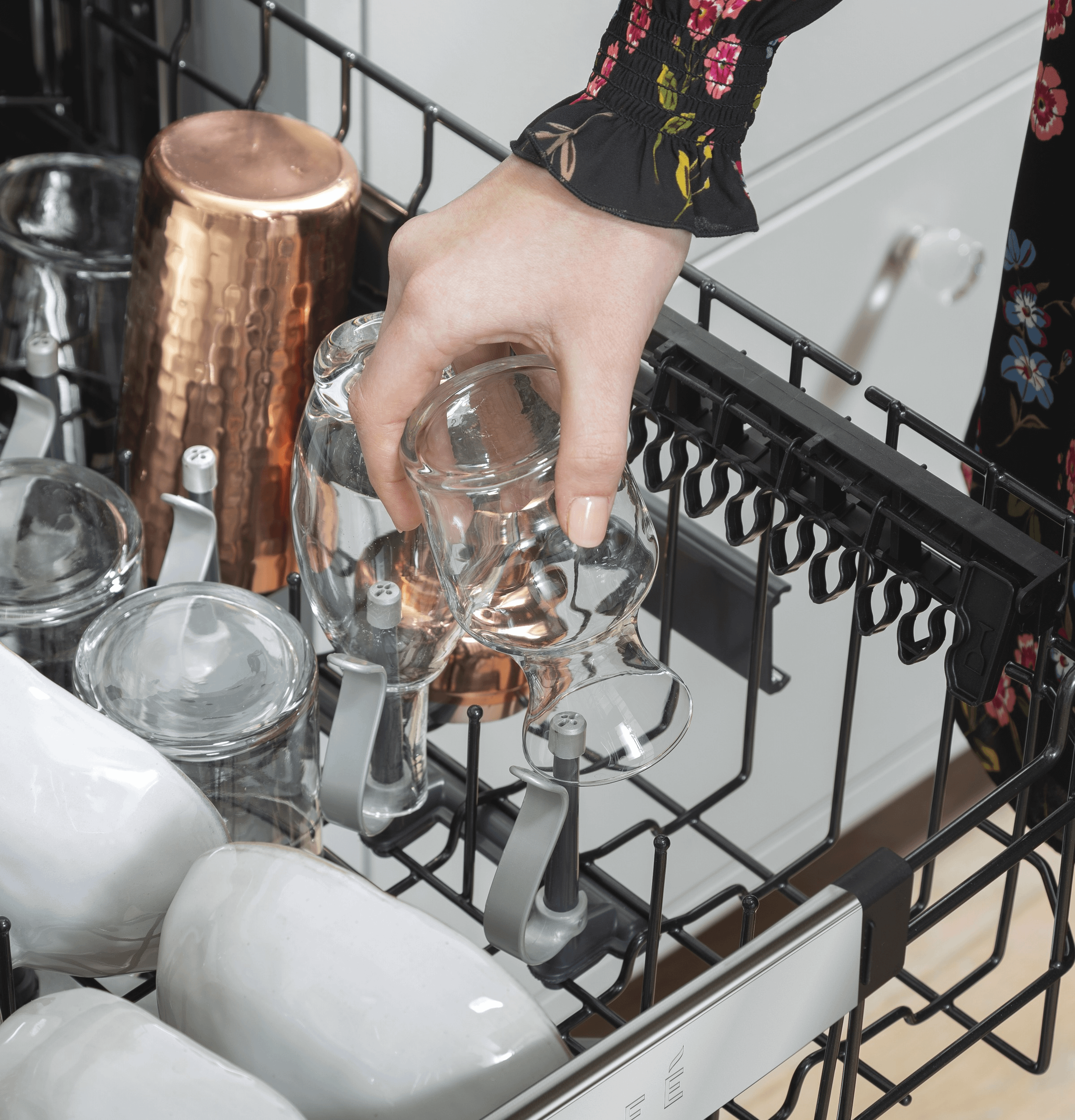

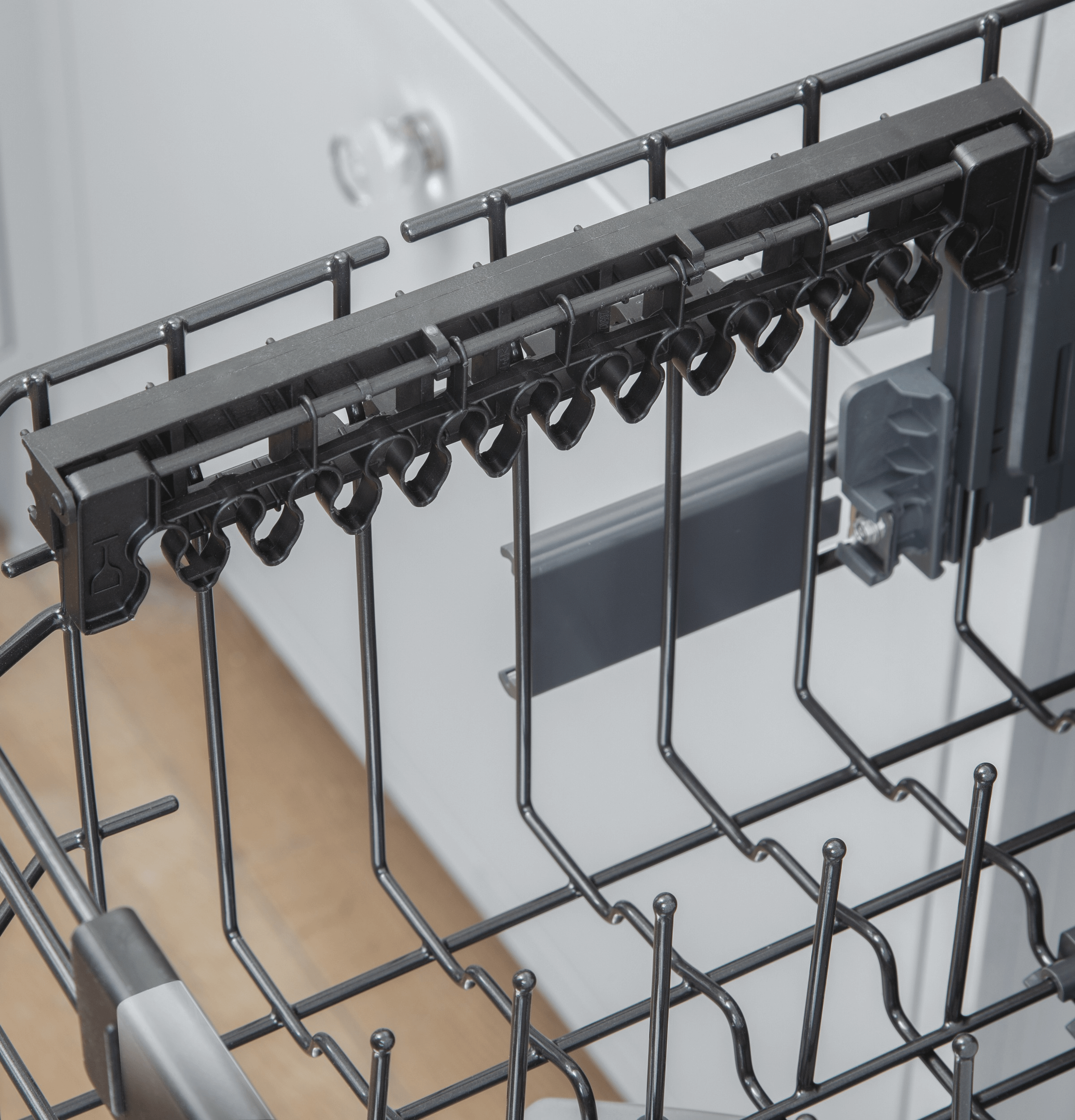

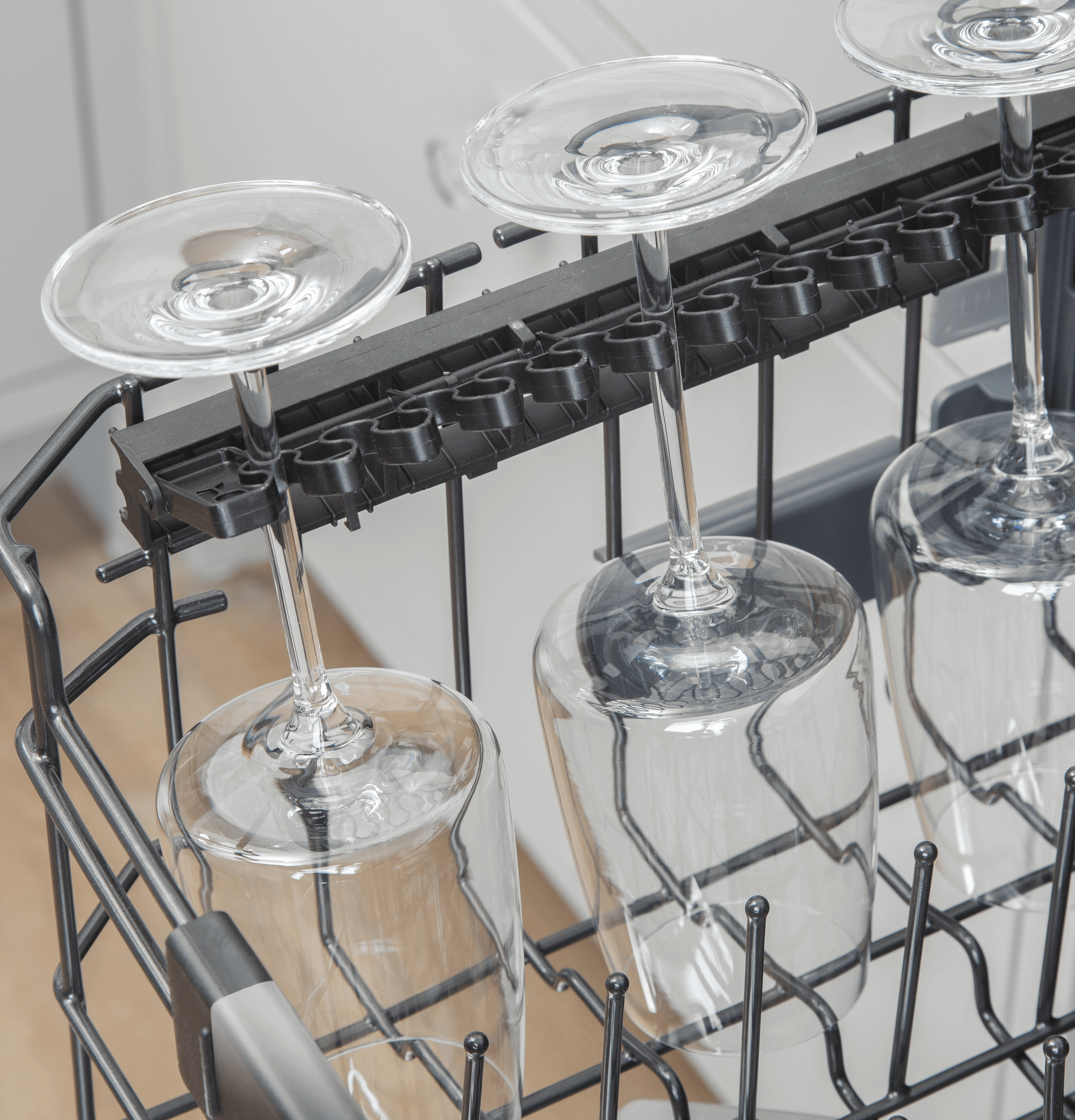

Upper Rack Fold-Down Tines
With multi-position, fold-down tines in the upper rack, you have the loading flexibility. Adjust each tine into three different positions and configure the rack to fit any item, so you can wash less loads

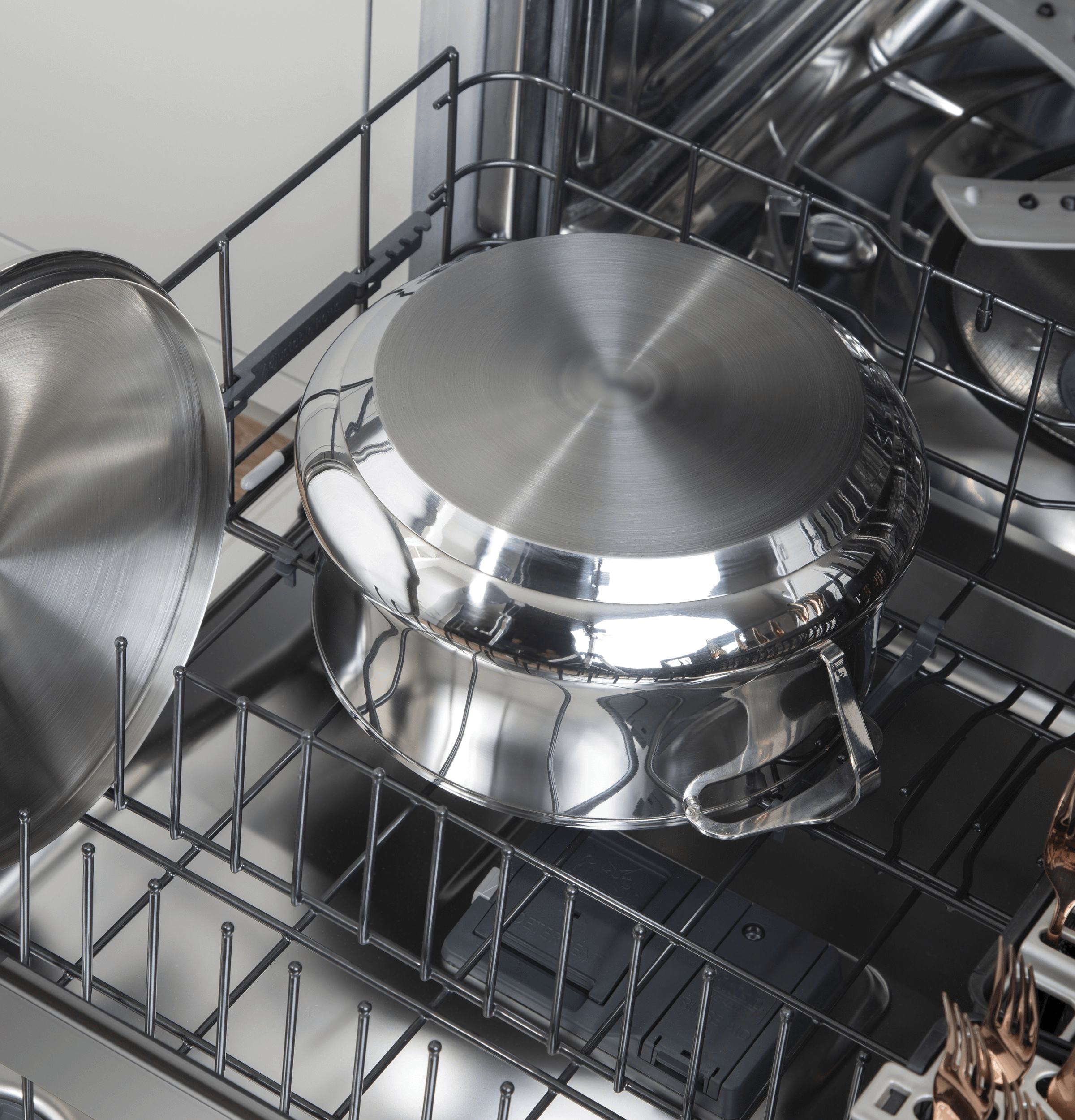

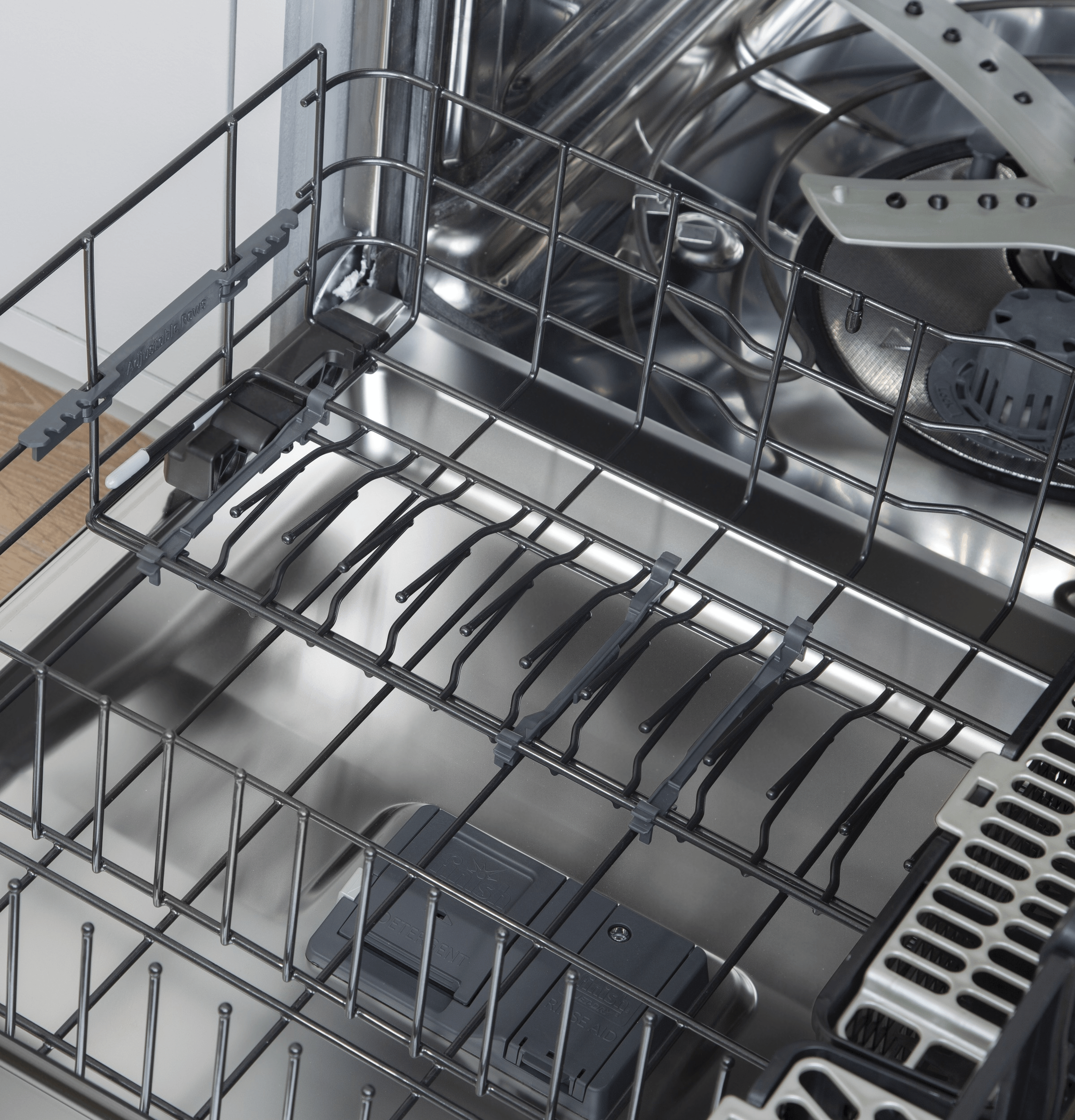

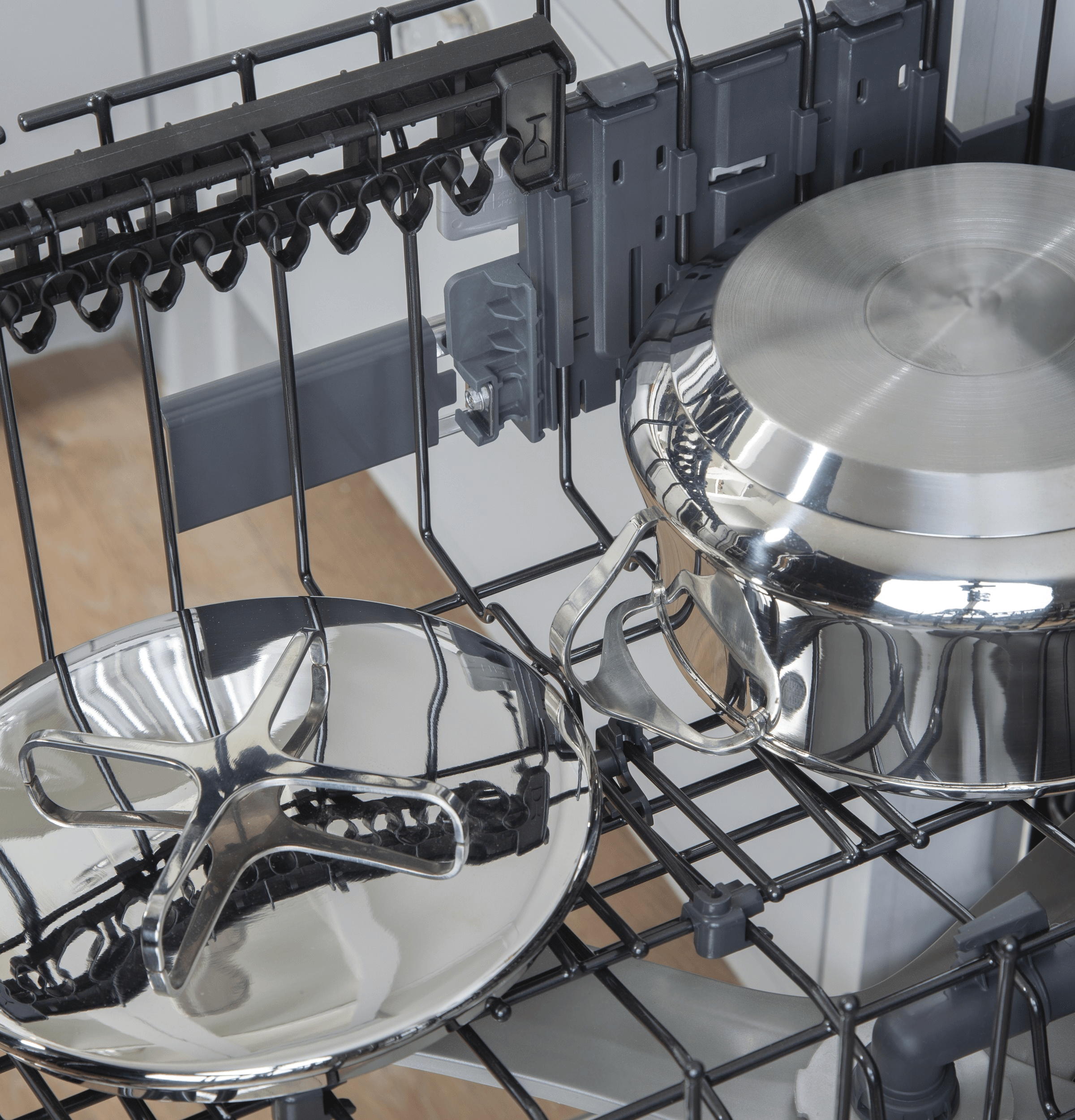

Lower Rack Fold-Down Tines
Enjoy next-level this loading flexibility dishwasher thanks to multi-position, fold-down tines in the lower rack. Adjust them into three different positions and configure your rack to accommodate any item

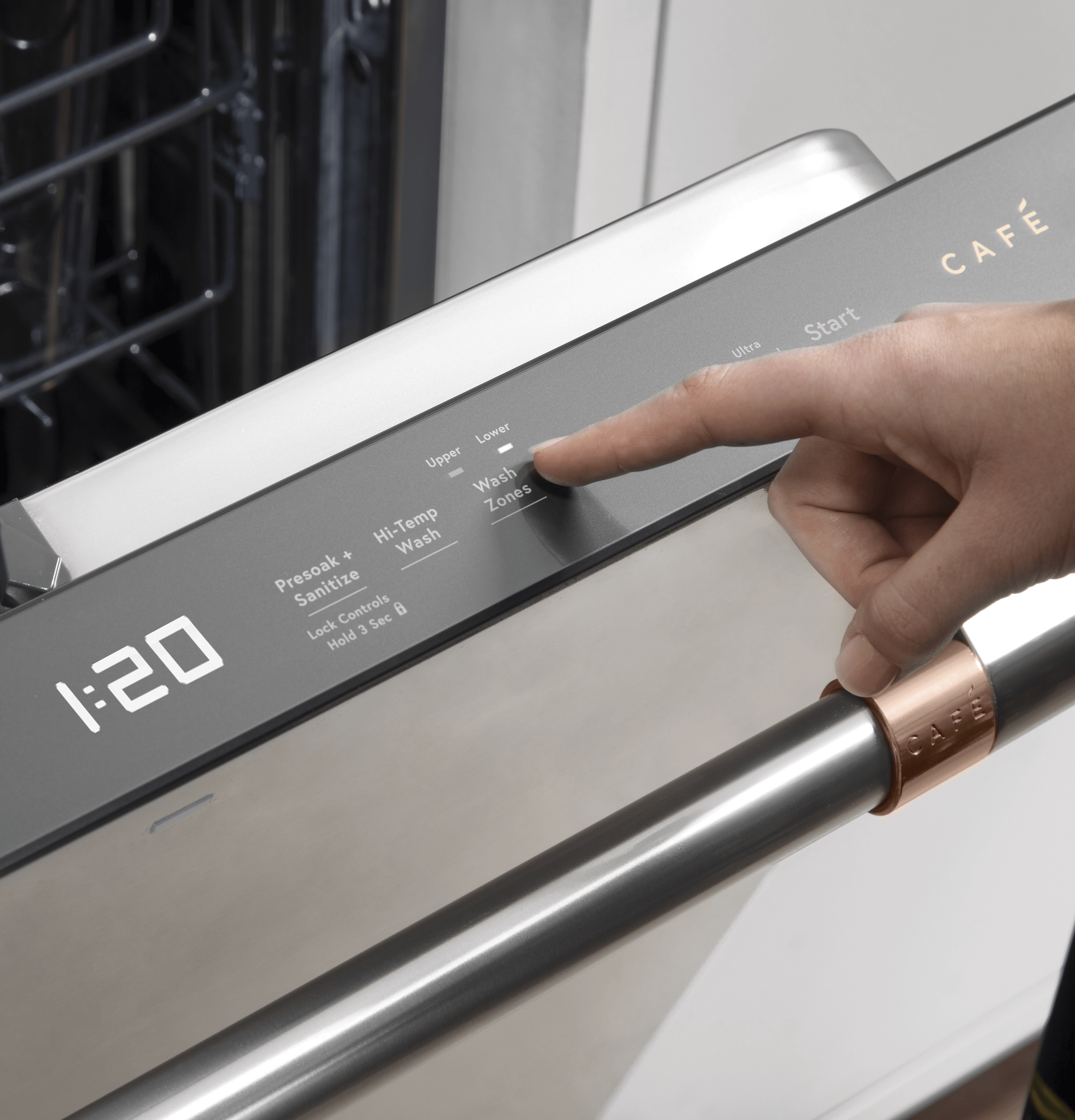

Wash Zones
Wash a true half load in the upper or lower rack whenever you need to, instead of waiting on a full load. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy
Steam + Sani
Save time with a steam and sanitize option that loosens tough soils before the wash cycle begins, so you get a complete wash with no pre-rinsing or soaking necessary. Plus, a sanitization cycle reduces 99.999% of bacteria on dishes

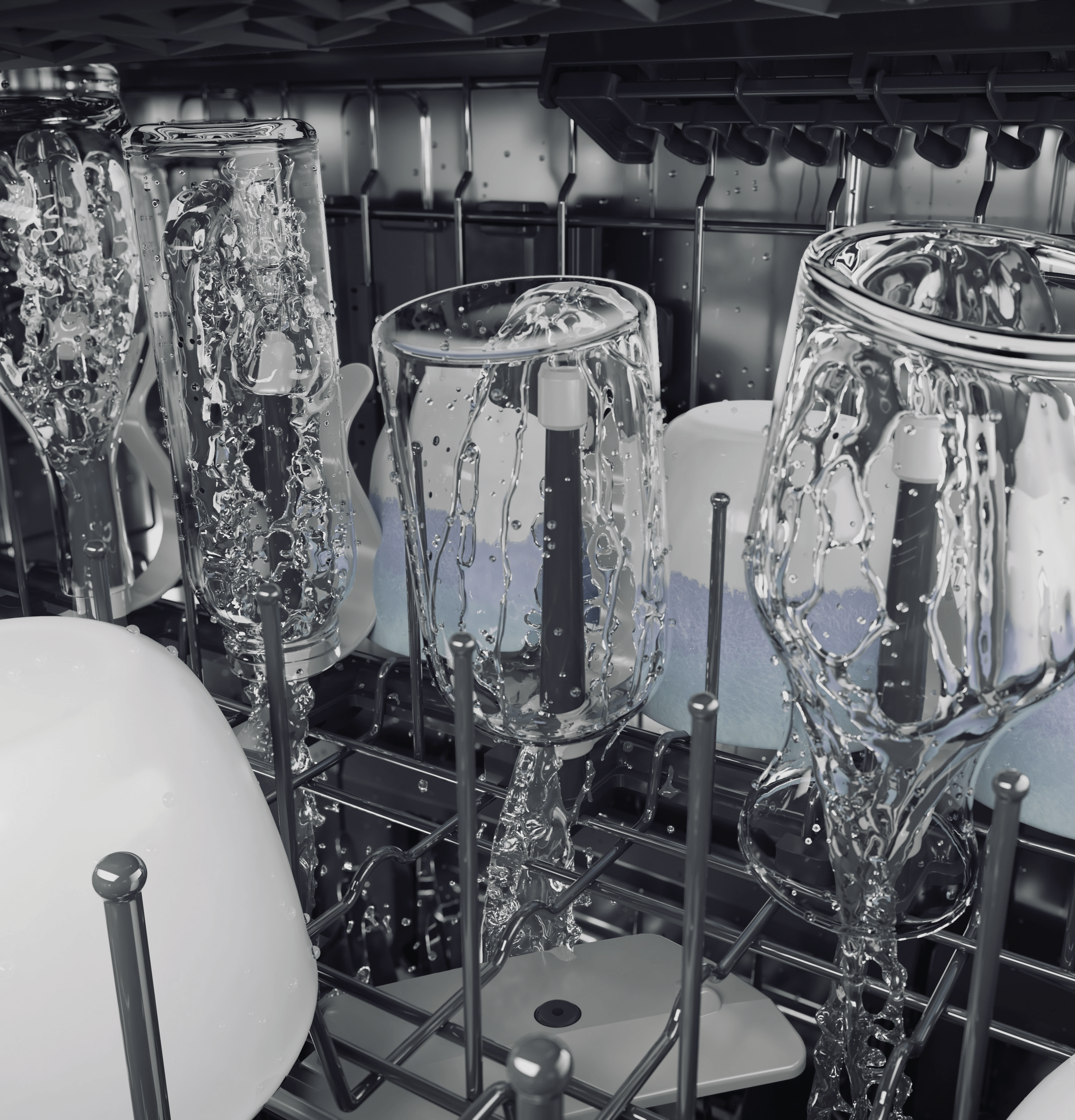

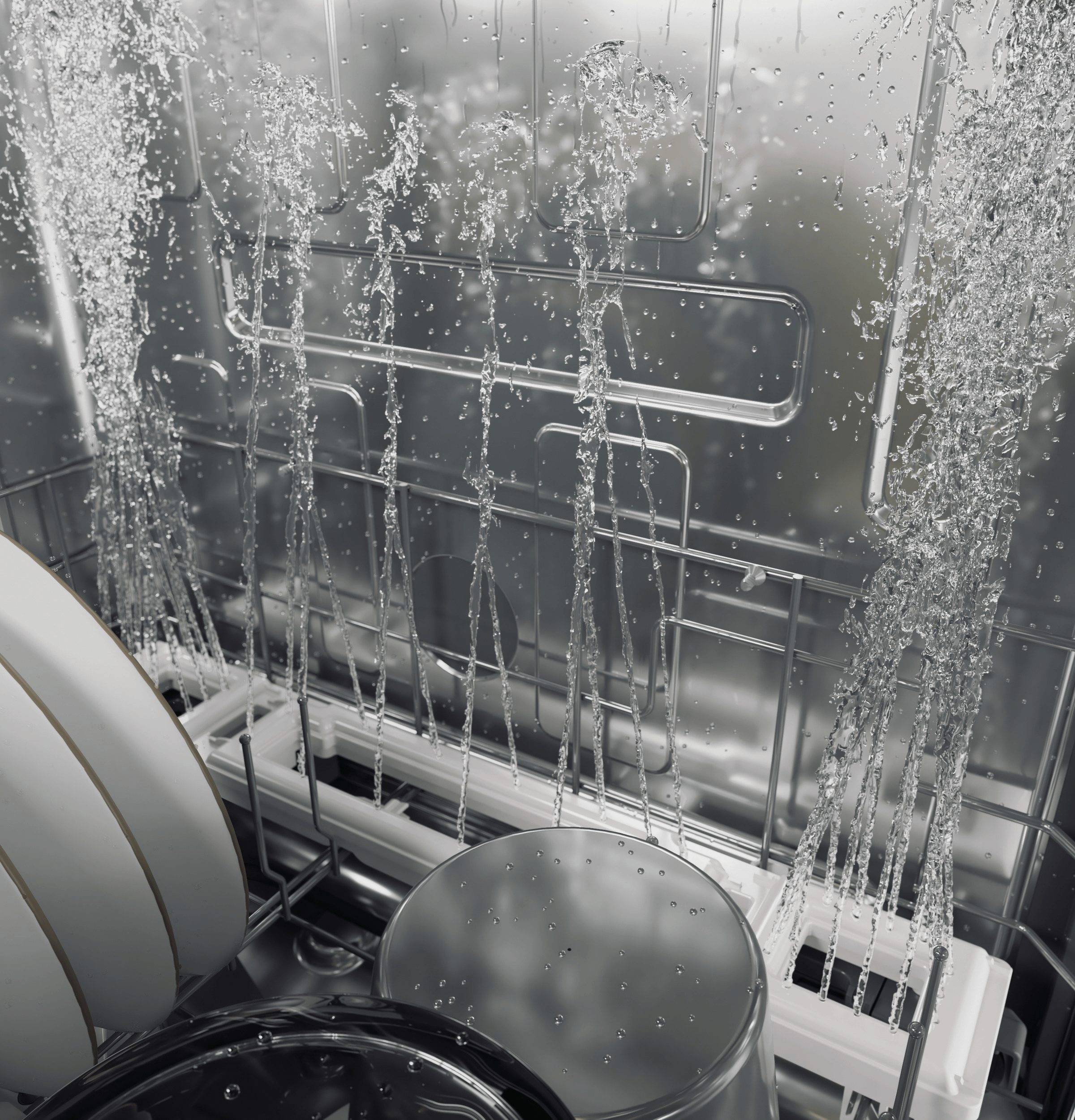

4 Bottle Wash Jets
This dishwasher with bottle jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the four bottle wash jets direct water and detergent inside to effectively wash hard-to-reach areas

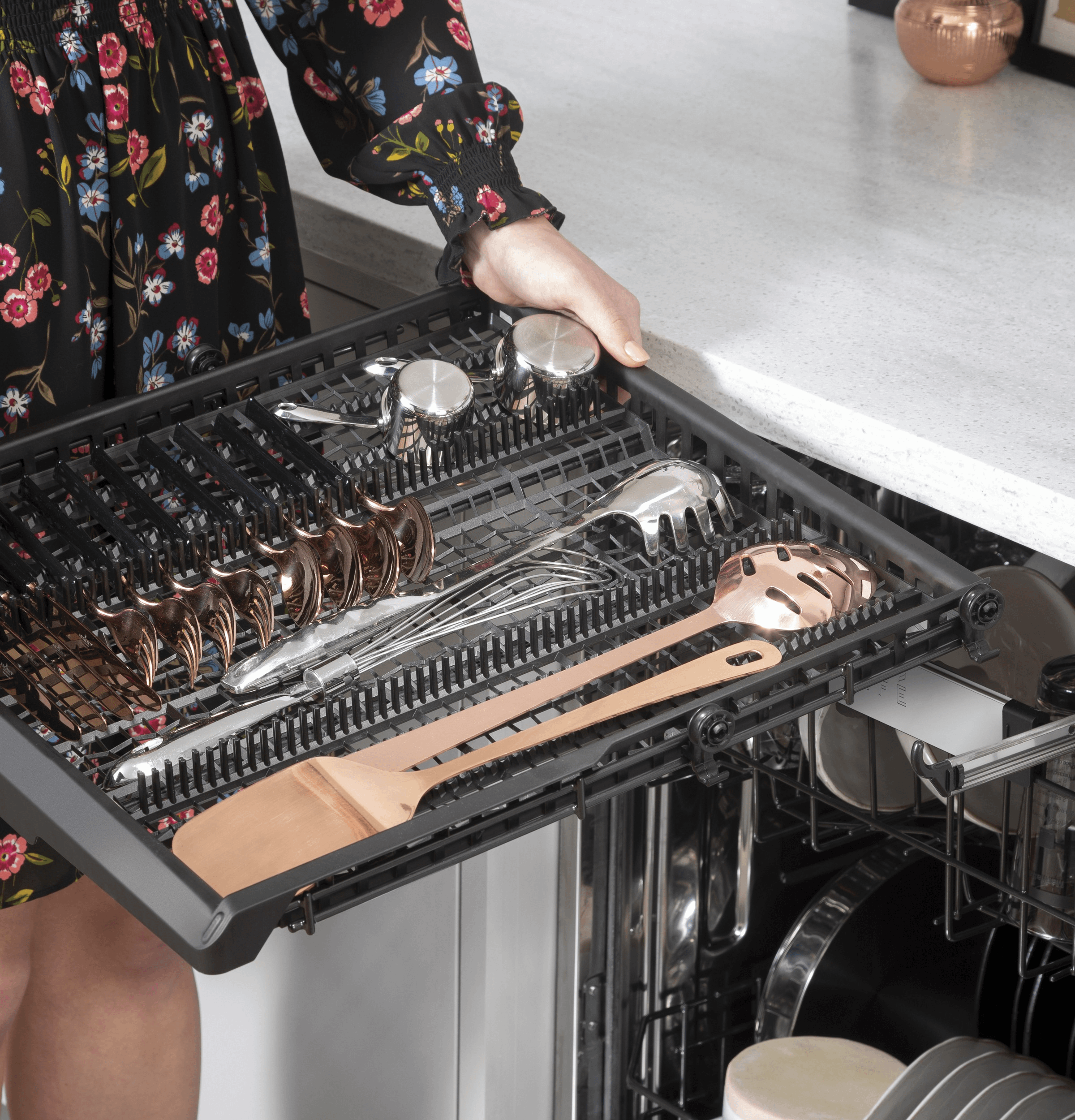

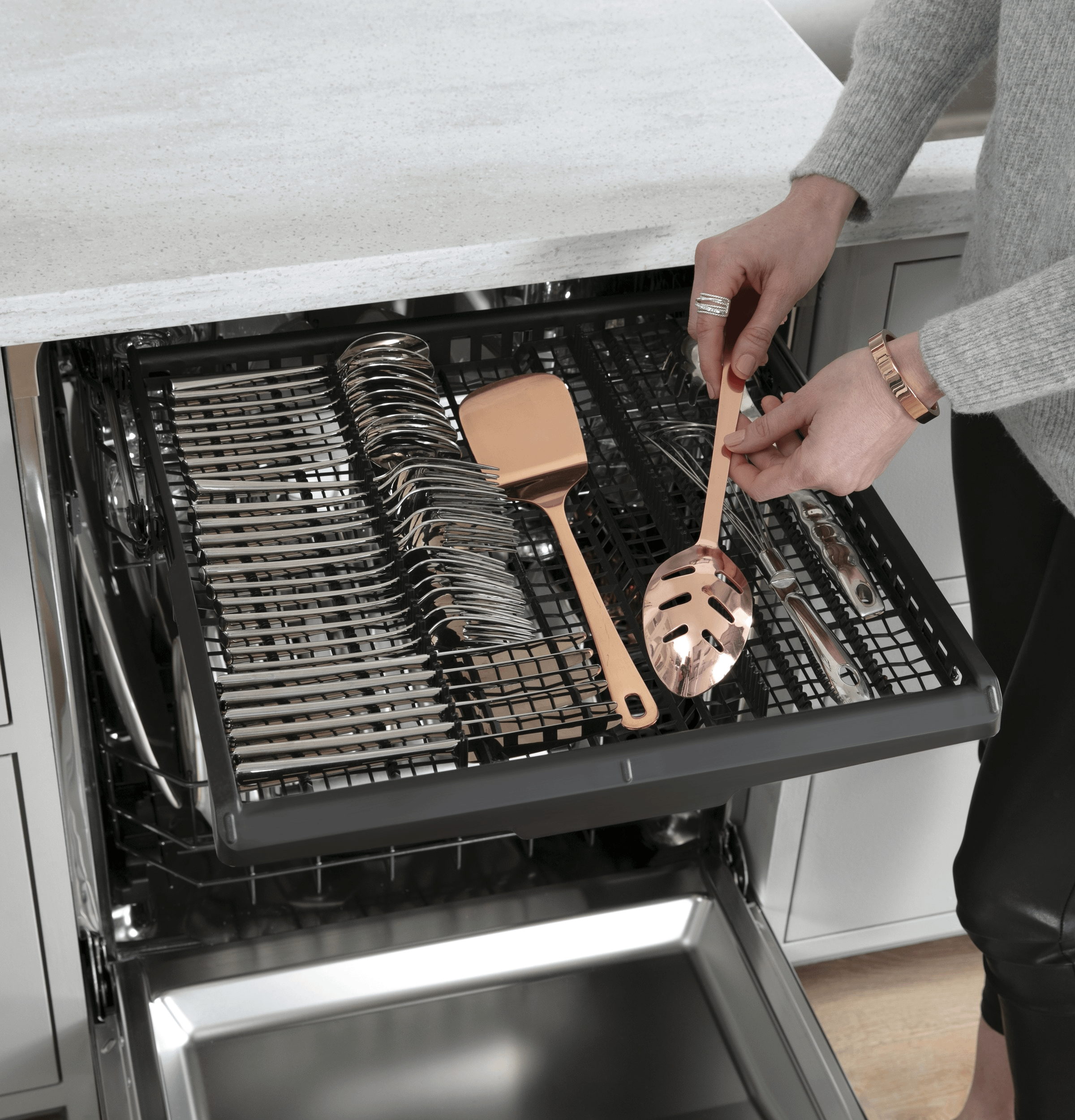

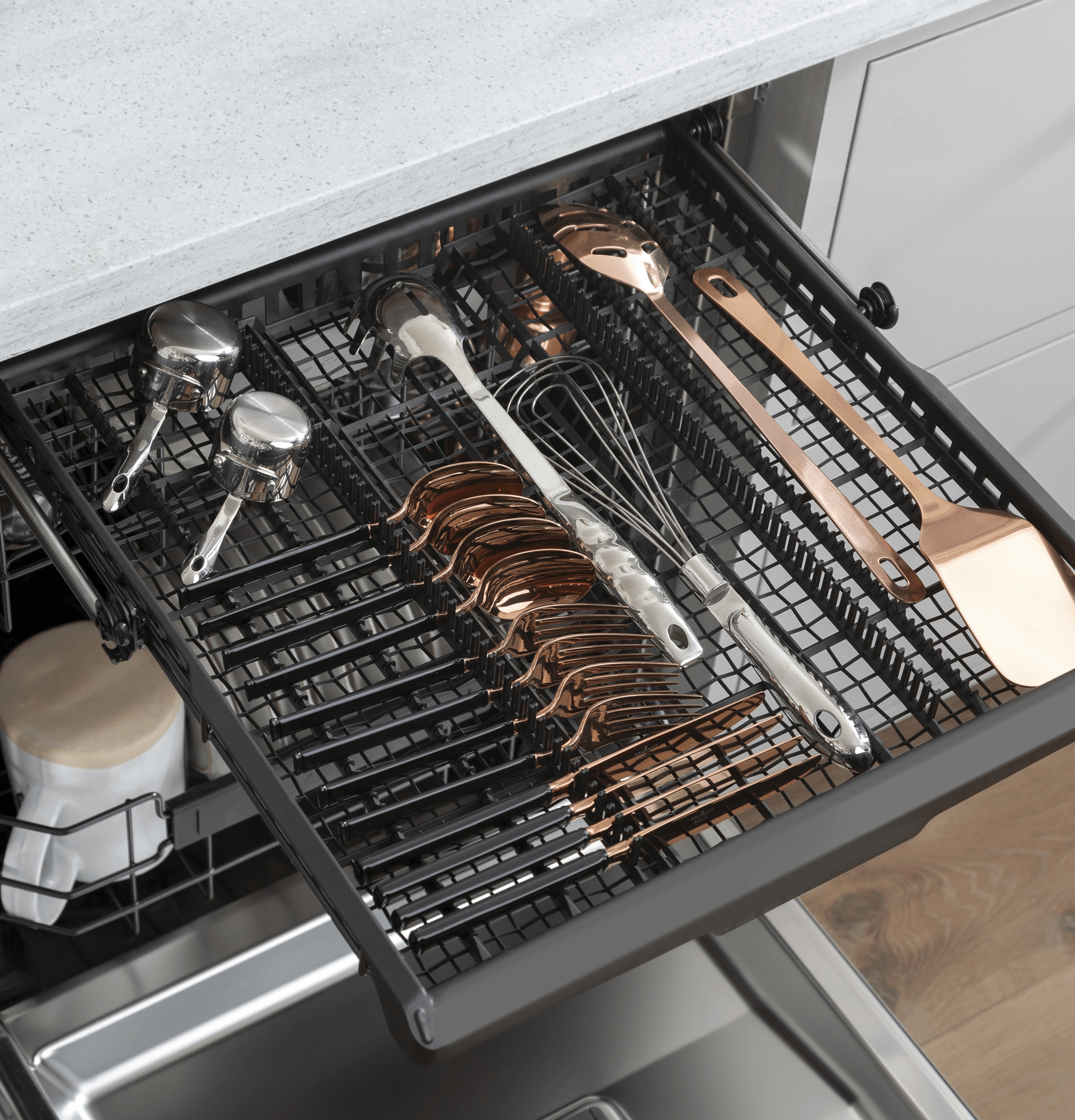

Built-In Third Rack
This dishwasher with third rack storage lets you easily clean more items in fewer loads. It gives you extra loading flexibility with a place to wash and dry silverware, spatulas, lids and more
Water Leak Sensor
This dishwasher features Active Flood Protect, which prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached

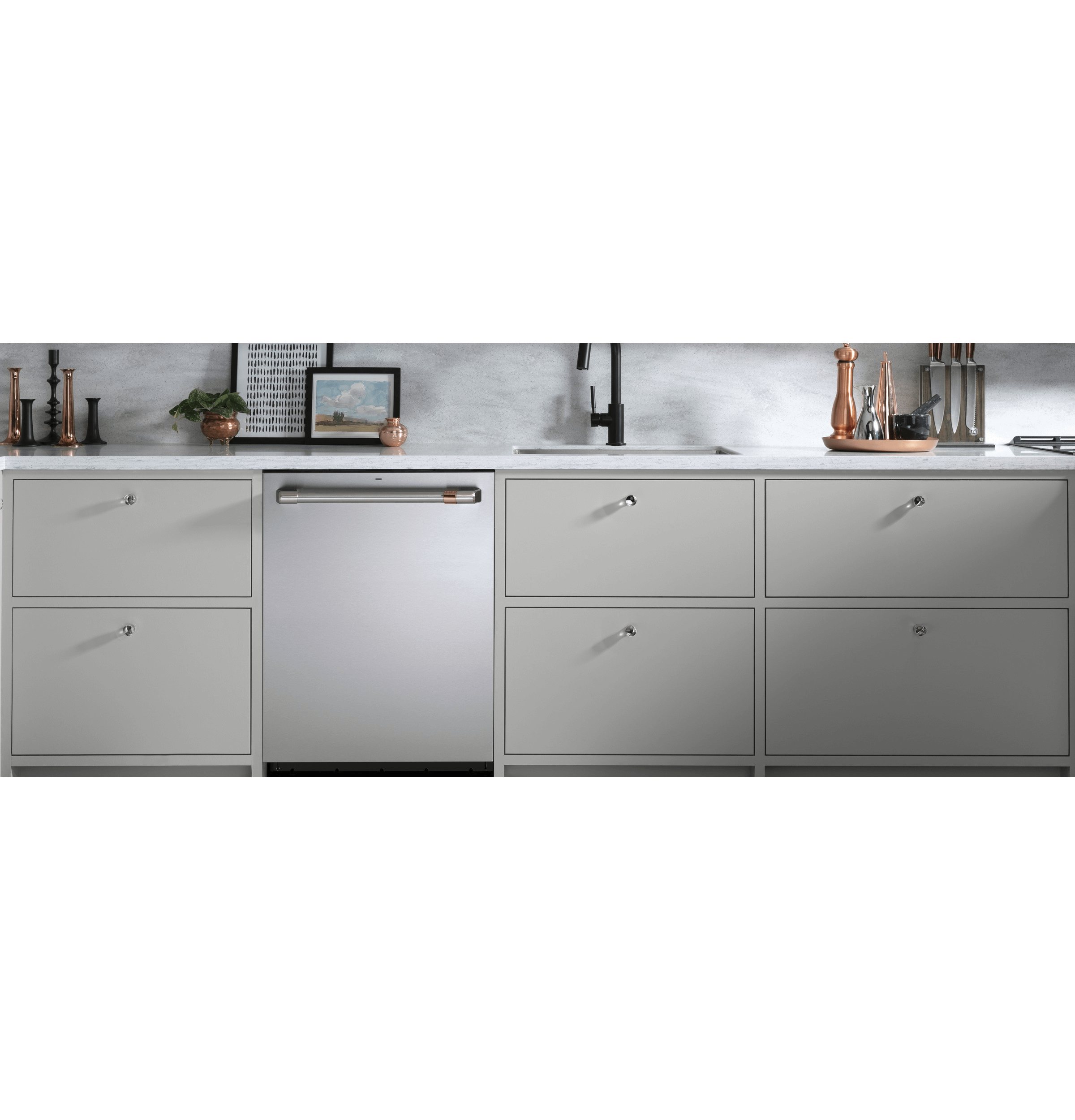

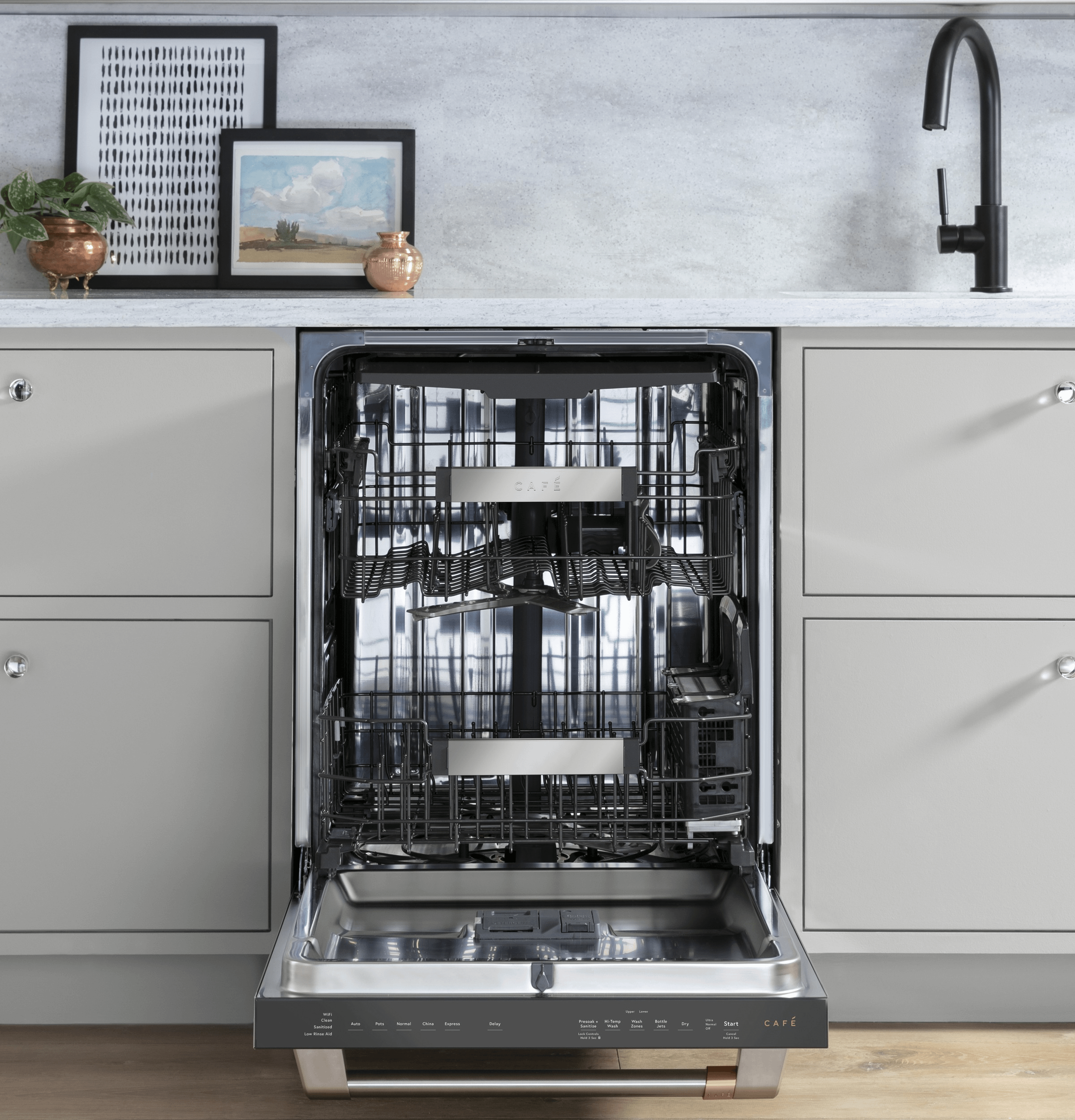

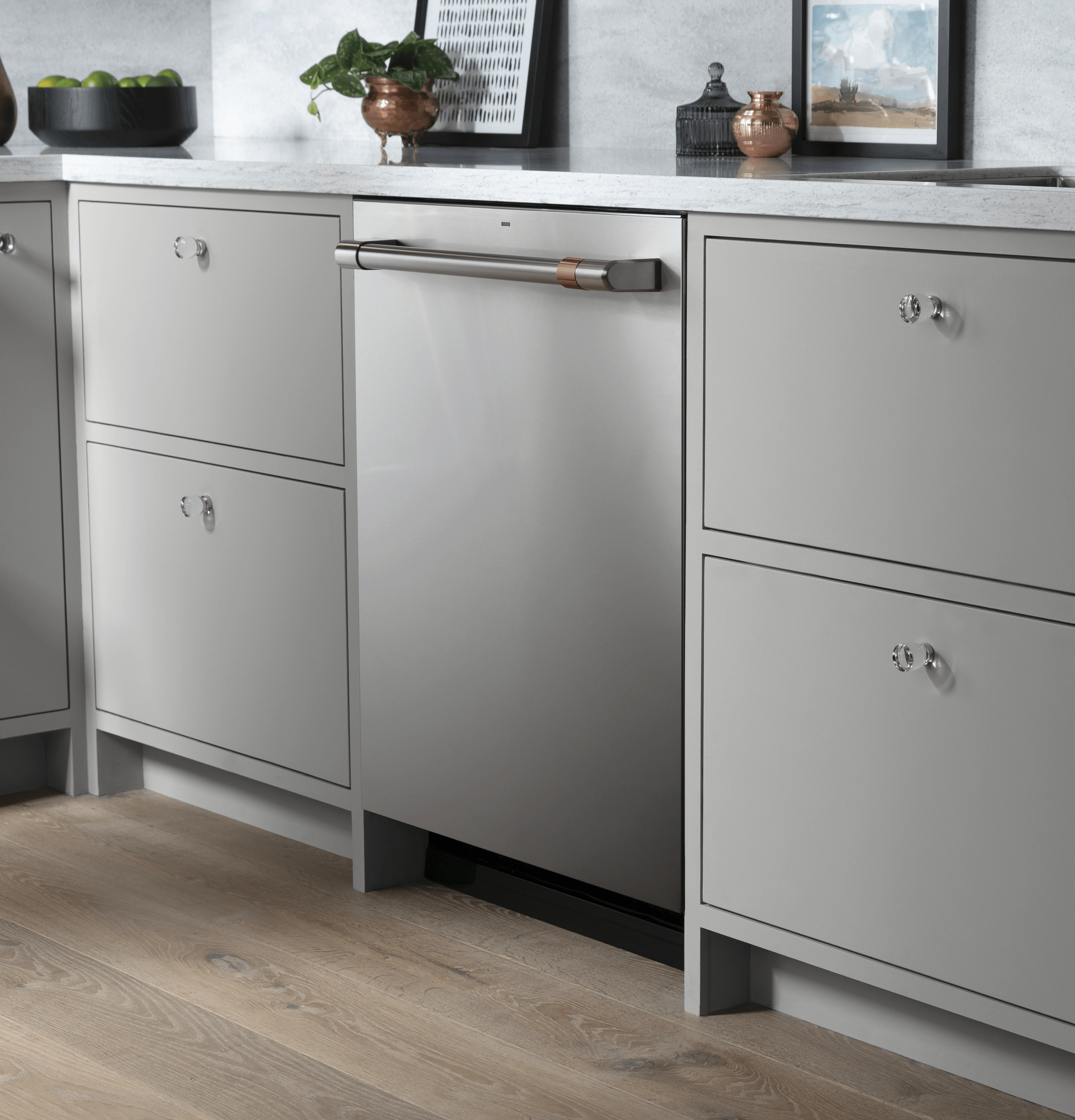

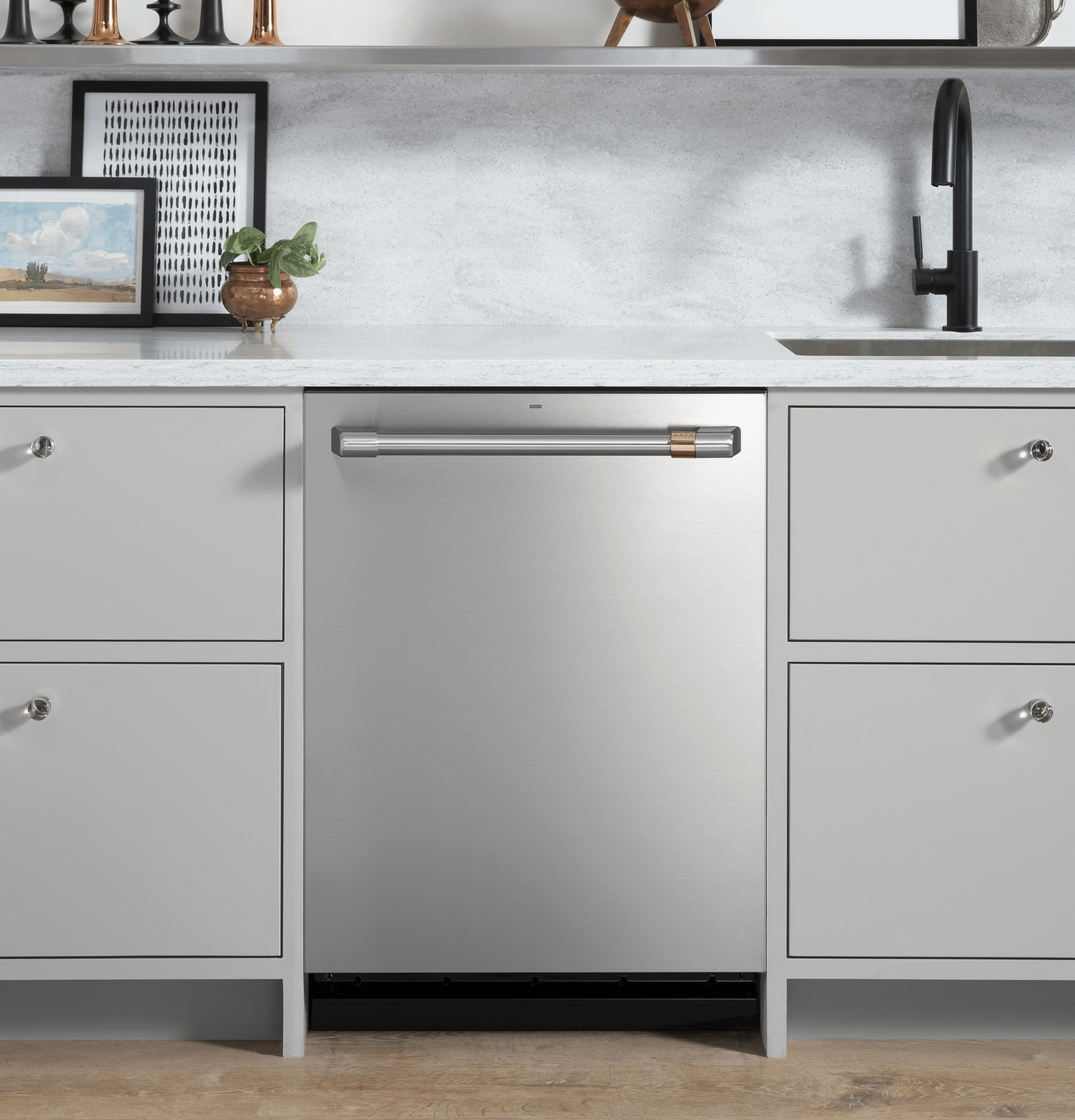

Flush Installation
Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside

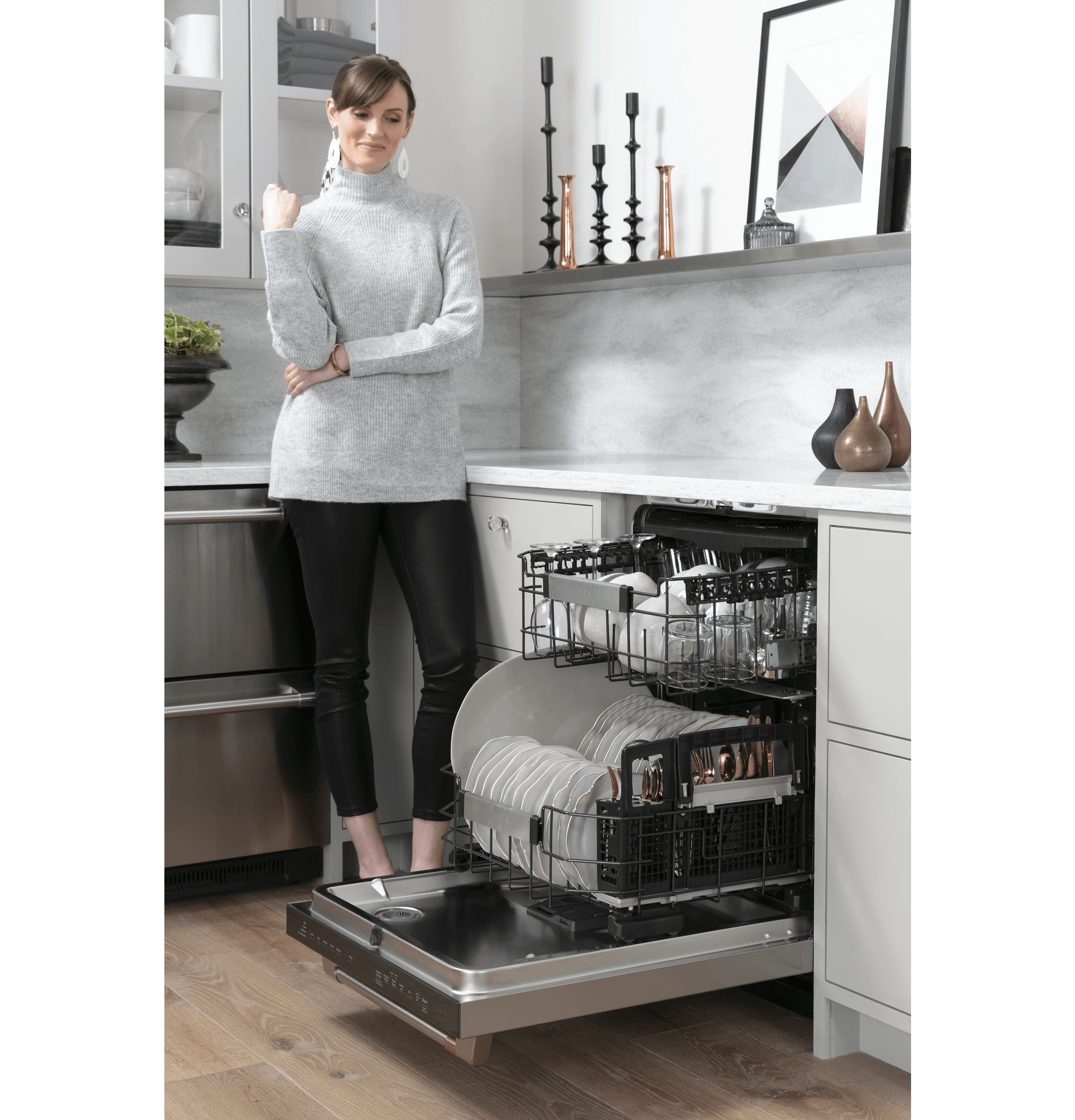

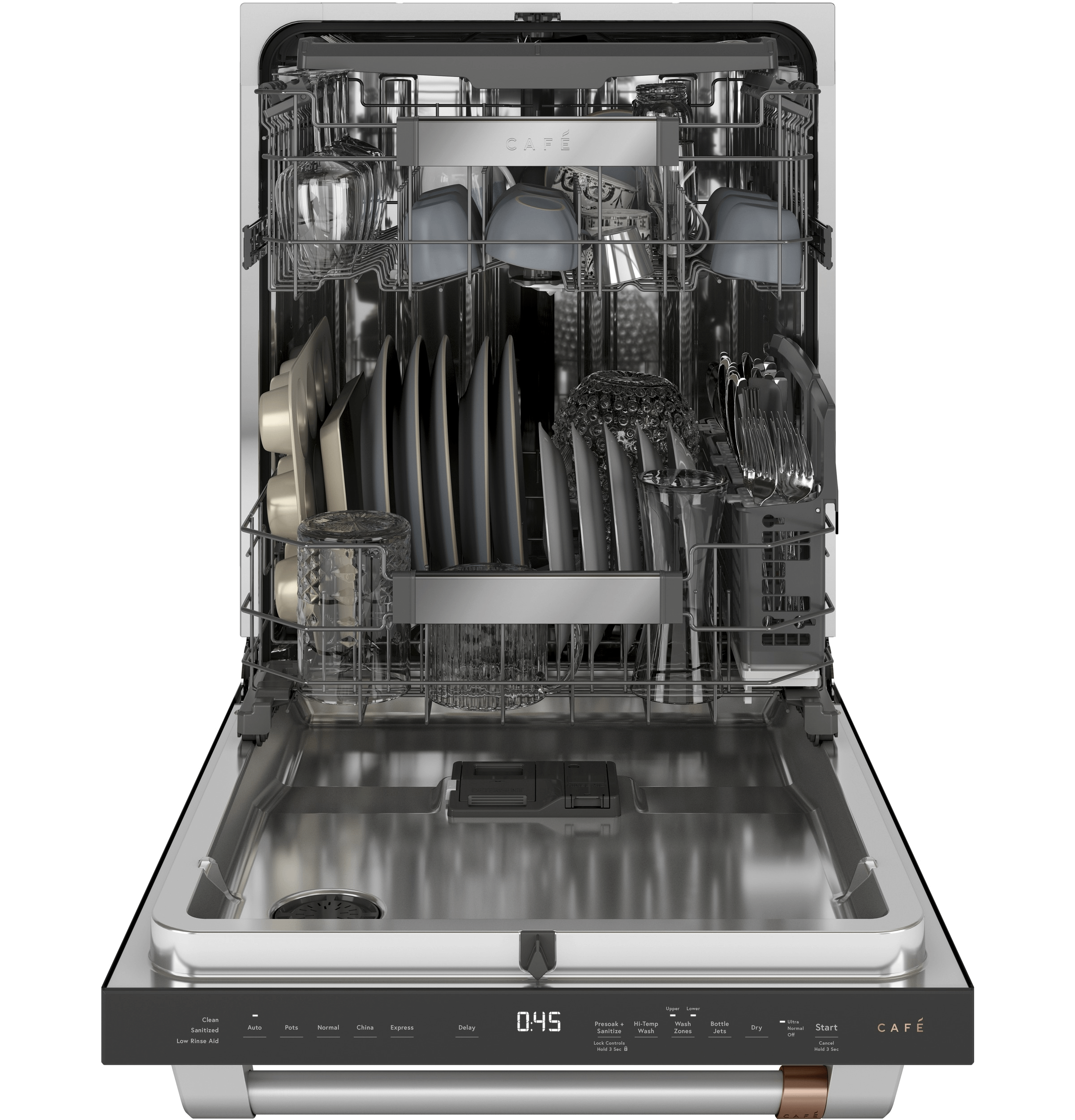

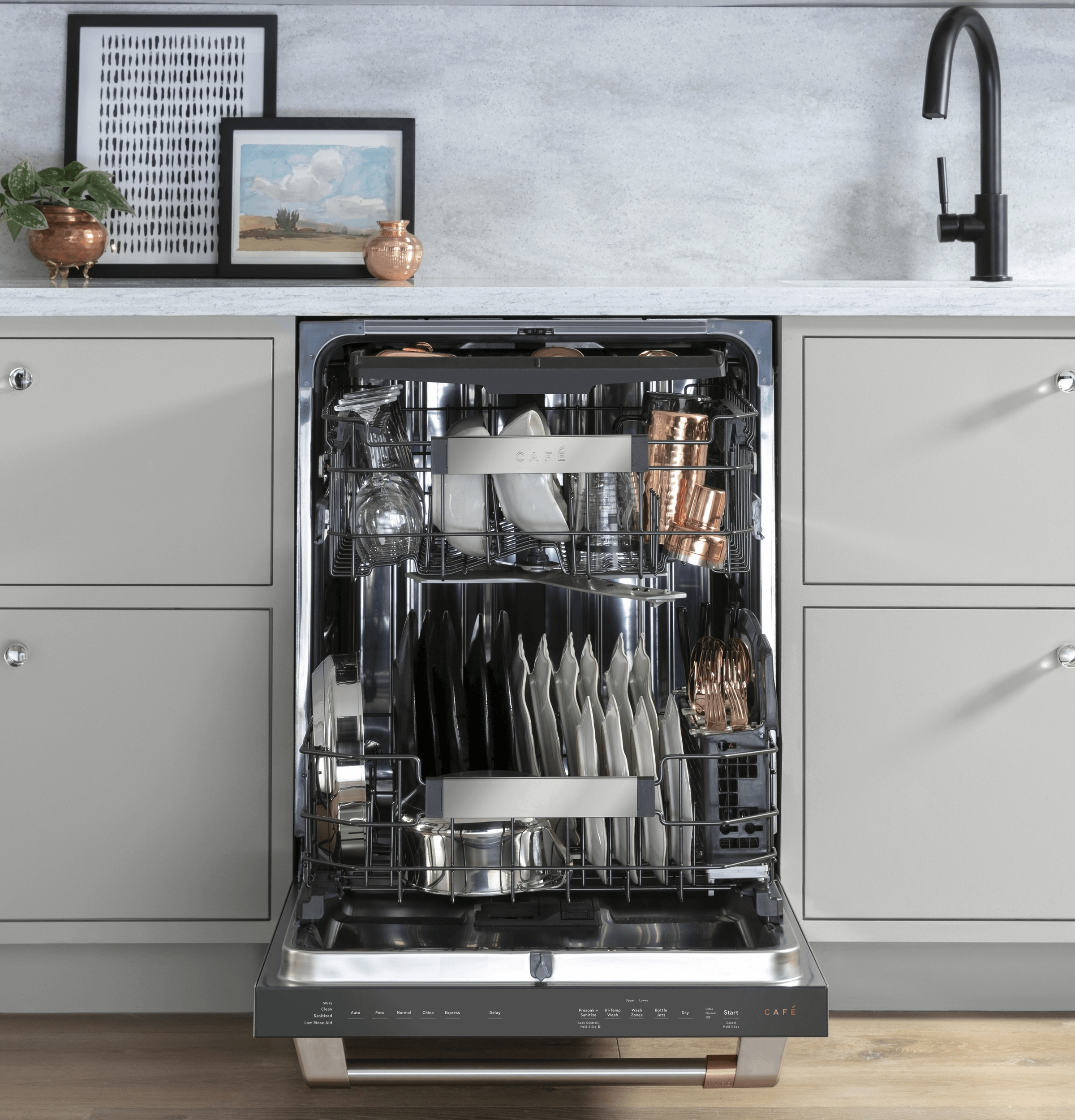

Extra Large Capacity
This extra large capacity dishwasher has enough space for 16 place settings and large dishware, making cleanup easy after large gatherings
45 dBA Dishwasher
This 45 decibel dishwasher offers quiet operation that will make your kitchen more peaceful, while delivering a powerful wash for clean results every time
This ultra-wash and dry dishwasher ensures sparkling clean, table-ready dishes. Its comprehensive wash system has over 90 jets and a reversing quad spray arm for full coverage. Plus a premium drying system dries every item completely
Loading Flexibility
A dishwasher with fold-down tines for uniquely shaped items and a third rack for extra capacity gives you the loading flexibility to store every dish how you want, and still get perfect results
Customizable Hardware Options
Choose from six unique Caf(eback) handle finishes to complement the rest of your kitchen, or your other Caf(eback) appliances
Deep Clean Silverware Jets
This dishwasher with powerful cleaning jets washes your silverware to perfection, no matter how you load it. A system of 40 jets blast the silverware basket from the bottom up, removing all stuck-on foods
Adjustable Upper Rack
Enjoy a dishwasher with flexible loading with an adjustable upper rack. Easily move it up or down to fit bottles, large platters and other items as tall as 10.5"
Upper Rack Fold-Down Tines
With multi-position, fold-down tines in the upper rack, you have the loading flexibility. Adjust each tine into three different positions and configure the rack to fit any item, so you can wash less loads
Lower Rack Fold-Down Tines
Enjoy next-level this loading flexibility dishwasher thanks to multi-position, fold-down tines in the lower rack. Adjust them into three different positions and configure your rack to accommodate any item
Wash Zones
Wash a true half load in the upper or lower rack whenever you need to, instead of waiting on a full load. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy
Steam + Sani
Save time with a steam and sanitize option that loosens tough soils before the wash cycle begins, so you get a complete wash with no pre-rinsing or soaking necessary. Plus, a sanitization cycle reduces 99.999% of bacteria on dishes
4 Bottle Wash Jets
This dishwasher with bottle jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the four bottle wash jets direct water and detergent inside to effectively wash hard-to-reach areas
Built-In Third Rack
This dishwasher with third rack storage lets you easily clean more items in fewer loads. It gives you extra loading flexibility with a place to wash and dry silverware, spatulas, lids and more
Water Leak Sensor
This dishwasher features Active Flood Protect, which prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached
Flush Installation
Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside
Extra Large Capacity
This extra large capacity dishwasher has enough space for 16 place settings and large dishware, making cleanup easy after large gatherings
45 dBA Dishwasher
This 45 decibel dishwasher offers quiet operation that will make your kitchen more peaceful, while delivering a powerful wash for clean results every time
- Ultra Wash & Dry
- This ultra-wash and dry dishwasher ensures sparkling clean, table-ready dishes. Its comprehensive wash system has over 90 jets and a reversing quad spray arm for full coverage. Plus a premium drying system dries every item completely
- Loading Flexibility
- A dishwasher with fold-down tines for uniquely shaped items and a third rack for extra capacity gives you the loading flexibility to store every dish how you want, and still get perfect results
- Customizable Hardware Options
- Choose from six unique Caf(eback) handle finishes to complement the rest of your kitchen, or your other Caf(eback) appliances
- Deep Clean Silverware Jets
- This dishwasher with powerful cleaning jets washes your silverware to perfection, no matter how you load it. A system of 40 jets blast the silverware basket from the bottom up, removing all stuck-on foods
- Adjustable Upper Rack
- Enjoy a dishwasher with flexible loading with an adjustable upper rack. Easily move it up or down to fit bottles, large platters and other items as tall as 10.5"
- Upper Rack Fold-Down Tines
- With multi-position, fold-down tines in the upper rack, you have the loading flexibility. Adjust each tine into three different positions and configure the rack to fit any item, so you can wash less loads
- Lower Rack Fold-Down Tines
- Enjoy next-level this loading flexibility dishwasher thanks to multi-position, fold-down tines in the lower rack. Adjust them into three different positions and configure your rack to accommodate any item
- Wash Zones
- Wash a true half load in the upper or lower rack whenever you need to, instead of waiting on a full load. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy
- Steam + Sani
- Save time with a steam and sanitize option that loosens tough soils before the wash cycle begins, so you get a complete wash with no pre-rinsing or soaking necessary. Plus, a sanitization cycle reduces 99.999% of bacteria on dishes
- 4 Bottle Wash Jets
- This dishwasher with bottle jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the four bottle wash jets direct water and detergent inside to effectively wash hard-to-reach areas
- Built-In Third Rack
- This dishwasher with third rack storage lets you easily clean more items in fewer loads. It gives you extra loading flexibility with a place to wash and dry silverware, spatulas, lids and more
- Water Leak Sensor
- This dishwasher features Active Flood Protect, which prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached
- Flush Installation
- Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside
- Extra Large Capacity
- This extra large capacity dishwasher has enough space for 16 place settings and large dishware, making cleanup easy after large gatherings
- 45 dBA Dishwasher
- This 45 decibel dishwasher offers quiet operation that will make your kitchen more peaceful, while delivering a powerful wash for clean results every time
FILTER | |
App Filter - Cabinet Width | Dish Traditional 24 in. |
App Filter - Stainless Steel Interior | Yes |
App Filter - Product Type | Dish Built-In Top Control |
App Filter - WiFi Connect | Optional |
App Filter - Food Disposer | Yes |
App Filter - Bottle Wash | Yes |
APPEARANCE | |
Handle | Café™ |
Installation | Built-Up Floor Capable Flush Cabinet Installation Side Installation or Top Installation Included |
Handle Color | Brushed Stainless |
Door Style | Long Door with Top Controls |
Door Appearance | Full-length flat door |
Color Appearance | Stainless Steel |
POWER / RATINGS | |
Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
Calrod Heater Watts | 800/500 |
Volts/Hertz/Amps | 120v; 60Hz; 7.2A |
WARRANTY | |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
ECONOMICAL / QUIET | |
Door Insulation | Insulation Mastic |
Quiet Package | 45 dBA |
Outer Wrap | Bitumen Full-wrap Blanket |
Motor Type | Single Speed |
Quiet Features | Quiet Water Valve Sealed Toe Kick Tub Collar Trim |
ACCESSORIES | |
Optional Kits | CXADTH1PMBT Brushed Black CXADTH1PMBZ Brushed Bronze CXADTH1PMCG Brushed Brass CXADTH1PMCU Brushed Copper CXADTH1PMFB Flat Black CXADTH1PMSS Brushed Stainless |
WEIGHTS & DIMENSIONS | |
Height w/ Legs Retracted - Minimum Height | 33.375 in |
Overall Depth | 24 in |
Cabinet Width | 24 in |
Net Weight | 105 lb |
Overall Width | 23.75 in |
Approximate Shipping Weight | 118 lb |
Overall Height | 34 in |
Overall Depth with Handle | 26.3 in |
Height w/Legs Extended - Maximum Height | 34.625 in |
FEATURES | |
Wash System | 3-Level 800 Series |
Sensor | Clean Sensor |
Lower Rack | 1/2 fixed tines, 1/2 fold down tines Ball-Tip Tines |
Tub Type | Tall Tub |
Leveling System | 4 Leveling Legs |
OU Certified | No |
Additional Protection | Active Flood Protect |
Number of Place Settings | 16 |
Dishwasher Options | Bottle Jets Delay Start 1-12 Hr. Heated Dry Off Hi-Temp Wash Lock Controls Normal Dry Presoak + Sanitize (Certified to NSF Standard 184) Sabbath Mode Start/Reset Ultra Dry Wash Zone Lower Only Wash Zone Upper Only |
Latch | Pull with Handle |
Number of Options | 12 |
Style | Built-In Top Control |
Water Filtration System | 100% Filtration with Hard Food Disposer and Removable Filter |
Cutlery Tray | One piece removable 3rd rack |
Rack Features | 2 short articulating plastic utility shelves w/Stemsafe and chop-stick slots 3-Piece Silverware Basket with Cell Covers Adjustable Upper Rack Ball-Tipped Tines Full Extension Slides - Upper |
Racking Material | Nylon |
Dishwasher Cycles | Auto China Express Normal Pots |
Rack Color | Black Pearl |
Dispenser | Rinse Aid with Indicator and Adjustment |
WiFi Connect | Optional (Requires part no. PBX23W00Y0) |

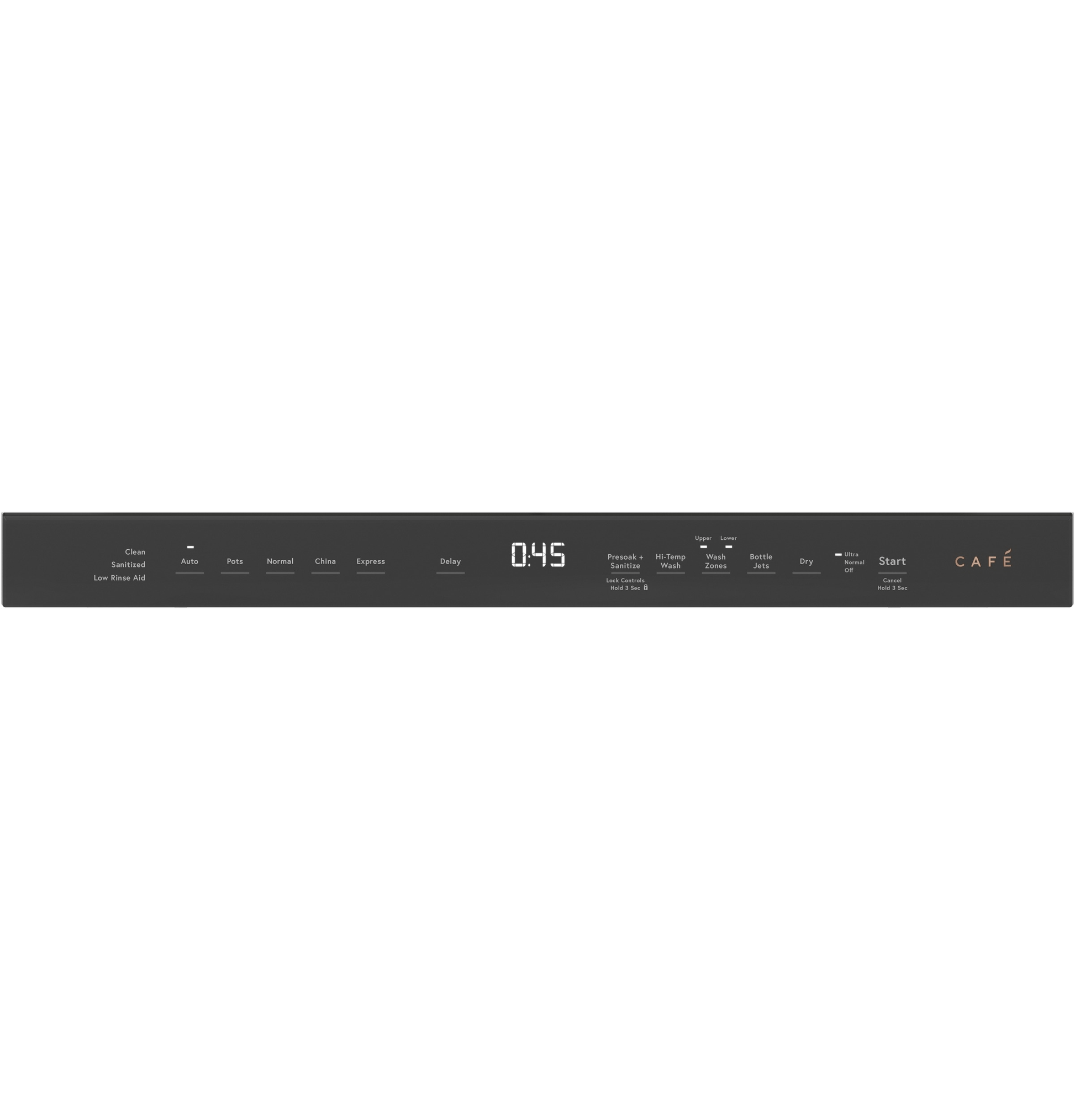

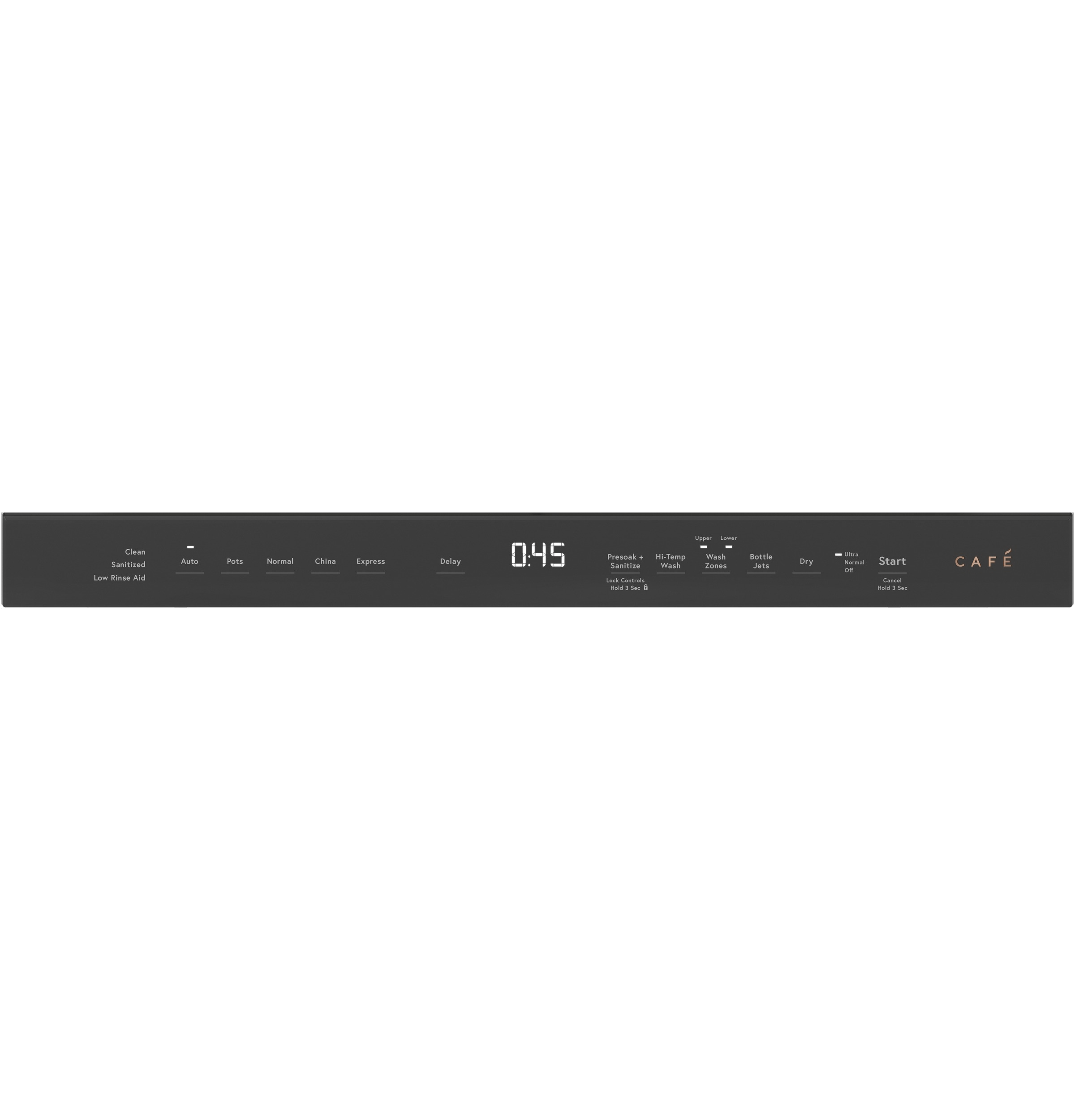

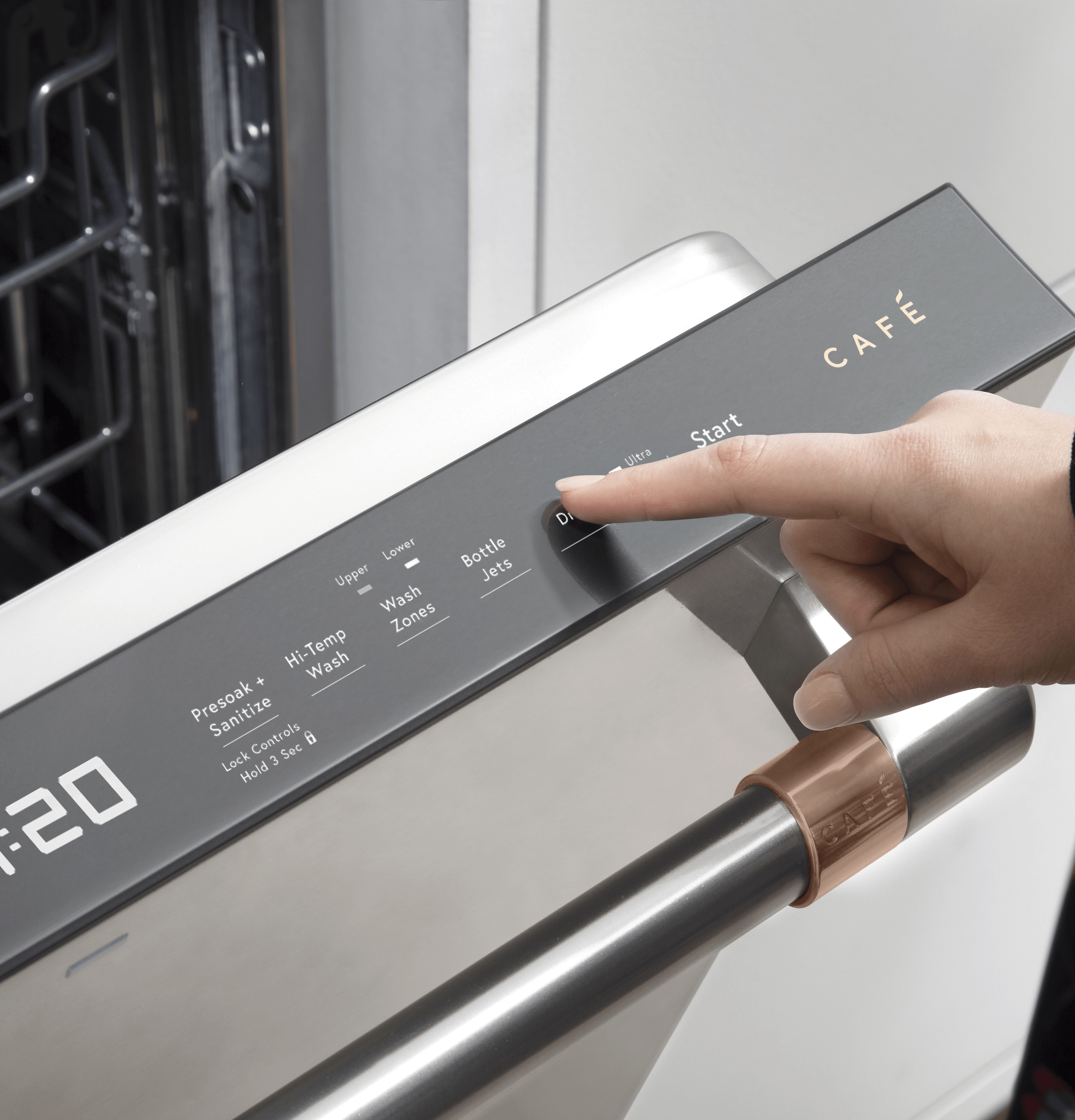

Control Type | 12 Touchpads Cap Touch Controls Top Controls |
Racking System | Full 3rd rack |
Dishwasher Drying Features | Fan Assist Dry Heated Dry - Ultra/On/Off Multi-Wattage Wash & Dry Element |

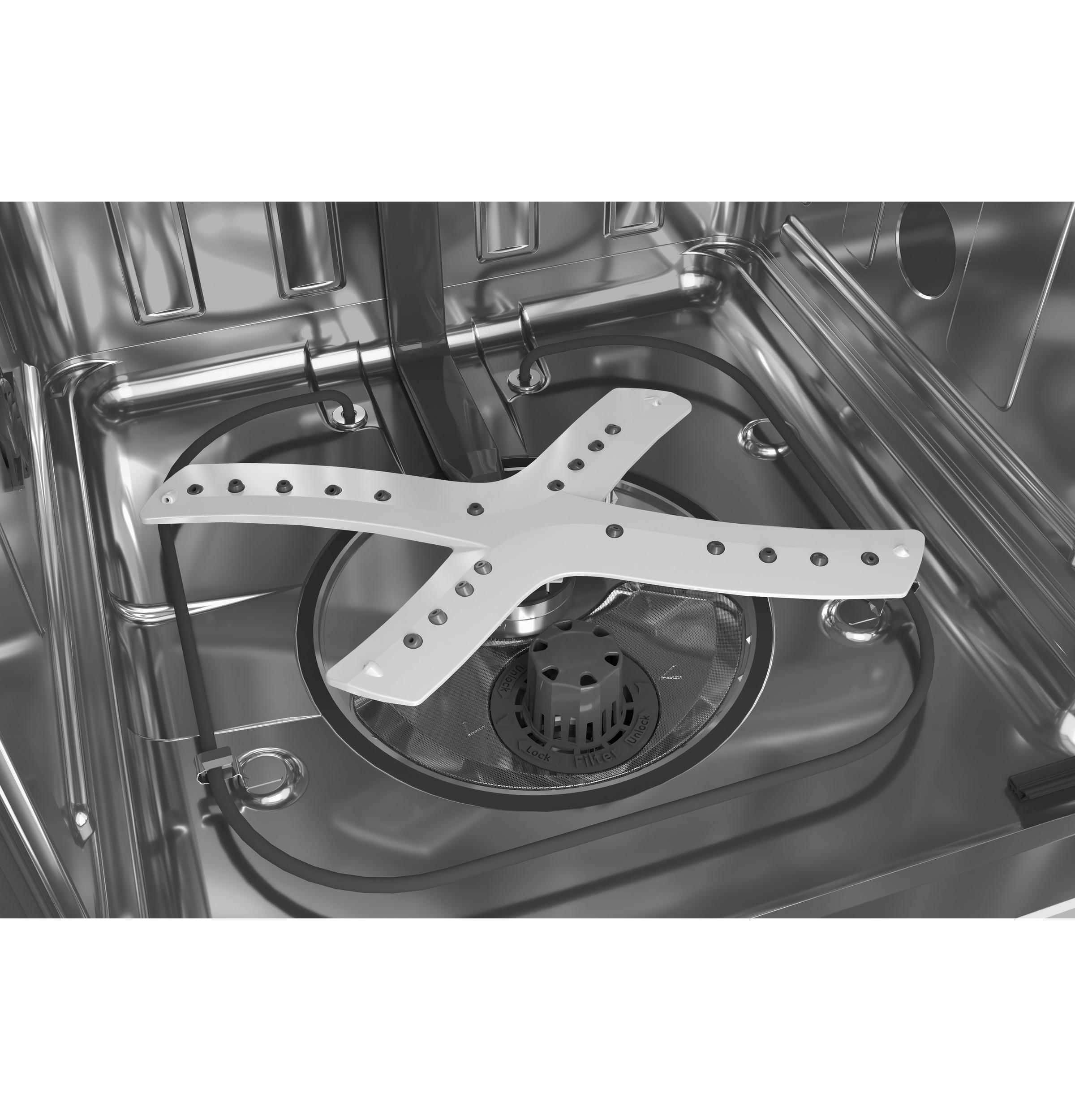

Wash Arms | 3 Wash Levels Bottle Jets Deep Clean Silverware Jets Lower- Reversing Quad Blade Middle - Quad Blade |
Wash System Features | 90+ Spray Jet Wash System Automatic HotStart Automatic Temperature Control Bottle Jets (4) Deep Clean Silverware Jets Drain Pump Dual Pumps and Motors Hard Food Disposer with removable filter Quad Blade Middle Wash Arm Reversing Quad Blade Lower Wash Arm |
Exterior Style | Traditional |
Upper Rack | 1 Rack handle 1/2 fixed tines, 1/2 fold down tines 2 Stem Safe Shelves Ball-Tip Tines Chop stick slots Fixed tines with Bottle Jets Premium Height Adjustable |
Dishwasher Control Features | 1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators Audible End-of-Cycle Signal Cycle Countdown with Bi-Color LED Status Light on door Last Cycle Memory |
Number of Cycles | 5 |
Tub and Door Liner | Stainless Steel |
Sabbath Mode | Yes |
Showroom Power Mode | Yes |
