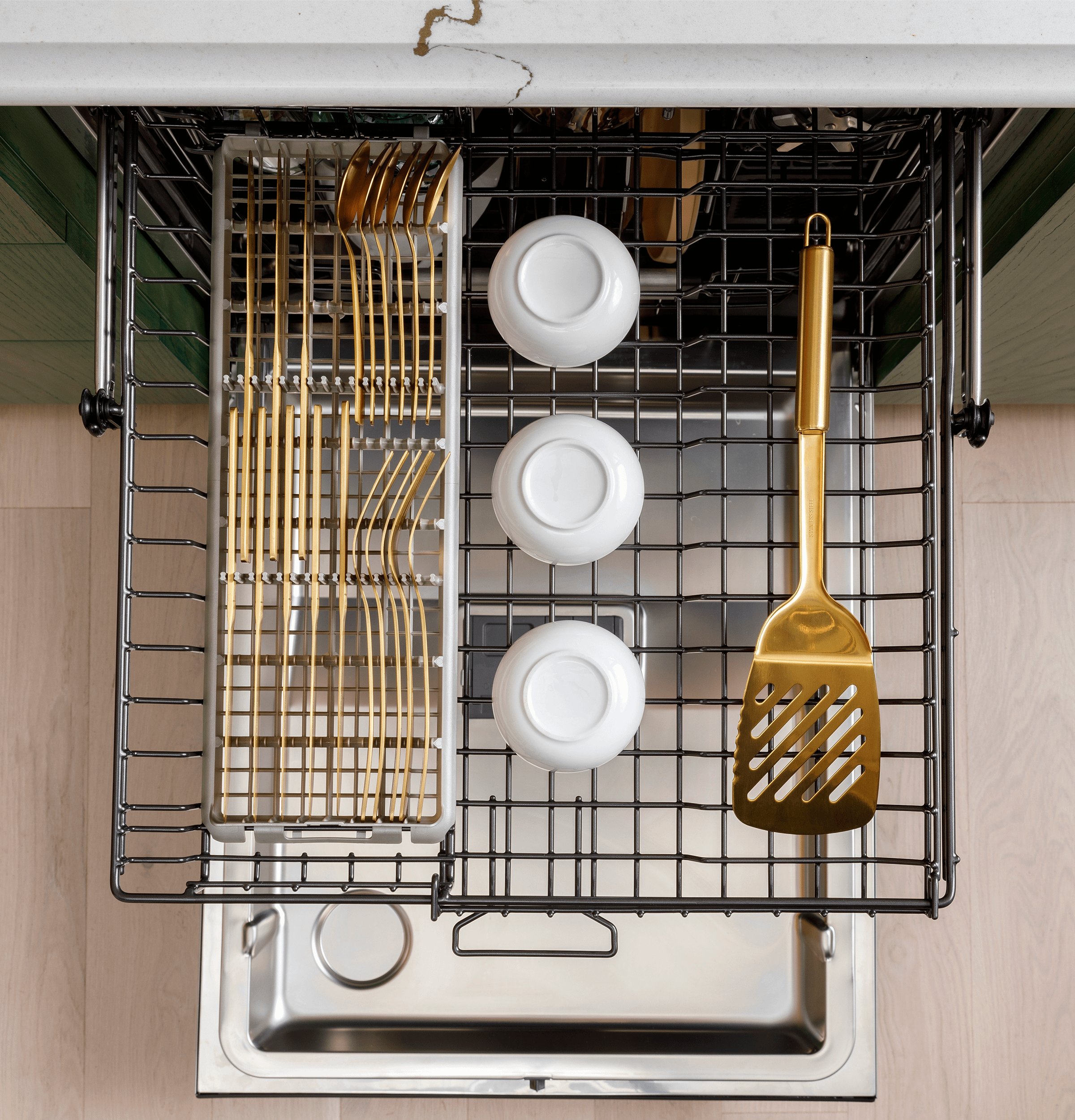

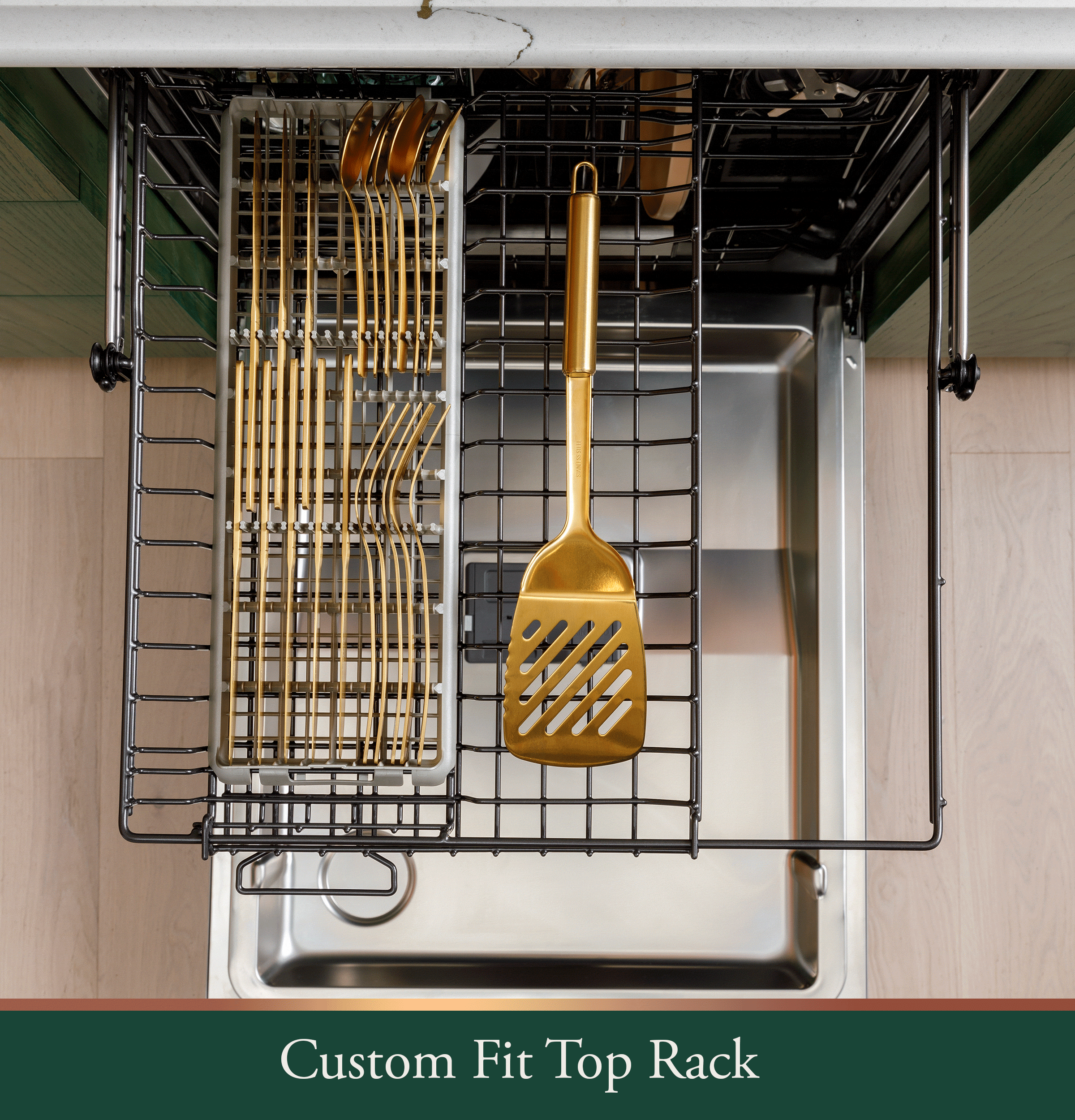

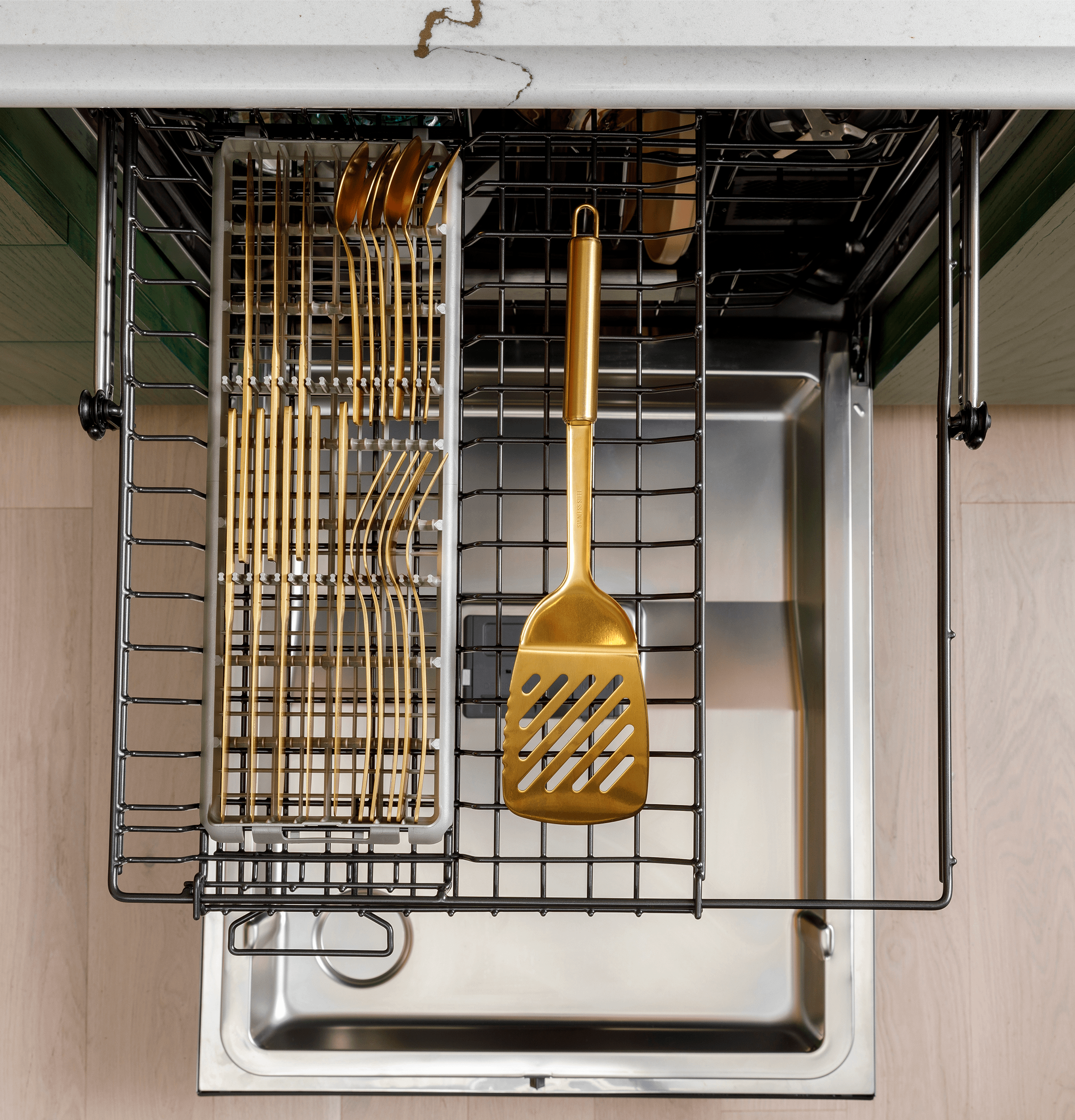

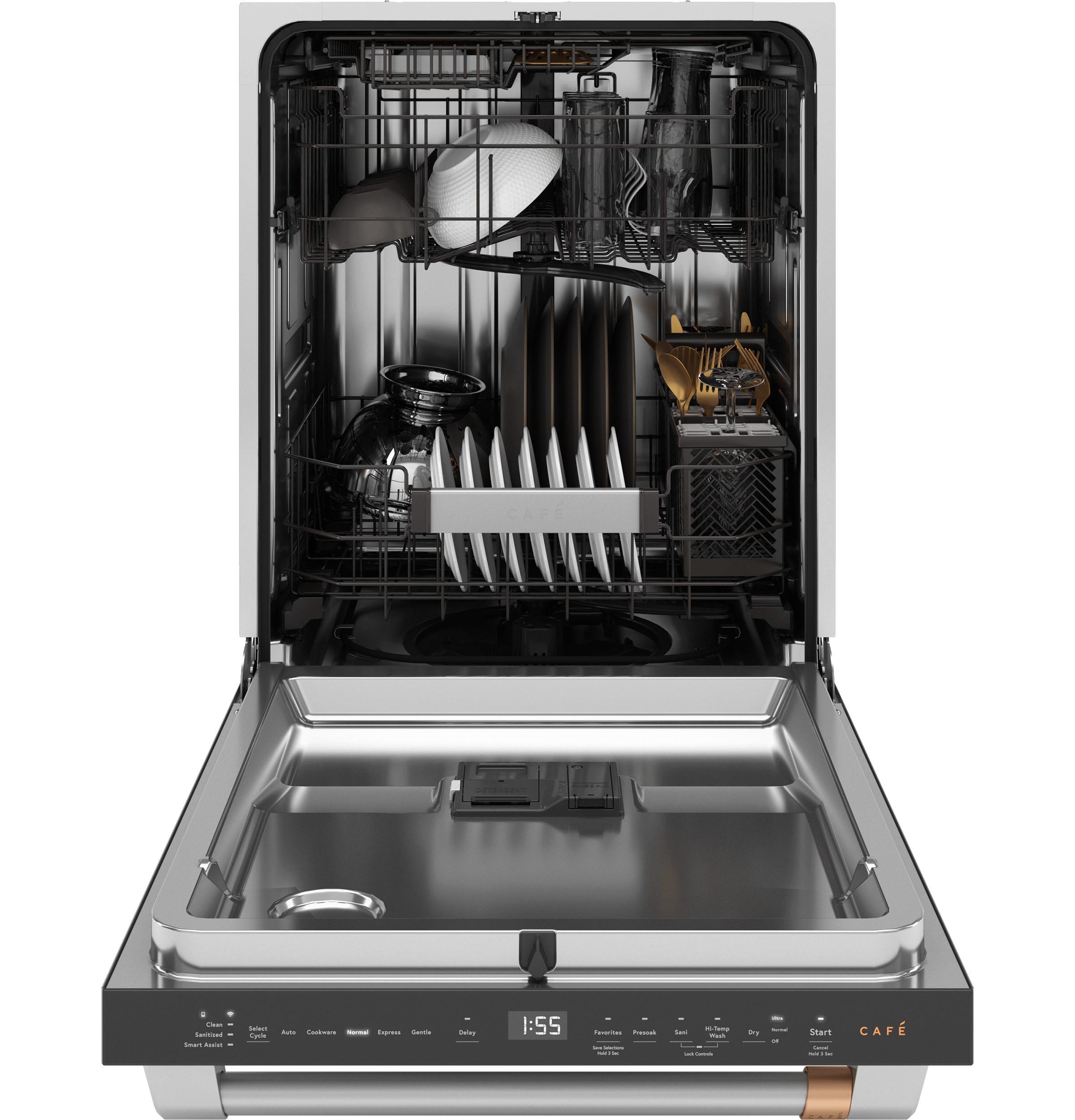

CustomFit Top Rack
Load your way in this dishwasher with a customizable top rack. The sliding top rack provides loading flexibility with a place to load silverware, cooking utensils, ramekins and more, so you can wash everything at once.

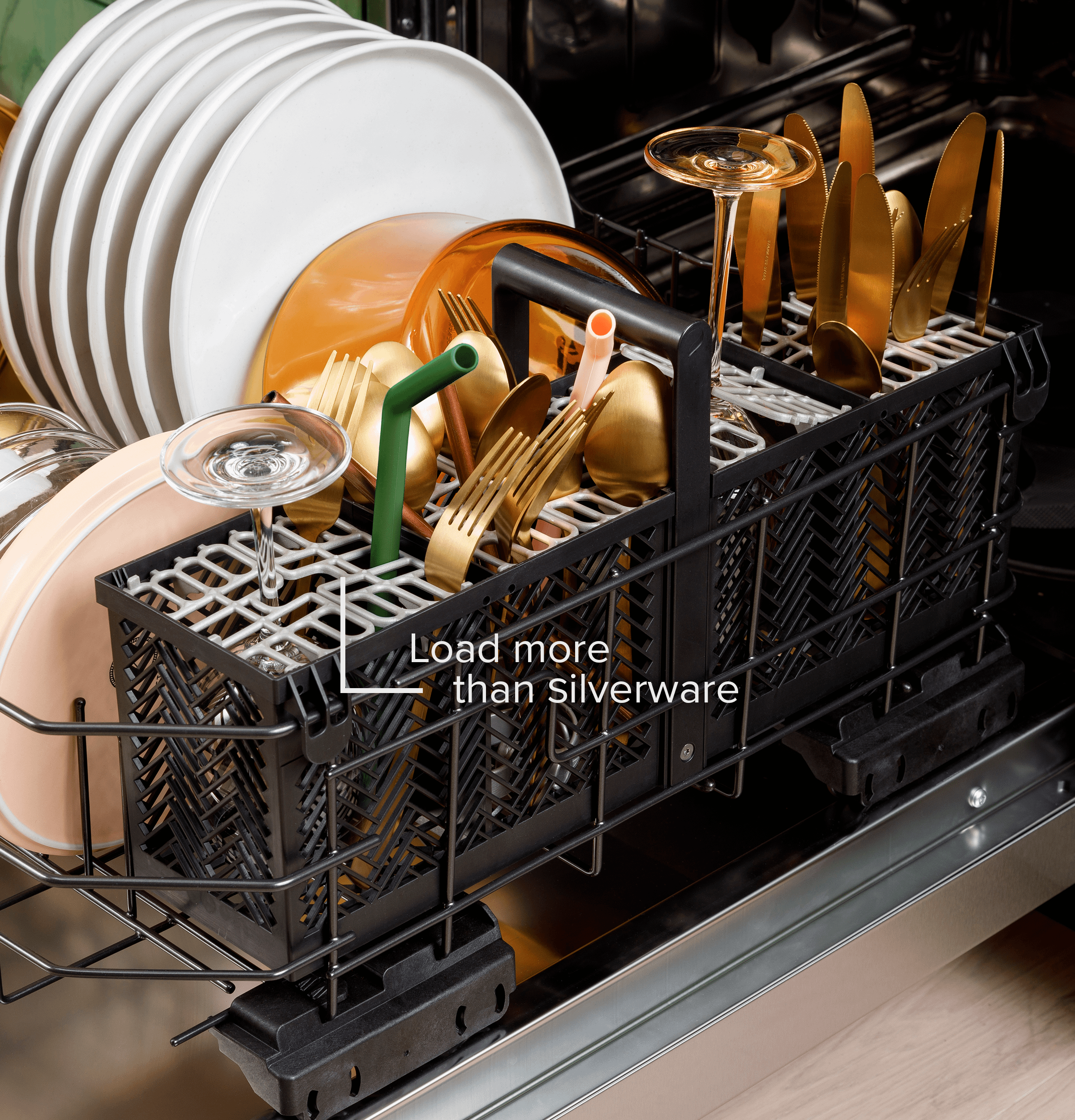

CustomFit Basket
Load more than just silverware in this redesigned basket. The stylish CustomFit Basket holds all your silverware, delicate stemware, reusable straws and more, so items that were hand wash before can safely be washed in the dishwasher.

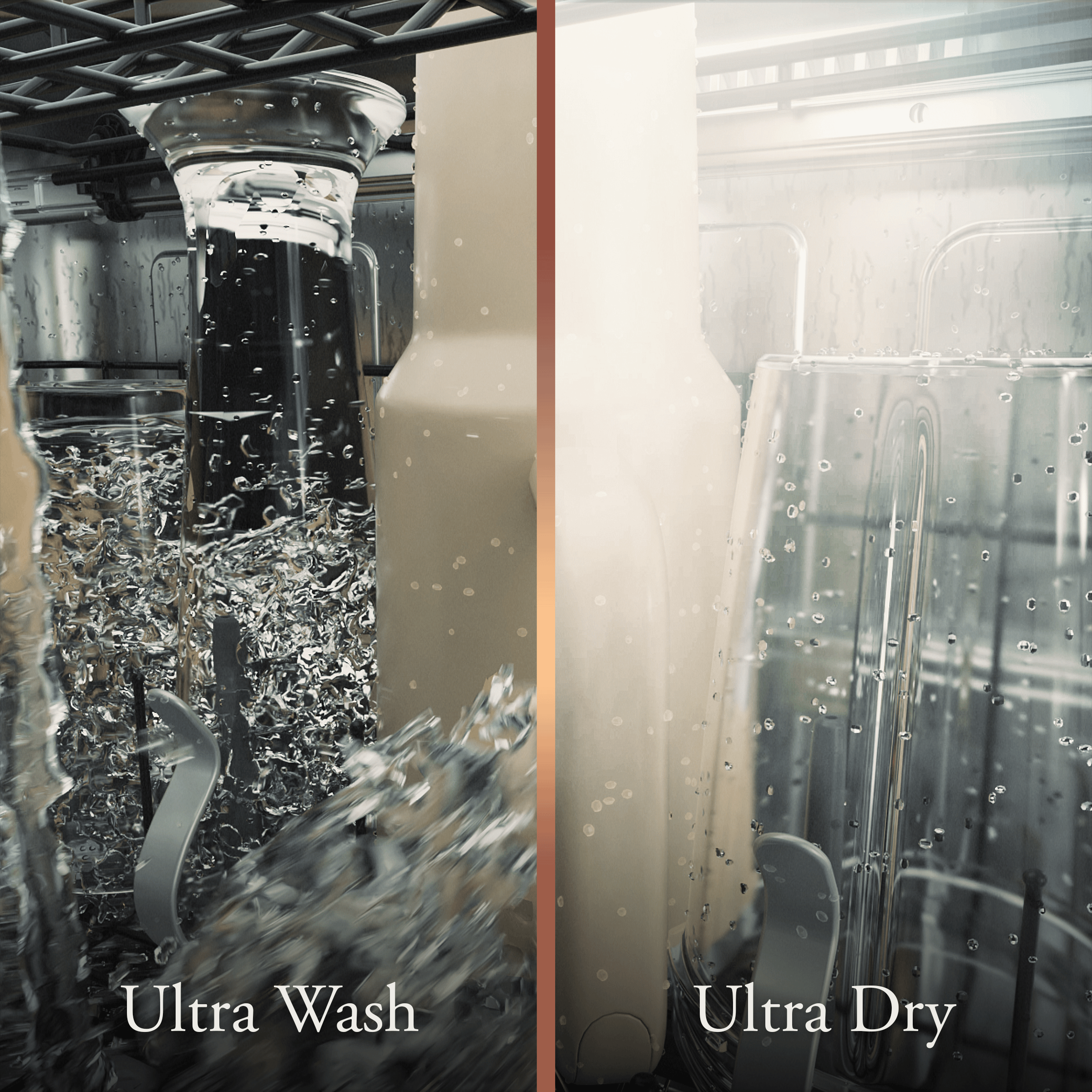

Ultra Wash & Dry
This ultra-wash and dry dishwasher ensures table-ready dishes. Ranging from gentle for delicate stemware or intense for pots and pans, flexible wash options ensure that dishes get full coverage and the right amount of pressure for an ideal clean.

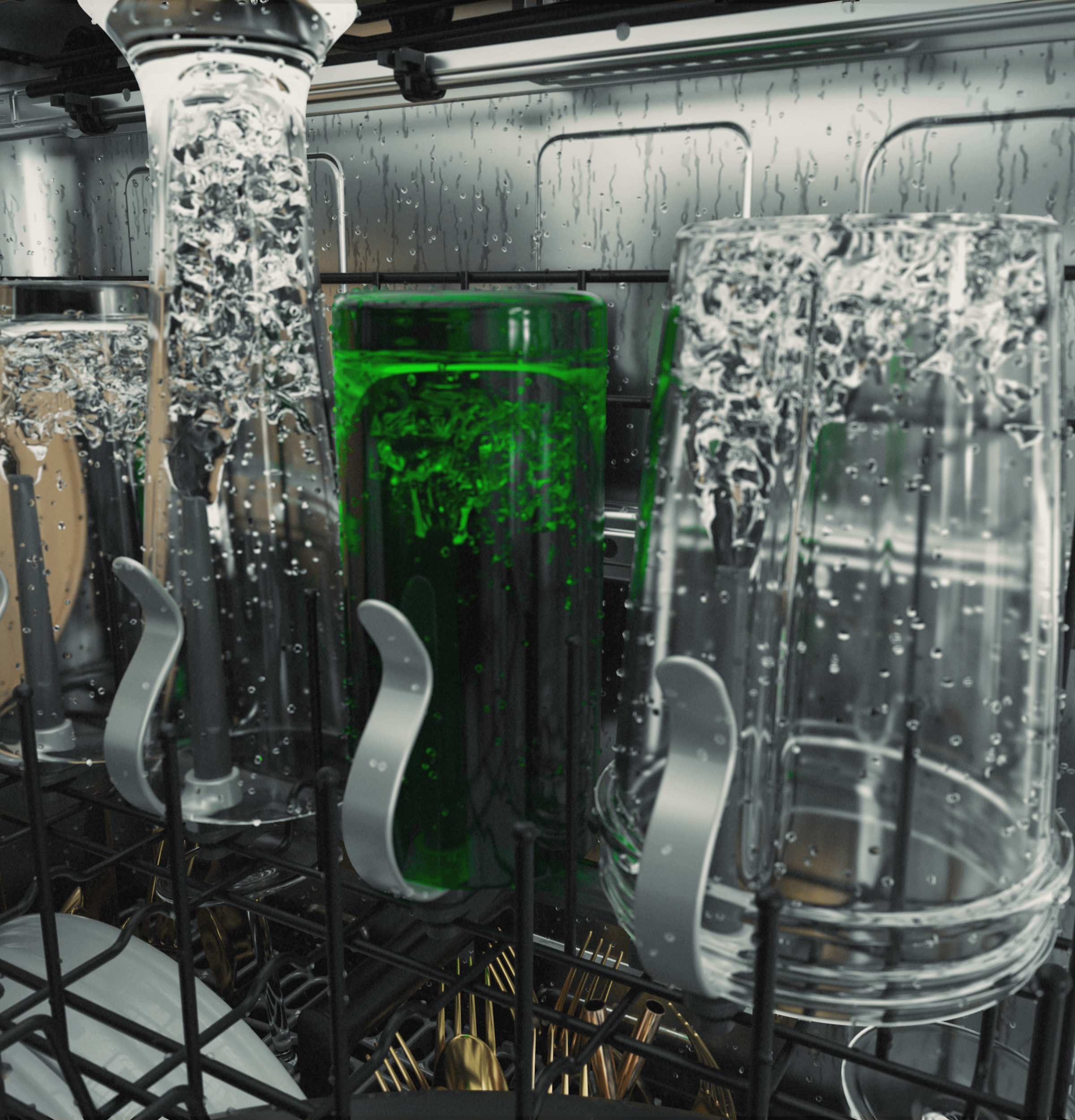

4 Bottle Wash Jets
This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

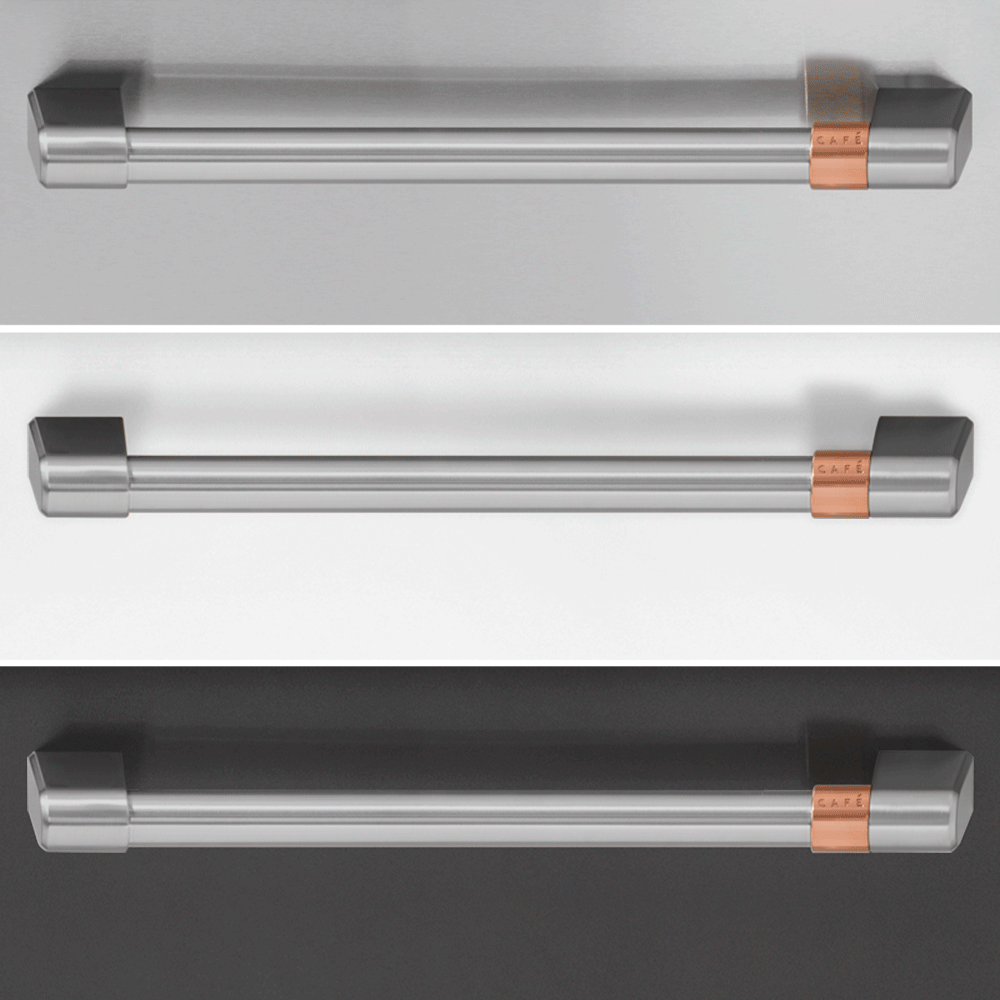

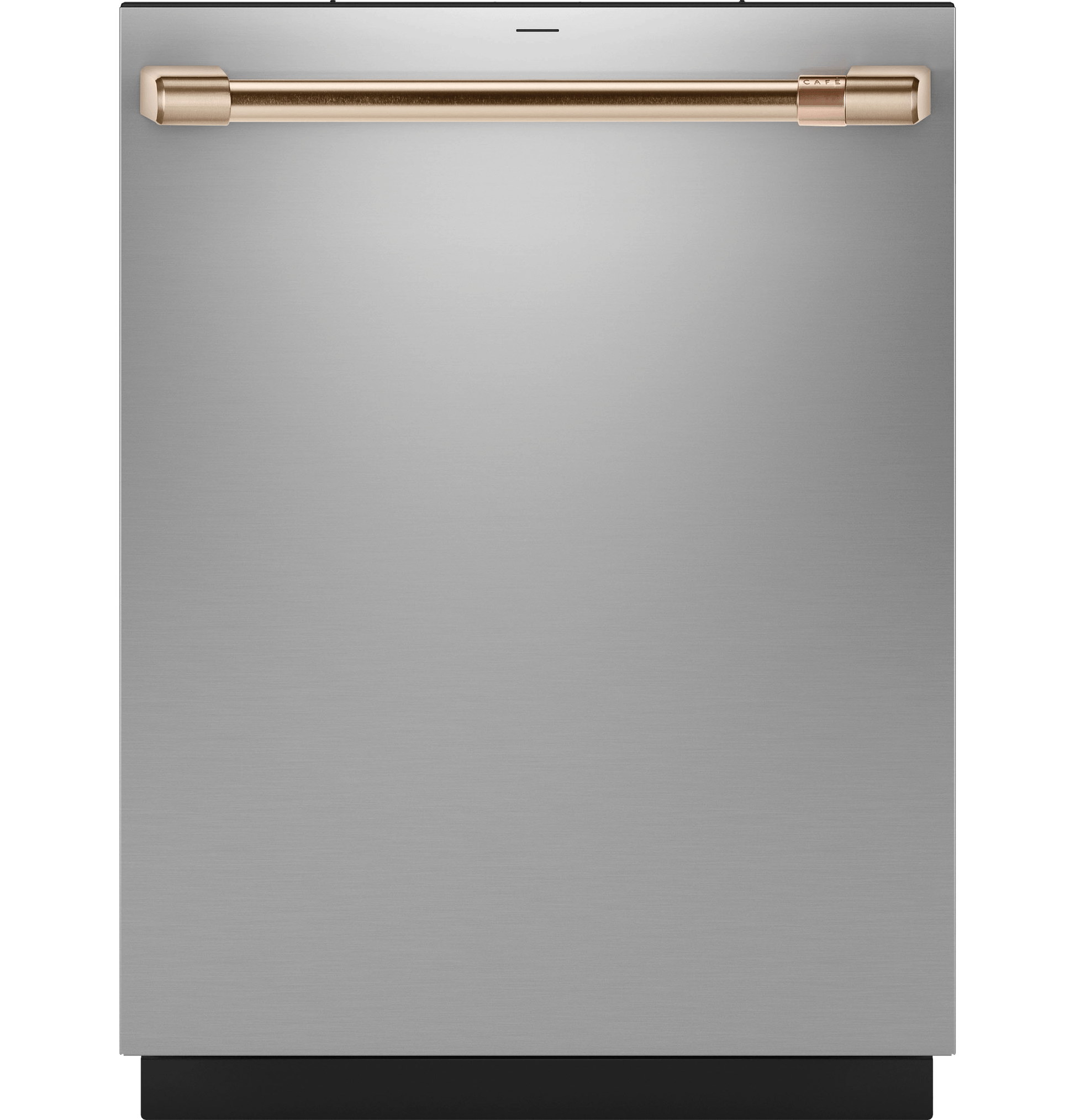

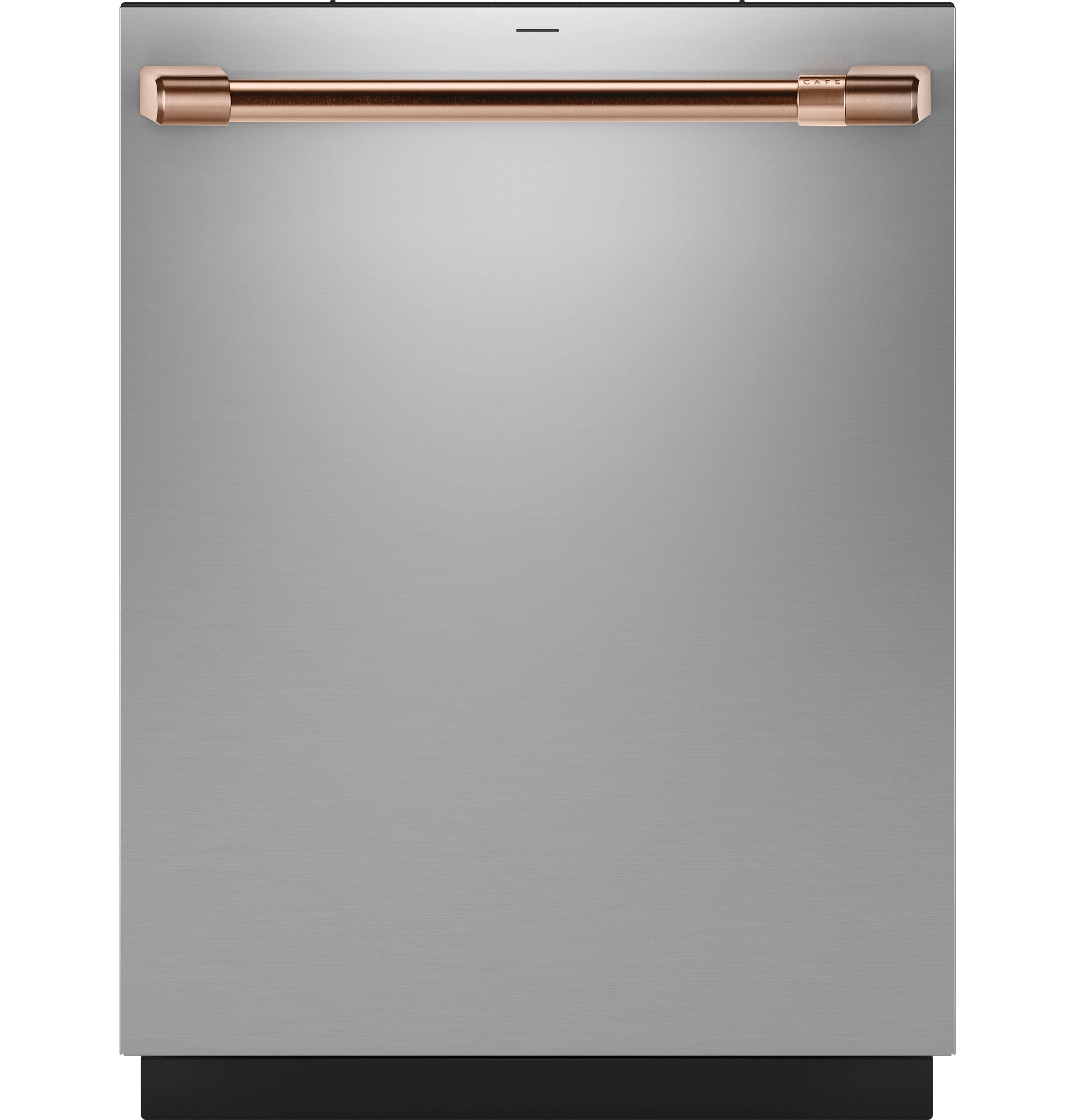

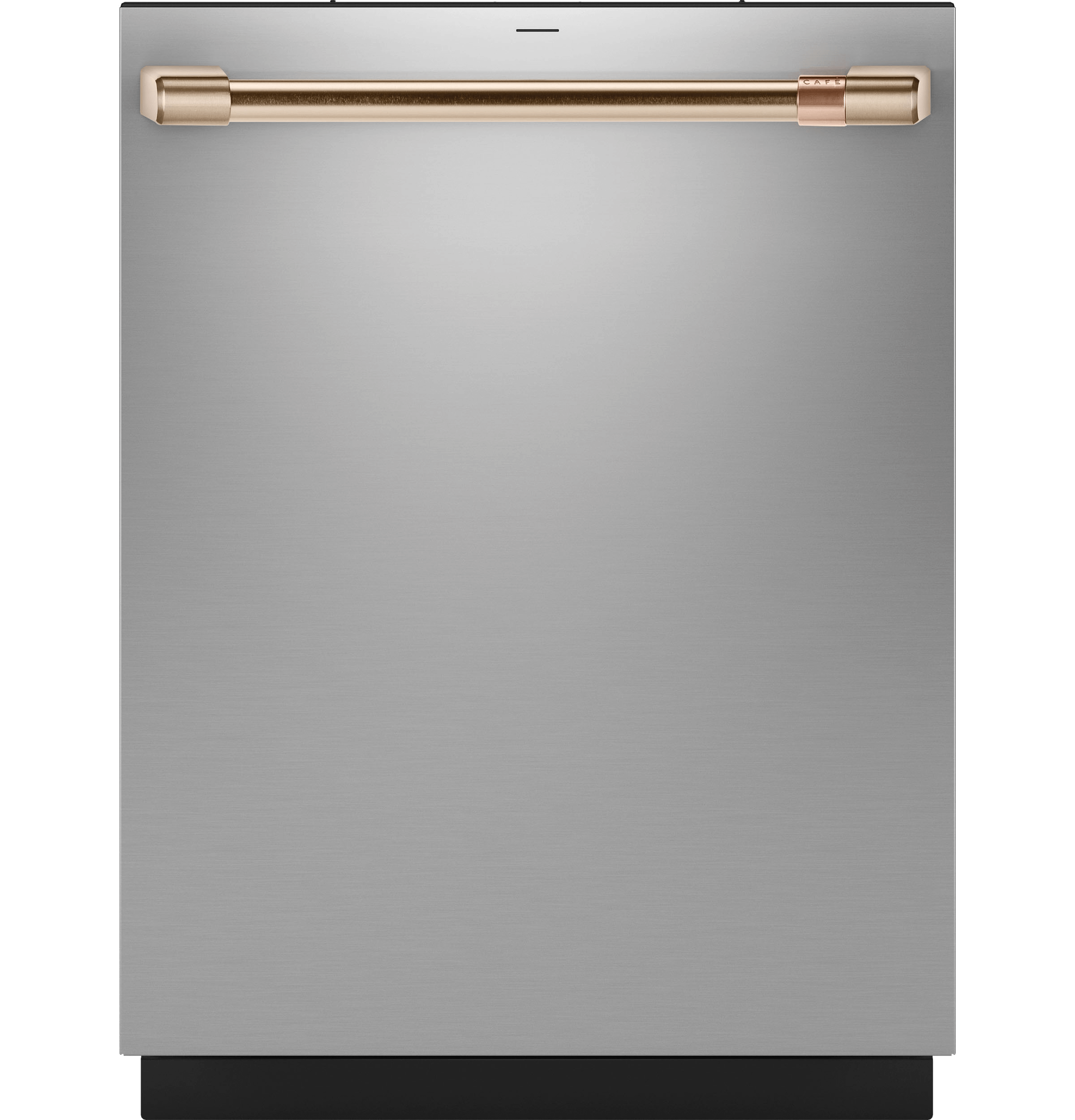

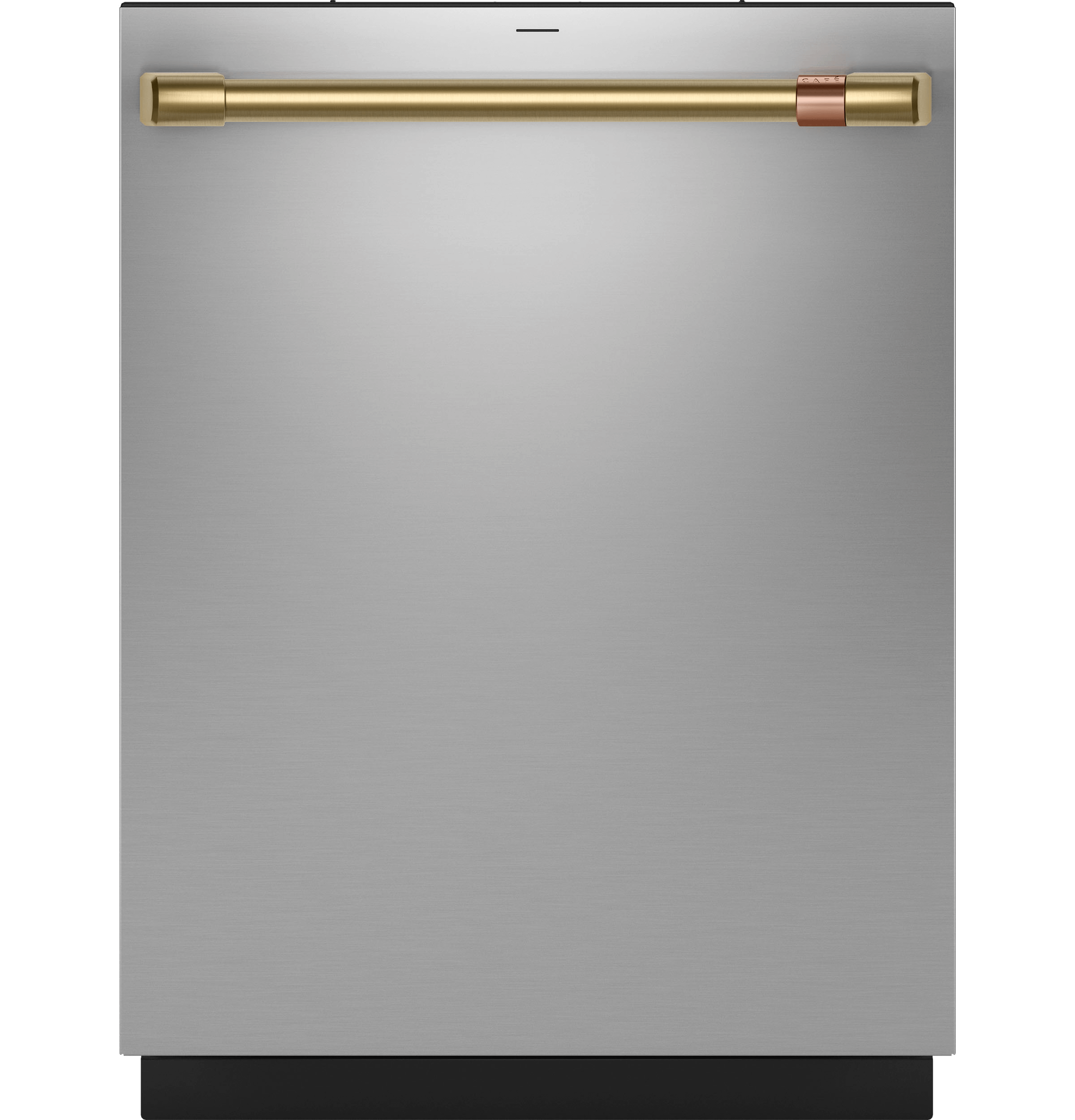

Customizable Dishwasher Handles
Choose from six unique Caf(eback) handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

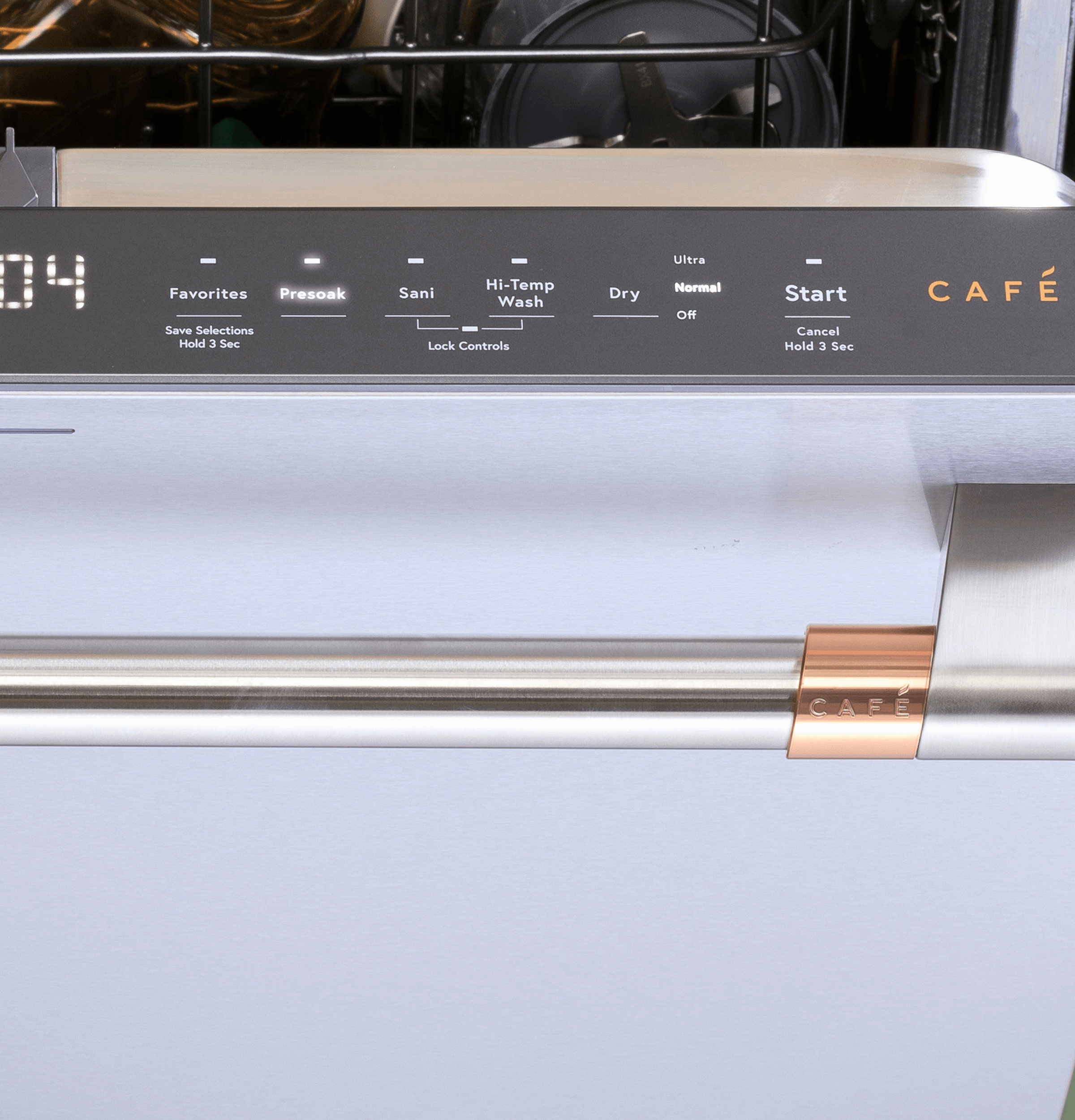

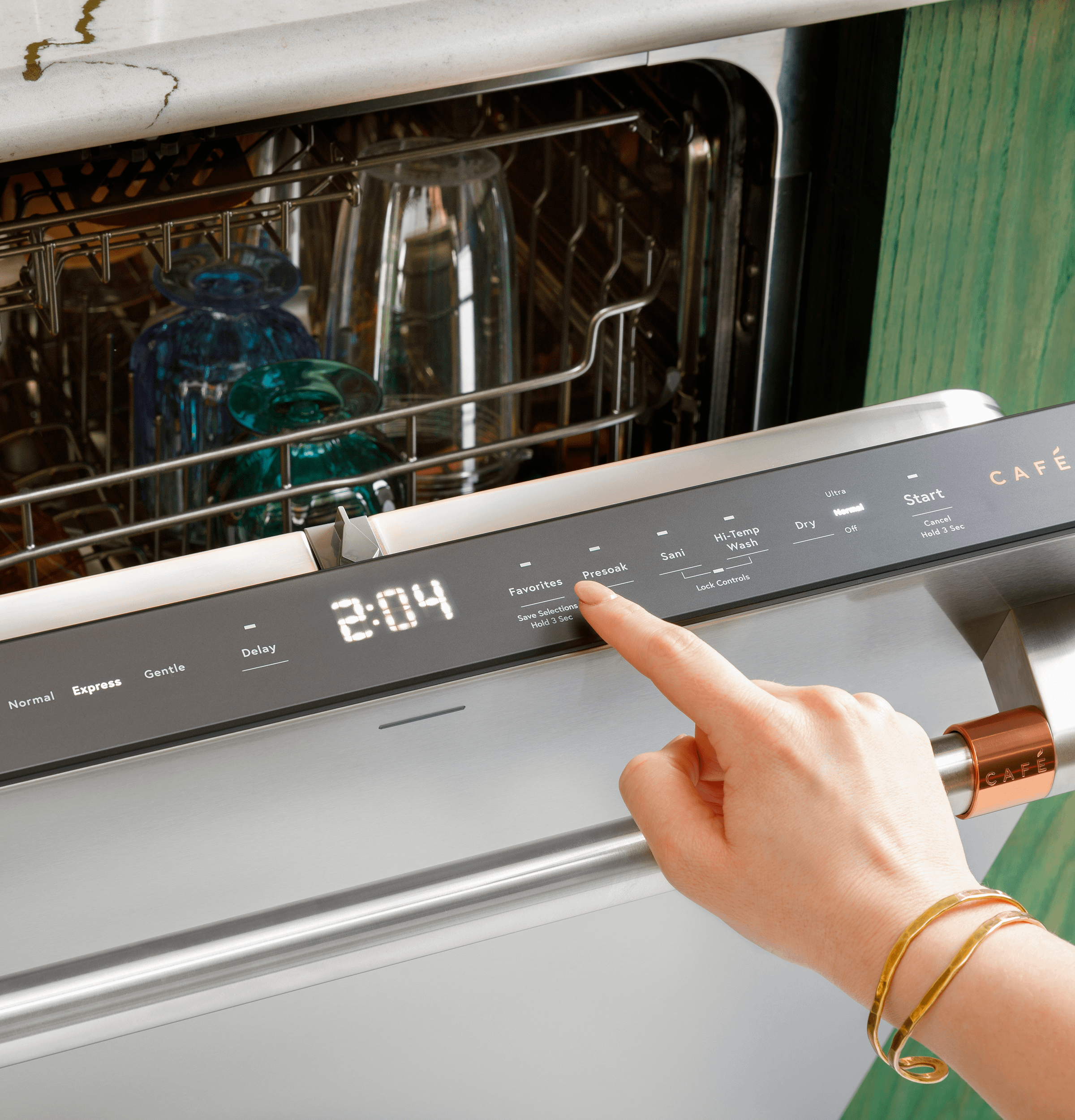

Favorites
Easily save your favorite wash and dry option combinations to the 'Favorites' button on your control panel for convenient and quick access at the touch of a button.

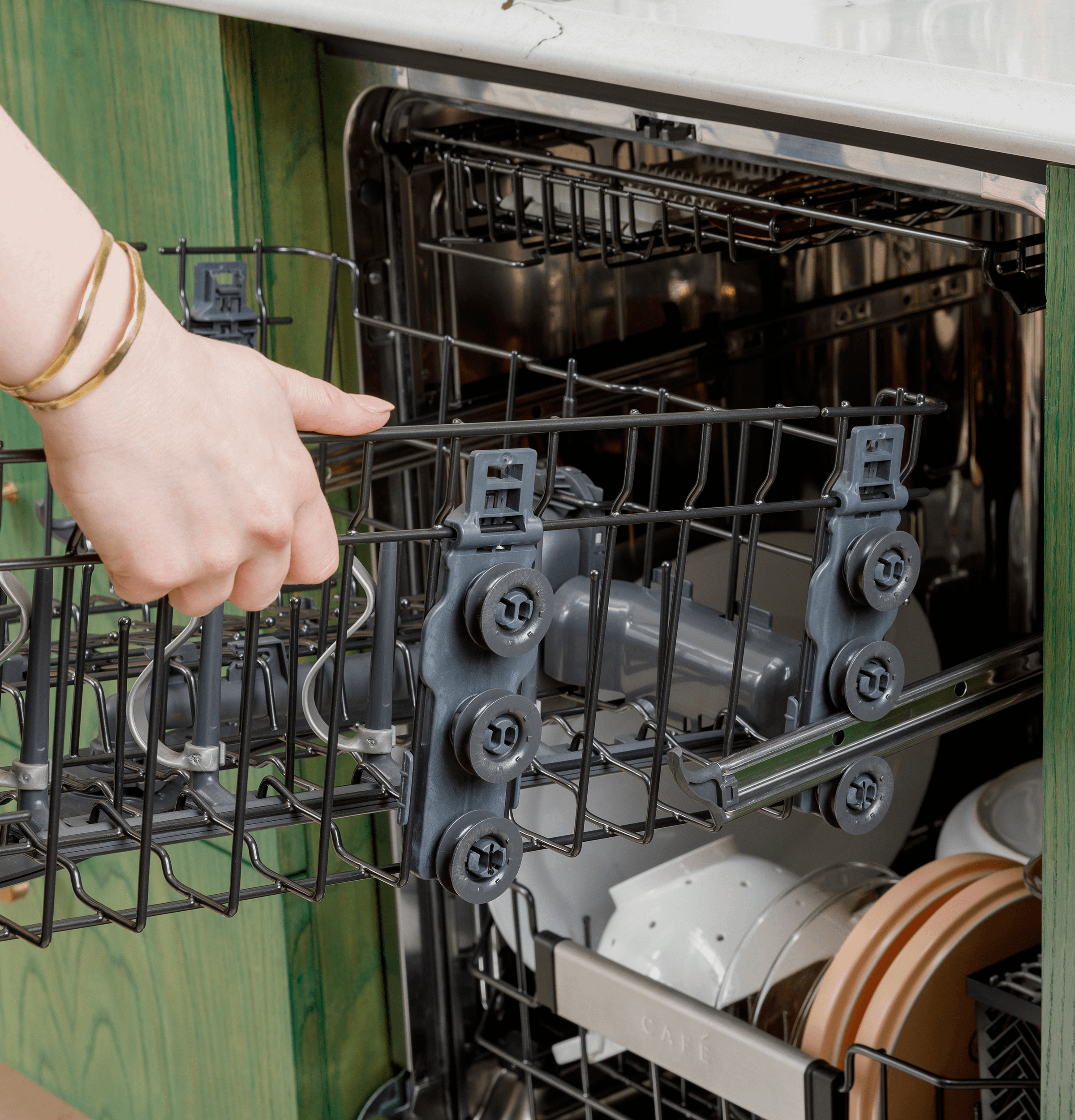

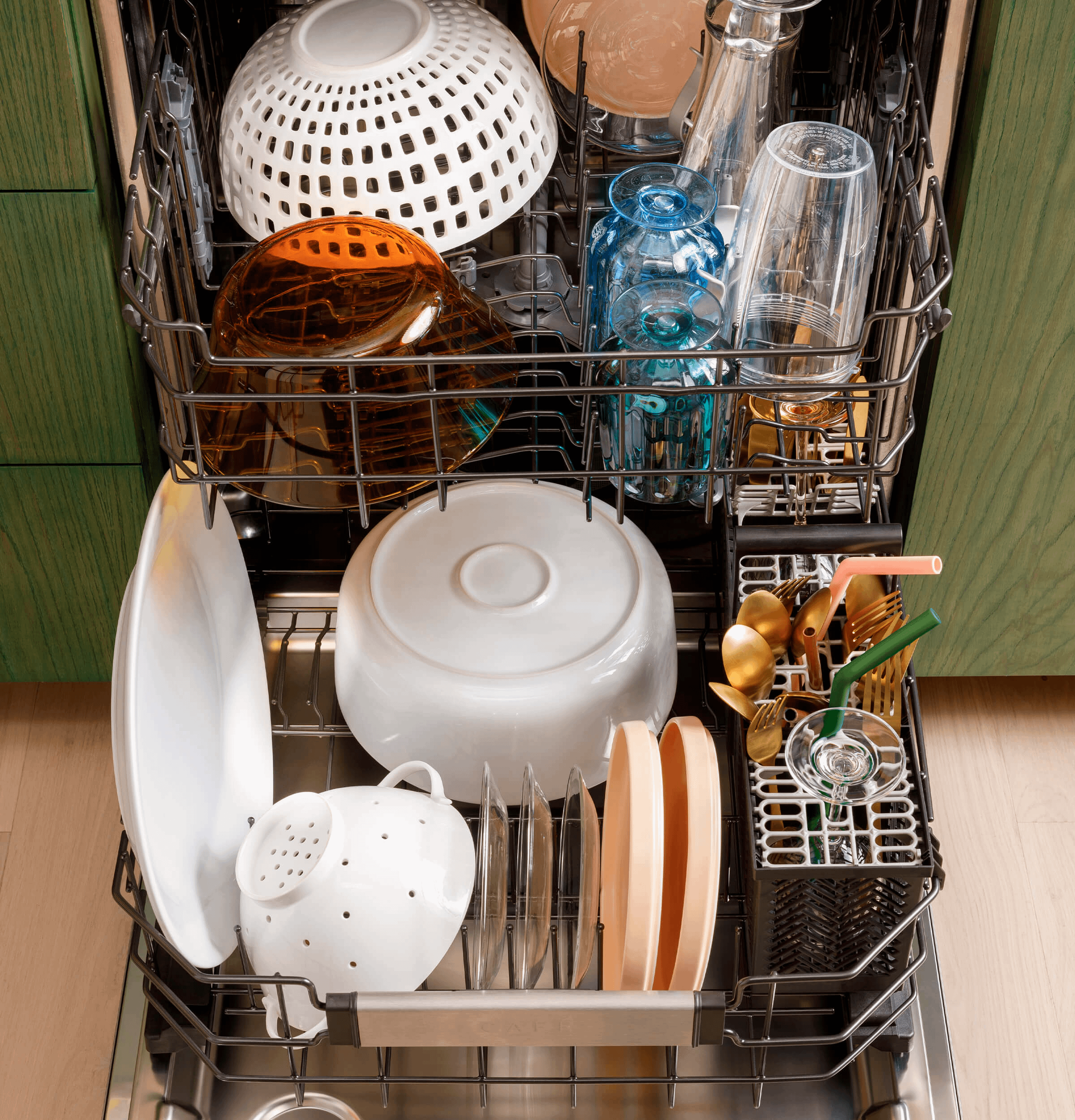

Adjustable Middle Rack
Load the dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".
Presoak
Loosen tough soils with a presoak cycle that runs before the wash cycle begins, so you can skip the need to pre-rinse or soak items by hand.
Sanitize
Enjoy piece of mind with a sanitation cycle that reduces up to 99.999% of bacteria on dishes.
Middle and Lower Rack Fold-Down Tines
Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.

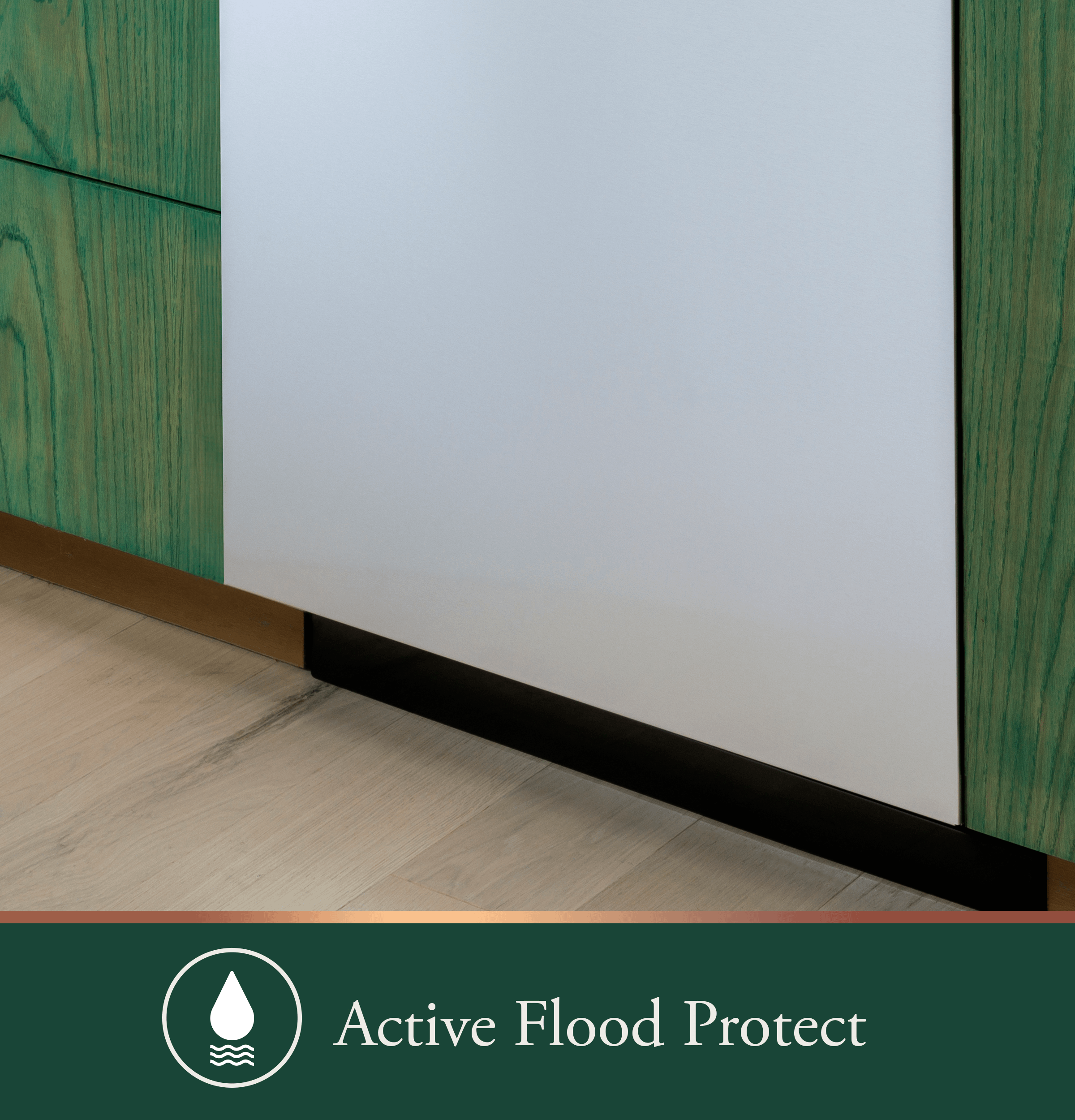

Active Flood Protect
Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.

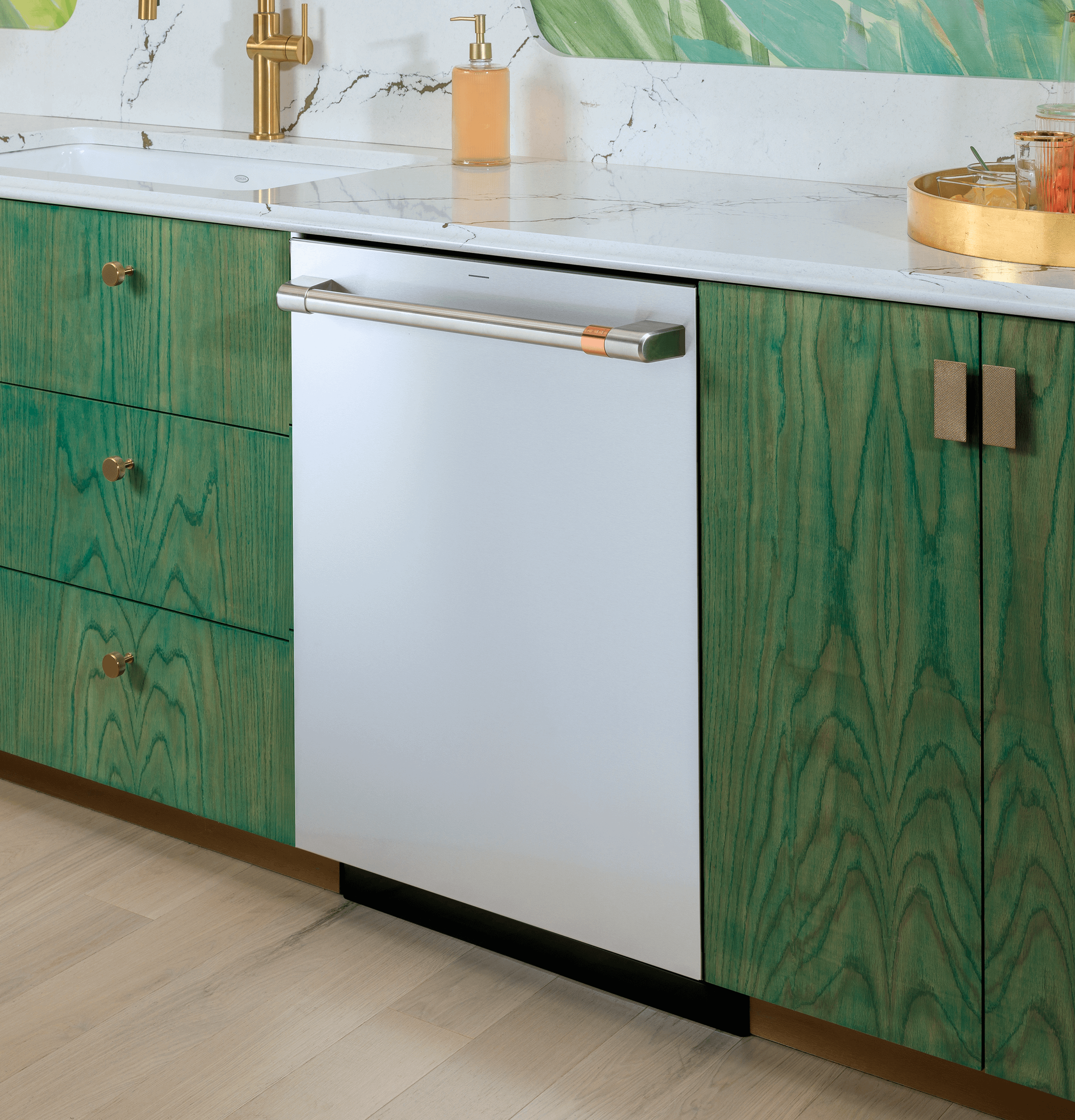

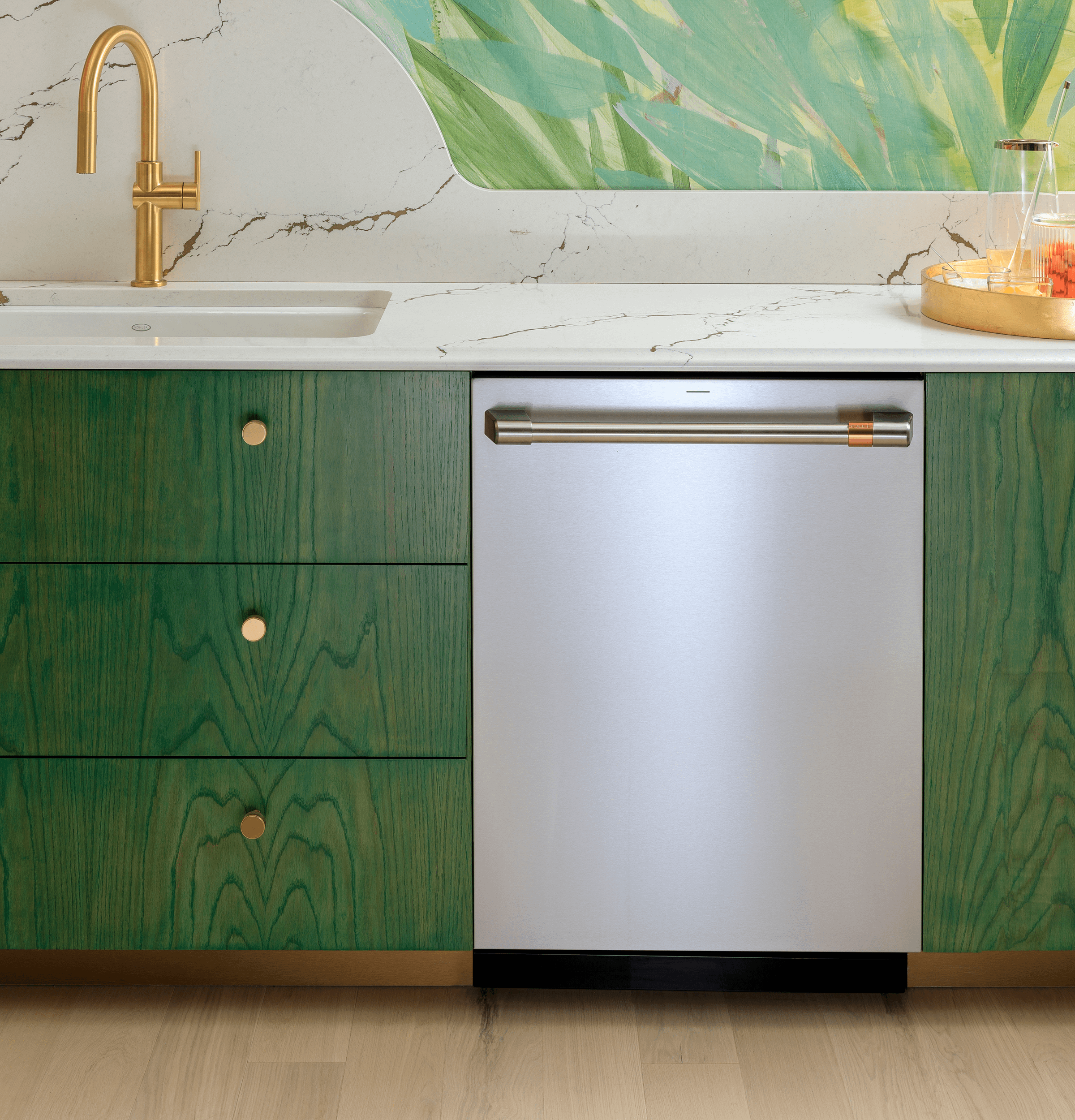

Flush Installation
Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.

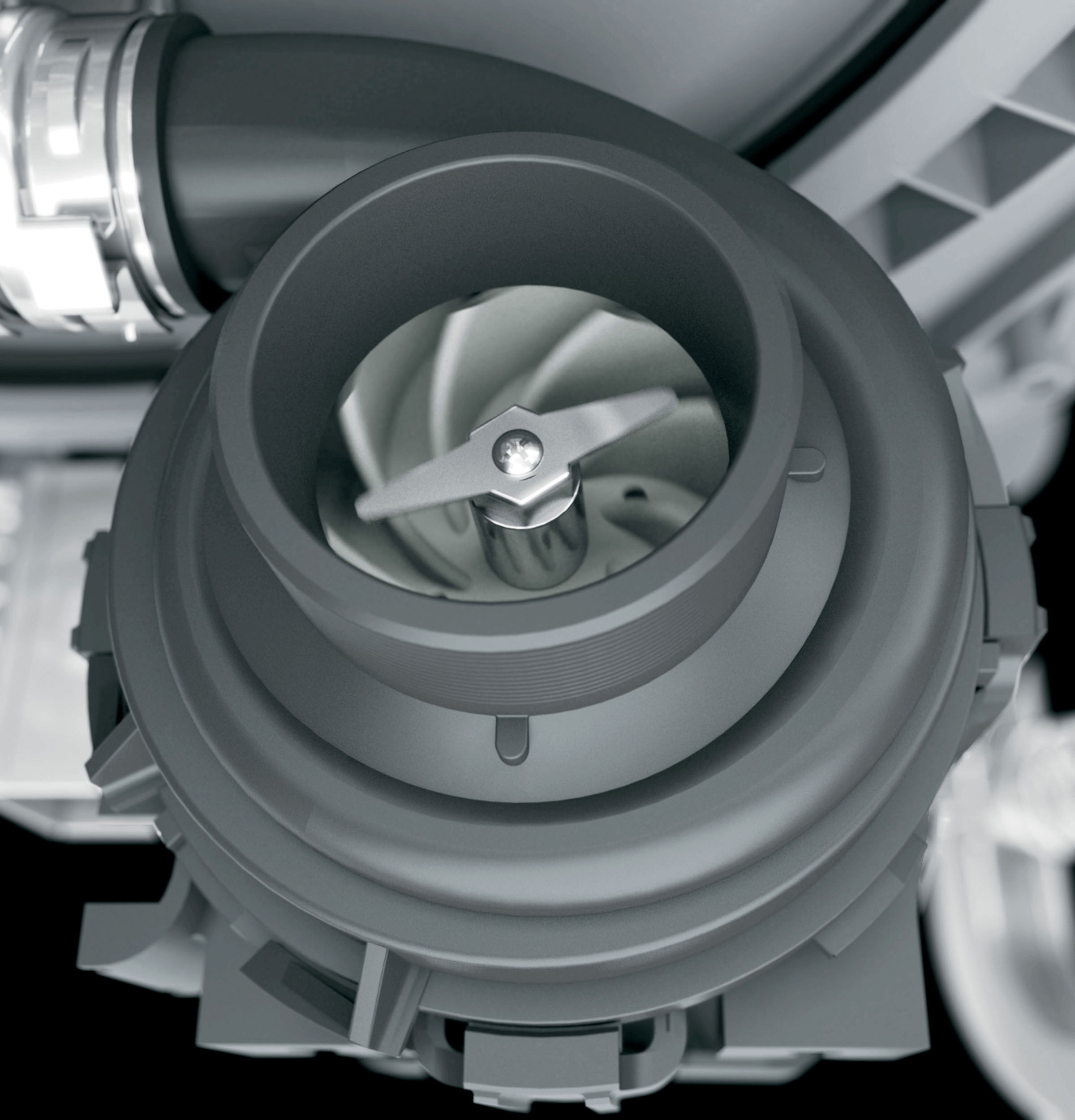

Piranha™ Hard Food Disposer
The Piranha™ Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design make sure wash arms stay unclogged.

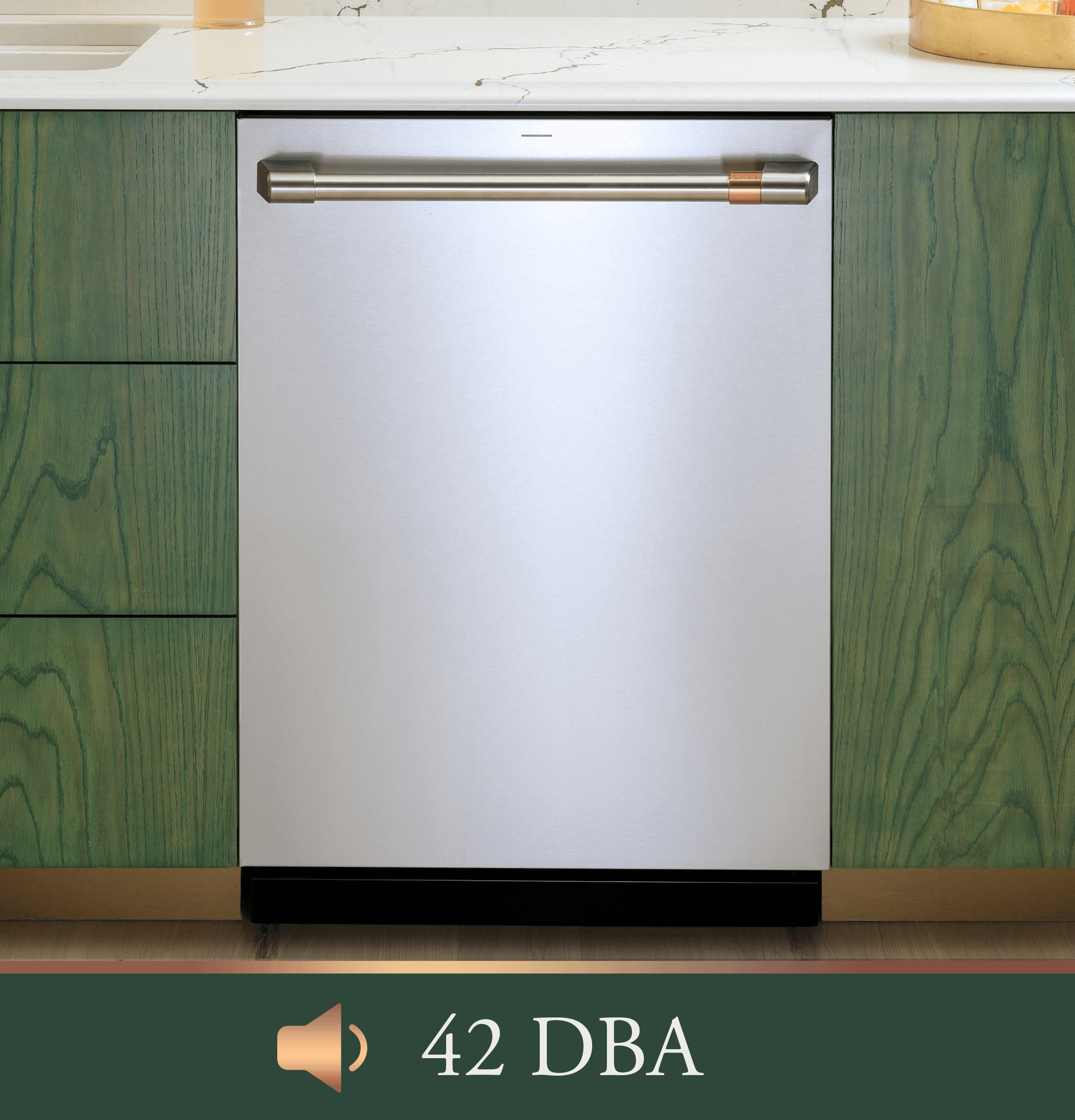

42 dBA Dishwasher
Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 42 dBA dishwasher.
Load your way in this dishwasher with a customizable top rack. The sliding top rack provides loading flexibility with a place to load silverware, cooking utensils, ramekins and more, so you can wash everything at once.
CustomFit Basket
Load more than just silverware in this redesigned basket. The stylish CustomFit Basket holds all your silverware, delicate stemware, reusable straws and more, so items that were hand wash before can safely be washed in the dishwasher.
Ultra Wash & Dry
This ultra-wash and dry dishwasher ensures table-ready dishes. Ranging from gentle for delicate stemware or intense for pots and pans, flexible wash options ensure that dishes get full coverage and the right amount of pressure for an ideal clean.
4 Bottle Wash Jets
This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.
Customizable Dishwasher Handles
Choose from six unique Caf(eback) handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.
Favorites
Easily save your favorite wash and dry option combinations to the 'Favorites' button on your control panel for convenient and quick access at the touch of a button.
Adjustable Middle Rack
Load the dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".
Presoak
Loosen tough soils with a presoak cycle that runs before the wash cycle begins, so you can skip the need to pre-rinse or soak items by hand.
Sanitize
Enjoy piece of mind with a sanitation cycle that reduces up to 99.999% of bacteria on dishes.
Middle and Lower Rack Fold-Down Tines
Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.
Active Flood Protect
Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.
Flush Installation
Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.
Piranha™ Hard Food Disposer
The Piranha™ Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design make sure wash arms stay unclogged.
42 dBA Dishwasher
Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 42 dBA dishwasher.
- CustomFit Top Rack
- Load your way in this dishwasher with a customizable top rack. The sliding top rack provides loading flexibility with a place to load silverware, cooking utensils, ramekins and more, so you can wash everything at once.
- CustomFit Basket
- Load more than just silverware in this redesigned basket. The stylish CustomFit Basket holds all your silverware, delicate stemware, reusable straws and more, so items that were hand wash before can safely be washed in the dishwasher.
- Ultra Wash & Dry
- This ultra-wash and dry dishwasher ensures table-ready dishes. Ranging from gentle for delicate stemware or intense for pots and pans, flexible wash options ensure that dishes get full coverage and the right amount of pressure for an ideal clean.
- 4 Bottle Wash Jets
- This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.
- Customizable Dishwasher Handles
- Choose from six unique Caf(eback) handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.
- Favorites
- Easily save your favorite wash and dry option combinations to the 'Favorites' button on your control panel for convenient and quick access at the touch of a button.
- Adjustable Middle Rack
- Load the dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".
- Presoak
- Loosen tough soils with a presoak cycle that runs before the wash cycle begins, so you can skip the need to pre-rinse or soak items by hand.
- Sanitize
- Enjoy piece of mind with a sanitation cycle that reduces up to 99.999% of bacteria on dishes.
- Middle and Lower Rack Fold-Down Tines
- Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.
- Active Flood Protect
- Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.
- Flush Installation
- Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.
- Piranha(TM) Hard Food Disposer
- The Piranha(TM) Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design make sure wash arms stay unclogged.
- 42 dBA Dishwasher
- Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 42 dBA dishwasher.
APPEARANCE | |
Handle | Café™ |
Installation | Built-Up Floor Capable Flush Cabinet Installation Side Installation or Top Installation Included |
Handle Color | Brushed Stainless |
Door Style | Long Door with Top Controls |
Door Appearance | Full-length flat door |
Color Appearance | Stainless Steel |
Control Panel Color | Matte Dark Slate, Fingerprint Resistant |
Handle Design | Customizable |
POWER / RATINGS | |
Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
Calrod Heater Watts | 800/500 |
Volts/Hertz/Amps | 120v; 60Hz; 7.2A |
WARRANTY | |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
ECONOMICAL / QUIET | |
Door Insulation | Insulation Mastic |
Quiet Package | 42 dBA |
Outer Wrap | Bitumen Full-wrap Blanket |
Motor Type | Variable Speed |
Quiet Features | Quiet Water Valve Sealed Toe Kick Tub Collar Trim |
ACCESSORIES | |
Optional 12' Drain Hose | Optional hose kit (WD24X10065) |
Optional Kits | CXADTH1PVBT Brushed Black CXADTH1PVBZ Brushed Bronze CXADTH1PVCG Brushed Brass CXADTH1PVCU Brushed Copper CXADTH1PVFB Flat Black CXADTH1PVSS Brushed Stainless |

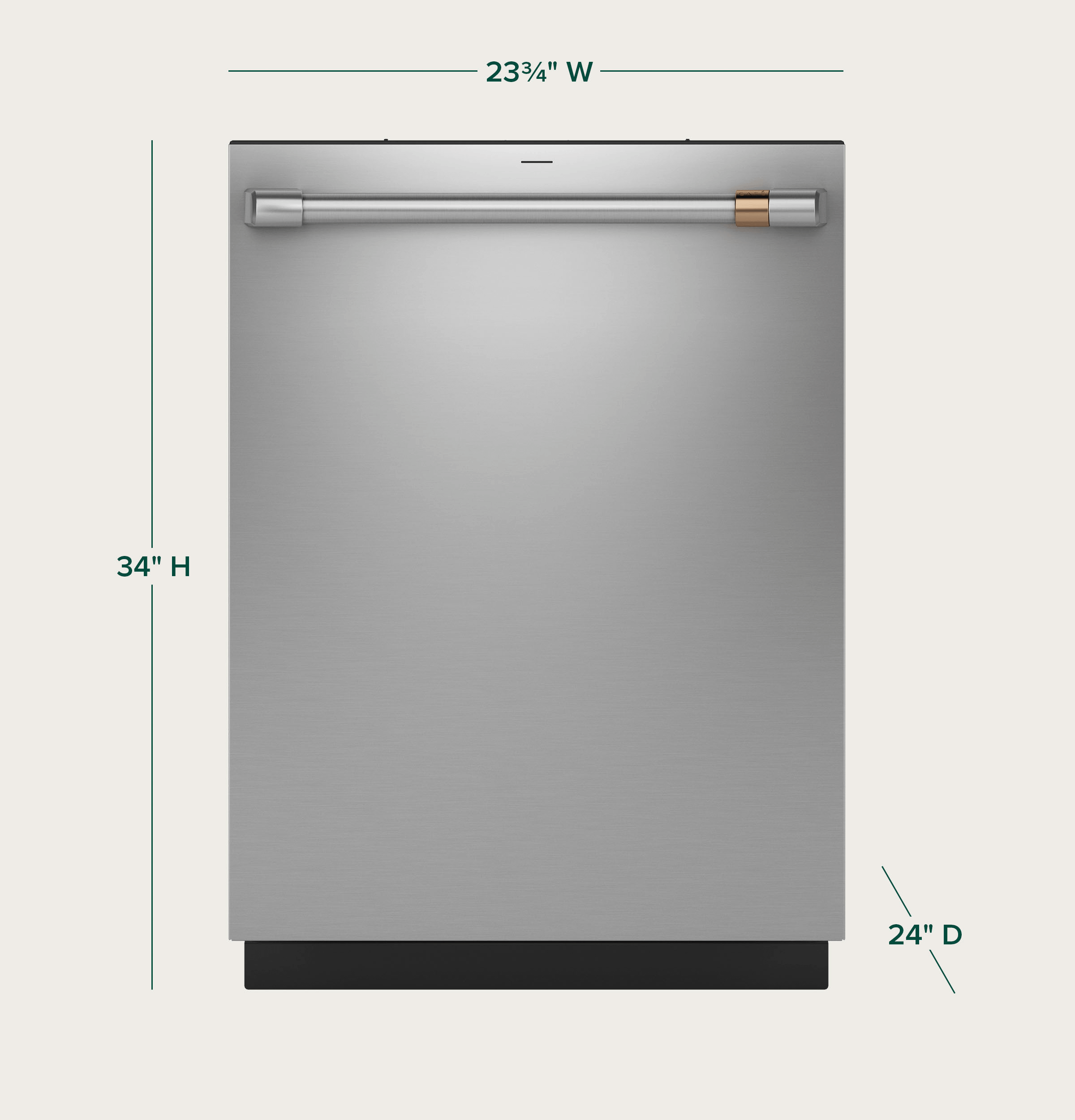

WEIGHTS & DIMENSIONS | |
Height w/ Legs Retracted - Minimum Height | 33.375 in |
Cutout Height (in) | 33 1/2 in |
Overall Depth | 24 in |
Cabinet Width | 24 in |
Net Weight | 124 lb |
Overall Width | 23.75 in |
Approximate Shipping Weight | 137 lb |
Overall Height | 34 in |
Overall Depth with Handle | 26.3 in |
Cutout Depth (in) | 24 in |
Height w/Legs Extended - Maximum Height | 34.625 in |
Depth with Door Open | 25.5 in |
FEATURES | |
Wash System | 3-Level 800 Series |
Sensor | Clean Sensor |
Lower Rack | 1/2 fixed tines, 1/2 fold down tines Ball-Tip Tines |
Tub Type | Tall Tub |
Leveling System | 4 Leveling Legs |
OU Certified | No |
Additional Protection | Active Flood Protect |
Number of Place Settings | 16 |
Dishwasher Options | Bottle Wash (on app) Delay Start 1-12 Hr. Favorites Favorites (on app) Heated Dry Off Hi-Temp Wash Lock Controls Normal Dry Pre Soak Sabbath Mode Sani (Certified to NSF Standard 184) Start/Cancel Ultra Dry Wash Zones/Half Load (on app) WiFi/Remote Enabled |
Latch | Pull with Handle |
Number of Options | 15 |
Style | Built-In Top Control |
Water Filtration System | 100% Filtration with Hard Food Disposer and Removable Filter |
Cutlery Tray | One piece removable 3rd rack |
Rack Features | Adjustable Upper Rack Ball-Tipped Tines Cafe Flex Silverware Basket |
Racking Material | Nylon |
Smart Assist | Yes |
Dishwasher Cycles | Auto Cookware Express Gentle Normal |
Rack Color | Black Pearl |
Dispenser | Rinse Aid with Indicator and Adjustment |
WiFi Connect | Optional (Requires part no. PBX23W00Y0) |

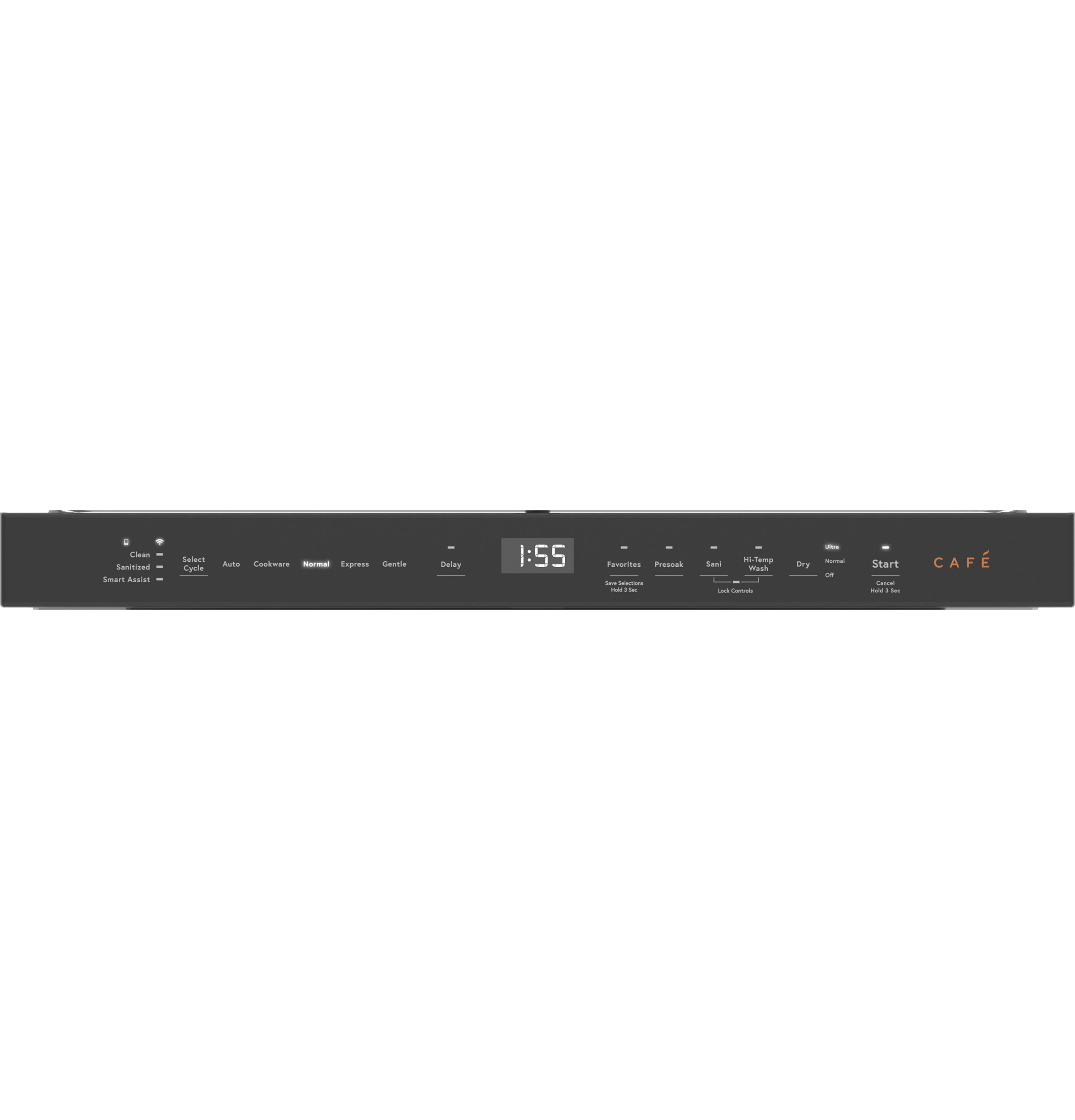

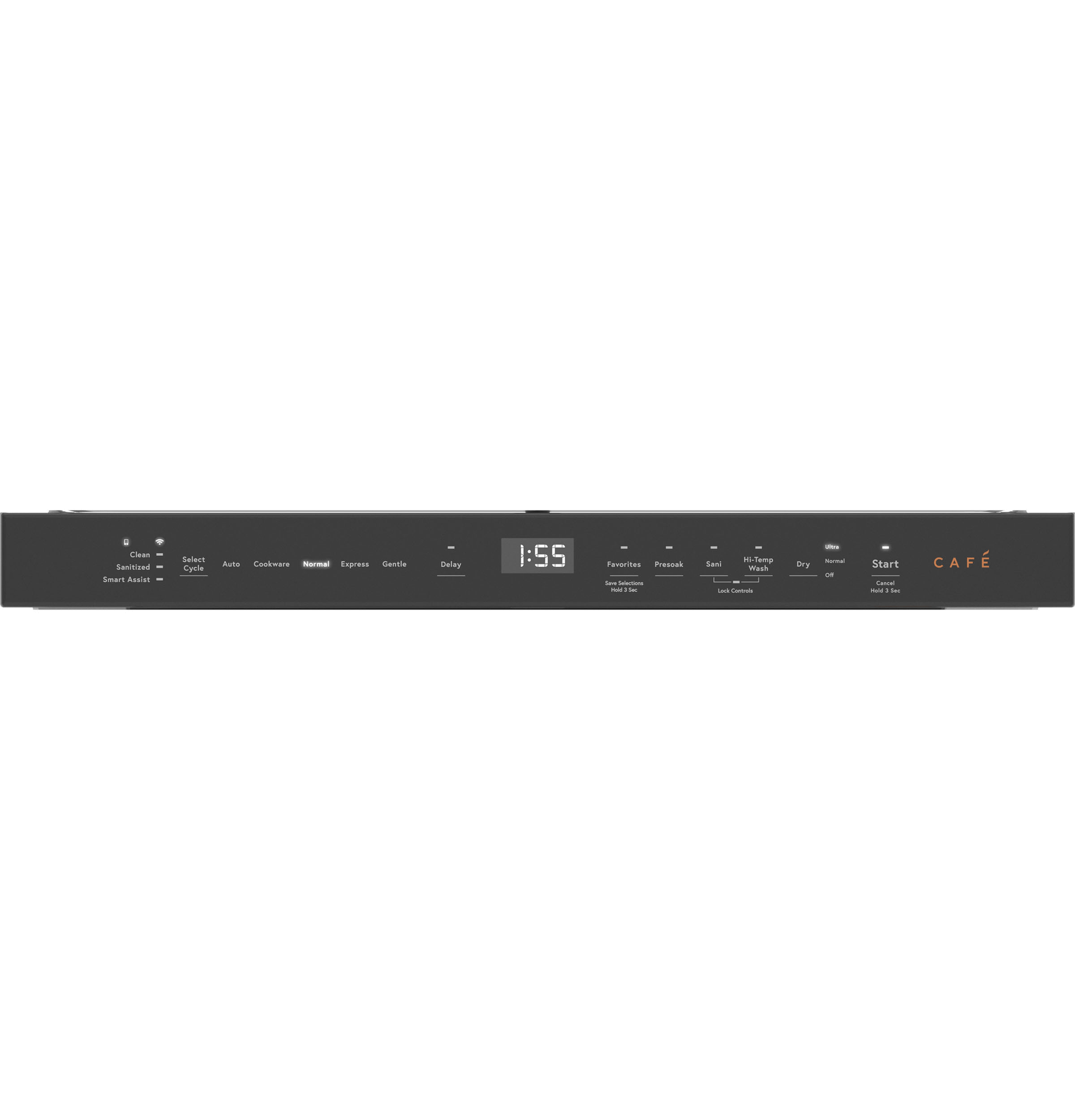

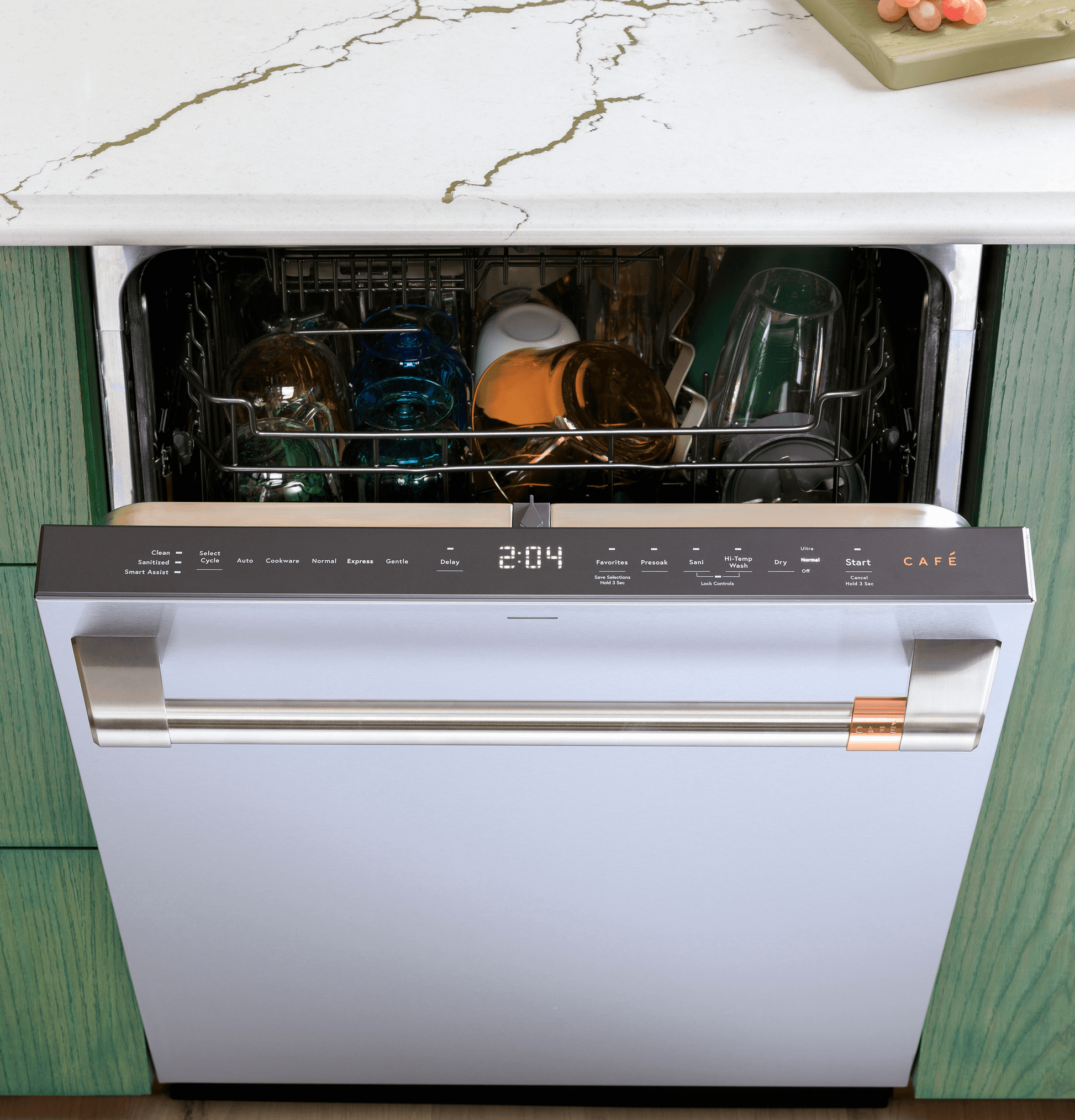

Control Type | 8 Touchpads Cap Touch Controls Top Controls |
Racking System | Full 3rd rack |
Dishwasher Drying Features | Heated Dry - Ultra/Normal/Off Multi-Wattage Wash & Dry Element UltraDry |
Wash Arms | 3 Wash Levels Bottle Jets Lower Middle Upper |
Wash System Features | Automatic HotStart Automatic Temperature Control Bottle Jets (4) Hard Food Disposer with removable filter Lower Wash Arm Middle Wash Arm Variable Speed Dual Pumps and Motors |
Top Rack/3rd Rack | Slilding 3rd rack + Tray |
Exterior Style | Customizable Professional |
Upper Rack | 1 Rack handle 1/2 fixed tines, 1/2 fold down tines Adjustable Ball-Tip Tines Fixed tines with Bottle Jets Removable |
Dishwasher Control Features | Audible End-of-Cycle Signal Cycle Countdown with Bi-Color LED Status Light on door Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled Last Cycle Memory |
Number of Cycles | 5 |
Tub and Door Liner | Stainless Steel |
Sabbath Mode | Yes |
Showroom Power Mode | Yes |
