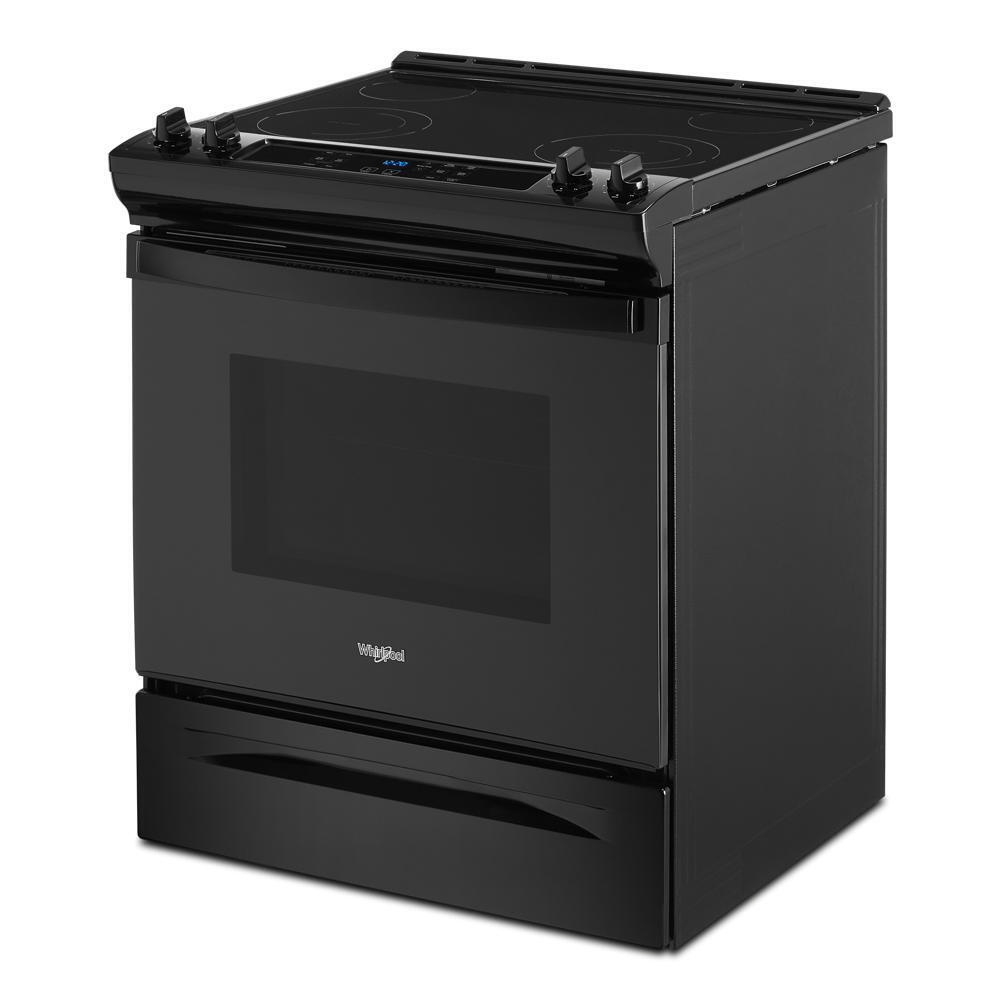

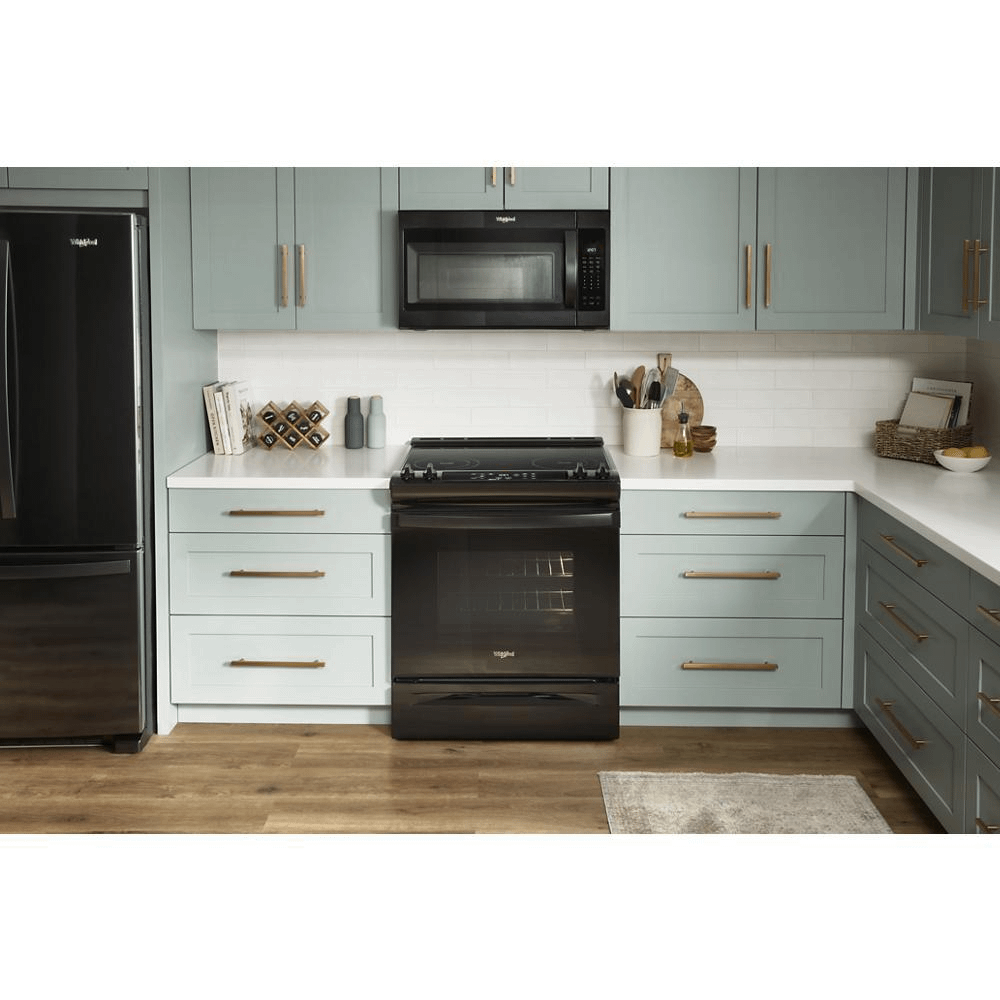

Simplify steps in the cooking process with an electric slide in range that lets you skip preheating for frozen favorites with Frozen Bake™ Technology. Get more flexibility and fast boil times on the cooktop with high wattage FlexHeat™ Dual Radiant Elements. This range is also equipped with a high-temperature, adjustable self clean oven cycle so you can clean without using chemicals.

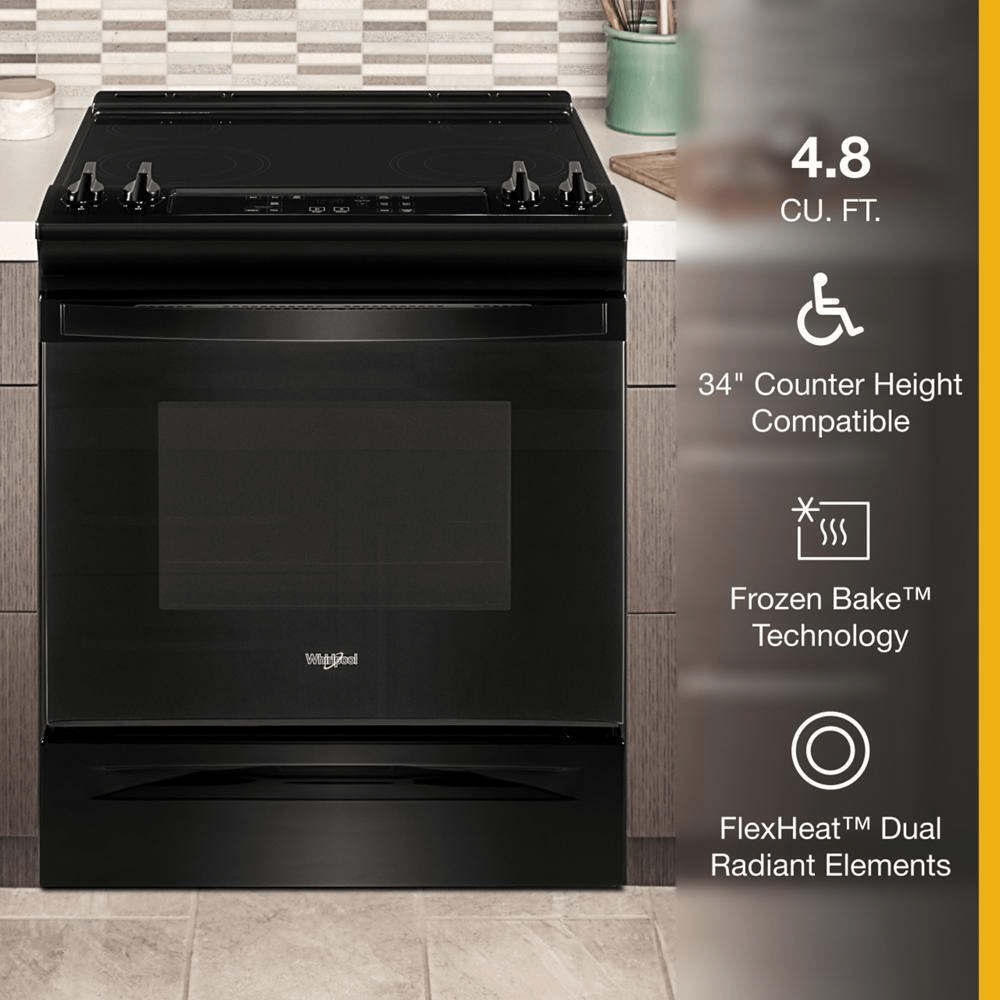

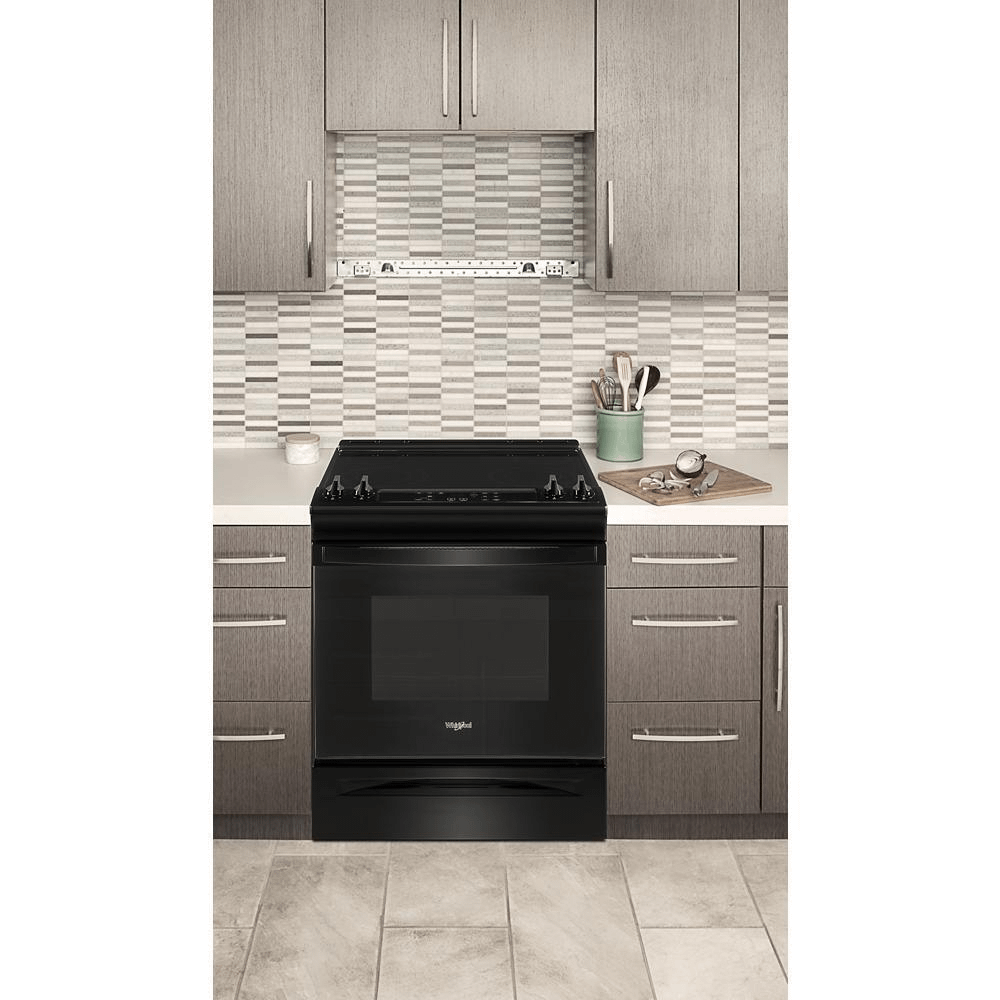

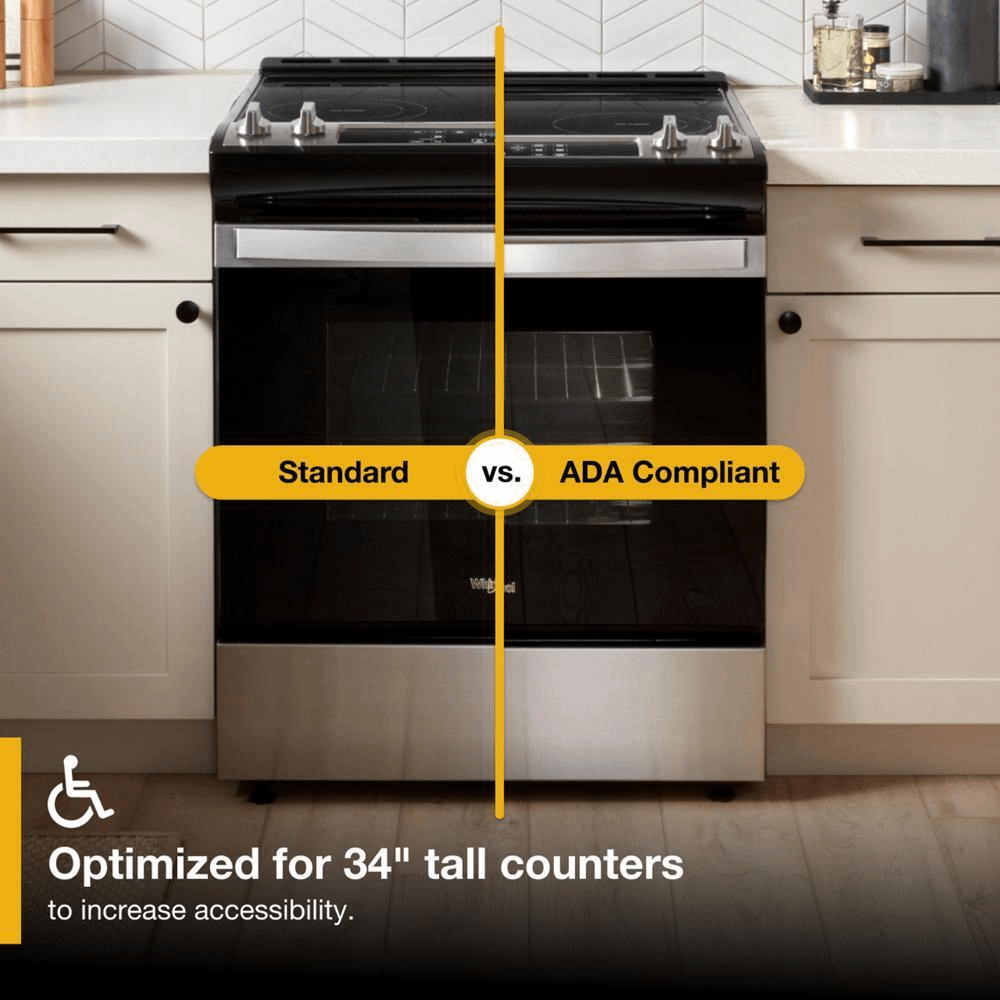

- 34" Counter Height Compatibility
- Match your 34" countertop height with this 34" slide-in range for a seamless kitchen design.

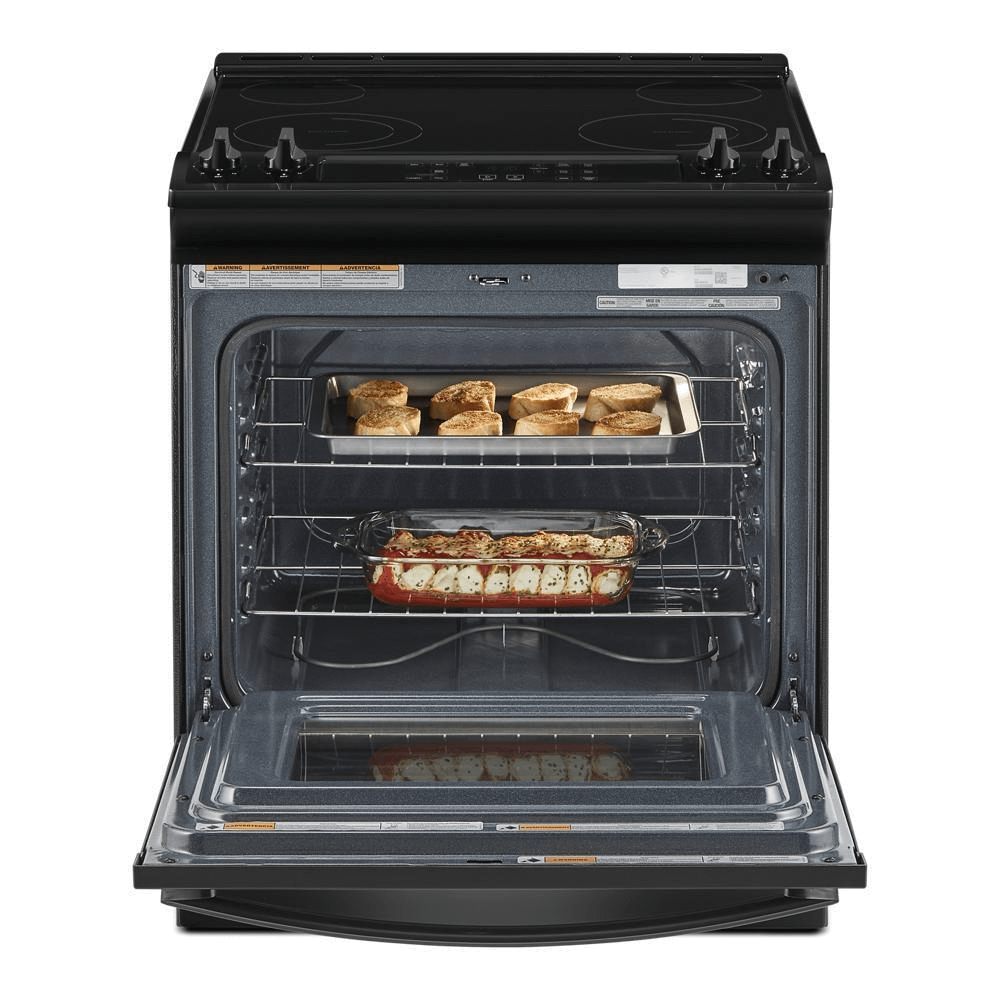

- 4.8 Cu. Ft. Capacity
- Easily cook large meals with 4.8 Cu. Ft. Capacity
- ADA compliant
- This range meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.

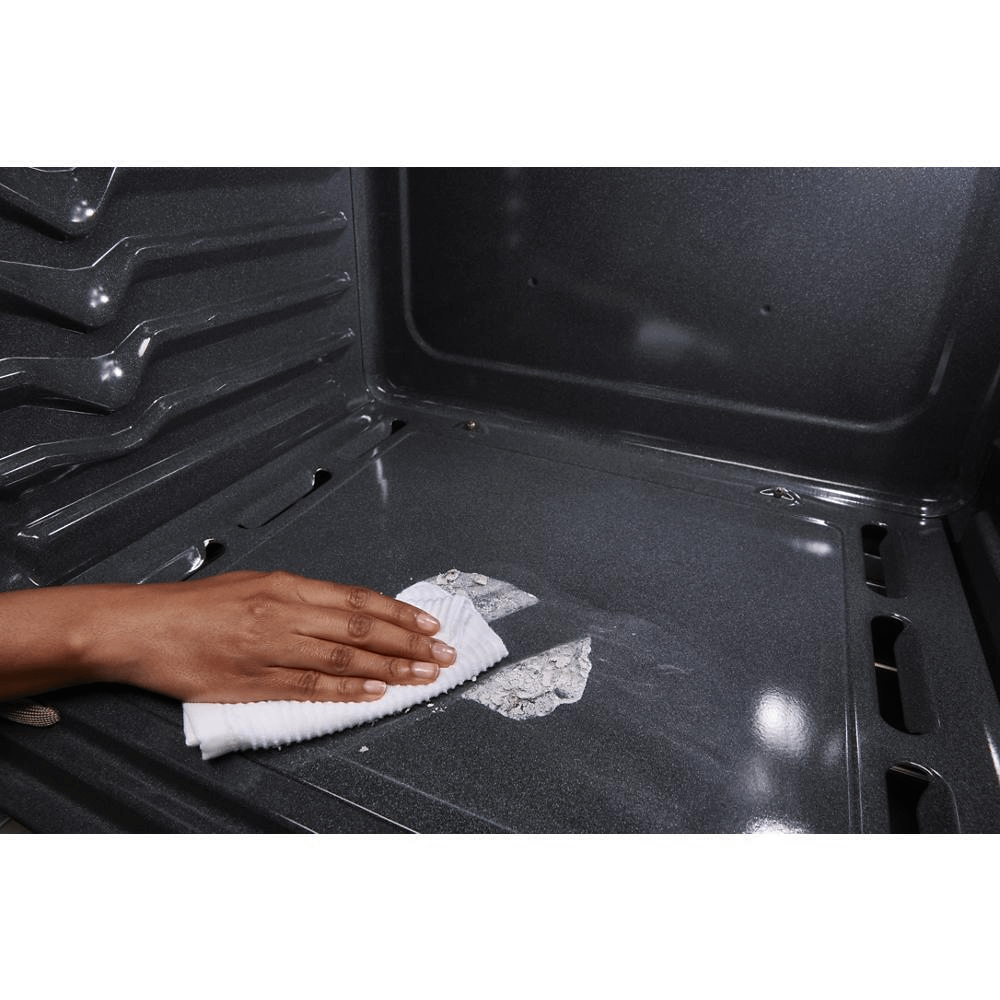

- Adjustable Self-Clean Cycle
- Clean without harsh chemicals using the high temperature self-clean cycle. Adjust the cycle for various soil levels to keep your oven looking clean.
- Broil Setting
- When you place food close to the oven s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.
- Ceramic Glass Cooktop
- Wiping up spills is simple with the Ceramic Glass Cooktop. The raised edges help contain spills, so you can easily clean the cooktop.
- Cooktop Indicator Lights
- Notice when the cooktop s still on or hot with Cooktop Indicator Lights, so you can finish every meal with added peace of mind.
- Delay Start
- Program the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.

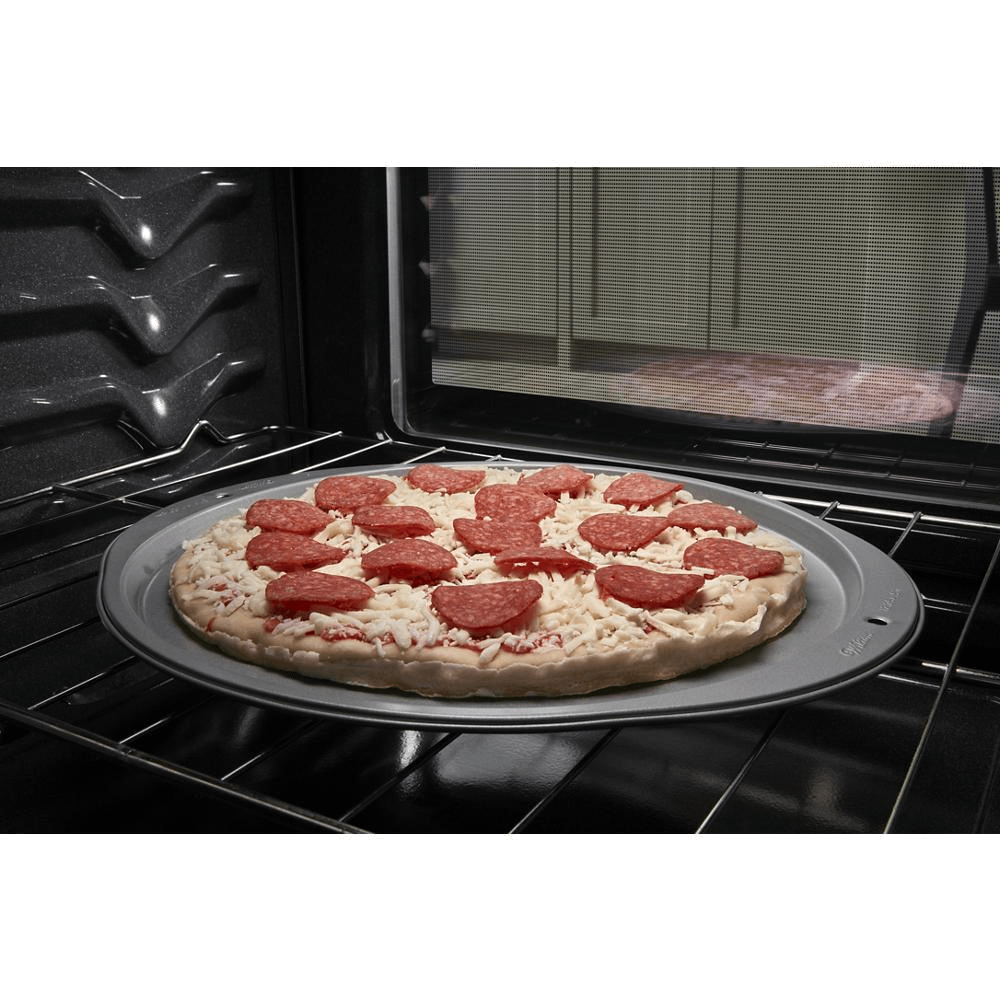

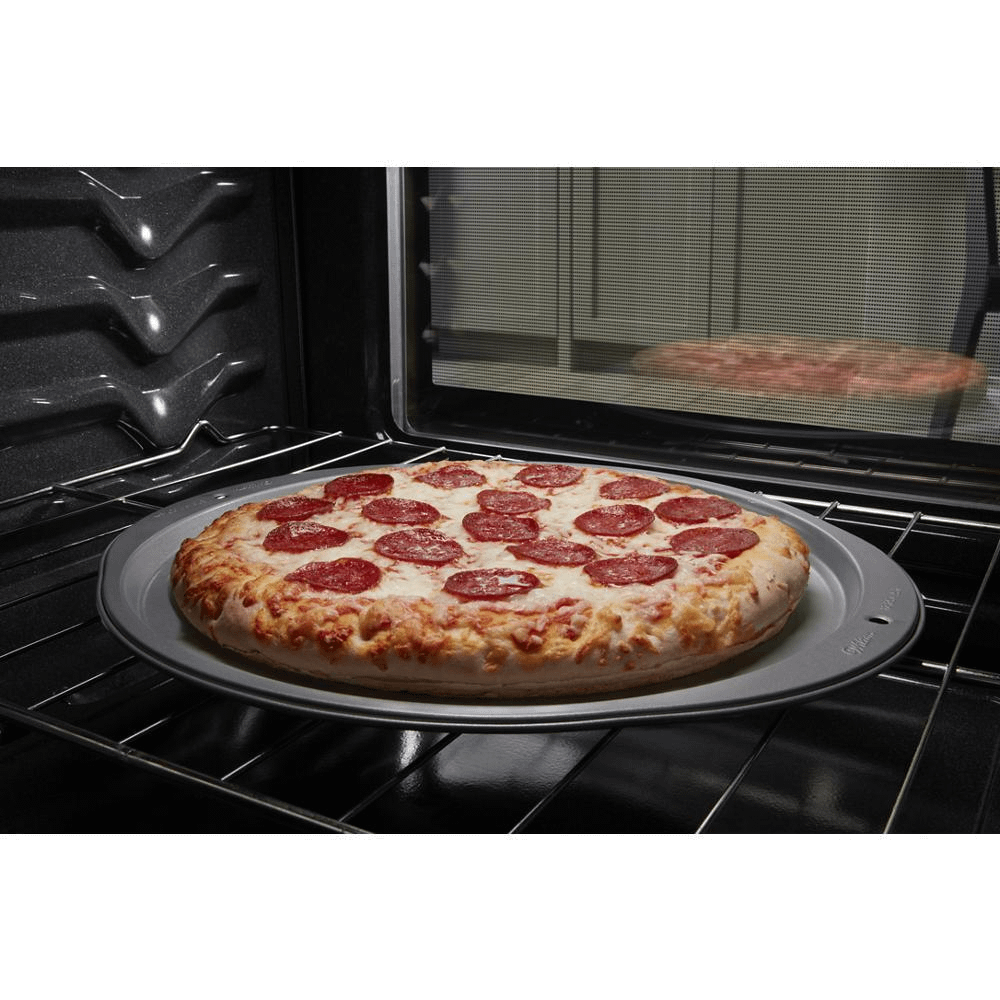

- Frozen Bake(TM) Technology
- Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.
- Keep Warm Setting
- Keep dishes from getting cold with this setting that delivers low heat to the oven.

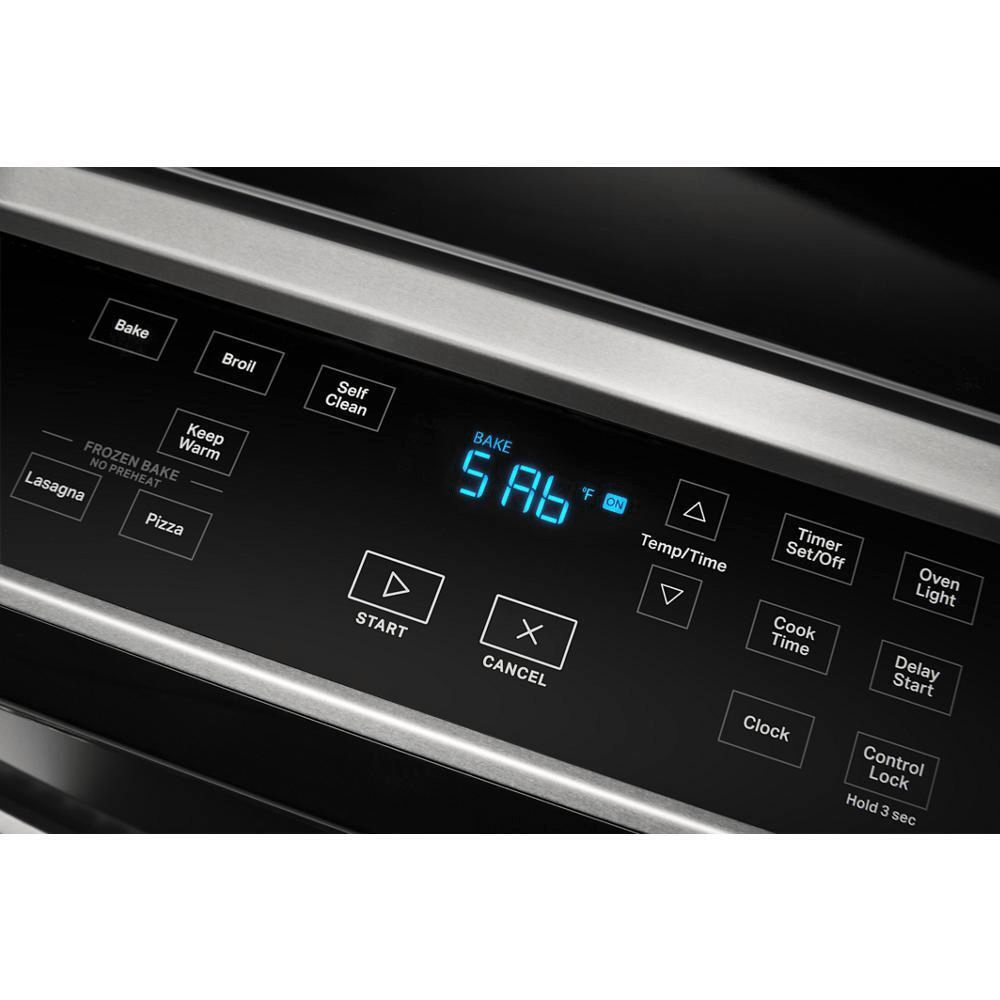

- Sabbath mode
- Use Sabbath mode to keep the oven on the "Bake" setting at a constant temperature until it's turned off. When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.

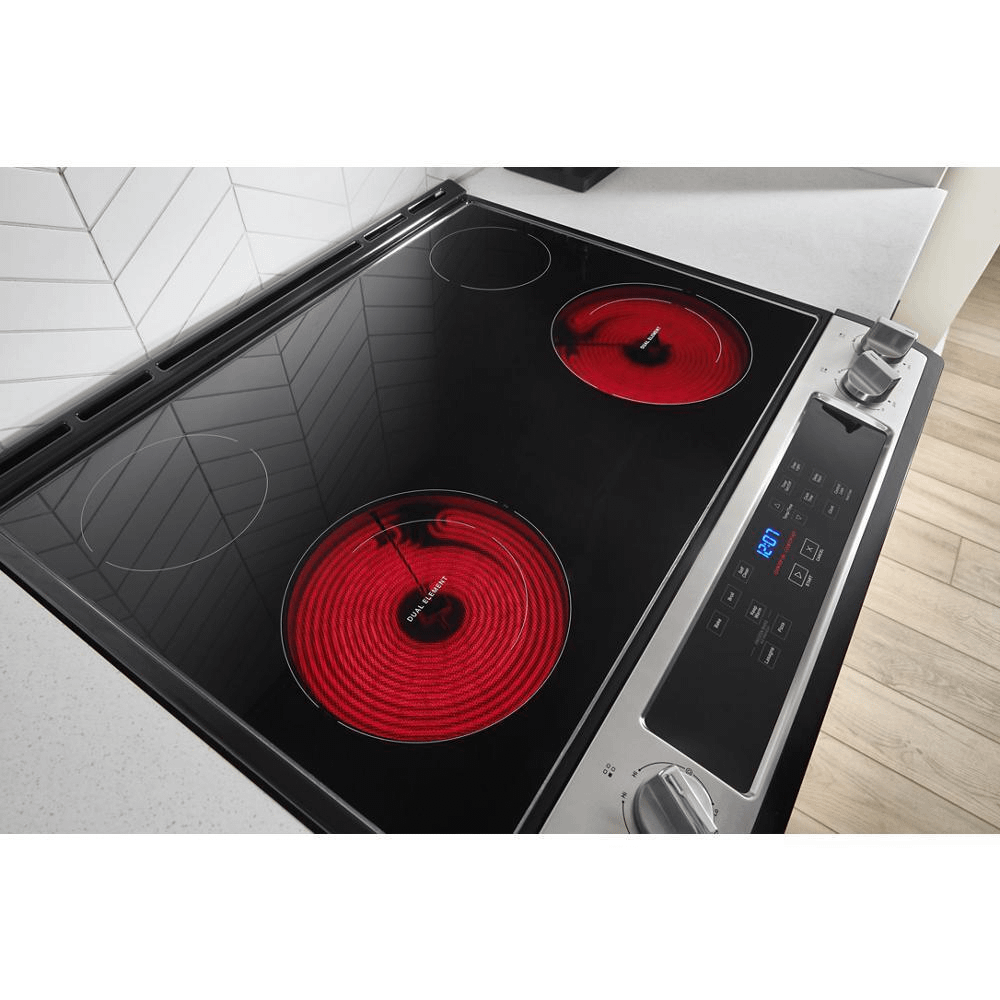

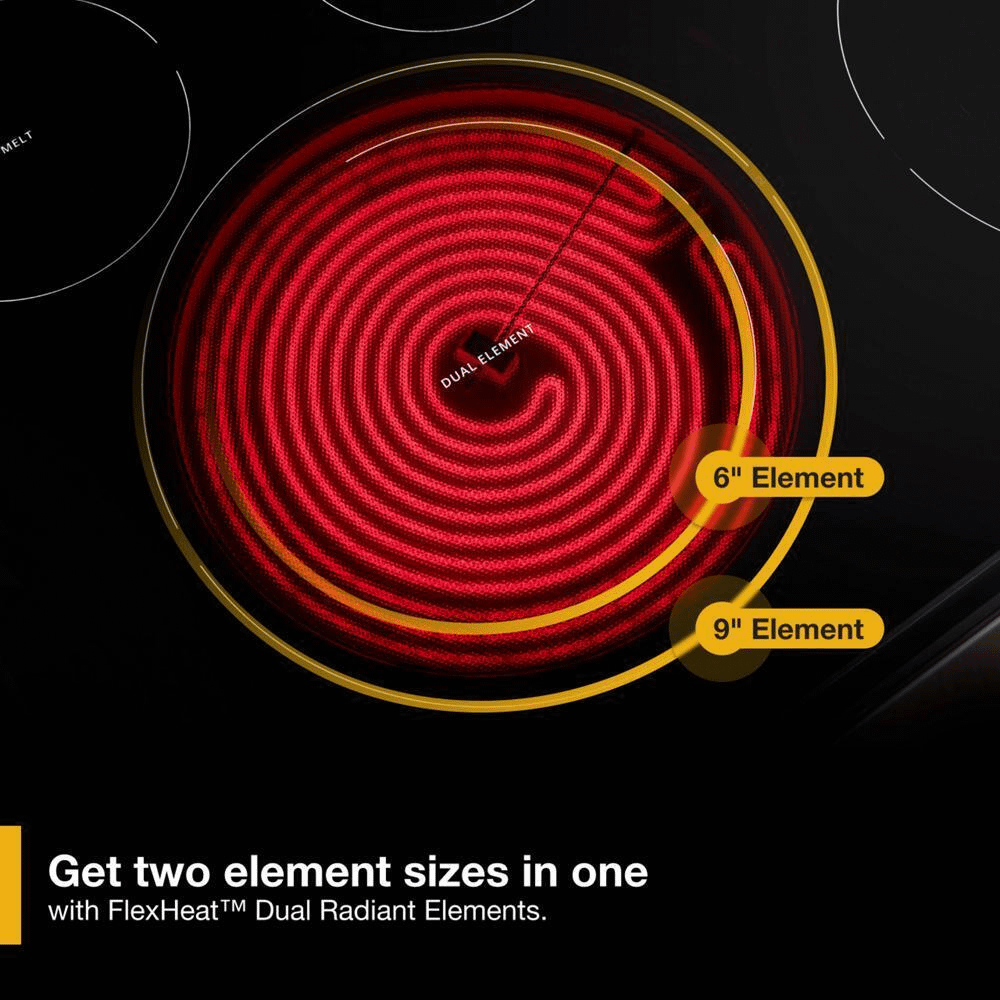

- Two FlexHeat(TM) Dual Radiant Elements
- Get two elements in one with a 6" inner ring that s great for smaller pots and pans and a 9" outer ring that makes room for larger cookware.
Certifications | |
Ada Compliant | Yes |
Prop65 | Standard |
Ul | Yes |

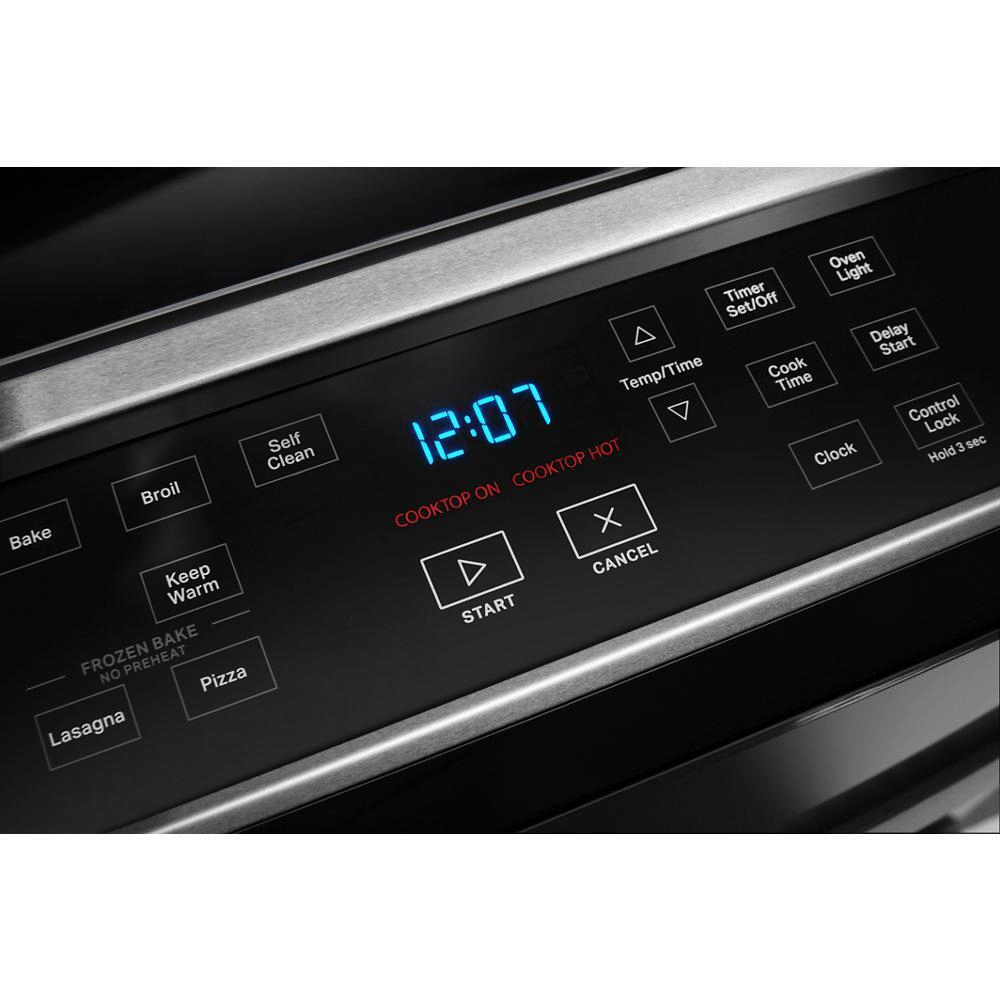

Controls | |
Display Color | Blue |
Electronic Display Type | LED |
Cooktop Details | |
Cooktop Control Knob Color | Black |
Cooktop Control Knob Type | Plastic |
Cooktop Control Location | Front |

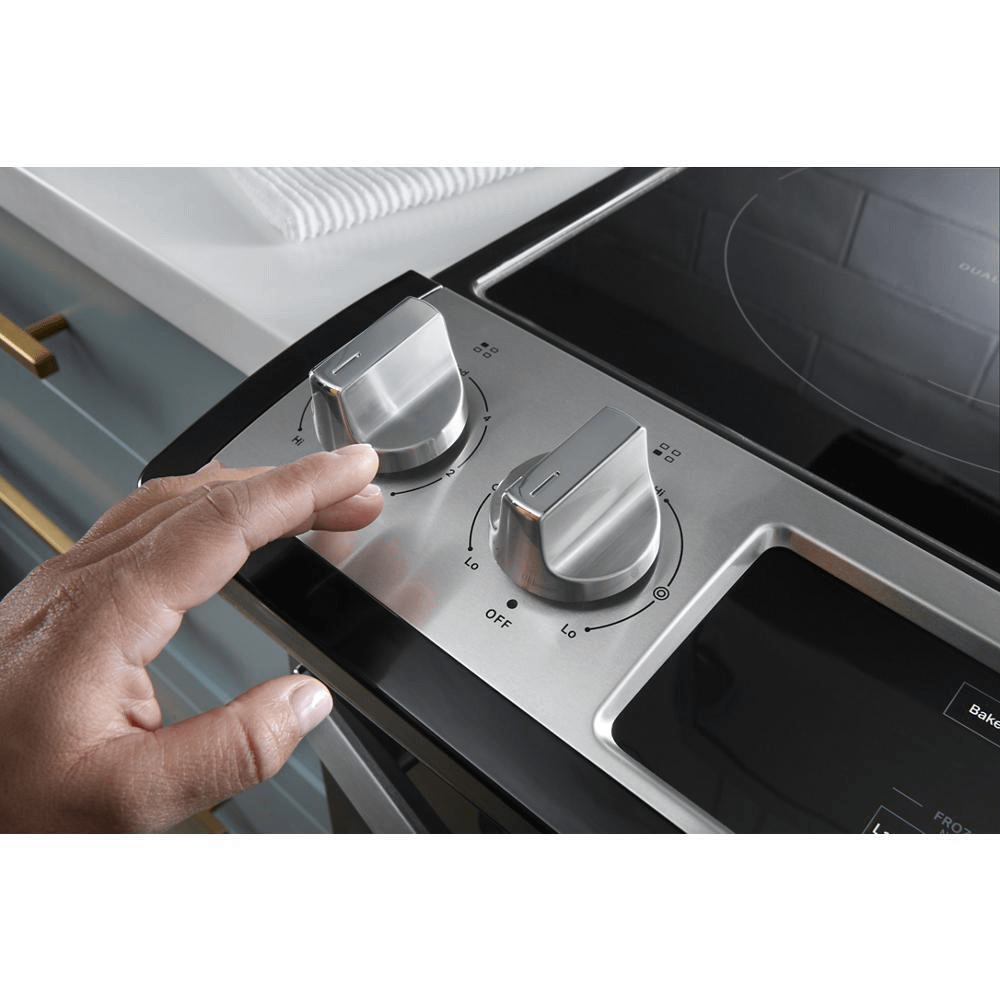

Cooktop Control Type | Knobs |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Details | |
Automatic Convection Conversion Temperature Adjust | No |
Cooktop Configuration | All Burners |
Fuel Type | Electric |
Oven Light Switch Location | Oven Control |
Oven Selections | Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Frozen Bake; Keep Warm/Warm Hold; Sabbath Mode; Timer |
Power Outage Compatible | No |
Range Drawer Type | None |
Range Type | Slide-in |

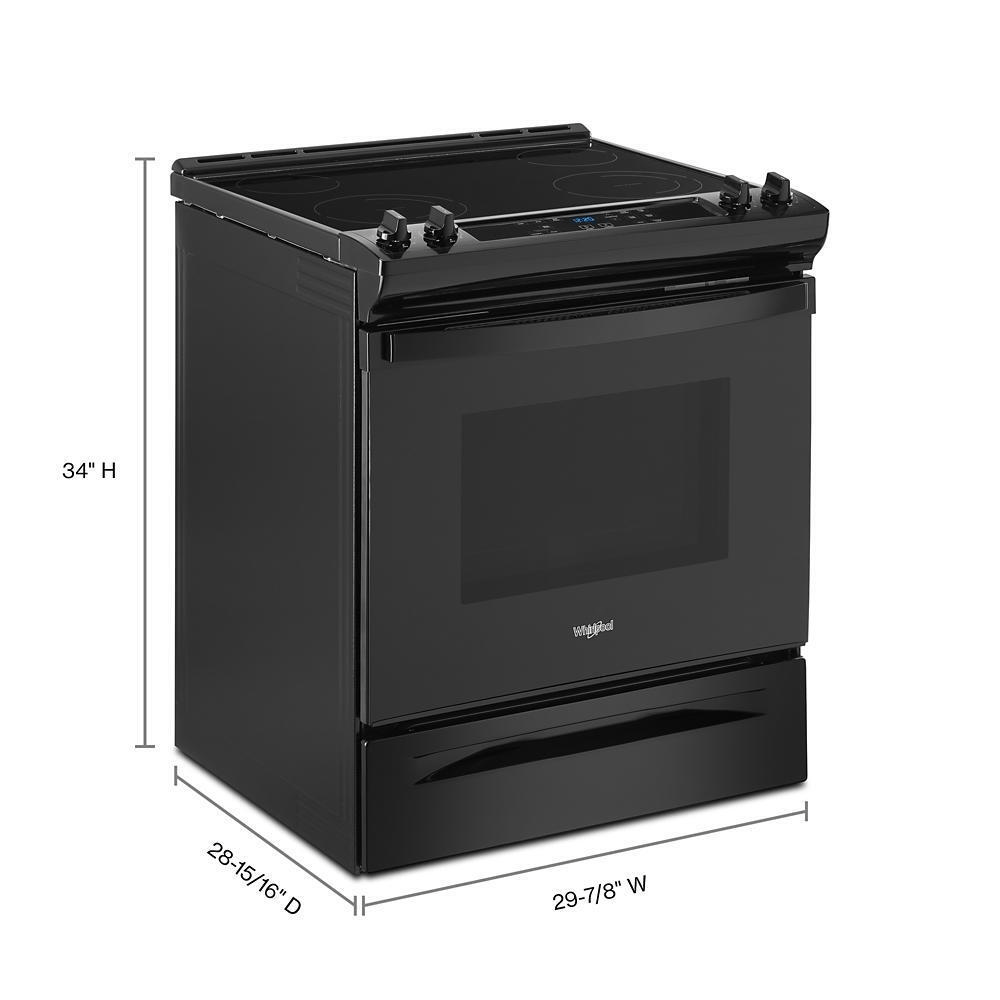

Dimensions | |
Product Height | 34.0 |
Carton Height | 43.5 |
Gross Weight | 185 |
Oven Interior Height | 18.125 |
Carton Width | 31.5 |
Product Depth | 28.9375 |
Oven Interior Depth | 18.5 |
Depth With Door Open 90 Degree | 47.375 |
Cutout Depth | 24 |
Depth Closed Including Handles | 28.938 |
Carton Depth | 30.5 |
Cutout Width | 30.125 |
Oven Interior Width | 24.5 |
Net Weight | 168 |
Product Width | 29.875 |
Electrical | |
Power Cord Included | No |

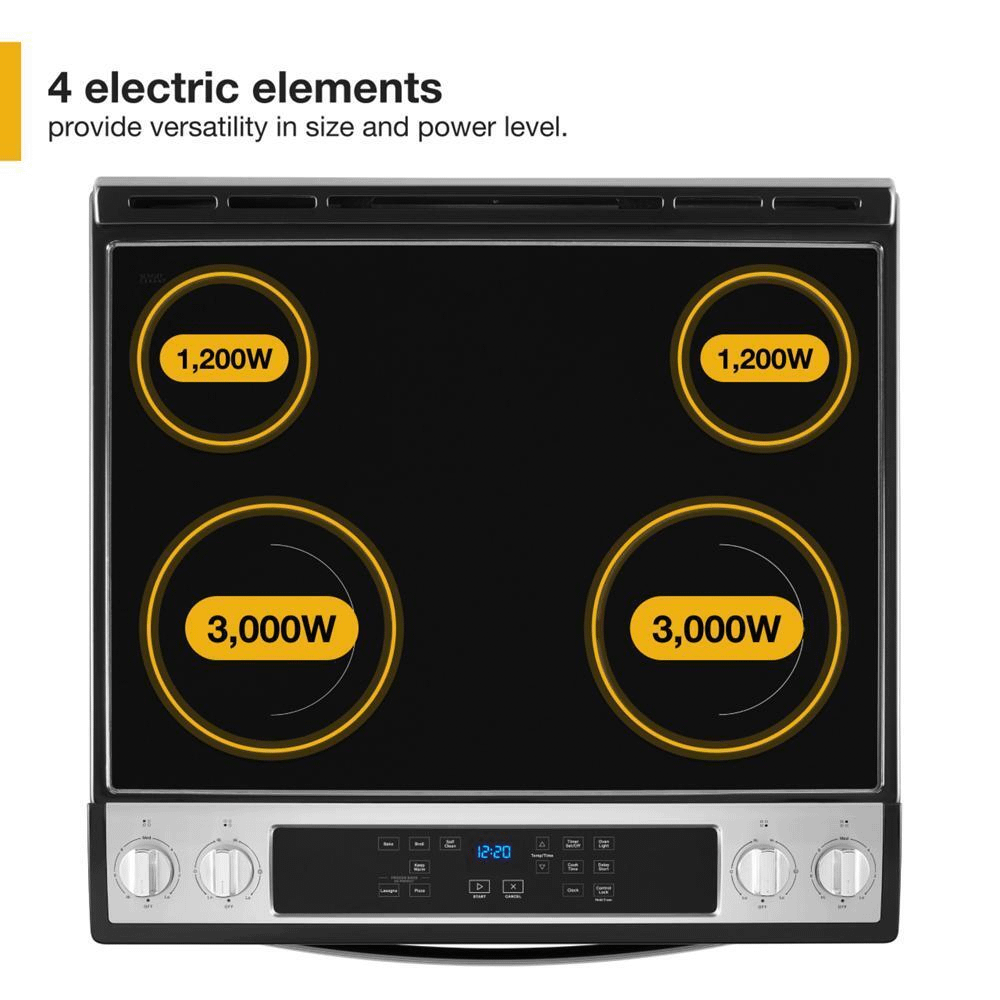

Element/burner Details | |
Cooktop Element Style | Radiant |
Left Front Element-burner Power | 3,000W |
Left Front Element-burner Size | 9in./6in. |
Left Front Element-burner Type | Dual |
Left Rear Element-burner Power | 1,200W |
Left Rear Element-burner Size | 6in. |
Left Rear Element-burner Type | Standard |
Number of Cooking Element-burners | 4 |
Right Front Element-burner Power | 3,000W |
Right Front Element-burner Size | 9in./6in. |
Right Front Element-burner Type | Dual |
Right Rear Element-burner Power | 1,200W |
Right Rear Element-burner Size | 6in. |
Right Rear Element-burner Type | Standard |
Exterior Details | |
Door Type | Glass |
Handle Color | Black |
Handle Material | Metal |
Handle Type | Reach Through Handle |

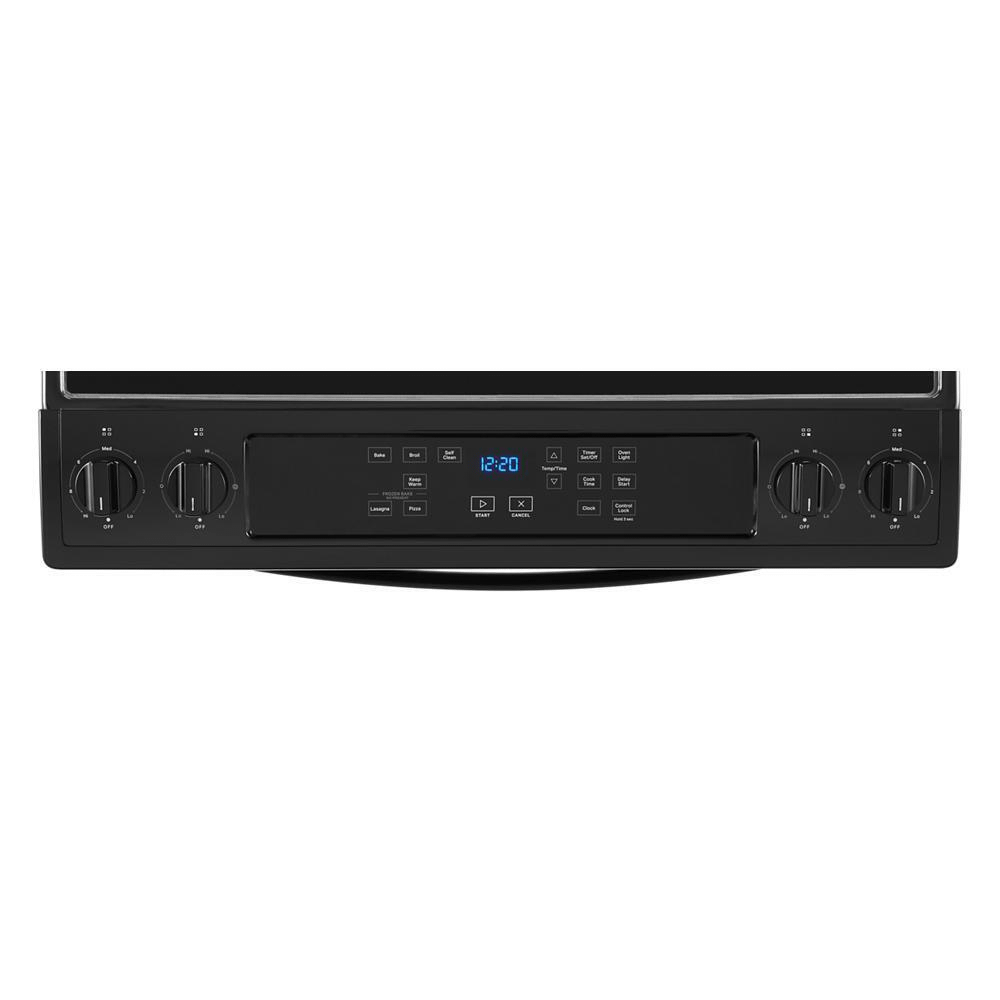

Oven Control Location | Front |
Oven Control Type | Tap Touch |
Oven Window Size | Large |
Oven Details | |
Bake Element Power | 2,400 W |
Broiler Element Power | 3,400 W |
Broiler Location | Top of Oven |
Door Removable | Yes |
Hidden Bake Element | No |
Interior Color | Dark Grey |
Number of Oven Lights | 1 |
Number of Oven Racks | 2 |
Number of Rack Guides | 5 |
Oven Cleaning Type | Adjustable Self Cleaning |
Oven Cooking System | Thermal |
Oven Light Type | Incandescent |
Oven Rack Type | Standard (Both) |
