Overview & Specifications
Overview & Specifications

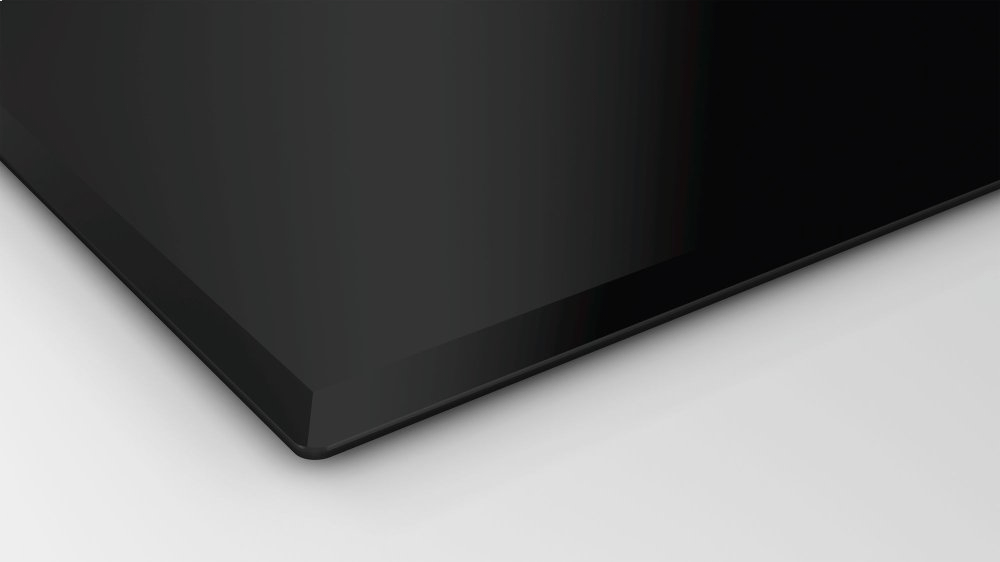

- Black Glass with a frameless design
- Black Glass creates a sleek design to complement any kitchen.

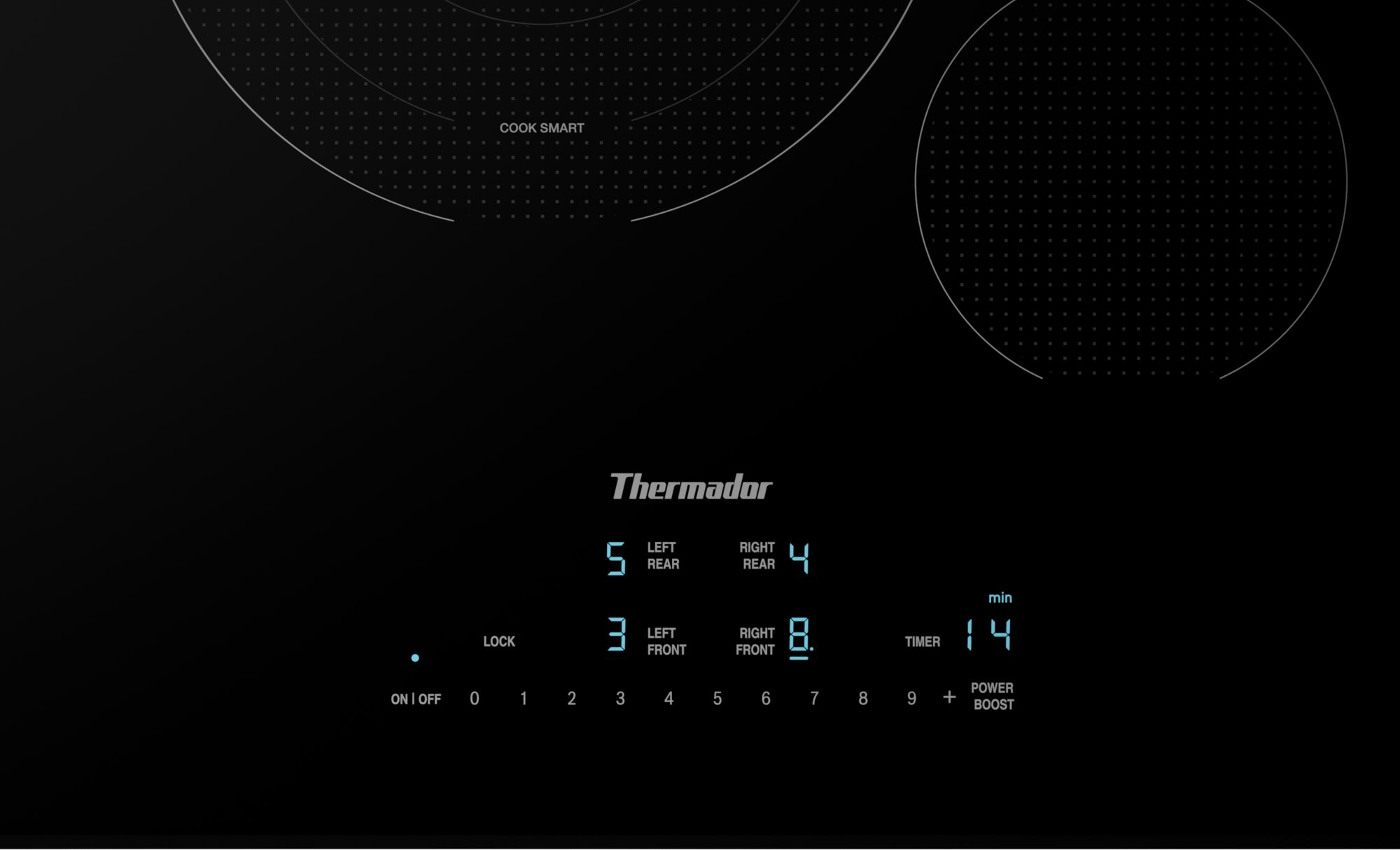

- Illuminated Touch Control Panel
- The Illuminated Touch Control Panel allows for simple selection of power levels and easy cleaning. It is also seamlessly integrated into your cooktop.

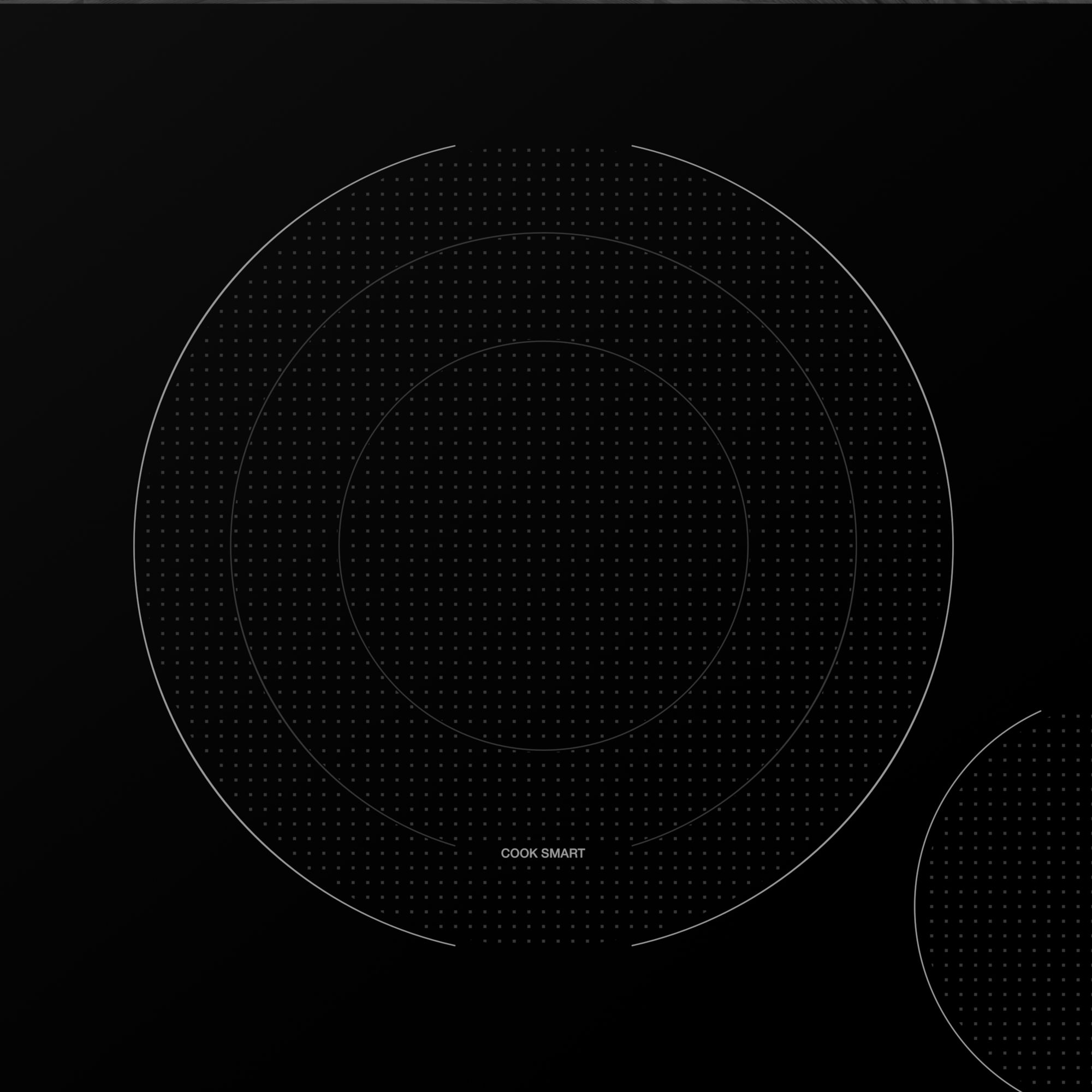

- CookSmart ensures optimal results with 4 presets
- Designed to perfect a wide range of recipes with 4 preset frying levels and automatic shut-off for expert results, every time.
- Dual Zone Bridge connects two round cooking zones
- Evenly heat large pans, griddles, and oblong cookware with connecting heat bridge and dual-zone elements, exclusive to Thermador(R).
- Perfectly time your dishes with a cook timer
- A Cook Timer allows you to set a cook time for any cooking zone.
- Know when your cooktop is hot
- The cooktop clearly indicates when elements are still hot.
General | |
Energy source | Electric |
Type of Control | Front |
Safety | Auto Safety Shutoff, Childproof Lock, Panel Lock |
Highlights | 17 power levels, fryingSensor Plus |
Construction type | |
Color of Surface | Black |
Design | Built-in |
Number of electric elements | 0 |
Number of electric cooking zones | 4 |
Type of frame | 4 Facettes |
Number of Gas Burners | 0 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Total Number of Heating Elements | 4 |
Number of radiant elements | 4 |
Number of electric warming zones | 0 |
Size and weight | |
Overall Appliance Dimensions (HxWxD) (in) | 7/16" + 4 " x 31" x 21 1/4" |
Net Weight | 26.000 lbs |
Minimum distance from counter front (in) | 2 1/4 |
Minimum distance from rear wall (in) | 2 |
Cooking zone 1 | |
Dimension of 1st heating element (in) | 7" |
Location of heating element | front left |
Power of heating element (kW) | 1.7 kW |
Type of heating element | Radiant heating |
Cooking zone 2 | |
Location of 2nd heating element | center left |
Cooking zone 3 | |
Dimension of 3rd heating element (in) | 5" ; 7" |
Location of 3rd heating element | back left |
Power of 3rd heating element (kW) | 0.7 ; 1.7 kW |
Type of 3rd heating element | Radiant heating |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 5 | |
Location of 5th heating element | back right |
Type of 5th heating element | Radiant heating |
Cooking zone 6 | |
Location of 6th heating element | center right |
Cooking zone 7 | |
Dimension of 7th heating element (in) | 6" |
Location of 7th heating element | front right |
Power of 7th heating element (kW) | 1.2 kW |
Type of 7th heating element | Radiant heating |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 9 | |
Location of 9th heating element | front centre/cent |
Safety | |
Residual Heat Indicator | Yes |
Safety | Auto Safety Shutoff, Childproof Lock, Panel Lock |
Connection | |
Frequency | 60 Hz |
Energy source | Electric |
Watts | 7,800 W |
Accessories | |
Included Accessories | 1 x glass scraper |
