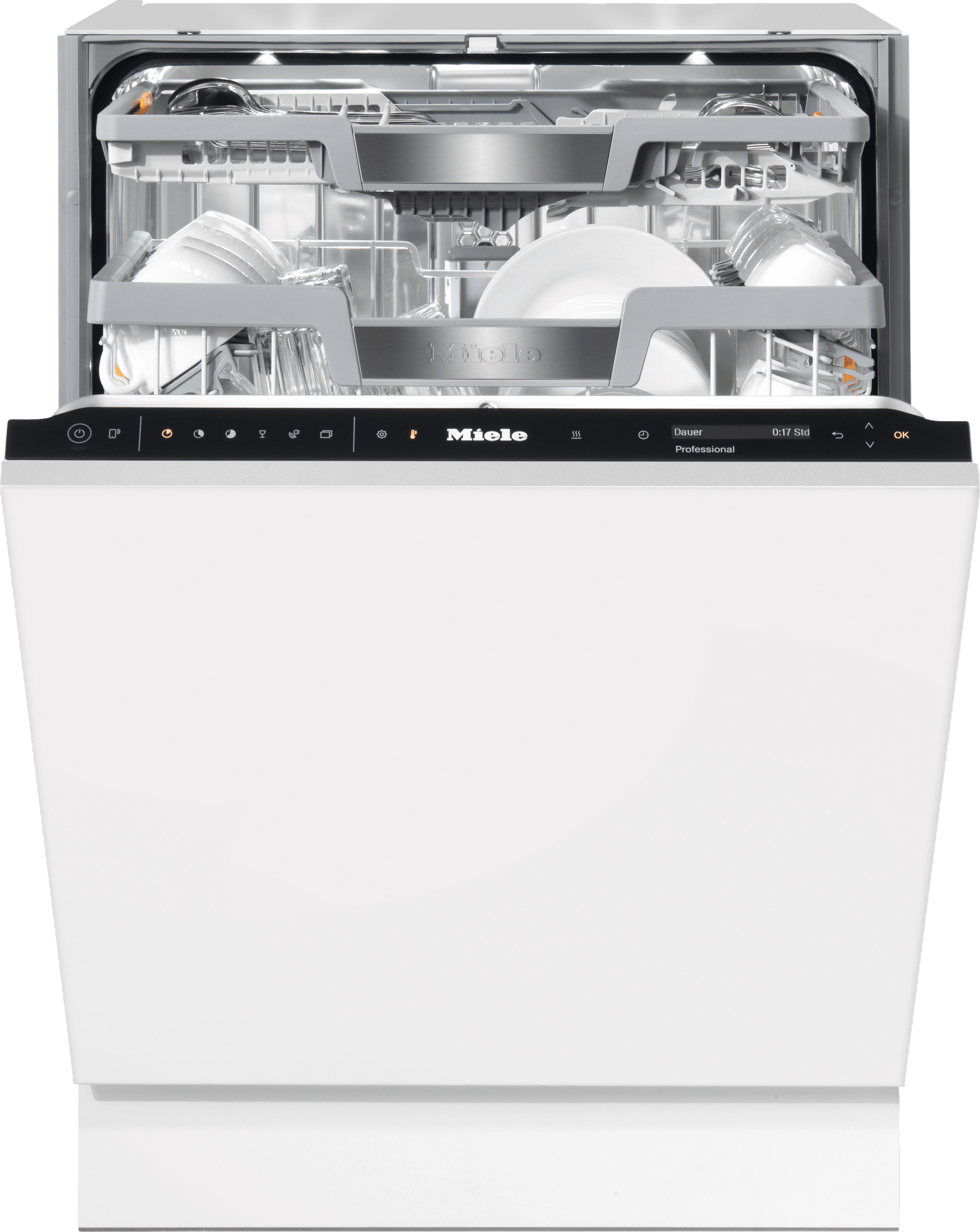

Miele PFD104SCVIXXL208240V PFD 104 SCVi XXL [120V/208-240V] - Fully integrated Full-sized dishwasher with 3D MultiFlex Tray for large loads of dishware in households, offices and utility areas.
Or $420.83/mo suggested payments with 12-month special financing. More financing options available.
Couldn't load pickup availability
Overview & Specifications
Overview & Specifications
Delay start and time left display
For maximum flexibility, a delay start time of up to 24 hours can be selected.
BrilliantLight *
Brilliant visibility: Four LEDs illuminate the entire interior cabinet for easy loading and unloading.
AutoClose
A light touch is all it takes: With AutoClose the door closes on its own.
Knock2open *
Ingenious: the dishwasher integrates seamlessly into handleless kitchens - and opens automatically with a knock.
Choice of display languages
Multi-talented: set various languages on the display so that you fully understand every piece of information.
HYGIENE
Proven hygiene
Our dishwashers in the PFD 10x series remove more than 99.9% * of all viruses (including coronaviruses).
Fresh water system
Constantly high cleaning performance and filtration thanks to repeated water changes.
Proven hygiene
Our dishwashers in the PFD 10x series remove 99.999% * of most bacteria.
BASKET DESIGN
Height-adjustable upper basket
The height of the upper basket can be adjusted to suit the items being cleaned.
3D MultiFlex Tray *
Efficient: ingenious adjustment options create space in the dishwasher even for small items.
FlexLine Baskets
Flexibility creates convenience: easy adjustment and flexible loading for the best cleaning results.
EFFICIENCY AND SUSTAINABILITY
Low consumption values
Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
Integrated water softener
The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
Highly effective filter system
Outstanding dishwashing results and reliability are largely due to the highly effective filter system.
EcoFeedback
Economical: when a program is selected, estimated water consumption values are displayed.
FlexiTimer with EcoStart
Clever: with EcoStart, the dishwasher automatically selects the cheapest electricity price every time.
Powerful cleaning performance on two levels
High capacity: The most diverse items can be arranged safely on two wash levels.
SmartStart
Practical: this function sets the appliance to work automatically when electricity is at its cheapest.
QUALITY
Commercial throughflow heater
A stainless steel through-flow water heater with 2 x 3 kW capacity ensures high heating performance.
Powerful heater pump
For maximum cleaning performance, every dishwasher is equipped with a powerful heater pump.
Water protection guarantee *
Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years.
Quality you can rely on
Durability: Miele Professional dishwashers are tested for a long service life.
PERFORMANCE
For businesses
These dishwashers are ideally suited for all areas which deal with large amounts of dishware.
Commercial electrical connection
Even large amounts of dishware can be cleaned quickly thanks to the high-performance electrical connection.
AutoOpen assisted drying
Completely dry: The dishwasher door opens automatically at the end of the program.
Brilliant GlassCare
Gentle and delicate: Brilliant GlassCare cleans your glassware with care.
XXL dishwashers
Large-capacity dishwasher with a height of 33 7/16" (85 cm), giving you even more room in the upper basket.
CONNECTIVITY
Network-enabled with Miele MOVE
All terminal devices can access machine data at all times thanks to networking with Miele MOVE.
Future-proof networking via WiFi
Fully informed with a high-performance network connection.
- Delay start and time left display
- For maximum flexibility, a delay start time of up to 24 hours can be selected.
- BrilliantLight *
- Brilliant visibility: Four LEDs illuminate the entire interior cabinet for easy loading and unloading.
- AutoClose
- A light touch is all it takes: With AutoClose the door closes on its own.
- Knock2open *
- Ingenious: the dishwasher integrates seamlessly into handleless kitchens - and opens automatically with a knock.
- Choice of display languages
- Multi-talented: set various languages on the display so that you fully understand every piece of information.
- Proven hygiene
- Our dishwashers in the PFD 10x series remove more than 99.9% * of all viruses (including coronaviruses).
- Fresh water system
- Constantly high cleaning performance and filtration thanks to repeated water changes.
- Proven hygiene
- Our dishwashers in the PFD 10x series remove 99.999% * of most bacteria.
- Height-adjustable upper basket
- The height of the upper basket can be adjusted to suit the items being cleaned.
- 3D MultiFlex Tray *
- Efficient: ingenious adjustment options create space in the dishwasher even for small items.
- FlexLine Baskets
- Flexibility creates convenience: easy adjustment and flexible loading for the best cleaning results.
- Low consumption values
- Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
- Integrated water softener
- The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
- Highly effective filter system
- Outstanding dishwashing results and reliability are largely due to the highly effective filter system.
- EcoFeedback
- Economical: when a program is selected, estimated water consumption values are displayed.
- FlexiTimer with EcoStart
- Clever: with EcoStart, the dishwasher automatically selects the cheapest electricity price every time.
- Powerful cleaning performance on two levels
- High capacity: The most diverse items can be arranged safely on two wash levels.
- SmartStart
- Practical: this function sets the appliance to work automatically when electricity is at its cheapest.
- Commercial throughflow heater
- A stainless steel through-flow water heater with 2 x 3 kW capacity ensures high heating performance.
- Powerful heater pump
- For maximum cleaning performance, every dishwasher is equipped with a powerful heater pump.
- Water protection guarantee *
- Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years.
- Quality you can rely on
- Durability: Miele Professional dishwashers are tested for a long service life.
- For businesses
- These dishwashers are ideally suited for all areas which deal with large amounts of dishware.
- Commercial electrical connection
- Even large amounts of dishware can be cleaned quickly thanks to the high-performance electrical connection.
- AutoOpen assisted drying
- Completely dry: The dishwasher door opens automatically at the end of the program.
- Brilliant GlassCare
- Gentle and delicate: Brilliant GlassCare cleans your glassware with care.
- XXL dishwashers
- Large-capacity dishwasher with a height of 33 7/16" (85 cm), giving you even more room in the upper basket.
- Network-enabled with Miele MOVE
- All terminal devices can access machine data at all times thanks to networking with Miele MOVE.
- Future-proof networking via WiFi
- Fully informed with a high-performance network connection.
Construction type and design | |
Model | Fully integrated dishwasher |
XXL dishwashers | • |
Range | ProfiLine |
Wash system | Fresh water front loader |
Number of levels | 2 |
Front | Without front |
Side walls | Galvanised |
Control panel color | Obsidian Black |
Minimum front panel weight in lbs (kg) | 11 (5) lb (kg) |
Maximum front panel weight in lbs (kg) | 26 (12) lb (kg) |
Application | |
Suitable for retirement and care homes | |
Suitable for Bed & Breakfast | |
Suitable for child care facilities | |
Suitable for universities and schools | |
Suitable for offices | |
Suitable for domestic use | |
Suitable for small businesses | |
Suitable for sports clubs | |
Performance data | |
Tested virucidal efficacy | |
Certified hygiene | |
Circulation pump, Qmax in gal/min (l/min) | 19.8 (75) |
Shortest program duration in min. | 24 |
Maximum final rinse temperature in °F (°C) | 180 (82) |
Cleaning performance, place settings/cycle | 16 |
Service life in wash cycles | 12500 |
Miele MOVE | |
Network-enabled with Miele MOVE | |

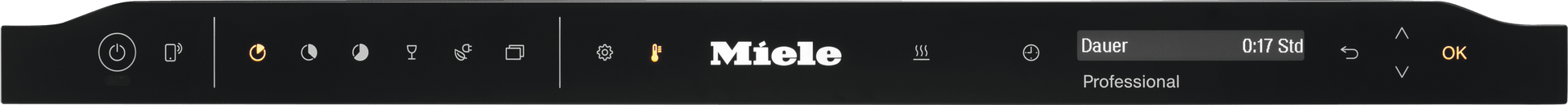

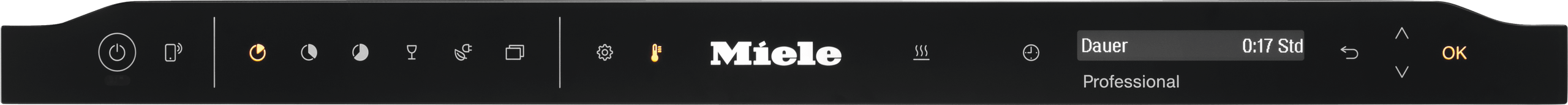

Control | |
Control system | Electronic controls |
Program selection | Program selectors |
Max. delay start in h | 24 |
Countdown indicator | • |
Dishwashing programs [number] | 8 |
Program sequence indicator | • |
Choice of display language | • |
Check filter indicator | |
Standard electrical connection | |
Electrical connection | 2N AC 120/208-240V, 60HZ |
Heater rating in kW | 3.50-3.80 |
Total connected load in kW | 3.70-4 |
Fuse rating in A | 30 |
Length of power cord in ft (m) | 5 (1.70) |
NEMA plug: 14-30 | • |
Possible voltage variant 1 | |
Electrical connection | AC 120V 60HZ |
Heater rating in kW | 1.30 |
Total connected load in kW | 1.40 |
Fuse rating in A | 15 |
Water connection/drainage | |
Cold or hot water [number] | 1 |
Required flow pressure in bar | 1-10 |
Drain hose [DN] | 22 |
Maximum delivery head for drain pump in inches (cm) | 39 3/8 (100) |
Integrated water softener | • |
Maximum water hardness in gpg (mmol/l) | 38.025 (6.50) |
Water protection system | Waterproof system |
Length of water inlet hose in inches (cm) | 59 1/8 (150) |
Length of water drain hose in inches (cm) | 59 1/8 (150) |
Dimensions and weight | |
External dimensions, net height in inches | 33 5/16 (845) |
External dimensions, net width in inches | 23 9/16 (598) |
External dimensions, net depth in inches | 21 11/16 (550) |
External dimensions, gross height in inches | 37 13/16 (960) |
External dimensions, gross width in inches | 26 7/16 (670) |
External dimensions, gross depth in inches | 27 9/16 (700) |
Usable space in wash cabinet, width in inches (mm) | 22 7/8 (580) |
Usable space in wash cabinet, height in inches (mm) | 20 1/8 (510) |
Usable space in wash cabinet, depth of upper basket in inches (mm) | 17 3/4 (450) |
Usable space in wash cabinet, depth of lower basket in inches (mm) | 17 3/4 (450) |
In-feed height above floor in inches (mm) | 8 5/16 (210) |
Required niche width in mm | 23 5/8 (600) |
Net weight [kg] | 113 (51) |
Gross weight in lbs. | 128 (58) |
Maximum floor load in N/m | 1000 |
Emission values | |
Emission sound pressure level in workplace (LpA) | 33 dB(A) re 20 Pa |
Sound power (LwA) in dB(A) re 1 pW | 45 |
Programs | |
Universal | |
Short | |
SaniWash | • |
Cold/Pre-wash | • |
Glasses | • |
Plastic | • |
EnergySave/Economy | • |
Intensive | |
Baskets | |
MaxiComfort P baskets | |
Flexible FlexLine basket design | • |
FlexCare glass holder [number] | 4 |
FlexCare cup rack [number] | 2 |
Height-adjustable upper basket | |
Patented 3D MultiFlex tray | • |
Features | |
Commercial-grade electrical connection | |
Drying | AutoOpen assisted drying Additional drying Active condensation drying |
1 Combi dispenser/door for powder and liquid media | • |
Wash cabinet made from high-quality stainless steel | • |
LED Lighting | • |
Knock2open | • |
AutoClose | • |
EcoFeedback | • |
Brilliant GlassCare | • |
Adjustable final rinse temperature | • |
Optical interface | • |
SmartStart | • |
FlexiTimer with EcoStart | • |
Wi-Fi | |
Standards, test certificates, and symbols | |
CE | • |
Complies with Machinery Directive 2006/42/EC | • |
VDE | • |
EMC radio suppressed | • |
DIN EN 17735 | • |
EN 1717 | • |
UL | • |
