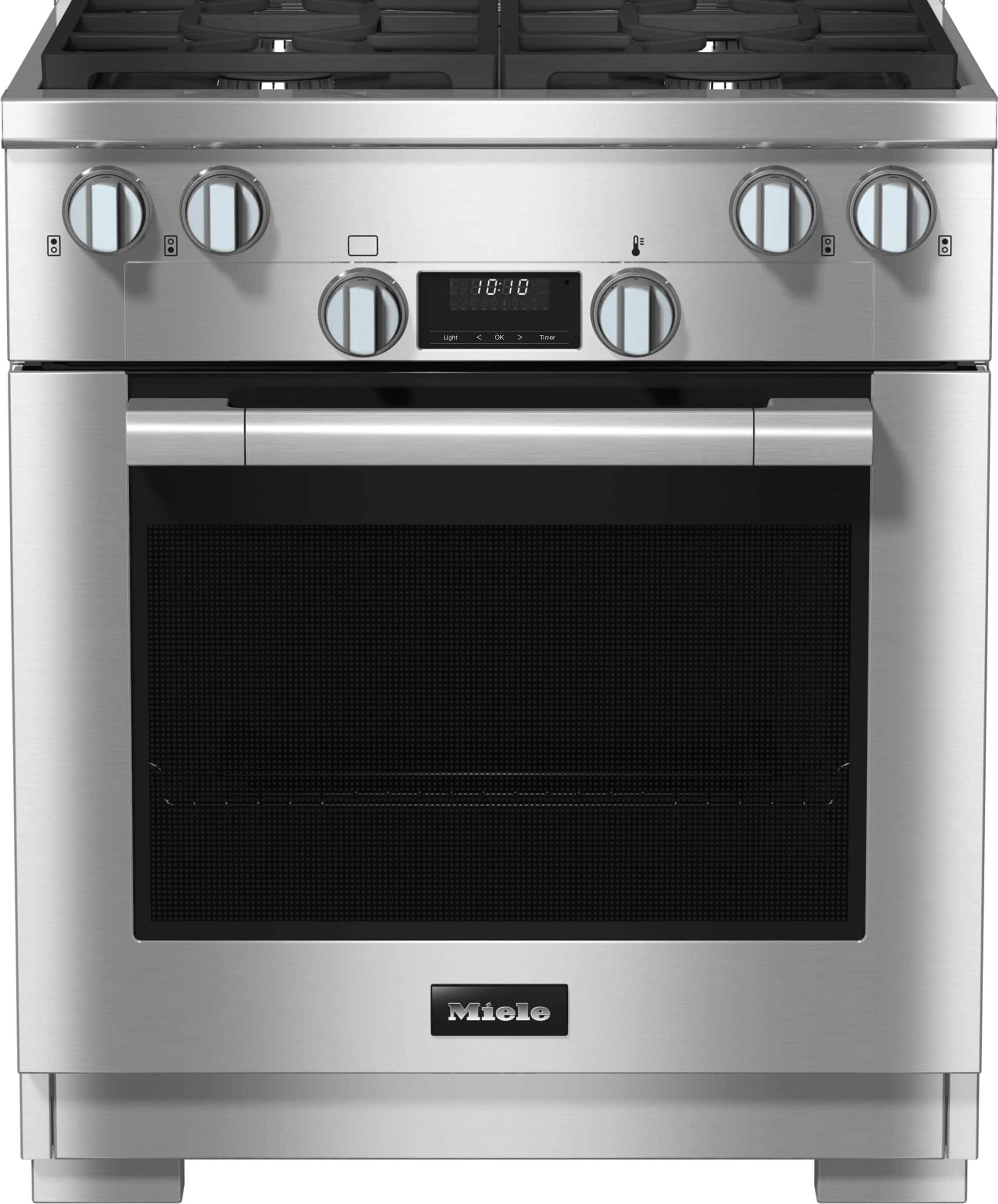

Miele HR17243LPDF
Overview & Specifications
Overview & Specifications
ComfortClean Dishwasher-Safe Grates
Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.
Self Clean Oven and Self Clean Ready Accessories
Less cleaning effort: The grease residue is broken down, helping to keep the oven and cooking accessories clean.
Clean Touch Steel™Front
No fingerprints on stainless steel: surface has special finish which keeps clean without special cleaning agents.
USER CONVENIENCE
Individual settings
You decide: Language, buzzer tones, display brightness and much more can be individually adjusted.
Timer Function
Always on time: The start time, finish time and duration of the cooking process are easy to select.
Soft Open and Soft Close
The Range oven door effortlessly opens and closes, preventing the door from shutting or slamming.
Appliance networking with Miele@home *
Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances - for more options.
OVEN CABINETS
Rapid PreHeat
The All Gas Range allows for constant airflow resulting in quick preheat times, powerful bake and broil elements.
TwinPower Convection Blowers and Power Convection Blower
Quickly ready for use: 2 hot air blowers heat the oven very rapidly with optimum hot air distribution.
SAFETY
Cooling System and Cool-Touch Fronts
Maximum protection: All surfaces on and around the appliance remain cool and can be touched safely.
Safety functions
Your guardian angel: If you forget to switch off the appliance, the safety switch-off steps in for you.
OPERATING MODES
Surround
Multi-purpose, classic function: perfect results on all traditional baking and roasting dishes.
Convection Roast
Crispy on the outside, succulent inside: Ideal for chicken, duck, joints, rolled meat and many other meat dishes.
Bake
Individual requirements: For dishes which need to be cooked in a bain marie or browned from below.
Maxi Broil
Versatile function for indoors: For grilling large quantities of steak, sausages, kebabs, etc.
Convection Bake
Perfectly soft and light: ideal for gentle baking on up to two levels.
Convection Roast
Perfectly soft and light: ideal for gentle roasting on up to two levels.
- ComfortClean Dishwasher-Safe Grates
- Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.
- Self Clean Oven and Self Clean Ready Accessories
- Less cleaning effort: The grease residue is broken down, helping to keep the oven and cooking accessories clean.
- Clean Touch Steel(TM)Front
- No fingerprints on stainless steel: surface has special finish which keeps clean without special cleaning agents.
- Individual settings
- You decide: Language, buzzer tones, display brightness and much more can be individually adjusted.
- Timer Function
- Always on time: The start time, finish time and duration of the cooking process are easy to select.
- Soft Open and Soft Close
- The Range oven door effortlessly opens and closes, preventing the door from shutting or slamming.
- Appliance networking with Miele@home *
- Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances - for more options.
- Rapid PreHeat
- The All Gas Range allows for constant airflow resulting in quick preheat times, powerful bake and broil elements.
- TwinPower Convection Blowers and Power Convection Blower
- Quickly ready for use: 2 hot air blowers heat the oven very rapidly with optimum hot air distribution.
- Cooling System and Cool-Touch Fronts
- Maximum protection: All surfaces on and around the appliance remain cool and can be touched safely.
- Safety functions
- Your guardian angel: If you forget to switch off the appliance, the safety switch-off steps in for you.
- Surround
- Multi-purpose, classic function: perfect results on all traditional baking and roasting dishes.
- Convection Roast
- Crispy on the outside, succulent inside: Ideal for chicken, duck, joints, rolled meat and many other meat dishes.
- Bake
- Individual requirements: For dishes which need to be cooked in a bain marie or browned from below.
- Maxi Broil
- Versatile function for indoors: For grilling large quantities of steak, sausages, kebabs, etc.
- Convection Bake
- Perfectly soft and light: ideal for gentle baking on up to two levels.
- Convection Roast
- Perfectly soft and light: ideal for gentle roasting on up to two levels.
| Heating type | |
| Dual fuel | |
| Gas type | Liquid propane |
| Design | |
| Range | • |
| Appliance width in inches | 30 |
| Operating modes | |
| Maxi Broil | |
| Convection Bake | • |
| Convection Roast | • |
| Surround | |
| Bake | |
| Convection Roast | |
| Design | |
| Appliance color | Clean Touch Steel |
| Oven display | EasyControl |
| Cooktop features | |
| Number of gas burners | 4 |
| Number of power burners x power in BTU | 1 x 12.500 |
| Number of high burners x power in BTU | 3 x 19.500 |
| True Simmer function | • |
| GasStop | • |
| User convenience | |
| Networking with Miele@home | • |
| Precision knobs | • |
| Time of day display | |
| Minute minder | • |
| Automatic switch-off | • |
| Programmable cooking time | |
| Favorites | No |
| Individual settings | |
| Appliance door | |
| CleanGlass door | • |
| Door contact switch | • |
| SoftClose oven door/ SoftOpen | • |
| Oven compartment | |
| Oven cavity volume in cu. ft. (l) | 4.59 (130) ft (l) |
| Number of oven shelf levels | 6 |
| No. of halogen lamps | double |
| TwinPower hot air fans | |
| Efficiency and sustainability | |
| Rapid PreHeat | |
| Cleaning convenience | |
| Stainless-steel front with partial Clean Touch Steel finish | |
| Oven with self-cleaning program | |
| Unheated catalyzer | • |
| Catalyzer | unheated |
| ComfortClean dishwasher-safe grates | |
| Cooktop surface | Black enamel |
| Safety | |
| Appliance cooling system with cool touch front | |
| Safety cut-out | |
| System lock | • |
| Door contact switch | • |
| Door lock during self cleaning | • |
| Technical data | |
| Appliance depth in in. (depth) with bullnose | 27 3/4 (702) |
| Power Rating in V | 120 |
| Convertible voltage in V | 240/208 |
| Fuse rating in A | 30 |
| Number of phases | 1 |
| Standard accessories | |
| Self Clean ready baking and roasting rack | 1 |
| Self clean ready baking and roasting racks with rail system | 1 |
| Side racks self clean ready | 1 |
