Overview & Specifications
Overview & Specifications
SPECIAL FEATURES
IceMaker
USER CONVENIENCE
NoFrost
SoftClose
IceMaker
Fresh ice, fully automatically: produces up to 100 ice cubes per day with ease thanks to plumbed water connection.
USER CONVENIENCE
NoFrost
No more defrosting: the circulation cooling system prevents ice from developing, saving the hassle of defrosting.

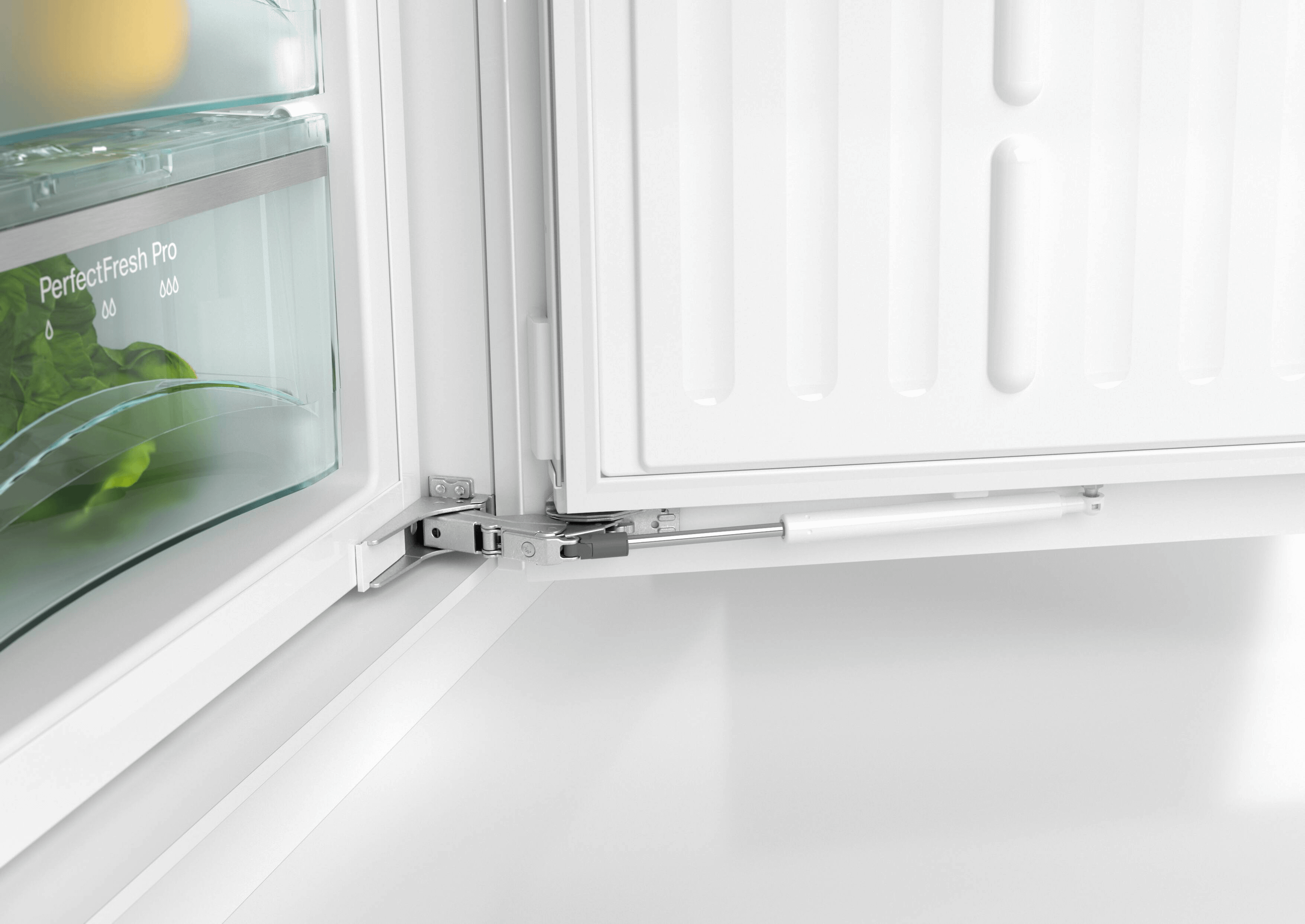

SoftClose
Quiet and reliable closing: the gently self-closing doors prevent items from falling out.
- IceMaker
- Fresh ice, fully automatically: produces up to 100 ice cubes per day with ease thanks to plumbed water connection.
- NoFrost
- No more defrosting: the circulation cooling system prevents ice from developing, saving the hassle of defrosting.
- SoftClose
- Quiet and reliable closing: the gently self-closing doors prevent items from falling out.
Appliance category | |
Freezer | • |
Design | |
Built-in | • |
Built-in integrated | • |
Door hinge side | Left |
Convertible hinging | • |
Can be installed side-by-side | |
Design | |
Freezer compartment lighting | LED |
User convenience | |
Required Accessories | XKS 3000 Z XKV 3000 KF XKS 3130 W |
NoFrost | |
VarioRoom | |
SoftClose door closing damper | |
IceMaker with plumbed water connection | |
Control | |
Electronic temperature display and control | TouchControl |
SuperFrost | • |
No. of temperature zones | 1 |
Sabbath mode | |
Fridge/fridge zone | |
No. of shelves | 6 |
Freezer/freezer zone | |
Number of freezer drawers | 8 |
of which on runners | 5 |
Efficiency and sustainability | |
Energy Star Qualified | • |
Safety | |
Lock function | • |
Acoustic door alarm | • |
Acoustic temperature alarm, freezer section | • |
Acoustic temperature alarm | • |
Optical door alarm | • |
Optical temperature alarm | • |
Power cut indication for freezer compartment | • |
Technical data | |
Niche width in inches (mm), min. | 22 1/8 (560) |
Niche width in inches (mm), max. | 22 7/8 (578) |
Niche height in inches (mm), min. | 69 7/8 (1772) |
Niche height in inches (mm), max. | 70 1/2 (1788) |
Niche depth in in.(mm) | 21 3/4 (550) |
Appliance width in in.(mm) | 22 1/8 (559) |
Appliance height in in.(mm) | 69 3/4 (1770) |
Appliance depth in in.(mm) | 21 1/2 (544) |
Weight in lbs.(kg) | 173 (78.4) |
Type of mounting | Fixed door |
Total usable capacity in cu. ft. (l) | 7.77 (220) |
Storage time in case of fault in h | 14 |
Current consumption in milliampere (mA) | 2300 |
Voltage in V | 115 |
Fuse rating in A | 15 |
Number of phases | 1 |
Frequency in Hz | 60 |
Wire length in ft (m) | 6 (2.1) |
Replacing bulbs | Customer Service |
Standard accessories | |
Freezer packs | • |
Ice cube trays | • |
