Miele DAS4720
Miele DAS4720

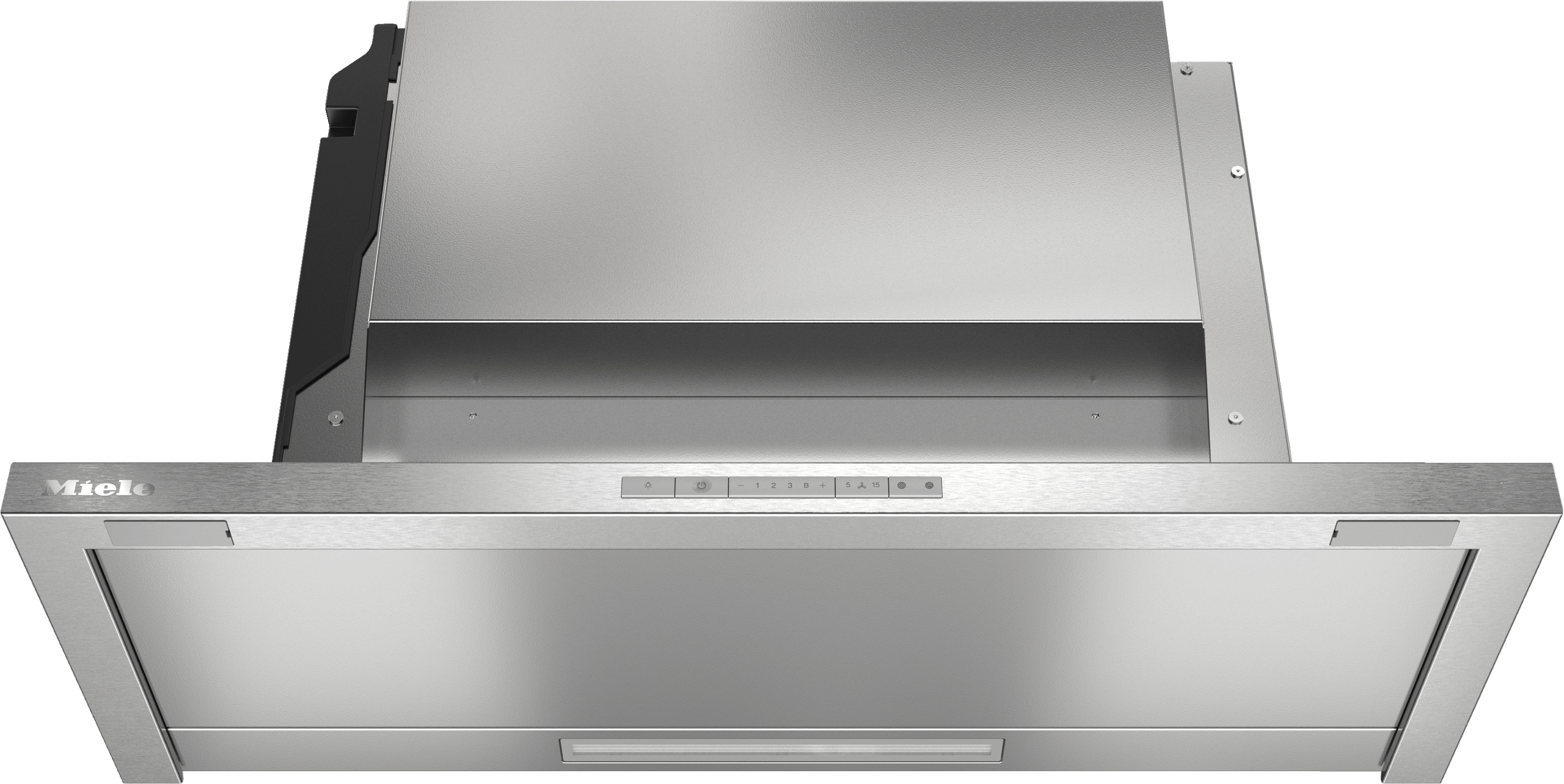

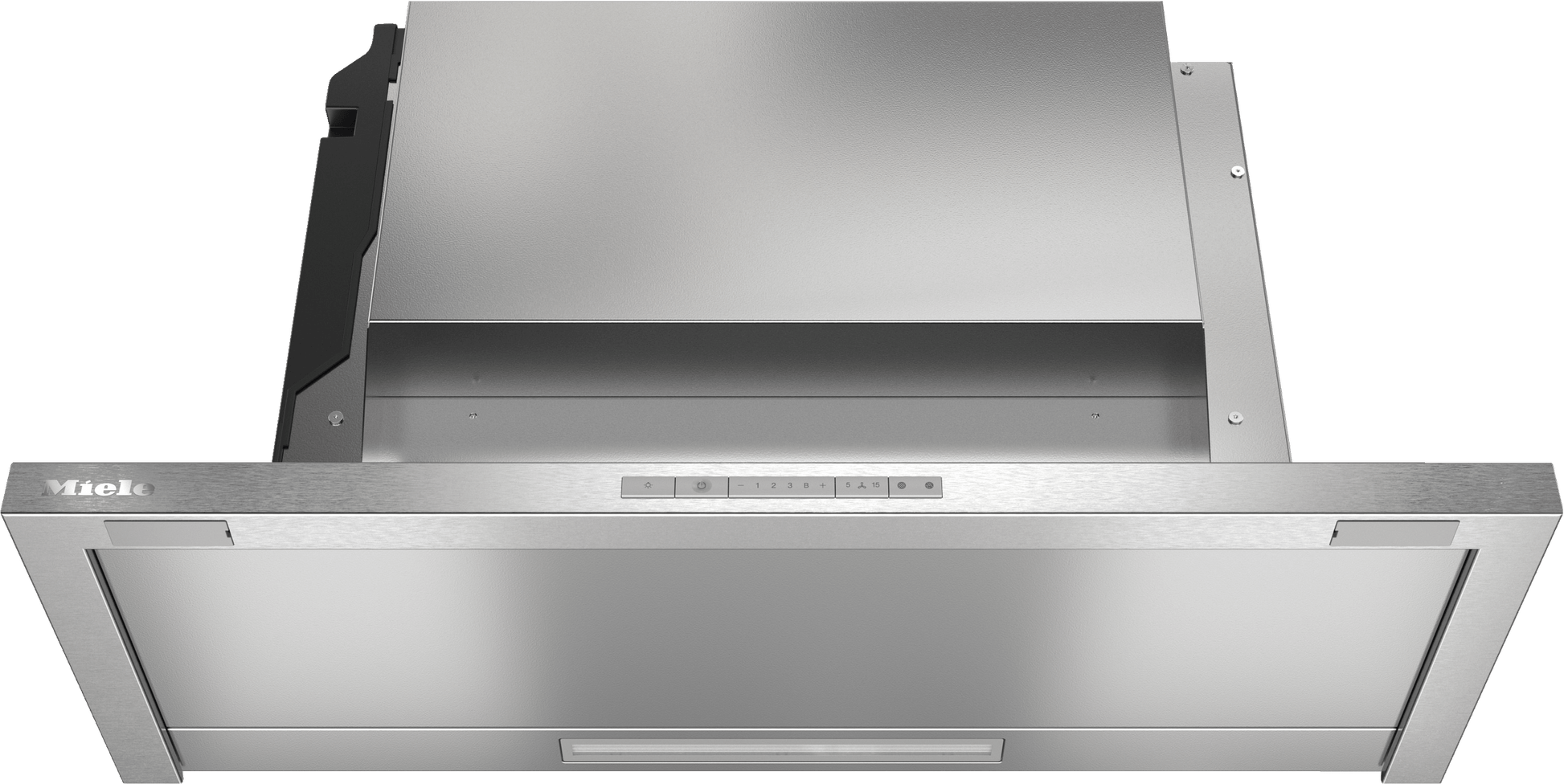

DAS 4720 - Built-in ventilation hood for installation in narrow upper cabinets with EasySwitch controls
As low as $133/mo with 12-month financing. Subject to credit approval.
Couldn't load pickup availability
Overview & Specifications
Overview & Specifications
Delayed shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
SAFETY
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
SETUP/FUNCTION
Con@ctivity 3.0
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
FEATURES
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
- Delayed shutdown
- Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
- filter saturation indicator
- Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
- Safety turn off
- Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
- Con@ctivity 3.0
- Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
- Stainless-steel grease filters (10-layer)
- Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
- Miele CleanCover
- Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
| Design | |
| Built-in ventilation hood | • |
| Operating modes | |
| Recirculated mode | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUU 151 |
| OdorFree charcoal filter (order separately) | DKFS 31-R DKFS 31-P |
| Design | |
| Color | Stainless steel |
| User convenience | |
| Miele@home | • |
| Automatic function | Con@ctivity 3.0 |
| Electronic controls | • |
| EasySwitch | • |
| Operation | EasySwitch |
| Programmable Intensive switch-off | • |
| Delayed shutdown for 5 or 15 minutes | |
| Grease filter saturation indicator | • |
| Programmable grease filter saturation indicator | • |
| Programmable charcoal filter saturation indicator | • |
| Cleaning convenience | |
| Easy-to-clean CleanCover hood liner | • |
| Filter system | |
| Number of dishwasher-safe stainless-steel grease filters | 1 |
| Lighting | |
| LED ClearView lighting | • |
| Number x W | 1 x 3 W |
| Light intensity in Lx | 330 lx |
| Color temperature in K | 3500 Kelvin |
| Light dimmer function | • |
| Blower | |
| Dual-action blower | • |
| AC motor | • |
| Exhaust air | |
| Air throughput | Values upon request |
| Safety | |
| Safety shut-off | • |
| Technical data | |
| Canopy width in in. (mm) | 29 7/8 (758) |
| Canopy height in in. (mm) | 1 1/2 (36) |
| Depth of hood canopy in in. (mm) | 10 3/4 (273) |
| Minimum distance above electric cooktops in in. (mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 36 (16.0) |
| Length of electrical wire in ft. (m) | 2 (0.8) |
| Standard plug fitted | • |
| Total connected load in kW | 0.35 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Installation note | |
| Vent connection at top | • |
| Standard accessories | |
| Non-return flap | • |
