Miele DAR12503
Miele DAR12503

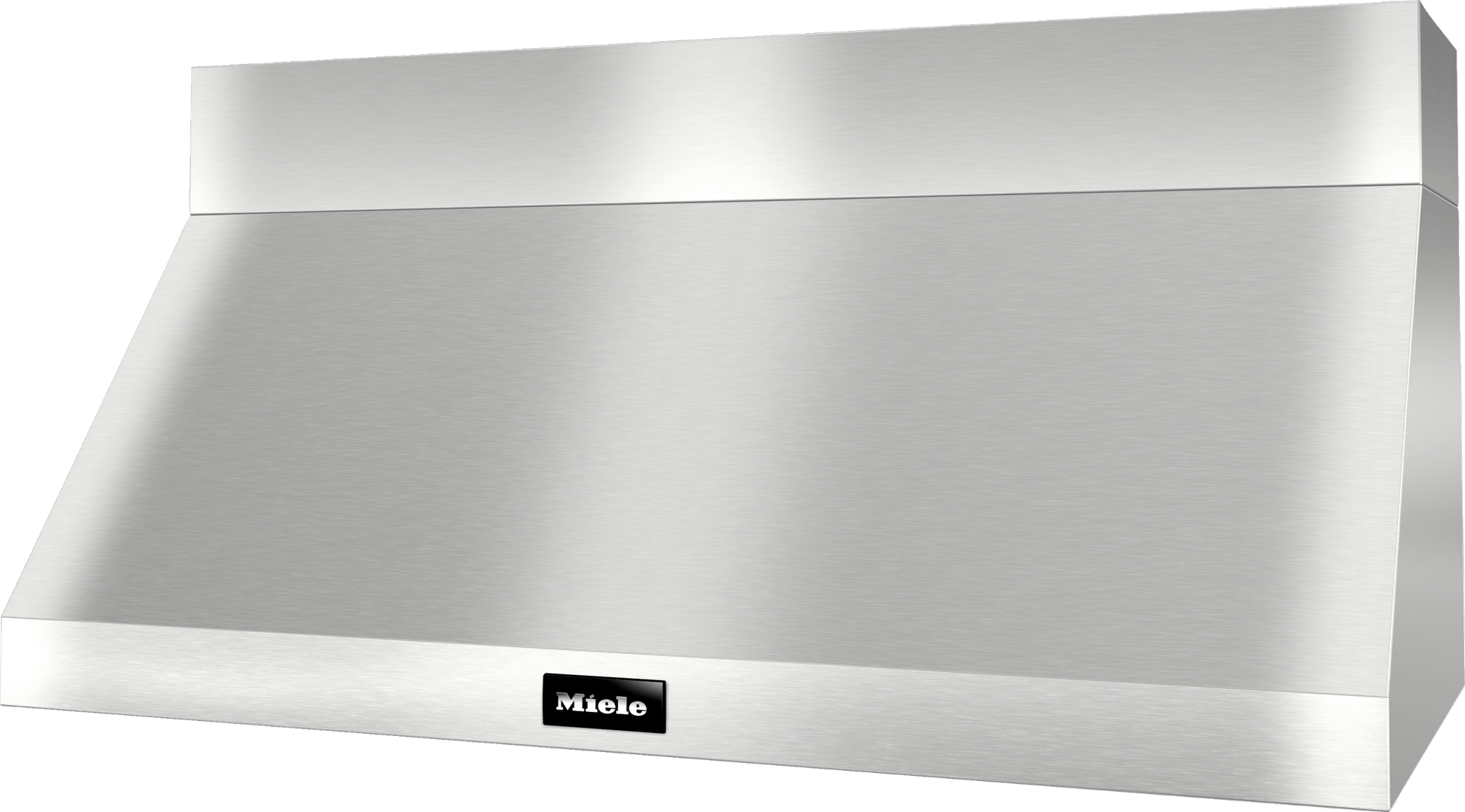

DAR 1250-3 - 48-inch wall-mounted ventilation hood for perfect combination with Ranges and Rangetops.
As low as $233/mo with 12-month financing. Subject to credit approval.
Couldn't load pickup availability
Overview & Specifications
Overview & Specifications
Knob controls
Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.
EFFICIENCY AND SUSTAINABILITY
LED ClearView lighting
Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.
Temperature sensor
Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
FEATURES
Miele CleanCover
Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Knob controls
- Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.
- LED ClearView lighting
- Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.
- Temperature sensor
- Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
- Miele CleanCover
- Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
| Design | |
| Wall ventilation hood | • |
| Required accessories | |
| Blower | • |
| Duct cover | • |
| Operating modes | |
| Recirculated mode | Exhaust air |
| External operation possible | • |
| User convenience | |
| Rotary knob | • |
| Power levels (number excl. Intensive) | 3 |
| Temperature sensor | • |
| Cleaning convenience | |
| Easy to clean canopy interior CleanCover | • |
| Dishwasher-safe grease collection channel | • |
| Filter system | |
| Number of dishwasher-safe stainless steel baffle filters | 4 |
| Lighting | |
| LED | • |
| Number x W | 4 x 3 W |
| Fan option (buy separately) | |
| DRIB XXL internal blower in CFM (m /h) | 1869 |
| DREB XXL external blower in CFM (m /h) | 1869 |
| Technical data | |
| Canopy width in in.(mm) | 48 (1218) |
| Canopy width in inches | 47 15/16 |
| Canopy height in in.(mm) | 18 (457) |
| Canopy depth in in.(mm) | 24 1/8 (611) |
| Net weight in lbs. (kg) | 106 (48.0) |
| Length of electrical wire in ft (m) | 2 (0.8) |
| Standard plug fitted | • |
| Total connected load in kW | 0.81 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Installation note | |
| Vent connection at top | • |
| Diameter of vent connection in in.(mm) | 9 7/8 (250) |
| Standard accessories | |
| Non-return flap | • |
