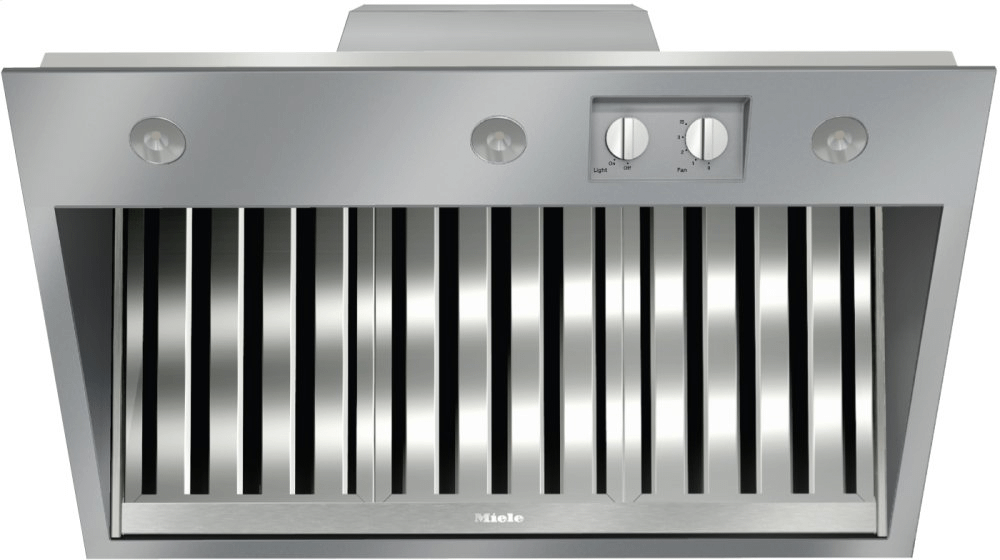

Miele DAR1130 DAR 1130 - 36-inch extractor unit for perfect combination with Ranges and Rangetops.

$1,799.00

Or $149.91/mo suggested payments with 12-month special financing. More financing options available.

Rebates Available See below

Overview & Specifications

USER CONVENIENCE

Knob controls

Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.



EFFICIENCY AND SUSTAINABILITY

LED ClearView lighting

Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.


Temperature sensor

Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.



FEATURES

Miele CleanCover

Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.

  • Knob controls
  • Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.
  • LED ClearView lighting
  • Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.
  • Temperature sensor
  • Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
  • Miele CleanCover
  • Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.

Design
Insert ventilation hood •
Required accessories
Blower •
Operating modes
Recirculated mode Exhaust air
External operation possible •
User convenience
Rotary knob •
Power levels (number excl. Intensive) 3
Temperature sensor •
Cleaning convenience
Easy to clean canopy interior CleanCover •
Dishwasher-safe grease collection channel •
Filter system
Number of dishwasher-safe stainless steel baffle filters 3
Lighting
LED •
Number x W 3 x 3 W
Fan option (buy separately)
DRIB XL internal blower in CFM (m (h) 1189
DRIB XXL internal blower in CFM (m /h) 1869
DREB XL external blower in CFM (m /h) 1189
DREB XXL external blower in CFM (m /h) 1869
Technical data
Canopy width in in.(mm) 33 1/2 (850)
Canopy width in inches 35 15/16
Canopy height in in.(mm) 17 3/4 (449)
Canopy depth in in.(mm) 22 7/8 (579)
Net weight in lbs. (kg) 42 (19.0)
Length of electrical wire in ft (m) 2 (0.8)
Standard plug fitted •
Total connected load in kW 0.81
Voltage in V 120
Fuse rating in A 15
Number of phases 1
Installation note
Vent connection at top •
Diameter of vent connection in in.(mm) 9 7/8 (250)
Standard accessories
Non-return flap •
