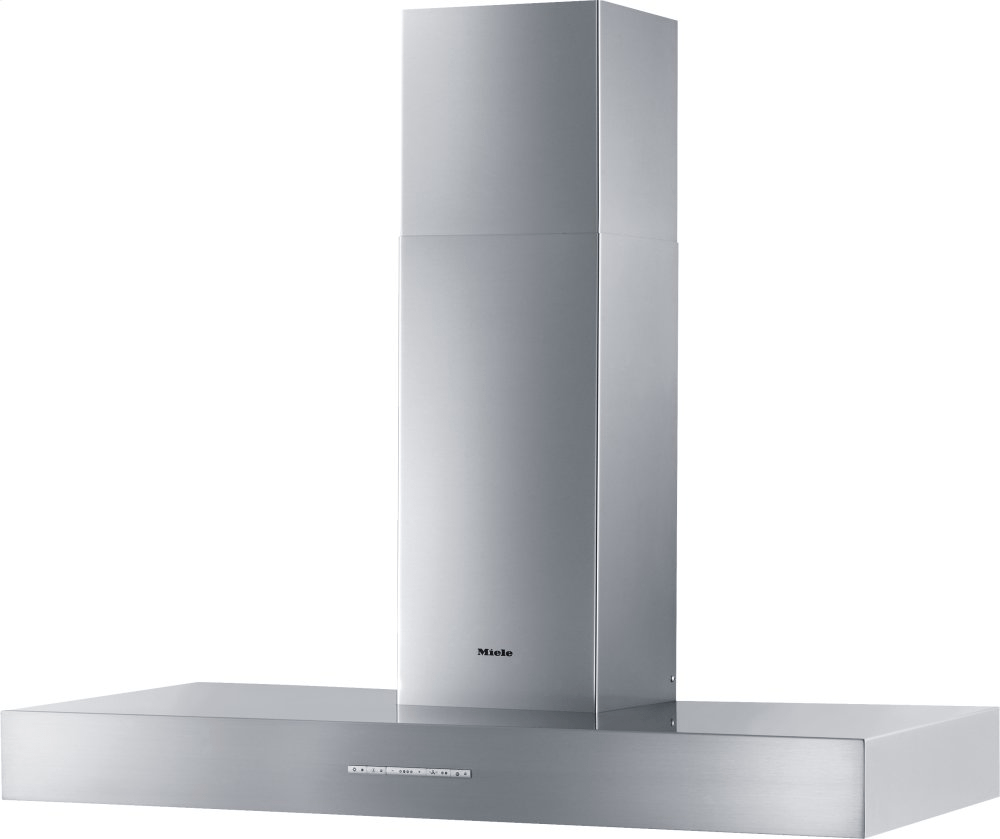

Miele DA5428WPURISTICARCA DA 5428 W Puristic Arca - Wall ventilation hood with energy-efficient LED lighting and backlit controls for easy use.

$3,199.00

Or $266.58/mo suggested payments with 12-month special financing. More financing options available.

Rebates Available See below

Overview & Specifications

USER CONVENIENCE

Delayed shutdown

Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."


filter saturation indicator

Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.



SAFETY

Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.



SETUP/FUNCTION

Con@ctivity 3.0

Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.



FEATURES

Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.


Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.


Silence

Efficient and quiet: The fan is effectively insulated with special soundproofing mats.

  • Delayed shutdown
  • Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
  • filter saturation indicator
  • Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
  • Safety turn off
  • Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
  • Con@ctivity 3.0
  • Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
  • Stainless-steel grease filters (10-layer)
  • Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
  • Miele CleanCover
  • Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
  • Silence
  • Efficient and quiet: The fan is effectively insulated with special soundproofing mats.

Design
Wall ventilation hood •
Operating modes
Recirculated mode Exhaust air
Design
Color Stainless steel
User convenience
Miele@home •
Automatic function Con@ctivity 3.0
Electronic controls •
Operation Light-touch switches with LEDs
Miele@mobile app •
Power levels (number excl. Intensive) 3
Programmable Intensive switch-off •
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator •
Programmable grease filter saturation indicator •
Acoustic package
Cleaning convenience
Easy-to-clean CleanCover hood liner •
Filter system
Number of dishwasher-safe stainless-steel grease filters 4
Lighting
LED ClearView lighting •
Number x W 4 x 3 W
Light intensity in Lx 400 lx
Color temperature in K 3000 Kelvin
Blower
Dual-action blower •
AC motor •
Exhaust air
Air throughput Values upon request
Safety
Safety shut-off •
Technical data
Overall min. height for vented and external in in. (mm) 29 3/8 (745)
Overall max. height for vented and external in in. (mm) 41 5/8 (1055)
Overall min. height for recirculation in in. (mm) 34 1/2 (875)
Overall max. height for recirculation in in. (mm) 46 3/4 (1185)
Canopy width in in. (mm) 47 1/4 (1198)
Canopy height in in. (mm) 4 3/4 (120)
Depth of hood canopy in in. (mm) 20 1/2 (520)
Minimum distance above electric cooktops in in. (mm) 24 1/8 (610)
Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm 26 (660)
Net weight in lbs. (kg) 83 (37.5)
Length of electrical wire in ft. (m) 2 (0.8)
Standard plug fitted •
Total connected load in kW 0.36
Voltage in V 120
Fuse rating in A 15
Frequency in Hz 60
Number of phases 1
Installation note
Vent connection at top •
Vent connection at top and rear •
Diameter of vent connection in in. (mm) 6 (150)
Telescopic chimney •
Standard accessories
Non-return flap •
Reducer from 150 to 125 mm •
