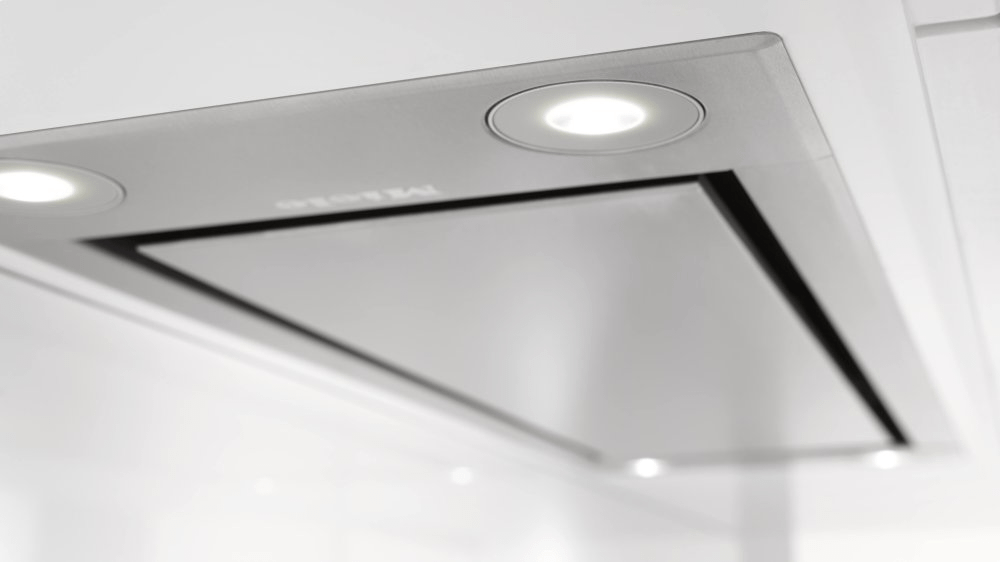

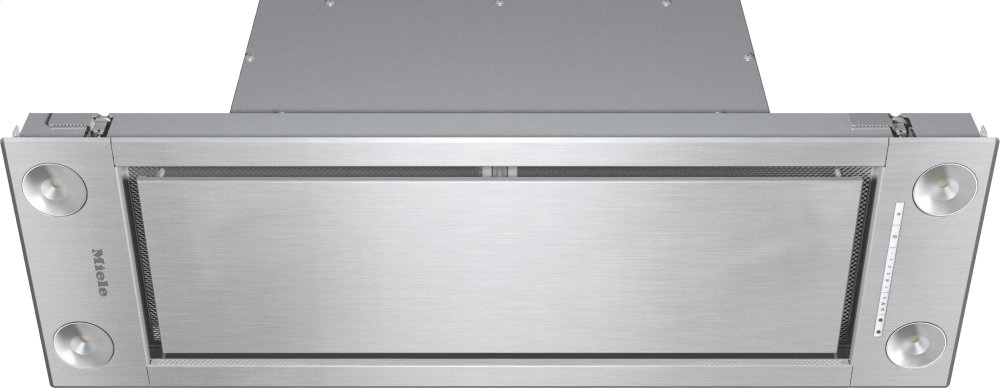

Miele DA2698STAINLESSSTEEL DA 2698 - Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use.

$2,399.00

Or $199.91/mo suggested payments with 12-month special financing. More financing options available.

Rebates Available See below

Overview & Specifications

USER CONVENIENCE

Delayed shutdown

Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."


filter saturation indicator

Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.


Con@ctivity

Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.



EFFICIENCY AND SUSTAINABILITY

Economy-Motor

Powerful and economical: The DC motor saves up to 50% electricity compared with conventional motors.



SAFETY

Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.



FEATURES

Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.


Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.


Edge vented

Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.

  • Delayed shutdown
  • Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
  • filter saturation indicator
  • Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
  • Con@ctivity
  • Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
  • Economy-Motor
  • Powerful and economical: The DC motor saves up to 50% electricity compared with conventional motors.
  • Safety turn off
  • Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
  • Stainless-steel grease filters (10-layer)
  • Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
  • Miele CleanCover
  • Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
  • Edge vented
  • Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.

Design
Insert ventilation extractor •
Operating modes
Recirculated mode Can be retrofitted
Recirculation conversion kit (order separately) DUU 151
OdorFree charcoal filter (order separately) DKF 19-P
Design
Color Stainless steel
Edge extraction •
User convenience
Miele@home •
Automatic function Con@ctivity •
Electronic controls •
Operation Light-touch switches with LEDs
Power levels (number excl. Intensive) 3
Programmable Intensive switch-off •
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator •
Programmable grease filter saturation indicator •
Programmable charcoal filter saturation indicator •
Efficiency and sustainability
PowerManagement system
Cleaning convenience
Easy-to-clean CleanCover hood liner •
Filter system
Number of dishwasher-safe stainless-steel grease filters 2
Lighting
LED ClearView lighting •
Number x W 4 x 3 W
Light intensity in Lx 650 lx
Color temperature in K 3500 Kelvin
Light dimmer function •
Blower
Dual-action blower •
DC motor •
Exhaust air
Air throughput Values upon request
Safety
Safety shut-off •
Technical data
Canopy width in in. (mm) 34 3/4 (880)
Canopy height in in. (mm) 2 1/2 (63)
Depth of hood canopy in in. (mm) 11 5/8 (293)
Minimum distance above electric cooktops in in. (mm) 24 1/8 (610)
Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm 26 (660)
Net weight in lbs. (kg) 31 (14.0)
Length of electrical wire in ft. (m) 4 (1.5)
Standard plug fitted •
Total connected load in kW 0.36
Voltage in V 120
Fuse rating in A 15
Frequency in Hz 60
Number of phases 1
Installation note
Vent connection at top •
Vent connection at top and rear •
Diameter of vent connection in in. (mm) 6 (150)
Standard accessories
Non-return flap •
Communication module for Con@ctivity XKM 2000 DA XKS 3000 Z
